NISSAN TEANA 2003 Service Manual

RADIATOR (ALUMINUM TYPE)
CO-19
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-19, "
INSPECTION" .
INSPECTION
1. Apply pressure with radiator cap tester adapter (SST) and radia-
tor cap tester (commercial service tool).
WARNING:
To prevent the risk of hose coming undone while under
pressure, securely fasten it down with hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet.
2. Check for leakage by soaking radiator in water container with
the testing pressure applied.Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC933
SLC934

CO-20
[QR]
COOLING FAN

COOLING FANPFP:21140
Removal and InstallationBBS005A8
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-10, "Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belt.
2. Remove air duct (inlet). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
3. Disconnect radiator hose (upper) at radiator side. Refer to CO-13, "
RADIATOR" .
4. Disconnect harness connector from fan motors, and move harness to aside.
5. Remove battery and battery tray, and move fuse and fusible link block to aside. Refer to SC-4, "
BAT-
TERY" .
6. Remove mounting bolts to lift up and remove radiator cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION
Make sure that fan motors operate normally.
NOTE:
Cooling fans are controlled by ECM. For details, refer to EC-218, "
DTC P1217 ENGINE OVER TEMPERA-
TURE" .

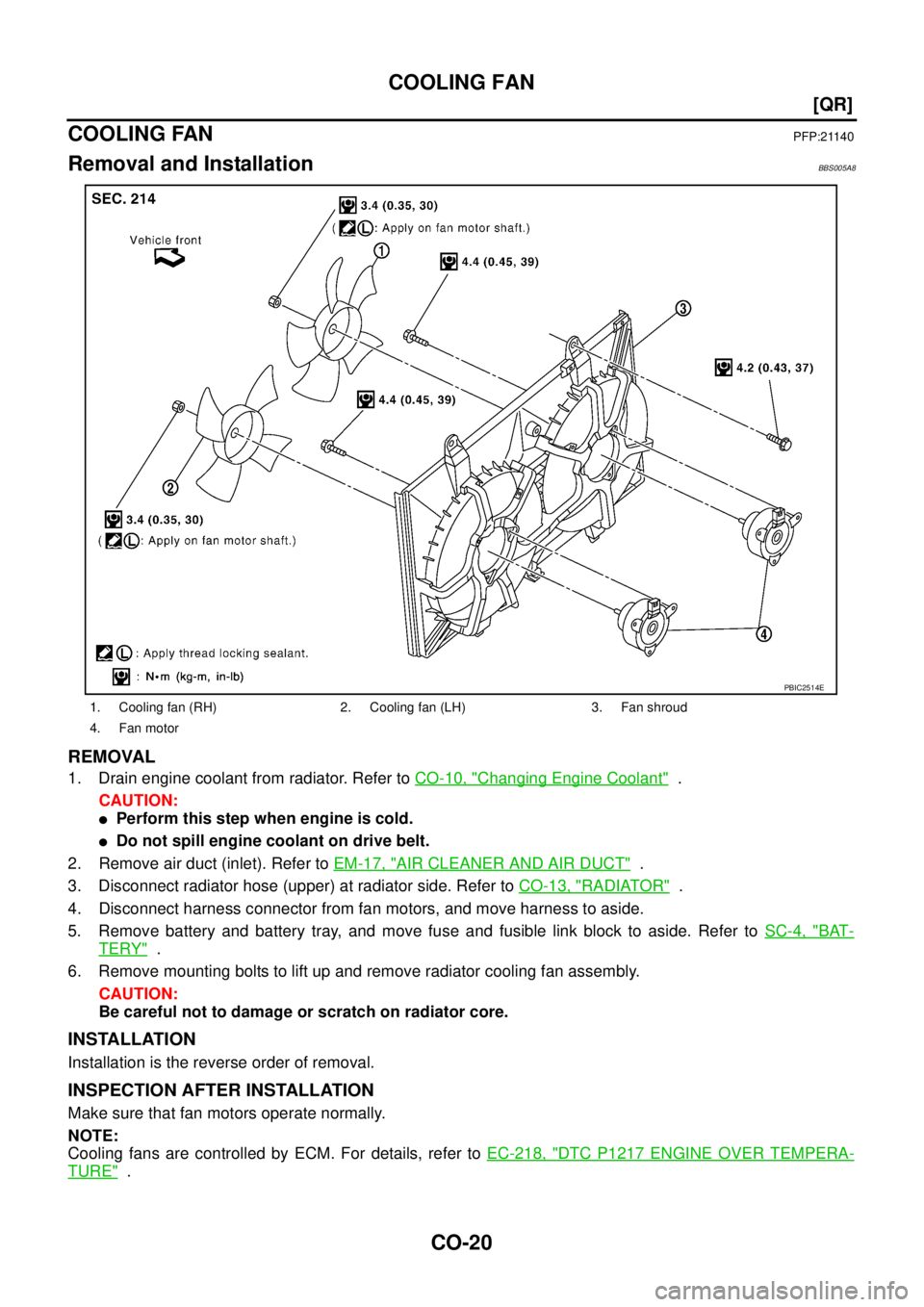

1. Cooling fan (RH) 2. Cooling fan (LH) 3. Fan shroud
4. Fan motor
PBIC2514E

COOLING FAN
CO-21
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

Disassembly and Assembly BBS005A9
DISASSEMBLY
1. Remove cooling fans (RH and LH) from fan motors.
2. Remove fan motors from fan shroud.
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.

If anything is found, replace cooling fan.
ASSEMBLY
Assembly is the reverse order of disassembly.
CAUTION:
Cooling fans are different between RH and LH. Be careful not to misassemble them.

CO-22
[QR]
WATER PUMP

WATE R P U M PPFP:21020
Removal and InstallationBBS005AA
REMOVAL
1. Drain engine coolant from radiator drain plug at the bottom of radiator and from water drain plug on engine
cylinder block. Refer to CO-10, "
Changing Engine Coolant" and EM-81, "CYLINDER BLOCK" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belt.
2. Remove the following parts.

Undercover and splash guard (RH)

Drive belt; Refer to EM-14, "DRIVE BELTS" .

Drive belt auto-tensioner; Refer to EM-15, "Removal and Installation of Drive Belt Auto-Tensioner" .
3. Remove water pump.

Engine coolant will leak from cylinder block, so have a receptacle ready below.
CAUTION:

Handle water pump vane so that it does not contact any other parts.

Water pump cannot be disassembled and should be replaced as a unit.
4. Remove water pump housing with the following procedure;
a. Remove alternator. Refer to SC-27, "
CHARGING SYSTEM" .
b. Remove oil level gauge and oil level gauge guide. Refer to EM-26, "
OIL PAN AND OIL STRAINER" .
CAUTION:
Plug the oil level gauge guide opening to prevent oil pan from entering foreign materials.
c. Remove mounting bolts for water pipe.
d. Remove water pump housing.
5. Remove exhaust manifold and three way catalyst assembly. Refer to EM-23, "
EXHAUST MANIFOLD
AND THREE WAY CATALYST" .
6. Remove water pipe.
PBIC2253E
1. Water pump 2. Gasket 3. Gasket
4. Water pump housing 5. Gasket 6. Water pipe
7. O-ring

WATER PUMP
CO-23
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

INSPECTION AFTER REMOVAL

Visually check if there is no significant dirt or rusting on water
pump body and vane.

Make sure that there is no looseness in vane shaft, and that it
turns smoothly when rotated by hand.

Replace water pump, if necessary.
INSTALLATION
Note the following, and install in the reverse order of removal.

When inserting water pipe end into cylinder block, apply a neutral detergent to O-ring. Then insert it imme-
diately.
INSPECTION AFTER INSTALLATION

Check for engine coolant leaks using radiator cap tester adapter [SST: EG17650301] and radiator cap
tester (commercial service tool). Refer to CO-10, "
LEAK CHECK" .

Start and warm up engine. Visually check if there is no leaks of engine coolant.
KBIA0155E

CO-24
[QR]
THERMOSTAT AND WATER CONTROL VALVE

THERMOSTAT AND WATER CONTROL VALVEPFP:21200
Removal and InstallationBBS005AB
REMOVAL
1. Drain engine coolant from radiator drain plug at the bottom of radiator and from water drain plug on engine
cylinder block. Refer to CO-10, "
Changing Engine Coolant" and EM-81, "CYLINDER BLOCK" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belt.
2. Disconnect radiator hose (lower) at water inlet side. Refer to CO-13, "
RADIATOR" .
3. Remove water inlet and thermostat.
4. Remove water control valve with the following procedure:
a. Disconnect radiator hose (upper) at water control valve housing (water outlet) side.
b. Disconnect harness connector from engine coolant temperature sensor.
c. Remove heater pipe and heater hose.
d. After removing water control valve housing (water outlet), remove water control valve.
1. Thermostat 2. O-ring 3. Water inlet
4. Water control valve 5. O-ring 6. Gasket
7. Water control valve housing (water outlet) 8. Washer 9. Engine coolant temperature sensor
10. Heater hose 11. O-ring 12. Heater pipe
13. Heater hose
PBIC3519E

THERMOSTAT AND WATER CONTROL VALVE
CO-25
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

INSPECTION AFTER REMOVAL

Place a string so that it is caught in the valves of thermostat and
water control valve. Immerse fully in a container filled with water.
Heat while stirring. (The example in the figure shows thermo-
stat.)

The valve opening temperature is the temperature at which the
valve opens and falls from the thread.

Continue heating. Check the maximum valve lift amount.
NOTE:
The maximum valve lift amount standard temperature for water
control valve is the reference value.

After checking the maximum valve lift amount, lower the water
temperature and check the valve closing temperature.
Standard:

If out of the standard, replace either or both thermostat and water control valve.
INSTALLATION
Note the following, and install in the reverse order of removal.
Thermostat and Water Control Valve

Install thermostat with making rubber ring groove fit to thermo-
stat flange with the whole circumference. (The example in the
figure shows thermostat.)
NOTE:
Same procedure is applied for installation of water control valve.

Install thermostat with jiggle valve facing upwards. (The position
deviation may be within the range of 20 degrees as shown in the
figure.)

Install water control valve with the arrow facing up and the frame
center part facing upwards. (The position deviation may be
within the range of 20 degrees as shown in the figure.)
Heater Pipe Installation
Apply a neutral detergent to O-ring, then quickly insert the insertion part of heater pipe into cylinder block.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301] and a radiator cap
tester (commercial service tool). Refer to CO-10, "
LEAK CHECK" .

Start and warm up engine. Visually check if there is no leaks of engine coolant and A/T fluid.
SLC252B
Items Thermostat Water control valve
Valve opening temperature 80.5 - 83.5°C (177 - 182°F) 93.5 - 96.5°C (200 - 206°F)
Maximum valve lift 8 mm/ 95°C (0.315 in/ 203°F) 8 mm/ 108°C (0.315 in/ 226°F)
Valve closing temperature 77°C (171°F) 90°C (194°F)
PBIC0157E
PBIC0158E

CO-26
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitBBS005AC
ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: (lmp qt)
THERMOSTAT
WATER CONTROL VALVE
*: Reference data
RADIATOR
Unit: kPa (bar, kg/cm2 , psi)
Engine coolant capacity (With reservoir tank at “MAX” level) 7.4 (6-1/2)
Reservoir tank engine coolant capacity (At “MAX” level) 0.8 (3/4)
Valve opening temperature 80.5 - 83.5°C (177 - 182°F)
Maximum valve lift 8 mm/ 95°C (0.315 in/ 203°F)
Valve closing temperature 77°C (171°F)
Valve opening temperature 93.5 - 96.5°C (200 - 206°F)
Maximum valve lift 8 mm/ 108°C (0.315 in/ 226°F)*
Valve closing temperature 90°C (194°F)
Cap relief pressureStandard 78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11- 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)

PRECAUTIONS
CO-27
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

[VQ]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BBS004WR
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Liquid GasketBBS004WS
REMOVAL OF LIQUID GASKET SEALING

After removing mounting nuts and bolts, separate the mating
surface using seal cutter (SST) and remove old liquid gasket
sealing.
CAUTION:
Be careful not to damage the mating surfaces.

Tap seal cutter to insert it, and then slide it by tapping on the
side as shown in the figure.

In areas where seal cutter (SST) is difficult to use, use plastic
hammer to lightly tap the parts, to remove it.
CAUTION:
If for some unavoidable reason tool such as screwdriver is
used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using scraper, remove old liquid gasket adhering to the liquid
gasket application surface and the mating surface.

Remove liquid gasket completely from the groove of the liquid
gasket application surface, mounting bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to tube presser (SST).
Use Genuine Liquid Gasket or equivalent.
4. Apply liquid gasket without breaks to the specified location with
the specified dimensions.

If there is a groove for the liquid gasket application, apply liq-
uid gasket to the groove.
PBIC0275E
PBIC0003E
PBIC2160E

CO-28
[VQ]
PRECAUTIONS


As for the bolt holes, normally apply liquid gasket inside the
holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of service manual.

Within 5 minutes of liquid gasket application, install the mating
component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts or nuts after the installation.

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.
CAUTION:
If there are specific instructions in this manual, observe them.
SEM159F
