STEERING ANGLE SENSORPFP:25554
Removal and InstallationBFS000EU
REMOVAL
1. Remove spiral cable assembly. Refer to SRS-37, "SPIRAL CABLE" .
2. Remove screws, and then remove steering angle sensor from
spiral cable assembly.
INSTALLATION
Installation is the reverse order of the removal.
CAUTION:
Adjust the neutral position of steering angle sensor after installing. Refer to BRC-40, "
Adjustment of
Steering Angle Sensor Neutral Position" .
SFIA1404E

BRC-92
[VDC/TCS/ABS]
STEERING ANGLE SENSOR

CO-1
ENGINE COOLING SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION CO
A
CO

ENGINE COOLING SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Liquid Gasket .................................. 3
REMOVAL OF LIQUID GASKET SEALING .......... 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 5
Special Service Tools ............................................... 5
Commercial Service Tools ........................................ 5
OVERHEATING CAUSE ANALYSIS .......................... 6
Troubleshooting Chart .............................................. 6
COOLING SYSTEM .................................................... 8
Cooling Circuit .......................................................... 8
System Chart ........................................................... 9
ENGINE COOLANT .................................................. 10
Inspection ............................................................... 10
LEVEL CHECK ................................................... 10
LEAK CHECK ..................................................... 10
Changing Engine Coolant ...................................... 10
DRAINING ENGINE COOLANT ......................... 10
REFILLING ENGINE COOLANT ......................... 11
FLUSHING COOLING SYSTEM ......................... 12
RADIATOR ................................................................ 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 14
INSPECTION AFTER INSTALLATION ............... 14
Checking Radiator Cap .......................................... 14
Checking Radiator .................................................. 15
RADIATOR (ALUMINUM TYPE) .............................. 16
Disassembly and Assembly ................................... 16
PREPARATION ................................................... 16
DISASSEMBLY ................................................... 16
ASSEMBLY ......................................................... 17
INSPECTION ...................................................... 19
COOLING FAN ......................................................... 20
Removal and Installation ........................................ 20
REMOVAL ........................................................... 20INSTALLATION ................................................... 20
INSPECTION AFTER INSTALLATION ................ 20
Disassembly and Assembly .................................... 21
DISASSEMBLY ................................................... 21
INSPECTION AFTER DISASSEMBLY ................ 21
ASSEMBLY ......................................................... 21
WATER PUMP .......................................................... 22
Removal and Installation ........................................ 22
REMOVAL ........................................................... 22
INSPECTION AFTER REMOVAL ....................... 23
INSTALLATION ................................................... 23
INSPECTION AFTER INSTALLATION ................ 23
THERMOSTAT AND WATER CONTROL VALVE .... 24
Removal and Installation ........................................ 24
REMOVAL ........................................................... 24
INSPECTION AFTER REMOVAL ....................... 25
INSTALLATION ................................................... 25
INSPECTION AFTER INSTALLATION ................ 25
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 26
Standard and Limit .................................................. 26
ENGINE COOLANT CAPACITY (APPROXI-
MATE) .................................................................. 26
THERMOSTAT .................................................... 26
WATER CONTROL VALVE ................................. 26
RADIATOR .......................................................... 26
VQ
PRECAUTIONS ........................................................ 27
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................. 27
Precautions for Liquid Gasket ................................ 27
REMOVAL OF LIQUID GASKET SEALING ........ 27
LIQUID GASKET APPLICATION PROCEDURE ... 27
PREPARATION ......................................................... 29
Special Service Tools ............................................. 29
Commercial Service Tools ...................................... 29
OVERHEATING CAUSE ANALYSIS ........................ 30
Troubleshooting Chart ............................................ 30

CO-2 COOLING SYSTEM .................................................. 32
Cooling Circuit ........................................................ 32
System Chart .......................................................... 33
ENGINE COOLANT .................................................. 34
Inspection ............................................................... 34
LEVEL CHECK .................................................... 34
LEAK CHECK ...................................................... 34
Changing Engine Coolant ....................................... 34
DRAINING ENGINE COOLANT .......................... 34
REFILLING ENGINE COOLANT ......................... 35
FLUSHING COOLING SYSTEM ......................... 36
RADIATOR ................................................................ 37
Removal and Installation ........................................ 37
REMOVAL ........................................................... 37
INSTALLATION .................................................... 38
INSPECTION AFTER INSTALLATION ................ 38
Checking Radiator Cap .......................................... 38
Checking Radiator .................................................. 39
RADIATOR (ALUMINUM TYPE) ............................... 40
Disassembly and Assembly .................................... 40
PREPARATION ................................................... 40
DISASSEMBLY ................................................... 40
ASSEMBLY ......................................................... 41
INSPECTION ....................................................... 43
COOLING FAN .......................................................... 44
Removal and Installation ........................................ 44
REMOVAL ........................................................... 44INSTALLATION .................................................... 44
Disassembly and Assembly .................................... 45
DISASSEMBLY .................................................... 45
INSPECTION AFTER DISASSEMBLY ................ 45
ASSEMBLY .......................................................... 45
WATER PUMP ........................................................... 46
Removal and Installation ......................................... 46
REMOVAL ............................................................ 46
INSPECTION AFTER REMOVAL ........................ 47
INSTALLATION .................................................... 48
INSPECTION AFTER INSTALLATION ................ 49
WATER INLET AND THERMOSTAT ASSEMBLY .... 50
Removal and Installation ......................................... 50
REMOVAL ............................................................ 50
INSPECTION AFTER REMOVAL ........................ 51
INSTALLATION .................................................... 51
INSPECTION AFTER INSTALLATION ................ 51
WATER OUTLET AND WATER PIPING ................... 52
Removal and Installation ......................................... 52
REMOVAL ............................................................ 52
INSTALLATION .................................................... 53
INSPECTION AFTER INSTALLATION ................ 53
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 54
Standard and Limit .................................................. 54
ENGINE COOLANT CAPACITY (APPROXI-
MATE) .................................................................. 54
RADIATOR ........................................................... 54
THERMOSTAT ..................................................

PRECAUTIONS
CO-3
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

[QR]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BBS0059V
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Liquid GasketBBS005AV
REMOVAL OF LIQUID GASKET SEALING

After removing mounting nuts and bolts, separate the mating
surface using seal cutter (SST) and remove old liquid gasket
sealing.
CAUTION:
Be careful not to damage the mating surfaces.

Tap seal cutter to insert it, and then slide it by tapping on the
side as shown in the figure.

In areas where seal cutter (SST) is difficult to use, use plastic
hammer to lightly tap the parts, to remove it.
CAUTION:
If for some unavoidable reason tool such as screwdriver is
used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using scraper, remove old liquid gasket adhering to the liquid
gasket application surface and the mating surface.

Remove liquid gasket completely from the groove of the liquid
gasket application surface, mounting bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to tube presser (SST).
Use Genuine Liquid Gasket or equivalent.
4. Apply liquid gasket without breaks to the specified location with
the specified dimensions.

If there is a groove for the liquid gasket application, apply liq-
uid gasket to the groove.
PBIC0275E
PBIC0003E
PBIC2160E

CO-4
[QR]
PRECAUTIONS


As for the bolt holes, normally apply liquid gasket inside the
holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of service manual.

Within 5 minutes of liquid gasket application, install the mating
component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts or nuts after the installation.

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.
CAUTION:
If there are specific instructions in this manual, observe them.
SEM159F

PREPARATION
CO-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

PREPARATIONPFP:00002
Special Service ToolsBBS0059X
Commercial Service ToolsBBS0059Y
Tool number
Tool nameDescription
EG17650301
Radiator cap tester adapterAdapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV99103510
Radiator plate pliers AInstalling radiator upper and lower tanks
KV99103520
Radiator plate pliers BRemoving radiator upper and lower tanks
KV10111100
Seal cutterRemoving chain tensioner cover and water
pump cover
WS39930000
Tube presserPressing the tube of liquid gasket
S-NT564
S-NT224
S-NT225
NT046
S-NT052
Tool nameDescription
Radiator cap tester Checking radiator and radiator cap
PBIC1982E

CO-6
[QR]
OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartBBS0059Z
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat and water con-
trol valve stuck closed—
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ate
Fan assembly — High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant viscosity —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

OVERHEATING CAUSE ANALYSIS
CO-7
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

Except cool-
ing system
parts mal-
function— Overload on engineAbusive drivingHigh engine rpm under no
load
Driving in low gear for
extended time
Driving at extremely high
speed
Power train system mal-
function
— Installed improper size
wheels and tires
Dragging brakes
Improper ignition timing
Blocked or restricted air
flowBlocked bumper —
— Blocked radiator grilleInstalled car brassiere
Mud contamination or
paper clogging
Blocked radiator —
Blocked condenser
Blocked air flow
Installed large fog lamp Symptom Check items

CO-8
[QR]
COOLING SYSTEM

COOLING SYSTEMPFP:21020

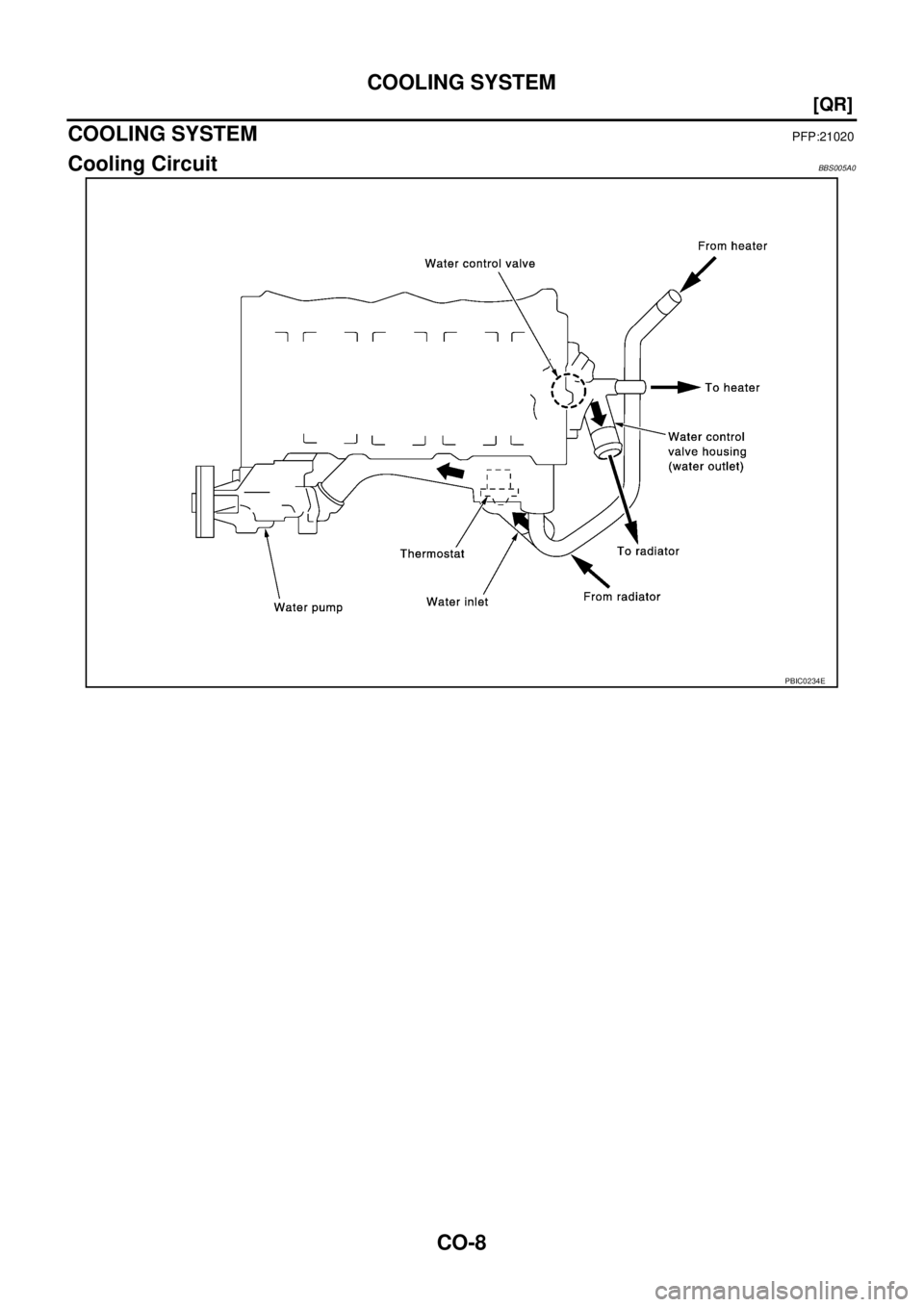

Cooling CircuitBBS005A0
PBIC0234E
