NISSAN TEANA 2003 Service Manual

RADIATOR
CO-39
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

CAUTION:
When installing radiator cap, thoroughly wipe out the radiator filler neck to remove any waxy residue
or foreign material.
Checking Radiator BBS004X2
Check radiator for mud or clogging. If necessary, clean radiator as follows.

Be careful not to bend or damage the radiator fins.

When radiator is cleaned without removal, remove all surrounding parts such as cooling fan, radiator
shroud and horns. Then tape harness and electrical connectors to prevent water from entering.
1. Apply water by hose to the back side of radiator core vertically downward.
2. Apply water again to all radiator core surface once per minute.
3. Stop washing if any stains no longer flow out from radiator.
4. Blow air into the back side of radiator core vertically downward.

Use compressed air lower than 490 kPa (4.9 bar, 5 kg/cm2 , 71 psi) and keep distance more than 30 cm
(11.8 in).
5. Blow air again into all the radiator core surfaces once per minute until no water sprays out.

CO-40
[VQ]
RADIATOR (ALUMINUM TYPE)

RADIATOR (ALUMINUM TYPE)PFP:21460

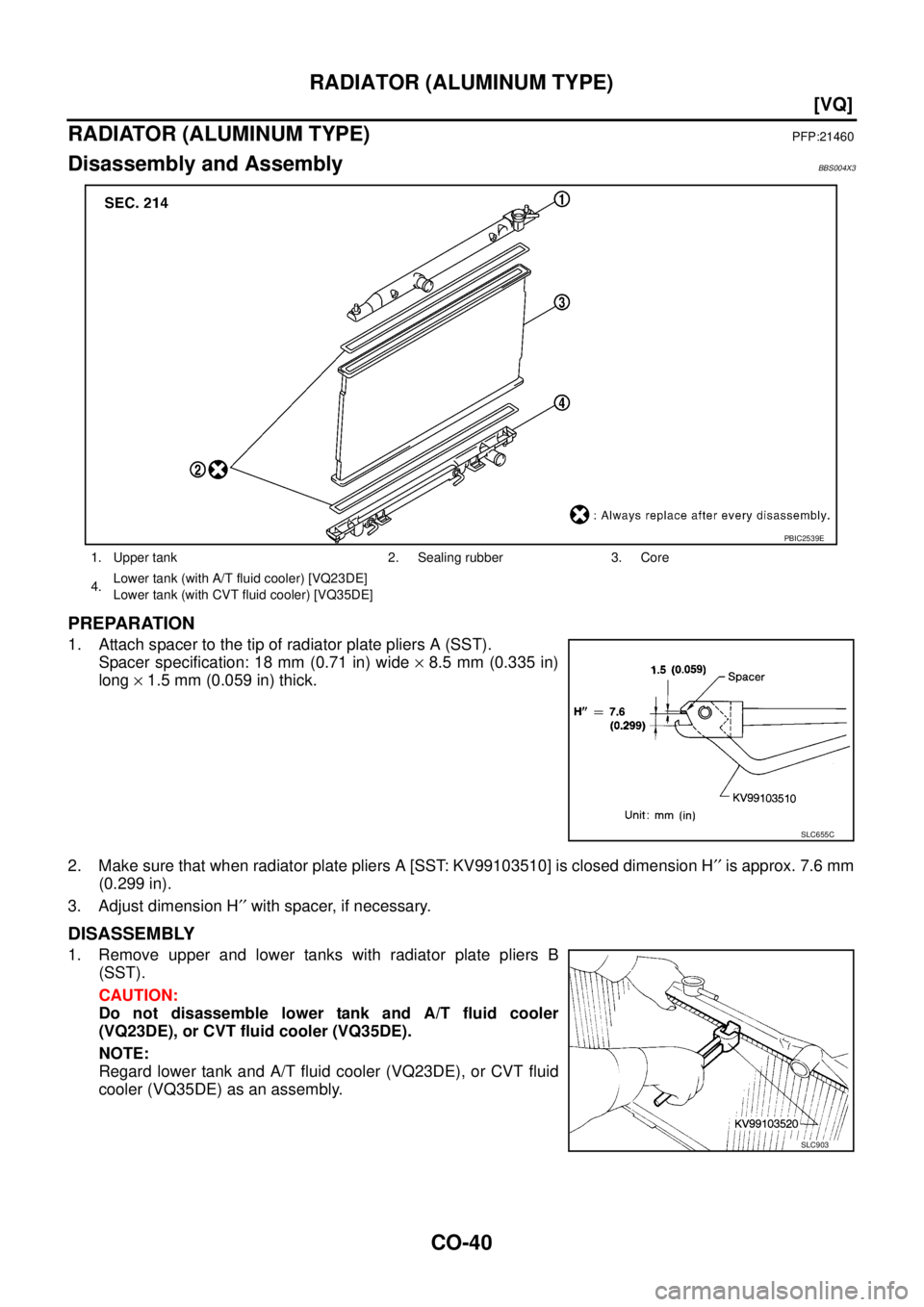

Disassembly and AssemblyBBS004X3
PREPARATION
1. Attach spacer to the tip of radiator plate pliers A (SST).
Spacer specification: 18 mm (0.71 in) wide × 8.5 mm (0.335 in)
long × 1.5 mm (0.059 in) thick.
2. Make sure that when radiator plate pliers A [SST: KV99103510] is closed dimension H′′ is approx. 7.6 mm
(0.299 in).
3. Adjust dimension H′′ with spacer, if necessary.
DISASSEMBLY
1. Remove upper and lower tanks with radiator plate pliers B
(SST).
CAUTION:
Do not disassemble lower tank and A/T fluid cooler
(VQ23DE), or CVT fluid cooler (VQ35DE).
NOTE:
Regard lower tank and A/T fluid cooler (VQ23DE), or CVT fluid
cooler (VQ35DE) as an assembly.
1. Upper tank 2. Sealing rubber 3. Core
4.Lower tank (with A/T fluid cooler) [VQ23DE]
Lower tank (with CVT fluid cooler) [VQ35DE]
PBIC2539E
SLC655C
SLC903

RADIATOR (ALUMINUM TYPE)
CO-41
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO


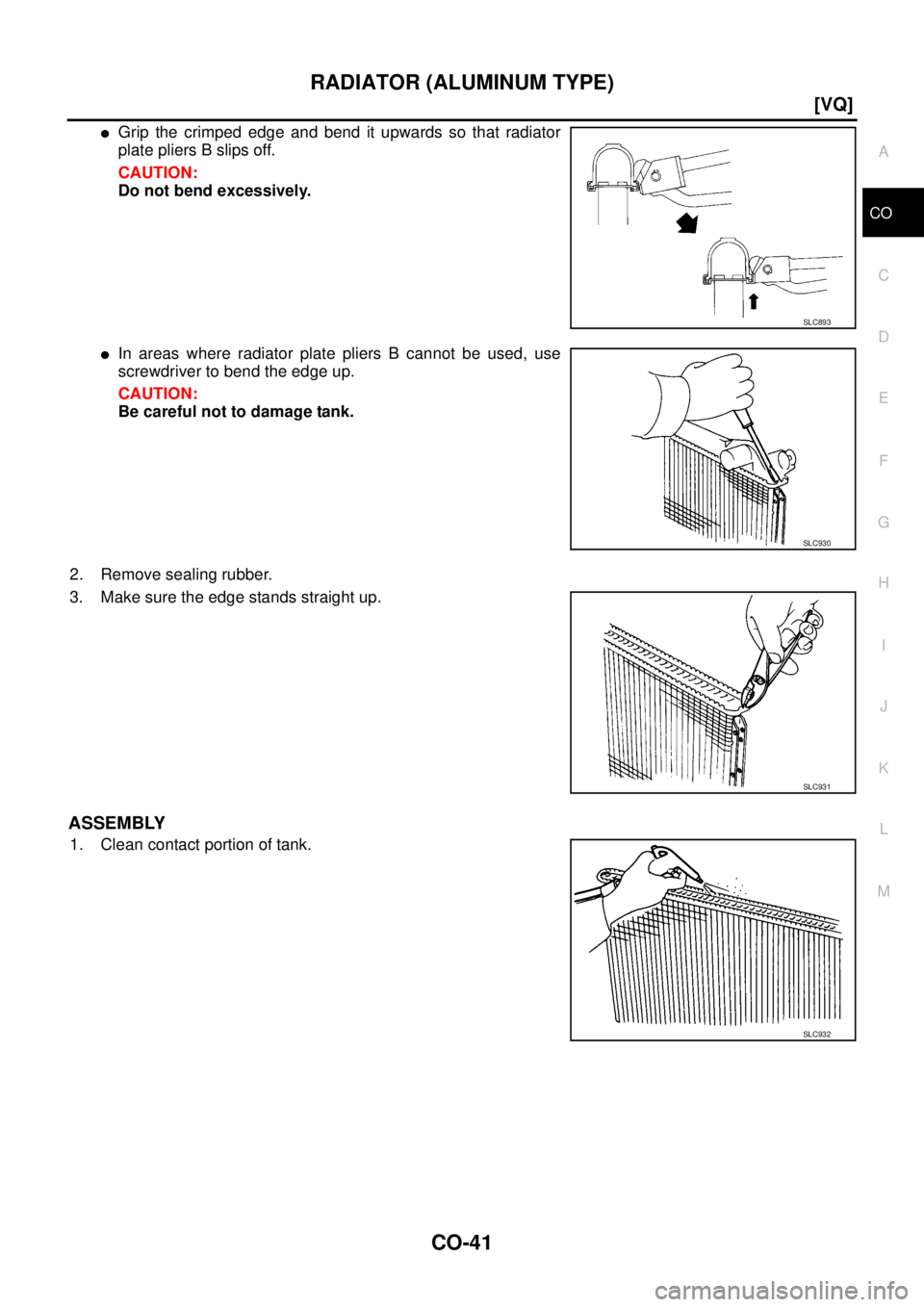

Grip the crimped edge and bend it upwards so that radiator
plate pliers B slips off.
CAUTION:
Do not bend excessively.

In areas where radiator plate pliers B cannot be used, use
screwdriver to bend the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
ASSEMBLY
1. Clean contact portion of tank.
SLC893
SLC930
SLC931
SLC932

CO-42
[VQ]
RADIATOR (ALUMINUM TYPE)

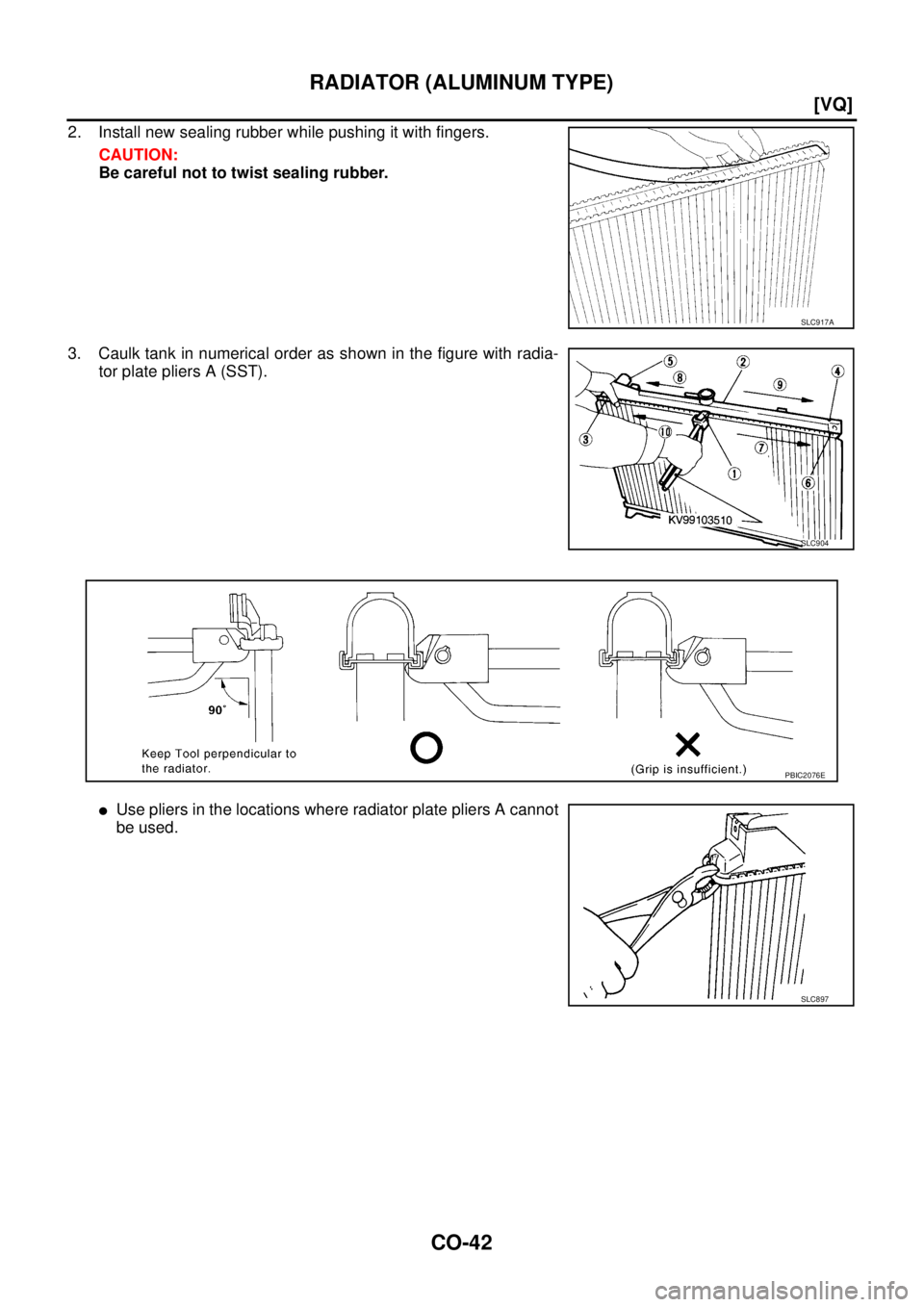

2. Install new sealing rubber while pushing it with fingers.
CAUTION:
Be careful not to twist sealing rubber.
3. Caulk tank in numerical order as shown in the figure with radia-
tor plate pliers A (SST).

Use pliers in the locations where radiator plate pliers A cannot
be used.
SLC917A
SLC904
PBIC2076E
SLC897

RADIATOR (ALUMINUM TYPE)
CO-43
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-43, "
INSPECTION" .
INSPECTION
1. Apply pressure with radiator cap tester adapter (SST) and radia-
tor cap tester (commercial service tool).
WARNING:
To prevent the risk of hose coming undone while under
pressure, securely fasten it down with hose clamp.
CAUTION:
Attach hose to A/T fluid cooler or CVT fluid cooler to seal its
inlet and outlet.
2. Check for leakage by soaking radiator in water container with
the testing pressure applied.Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC933
SLC934

CO-44
[VQ]
COOLING FAN

COOLING FANPFP:21140
Removal and InstallationBBS004X4
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-34, "Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
2. Remove air duct (inlet). Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
3. Disconnect radiator hose (upper) at radiator side. Refer to CO-37, "
RADIATOR" .
4. Disconnect harness connector from fan motors, and move harness to aside.
5. Remove battery and battery tray, and move fuse and fusible link block to aside. Refer to SC-4, "
BAT-
TERY" .
6. Remove mounting bolts to lift up and remove radiator cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Installation is the reverse order of removal.

Cooling fans are controlled by ECM. For details, refer to EC-575, "DTC P1217 ENGINE OVER TEMPER-
ATURE" .

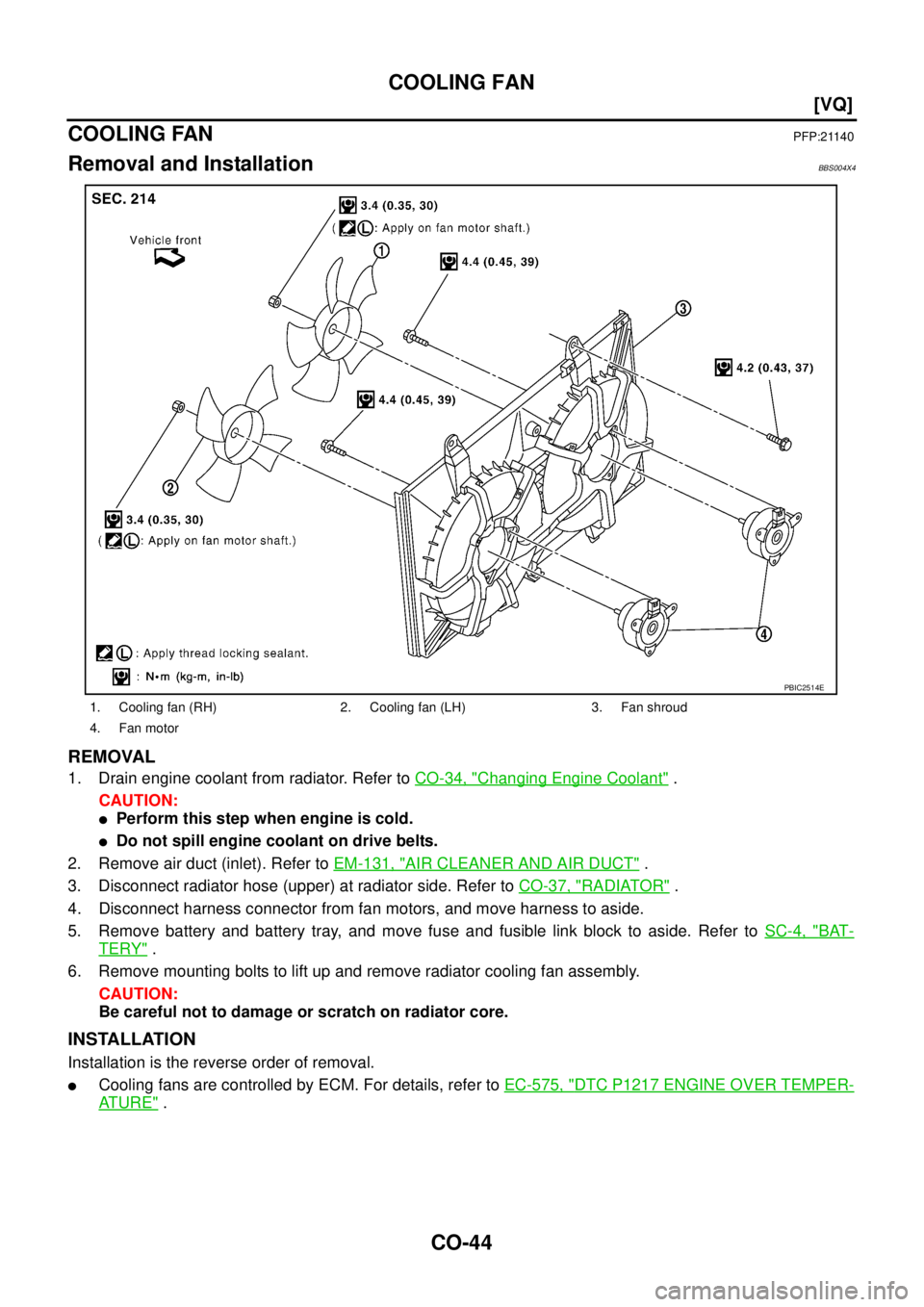

1. Cooling fan (RH) 2. Cooling fan (LH) 3. Fan shroud
4. Fan motor
PBIC2514E

COOLING FAN
CO-45
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

Disassembly and Assembly BBS004X5
DISASSEMBLY
1. Remove cooling fans (RH and LH) from fan motors.
2. Remove fan motors from fan shroud.
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.

If anything is found, replace cooling fan.
ASSEMBLY
Assembly is the reverse order of disassembly.
CAUTION:
Cooling fans are different between RH and LH. Be careful not to misassemble them.

CO-46
[VQ]
WATER PUMP

WATE R P U M PPFP:21020
Removal and InstallationBBS004X6
CAUTION:

When removing water pump assembly, be careful not to get engine coolant on drive belts.

Water pump cannot be disassembled and should be replaced as a unit.

After installing water pump, connect hose and clamp securely, then check for leaks using radiator
cap tester (commercial service tool) and radiator cap tester adapter [SST: EG17650301].
REMOVAL
1. Remove engine cover. Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .
2. Remove air duct (inlet). Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
3. Remove undercover and splash guard (RH).
4. Drain engine coolant from radiator. Refer to CO-34, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
5. Remove drive belts. Refer to EM-128, "
DRIVE BELTS" .
6. Remove reservoir tank of radiator. Refer to CO-37, "
RADIATOR" .
7. Remove reservoir tank of power steering oil pump with piping connected, and move it to aside.
8. Support oil pan (lower) bottom with transmission jack.
9. Remove engine mounting insulator (RH) and engine mounting bracket (RH). Refer to EM-223, "
ENGINE
ASSEMBLY" .
1. Water pump 2. Timing chain tensioner (primary) 3. Chain tensioner cover
4. Water drain plug (front) 5. Water pump cover 6. O-ring
7. O-ring
PBIC2515E

WATER PUMP
CO-47
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

10. Remove water drain plug (front) on water pump side of cylinder
block to drain engine coolant from engine inside.
11. Remove chain tensioner cover and water pump cover from front timing chain case.

U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ] o r e q u i v a l e n t t o o l t o c u t l i q u i d g a s k e t f o r r e m o v e .
12. Remove idler pulley and bracket. Refer to EM-173, "
TIMING CHAIN" .
13. Remove timing chain tensioner (primary) as follows:
a. Remove lower mounting bolt.
b. Loosen upper mounting bolt slowly, and then turn timing chain
tensioner (primary) on the mounting bolt so that plunger is fully
expanded.
NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).
c. Remove upper mounting bolt, and then remove timing chain ten-
sioner (primary).
CAUTION:
Be careful not to drop mounting bolts inside timing chain
case.
14. Remove water pump as follows:
a. Remove three water pump mounting bolts. Secure a gap
between water pump gear and timing chain, by turning crank-
shaft pulley counterclockwise until timing chain looseness on
water pump sprocket becomes maximum.
b. Screw M8 bolts [pitch: 1.25 mm (0.049 in) length: Approx. 50
mm (1.97 in)] into water pumps upper and lower mounting bolt
holes until they reach timing chain case. Then, alternately
tighten each bolt for a half turn, and pull out water pump.
CAUTION:

Pull straight out while preventing vane from contacting
socket in installation area.

Remove water pump without causing sprocket to contact
timing chain.
c. Remove M8 bolts and O-rings from water pump.
CAUTION:
Do not disassemble water pump.
INSPECTION AFTER REMOVAL

Check for badly rusted or corroded water pump body assembly.
PBIC2516E
PBIC3562E
PBIC1193E
JLC357B

CO-48
[VQ]
WATER PUMP


Check for rough operation due to excessive end play.

Replace water pump, if necessary.
INSTALLATION
1. Install new O-rings to water pump.

Apply engine oil and engine coolant to O-rings as shown in
the figure.

Locate O-ring with white paint mark to engine front side.
2. Install water pump.
CAUTION:
Do not allow timing chain case to nip O-rings when install-
ing water pump.

Make sure that timing chain and water pump sprocket are
engaged.

Insert water pump by tightening mounting bolts alternately
and evenly.
3. Install the timing chain tensioner (primary) with the following procedure:
a. Pull plunger stopper tab up (or turn lever downward) so as to
remove plunger stopper tab from the ratchet of plunger.
NOTE:
Plunger stopper tab and lever are synchronized.
b. Push plunger into the inside of tensioner body.
c. Hold plunger in the fully compressed position by engaging
plunger stopper tab with the tip of ratchet.
d. To secure lever, insert stopper pin through hole of lever into ten-
sioner body hole.

The lever parts and the tab are synchronized. Therefore, the
plunger will be secured under this condition.
NOTE:
Figure shows the example of 1.2 mm (0.047 in) diameter thin screwdriver being used as the stopper pin.
SLC943A
PBIC1397E
SLC031B
PBIC3568E
