SYSTEM
CAN COMMUNICATION SYSTEM : CA N Communication Signal Chart
INFOID:0000000009461413
Refer to LAN-17, "How to Use CAN Communication Signal Chart" for how to use CAN communication signal
chart.
NOTE:
Refer to LAN-23, "Abbreviation List"
for the abbreviations of the connecting units.
T: Transmit R: Receive

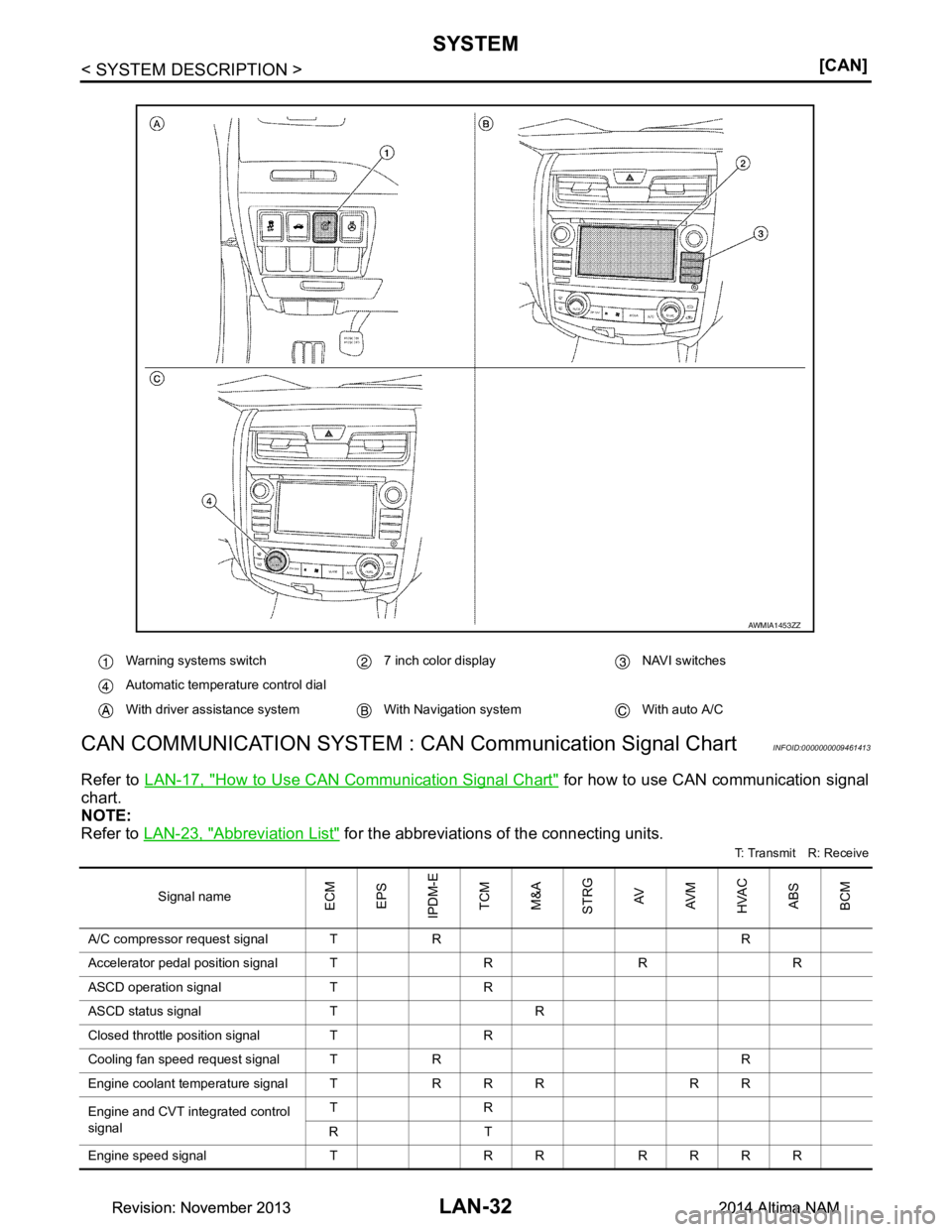

Warning systems switch 7 inch color display NAVI switches
Automatic temperature control dial
With driver assistance system With Navigation system With auto A/C
AWMIA1453ZZ
Signal nameECM
EPS
IPDM-E TCM
M&A
STRG AV
AV M
HVAC ABS
BCM
A/C compressor request signal T R R
Accelerator pedal position signal T R R R
ASCD operation signal T R
ASCD status signal T R
Closed throttle position signal T R
Cooling fan speed request signal T R R
Engine coolant temperature signal T R R R R R
Engine and CVT integrated control
signal TR
RT
Engine speed signal T RR RRRR
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

LAN
SYSTEMLAN-33
< SYSTEM DESCRIPTION > [CAN]
C
D E
F
G H
I
J
K L
B
A
O P
N
Engine status signal T R R R R
Fuel consumption monitor signal T R R
Fuel filler cap warning display signal T R
Malfunctioning indicator lamp signal TR
RT
Oil pressure warning lamp signal T R
Power generation command value
signal TR
Target throttle position signal T R
Wide open throttle position signal T R
EPS operation signal R T
Hydraulic pump electric power steer-
ing warning lamp signal TR
Detention switch signal T R R
Front wiper stop position signal T R
High beam status signal R T
Hood switch signal T R
Interlock/PNP switch signal RT
TR R
Low beam status signal R T
Oil pressure switch signal RT
TR R
Push-button ignition switch status
signal TR
Rear window defogger control signal R T
Sleep ready signal T R
Starter relay status signal T R
Steering lock unit status signal T R
Steering lock relay signal RT
TR
Current gear position signal T R R
CVT position indicator signal T R R
Input shaft revolution signal R T R R
Manual mode indicator signal T R R
N range signal T R
Output shaft revolution signal R T R R
O/D OFF indicator signal
*1TR R
P range signal T R R
Shift position signal T R R
Brake fluid level signal T R
Distance to empty signal T R
Fuel filler cap warning reset signal R T
Fuel level low warning signal T R
Fuel level sensor signal R T Signal name
ECM
EPS
IPDM-E TCM
M&A
STRG AV
AV M
HVAC ABS
BCM
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

LAN-34
< SYSTEM DESCRIPTION >[CAN]
SYSTEM
Paddle shift down signal*2
RT
Paddle shift up signal
*2RT
Manual mode signal
*2RT
Market information signal T R R
Not manual mode signal
*2RT
Overdrive control switch signal
*1RT
Parking brake switch signal T R R R
Seat belt buckle switch signal T R
Vehicle speed signal RRRR T R R R
RRRRRR TR
Steering angle sensor signal R T R R
Buzzer output signal RT
RT
Meter display signal R T
A/C switch signal R T
*3T*4
Ambient sensor signal*3RT
Blower fan motor switch signal R T
*3T*4
ABS operation signal R T
ABS warning lamp signal R T
Brake warning lamp signal R T
SLIP indicator lamp signal R T
TCS operation signal R T
VDC OFF indicator lamp signal R T
VDC operation signal R T
Yaw rate signal RT
Day time running light request signal R R R T
Door switch signal R R R R T
Front fog light request signal R R R R T
Front wiper request signal R R T
High beam request signal R R R R T
Horn reminder signal R T
Ignition switch ON signal R T
Key warning signal R T
Low beam request signal R R R R T
Meter TPMS display signal R T
Position light request signal R R R R T
Rear window defogger switch signal R R T
Sleep wake up signal R R T
Starter control relay signal R T
Theft warning horn request signal R T
Tire pressure data signal R R T Signal name
ECM
EPS
IPDM-E TCM
M&A
STRG AV
AV M
HVAC ABS
BCM
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

LAN
SYSTEMLAN-35
< SYSTEM DESCRIPTION > [CAN]
C
D E
F
G H
I
J
K L
B
A
O P
N
*1: QR25DE models
*2: VQ35DE models
*3: With automatic air conditioning system
*4: With manual air conditioning system
NOTE:
CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
Trunk switch signal R R R T
Turn indicator signal R R R T Signal name
ECM
EPS
IPDM-E TCM
M&A
STRG AV
AV M
HVAC ABS
BCM
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

LAN-36
< WIRING DIAGRAM >[CAN]
CAN SYSTEM
WIRING DIAGRAM
CAN SYSTEM
Wiring DiagramINFOID:0000000009461414

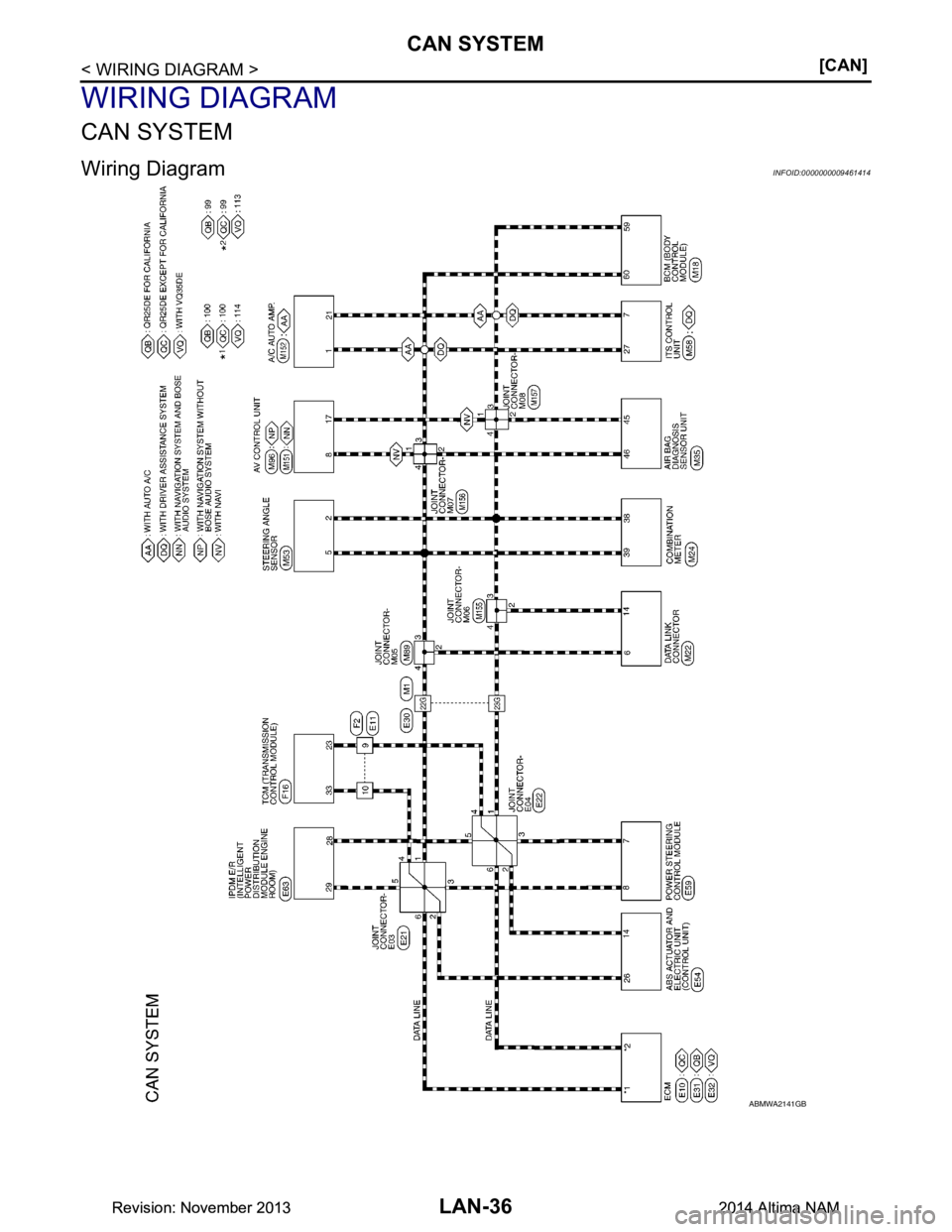

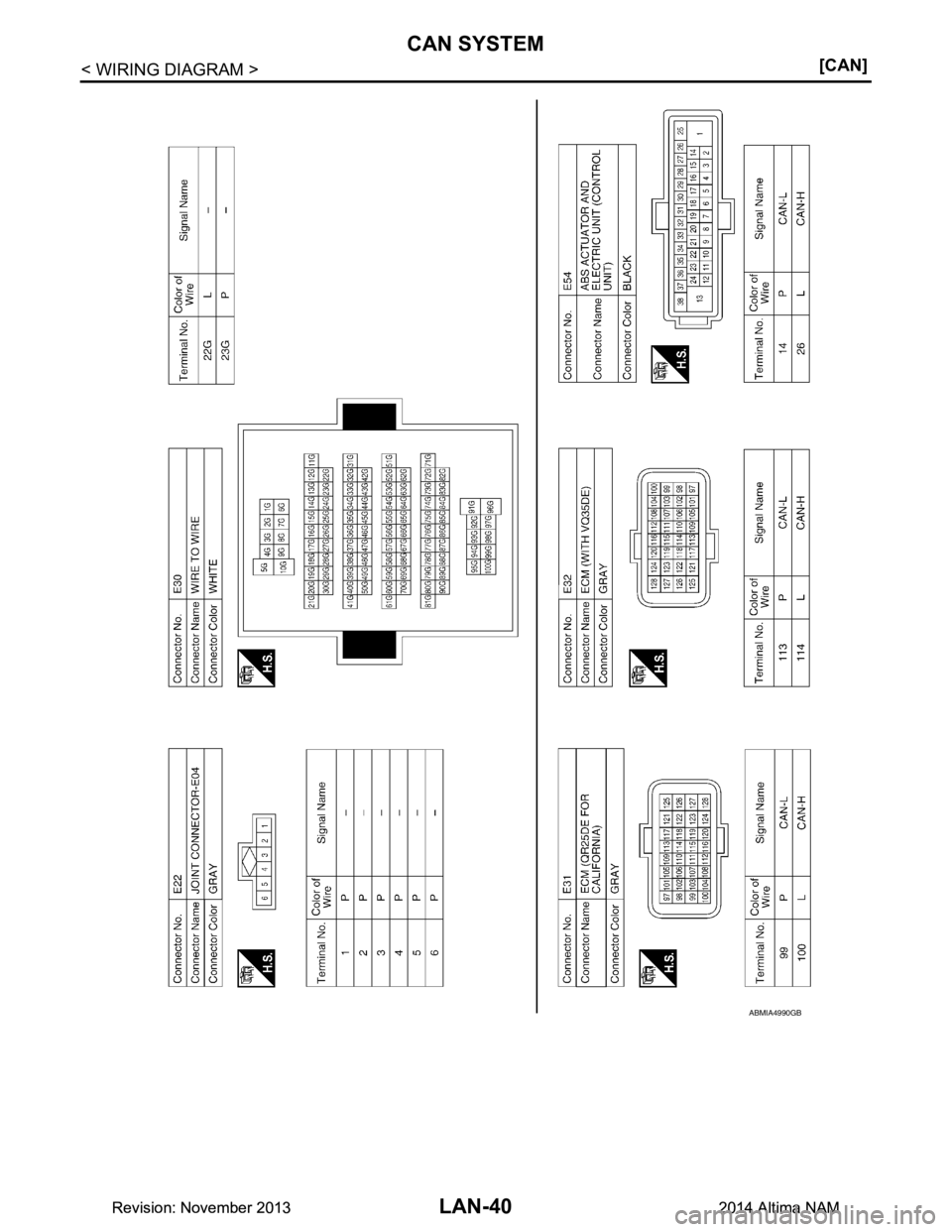

ABMWA2141GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

LAN
CAN SYSTEMLAN-37
< WIRING DIAGRAM > [CAN]
C
D E
F
G H
I
J
K L
B
A
O P
N

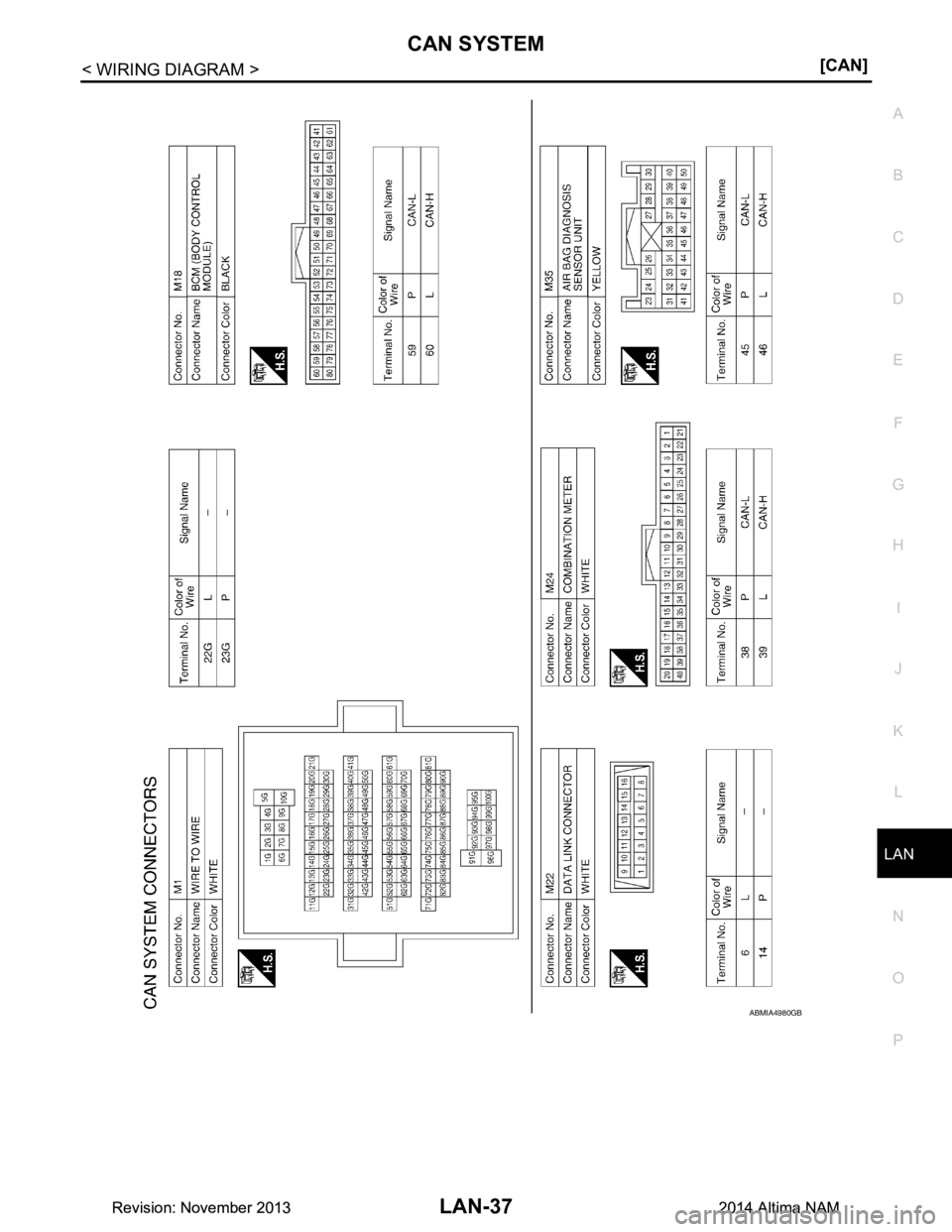

ABMIA4980GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

LAN-38
< WIRING DIAGRAM >[CAN]
CAN SYSTEM
ABMIA4981GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

LAN
CAN SYSTEMLAN-39
< WIRING DIAGRAM > [CAN]
C
D E
F
G H
I
J
K L
B
A
O P
N

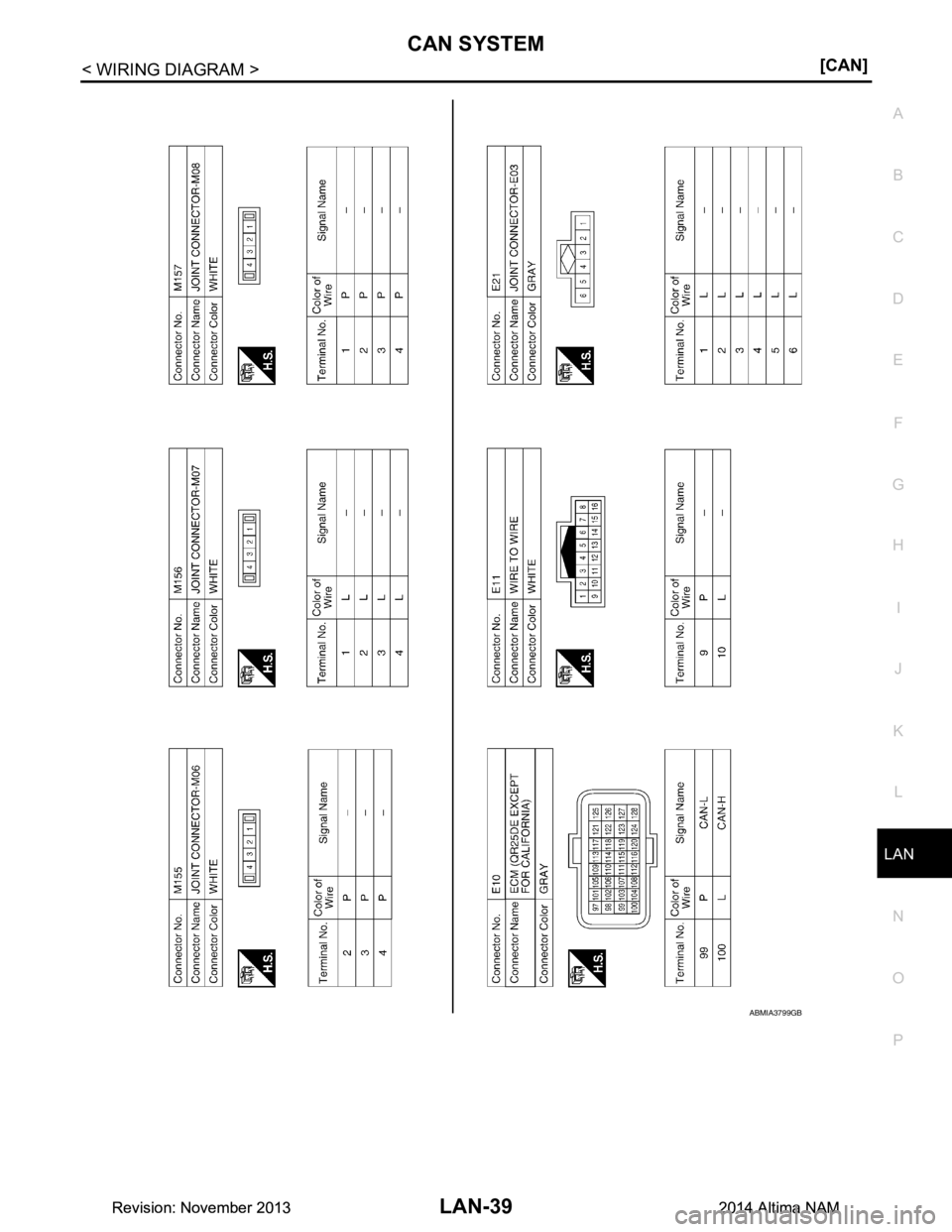

ABMIA3799GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

LAN-40
< WIRING DIAGRAM >[CAN]
CAN SYSTEM
ABMIA4990GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

LAN
CAN SYSTEMLAN-41
< WIRING DIAGRAM > [CAN]
C
D E
F
G H
I
J
K L
B
A
O P
N

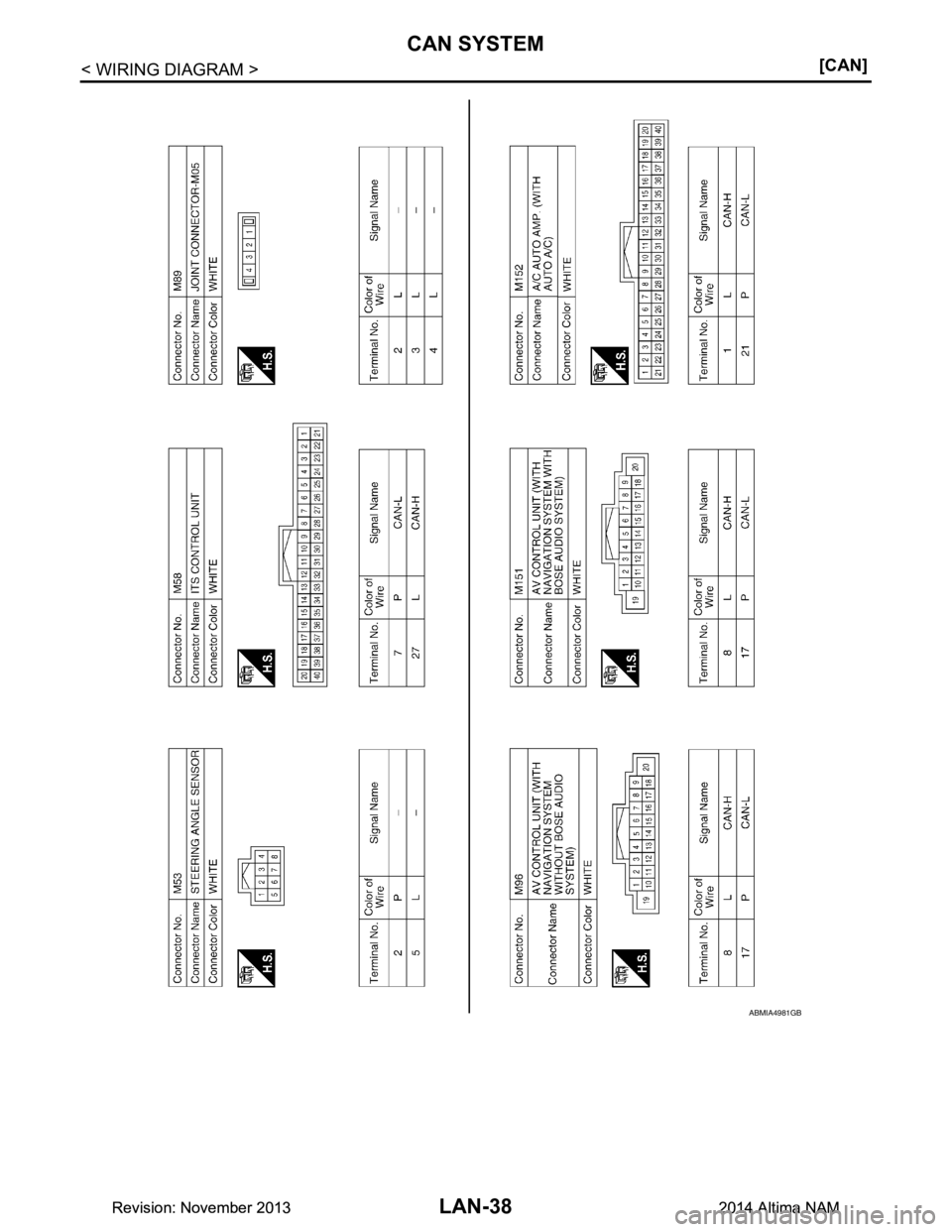

ABMIA3801GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
