horn NISSAN TERRANO 2004 Service Repair Manual

Shown below are Pre-delivery Inspection items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
UNDER HOOD Ð engine off
lRadiator coolant level and coolant hose connections for leaks
l Battery fluid level, specific gravity and conditions of battery terminals
l Drive belts tension
l Fuel filter for water or dust, and fuel lines and connections for leaks
l Engine oil level and oil leaks
l Brake and clutch reservoirs fluid level and fluid lines for leaks
l Windshield and rear window washer and headlamp cleaner reservoir fluid level
l Power steering reservoir fluid level and hose connections for leaks
ON INSIDE AND OUTSIDE
lRemove front spring/strut spacer (if applicable)
l Operation of all instruments, gauges, lights and accessories
l Operation of horn(s), wiper and washer
l Steering lock for operation
l Check air conditioner for gas leaks
l Front and rear seats, and seat belts for operation
l All moldings, trims and fittings for fit and alignment
l All windows for operation and alignment
l Hood, tailgate, door panels for fit and alignment
l Latches, keys and locks for operation
l Weatherstrips for adhesion and fit
l Headlamp aiming
l Tighten wheel nuts (Inc. inner nuts if applicable)
l Tire pressure (Inc. spare tire)
l Check front wheels for toe-in
l Install clock/voltmeter/room lamp fuse (if applicable)
l Install deodorizing filter to air conditioner (if applicable)
l Remove wiper blade protectors (if applicable)
UNDER BODY
lManual transmission/transaxle, transfer and differential gear oil level
l Brake and fuel lines and oil/fluid reservoirs for leaks
l Tighten bolts and nuts of steering linkage and gear box, suspension, propeller shafts and drive shafts
l Tighten rear body bolts and nuts (Models with wooden bed only)
ROAD TEST
lClutch operation
l Parking brake operation
l Service brake operation
l Automatic transmission/transaxle shift timing and kickdown (if applicable)
l Steering control and returnability
l Engine performance
l Squeaks and rattles
ENGINE OPERATING AND HOT
lAdjust idle speed
l Automatic transmission/transaxle fluid level (if applicable)
l Engine idling and stop knob operation
FINAL INSPECTION
lInstall necessary parts (outside mirror, wheel covers, seat belts, mat, carpet or mud flaps)
l Inspect for interior and exterior metal and paint damage
l Check for spare tire, jack, tools (wheel check) and literature
l Wash, clean interior and exterior
PRE-DELIVERY INSPECTION ITEMS
MA-3
http://vnx.su/

IIf clearance exceeds the limit, or any flaws or seizures are
found on inner surface of cylinder, horn or bore the applicable
cylinder.
Piston outer diameter
Use micrometer to measure piston skirt outer diameter.
Measurement position:10 mm (0.39 in) upper from the lower end of pis-
ton
Standard: 95.950 - 95.980 mm (3.7776 - 3.7787 in) dia.
Calculation of piston to piston bore clearance
ICalculate using piston skirt outer diameter and cylinder inner
diameter (direction X, position B).
Clearance = Cylinder inner diameter þ Piston skirt outer diam-
eter
Specifications at room temperature [20ÉC (68ÉF)]: 0.040 - 0.060 mm (0.0016 - 0.0024 in)
I If out of specification, replace piston and piston pin assembly.
SELECTIVE PISTON COMBINATION
When using new cylinder block
IConfirm cylinder bore grade (1, 2, 3) on left upper surface of
cylinder block, and refer to ªSelective combination chartº below
to select appropriate piston.
I Part No. is given to a piston and piston pin as a set.
When re-using an old cylinder block
1. Measure cylinder block bore inner diameter.
2. Referring to ªCylinder block bore inner diameterº in ªSelective
combination chartº, select appropriate piston according to cyl-
inder bore grade.
FEM110
FEM111
FEM112
FEM113
CYLINDER BLOCKZD
Inspection (Cont'd)
EM-75
http://vnx.su/

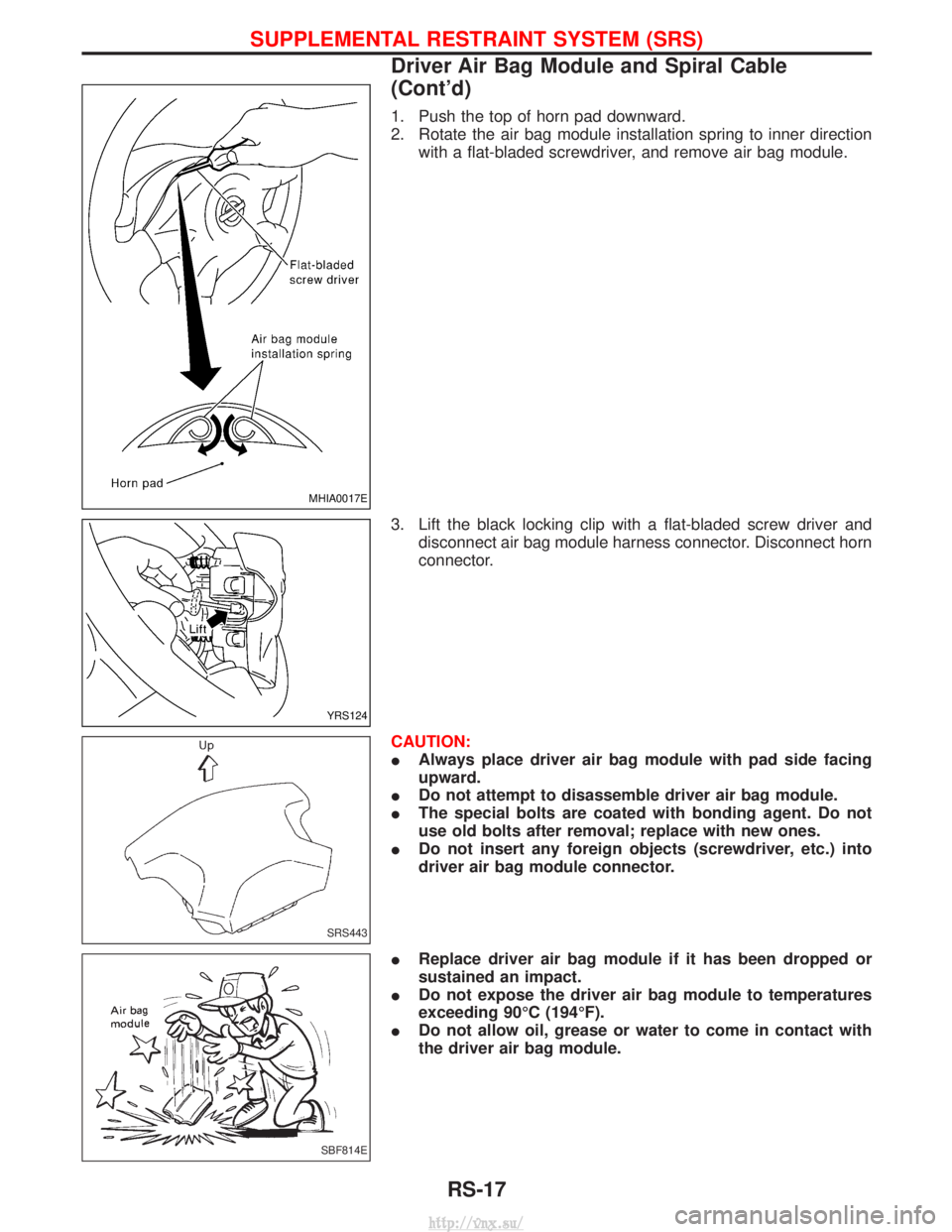

1. Push the top of horn pad downward.
2. Rotate the air bag module installation spring to inner directionwith a flat-bladed screwdriver, and remove air bag module.
3. Lift the black locking clip with a flat-bladed screw driver and disconnect air bag module harness connector. Disconnect horn
connector.
CAUTION:
I Always place driver air bag module with pad side facing
upward.
I Do not attempt to disassemble driver air bag module.
I The special bolts are coated with bonding agent. Do not
use old bolts after removal; replace with new ones.
I Do not insert any foreign objects (screwdriver, etc.) into
driver air bag module connector.
I Replace driver air bag module if it has been dropped or
sustained an impact.
I Do not expose the driver air bag module to temperatures
exceeding 90ÉC (194ÉF).
I Do not allow oil, grease or water to come in contact with
the driver air bag module.
MHIA0017E
YRS124
SRS443
SBF814E
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Driver Air Bag Module and Spiral Cable
(Cont'd)
RS-17
http://vnx.su/

4. Set steering wheel in the neutral position.
5. Disconnect horn connector (or horn/audio connector) andremove nut.
6. Remove steering wheel.
CAUTION:
I Do not tap or bump the steering wheel.
7. Remove steering column cover.
8. Disconnect in order the air bag module connector and the (horn/audio steering switch) connector behind the spiral cable.
9. Remove spiral cable securing screws, and while pushing the upper plastic tab, remove the spiral cable.
CAUTION:
I Do not attempt to disassemble spiral cable.
I Do not apply lubricant to the spiral cable.
INSTALLATION
1. Set the front wheels in the straight-ahead position.
2. Make sure that the spiral cable is in the neutral position.
The neutral position is detected by turning left (counterclock-
wise) about 2.5 revolutions from the right end position. Align the
two marks (
).
CAUTION:
I The spiral cable may snap due to steering operation if the
cable is installed in an improper position.
I Also, with the steering linkage disconnected, the cable
may snap by turning the steering wheel beyond the limited
number of turns. The spiral cable can be turned up to
about 2.5 turns from the neutral position to both the right
and left.
3. Connect spiral cable connector in the reverse order of discon- necting and tighten with screws.
4. Install steering column covers. And make sure the harness do not get caught between inner steering cover and steering col-
umn.
5. Install steering wheel, aligning with spiral cable pin guides, and pull spiral cable through.
6. Connect horn connector (or horn/audio steering switch connec- tor) and engage spiral cable with pawls in steering wheel. Move
driver air bag module connector away from steering wheel
lower lid opening.
7. Tighten nut.
:30-40N ×m (3.1 - 4.1 kg-m, 22 - 30 ft-lb)
YRS125
YRS123
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Driver Air Bag Module and Spiral Cable
(Cont'd)
RS-18
http://vnx.su/

8. Install steering switch.
9. Install the air bag module by pressing the center of the horn tomake the contacts (RH, LH) ON.
10. Connect driver air bag module connector, and push the black locking clip to secure the connector to the air bag module.
11. Conduct self-diagnosis to ensure entire SRS operates properly. (Use CONSULT-II or warning lamp check.)
Before performing self-diagnosis, connect both battery cables.
12. Turn steering wheel to the left end and then to the right end fully to make sure that spiral cable is set in the neutral position.
If ªAIR BAGº warning lamp blinks or stays ON (at the user
mode), it shows the spiral cable may be snapped due to its
improper position. Perform self-diagnosis again (use CON-
SULT-II or warning lamp). If a malfunction is detected, replace
the spiral cable with a new one.
13. Perform self-diagnosis again to check that no malfunction is detected.
Front Passenger Air Bag Module
REMOVAL
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect
both battery cables and wait for at least 3 minutes.
Always work from the side of (or under) front passenger air
bag module.
1. Remove glove box assembly. Refer to BT-16, ªINSTRUMENTPANEL ASSEMBLYº for details.
2. Disconnect inflator connector.
3. Remove bolts holding the passenger air bag module to the instrument panel.
4. Remove upper special bolts, as indicated.
5. Remove the passenger air bag module.
SHIA0184E
YRS126
NRS046
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Driver Air Bag Module and Spiral Cable
(Cont'd)
RS-19
http://vnx.su/
