GROUND CIRCUIT
GROUND CIRCUIT

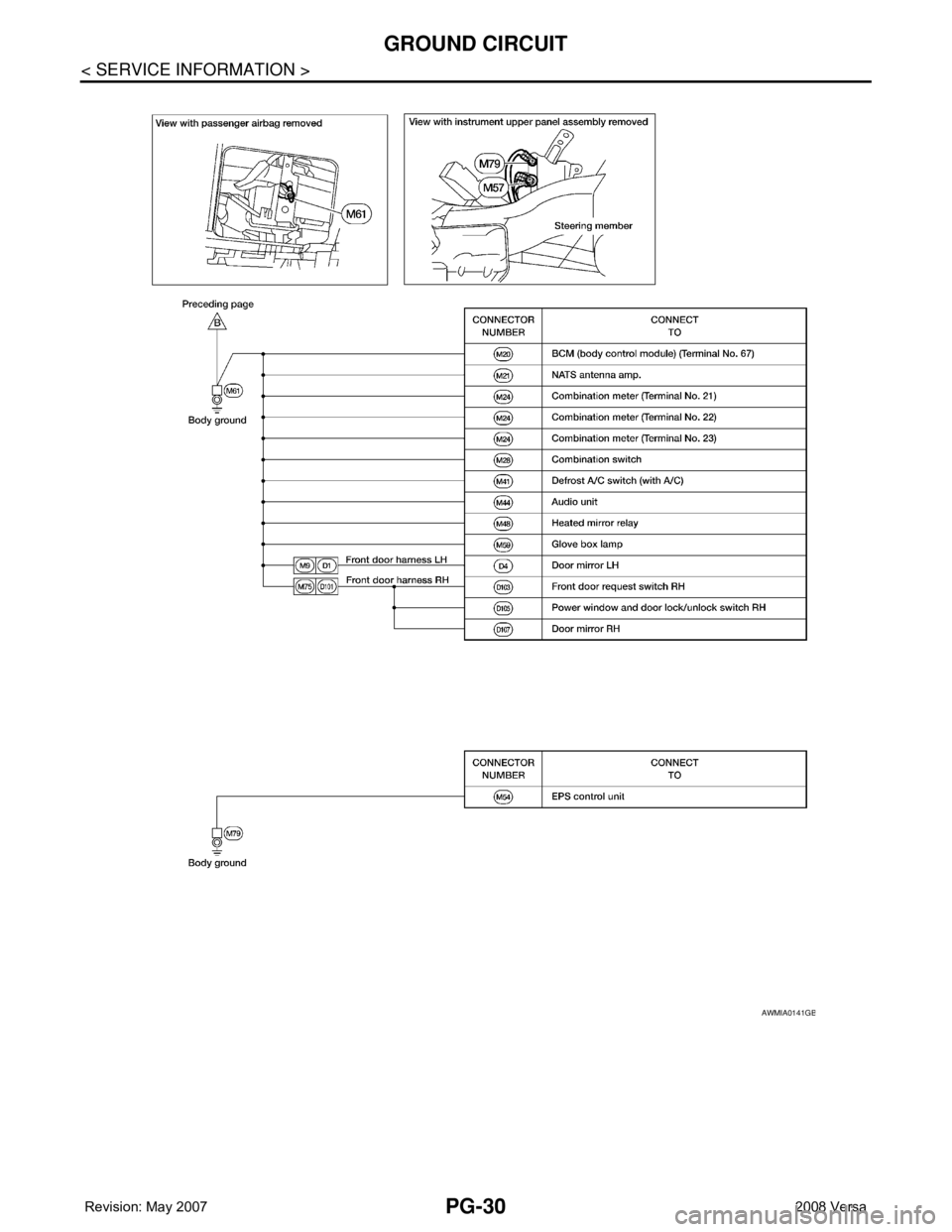

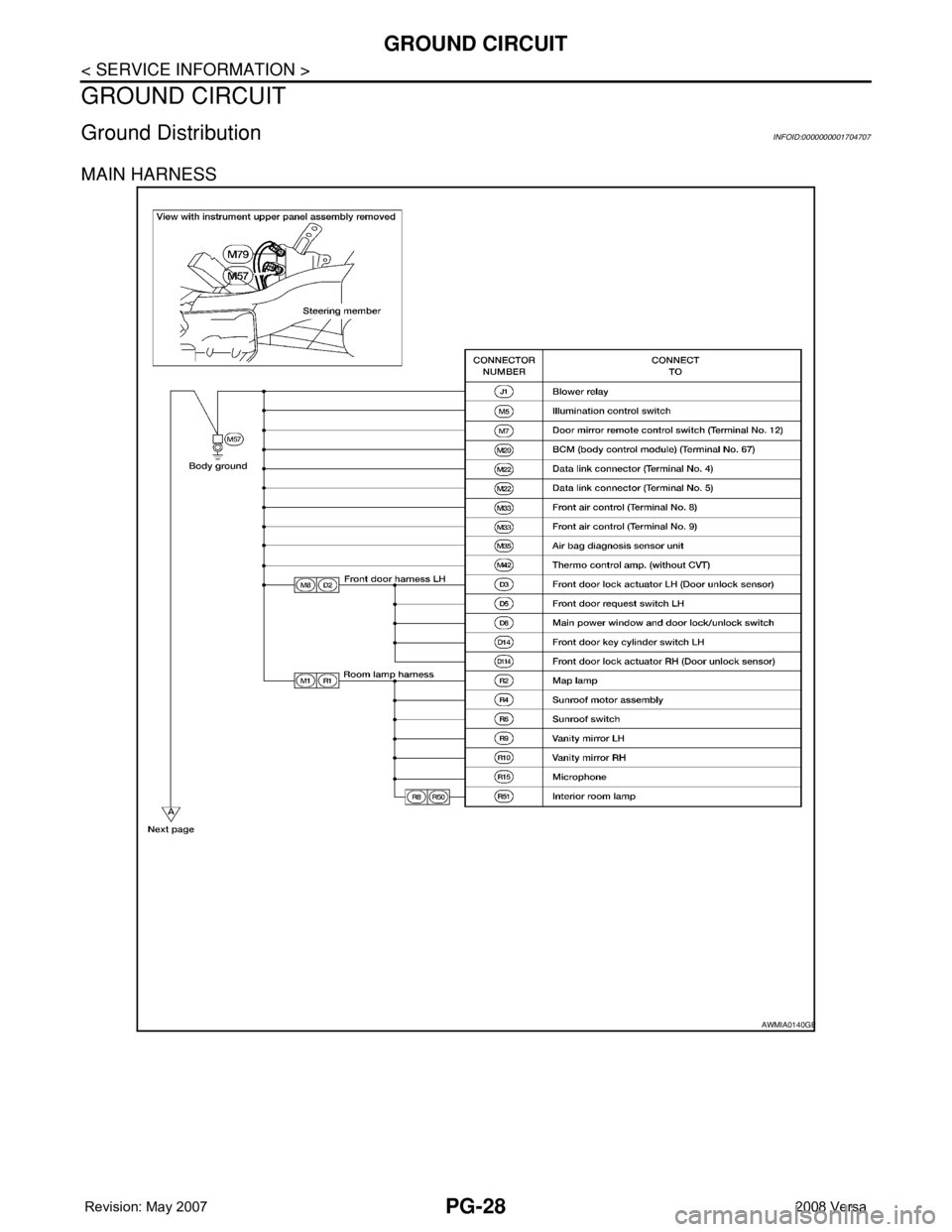

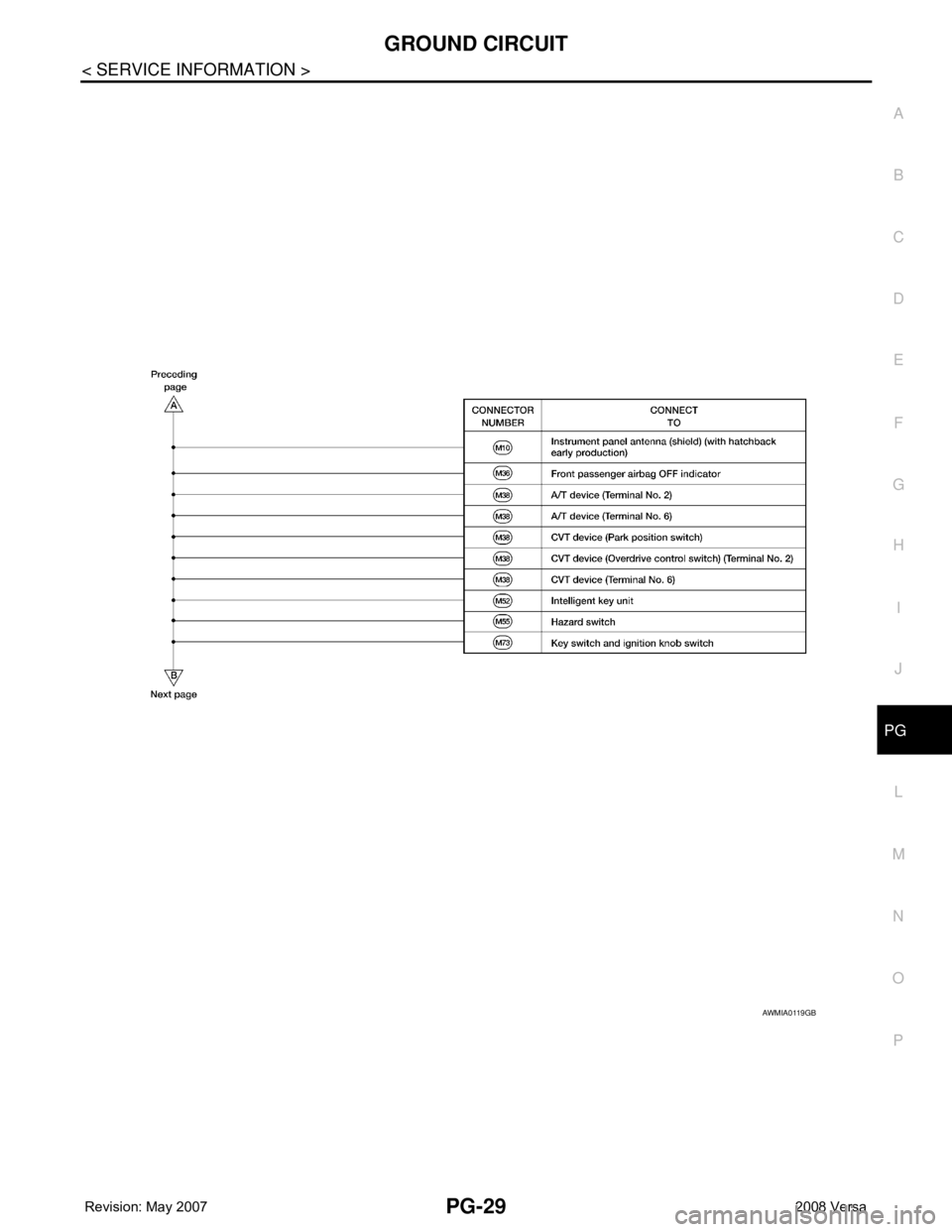

Ground DistributionINFOID:0000000001704707
MAIN HARNESS
AWMIA0140GB

GROUND CIRCUIT
PG-29
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P
AWMIA0119GB

PG-30
< SERVICE INFORMATION >
GROUND CIRCUIT
AWMIA0141GB

GROUND CIRCUIT
PG-31
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P

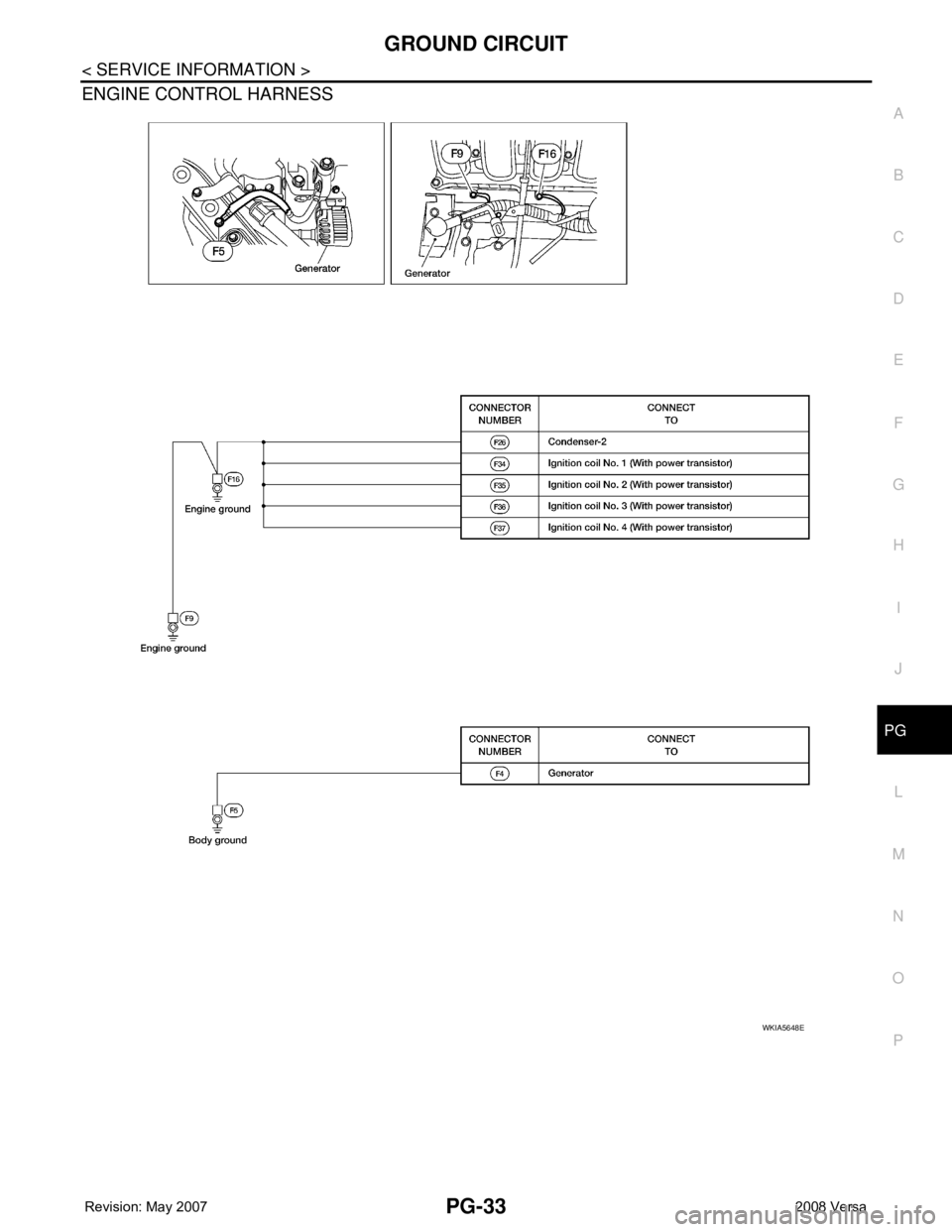

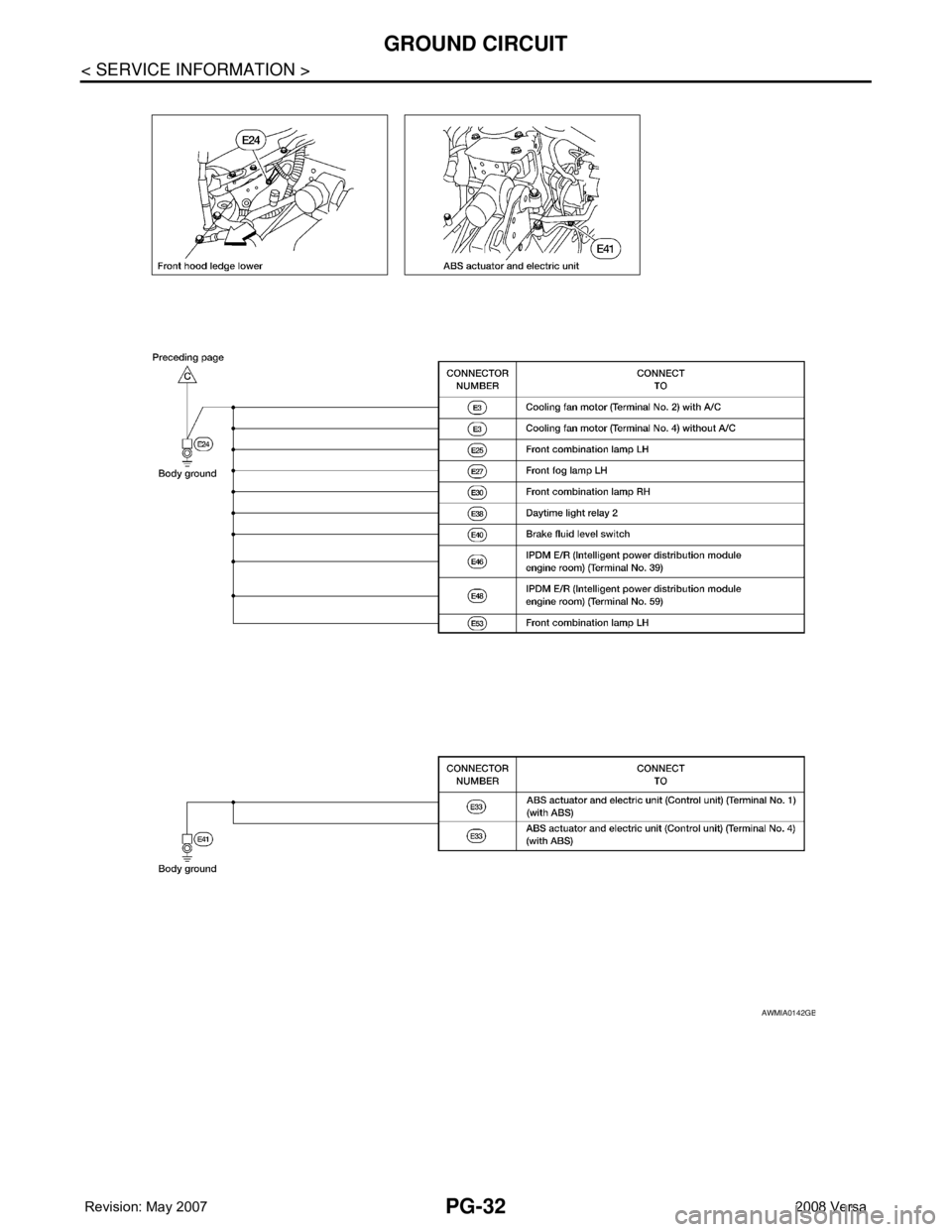

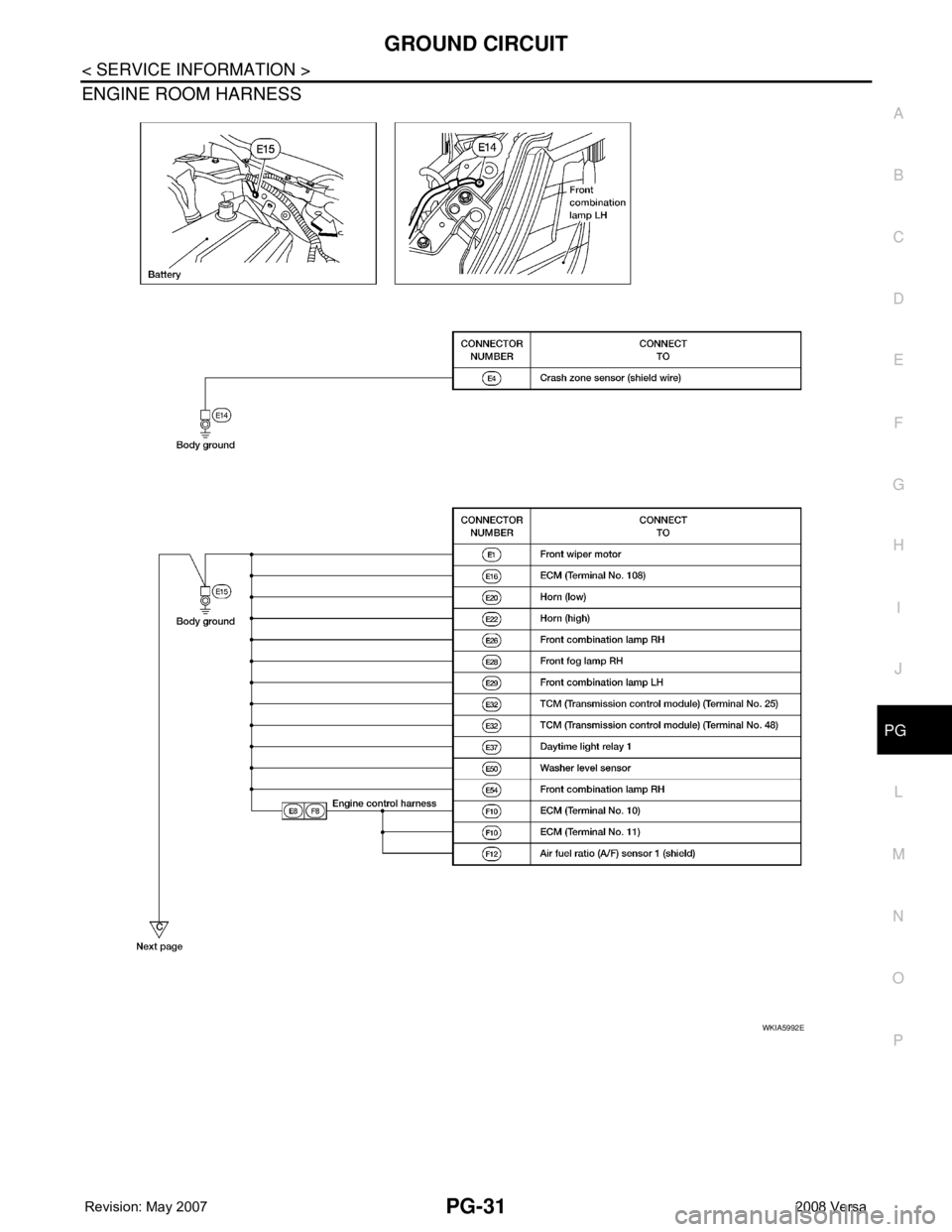

ENGINE ROOM HARNESS
WKIA5992E

PG-32
< SERVICE INFORMATION >
GROUND CIRCUIT
AWMIA0142GB

GROUND CIRCUIT
PG-33
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P
ENGINE CONTROL HARNESS
WKIA5648E

PG-34
< SERVICE INFORMATION >
GROUND CIRCUIT

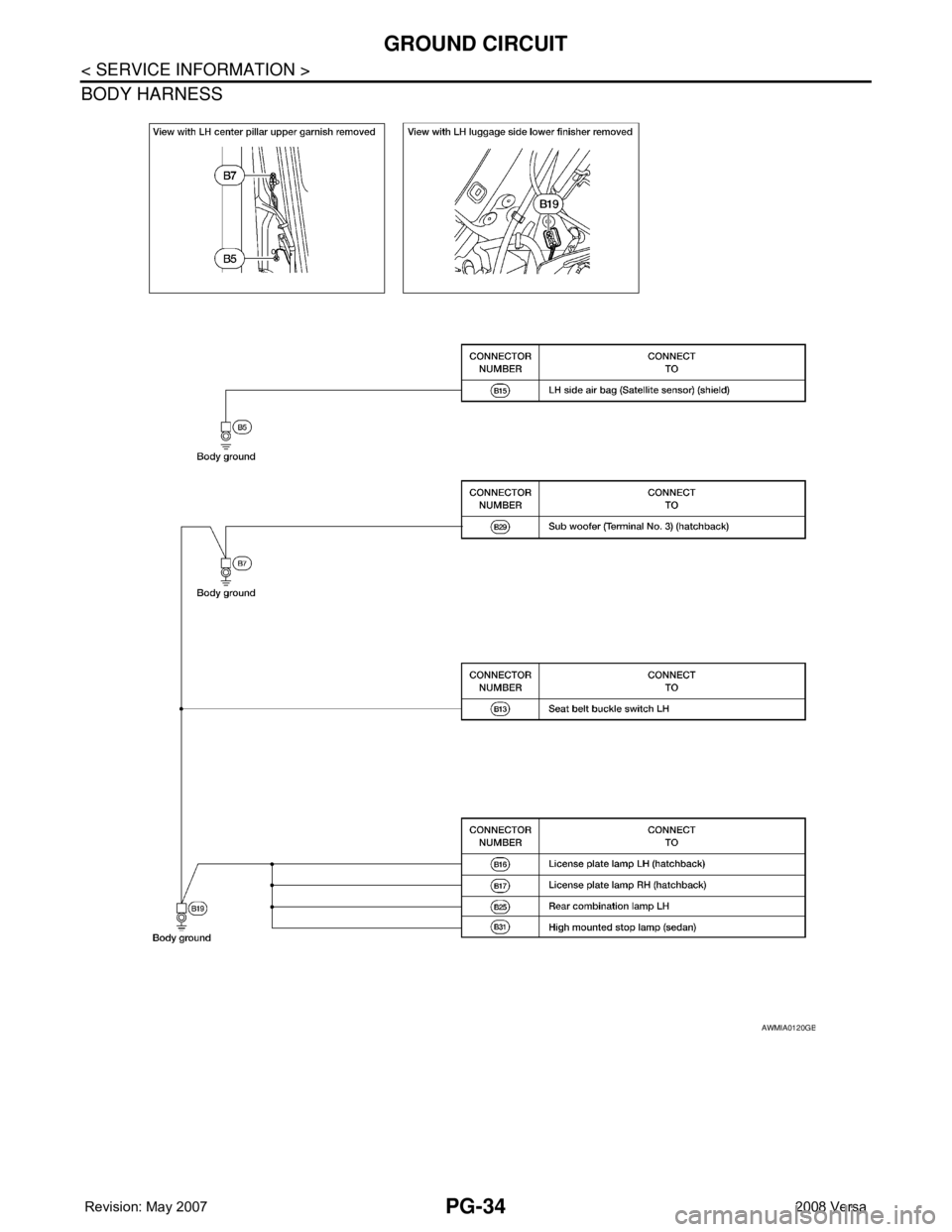

BODY HARNESS
AWMIA0120GB

GROUND CIRCUIT
PG-35
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P

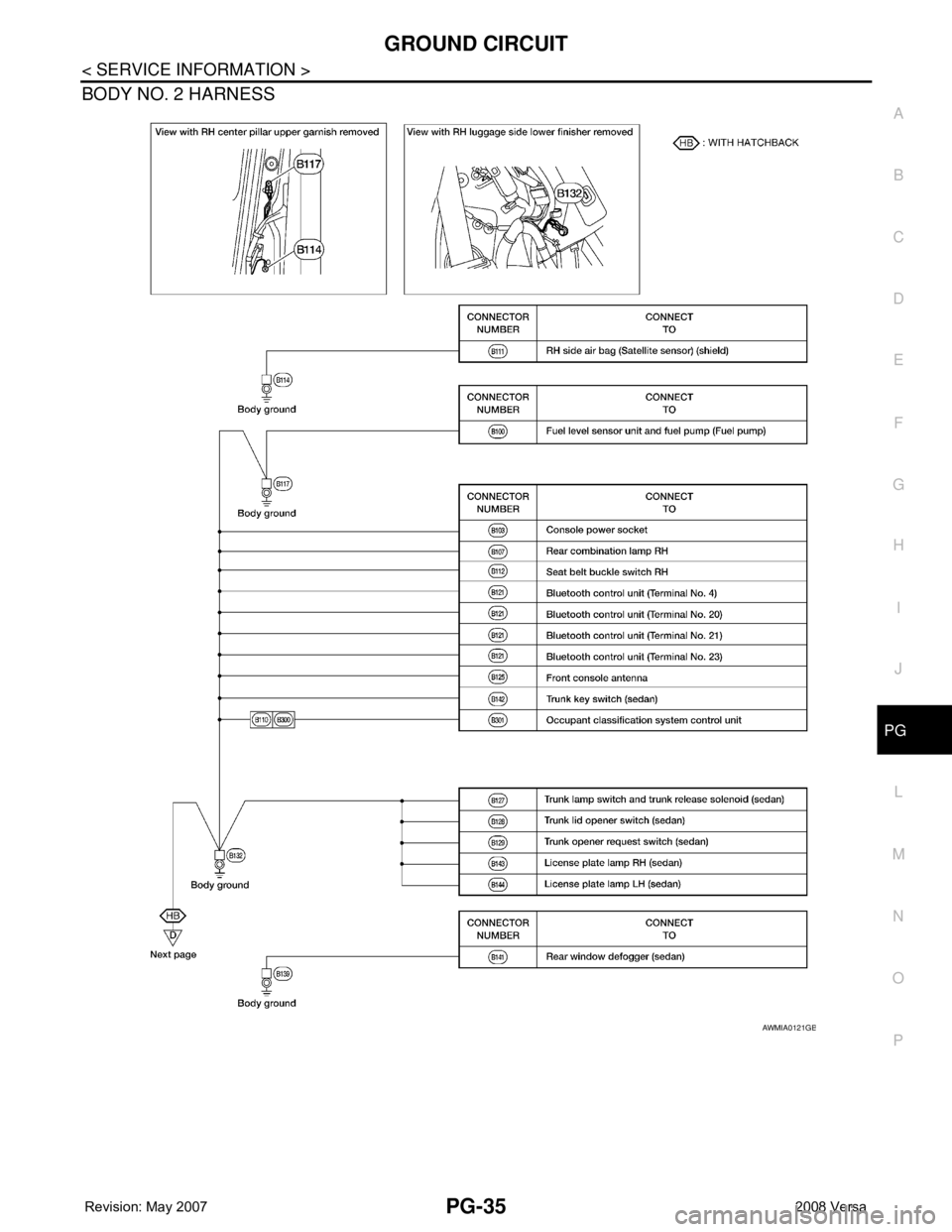

BODY NO. 2 HARNESS
AWMIA0121GB

PG-36
< SERVICE INFORMATION >
GROUND CIRCUIT

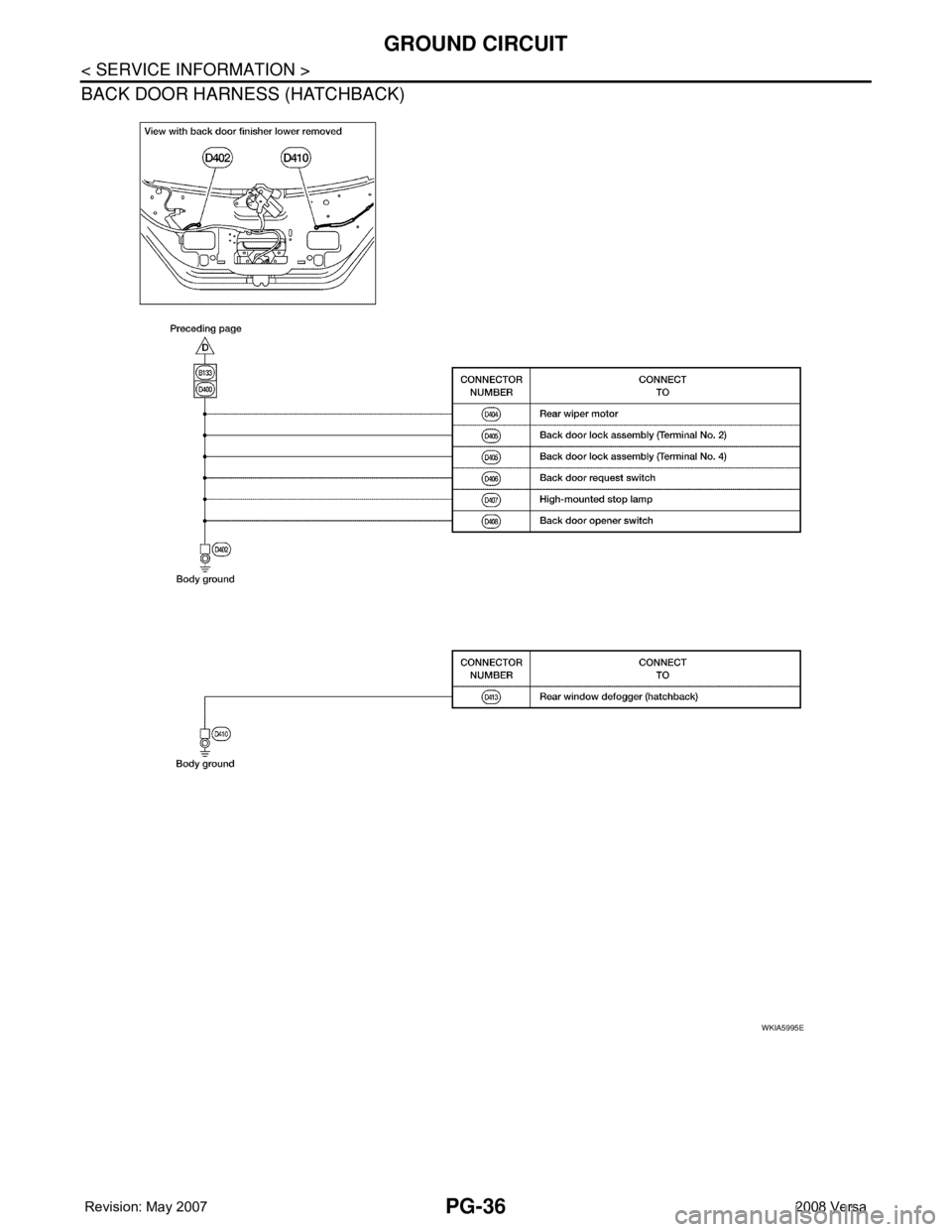

BACK DOOR HARNESS (HATCHBACK)
WKIA5995E

HARNESS
PG-37
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P
HARNESS
Harness LayoutINFOID:0000000001704708

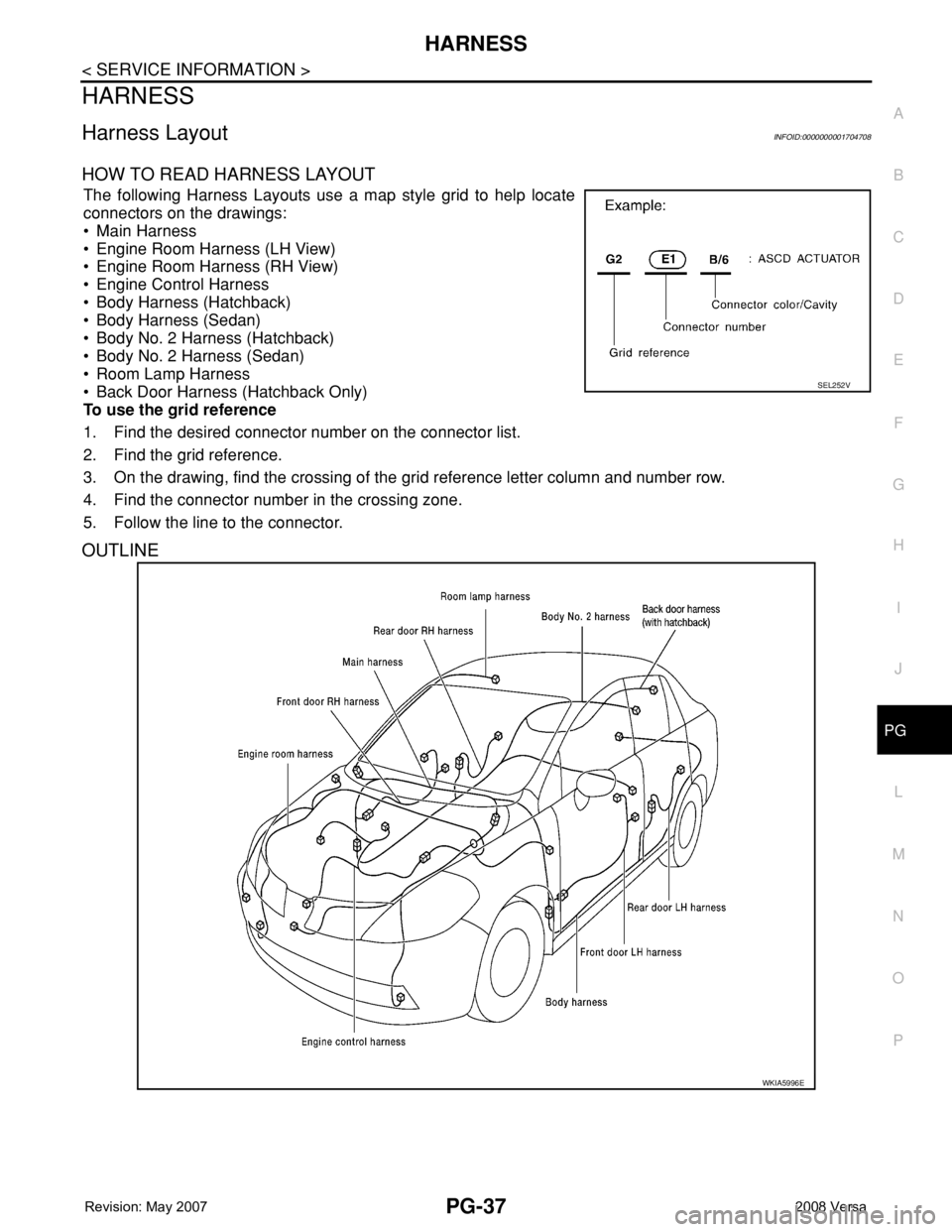

HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
• Main Harness
• Engine Room Harness (LH View)
• Engine Room Harness (RH View)
• Engine Control Harness
• Body Harness (Hatchback)
• Body Harness (Sedan)
• Body No. 2 Harness (Hatchback)
• Body No. 2 Harness (Sedan)
• Room Lamp Harness
• Back Door Harness (Hatchback Only)
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line to the connector.
OUTLINE
SEL252V
WKIA5996E
