Page 4011 of 4331

NISSAN TIIDA 2009 Service Repair Manual

Page 4012 of 4331

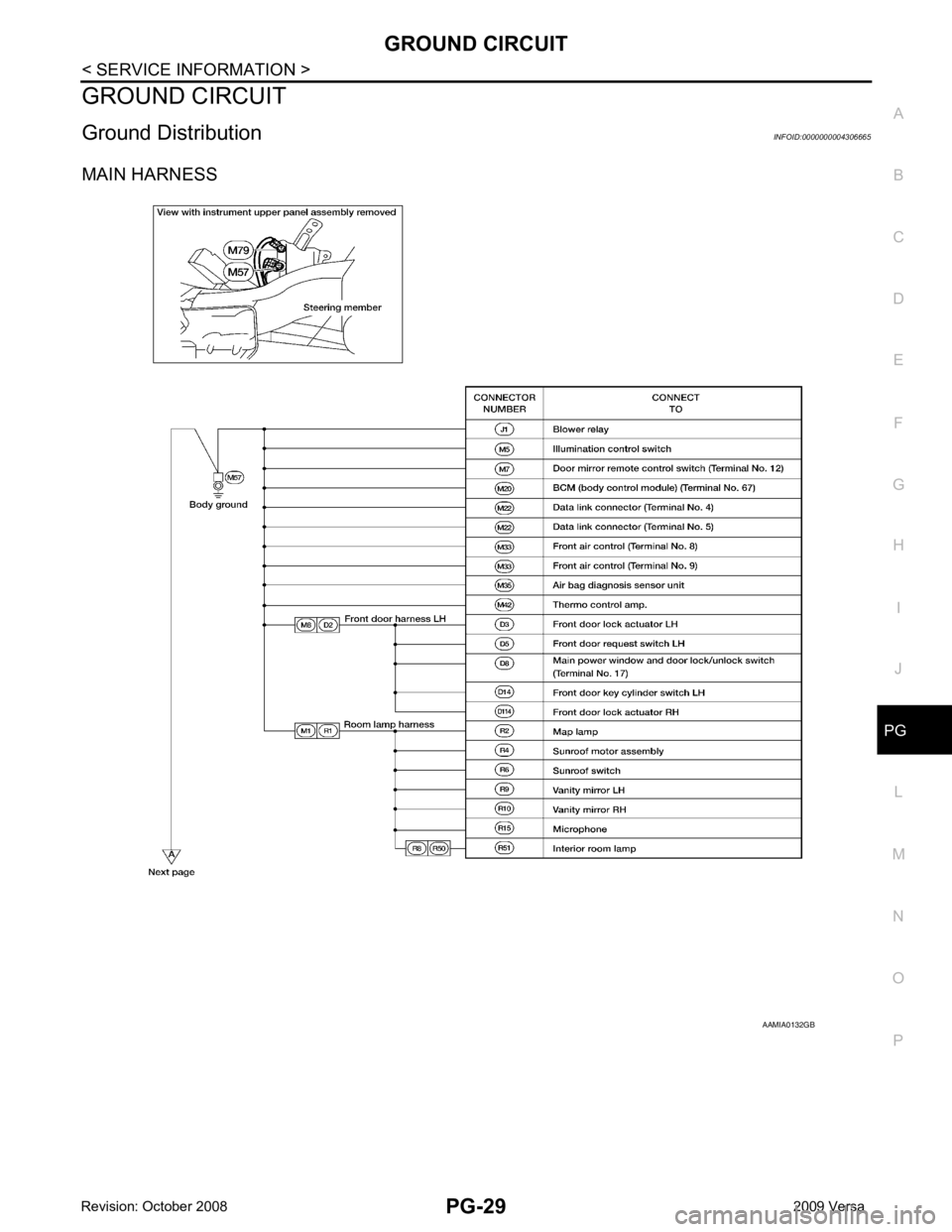

NISSAN TIIDA 2009 Service Repair Manual PG N O P GROUND CIRCUIT Ground Distribution INFOID:0000000004306665 MAIN HARNESS

Page 4013 of 4331

NISSAN TIIDA 2009 Service Repair Manual

Page 4014 of 4331

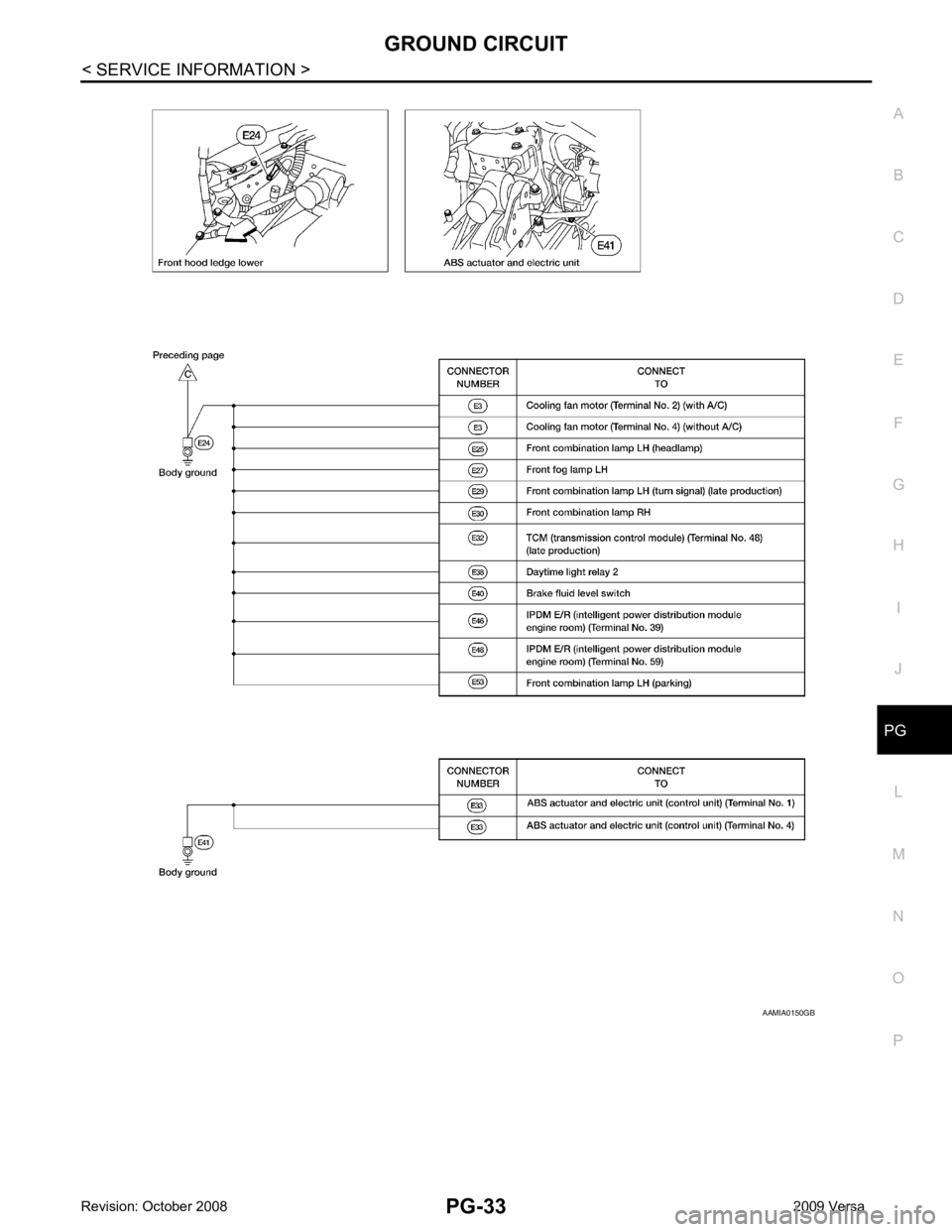

NISSAN TIIDA 2009 Service Repair Manual PG N O P B

Page 4015 of 4331

NISSAN TIIDA 2009 Service Repair Manual

Page 4016 of 4331

NISSAN TIIDA 2009 Service Repair Manual PG N O P

Page 4017 of 4331

NISSAN TIIDA 2009 Service Repair Manual

Page 4018 of 4331

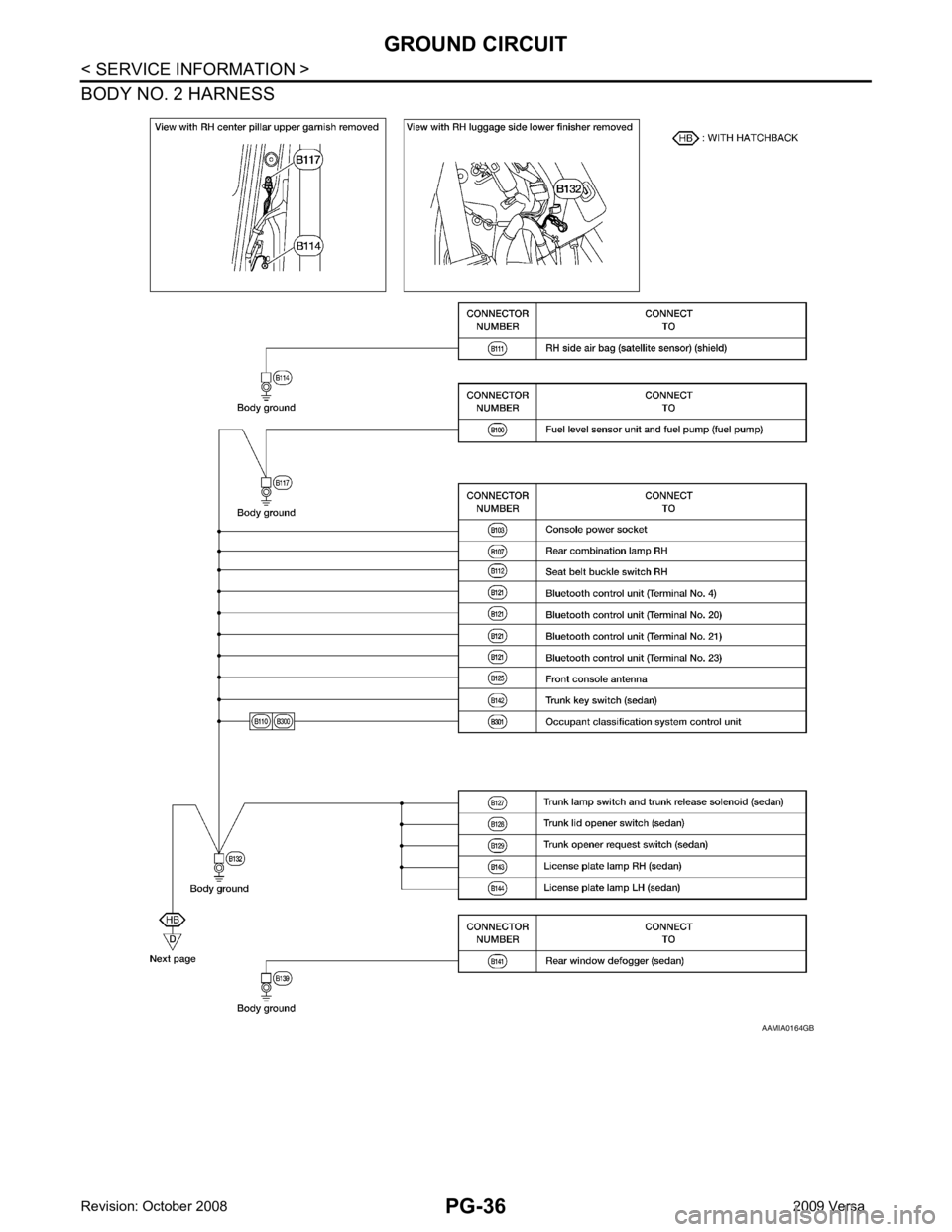

NISSAN TIIDA 2009 Service Repair Manual PG N O P BODY HARNESS

Page 4019 of 4331

NISSAN TIIDA 2009 Service Repair Manual

Page 4020 of 4331

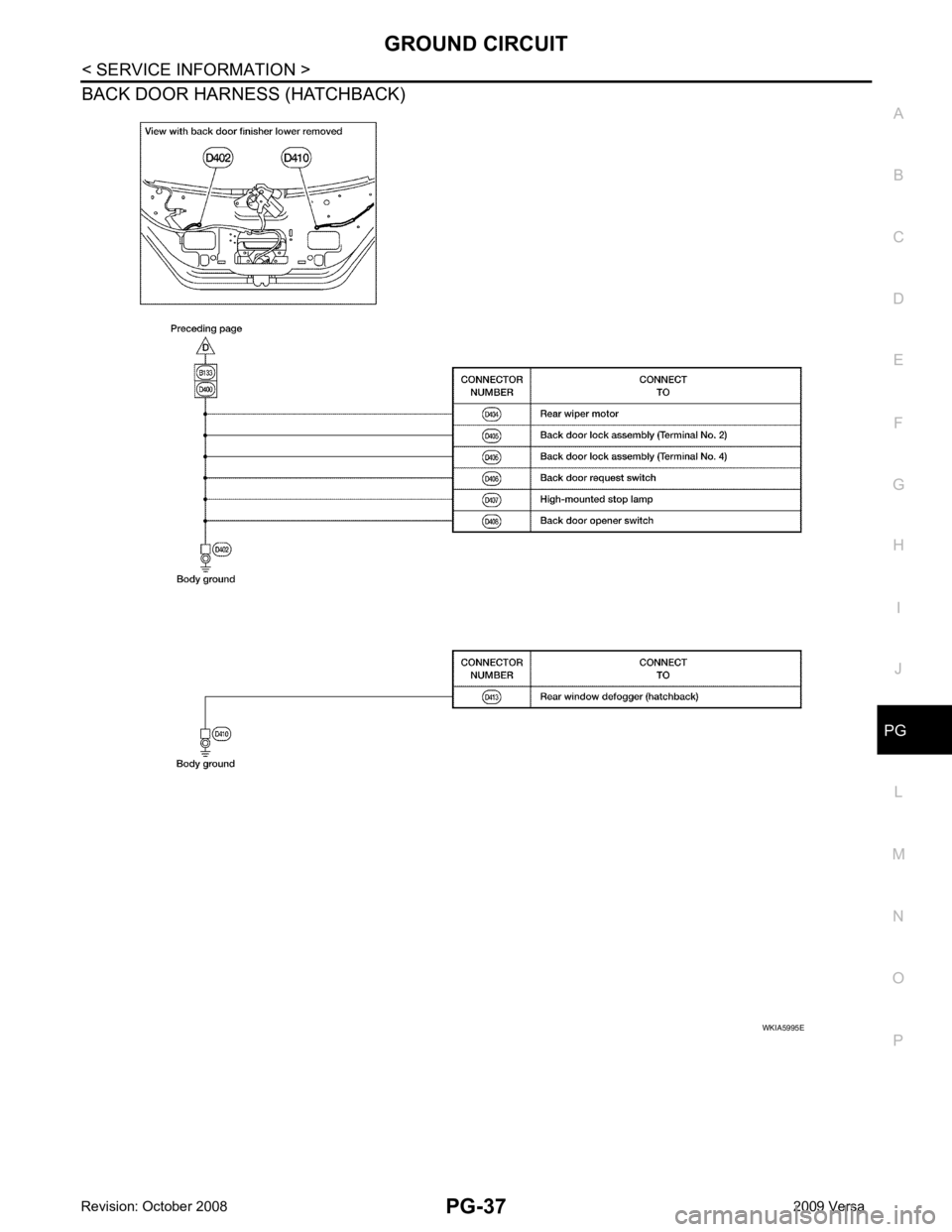

NISSAN TIIDA 2009 Service Repair Manual PG N O P BACK DOOR HARNESS (HATCHBACK)
