P0755 SHIFT SOLENOID B
Wiring Diagram - AT - SSV/B
INFOID:0000000005397345
TCM TERMINALS AND REFERENCE VALUES
Refer to AT-75, "TCM Terminal and Reference Value".
BCWA0656E
Revision: January 20102010 Versa

P0755 SHIFT SOLENOID BAT-145
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
Diagnosis ProcedureINFOID:0000000005397346

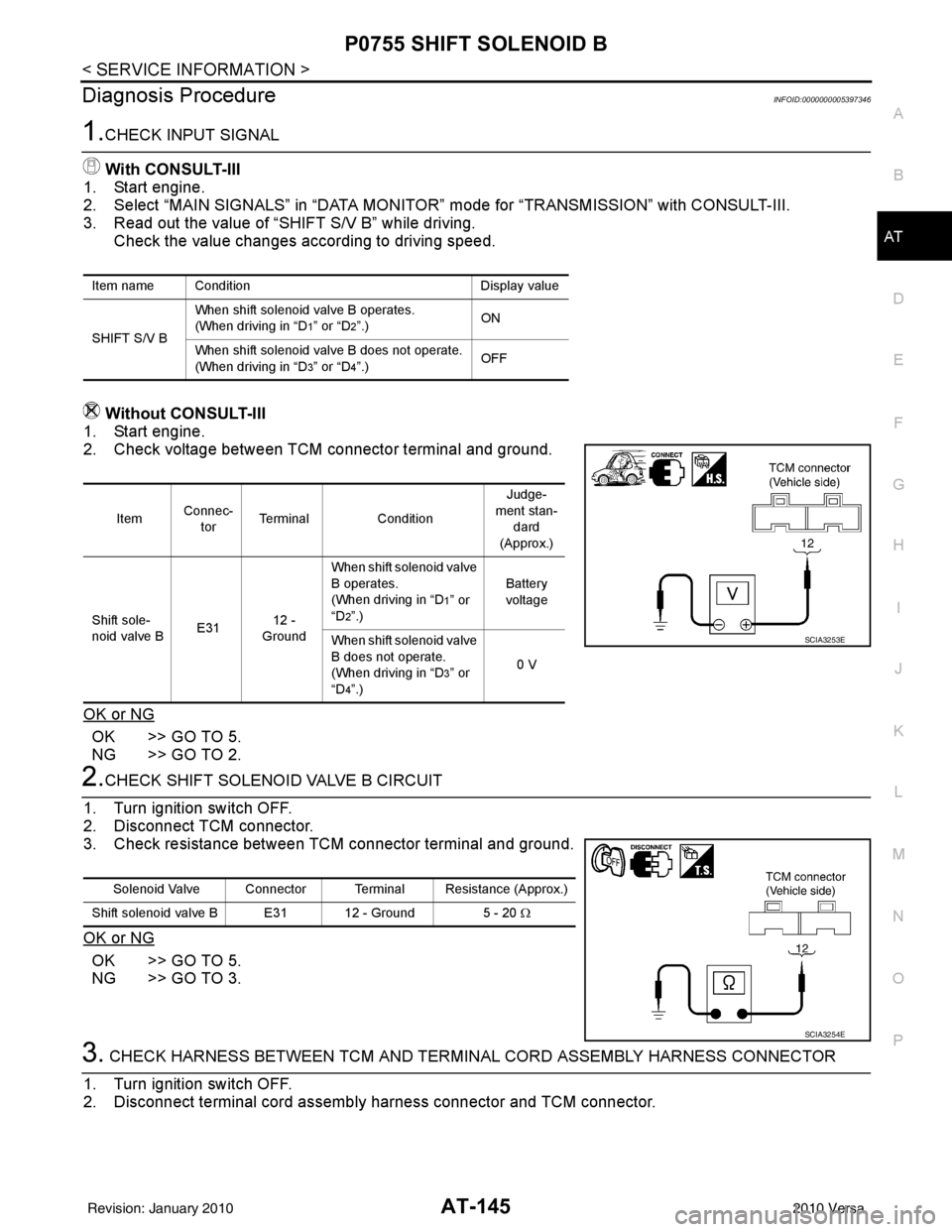

1.CHECK INPUT SIGNALWith CONSULT-III
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Read out the value of “SHIFT S/V B” while driving. Check the value changes according to driving speed.
Without CONSULT-III
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK SHIFT SOLENOID VALVE B CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assemb ly harness connector and TCM connector.
Item name Condition Display value
SHIFT S/V B When shift solenoid valve B operates.
(When driving in “D
1” or “D2”.)
ON
When shift solenoid valve B does not operate.
(When driving in “D
3” or “D4”.) OFF
Item
Connec-
tor Terminal
Condition Judge-
ment stan- dard
(Approx.)
Shift sole-
noid valve B E3112 -
Ground When shift solenoid valve
B operates.
(When driving in “D
1” or
“D
2”.) Battery
voltage
When shift solenoid valve
B does not operate.
(When driving in “D
3” or
“D
4”.) 0 V
SCIA3253E
Solenoid Valve Connector Terminal Resistance (Approx.)
Shift solenoid valve B E31 12 - Ground 5 - 20 Ω
SCIA3254E
Revision: January 20102010 Versa

AT-146
< SERVICE INFORMATION >
P0755 SHIFT SOLENOID B

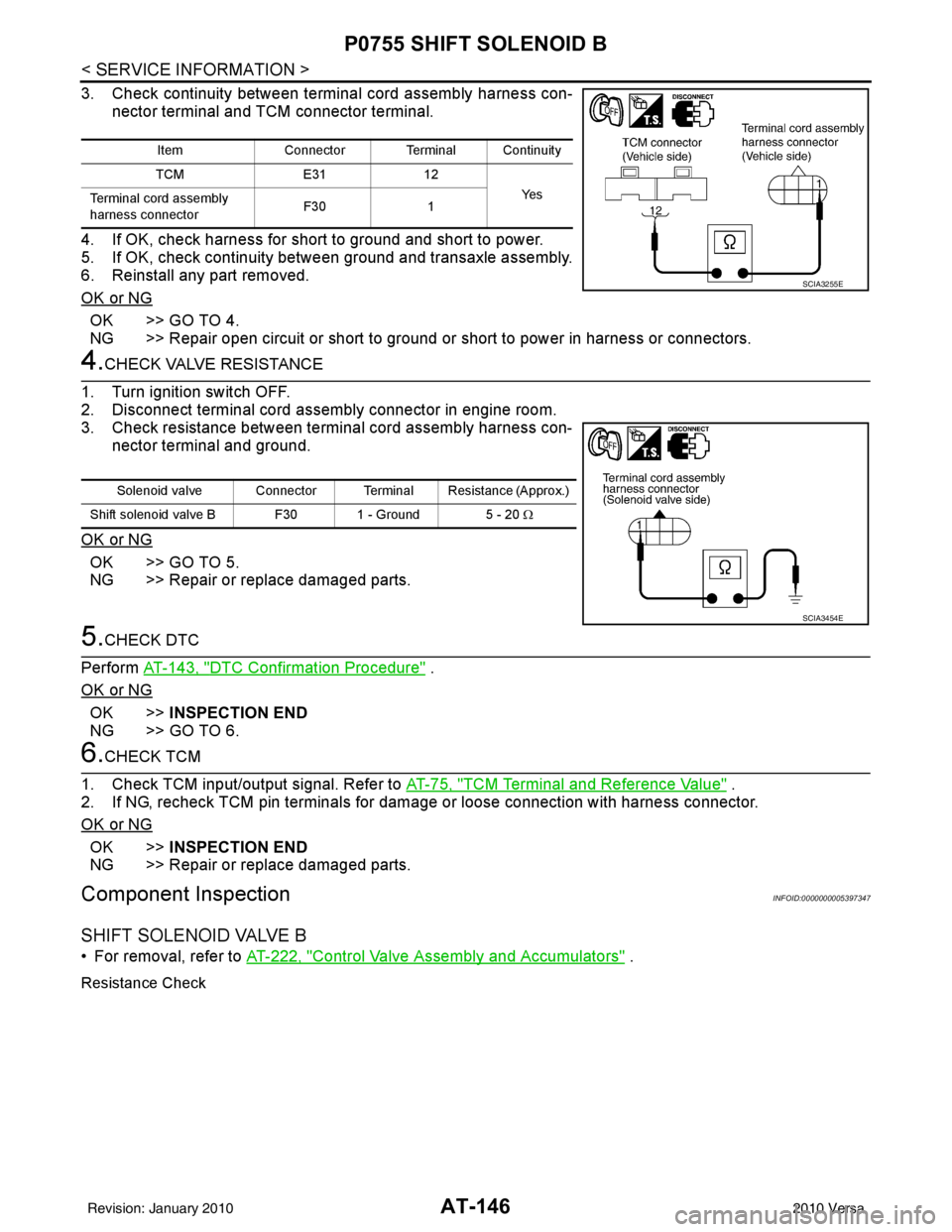

3. Check continuity between terminal cord assembly harness con-nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity bet ween ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con- nector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.CHECK DTC
Perform AT-143, "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
6.CHECK TCM
1. Check TCM input/output signal. Refer to AT-75, "
TCM Terminal and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionINFOID:0000000005397347
SHIFT SOLENOID VALVE B
• For removal, refer to AT-222, "Control Valve Assembly and Accumulators" .
Resistance Check
ItemConnector Terminal Continuity
TCM E3112
Ye s
Terminal cord assembly
harness connector F30
1
SCIA3255E
Solenoid valve Connector Terminal Resistance (Approx.)
Shift solenoid valve B F30 1 - Ground 5 - 20 Ω
SCIA3454E
Revision: January 20102010 Versa

P0755 SHIFT SOLENOID BAT-147
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

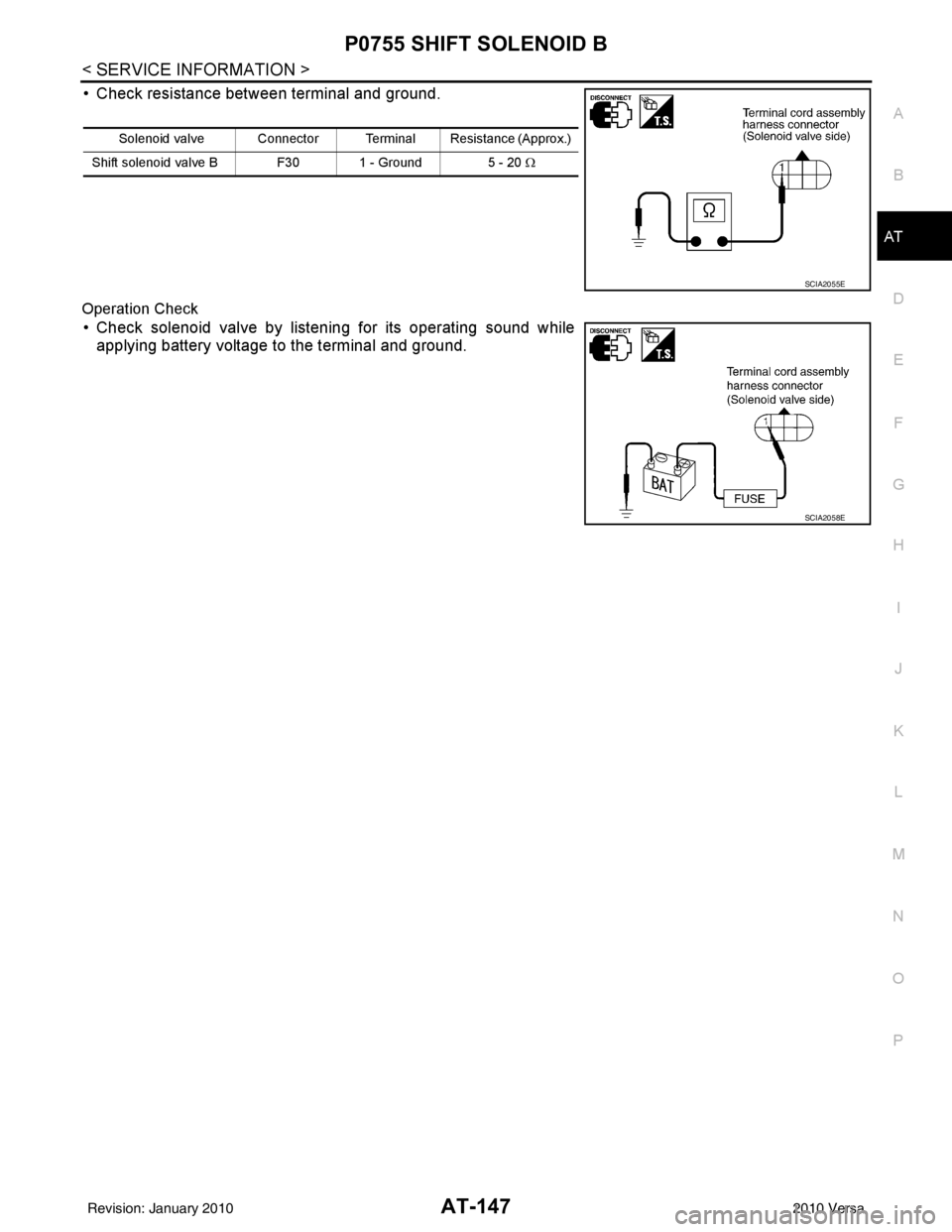

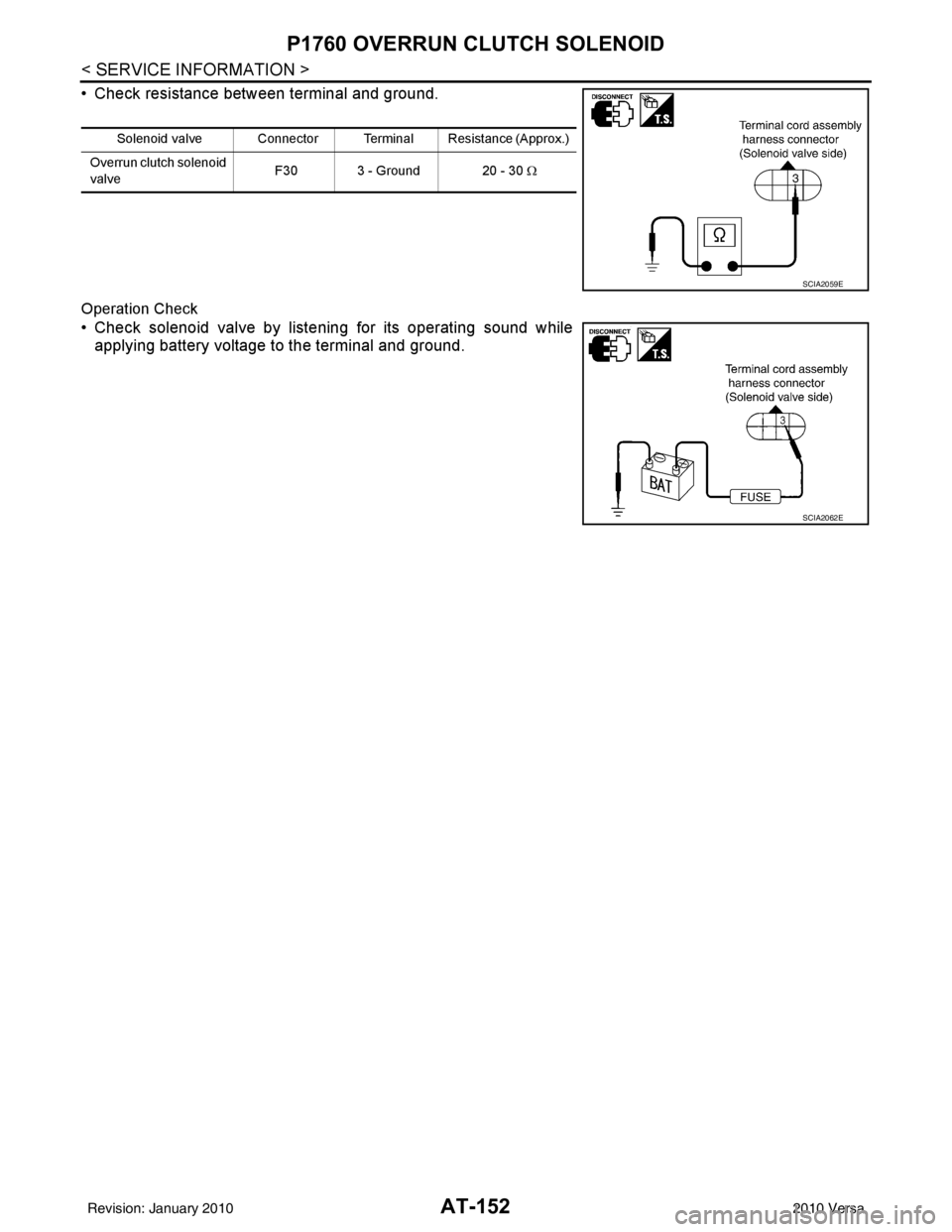

• Check resistance between terminal and ground.
Operation Check
• Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.
Solenoid valve Connector Terminal Resistance (Approx.)
Shift solenoid valve B F30 1 - Ground 5 - 20 Ω
SCIA2055E
SCIA2058E
Revision: January 20102010 Versa

AT-148
< SERVICE INFORMATION >
P1760 OVERRUN CLUTCH SOLENOID
P1760 OVERRUN CLUTCH SOLENOID
DescriptionINFOID:0000000005397348
The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the transmission
range switch, overdrive control switch, vehicle speed and ECM (throttle opening). The overrun clutch opera-
tion will then be controlled.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005397349
On Board Diagn osis LogicINFOID:0000000005397350
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P1760 OVER CLUTCH SOLENOID ” with CONSULT-III or 6th judgement flicker
without CONSULT-III is detected when TCM detects an improper voltage drop when it tries to operate sole-
noid valve.
Possible CauseINFOID:0000000005397351
• Harness or connector
(The solenoid circuit is open or shorted.)
• Overrun clutch solenoid valve
DTC Confirmation ProcedureINFOID:0000000005397352
CAUTION:
• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following proc edure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
2. Touch “START”.
3. Start engine.
4. Accelerate vehicle to a speed of more t han 10 km/h (6 MPH) with “D” position (OD ON).
5. Release accelerator pedal completely with “D” position (OD OFF).
6. If the check result is NG, go to AT-150, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III”.
WITHOUT CONSULT-III
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever position: “D” position (OD ON)
Vehicle speed: Higher than 10 km/h (6 MPH)
3. Perform self-diagnosis. Refer to AT-82, "
Diagnosis Procedure without CONSULT-III" .
4. If the check result is NG, go to AT-150, "
Diagnosis Procedure" .
Item nameCondition Display value
OVERRUN/C S/V When overrun clutch solenoid valve operates. (When
overrun clutch disengaged. Refer to
AT- 2 2
.)ON
When overrun clutch solenoid valve does not operate.
(When overrun clutch engaged. Refer to AT- 2 2
.)OFF
Revision: January 20102010 Versa

P1760 OVERRUN CLUTCH SOLENOIDAT-149
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

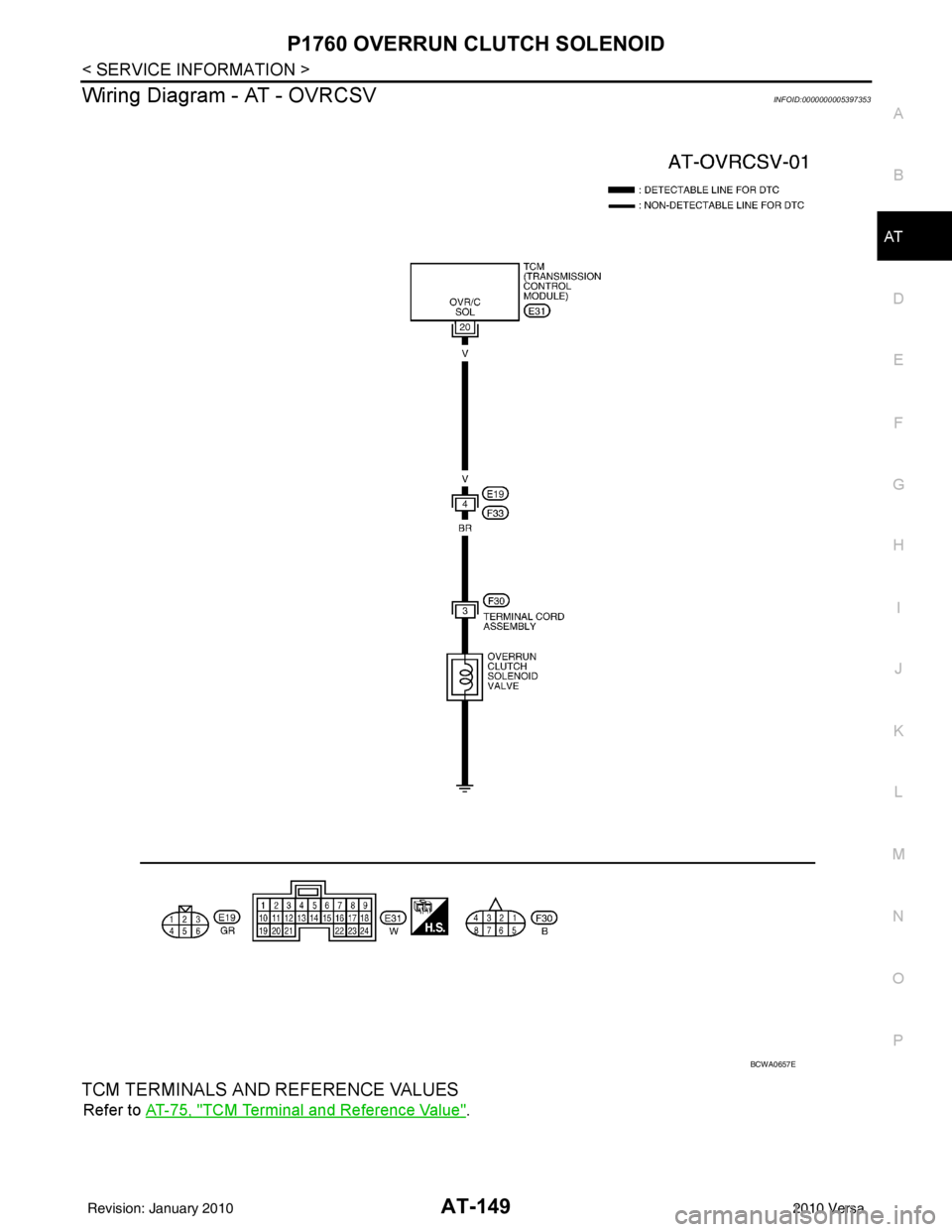

Wiring Diagram - AT - OVRCSVINFOID:0000000005397353
TCM TERMINALS AND REFERENCE VALUES
Refer to AT-75, "TCM Terminal and Reference Value".
BCWA0657E
Revision: January 20102010 Versa

AT-150
< SERVICE INFORMATION >
P1760 OVERRUN CLUTCH SOLENOID
Diagnosis Procedure
INFOID:0000000005397354

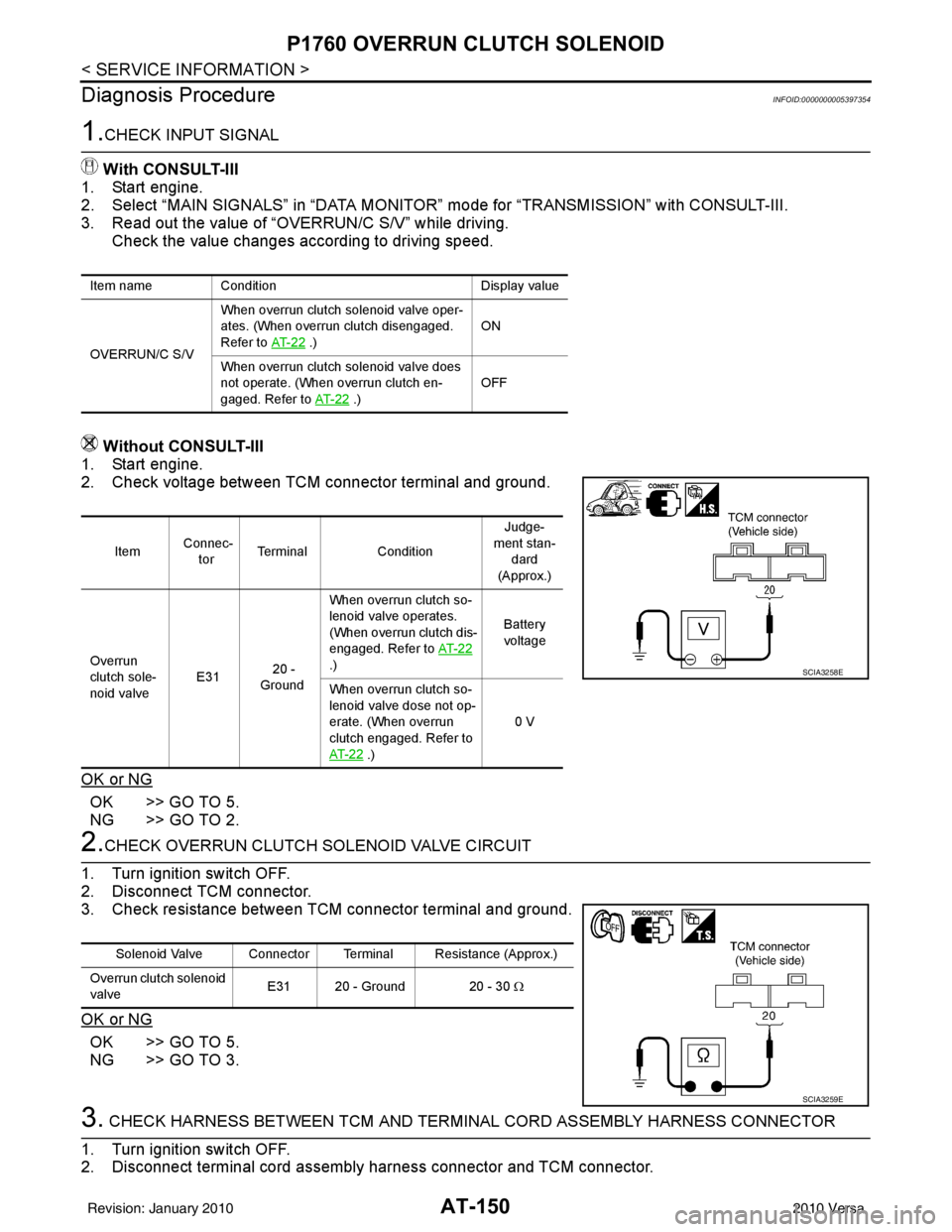

1.CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITO R” mode for “TRANSMISSION” with CONSULT-III.
3. Read out the value of “OVERRUN/C S/V” while driving. Check the value changes according to driving speed.
Without CONSULT-III
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK OVERRUN CLUTCH SOLENOID VALVE CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERM INAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
Item name Condition Display value
OVERRUN/C S/V When overrun clutch solenoid valve oper-
ates. (When overrun clutch disengaged.
Refer to
AT- 2 2
.) ON
When overrun clutch solenoid valve does
not operate. (When overrun clutch en-
gaged. Refer to AT- 2 2
.) OFF
Item
Connec-
tor Terminal
Condition Judge-
ment stan- dard
(Approx.)
Overrun
clutch sole-
noid valve E31
20 -
Ground When overrun clutch so-
lenoid valve operates.
(When overrun clutch dis-
engaged. Refer to AT- 2 2

.) Battery
voltage
When overrun clutch so-
lenoid valve dose not op-
erate. (When overrun
clutch engaged. Refer to
AT- 2 2
.) 0 V
SCIA3258E
Solenoid Valve Connector Terminal Resistance (Approx.)
Overrun clutch solenoid
valve E31 20 - Ground 20 - 30 Ω
SCIA3259E
Revision: January 20102010 Versa

P1760 OVERRUN CLUTCH SOLENOIDAT-151
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
3. Check continuity between terminal cord assembly harness con- nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con- nector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.CHECK DTC
Perform AT-148, "
DTC Confirmation Procedure".
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
6.CHECK TCM
1. Check TCM input/output signal. Refer to AT-75, "
TCM Terminal and Reference Value".
2. If NG, recheck TCM pin terminals for dam age or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionINFOID:0000000005397355
OVERRUN CLUTCH SOLENOID VALVE
• For removal, refer to AT-222, "Control Valve Assembly and Accumulators".
Resistance Check
Item Connector Terminal Continuity
TCM E3120
Ye s
Terminal cord assembly
harness connector F30
3
SCIA3260E
Solenoid valve Connector Terminal Resistance (Approx.)
Overrun clutch solenoid
valve F30 3 - Ground 20 - 30
Ω
SCIA3455E
Revision: January 20102010 Versa

AT-152
< SERVICE INFORMATION >
P1760 OVERRUN CLUTCH SOLENOID
• Check resistance between terminal and ground.
Operation Check
• Check solenoid valve by listening for its operating sound whileapplying battery voltage to the terminal and ground.
Solenoid valve Connector Terminal Resistance (Approx.)
Overrun clutch solenoid
valve F30 3 - Ground 20 - 30
Ω
SCIA2059E
SCIA2062E
Revision: January 20102010 Versa

VEHICLE SPEED SIGNALAT-153
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
VEHICLE SPEED SIGNAL
DescriptionINFOID:0000000005397356
The vehicle speed signal is built into the speedometer assembly. The sensor functions as an auxiliary device
to the output speed sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle
speed signal.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000005397357
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000005397358
• This is not an OBD-II self-diagnostic item.
• Diagnostic trouble code “VEHECLE SPEED SIGNAL” with CONSULT-III or 2nd judgement flicker without
CONSULT-III is detected when TCM does not rece ive the proper voltage signal from the sensor.
Possible CauseINFOID:0000000005397359
• Harness or connector
(The sensor circuit is open or shorted.)
• Vehicle speed signal
DTC Confirmation ProcedureINFOID:0000000005397360
CAUTION:
• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MO NITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Touch “START”.
3. Start engine and accelerate vehicle from 0 to 25 km/h (0 to 16 MPH).
4. If the check result is NG, go to AT-155, "
Diagnosis Procedure" .
WITHOUT CONSULT-III
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever posi tion: “D” position
Vehicle speed: Higher than 25 km/h (16 MPH)
3. Perform self-diagnosis. Refer to AT-82, "
Diagnosis Procedure without CONSULT-III" .
4. If the check result is NG, go to AT-155, "
Diagnosis Procedure" .
Item name ConditionDisplay value
VHCL/S SE-MTR During driving Approximately matches the speedometer reading.
Revision: January 20102010 Versa
