NISSAN TIIDA 2010 Service Repair Manual

LT-56
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS
LKWA0330E
Revision: January 20102010 Versa

TURN SIGNAL AND HAZARD WARNING LAMPSLT-57
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
ABLWA0664GB
Revision: January 20102010 Versa

LT-58
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS
Terminal and Reference Value for BCM
INFOID:0000000005394932
Refer to BCS-12, "Terminal and Reference Value for BCM" .
How to Proceed with Trouble DiagnosisINFOID:0000000005394933
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT-51, "
System Description" .
LKWA0332E
Revision: January 20102010 Versa

TURN SIGNAL AND HAZARD WARNING LAMPSLT-59
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
3. Perform the preliminary check. Refer to LT-59, "Preliminary Check" .
4. Check symptom and repair or replace the cause of the malfunction.
5. Do turn signal and hazard warning lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckINFOID:0000000005394934
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Inspection" .
CONSULT-III Function (BCM)INFOID:0000000005394935
Refer to LT-13, "CONSULT-III Function (BCM)" .
Turn Signals Do Not OperateINFOID:0000000005394936
1.CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-III
1. Select “BCM” on CONSULT-III. Select “FLASHER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE ” screen. Make sure that “TURN SIGNAL R” and
“TURN SIGNAL L” turns ON-OFF link ed with operation of lighting switch.
Without CONSULT-III
Refer to LT-66, "
Combination Switch Inspection" .
OK or NG
OK >> Replace the BCM. BCS-19, "Removal and Installation of BCM"
NG >> Check combination switch (lighting switch). Refer to LT-66, "Combination Switch Inspection" .
Front Turn Signal Lamp Does Not OperateINFOID:0000000005394937
1.CHECK BULB
Verify the bulb standard of each turn signal lamp is correct. Refer to LT-117, "
Exterior Lamp" .
OK or NG
OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT-62, "
Bulb Replacement for Front Turn Signal Lamp" .
2.CHECK FRONT TURN SIGNAL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and front combination lamp LH or RH connector.
3. Check continuity between BCM harness connector M20 (A) ter-
minal 60 and front combination lamp LH harness connector E29
(B) terminal 4.
4. Check continuity between BCM harness connector M20 terminal 61 (A) and front combination lamp RH harness connector E30
(B) terminal 4.
OK or NG
OK >> GO TO 3. When turn signal switch is
right position
: TURN SIGNAL R ON
When turn signal switch is
left position : TURN SIGNAL L ON
60 - 4
: Continuity should exist.
61 - 4 : Continuity should exist.
WKIA5612E
Revision: January 20102010 Versa

LT-60
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS
NG >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
1. Check continuity between front combination lamp LH harness connector E29 terminal 5 and ground.
2. Check continuity between front combination lamp RH harness connector E30 terminal 5 and ground.
OK or NG
OK >> Inspect connection at front combination lamp.
NG >> Repair harness.
Rear Turn Signal Lam p Does Not OperateINFOID:0000000005394938
1.CHECK BULB
Verify the bulb standard of each turn signal lamp is correct. Refer to LT-117, "
Exterior Lamp" .
OK or NG
OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT-62, "
Bulb Replacement for Rear Turn Signal Lamp" .
2.CHECK REAR TURN SIGNAL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear combination lamp LH or RH connector.
3. Check continuity between BCM harness connector M20 (A) ter- minal 60 and rear combination lamp LH harness connector B25
(B) terminal 6.
4. Check continuity between BCM harness connector M20 (A) ter- minal 61 and rear combination lamp RH harness connector
B107 (B) terminal 6.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
1. Check continuity between rear combination lamp LH harness connector B25 terminal 1 and ground.
2. Check continuity between rear combination lamp RH harness connector B107 terminal 1 and ground.
OK or NG
OK >> Check rear combination lamp connector for proper con- nection. Repair as necessary.
NG >> Repair harness or connector. 5 - Ground
: Continuity should exist.
5 - Ground : Continuity should exist.
WKIA5613E
60 - 6: Continuity should exist.
61 - 6 : Continuity should exist.
WKIA5614E
1 - Ground: Continuity should exist.
1 - Ground : Continuity should exist.
WKIA5615E
Revision: January 20102010 Versa

TURN SIGNAL AND HAZARD WARNING LAMPSLT-61
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

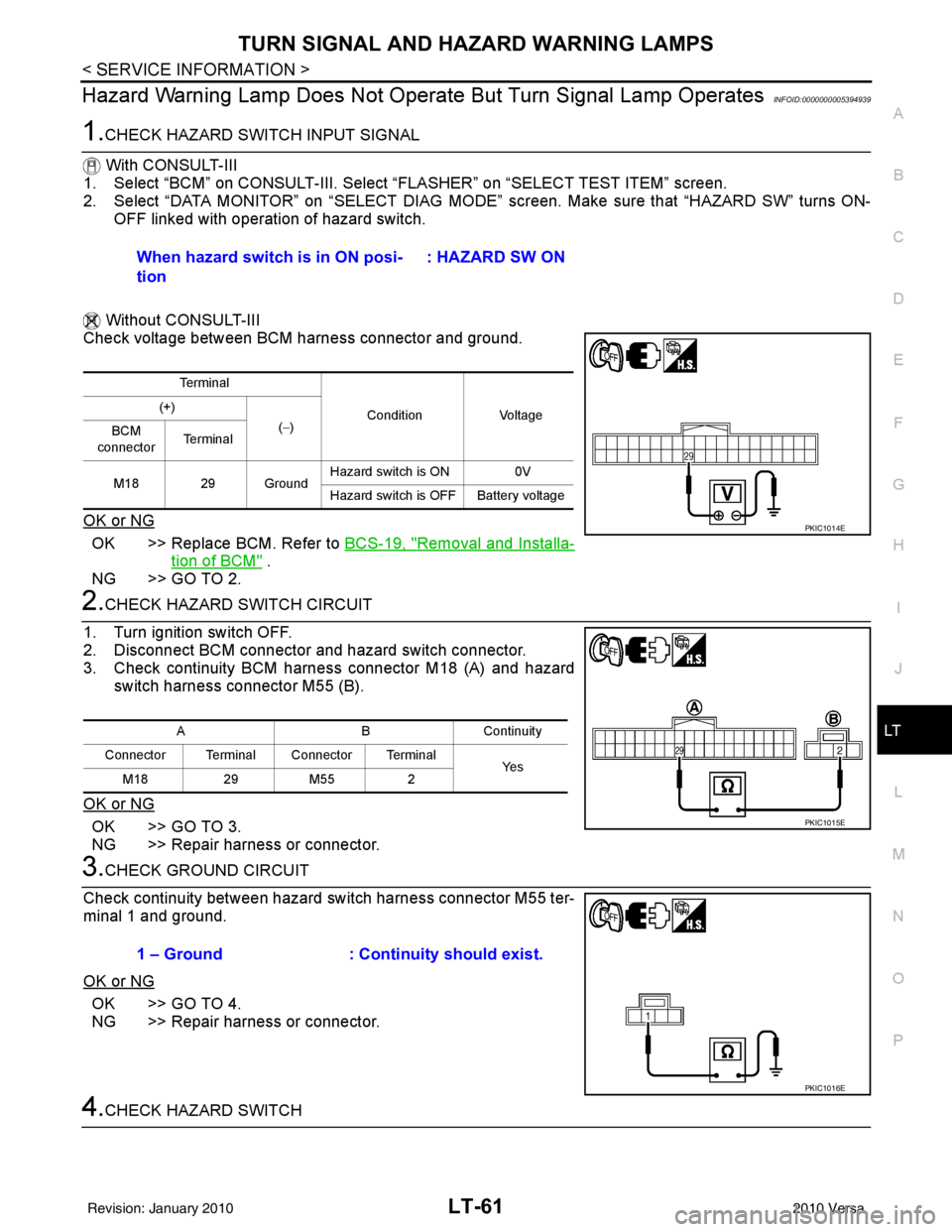

Hazard Warning Lamp Does Not Operate But Turn Signal Lamp OperatesINFOID:0000000005394939
1.CHECK HAZARD SWITCH INPUT SIGNAL
With CONSULT-III
1. Select “BCM” on CONSULT-III. Select “FLASHER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “HAZARD SW” turns ON-
OFF linked with operation of hazard switch.
Without CONSULT-III
Check voltage between BCM harness connector and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installa-
tion of BCM" .
NG >> GO TO 2.
2.CHECK HAZARD SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and hazard switch connector.
3. Check continuity BCM harness connector M18 (A) and hazard switch harness connector M55 (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
Check continuity between hazard switch harness connector M55 ter-
minal 1 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4.CHECK HAZARD SWITCH When hazard switch is in ON posi-
tion
: HAZARD SW ON
Te r m i n a l
ConditionVoltage
(+)
(−)
BCM
connector Te r m i n a l
M18 29 Ground Hazard switch is ON 0V
Hazard switch is OFF Battery voltage
PKIC1014E
ABC
ontin u it y
Connector Terminal Connector Terminal Ye s
M18 29M55 2
PKIC1015E
1 – Ground : Continuity should exist.
PKIC1016E
Revision: January 20102010 Versa

LT-62
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS

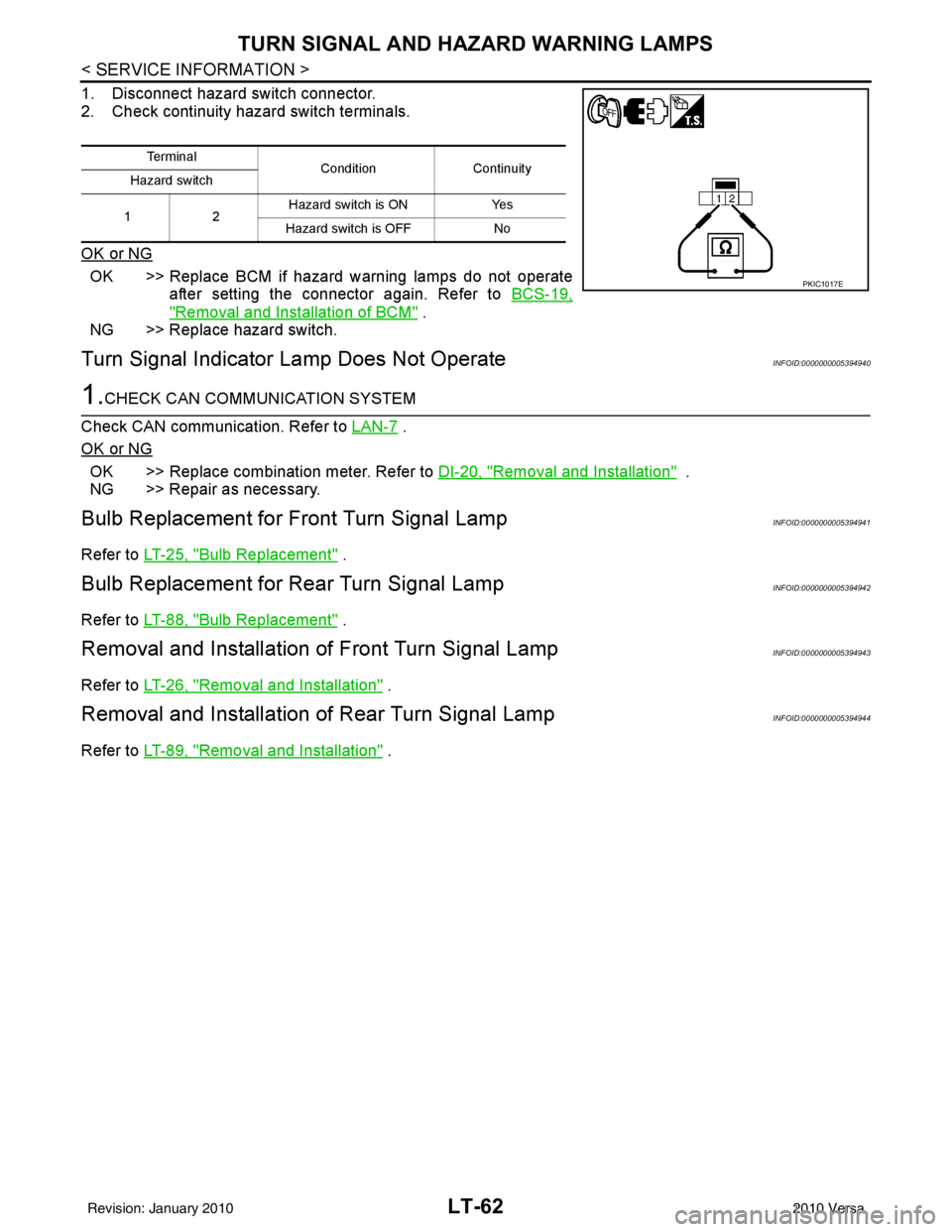

1. Disconnect hazard switch connector.
2. Check continuity hazard switch terminals.
OK or NG
OK >> Replace BCM if hazard warning lamps do not operateafter setting the connector again. Refer to BCS-19,
"Removal and Installation of BCM" .
NG >> Replace hazard switch.
Turn Signal Indicator Lamp Does Not OperateINFOID:0000000005394940
1.CHECK CAN COMMUNICATION SYSTEM
Check CAN communication. Refer to LAN-7
.
OK or NG
OK >> Replace combination meter. Refer to DI-20, "Removal and Installation" .
NG >> Repair as necessary.
Bulb Replacement for Front Turn Signal LampINFOID:0000000005394941
Refer to LT-25, "Bulb Replacement" .
Bulb Replacement for Rear Turn Signal LampINFOID:0000000005394942
Refer to LT-88, "Bulb Replacement" .
Removal and Installation of Front Turn Signal LampINFOID:0000000005394943
Refer to LT-26, "Removal and Installation" .
Removal and Installation of Rear Turn Signal LampINFOID:0000000005394944
Refer to LT-89, "Removal and Installation" .
Te r m i n a l
Condition Continuity
Hazard switch
12 Hazard switch is ON
Yes
Hazard switch is OFF No
PKIC1017E
Revision: January 20102010 Versa

LIGHTING AND TURN SIGNAL SWITCHLT-63
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
LIGHTING AND TURN SIGNAL SWITCH
Removal and InstallationINFOID:0000000005394945
REMOVAL
1. Remove steering column cover. Refer to IP-11 .
2. While pressing pawls (A) in direction as shown, pull lighting and turn signal switch (1) toward LH door and disconnect from the
base.
INSTALLATION
Installation is in the reverse order of removal.
PKIC1018E
Revision: January 20102010 Versa

LT-64
< SERVICE INFORMATION >
HAZARD SWITCH
HAZARD SWITCH
Removal and InstallationINFOID:0000000005394946
REMOVAL
1. Remove cluster lid C. Refer to IP-11 .
2. Disconnect hazard switch connector.
3. Press pawl (A) on reverse side and remove the hazard switch (1).
INSTALLATION
Installation is in the reverse order of removal.
WKIA5421E
Revision: January 20102010 Versa

COMBINATION SWITCHLT-65
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
COMBINATION SWITCH

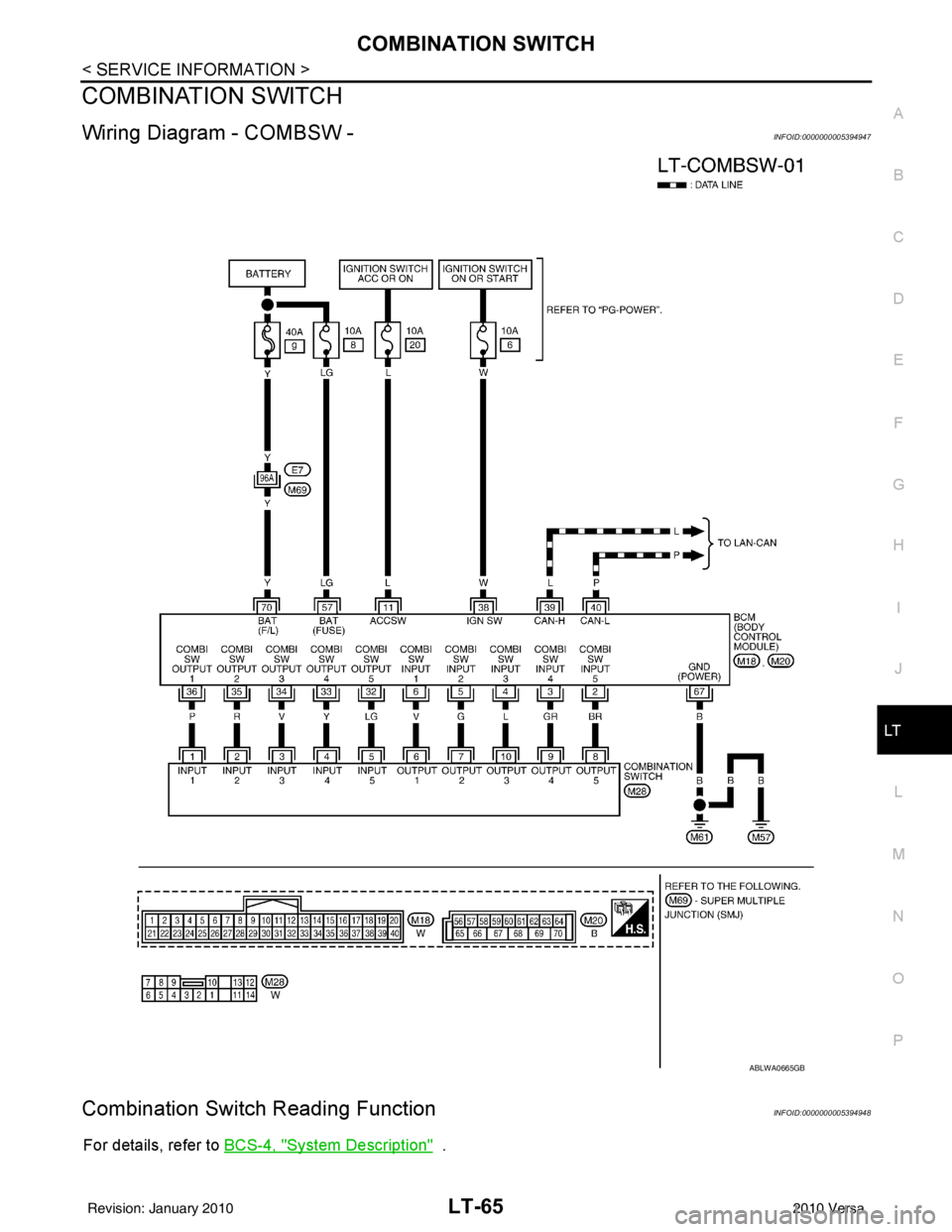

Wiring Diagram - COMBSW -INFOID:0000000005394947
Combination Switch Reading FunctionINFOID:0000000005394948
For details, refer to BCS-4, "System Description" .
ABLWA0665GB
Revision: January 20102010 Versa
