NISSAN TIIDA 2010 Service Repair Manual

PG-48
< SERVICE INFORMATION >
HARNESS
BODY HARNESS (SEDAN)
ABMIA1594GB
A4 B1 W/24 : To M31C4 B14 Y/2 : Front LH seat belt pre-tensioner
G4 B2 GR/2 : Rear bumper antenna C5 B15 Y/2 : LH side air bag (satellite) sensor
B4 B3 B/4 : Yaw rate/ side/ decel G sensor F2 B18 W/2 : High mounted stop lamp
C4 B4 W/8 : To D201 E3 B19 — : Body ground
C4 B5 — : Body ground F2 B21 W/2 : Luggage room lamp
Revision: January 20102010 Versa

HARNESSPG-49
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
D3 B6 W/1 : Rear door switch LH A4 B23 W/16 : To M15
C3 B7 — : Body ground A4 B24 W/24 : To M16
C4 B8 W/3 : Front door switch LH G4 B25 BR/6 : Rear combination lamp LH
B3 B9 Y/12 : Air bag diagnosis sensor unit E3 B26 Y/2 : LH side curtain air bag module
B3 B10 Y/2 : Front LH side air bag module F3 B32 BR/2 : Intelligent key warning buzzer (trunk)
B4 B13 W/3 : Seat belt buckle switch LH
Revision: January 20102010 Versa

PG-50
< SERVICE INFORMATION >
HARNESS
BODY NO. 2 HARNESS (HATCHBACK)
ABMIA1595GB
D3 B100 GR/5 : Fuel level sensor unit and fuel pump C3 B116 W/1 : Rear door switch RH
G5 B101 W/16 : To M12E3 B117 — : Body ground
G5 B102 W/24 : To M13 B2 B118 Y/2 : RH side curtain air bag module
F3 B103 B/2 : Console power socket D3 B119 W/8 : To D301
A4 B104 GR/3 : EVAP control system pressure sensor G5 B120 W/24 : To M14
Revision: January 20102010 Versa

HARNESSPG-51
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
A3 B105 B/2 : EVAP canister vent control valve A3 B121 W/32 : Bluetooth control unit
G5 B106 W/4 : To M11 A3 B122 GR/1 : Bluetooth control unit
A2 B107 BR/6 : Rear combination lamp RH D2 B123 B/2 : Rear wheel sensor LH
E4 B108 W/3 : Front door switch RH C3 B124 B/2 : Rear wheel sensor RH
F4 B109 Y/2 : Front RH side air bag module F3 B125 GR/2 : Front console antenna
F4 B110 W/10 : To B300 C3 B126 GR/2 : Rear floor antenna
E5 B111 Y/2 : RH side air bag (satellite) sensor A2 B132 — : Body ground
F4 B112 W/3 : Seat belt buckle switch RH B2 B133 W/2 : To D400
F3 B113 Y/12 : Air bag diagnosis sensor unit A2 B134 W/12 : To D401
E4 B114 — : Body ground A2 B135W/8 : Bluetooth control unit
E4 B115 Y/2 : Front RH seat belt pre-tensioner E5 B138 B/3 : Belt tension sensor
Revision: January 20102010 Versa

PG-52
< SERVICE INFORMATION >
HARNESS

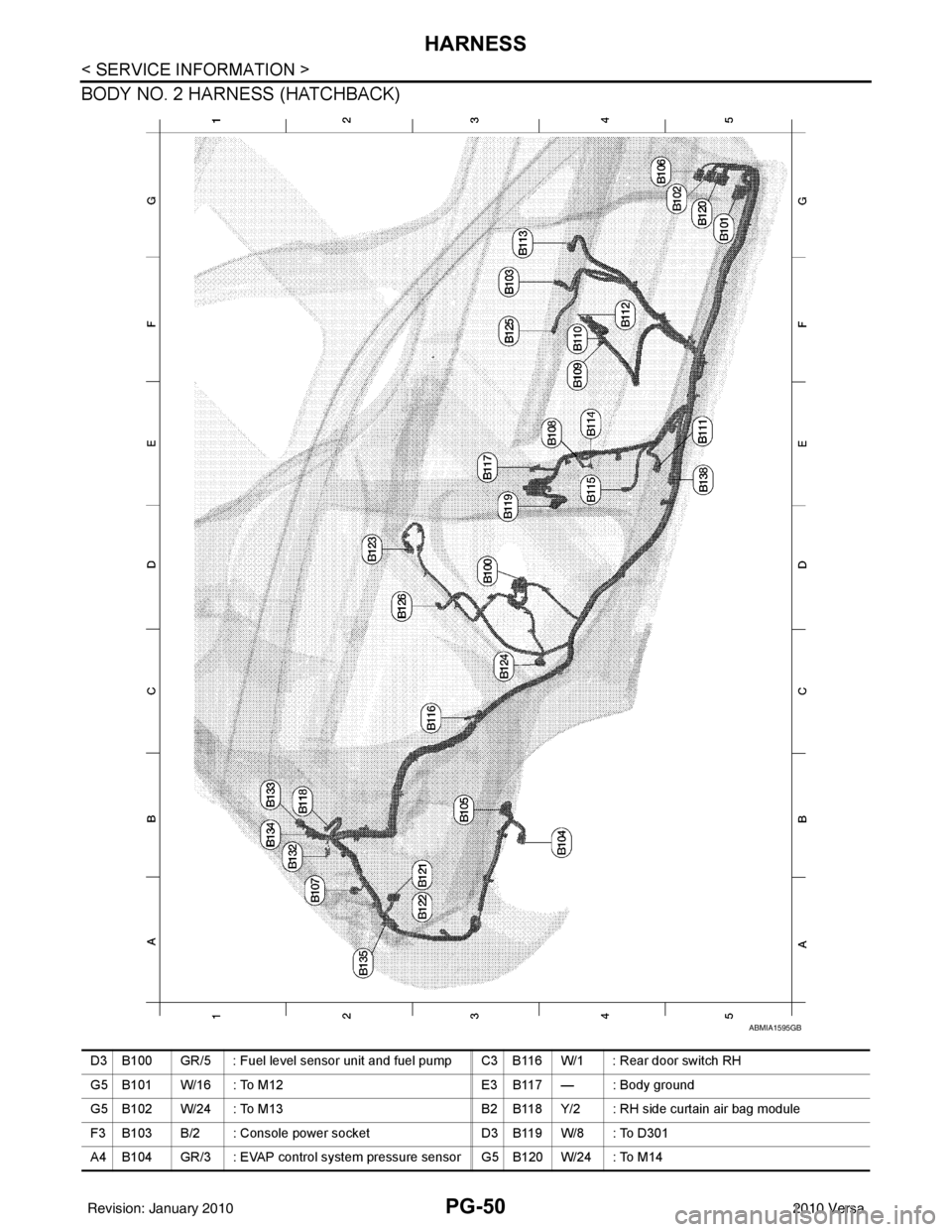

BODY NO. 2 HARNESS (SEDAN)
ABMIA1596GB
E3 B100 GR/5 : Fuel level sensor unit and fuel pump C3 B121 W/32 : Bluetooth control unit
G5 B101 W/16 : To M12B3 B122 GR/1 : Bluetooth control unit
G5 B102 W/24 : To M13 E3 B123 B/2 : Rear wheel sensor LH
F4 B103 B/2 : Console power socket D4 B124 B/2 : Rear wheel sensor RH
B4 B104 GR/3 : EVAP control system pressure sensor F4 B125 GR/2 : Front console antenna
Revision: January 20102010 Versa

HARNESSPG-53
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
ROOM LAMP HARNESS
B3 B105 B/2 : EVAP canister vent control valve D3 B126 GR/2 : Rear floor antenna
G5 B106 W/4 : To M11 B2 B127 W/3 : Trunk lamp switch and trunk release solenoid
A2 B107 BR/6 : Rear combination lamp RH B1 B128 BR/2 : Trunk lid opener switch
F4 B108 W/3 : Front door switch RH B1 B129 GR/2 : Trunk opener request switch
F4 B109 Y/2 : Front RH side air bag module C2 B130 B/1 : Condenser-1
F4 B110 W/10 : To B300 C2 B131 B/1 : Condenser-1
E5 B111 Y/2 : RH side air bag (satellite) sensor C3 B132 — : Body ground
F4 B112 W/3 : Seat belt buckle switch RH B3 B135 W/8 : Bluetooth control unit
G3 B113 Y/12 : Air bag diagnosis sensor unit E5 B138 B/3 : Belt tension sensor
E4 B114 — : Body ground D1 B139 — : Body ground
E4 B115 Y/2 : Front RH seat belt pre-tensioner C2 B140 B/1 : Rear window defogger (+)
C3 B116 W/1 : Rear door switch RH D1B141 B/1 : Rear window defogger (-)
E3 B117 — : Body ground B2 B142 W/3 : Trunk key cylinder switch
C2 B118 Y/2 : RH side curtain air bag module B1 B143 BR/2 : License plate lamp RH
E4 B119 W/8 : To D301 B2 B144 BR/2 : License plate lamp LH
G5 B120 W/24 : To M14
Revision: January 20102010 Versa

PG-54
< SERVICE INFORMATION >
HARNESS
FRONT DOOR LH HARNESS
D5 R1 W/16 : To M1 D1 R7 W/3 : Interior room lamp
F2 R2 GR/4 : Map lamp E2 R8 W/3 : To R50 (without map lamps)
F2 R3 W/3 : Map lamp G2 R9 W/2 : Vanity mirror lamp LH
F2 R4 GR/10 : Sunroof motor assembly D3 R10 W/2 : Vanity mirror lamp RH
F2 R6 W/3 : Sunroof switch D1 R15 W/4 : Microphone
D1 W/16 : To M9D7 W/16 : Main power window and door lock/unlock switch
D2 W/16 : To M8 D8 W/3 : Main power window and door lock/unlock switch
D3 B/6 : Front door lock actuator LH D9 B/6 : Front power window motor LH
D4 BR/8 : Door mirror LH D10 GR/2 : Front outside antenna LH
D5 GR/2 : Front door request switch LH D12 W/2 : Front door speaker LH
D6 BR/2 : Intelligent key warning buzzer (front door LH) D14 BR/3 : Front door key cylinder switch LH
Revision: January 20102010 Versa

HARNESSPG-55
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
FRONT DOOR RH HARNESS
LKIA0822E
D101 W/12 : To M75 D106 GR/2 : Front outside antenna RH
D102 W/12 : To M74 D107 BR/8 : Door mirror RH
D103 GR/2 : Front door request switch RH D112 W/2 : Front door speaker RH
D104 BR/2 : Front power window motor RH D114 B/6 : Front door lock actuator RH
D105 W/12 : Power window and door lock/unlock switch RH
Revision: January 20102010 Versa

PG-56
< SERVICE INFORMATION >
HARNESS
REAR DOOR LH HARNESS
LKIA0824E
D201 W/8 : To B4D205 B/6 : Rear door lock actuator LH
D203 W/8 : Rear power window switch LH D207 W/2 : Rear door speaker LH
D204 BR/2 : Rear powe r window motor LH
Revision: January 20102010 Versa

HARNESSPG-57
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

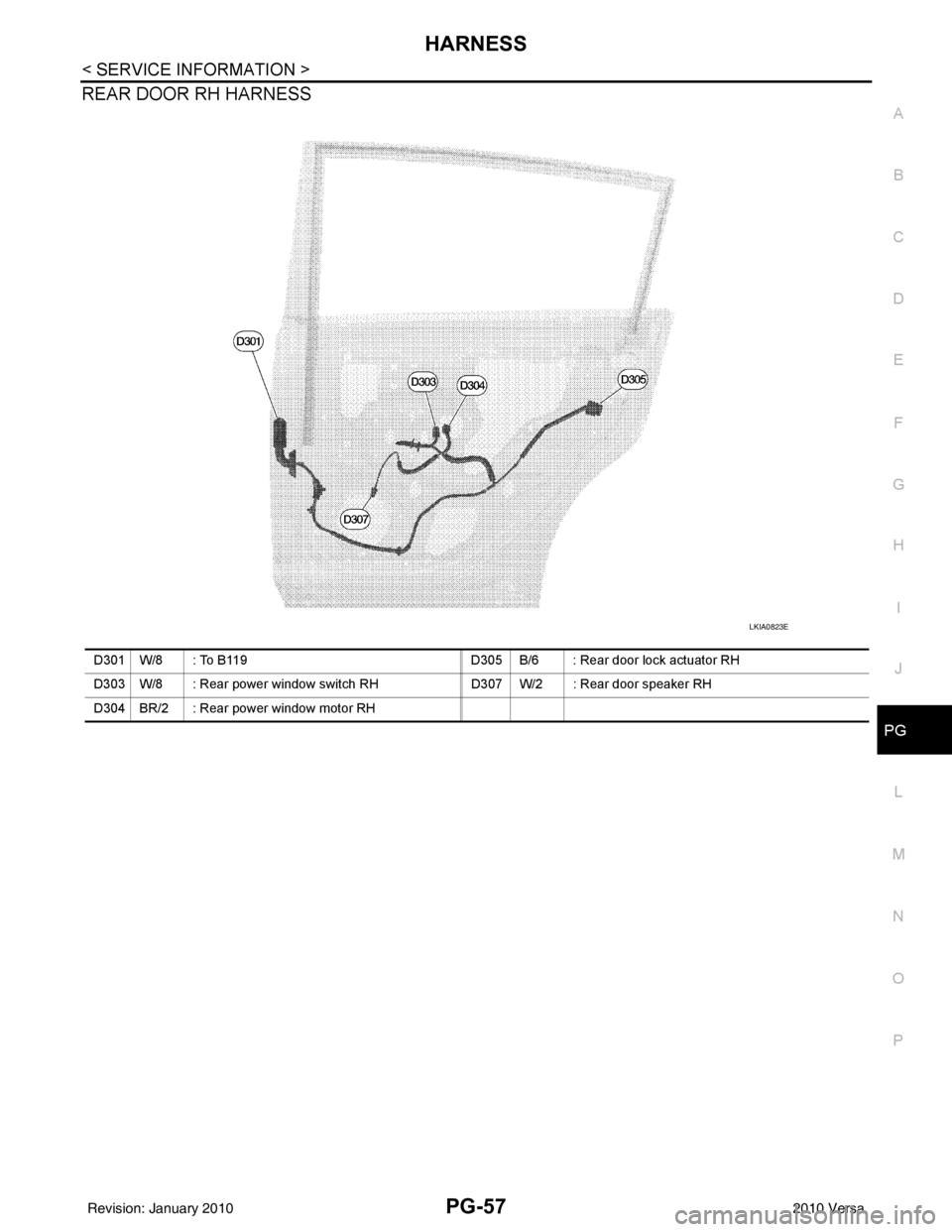

REAR DOOR RH HARNESS
LKIA0823E
D301 W/8 : To B119 D305 B/6 : Rear door lock actuator RH
D303 W/8 : Rear power window switch RHD307 W/2 : Rear door speaker RH
D304 BR/2 : Rear powe r window motor RH
Revision: January 20102010 Versa
