PG-28
< SERVICE INFORMATION >
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
OK or NG
OK >> GO TO 3.
NG >> Repair or replace IPDM E/R power circuit harness.
3.GROUND CIRCUIT INSPECTION
1. Disconnect IPDM E/R harness connectors E46 and E48.
2. Check continuity between IPDM E/R harness connector E46 (A) terminal 39, E48 (B) terminal 59 and ground.
OK or NG
OK >> Inspection End.
NG >> Repair or replace IPDM E/R ground circuit harness.
Inspection with CONSULT-III (Self-Diagnosis)INFOID:0000000005395363
1.SELF-DIAGNOSIS RESULT CHECK
1. Connect CONSULT-III and select "IPDM E/R" on the "SELECT SYSTEM" screen.
2. Select "SELF-DIAG RESULTS" on the "SELECT DIAG MODE" screen.
3. Check display content in self-diagnosis results.
NOTE:
The Details for Display for the Period are as follows:
• CRNT: Error currently detected by IPDM E/R.
• PAST: Error detected in the past and stored in IPDM E/R memory.
Contents displayed
NO DTC DETECTED. FURTHER TESTING MAY BE REQUIRED.>>Inspection End.
CAN COMM CIRC>>Print out the self-diagnosis result and refer to LAN-17, "
Trouble Diagnosis Flow Chart".
Removal and Installation of IPDM E/RINFOID:0000000005395364
REMOVAL
1. Disconnect the negative battery cable.Battery voltage should exist.
SKIA1987E
Continuity should exist.
WKIA5667E
CONSULT-III Display
CONSULT-III
display code TIME
Details of diagnosis result
CRNT PAST
NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED. — — —
No malfunction
CAN COMM CIRC U1000 X XAny of items listed below have errors:
• TRANSMIT DIAG
•ECM
• BCM/SEC
Revision: January 20102010 Versa

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-29
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
PG
N
O P
2. Lift up the IPDM E/R (1) while pushing and opening pawls (A) or (B), and remove the IPDM E/R while pushing and opening the
other side pawls.
3. Disconnect harness connector.
INSTALLATION
Installation is the reverse order of removal.
WKIA5668E
Revision: January 20102010 Versa

PG-30
< SERVICE INFORMATION >
GROUND CIRCUIT
GROUND CIRCUIT
Ground DistributionINFOID:0000000005395365

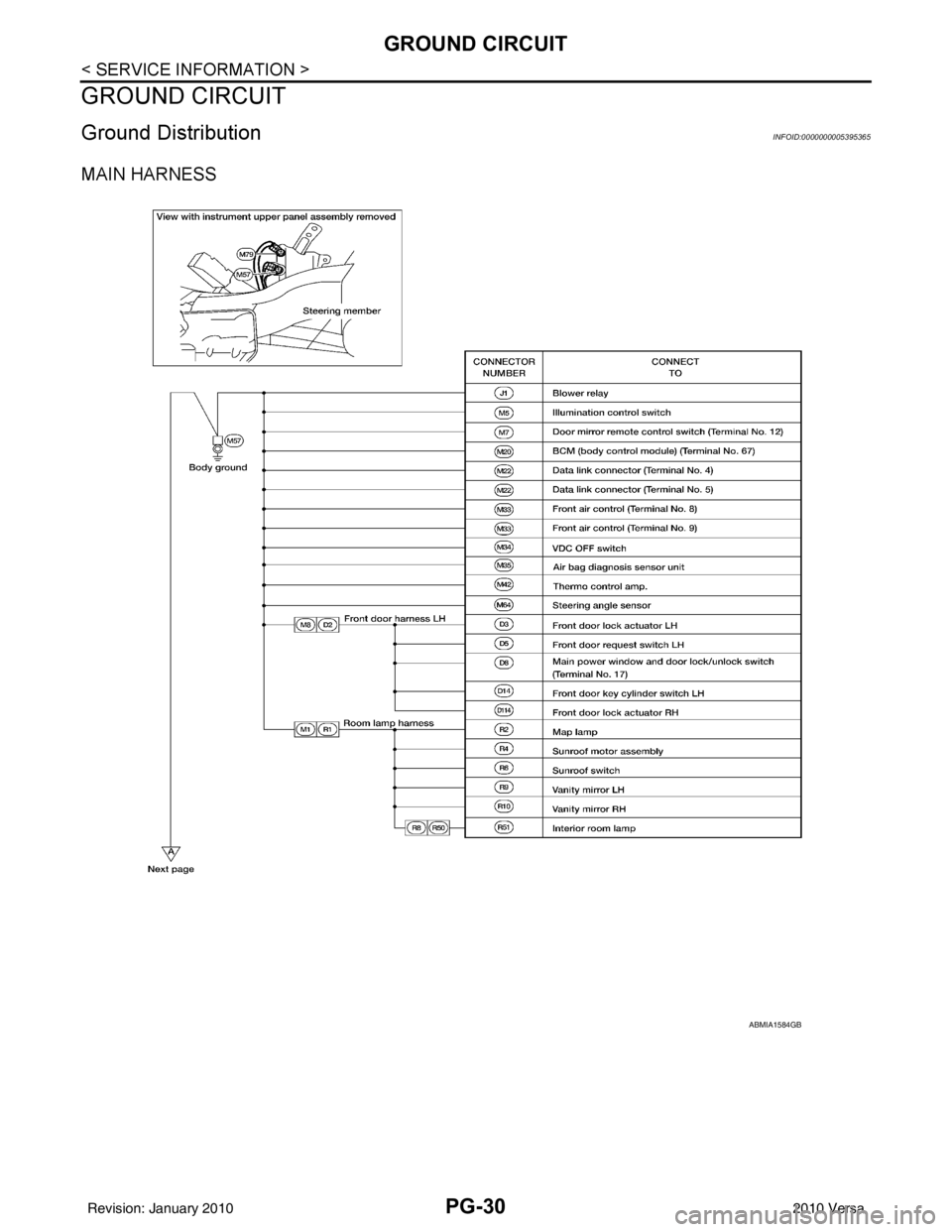

MAIN HARNESS
ABMIA1584GB
Revision: January 20102010 Versa

GROUND CIRCUITPG-31
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

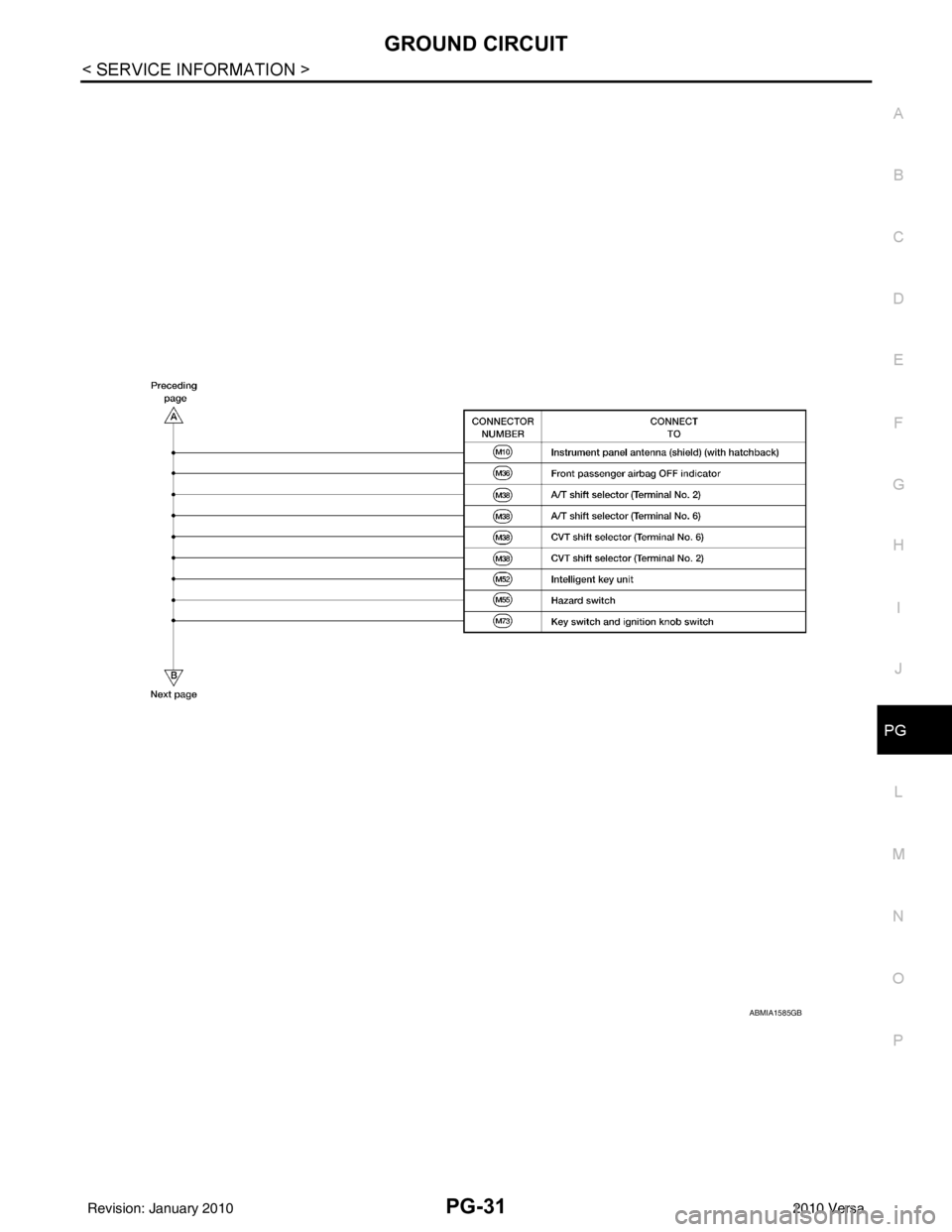

ABMIA1585GB
Revision: January 20102010 Versa

PG-32
< SERVICE INFORMATION >
GROUND CIRCUIT

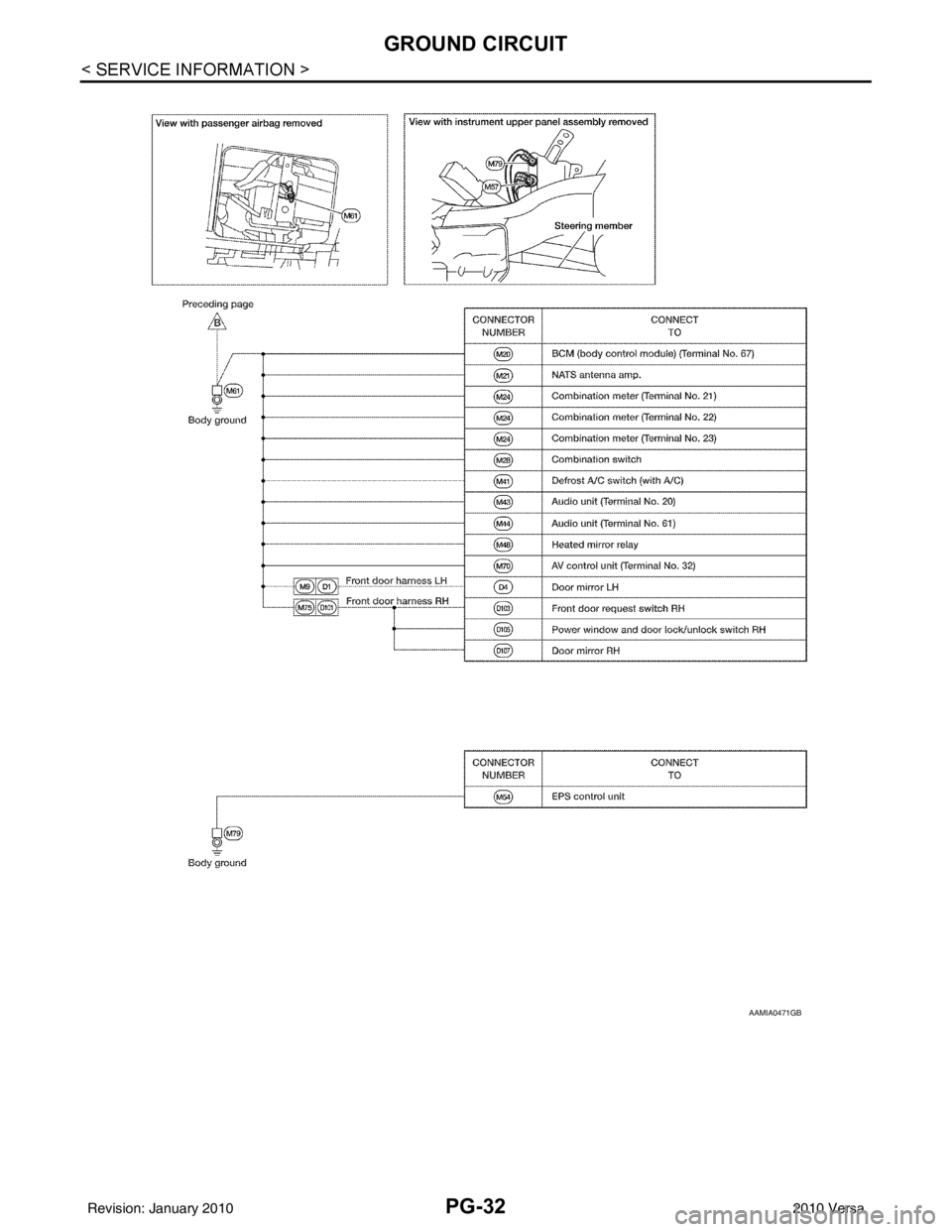

AAMIA0471GB
Revision: January 20102010 Versa

GROUND CIRCUITPG-33
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

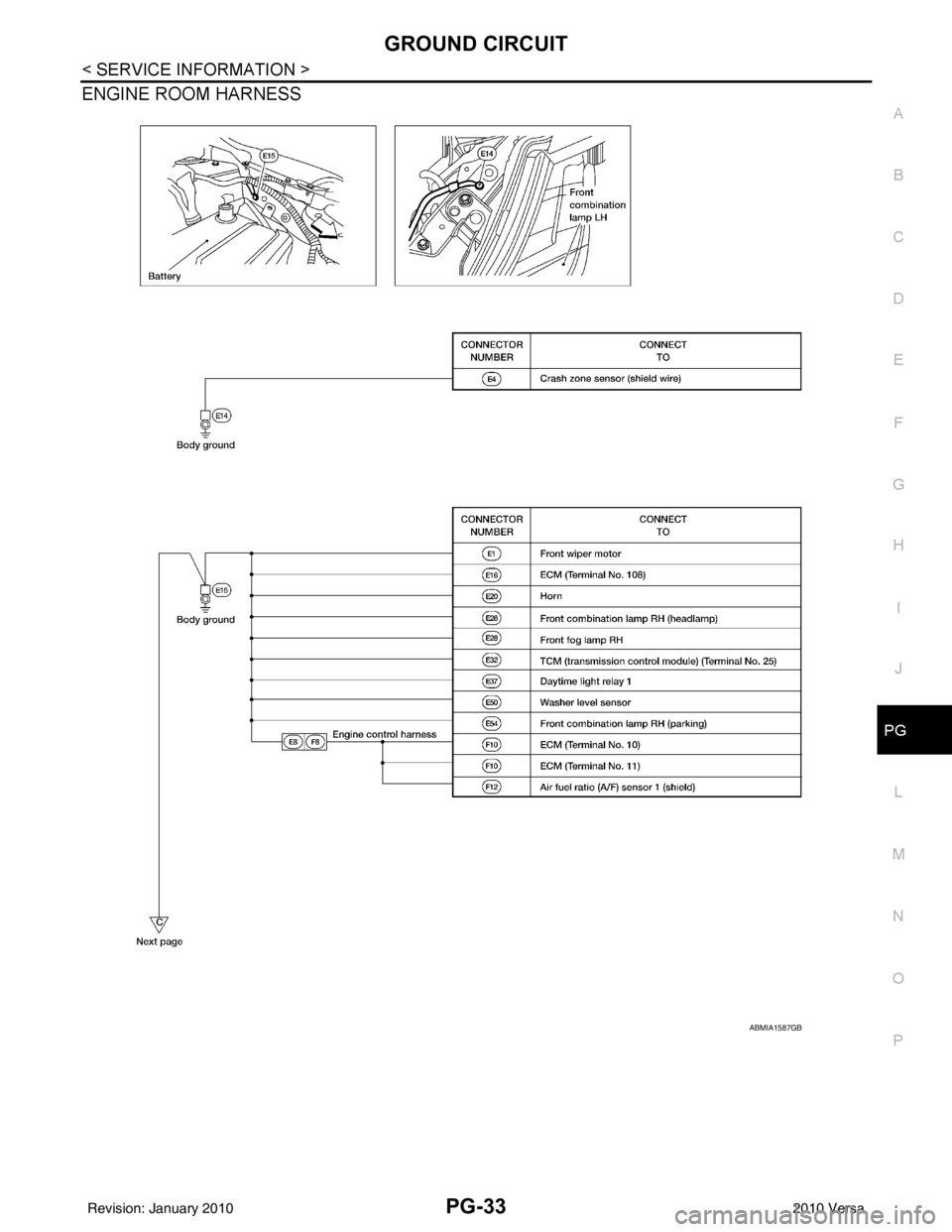

ENGINE ROOM HARNESS
ABMIA1587GB
Revision: January 20102010 Versa

PG-34
< SERVICE INFORMATION >
GROUND CIRCUIT

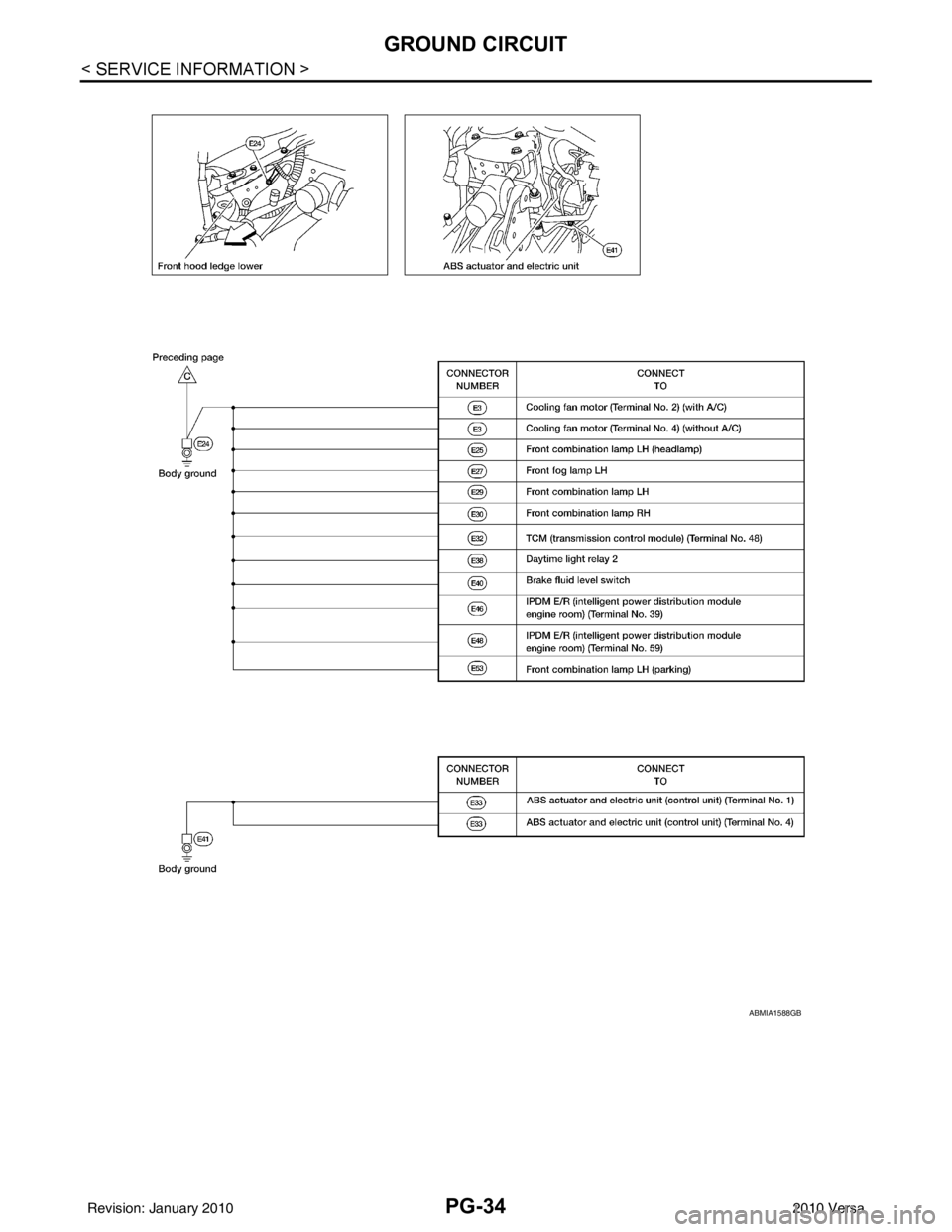

ABMIA1588GB
Revision: January 20102010 Versa

GROUND CIRCUITPG-35
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

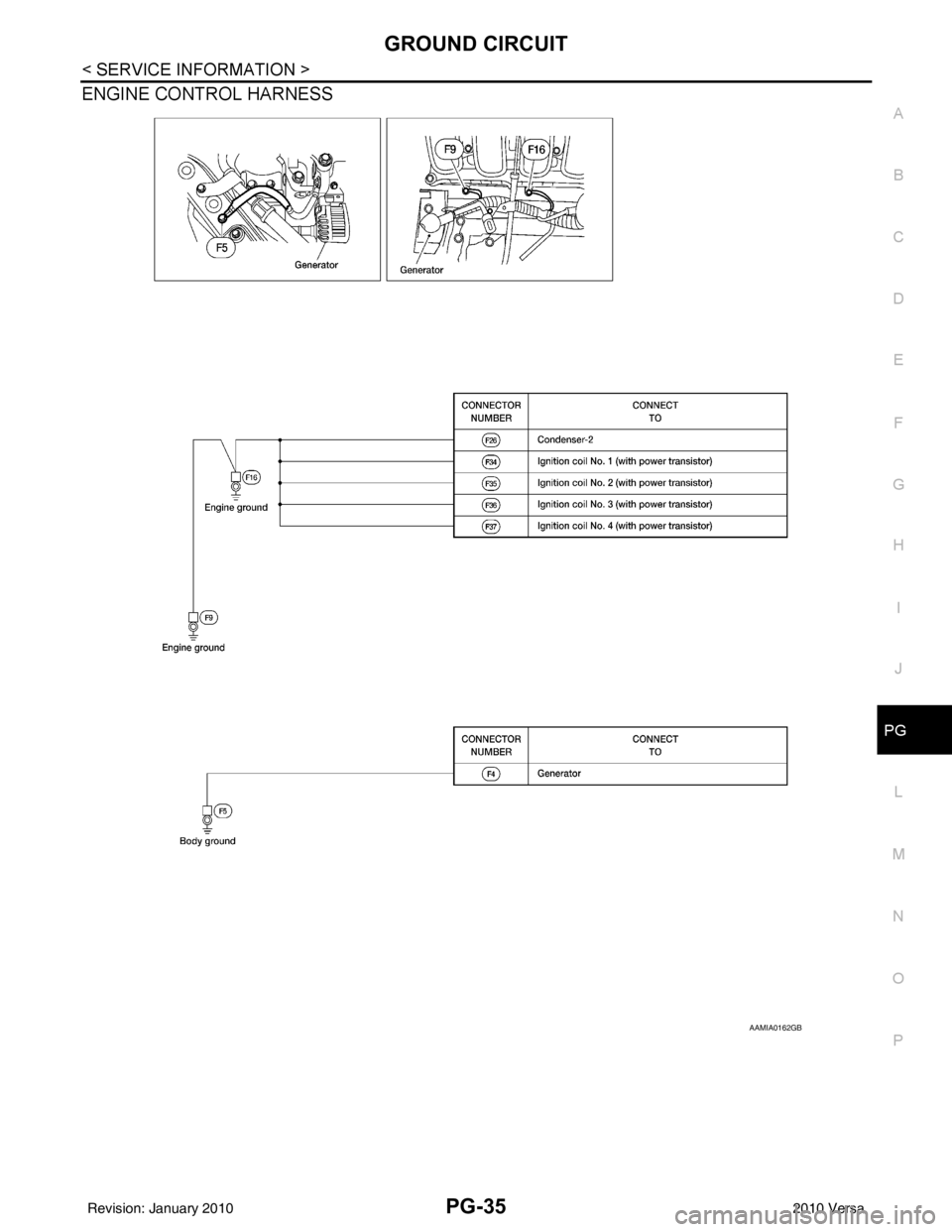

ENGINE CONTROL HARNESS
AAMIA0162GB
Revision: January 20102010 Versa

PG-36
< SERVICE INFORMATION >
GROUND CIRCUIT

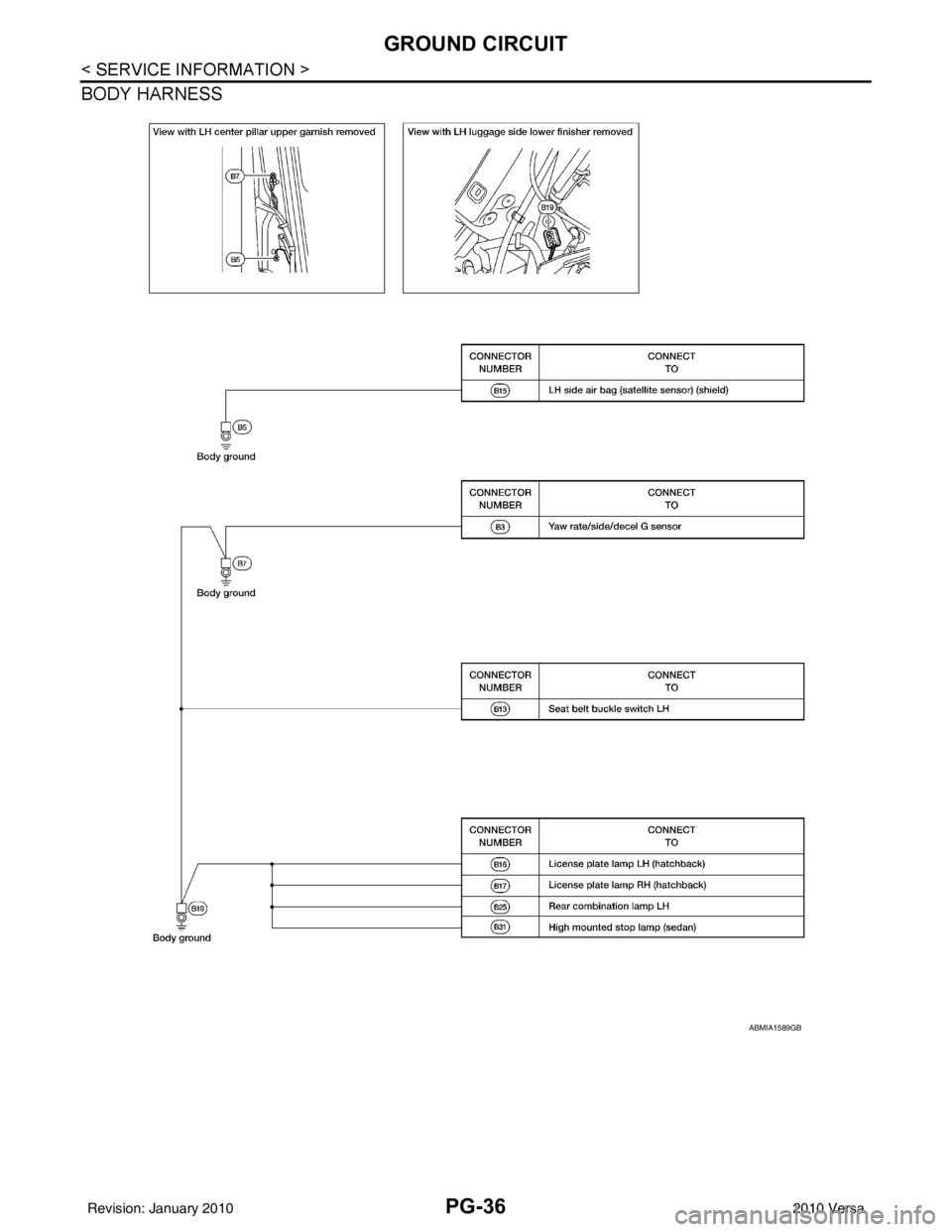

BODY HARNESS
ABMIA1589GB
Revision: January 20102010 Versa

GROUND CIRCUITPG-37
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

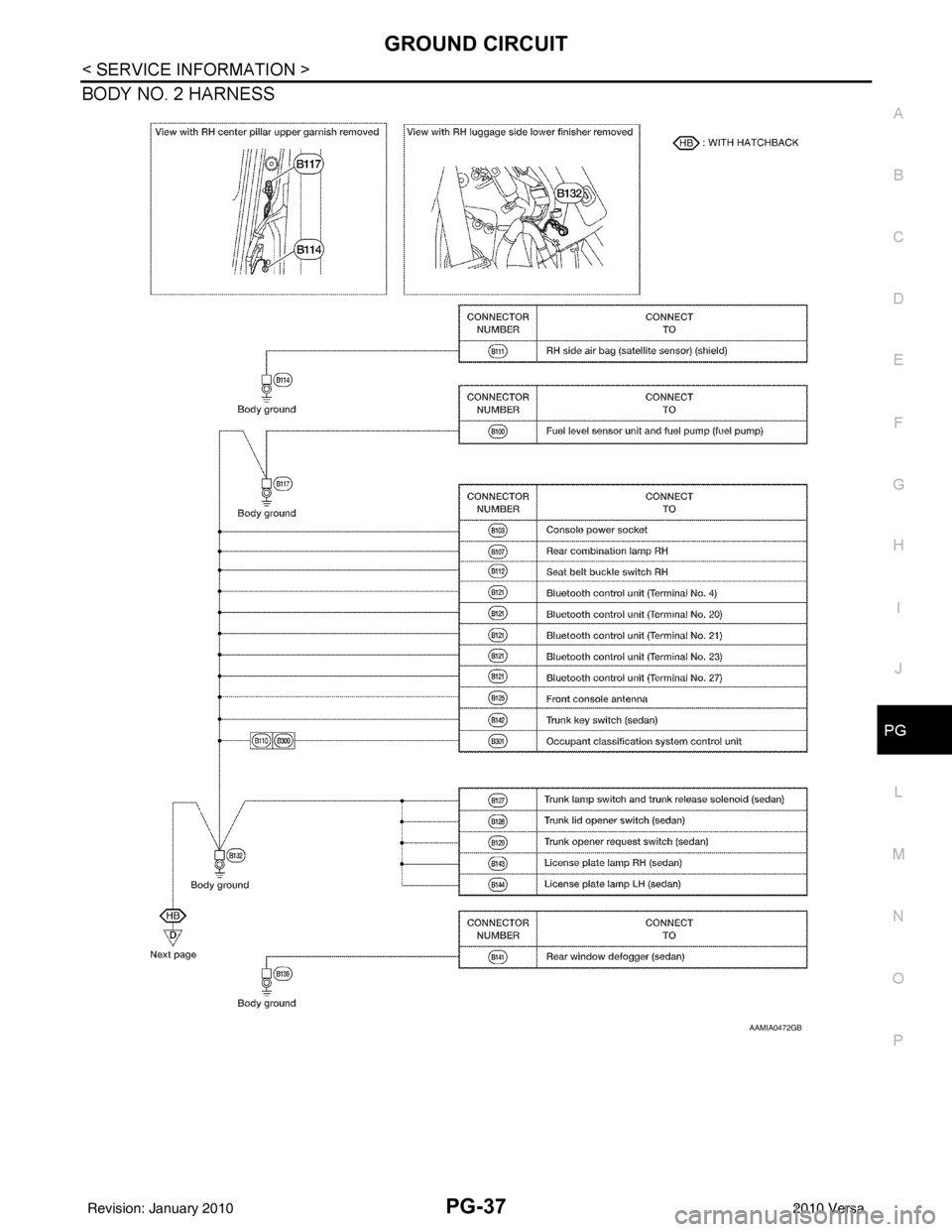

BODY NO. 2 HARNESS
AAMIA0472GB
