HARNESS CONNECTOR
Always confirm the lever is fully released (loosened) before attempti ng to disconnect or connect these
connectors to avoid damage to th e connector housing or terminals.
HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE)
• SRS direct-connect type harness connectors are used on certain SRS components such as air bag modules
and seat belt pre-tensioners.
• Always pull up to release black locking tab prior to removing connector from SRS component.
• Always push down to lock black locking tab after installing connector to SRS component. When locked, the
black locking tab is level with the connector housing.
CAUTION:
• Do not pull the harness or wi res when removing connectors
from SRS components.
LKIA0670E
1. Control unit with single lever
A. Fasten
B. Loosen
C. Lever 2. Control unit with dual levers
A. Levers
B. Fasten
C. Loosen 3. SMJ connector
A. Lever
B. Fasten
C. Loosen
WHIA0103E
Revision: January 20102010 Versa

ELECTRICAL UNITSPG-69
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
ELECTRICAL UNITS
Terminal ArrangementINFOID:0000000005395370

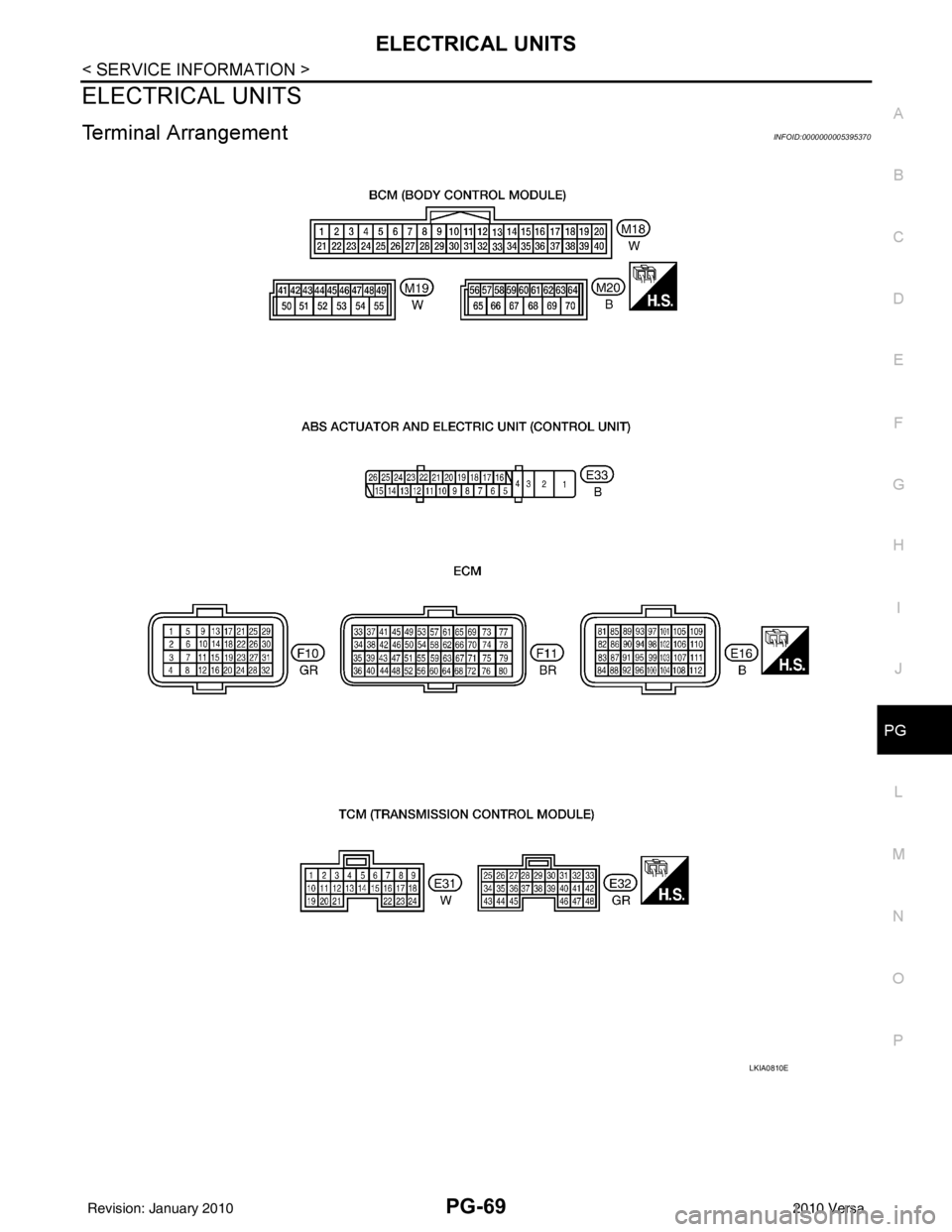

LKIA0810E
Revision: January 20102010 Versa

PG-70
< SERVICE INFORMATION >
STANDARDIZED RELAY
STANDARDIZED RELAY
DescriptionINFOID:0000000005395371

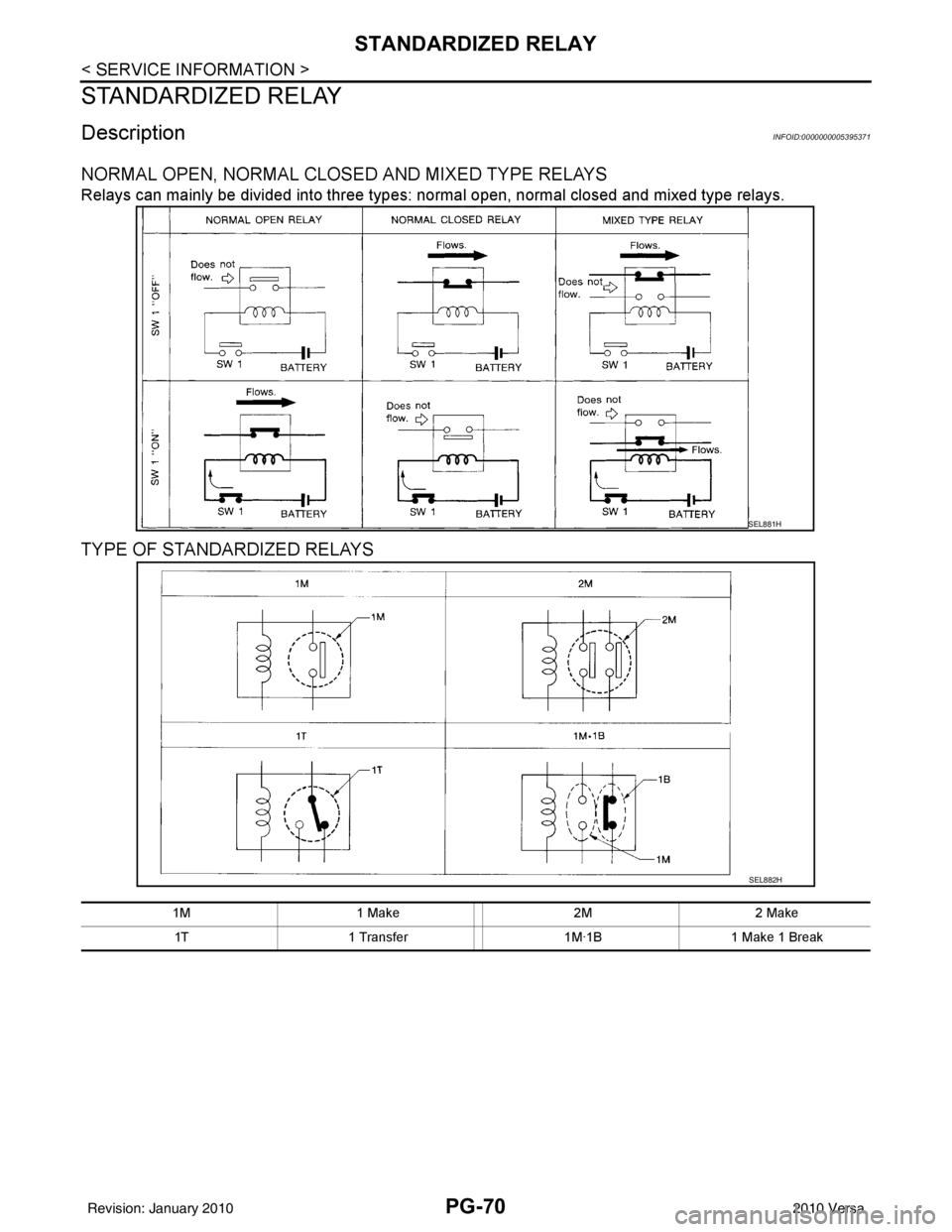

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
SEL881H
SEL882H
1M1 Make 2M2 Make
1T 1 Transfer 1M·1B1 Make 1 Break
Revision: January 20102010 Versa

STANDARDIZED RELAYPG-71
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

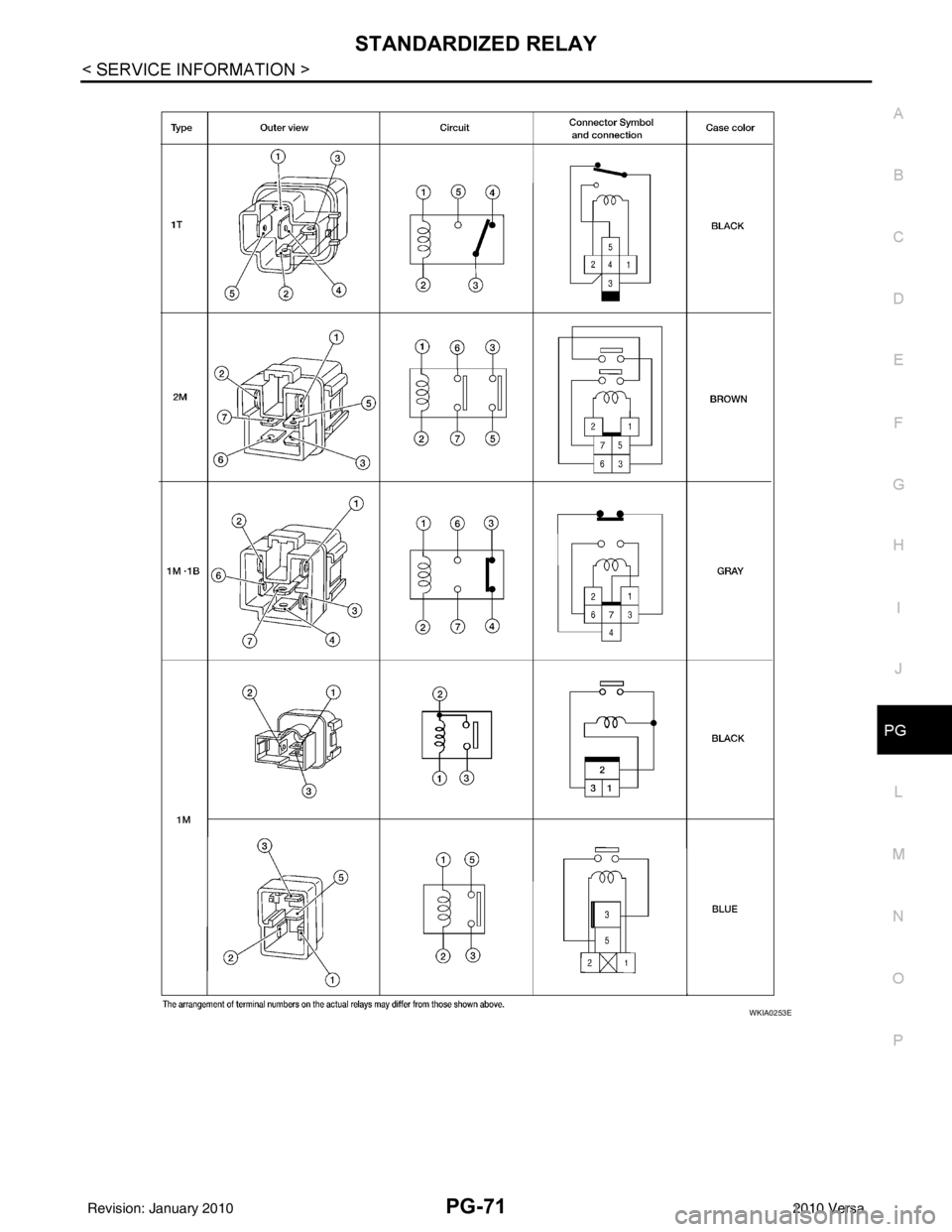

WKIA0253E
Revision: January 20102010 Versa

PG-72
< SERVICE INFORMATION >
SUPER MULTIPLE JUNCTION (SMJ)
SUPER MULTIPLE JUNCTION (SMJ)
Terminal ArrangementINFOID:0000000005395372

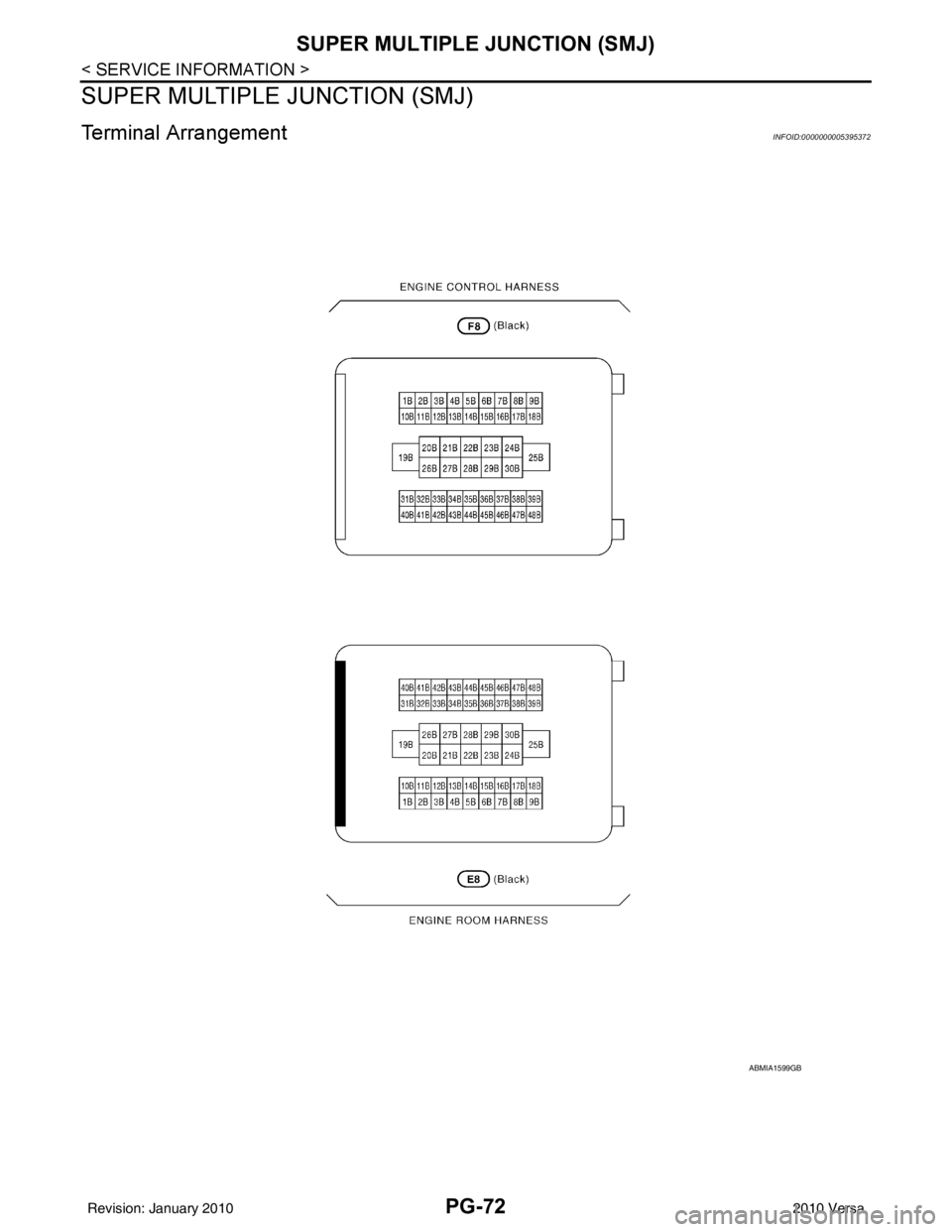

ABMIA1599GB
Revision: January 20102010 Versa

SUPER MULTIPLE JUNCTION (SMJ)PG-73
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

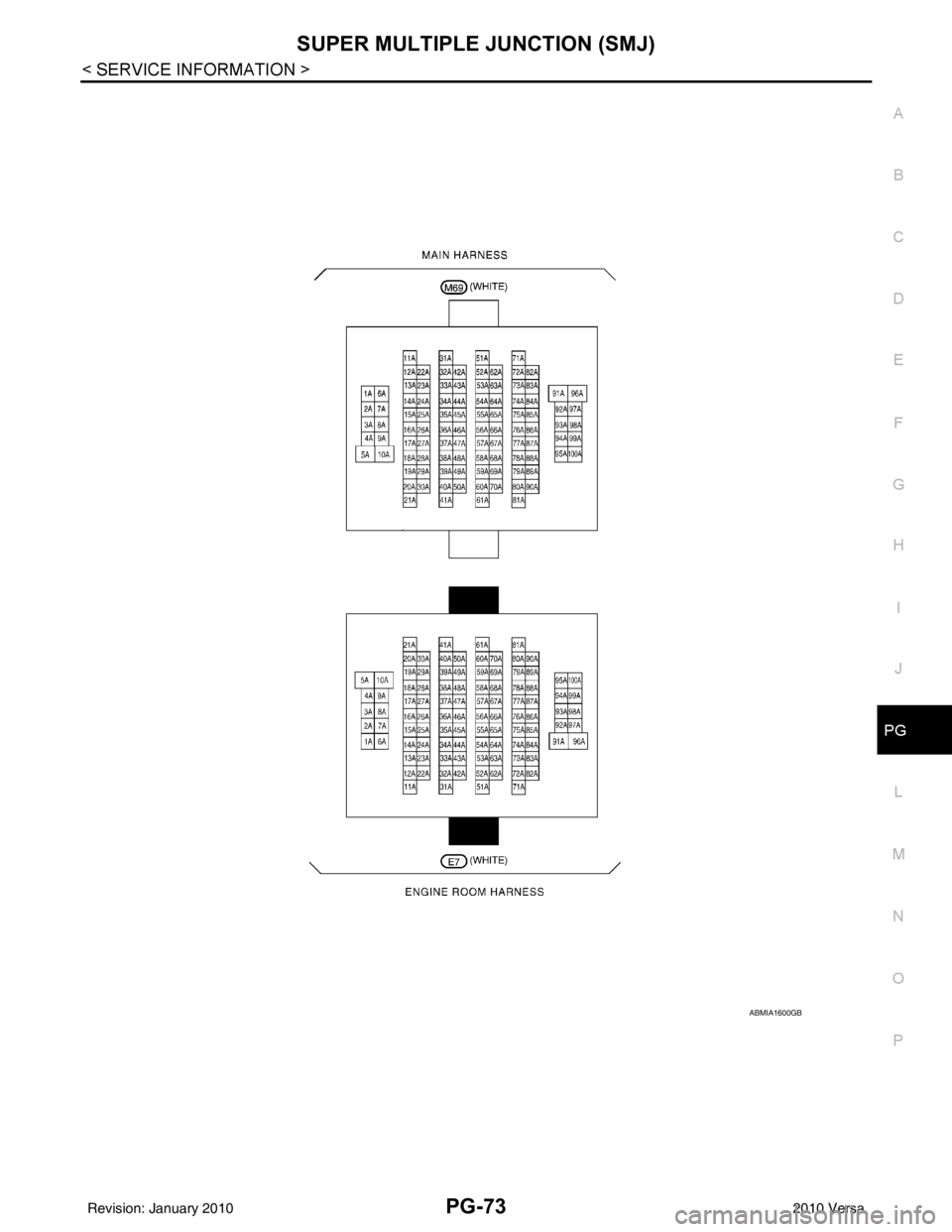

ABMIA1600GB
Revision: January 20102010 Versa

PG-74
< SERVICE INFORMATION >
FUSE BLOCK-JUNCTION BOX (J/B)
FUSE BLOCK-JUNCTION BOX (J/B)
Terminal ArrangementINFOID:0000000005395373

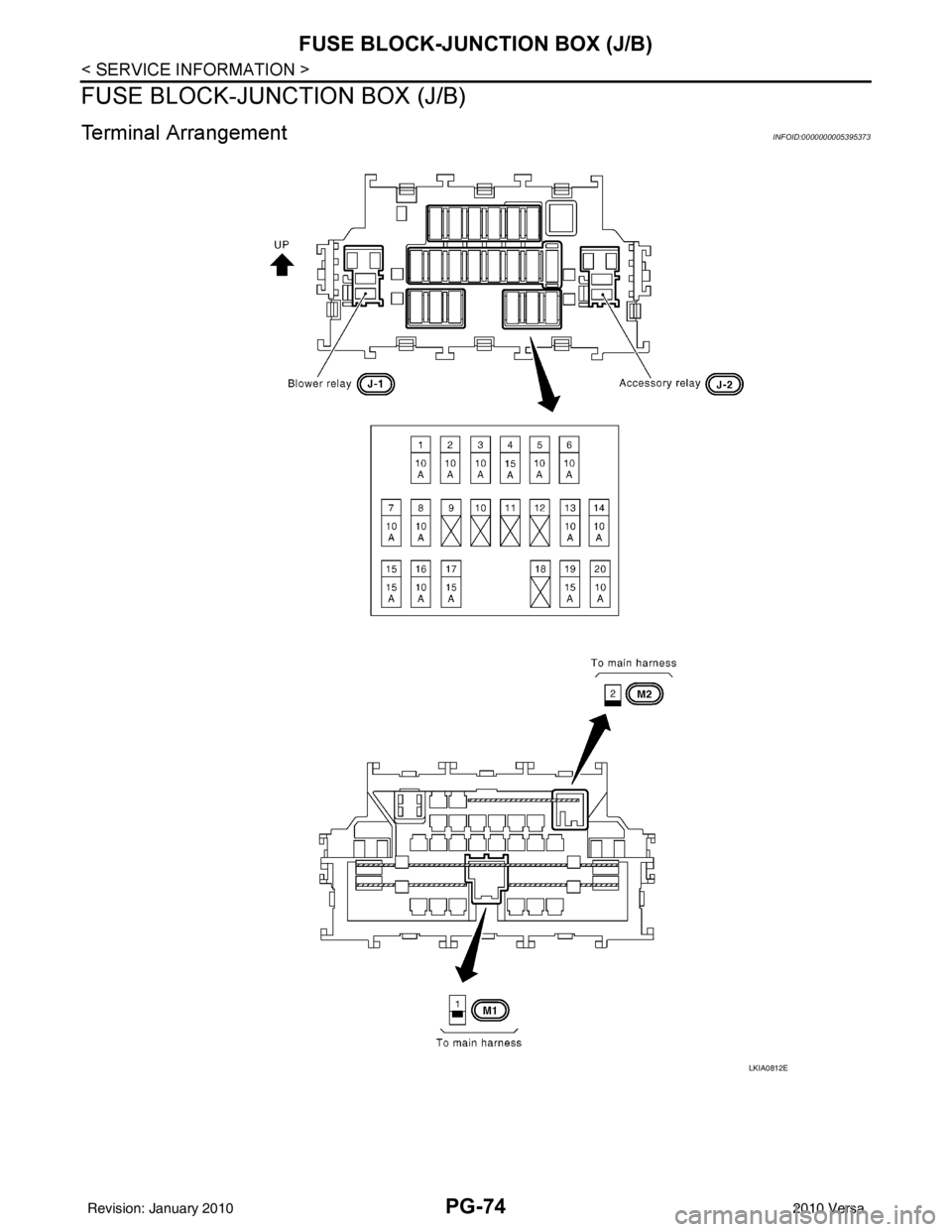

LKIA0812E
Revision: January 20102010 Versa

FUSE AND FUSIBLE LINK BOXPG-75
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
FUSE AND FUSIBLE LINK BOX
Terminal ArrangementINFOID:0000000005395374

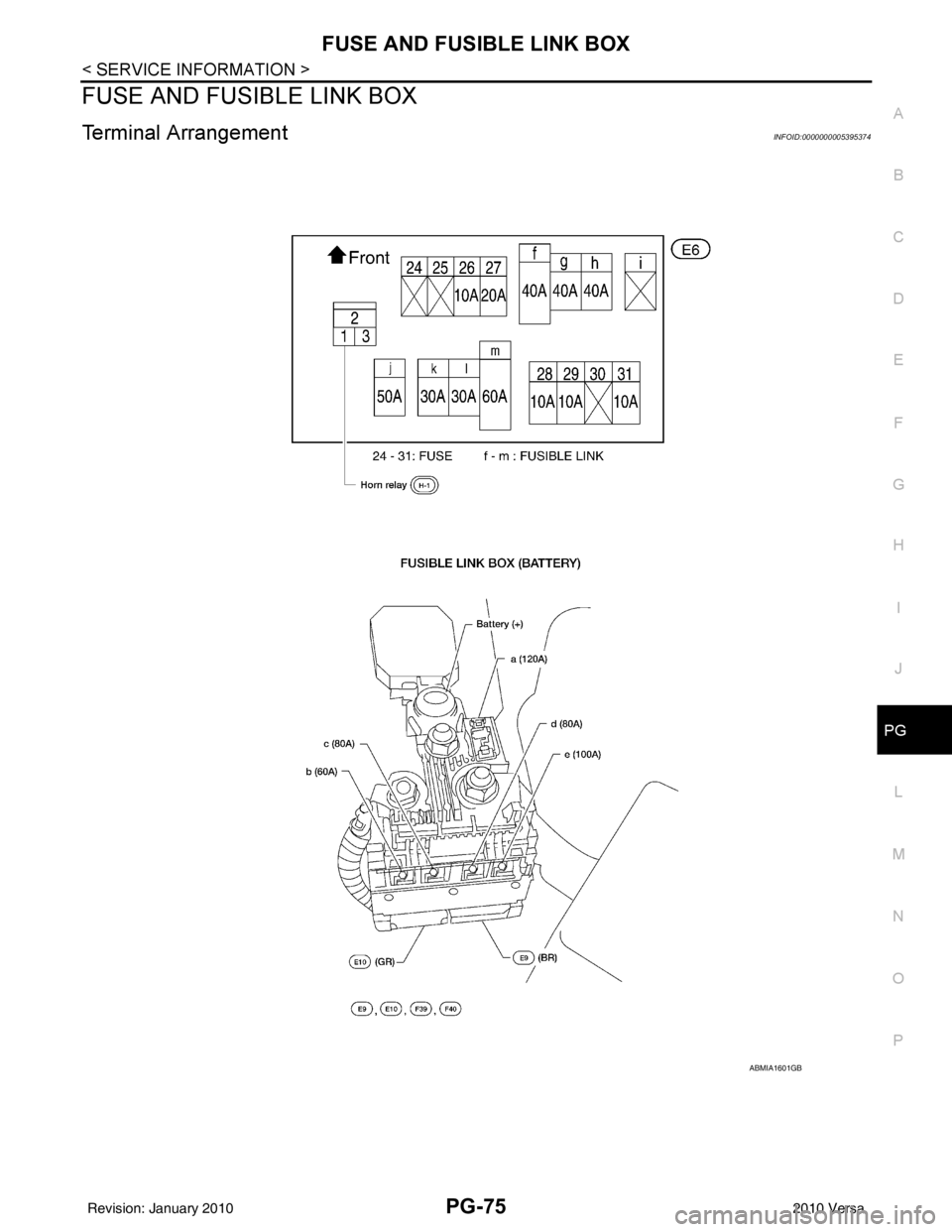

ABMIA1601GB
Revision: January 20102010 Versa
