NISSAN TIIDA 2010 Service Repair Manual

BL-282
< SERVICE INFORMATION >
BODY REPAIR
Sedan
LIIA2876E
Revision: January 20102010 Versa

BODY REPAIRBL-283
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
LIIA2877E
Revision: January 20102010 Versa

BL-284
< SERVICE INFORMATION >
BODY REPAIR
Body Construction
INFOID:0000000005396722
BODY CONSTRUCTION
LIIA2878E
Revision: January 20102010 Versa

BODY REPAIRBL-285
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
Hatchback
LIIA2548E
Revision: January 20102010 Versa

BL-286
< SERVICE INFORMATION >
BODY REPAIR
Sedan
Body AlignmentINFOID:0000000005396723

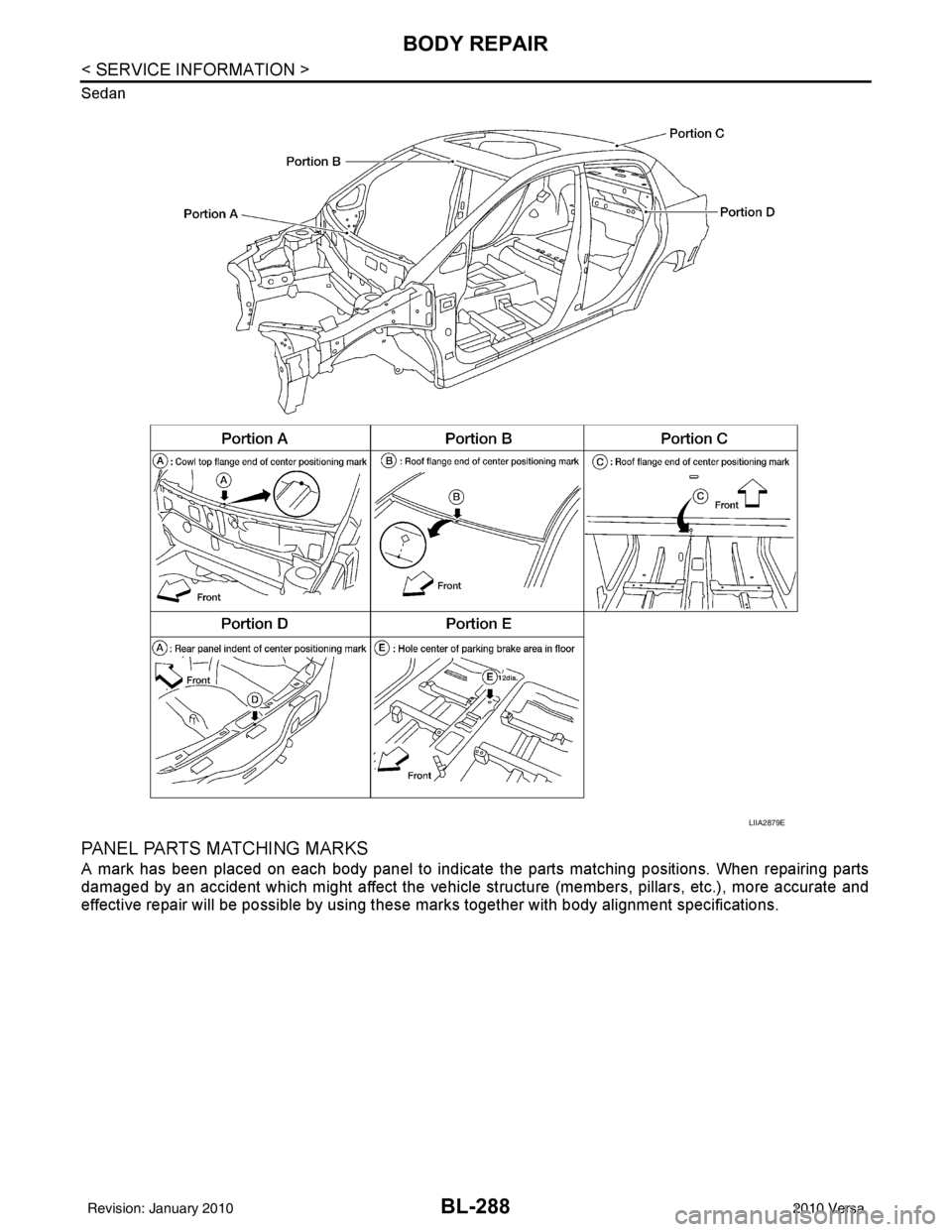

BODY CENTER MARKS
A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.
LIIA2881E
Revision: January 20102010 Versa

BODY REPAIRBL-287
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

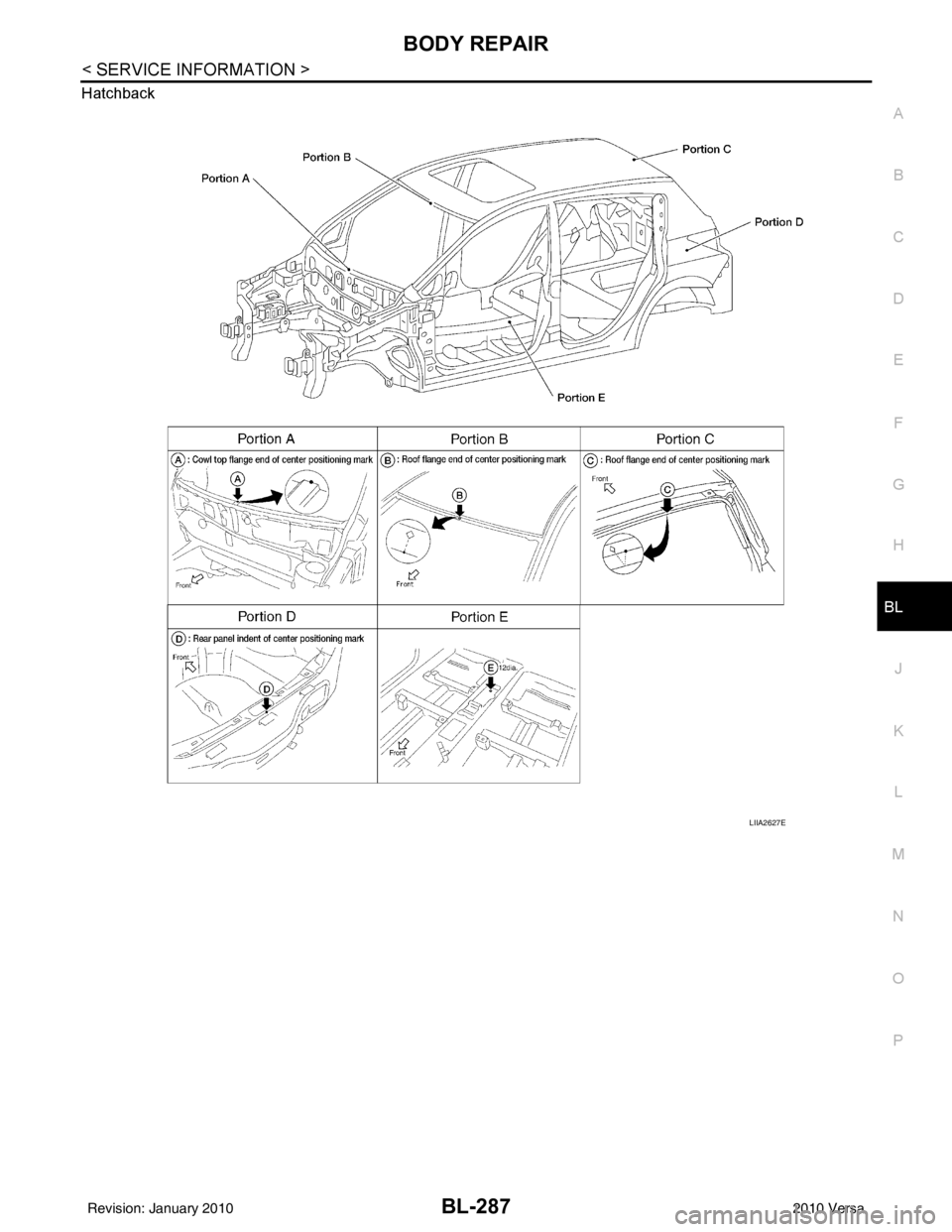

Hatchback
LIIA2627E
Revision: January 20102010 Versa

BL-288
< SERVICE INFORMATION >
BODY REPAIR
Sedan

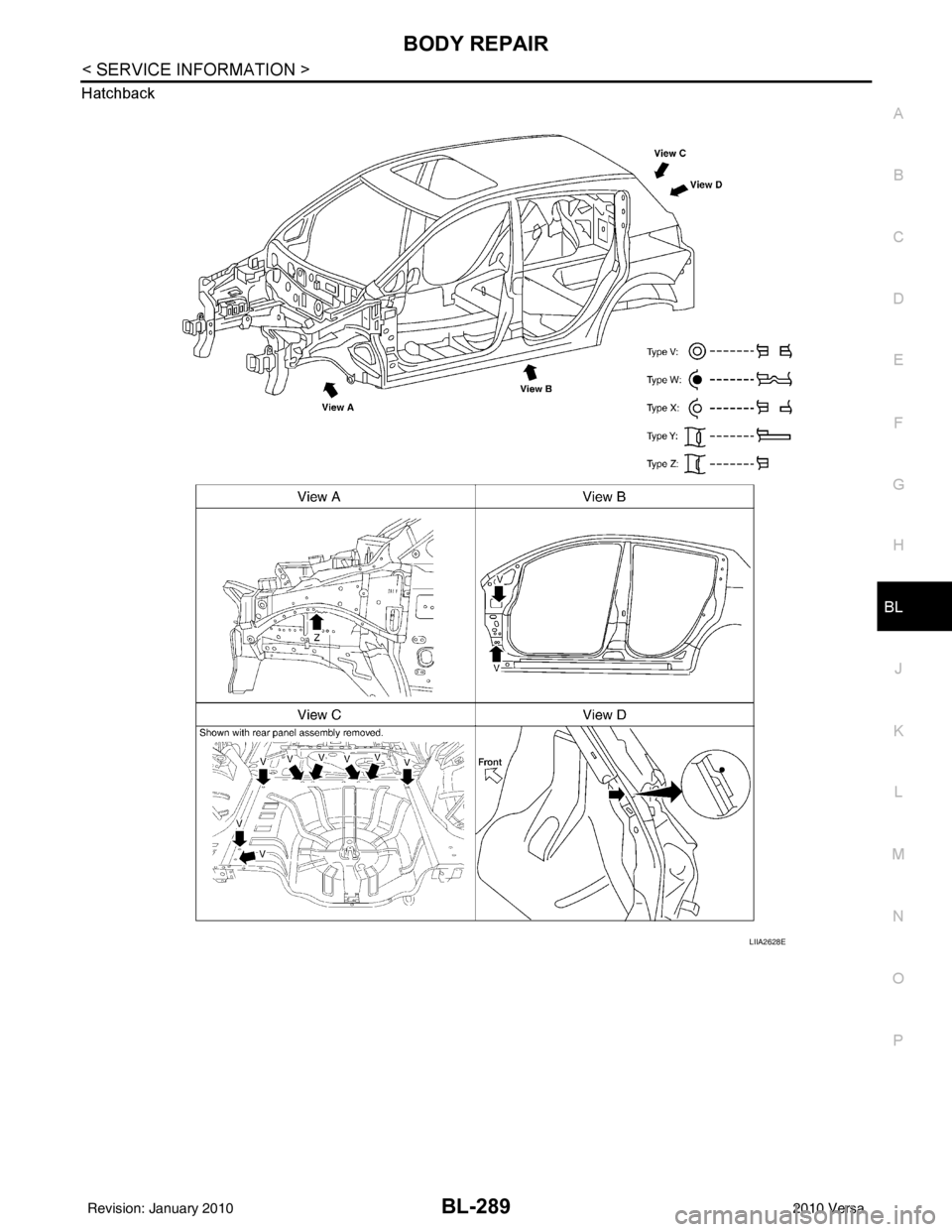

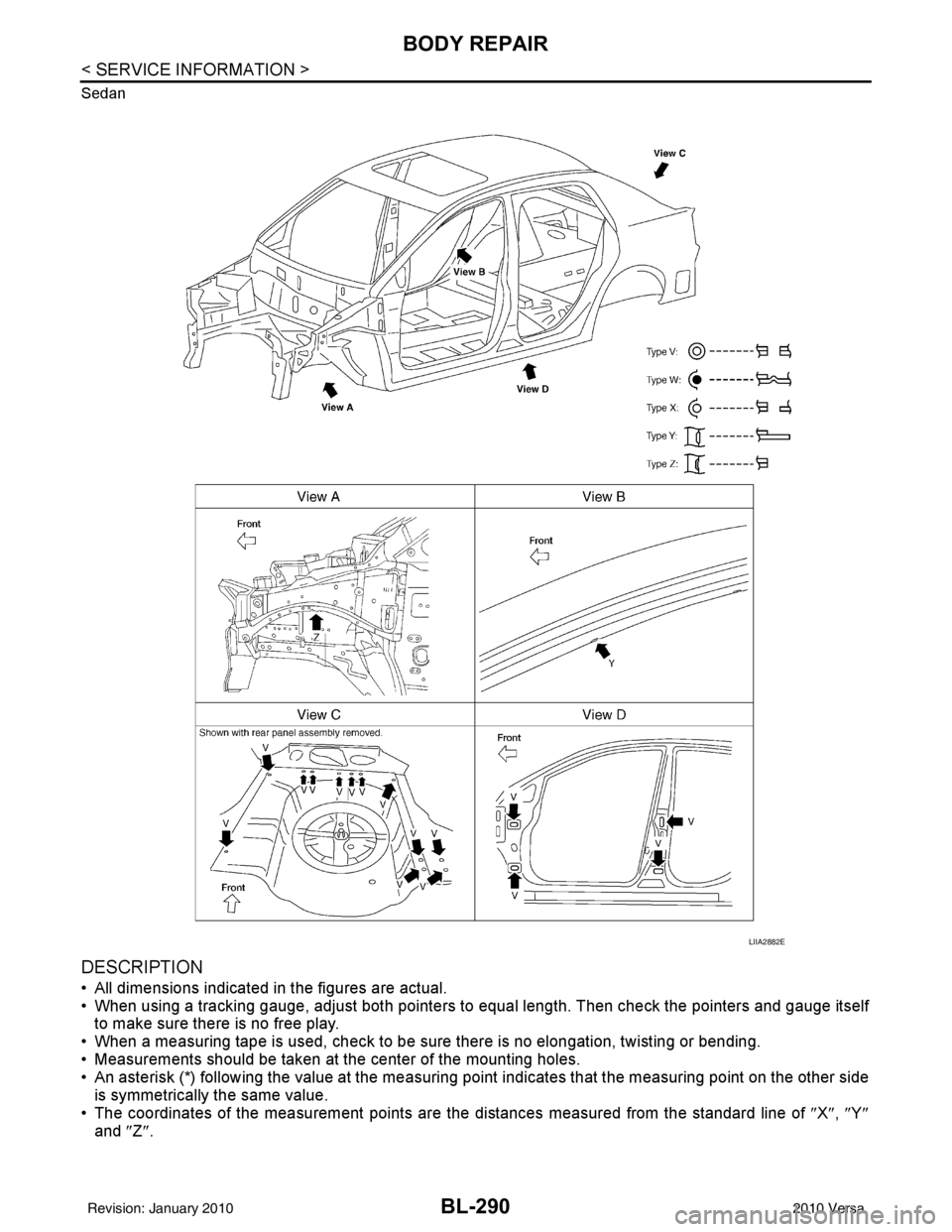

PANEL PARTS MATCHING MARKS
A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle st ructure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
LIIA2879E
Revision: January 20102010 Versa

BODY REPAIRBL-289
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
Hatchback
LIIA2628E
Revision: January 20102010 Versa

BL-290
< SERVICE INFORMATION >
BODY REPAIR
Sedan

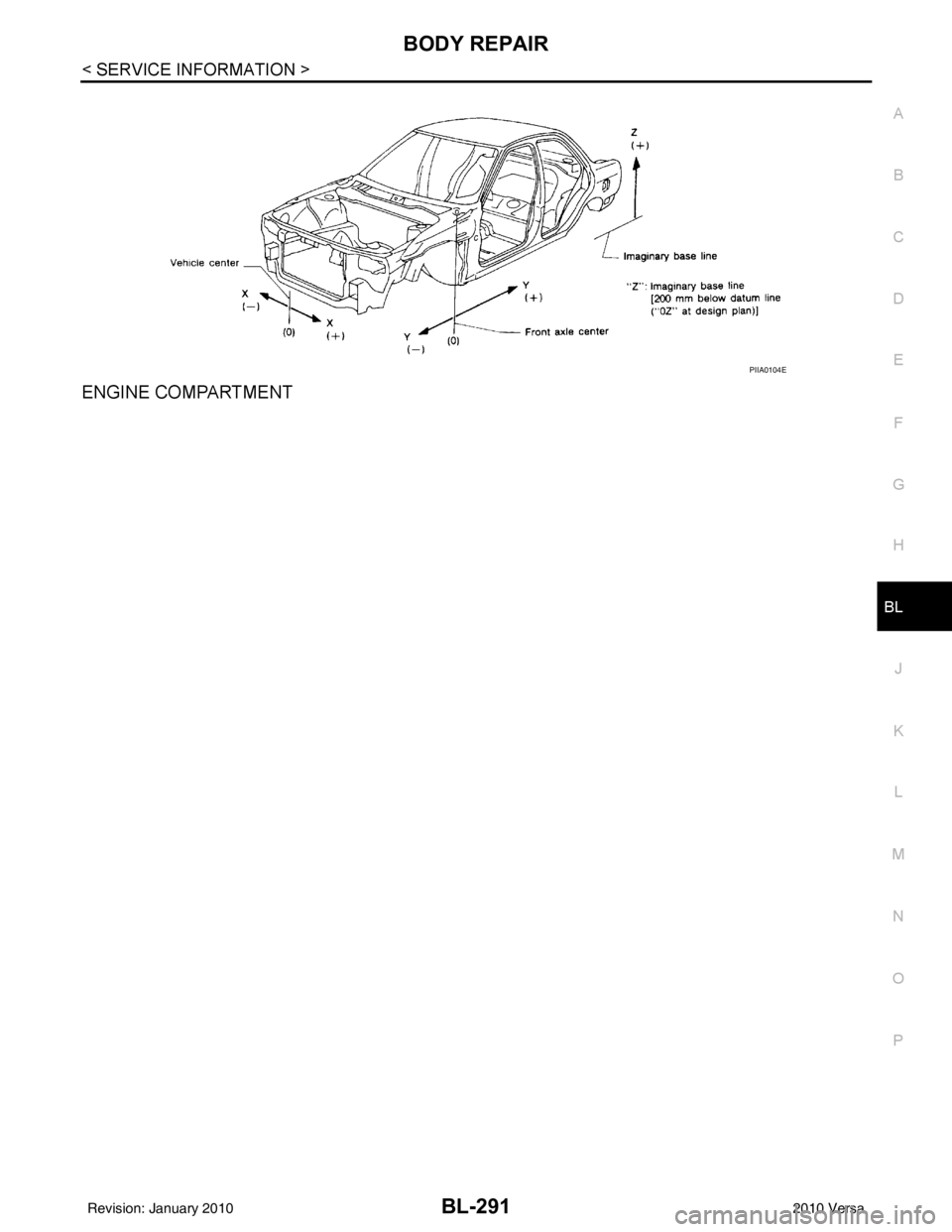

DESCRIPTION
• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself
to make sure there is no free play.
• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side
is symmetrically the same value.
• The coordinates of the measurement points are the distances measured from the standard line of ″ X″, ″Y ″
and ″Z ″.
LIIA2882E
Revision: January 20102010 Versa

BODY REPAIRBL-291
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
ENGINE COMPARTMENT
PIIA0104E
Revision: January 20102010 Versa
