NISSAN TIIDA 2010 Service Repair Manual

BL-312
< SERVICE INFORMATION >

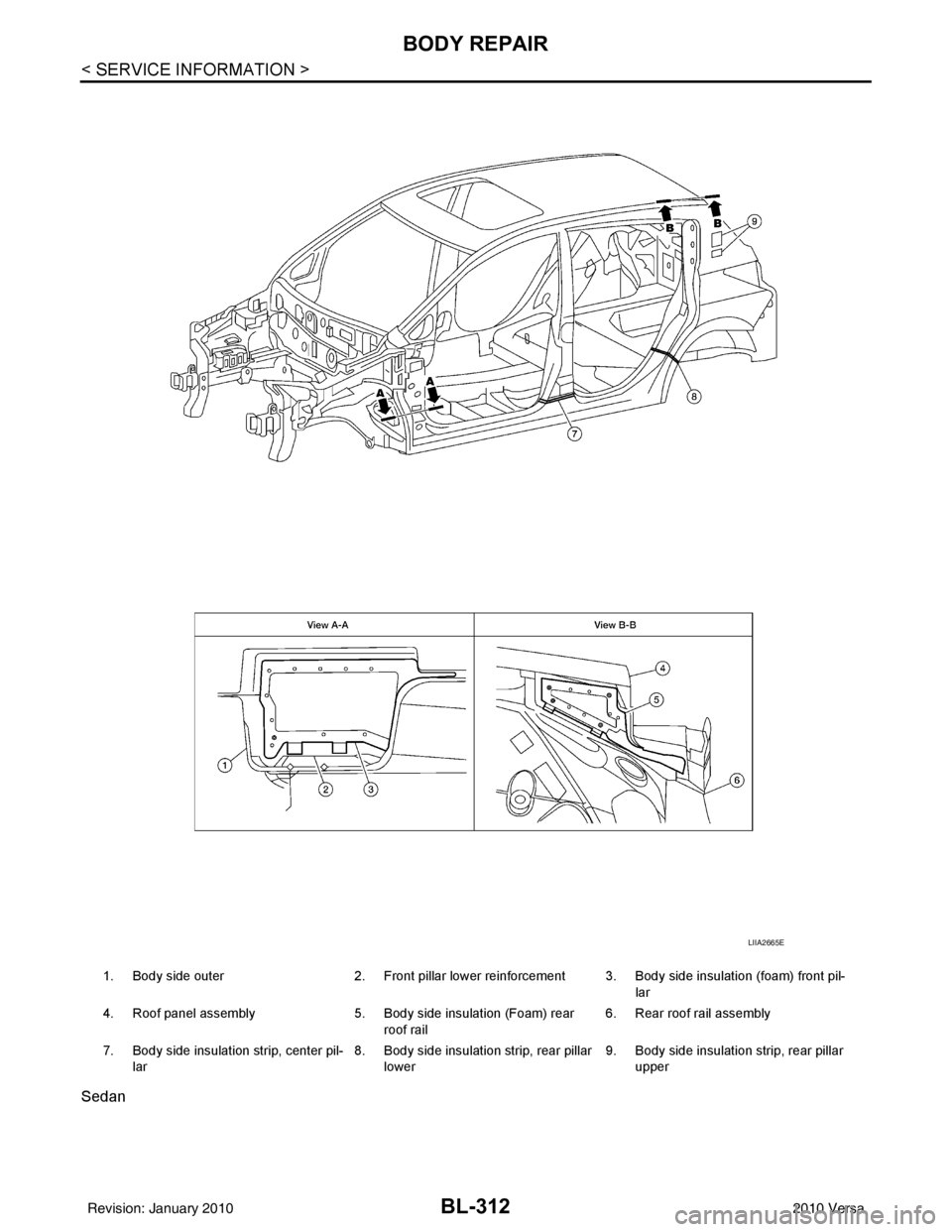

BODY REPAIR
Sedan

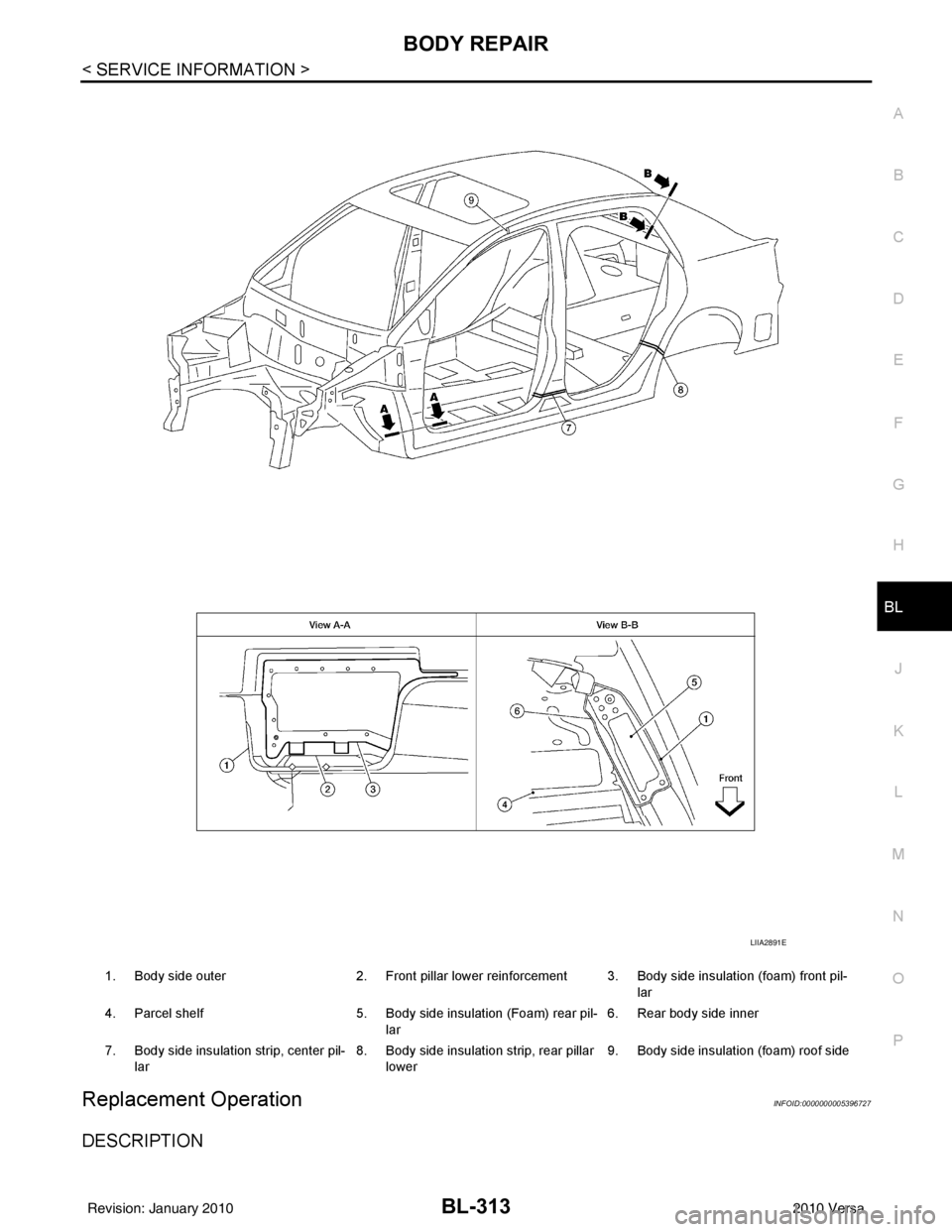

1. Body side outer2. Front pillar lower reinforcement 3. Body side insulation (foam) front pil-
lar
4. Roof panel assembly 5. Body side insulation (Foam) rear
roof rail 6. Rear roof rail assembly
7. Body side insulation strip, center pil- lar 8. Body side insulation strip, rear pillar
lower 9. Body side insulation strip, rear pillar
upper
LIIA2665E
Revision: January 20102010 Versa

BODY REPAIRBL-313
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
Replacement OperationINFOID:0000000005396727
DESCRIPTION
1. Body side outer 2. Front pillar lower reinforcement 3. Body side insulation (foam) front pil-
lar
4. Parcel shelf 5. Body side insulation (Foam) rear pil-
lar 6. Rear body side inner
7. Body side insulation strip, center pil- lar 8. Body side insulation strip, rear pillar
lower 9. Body side insulation (foam) roof side
LIIA2891E
Revision: January 20102010 Versa

BL-314
< SERVICE INFORMATION >
BODY REPAIR
This section is prepared for technicians who have attained a high level of skill and experience in repairing col-
lision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.
Technicians are also encouraged to read Body Repair M anual (Fundamentals) in order to ensure that the orig-
inal functions and quality of the vehicle can be mainta ined. The Body Repair Manual (Fundamentals) contains
additional information, including cautions and warnings, that are not including in this manual. Technicians
should refer to both manuals to ensure proper repairs.
Please note that this information is prepared for worldwide usage, and as such, certain procedures may not
apply in some regions or countries.
Revision: January 20102010 Versa

BODY REPAIRBL-315
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

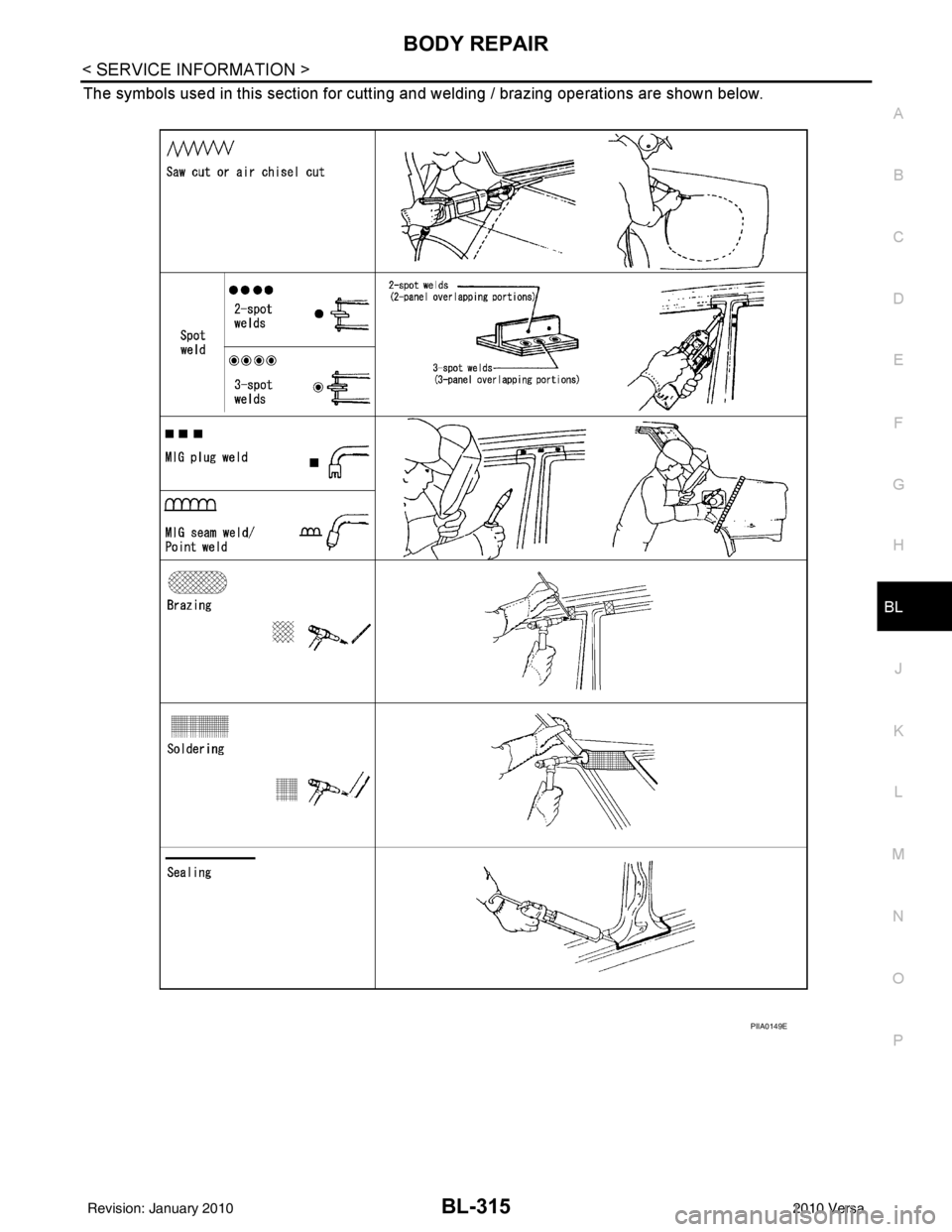

The symbols used in this section for cutting and welding / brazing operations are shown below.
PIIA0149E
Revision: January 20102010 Versa

BL-316
< SERVICE INFORMATION >
BODY REPAIR

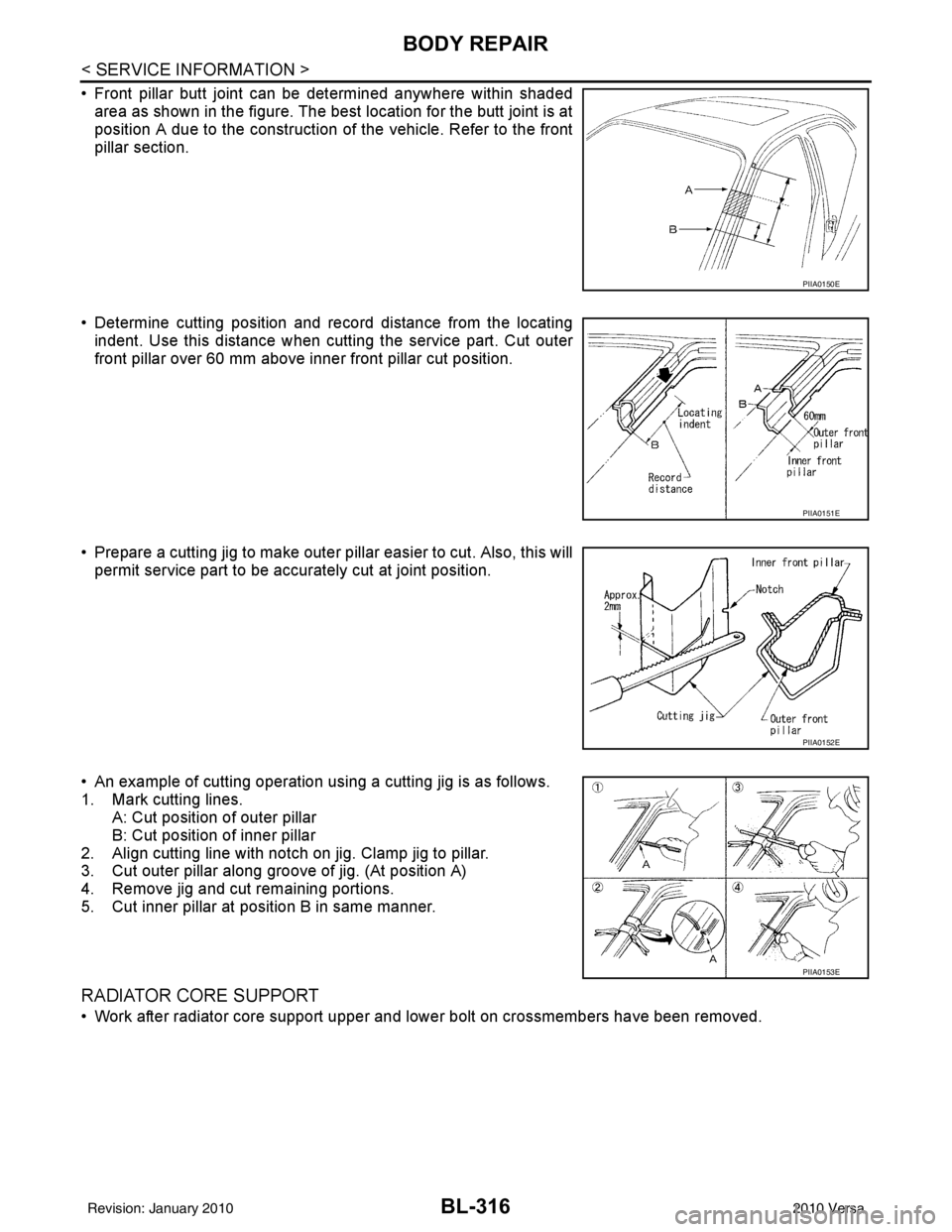

• Front pillar butt joint can be determined anywhere within shadedarea as shown in the figure. The best location for the butt joint is at
position A due to the construction of the vehicle. Refer to the front
pillar section.
• Determine cutting position and record distance from the locating indent. Use this distance when cutt ing the service part. Cut outer
front pillar over 60 mm above inner front pillar cut position.
• Prepare a cutting jig to make outer pillar easier to cut. Also, this will permit service part to be accurately cut at joint position.
• An example of cutting operation using a cutting jig is as follows.
1. Mark cutting lines. A: Cut position of outer pillar
B: Cut position of inner pillar
2. Align cutting line with notch on jig. Clamp jig to pillar.
3. Cut outer pillar along groove of jig. (At position A)
4. Remove jig and cut remaining portions.
5. Cut inner pillar at position B in same manner.
RADIATOR CORE SUPPORT
• Work after radiator core support upper and lower bolt on crossmembers have been removed.
PIIA0150E
PIIA0151E
PIIA0152E
PIIA0153E
Revision: January 20102010 Versa

BODY REPAIRBL-317
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

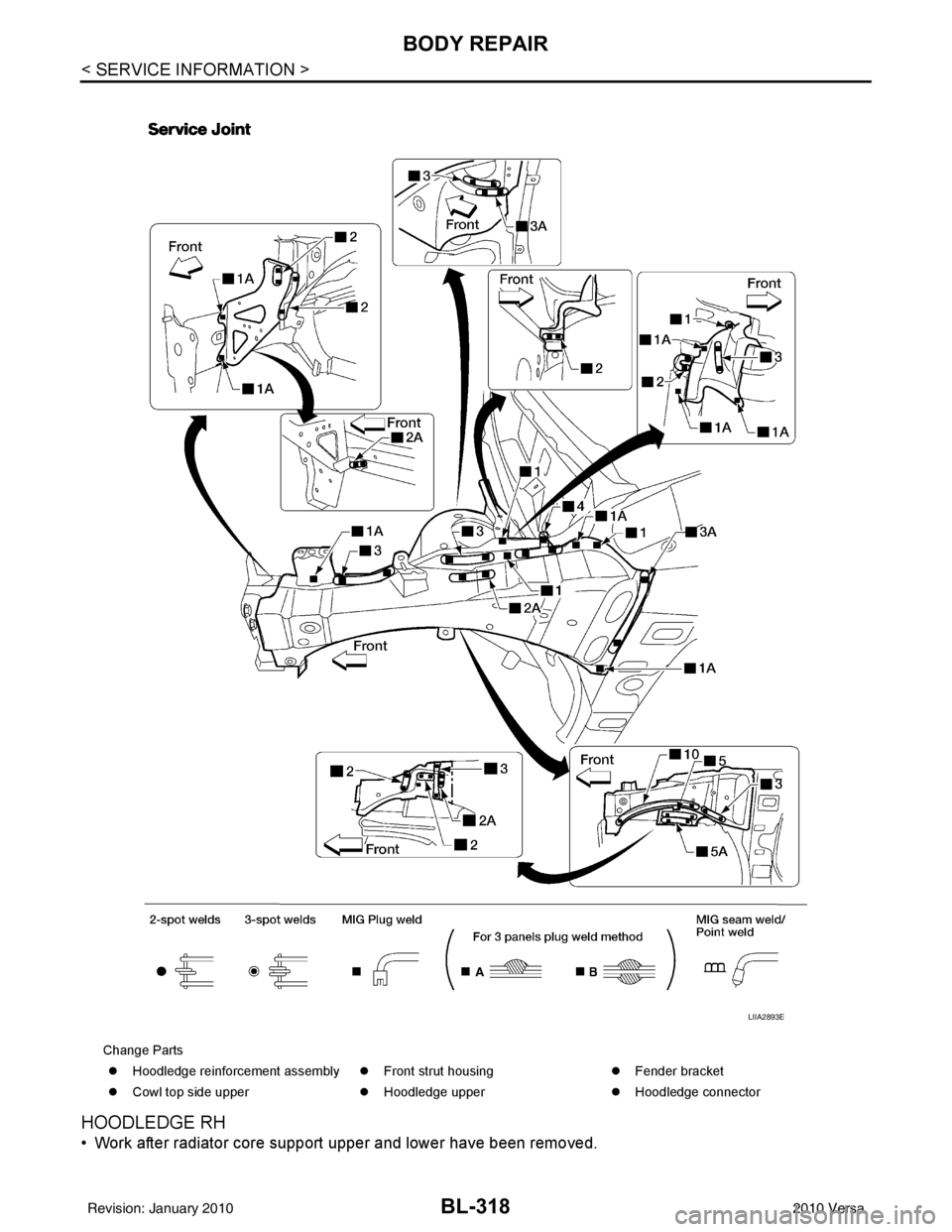

HOODLEDGE LH
• Work after radiator core support upper and lower have been removed.
Change Parts z Radiator core side support z Radiator core support upper
LIIA2892E
Revision: January 20102010 Versa

BL-318
< SERVICE INFORMATION >
BODY REPAIR

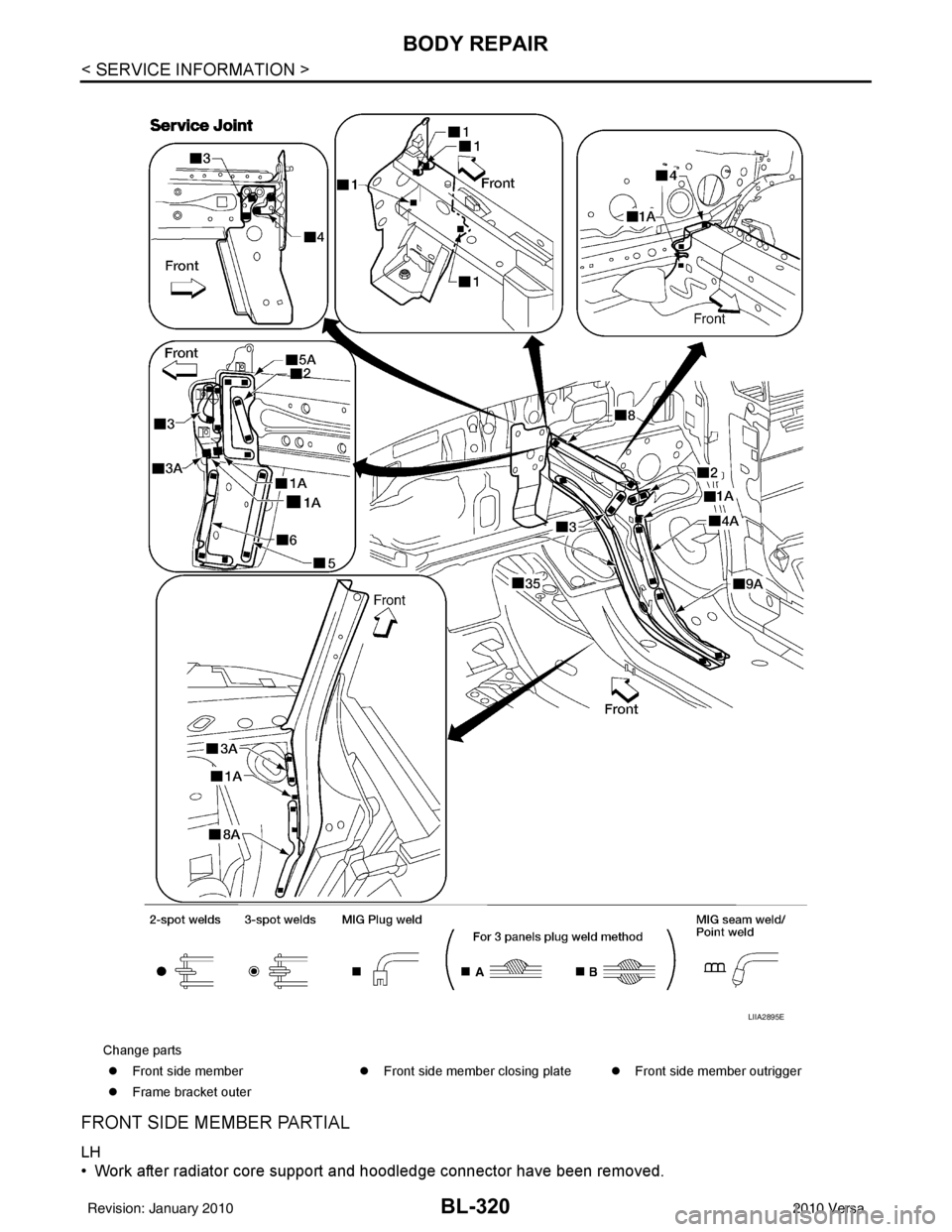

HOODLEDGE RH
• Work after radiator core support upper and lower have been removed.
Change Partsz Hoodledge reinforcement assembly zFront strut housing zFender bracket
z Cowl top side upper zHoodledge upper zHoodledge connector
LIIA2893E
Revision: January 20102010 Versa

BODY REPAIRBL-319
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

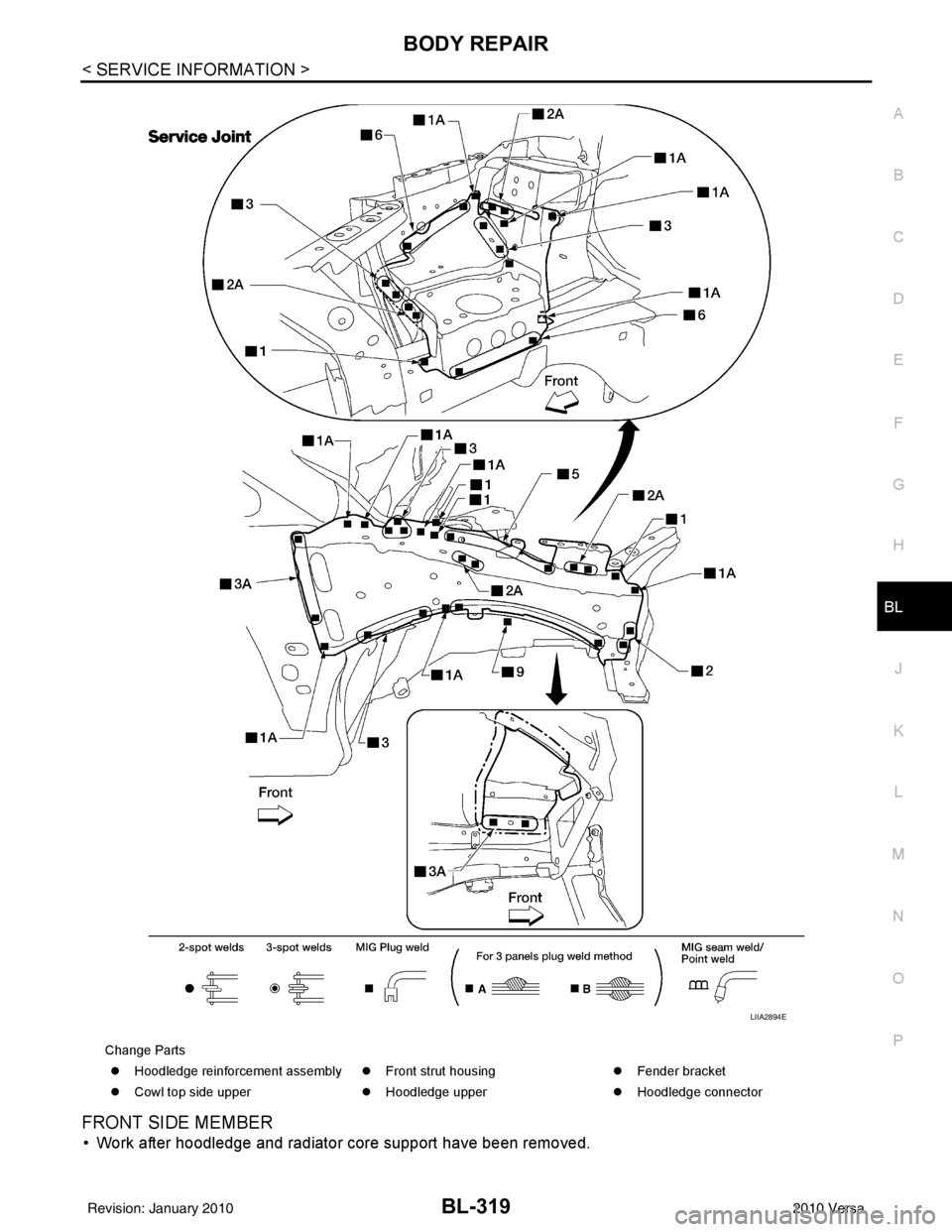

FRONT SIDE MEMBER
• Work after hoodledge and radiator core support have been removed.
Change Parts z Hoodledge reinforcement assembly zFront strut housing zFender bracket
z Cowl top side upper zHoodledge upper zHoodledge connector
LIIA2894E
Revision: January 20102010 Versa

BL-320
< SERVICE INFORMATION >
BODY REPAIR

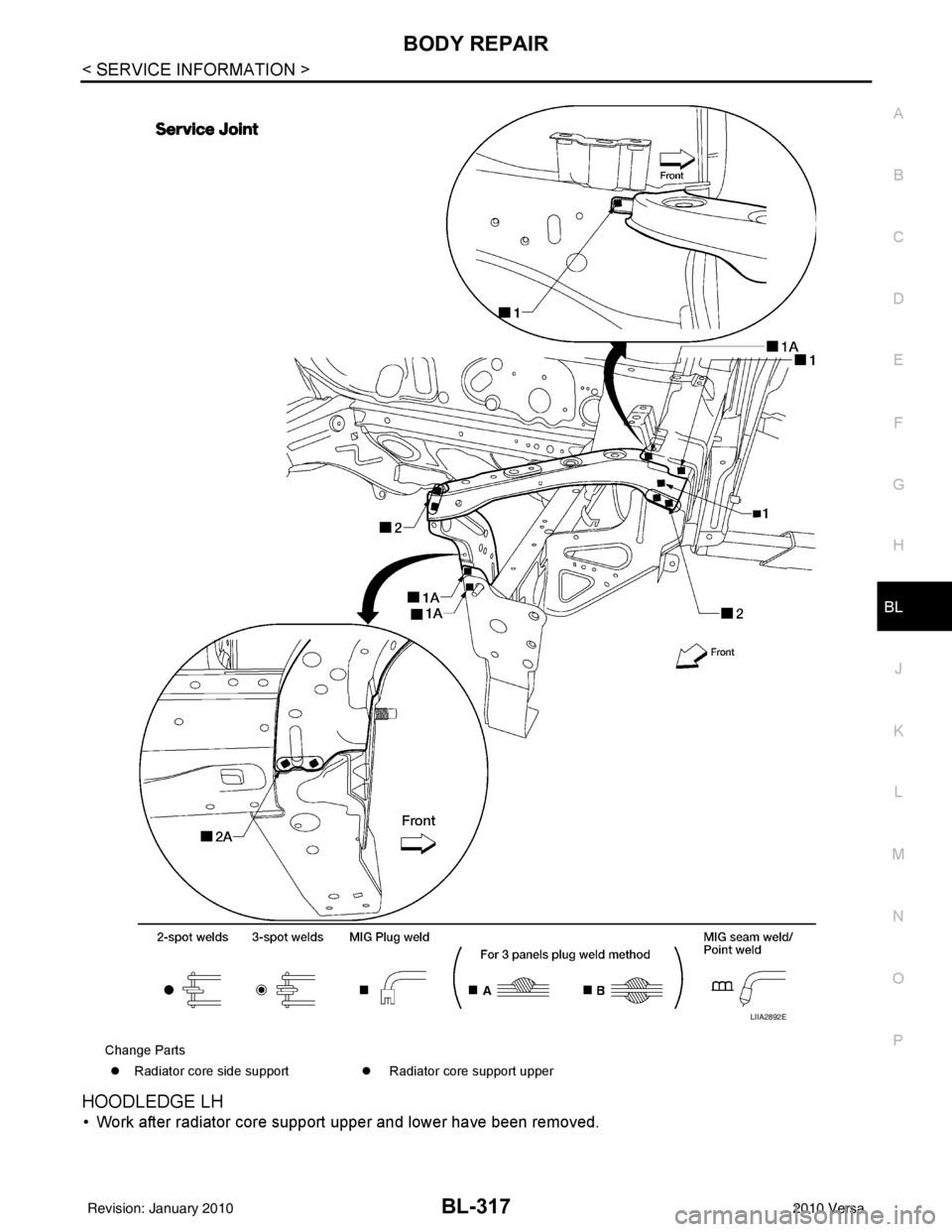

FRONT SIDE MEMBER PARTIAL
LH
• Work after radiator core support and hoodledge connector have been removed.
Change partsz Front side member zFront side member closing plate zFront side member outrigger
z Frame bracket outer
LIIA2895E
Revision: January 20102010 Versa

BODY REPAIRBL-321
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

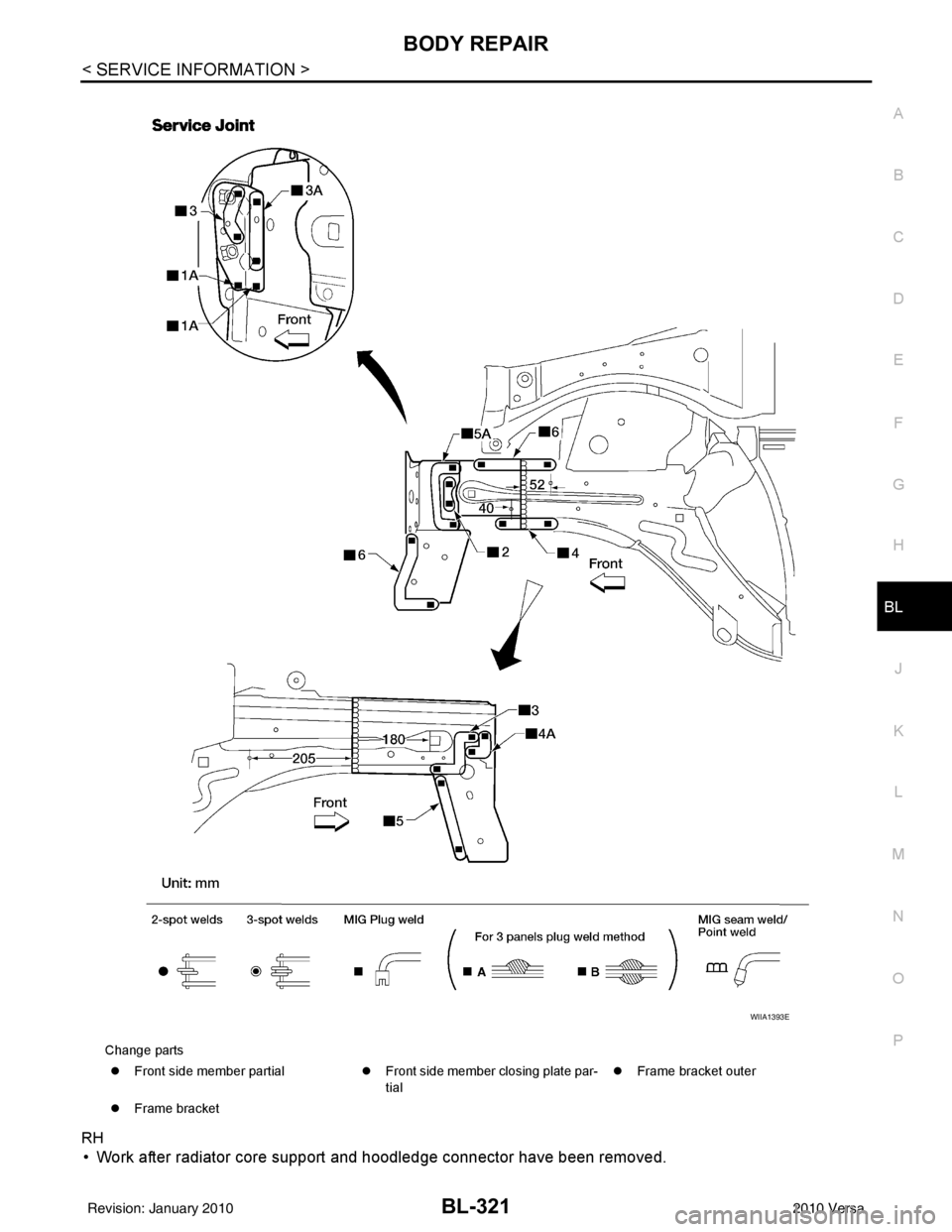

RH
• Work after radiator core support and hoodledge connector have been removed.
Change parts z Front side member partial zFront side member closing plate par-
tial z
Frame bracket outer
z Frame bracket
WIIA1393E
