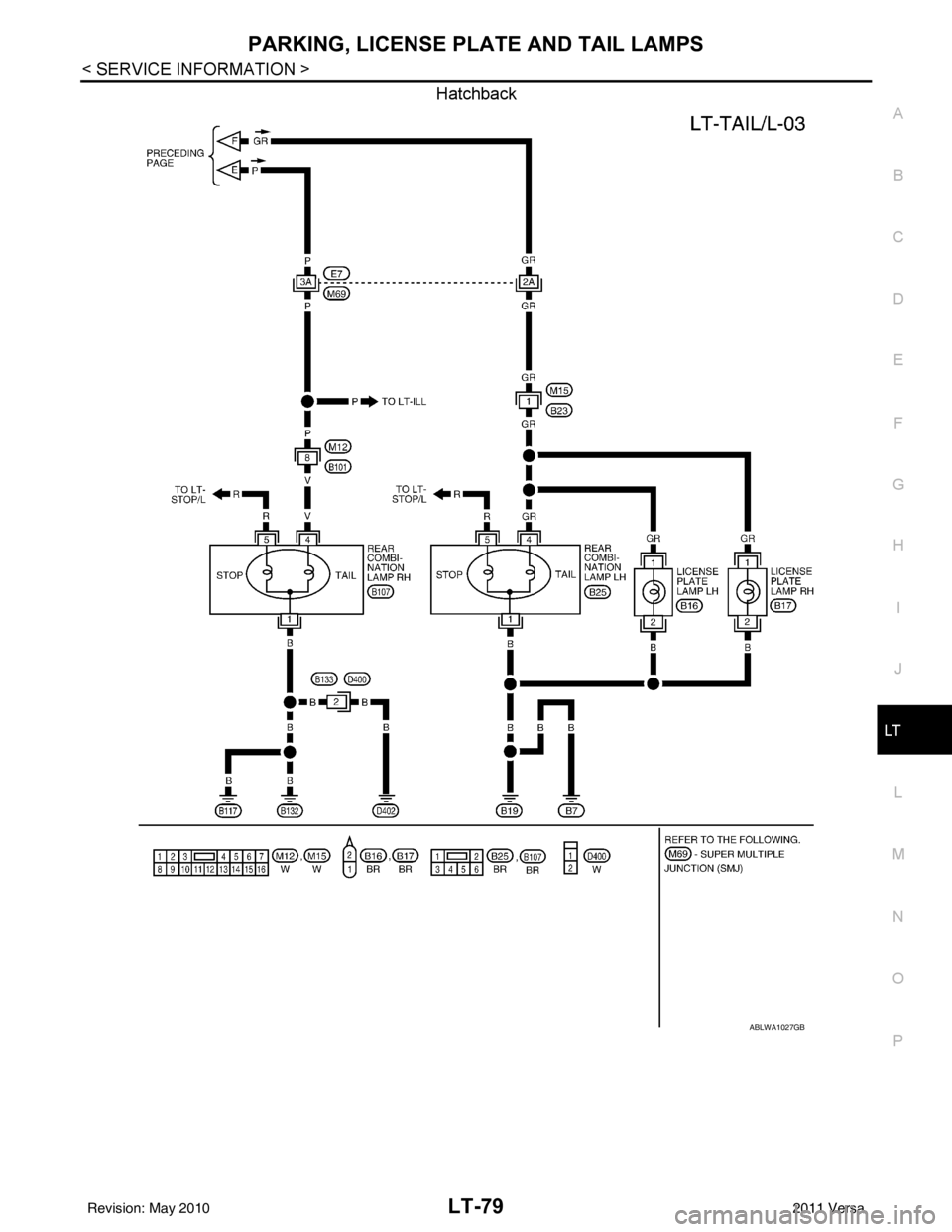

NISSAN TIIDA 2011 Service Repair Manual

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-79
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P
Hatchback
ABLWA1027GB
Revision: May 2010 2011 Versa

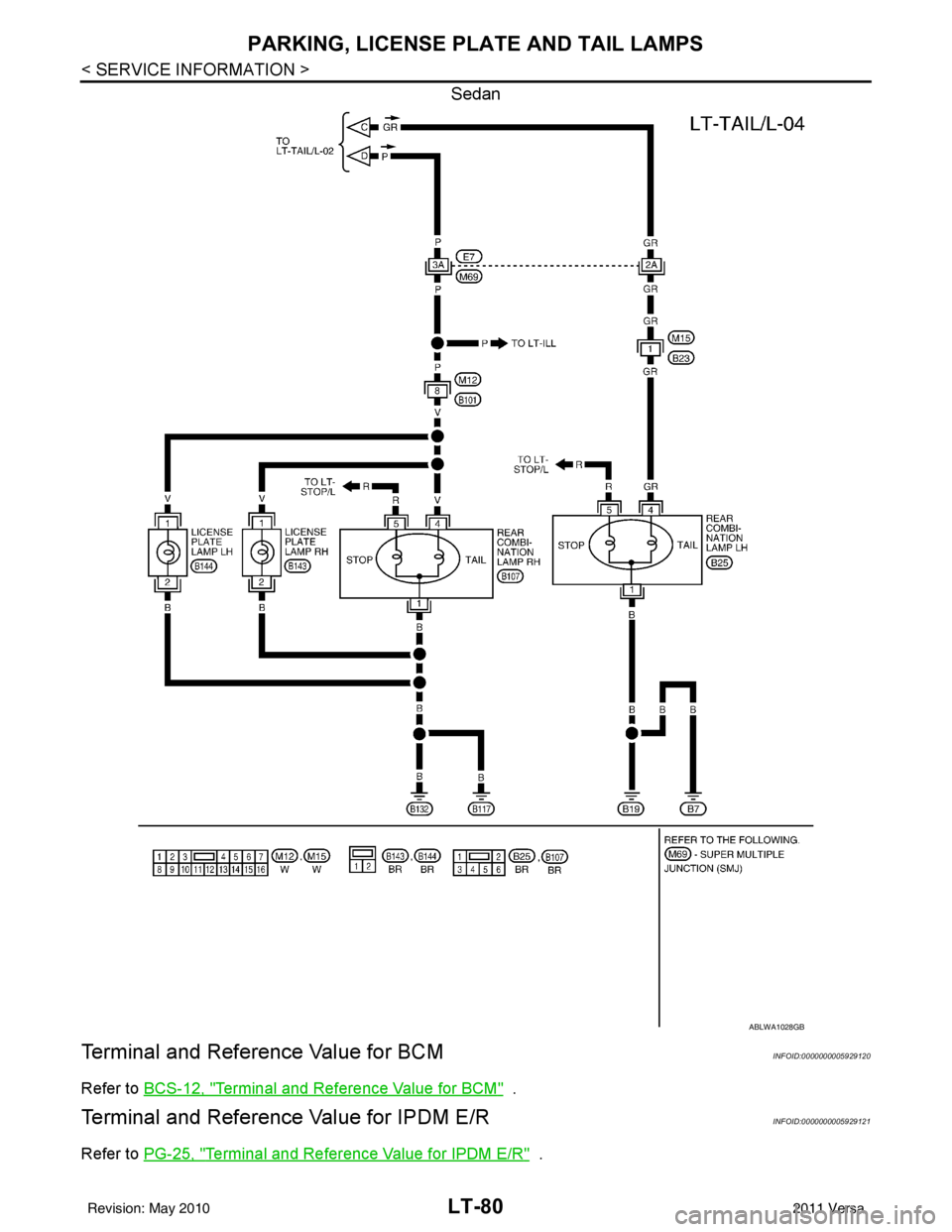

LT-80
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
Sedan
Terminal and Reference Value for BCMINFOID:0000000005929120
Refer to BCS-12, "Terminal and Reference Value for BCM" .
Terminal and Reference Value for IPDM E/RINFOID:0000000005929121
Refer to PG-25, "Terminal and Reference Value for IPDM E/R" .
ABLWA1028GB
Revision: May 2010 2011 Versa

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-81
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P
How to Proceed with Trouble DiagnosisINFOID:0000000005929122
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT-74, "
System Description" .
3. Perform the preliminary check. Refer to LT-81, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of the malfunction.
5. Do the parking, license plate and tail lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. Inspection End.
Preliminary CheckINFOID:0000000005929123
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Inspection" .
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR IPDM E/R
Refer to PG-27, "IPDM E/R Power/Ground Circuit Inspection" .
CONSULT-III Function (BCM)INFOID:0000000005929124
Refer to BCS-17, "CONSULT-III Function (BCM)" .
CONSULT-III Function (IPDM E/R)INFOID:0000000005929125
Refer to PG-18, "CONSULT-III Function (IPDM E/R)" .
Parking, License Plate and Tail Lamps Do Not IlluminateINFOID:0000000005929126
1.CHECK TAIL LAMP FUSE
Inspect tail lamp 10A fuse (No. 37, located in IPDM E/R).
OK or NG
OK >> GO TO 2.
NG >> Repair harness.
2.CHECK COMBINATION SWITCH (LIGHTING AND TURN SIGNAL SWITCH) INPUT SIGNAL
With CONSULT-III
1. Select “BCM” on CONSULT-III. Select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure “LIGHT SW 1ST” turns ON-OFF linked with operation of lighting switch.
Without CONSULT-III
Refer to LT-65, "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Check combination switch (lighting and turn signal switch). Refer to LT-65, "
Combination Switch
Inspection" .
3.ACTIVE TEST
With CONSULT-III
1. Select “IPDM E/R” on CONSUL T-III, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “EXTERNAL LAMPS” on “SELECT TEST ITEM” screen.
3. Touch “TAIL” on "ACTIVE TEST" screen.
4. Make sure parking, license plate and tail lamps operate. When lighting switch is 1ST
position
: LIGHT SW 1ST ON
Parking, license plate and tail lamps should oper-
ate.
Revision: May 2010
2011 Versa

LT-82
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
Without CONSULT-III
1. Start auto active test. Refer to PG-20, "
Auto Active Test" .
2. Make sure parking, license plate and tail lamps operate.
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4.CHECK IPDM E/R
1. Select “IPDM E/R” on CONSULT-III, and select “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Make sure “TAIL&CLR REQ” turns ON when lighting switch is in 1ST position.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and Installation of IPDM E/R" .
NG >> Replace BCM. Refer to BCS-19, "
Removal and Installation of BCM" .
5.CHECK INPUT SIGNAL
With CONSULT-III
1. Turn ignition switch OFF.
2. Disconnect front combination lamp, license plate lamp and rear combination lamp connectors.
3. Select “IPDM E/R” on CONSULT-III, and sele ct “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “EXTERNAL LAMPS” on “SELECT TEST ITEM” screen.
5. Touch “TAIL” on "ACTIVE TEST" screen.
6. When tail lamp relay is operating, check voltage between front combination lamp, license plate lamp and rear combination lamp harness connector and ground.
Without CONSULT-III
1. Turn ignition switch OFF.
2. Disconnect front combination lamp, license plate lamp and rear combination lamp connectors.
3. Start auto active test. Refer to PG-20, "
Auto Active Test" .
4. When tail lamp relay is operating, check voltage between front combination lamp, license plate lamp and rear combination lamp harness connector and ground.Parking, license plate and tail lamps should oper-
ate.
When lighting switch is 1ST
position
: TAIL&CLR REQ ON
Te r m i n a l
Voltag e
(+)
(−)
Front combination lamp
connector Te r m i n a l
RH E54 6Ground Battery voltage
LH E53
WKIA5502E
Te r m i n a l
Vo l ta g e
(+)
(−)
License plate lamp connector Terminal
RH B17 (Hatchback)
B144 (Sedan)
1 Ground Battery voltage
LH B16 (Hatchback)
B143 (Sedan)
WKIA5503E
Revision: May 2010
2011 Versa

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-83
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.CHECK PARKING, LICENSE PLATE AND TAIL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector (A) and front combination lamp harness connector (B).
4. Check continuity between IPDM E/R harness connector (A) and license plate lamp harness connector (B).
5. Check continuity between IPDM E/R harness connector (A) and rear combination lamp harness connector (B).
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
7.CHECK PARKING, LICENSE PLATE AND TAIL LAMPS GROUND CIRCUIT
Te r m i n a l
Vo l ta g e
(+)
(−)
Rear combination lamp
connector
(Tail lamp) Te r m i n a l
RH B107 4Ground Battery voltage
LH B25
PKIC1118E
AB
Continuity
Connector Terminal Connector Terminal
E45 27 RH E54
6Yes
26 LH E53
WKIA5505E
AB
Continuity
Connector Terminal Connector Terminal
E45 28 RH
B17 (Hatchback)
B144 (Sedan)
1Yes
LH B16 (Hatchback)
B143 (Sedan)
WKIA5506E
AB

Continuity
Connector Terminal Connector Terminal
E45 29 RH B107
4Yes
28 LH B25
WKIA5508E
Revision: May 2010 2011 Versa

LT-84
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
1. Check continuity between front combination lamp harness con-nector and ground.
2. Check continuity between license plate lamp harness connector and ground.
3. Check continuity between rear combination lamp harness con- nector and ground.
OK or NG
OK >> Check bulbs.
NG >> Repair harness or connector.
Parking, License Plate and Tail Lamps Do Not Turn OFF (After Approx. 10 Minutes)
INFOID:0000000005929127
• This symptom is related to the ignition relay in IPDM E/R. Refer to PG-18, "Function of Detecting Ignition
Relay Malfunction" .
• Select “BCM” on CONSULT-III. Select “HEADLAMP” on “SELECT TEST ITEM” screen and select “DATA
MONITOR” on “SELECT DIAG MODE” sc reen. If “LIGHT SW 1ST” is OFF when lighting switch is OFF,
replace IPDM E/R.
Bulb ReplacementINFOID:0000000005929128
PA R K I N G L A M P
Refer to LT-87, "Bulb Replacement".
LICENSE PLATE LAMP
Hatchback
1. Remove the license plate lamp. Refer to LT-85, "Removal and Installation".
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb from the socket.
4. Installation is in the reverse order of removal.
Sedan
1. Remove the trunk lid finisher. Refer to EI-33, "Removal and Installation".
Front combination lamp connector Terminal
GroundContinuity
RH E54
7Y es
LH E53
WKIA5509E
License plate lamp
connector Te r m i n a l
GroundContinuity
RH B17 (Hatchback)
B144 (Sedan) 2 Yes
LH B16 (Hatchback)
B143 (Sedan)
WKIA5510E
Rear combination lamp connector Te r m i n a l
GroundContinuity
RH B107
1Y es
LH B25
PKIC1029E
Revision: May 2010 2011 Versa

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-85
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P
2. Remove the license plate lamp bulb socket (1) and remove the license plate lamp bulb (2).
3. Installation is in the reverse order of removal.
TAIL LAMP
Refer to LT-87, "Bulb Replacement".
Removal and InstallationINFOID:0000000005929129
PA R K I N G L A M P
Refer to LT-88, "Removal and Installation".
LICENSE PLATE LAMP-HATCHBACK
Removal
1. Press the license plate lamp pawl on the side of the rear bumper fascia, then swing the license plate lamp
down to release the license plate lamp hook from the rear bumper fascia.
2. Disconnect the license plate lamp connector and remove the licence plate lamp.
Installation
Installation is in the reverse order of removal.
LICENSE PLATE LAMP-SEDAN
Removal
1. Remove the license plate lamp finisher. Refer to EI-59, "Removal and Installation".
PKIC1055E
1. License plate lampA. Pawl B. Hook
AWKIA1509GB
Revision: May 2010 2011 Versa

LT-86
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
2. Remove the license plate lamp assembly (1).
Installation
Installation is in the reverse order of removal.
TA I L L A M P
Refer to LT-88, "Removal and Installation".
PKIC1056E
Revision: May 2010 2011 Versa

REAR COMBINATION LAMPLT-87
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

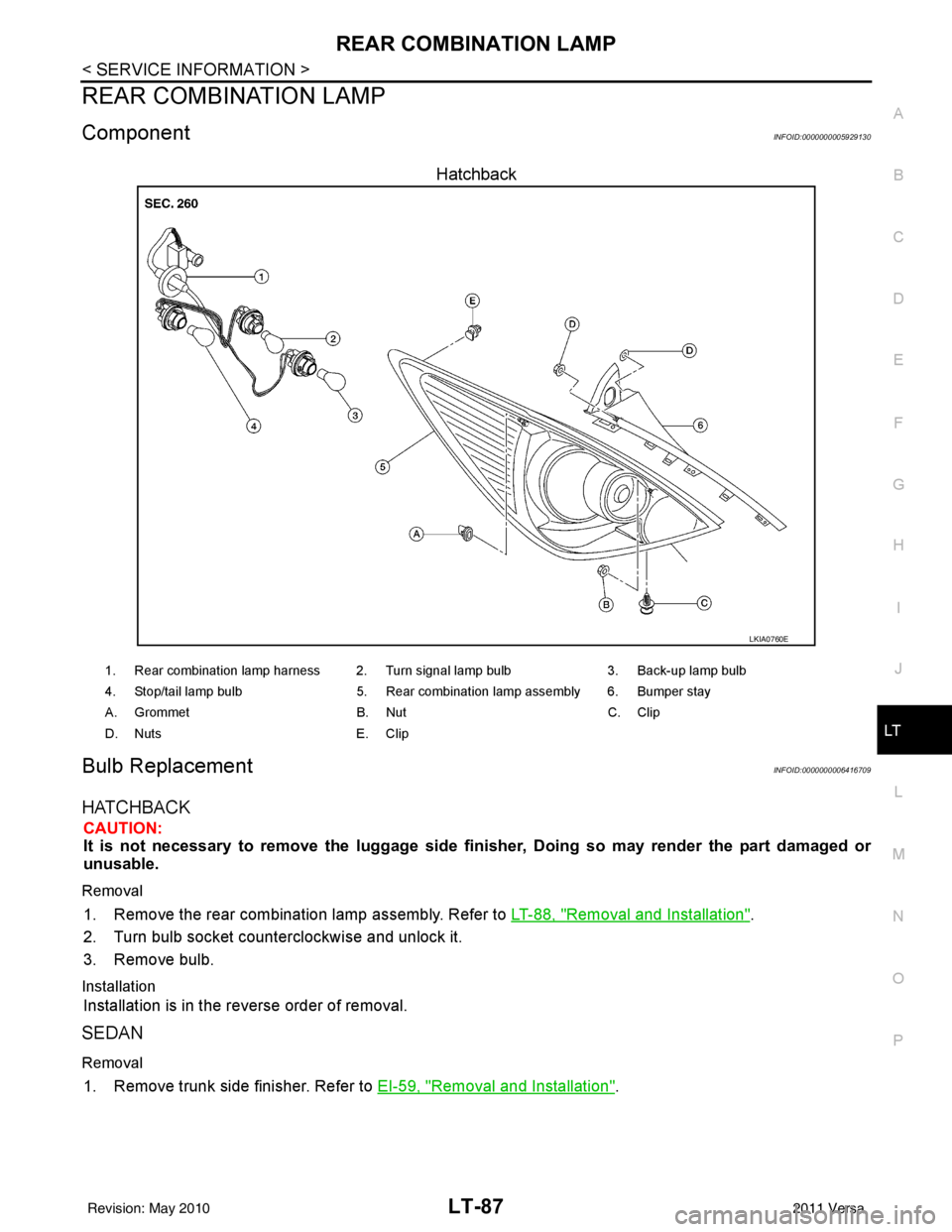

REAR COMBINATION LAMP
ComponentINFOID:0000000005929130
Hatchback
Bulb ReplacementINFOID:0000000006416709
HATCHBACK
CAUTION:
It is not necessary to remove the lu ggage side finisher, Doing so may render the part damaged or
unusable.
Removal
1. Remove the rear combination lamp assembly. Refer to LT-88, "Removal and Installation".
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb.
Installation
Installation is in the reverse order of removal.
SEDAN
Removal
1. Remove trunk side finisher. Refer to EI-59, "Removal and Installation".
LKIA0760E
1. Rear combination lamp harness 2. Turn signal lamp bulb 3. Back-up lamp bulb
4. Stop/tail lamp bulb 5. Rear combination lamp assembly 6. Bumper stay
A. Grommet B. NutC. Clip
D. Nuts E. Clip
Revision: May 2010 2011 Versa

LT-88
< SERVICE INFORMATION >
REAR COMBINATION LAMP
2. Turn bulb socket counterclockwise and unlock it.
3. Remove the stop/tail lamp bulb (1), turn signal lamp bulb (2),and the back-up lamp bulb (3).
Installation
Installation is in the reverse order of removal.

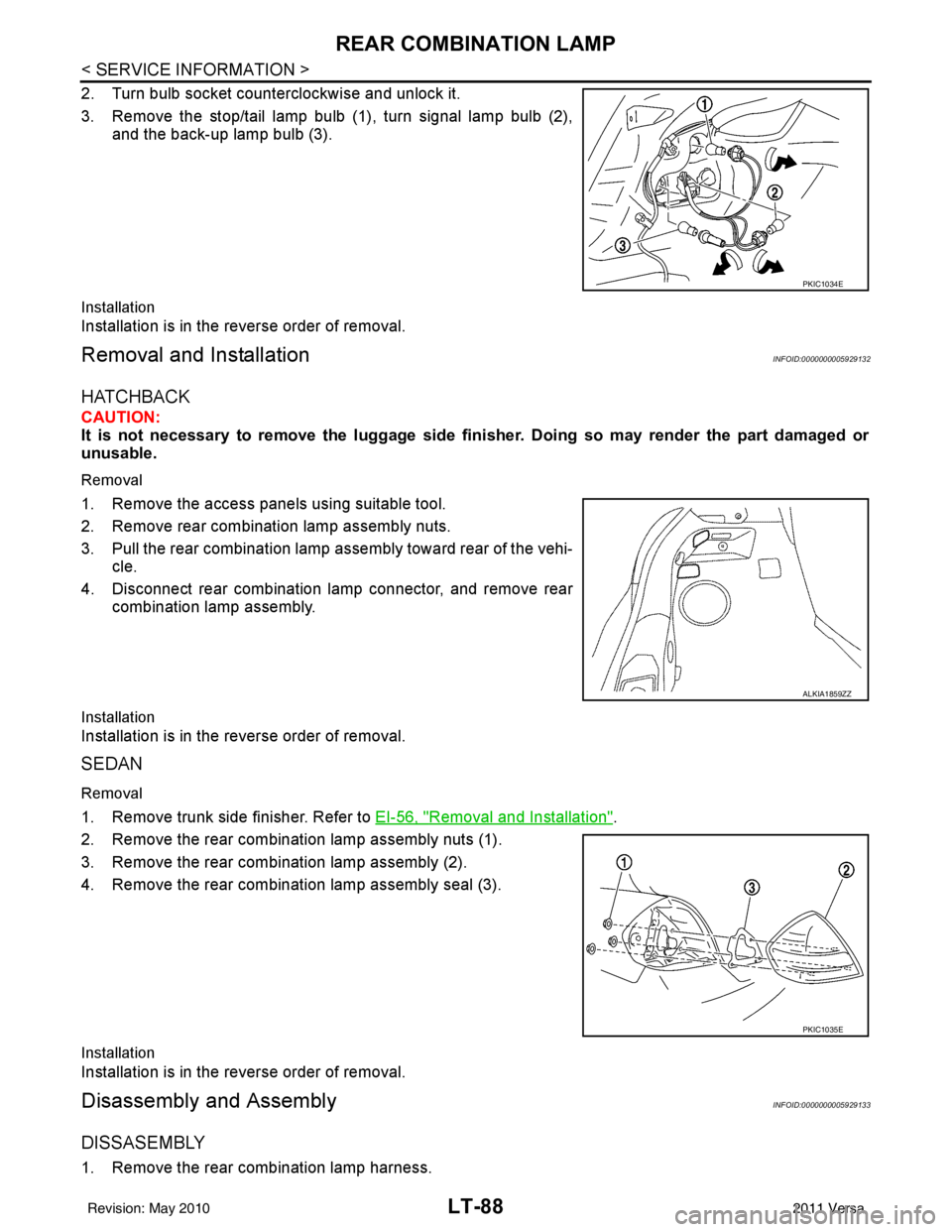

Removal and InstallationINFOID:0000000005929132
HATCHBACK
CAUTION:
It is not necessary to remove the luggage side finisher. Doing so may render the part damaged or
unusable.
Removal
1. Remove the access panels using suitable tool.
2. Remove rear combination lamp assembly nuts.
3. Pull the rear combination lamp assembly toward rear of the vehi-
cle.
4. Disconnect rear combination lamp connector, and remove rear combination lamp assembly.
Installation
Installation is in the reverse order of removal.
SEDAN
Removal
1. Remove trunk side finisher. Refer to EI-56, "Removal and Installation".
2. Remove the rear combination lamp assembly nuts (1).
3. Remove the rear combination lamp assembly (2).
4. Remove the rear combination lamp assembly seal (3).
Installation
Installation is in the reverse order of removal.
Disassembly and AssemblyINFOID:0000000005929133
DISSASEMBLY
1. Remove the rear combination lamp harness.
PKIC1034E
ALKIA1859ZZ
PKIC1035E
Revision: May 2010 2011 Versa
