Page 401 of 458

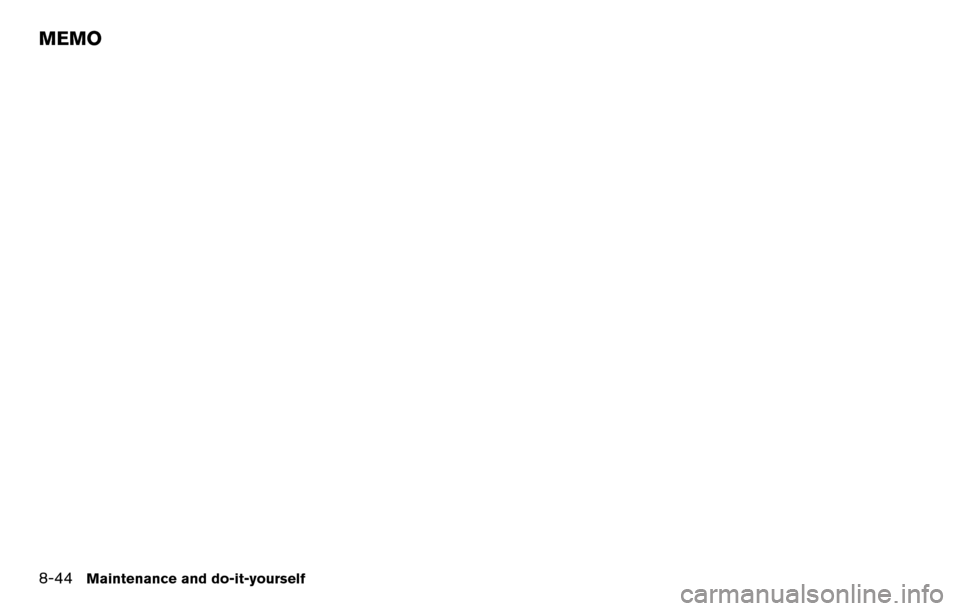

NISSAN TITAN 2013 1.G Owners Manual MEMO
8-44Maintenance and do-it-yourself

Page 402 of 458

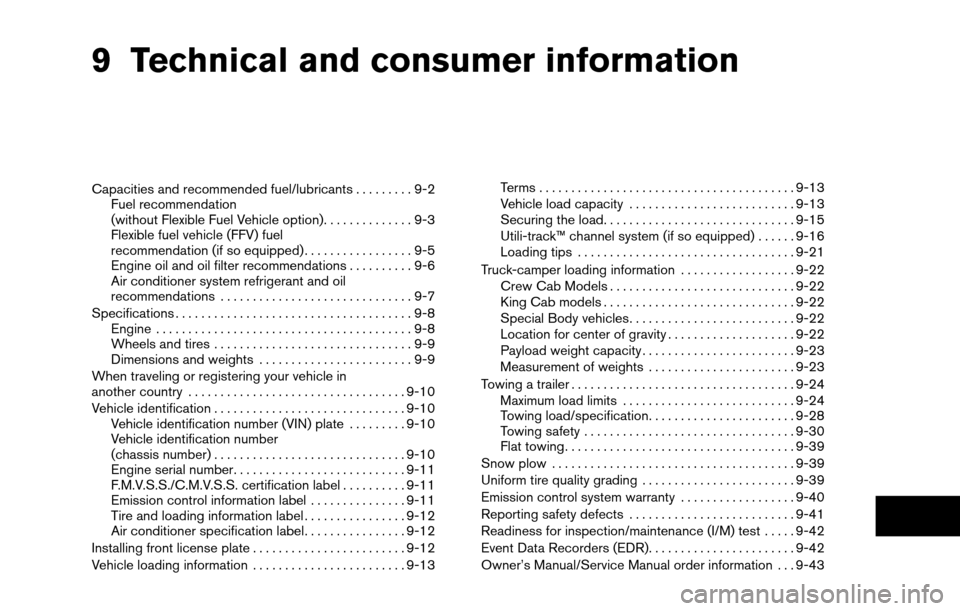

NISSAN TITAN 2013 1.G Owners Manual 9 Technical and consumer information
Capacities and recommended fuel/lubricants.........9-2
Fuel recommendation
(without Flexible Fuel Vehicle option). .............9-3
Flexible fuel vehicle (FFV) fue

Page 403 of 458

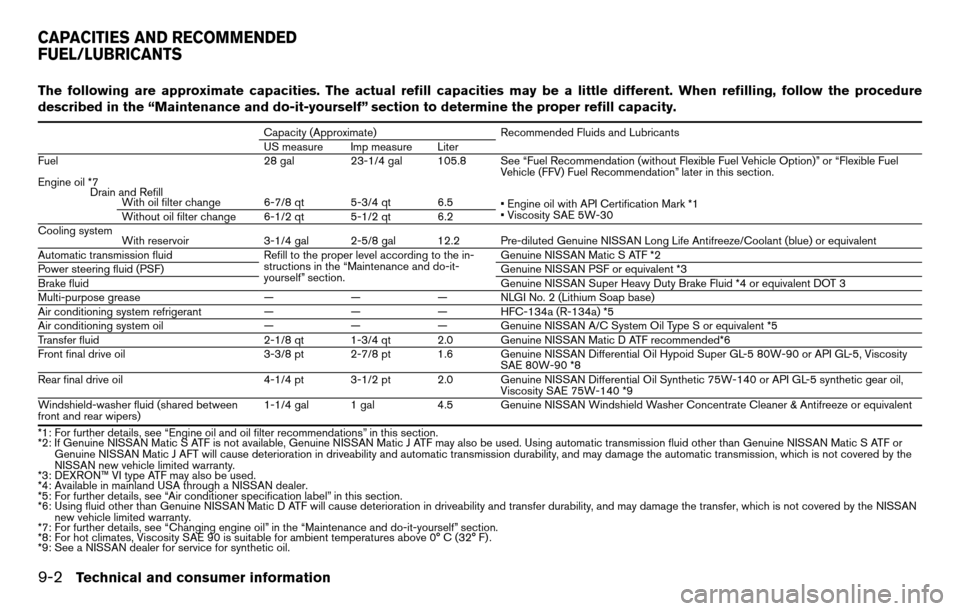

NISSAN TITAN 2013 1.G Owners Manual The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to

Page 404 of 458

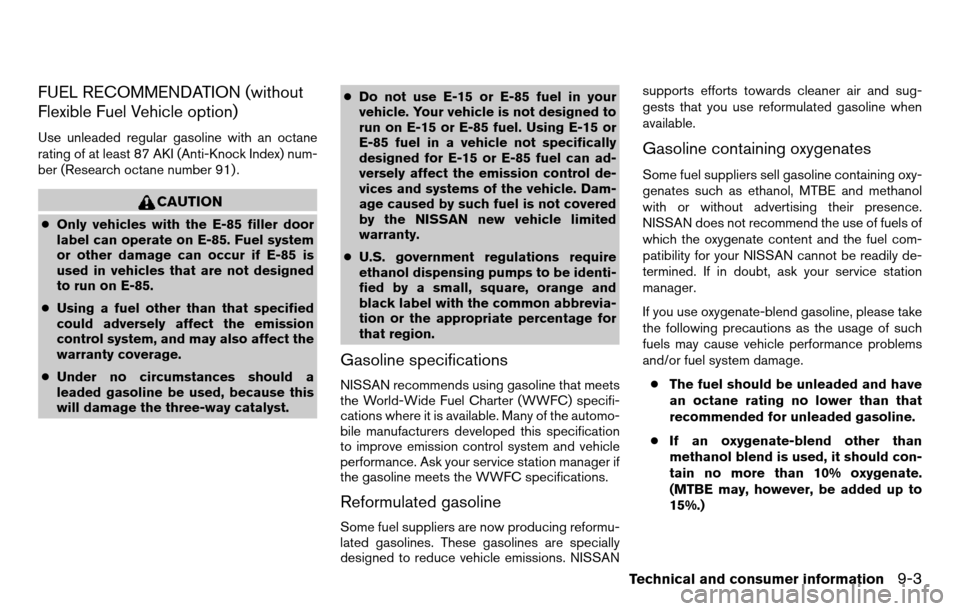

NISSAN TITAN 2013 1.G Owners Manual FUEL RECOMMENDATION (without
Flexible Fuel Vehicle option)
Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index) num-
ber (Research octane number 91) .
CAUTION
●O

Page 405 of 458

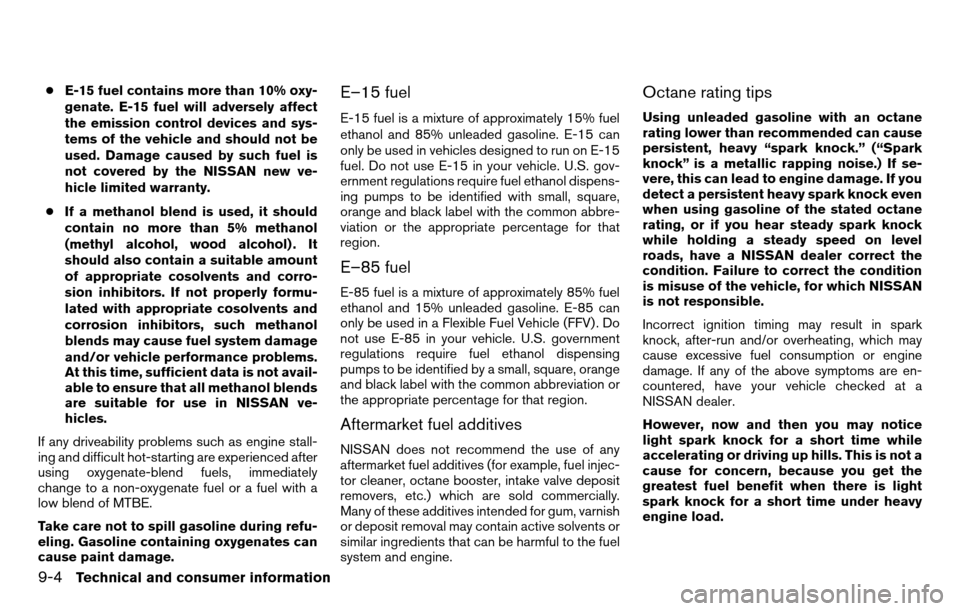

NISSAN TITAN 2013 1.G Owners Manual ●E-15 fuel contains more than 10% oxy-
genate. E-15 fuel will adversely affect
the emission control devices and sys-
tems of the vehicle and should not be
used. Damage caused by such fuel is
not cov

Page 406 of 458

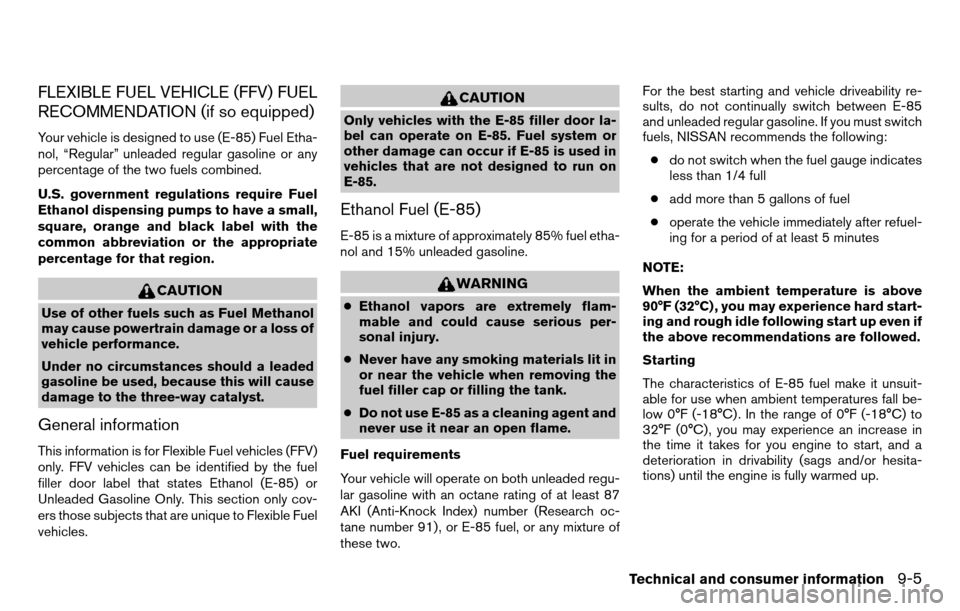

NISSAN TITAN 2013 1.G Owners Manual FLEXIBLE FUEL VEHICLE (FFV) FUEL
RECOMMENDATION (if so equipped)
Your vehicle is designed to use (E-85) Fuel Etha-
nol, “Regular” unleaded regular gasoline or any
percentage of the two fuels combi

Page 407 of 458

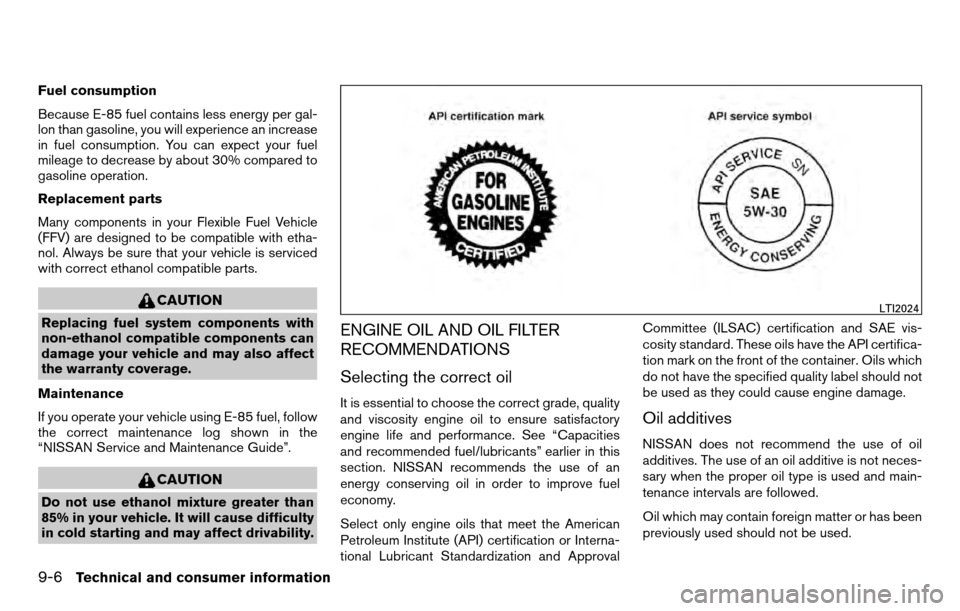

NISSAN TITAN 2013 1.G Owners Manual Fuel consumption
Because E-85 fuel contains less energy per gal-
lon than gasoline, you will experience an increase
in fuel consumption. You can expect your fuel
mileage to decrease by about 30% compa

Page 408 of 458

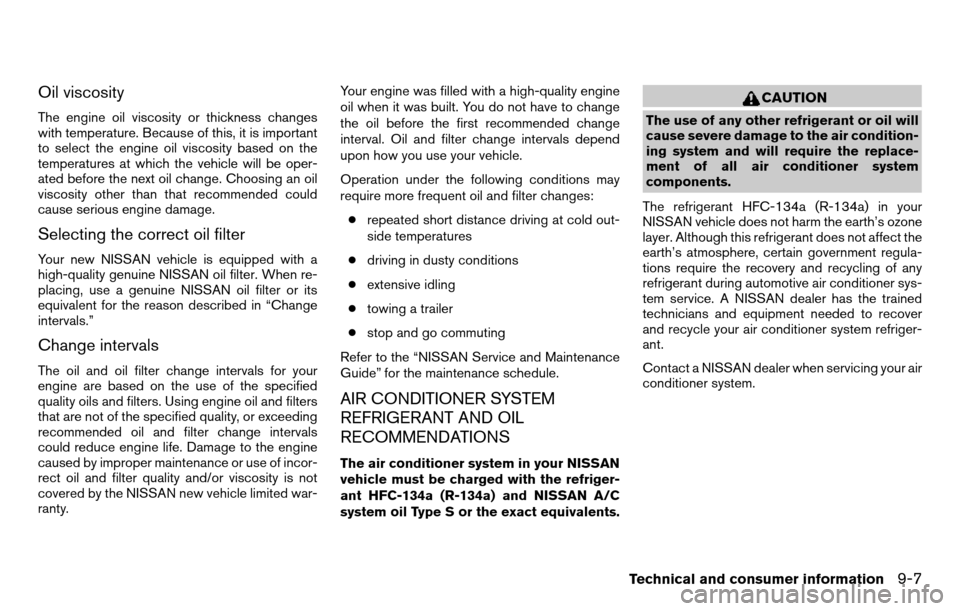

NISSAN TITAN 2013 1.G Owners Manual Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be

Page 409 of 458

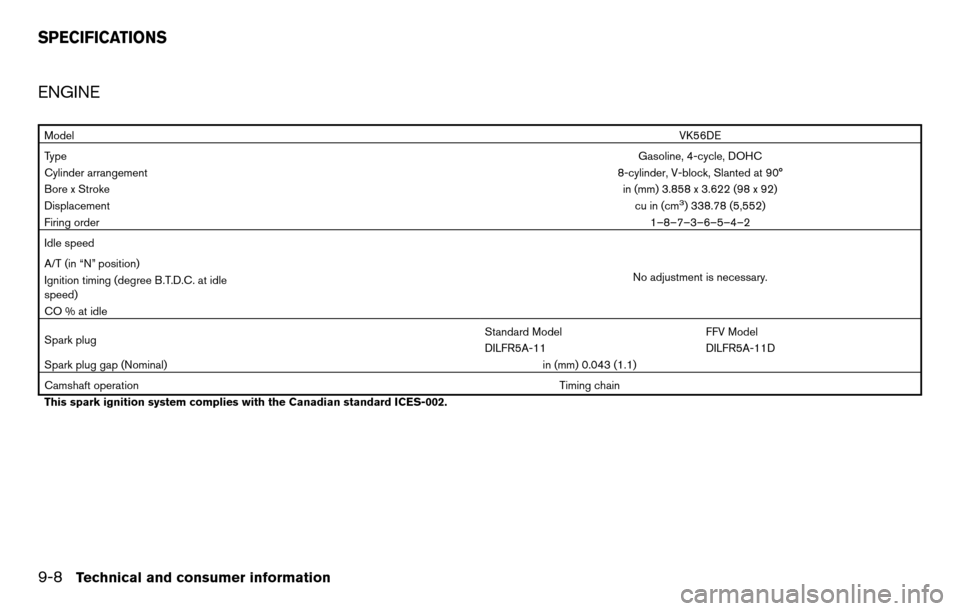

NISSAN TITAN 2013 1.G Owners Manual ENGINE
ModelVK56DE
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 8-cylinder, V-block, Slanted at 90°
Bore x Stroke in (mm) 3.858 x 3.622 (98 x 92)
Displacement cu in (cm
3) 338.78 (5,552)
Firing

Page 410 of 458

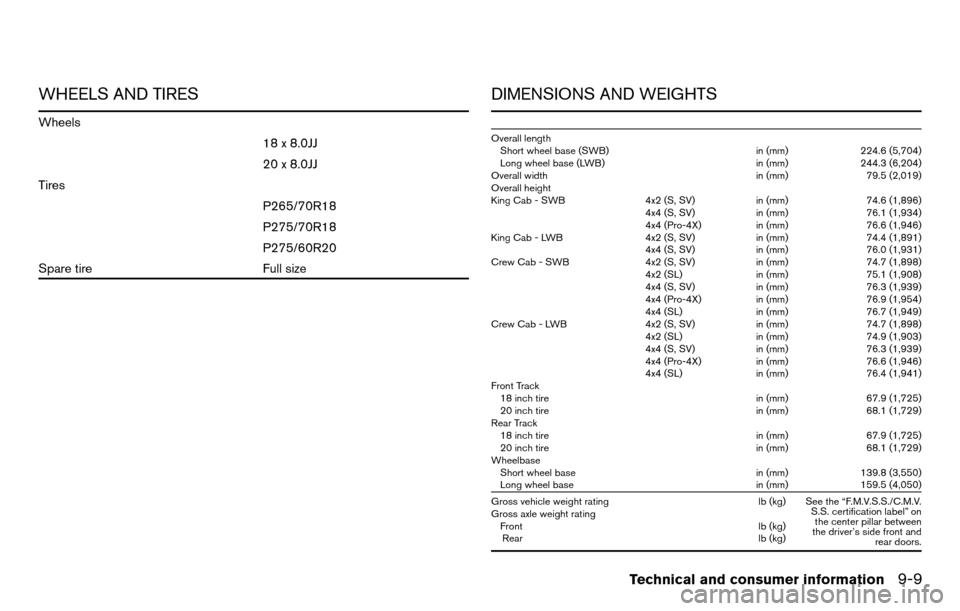

NISSAN TITAN 2013 1.G Owners Manual WHEELS AND TIRES
Wheels18 x 8.0JJ
20 x 8.0JJ
Tires P265/70R18
P275/70R18
P275/60R20
Spare tire Full size
DIMENSIONS AND WEIGHTS
Overall length Short wheel base (SWB) in (mm) 224.6 (5,704)
Long wheel b
