Page 421 of 458

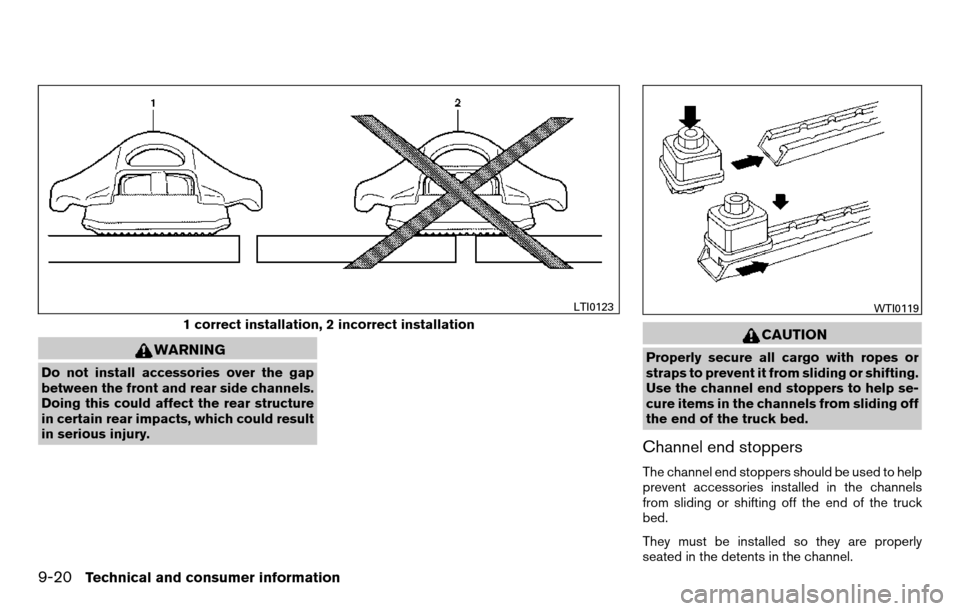

NISSAN TITAN 2013 1.G Owners Manual WARNING
Do not install accessories over the gap
between the front and rear side channels.
Doing this could affect the rear structure
in certain rear impacts, which could result
in serious injury.
CAUT

Page 422 of 458

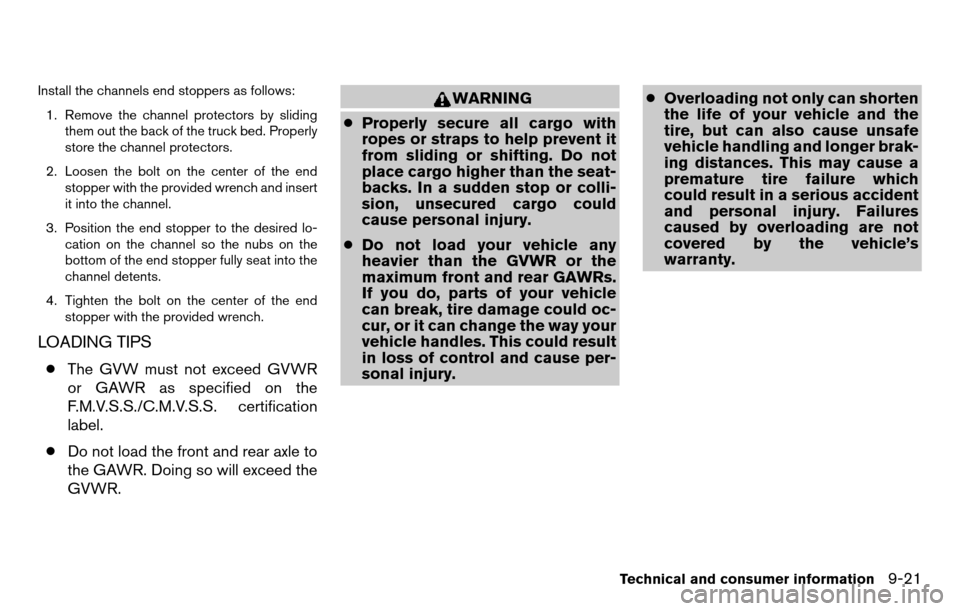

NISSAN TITAN 2013 1.G Owners Manual Install the channels end stoppers as follows:1. Remove the channel protectors by sliding them out the back of the truck bed. Properly
store the channel protectors.
2. Loosen the bolt on the center of

Page 423 of 458

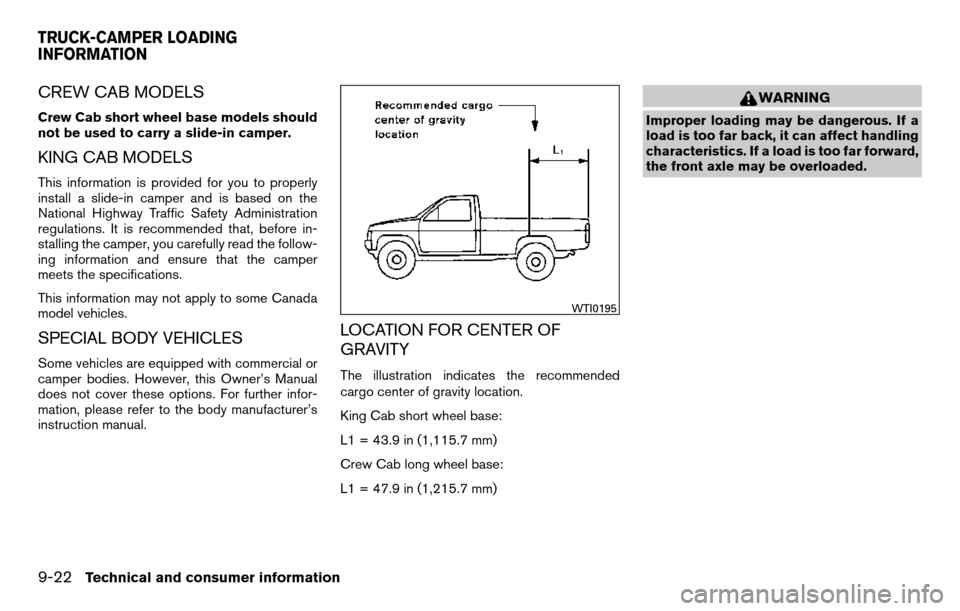

NISSAN TITAN 2013 1.G Owners Manual CREW CAB MODELS
Crew Cab short wheel base models should
not be used to carry a slide-in camper.
KING CAB MODELS
This information is provided for you to properly
install a slide-in camper and is based

Page 424 of 458

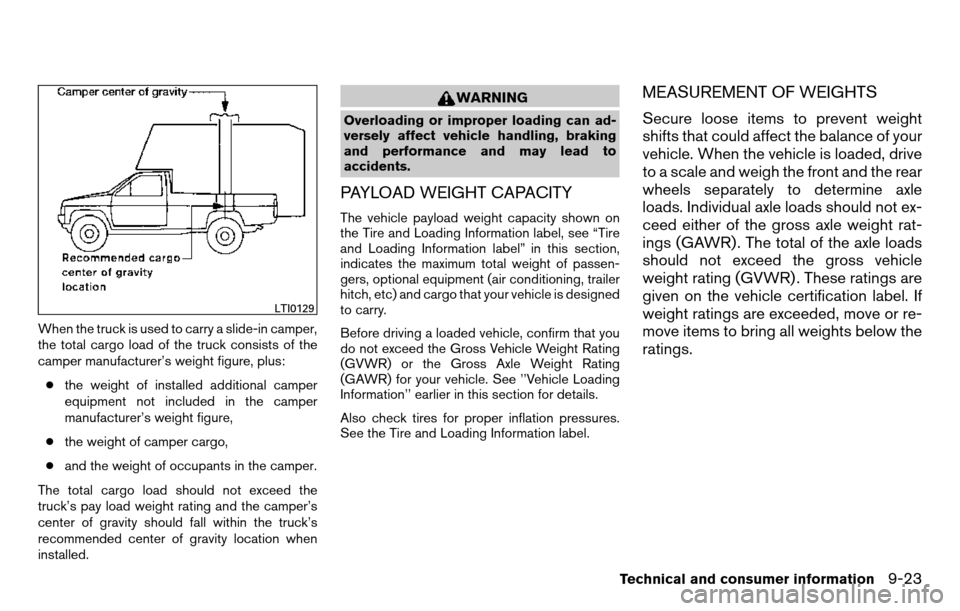

NISSAN TITAN 2013 1.G Owners Manual When the truck is used to carry a slide-in camper,
the total cargo load of the truck consists of the
camper manufacturer’s weight figure, plus:● the weight of installed additional camper
equipment

Page 425 of 458

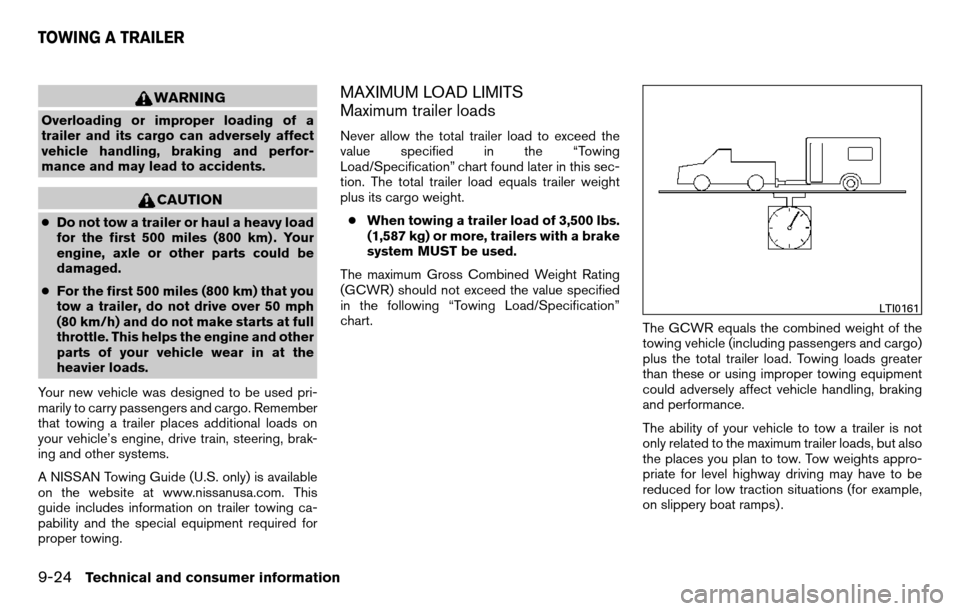

NISSAN TITAN 2013 1.G Owners Manual WARNING
Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and perfor-
mance and may lead to accidents.
CAUTION
●Do not tow a trailer or haul a

Page 426 of 458

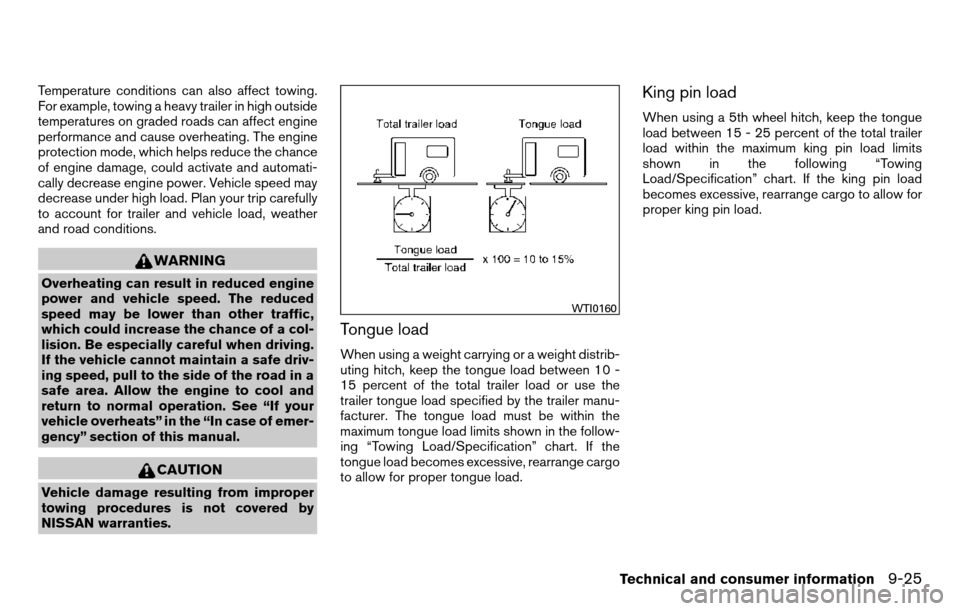

NISSAN TITAN 2013 1.G Owners Manual Temperature conditions can also affect towing.
For example, towing a heavy trailer in high outside
temperatures on graded roads can affect engine
performance and cause overheating. The engine
protecti

Page 427 of 458

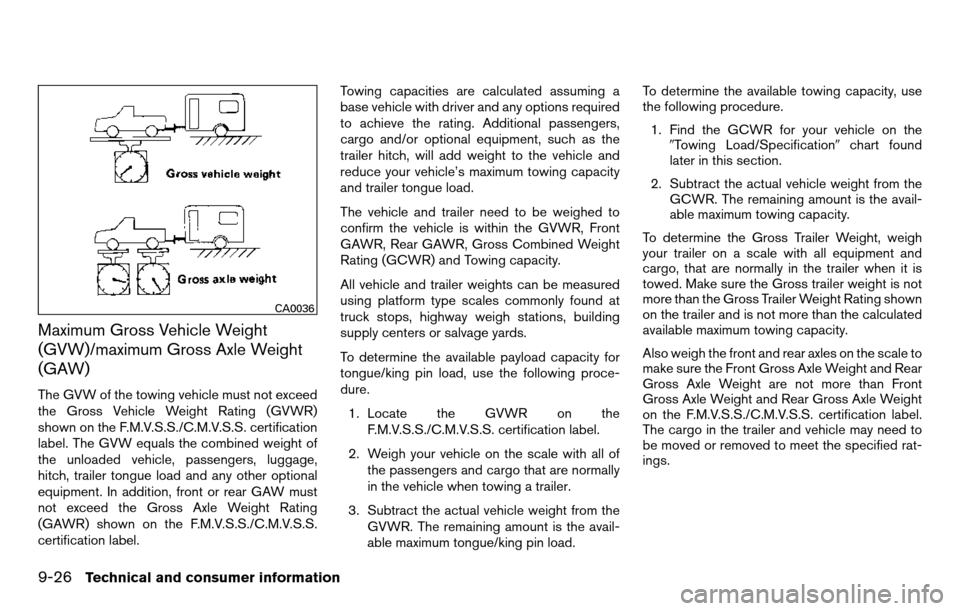

NISSAN TITAN 2013 1.G Owners Manual Maximum Gross Vehicle Weight
(GVW)/maximum Gross Axle Weight
(GAW)
The GVW of the towing vehicle must not exceed
the Gross Vehicle Weight Rating (GVWR)
shown on the F.M.V.S.S./C.M.V.S.S. certification

Page 428 of 458

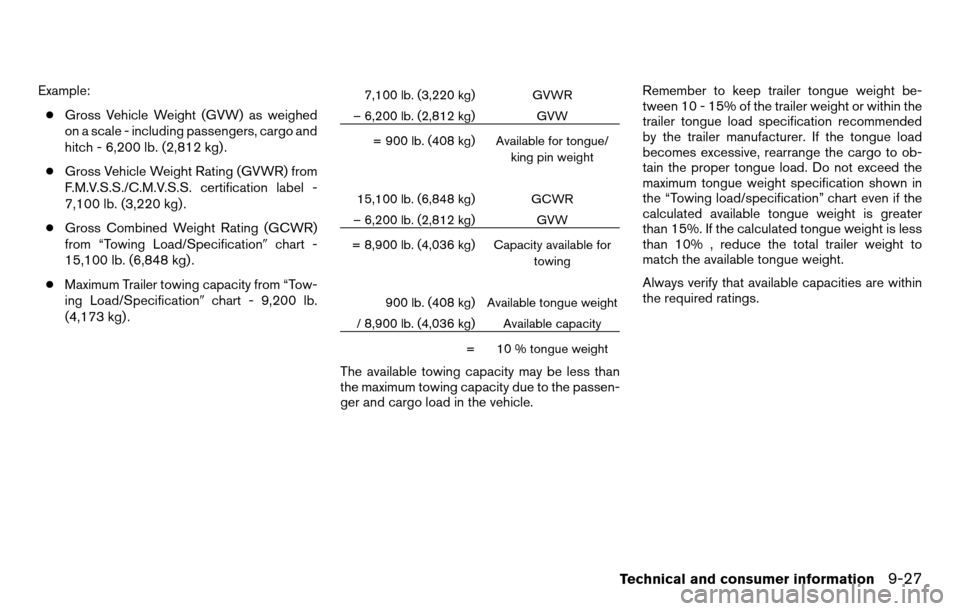

NISSAN TITAN 2013 1.G Owners Manual Example:● Gross Vehicle Weight (GVW) as weighed
on a scale - including passengers, cargo and
hitch - 6,200 lb. (2,812 kg) .
● Gross Vehicle Weight Rating (GVWR) from
F.M.V.S.S./C.M.V.S.S. certific

Page 429 of 458

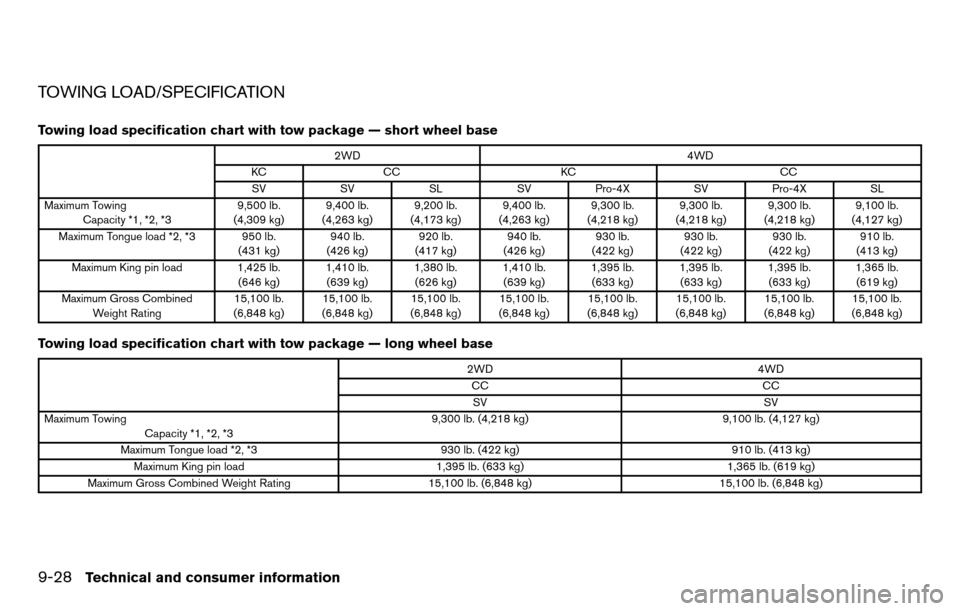

NISSAN TITAN 2013 1.G Owners Manual TOWING LOAD/SPECIFICATION
Towing load specification chart with tow package — short wheel base
2WD4WD
KC CC KC CC
SV SV SLSVPro-4X SVPro-4X SL
Maximum Towing Capacity *1, *2, *3 9,500 lb.
(4,309 kg)

Page 430 of 458

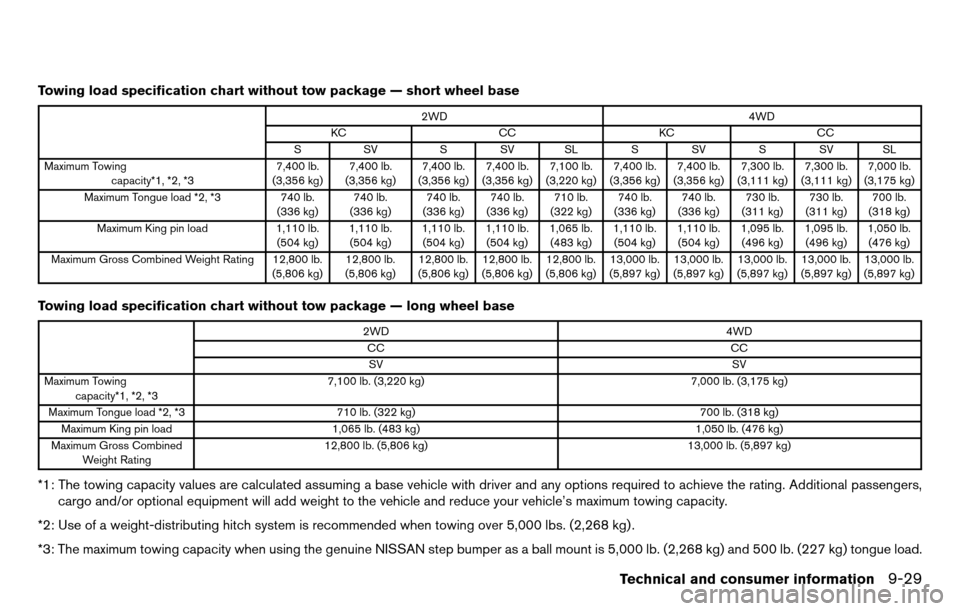

NISSAN TITAN 2013 1.G Owners Manual Towing load specification chart without tow package — short wheel base
2WD4WD
KC CCKCCC
S SV S SV SL S SV S SV SL
Maximum Towing capacity*1, *2, *3 7,400 lb.
(3,356 kg) 7,400 lb.
(3,356 kg) 7,400 lb
