Page 381 of 458

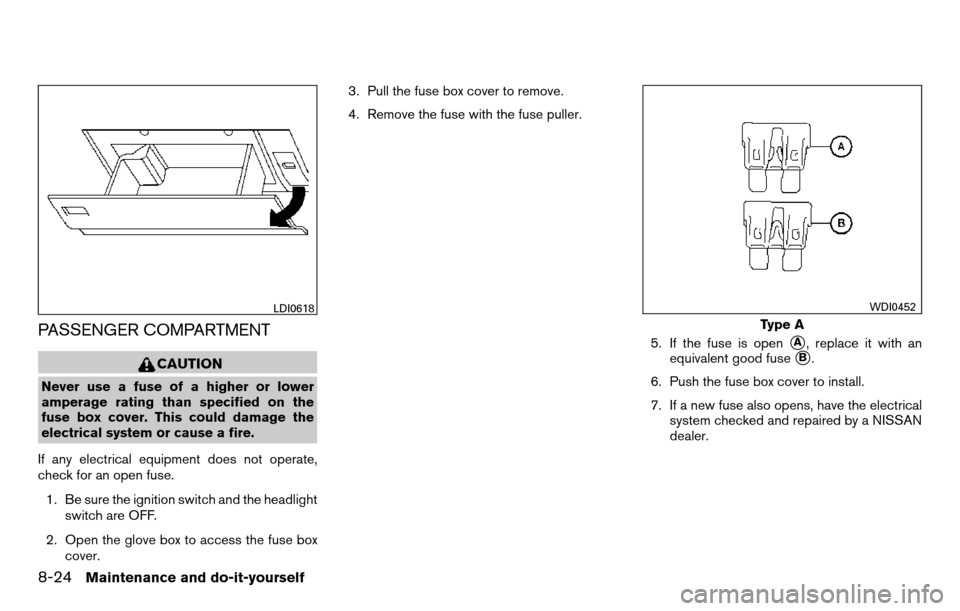

NISSAN TITAN 2013 1.G Owners Manual PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equ

Page 382 of 458

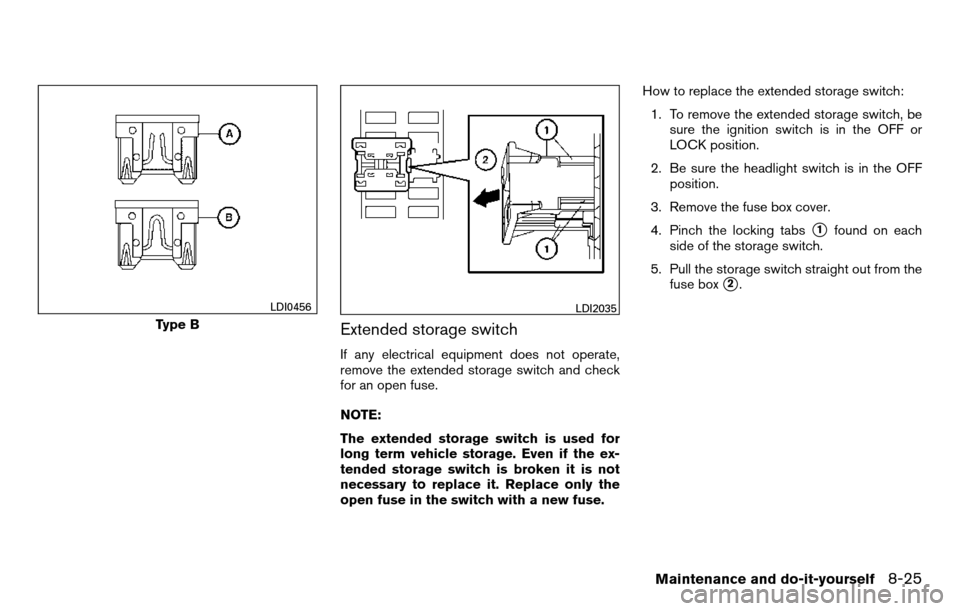

NISSAN TITAN 2013 1.G Owners Manual Extended storage switch
If any electrical equipment does not operate,
remove the extended storage switch and check
for an open fuse.
NOTE:
The extended storage switch is used for
long term vehicle sto

Page 383 of 458

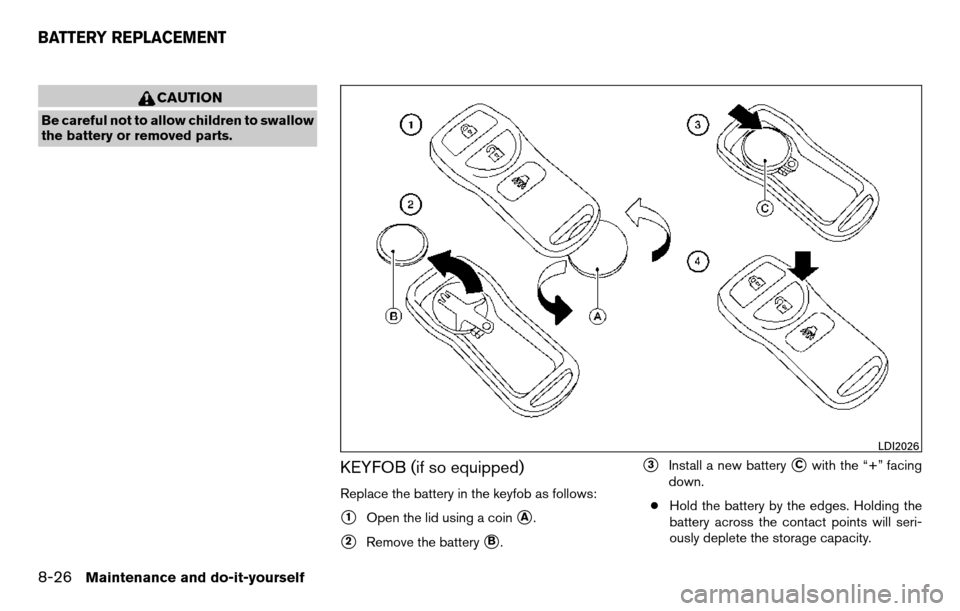

NISSAN TITAN 2013 1.G Owners Manual CAUTION
Be careful not to allow children to swallow
the battery or removed parts.
KEYFOB (if so equipped)
Replace the battery in the keyfob as follows:
1Open the lid using a coinA.
2Remove the batt

Page 384 of 458

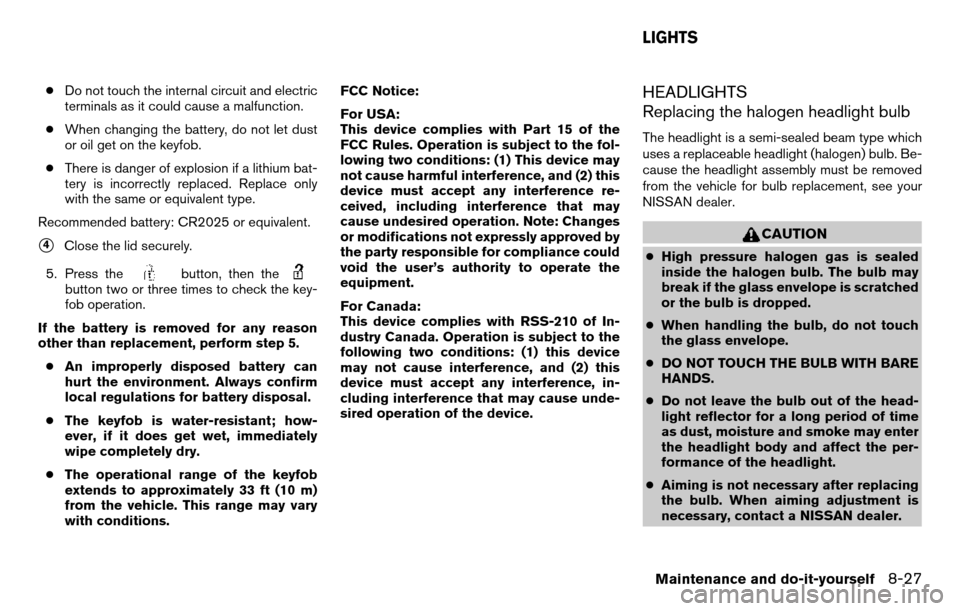

NISSAN TITAN 2013 1.G Owners Manual ●Do not touch the internal circuit and electric
terminals as it could cause a malfunction.
● When changing the battery, do not let dust
or oil get on the keyfob.
● There is danger of explosion i

Page 385 of 458

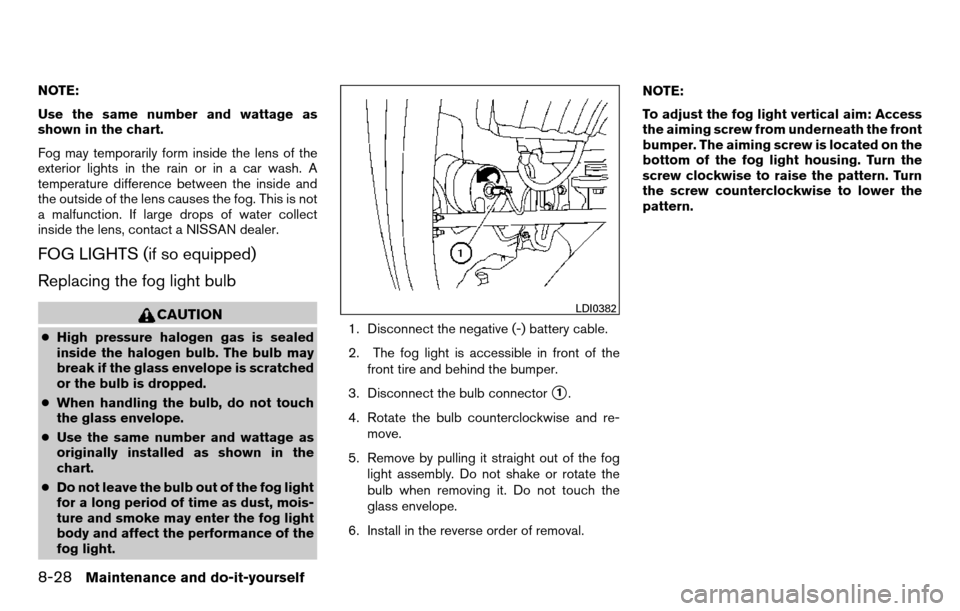

NISSAN TITAN 2013 1.G Owners Manual NOTE:
Use the same number and wattage as
shown in the chart.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside a

Page 386 of 458

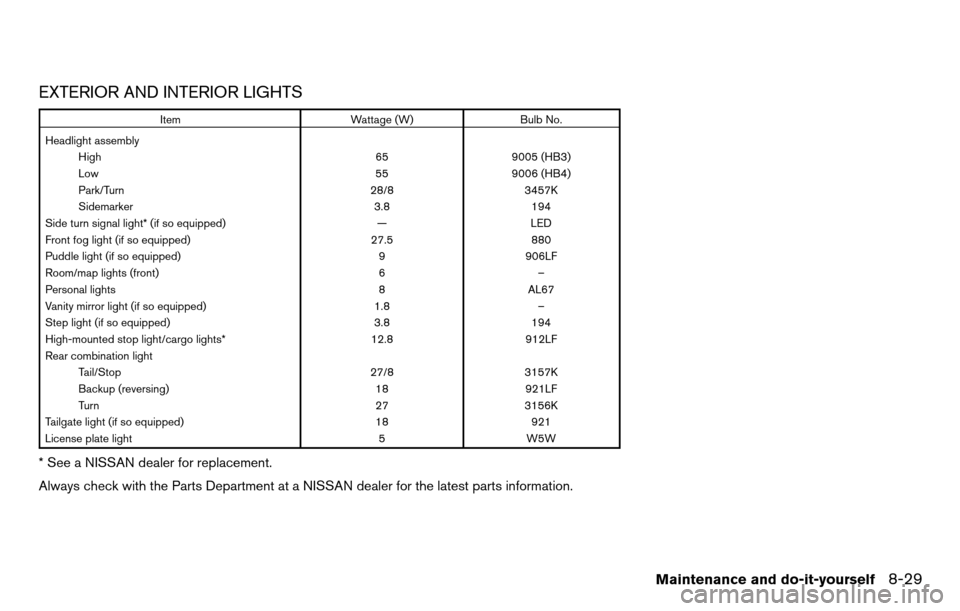

NISSAN TITAN 2013 1.G Owners Manual EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly High 659005 (HB3)
Low 559006 (HB4)
Park/Turn 28/83457K
Sidemarker 3.8194
Side turn signal light* (if so equipped) —LED
Front f

Page 387 of 458

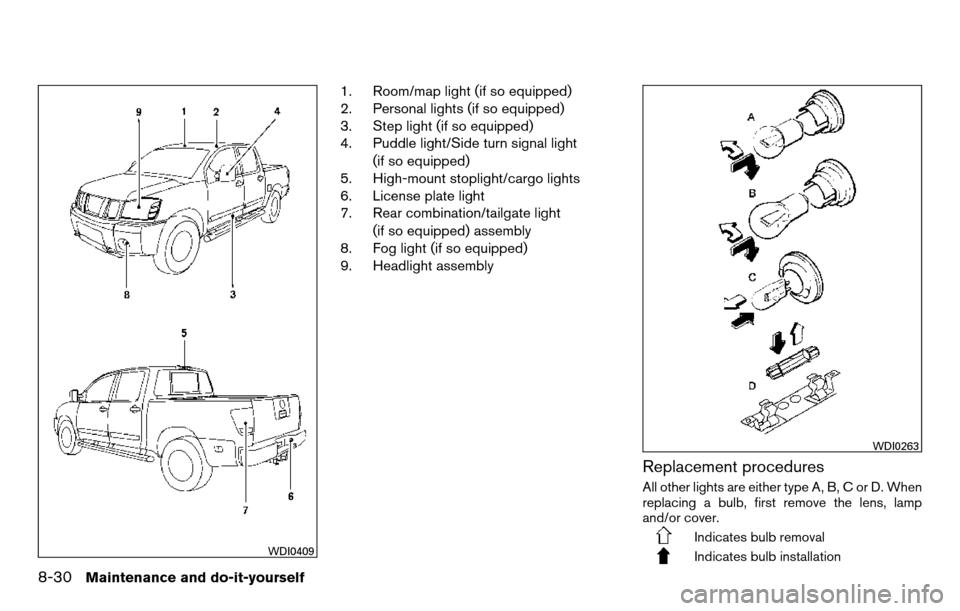

NISSAN TITAN 2013 1.G Owners Manual 1. Room/map light (if so equipped)
2. Personal lights (if so equipped)
3. Step light (if so equipped)
4. Puddle light/Side turn signal light(if so equipped)
5. High-mount stoplight/cargo lights
6. Lic

Page 388 of 458

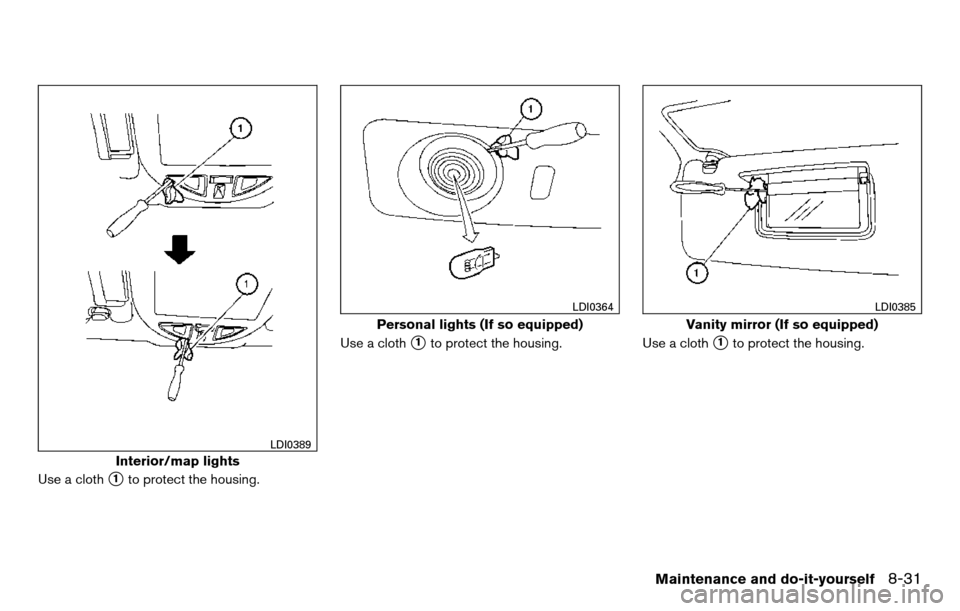

NISSAN TITAN 2013 1.G Owners Manual Use a cloth1to protect the housing.Use a cloth
1to protect the housing.
Use a cloth1to protect the housing.
Interior/map lights
LDI0389
Personal lights (If so equipped)
LDI0364
Vanity mirror (If so

Page 389 of 458

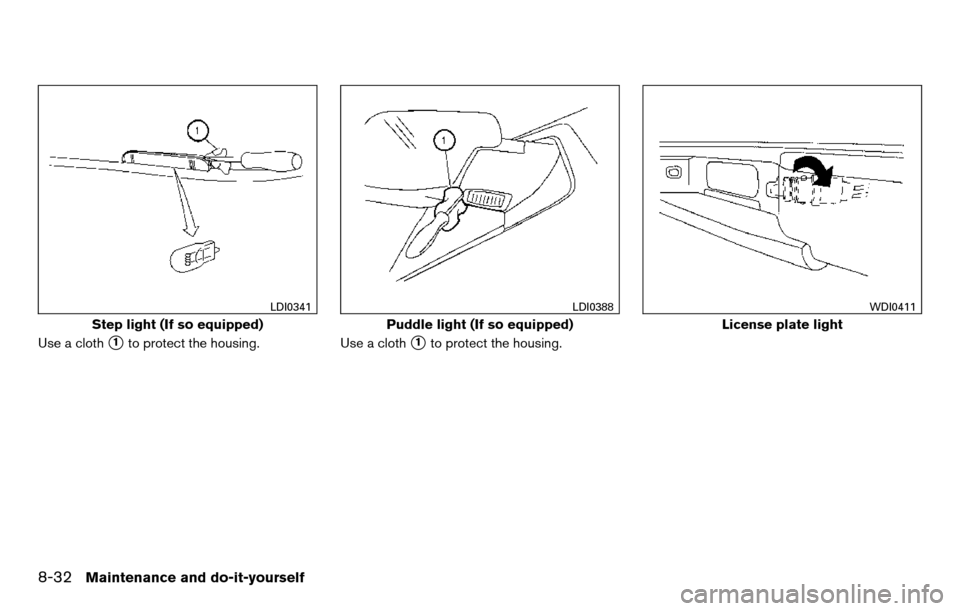

NISSAN TITAN 2013 1.G Owners Manual Use a cloth1to protect the housing.Use a cloth1to protect the housing.
Step light (If so equipped)
LDI0341
Puddle light (If so equipped)
LDI0388
License plate light
WDI0411
8-32Maintenance and do-it

Page 390 of 458

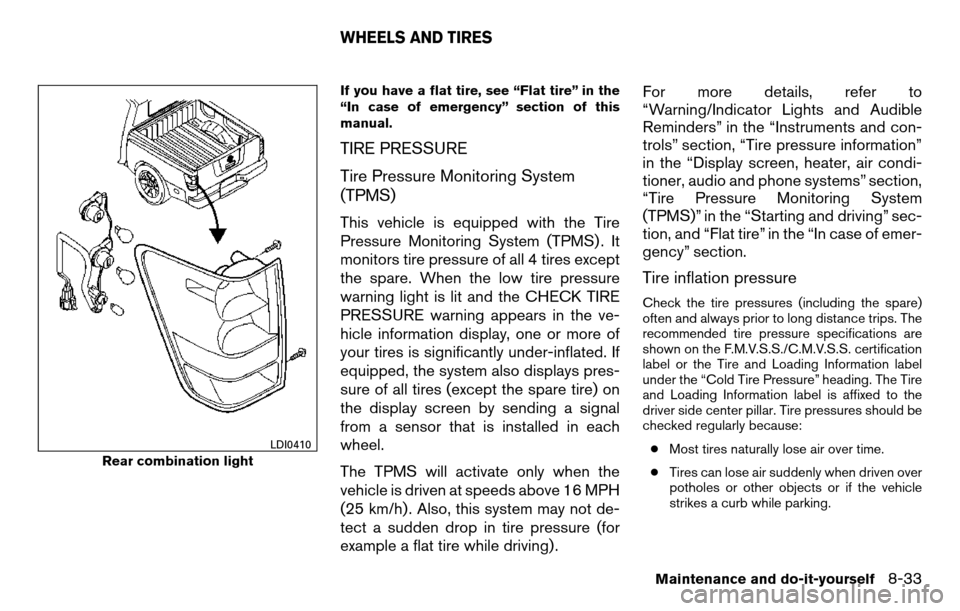

NISSAN TITAN 2013 1.G Owners Manual If you have a flat tire, see “Flat tire” in the
“In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Press
