NISSAN TITAN 2020 Owner´s Manual

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-13
Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light2-13
Automatic Trans-
mission check
warning light
2-13
Automatic Trans-
mission Park
warning light
(
model)2-14
Warning
light Name Page
or
Brake warning
light 2-14
Charge warning
light 2-15
Electric shif t con-
trol system warn-
ing light2-15
Engine oil pres-
sure warning light
2-15
Low tire pressure
warning light2-15
Warning
light Name Page
Master warning
light 2-17
Rear Automatic
Braking (RAB)
warning light2-17
Seat belt warning
light and chime
2-18
Supplemental air
bag warning light2-18
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents

Indicatorlight Name Page
Electronic locking
rear differential
(E-Lock) system
ON indicator light
(if so equipped) 2-18
Front fog light in-
dicator light (if so
equipped)
2-19
Front passenger
air bag status
light (if so
equipped)2-19
High Beam Assist
indicator light
(green)
2-19
High beam indi-
cator light (blue)
2-19
Indicator
light Name Page
Hill descent con-
trol system ON
indicator light (if
so equipped) 2-19
Malfunction Indi-
cator Light (MIL)
2-19
Security indicator
light2-20
Side light and
headlight indica-
tor light (green)2-20
Slip indicator light 2-20
TOW mode ON
indicator light
2-20
Indicator
light Name Page
Turn signal/
hazard indicator
lights 2-21
Vehicle Dynamic
Control (VDC) OFF
indicator light2-21
Illustrated table of contents0-11

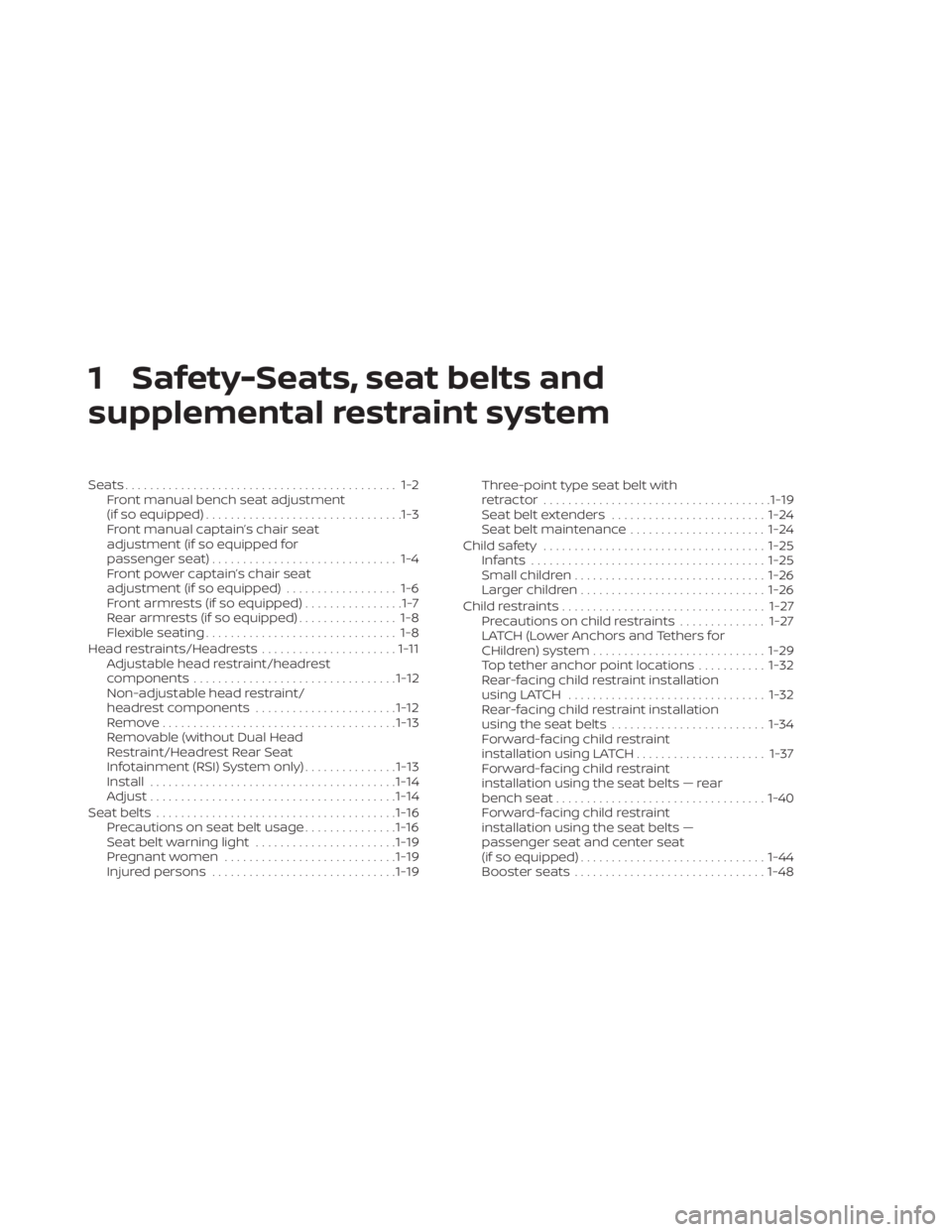

1 Safety-Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual bench seat adjustment
(if so equipped) ................................1-3
Front manual captain’s chair seat
adjustment (if so equipped for
passenger seat) .............................. 1-4
Front power captain’s chair seat
adjustment (if so equipped) .................. 1-6
Front armrests (if so equipped) ................1-7
Rear armrests (if so equipped) ................ 1-8
Flexible seating ............................... 1-8
Head restraints/Headrests ......................1-11
Adjustable head restraint/headrest
components ................................. 1-12
Non-adjustable head restraint/
headrest components .......................1-12
Remove...................................... 1-13
Removable (without Dual Head
Restraint/Headrest Rear Seat
Infotainment (RSI) System only) ...............1-13
Install ........................................ 1-14
Adjust ........................................ 1-14
Seatbelts ....................................... 1-16
Precautions on seat belt usage ...............1-16
Seat belt warning light .......................1-19
Pregnant women ............................ 1-19
Injured persons .............................. 1-19Three-point type seat belt with
retractor .....................................
1-19
Seat belt extenders ......................... 1-24
Seat belt maintenance ......................1-24
Child safety .................................... 1-25
Infants ...................................... 1-25
Small children ............................... 1-26
Larger children .............................. 1-26
Child restraints ................................. 1-27
Precautions on child restraints ..............1-27
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-29
Top tether anchor point locations ...........1-32
Rear-facing child restraint installation
using LATCH ................................ 1-32
Rear-facing child restraint installation
using the seat belts ......................... 1-34
Forward-facing child restraint
installation using LATCH .....................1-37
Forward-facing child restraint
installation using the seat belts — rear
bench seat .................................. 1-40
Forward-facing child restraint
installation using the seat belts —
passenger seat and center seat
(if so equipped) .............................. 1-44
Booster seats ............................... 1-48

Supplemental Restraint System (SRS)..........1-52
Precautions on SRS (with NISSAN
Advanced Air Bag System)
(if so equipped) .............................. 1-52
Precautions on SRS (without NISSAN
Advanced Air Bag System)
(if so equipped) .............................. 1-67
Front seat-mounted side-impact
supplemental air bag and
roof-mounted curtain side-impact and
rollover supplemental air bag systems .......1-77 Driver and passenger supplemental
knee air bag
................................. 1-78
Seat belt with pretensioner(s)
(front seats) ................................. 1-80
Supplemental air bag warning labels .........1-81
Supplemental air bag warning light ..........1-81
Repair and replacement procedure .........1-82

WARNING
• Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. •
For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with
both feet on the floor and adjust the
seat properly. For additional infor-
mation, refer to “Precautions on seat
belt usage” in this section.
• Af ter adjustment, gently rock in the
seat to make sure it is securely
locked. •
Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in
serious accidents.
• To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require
the assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
• Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
• The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seatback
is reclined, the risk of sliding under
the lap belt and being injured is
increased.
ARS1152
SEATS
1-2Safety-Seats, seat belts and supplemental restraint system

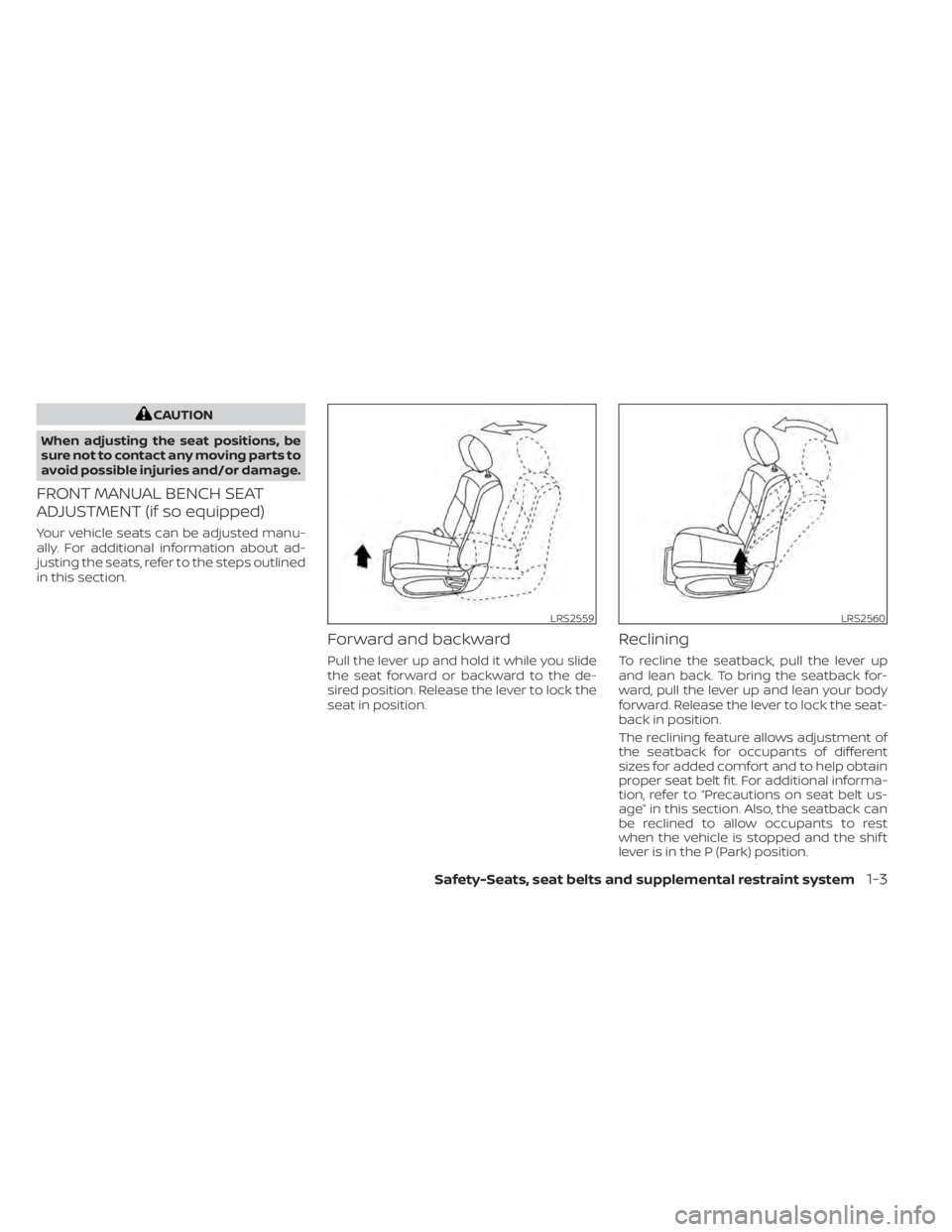

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL BENCH SEAT
ADJUSTMENT (if so equipped)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS2559LRS2560
Safety-Seats, seat belts and supplemental restraint system1-3

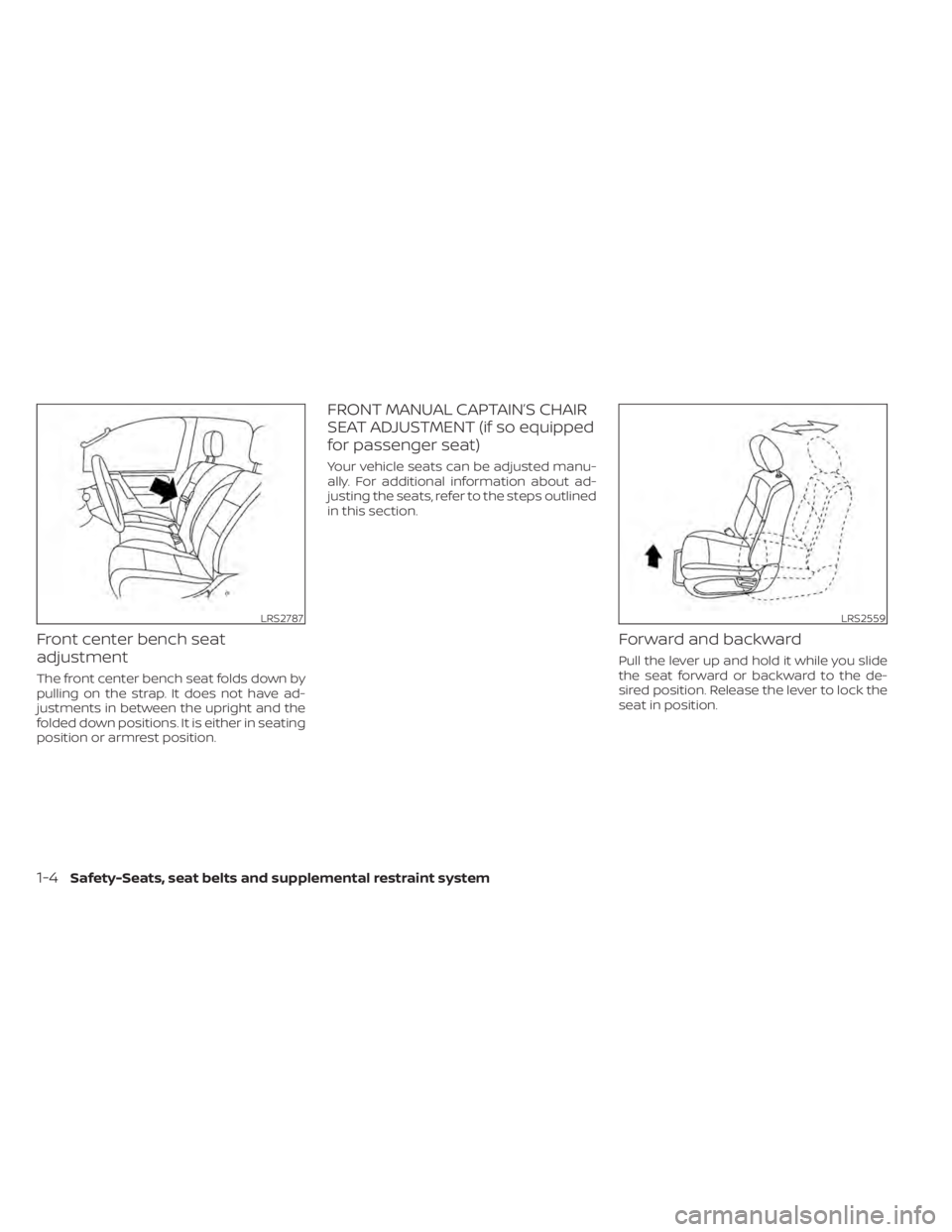

Front center bench seat
adjustment
The front center bench seat folds down by
pulling on the strap. It does not have ad-
justments in between the upright and the
folded down positions. It is either in seating
position or armrest position.
FRONT MANUAL CAPTAIN’S CHAIR
SEAT ADJUSTMENT (if so equipped
for passenger seat)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
LRS2787LRS2559
1-4Safety-Seats, seat belts and supplemental restraint system

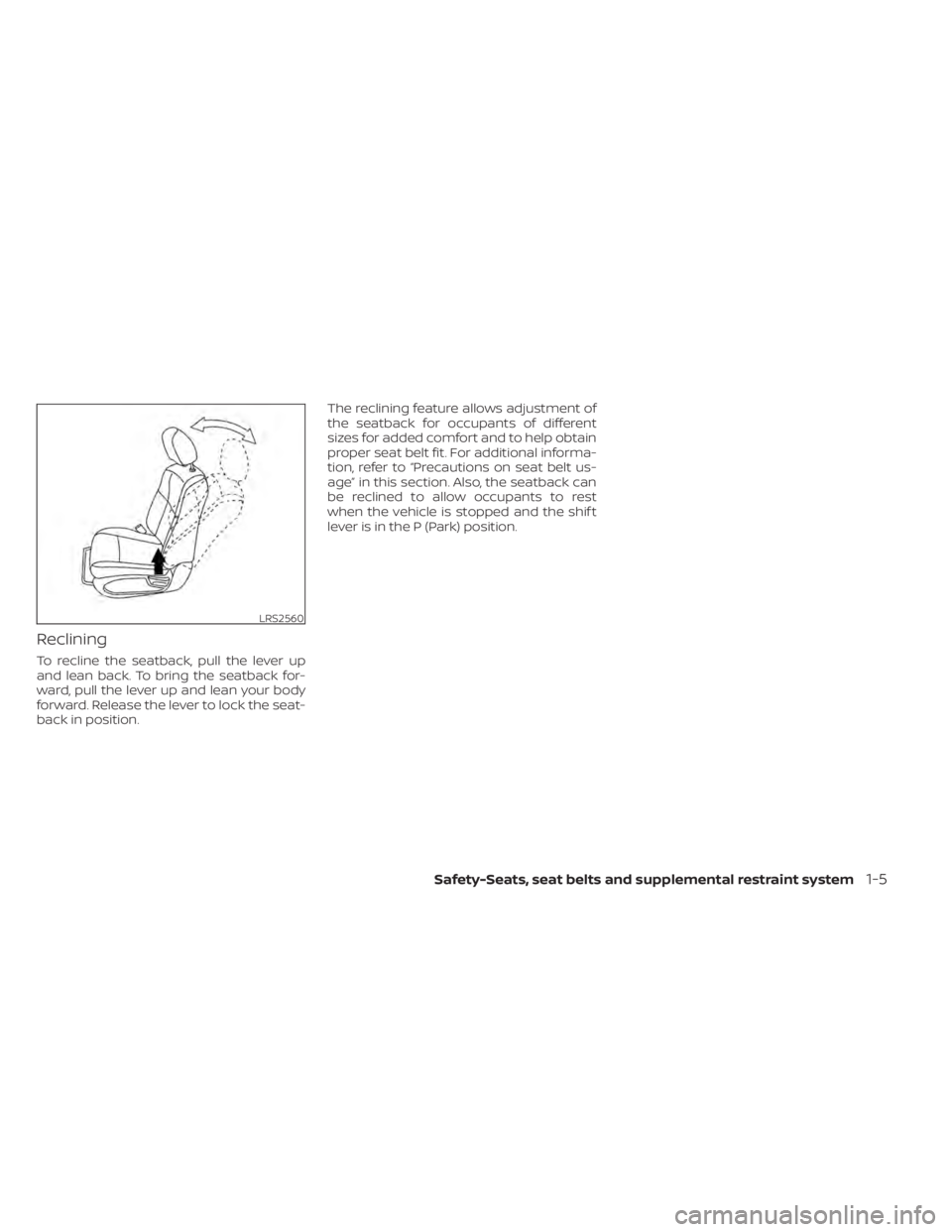

Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS2560
Safety-Seats, seat belts and supplemental restraint system1-5

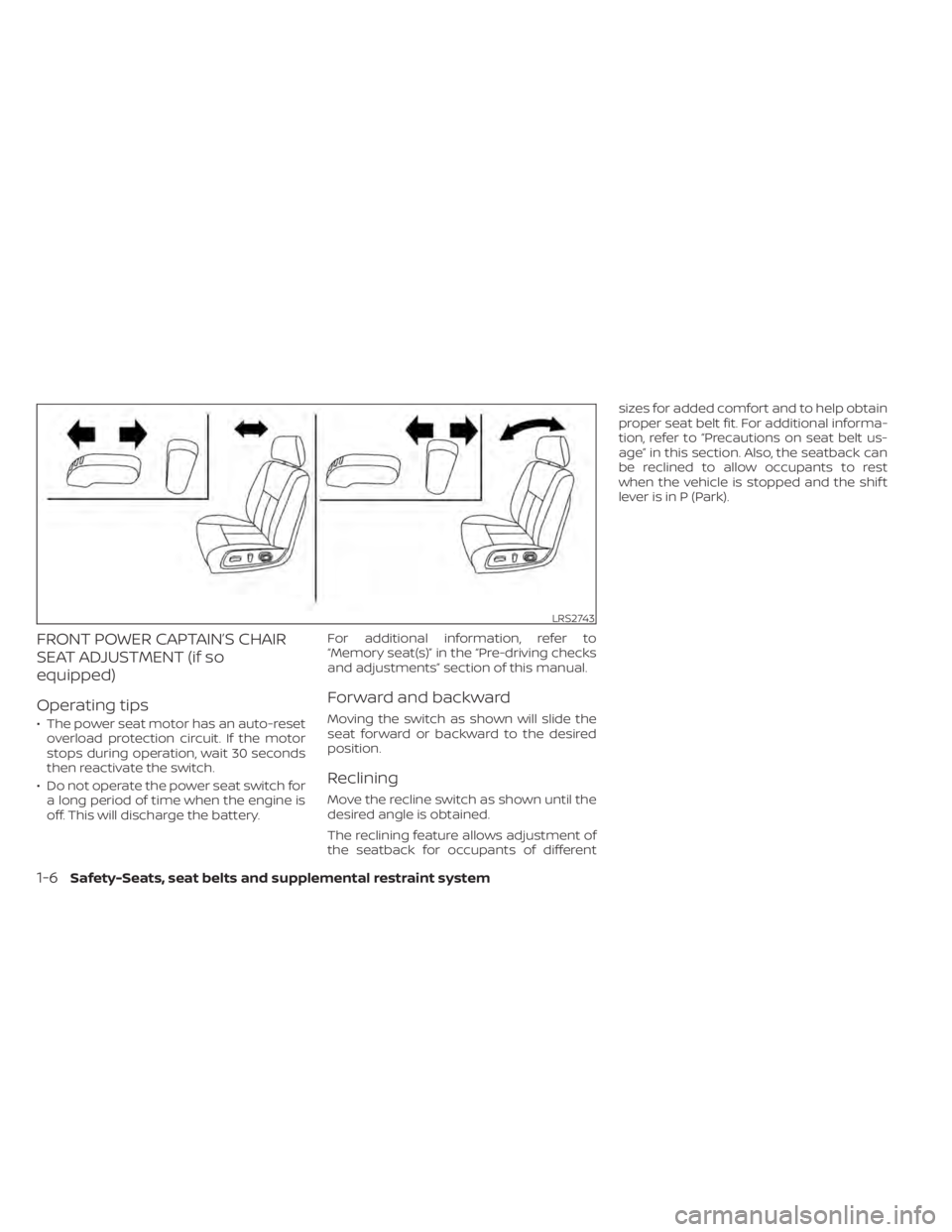

FRONT POWER CAPTAIN’S CHAIR
SEAT ADJUSTMENT (if so
equipped)
Operating tips
• The power seat motor has an auto-resetoverload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
• Do not operate the power seat switch for a long period of time when the engine is
off. This will discharge the battery. For additional information, refer to
“Memory seat(s)” in the “Pre-driving checks
and adjustments” section of this manual.
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park).
LRS2743
1-6Safety-Seats, seat belts and supplemental restraint system

Seat lif ter (driver's seat)
Move the switch as shown to adjust the
angle and height of the seat cushion.
Lumbar support (driver's seat)
The lumbar support feature provides ad-
justable lower back support to the driver.
Push the switch as shown to adjust the
seatback lumbar area.
FRONT ARMRESTS (if so equipped)
To use the center armrest on the front
bench seat, pull on the strap in between
the front passenger and center seats and
fold it down to the resting position.
LRS2744LRS2745LRS0425
Safety-Seats, seat belts and supplemental restraint system1-7
