NISSAN VERSA 2006 Workshop Service Repair Manual

CVT-124
DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
Revision: June 20062007 Versa
DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRESSURE
SOLENOID VALVE)
PFP:31941
DescriptionUCS00617

The pressure control solenoid valve B (secondary pressure solenoid valve) is included in the control valve
assembly.

The pressure control solenoid valve B (secondary pressure solenoid valve) regulates the oil pump dis-
charge pressure to suit the driving condition in response to a signal sent from the TCM.
CONSULT-II Reference ValueUCS00618
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS00619

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0778 PRS CNT SOL/B CIRC” with CONSULT-II is detected under the following
conditions.
–TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM compares target value with monitor value and detects an irregularity.
Possible CauseUCS0061A

Harness or connectors
(Solenoid circuit is open or shorted.)

Pressure control solenoid valve B (Secondary pressure solenoid valve)
DTC Confirmation ProcedureUCS0061B
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine and wait at least 5 seconds.
4. If DTC is detected, go to CVT-126, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
ISOLT3 Secondary pressure low - Secondary pressure high 0.8 - 0.0 A
SOLMON3“N” position idle 0.6 - 0.7 A
When stalled 0.4 - 0.6 A
BCIA0031E

DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
CVT-125
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa

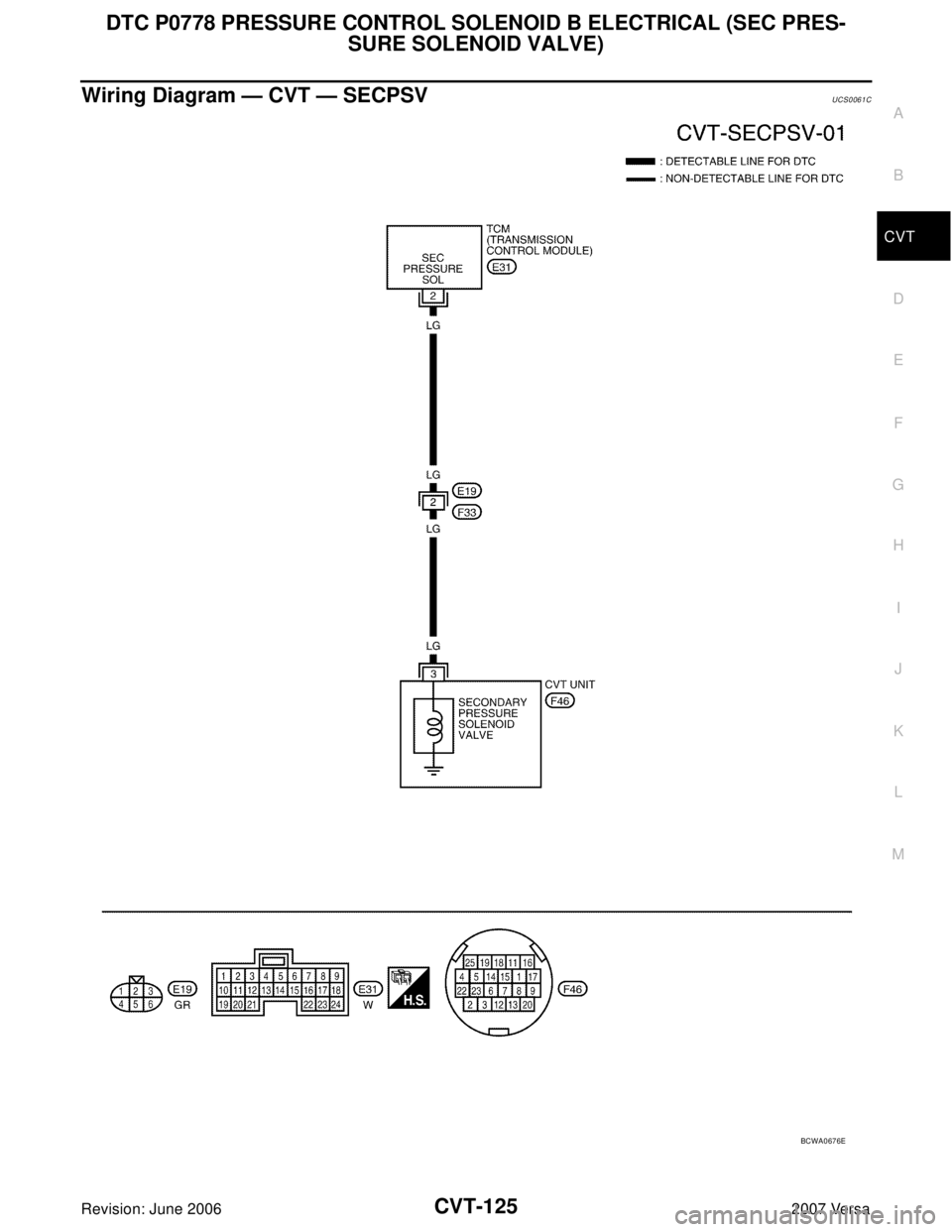

Wiring Diagram — CVT — SECPSVUCS0061C
BCWA0676E

CVT-126
DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.

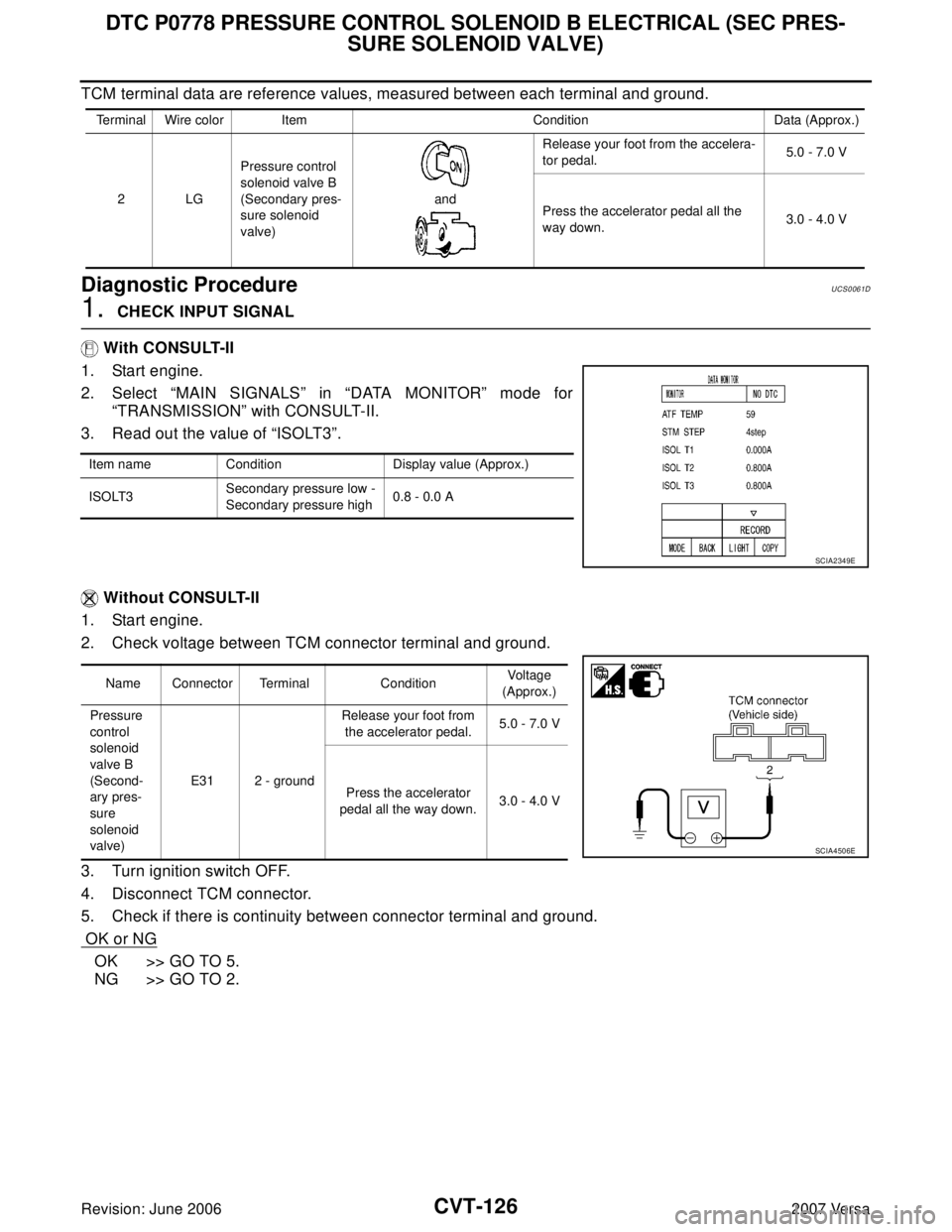

Diagnostic ProcedureUCS0061D
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Read out the value of “ISOLT3”.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
3. Turn ignition switch OFF.
4. Disconnect TCM connector.
5. Check if there is continuity between connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item Condition Data (Approx.)
2LGPressure control
solenoid valve B
(Secondary pres-
sure solenoid
valve)andRelease your foot from the accelera-
tor pedal.5.0 - 7.0 V
Press the accelerator pedal all the
way down.3.0 - 4.0 V
Item name Condition Display value (Approx.)
ISOLT3Secondary pressure low -
Secondary pressure high0.8 - 0.0 A
SCIA2349E
Name Connector Terminal ConditionVoltage
(Approx.)
Pressure
control
solenoid
valve B
(Second-
ary pres-
sure
solenoid
valve)E31 2 - groundRelease your foot from
the accelerator pedal.5.0 - 7.0 V
Press the accelerator
pedal all the way down.3.0 - 4.0 V
SCIA4506E

DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
CVT-127
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
2. CHECK PRESSURE CONTROL SOLENOID VALVE B (SECONDARY PRESSURE SOLENOID VALVE)
CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
3. Check resistance between CVT unit harness connector terminal
and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK HARNESS BETWEEN TCM AND PRESSURE CONTROL SOLENOID VALVE B (SECONDARY
PRESSURE SOLENOID VALVE)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminal and CVT unit
harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform CVT-124, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid valve Connector TerminalResistance
(Approx.)
Pressure control solenoid
valve B (Secondary pres-
sure solenoid valve)E31 2 - Ground 2.5 - 5.0 Ω
SCIA4507E
Solenoid valve Connector TerminalResistance
(Approx.)
Pressure control solenoid
valve B (Secondary pres-
sure solenoid valve) F46 3 - Ground 2.5 - 5.0 Ω
SCIA4688E
Item Connector Terminal Continuity
TCM connector E31 2
Ye s
CVT unit harness connec-
torF46 3
SCIA4689E

CVT-128
DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
Revision: June 20062007 Versa
6. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace the transaxle assembly. Refer to CVT-207, "
Removal and Installation" .
Component InspectionUCS0061E
PRESSURE CONTROL SOLENOID VALVE B (SECONDARY PRESSURE SOLENOID VALVE)
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
3. Check resistance between CVT unit harness connector terminal
and ground.
4. If NG, replace the transaxle assembly. Refer to CVT-207,
"Removal and Installation" .
Solenoid Valve Connector TerminalResistance
(Approx.)
Pressure control sole-
noid valve B (Secondary
pressure solenoid valve) F46 3 - Ground 2.5 - 5.0 Ω
SCIA4688E

DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
CVT-129
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
PFP:31936
DescriptionUCS0061N

The transmission fluid pressure sensor A (secondary pressure sensor) is included in the control valve
assembly.

The transmission fluid pressure sensor A (secondary pressure sensor) detects secondary pressure of
CVT and sends TCM the signal.
CONSULT-II Reference ValueUCS0061O
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS0061P

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0840 TR PRS SENS/A CIRC” with CONSULT-II is detected when TCM detects
an improper voltage drop when it receives the sensor signal.
Possible CauseUCS0061Q

Transmission fluid pressure sensor A (Secondary pressure sensor)

Harness or connectors
(Switch circuit is open or shorted.)
DTC Confirmation ProcedureUCS0061R
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of line temperature sensor is
within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Start engine and wait for at least 5 consecutive seconds.
4. If DTC is detected, go to CVT-131, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
SEC HYDR SEN
“N” position idle1.0 V
SEC PRESS0.8 MPa
BCIA0031E

CVT-130
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
Revision: June 20062007 Versa

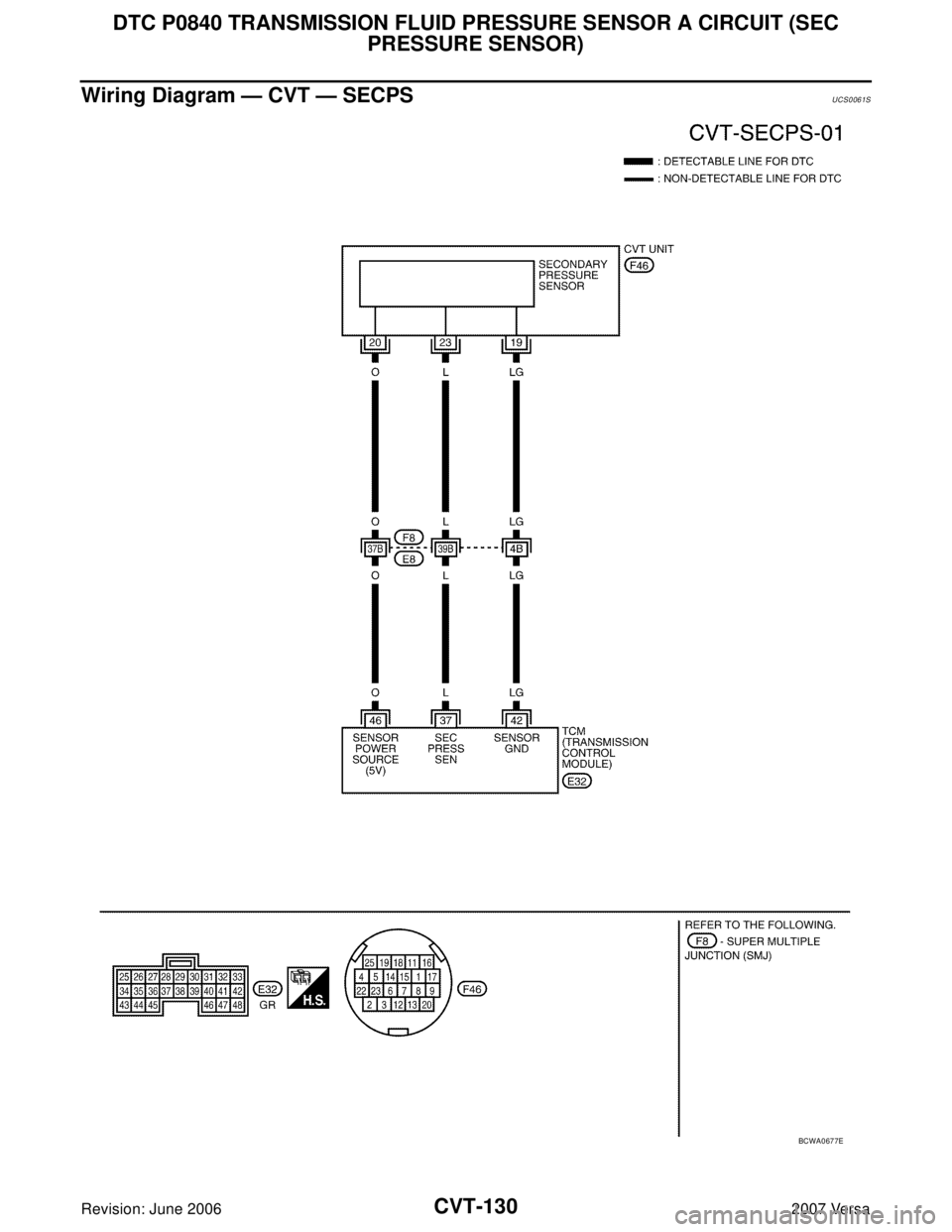

Wiring Diagram — CVT — SECPSUCS0061S
BCWA0677E

DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
CVT-131
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS0061T
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “SEC HYDR SEN”.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item Condition Data (Approx.)
37 LTransmission fluid
pressure sensor A
(Secondary pres-
sure sensor)and “N” position idle 1.0 V
42 LG Sensor ground Always 0 V
46 O Sensor power—5.0 V
— 0 V
Item name Condition Display value (Approx.)
SEC HYDR SEN “N” position idle 1.0 V
SCIA2279E
Name Connector Terminal ConditionVoltage
(Approx.)
Transmission
fluid pres-
sure sensor A
(Secondary
pressure sen-
sor)E32 37 - Ground “N” position idle 1.0 V
SCIA4508E

CVT-132
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
Revision: June 20062007 Versa
2. CHECK SENSOR POWER AND SENSOR GROUND
1. Turn ignition switch ON. (Do not start engine)
2. Check voltage between TCM connector terminals.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND CVT UNIT HARNESS CONNECTOR (SENSOR POWER
AND SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminals and CVT
unit harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> Replace TCM. Refer to CVT-9, "Service After Replacing TCM and Transaxle Assembly" .
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HARNESS BETWEEN TCM AND TRANSMISSION FLUID PRESSURE SENSOR A (SECOND-
ARY PRESSURE SENSOR)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminal and CVT unit
harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
Item Connector TerminalData
(Approx.)
TCM connector E32 46 - 42 5.0 V
SCIA2367E
Item Connector Terminal Continuity
TCM E32 42
Ye s
CVT unit harness connector F46 19
TCM E32 46
Ye s
CVT unit harness connector F46 20
SCIA4681E
Item Connector Terminal Continuity
TCM E32 37
Ye s
CVT unit harness connector F46 23
SCIA4690E

DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
CVT-133
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
5. CHECK DTC
Perform CVT-129, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-207, "Removal and Installation" .
NG >> Repair or replace damaged parts.
