NISSAN VERSA 2006 Workshop Service Repair Manual

CVT-114
DTC P0745 LINE PRESSURE SOLENOID VALVE
Revision: June 20062007 Versa

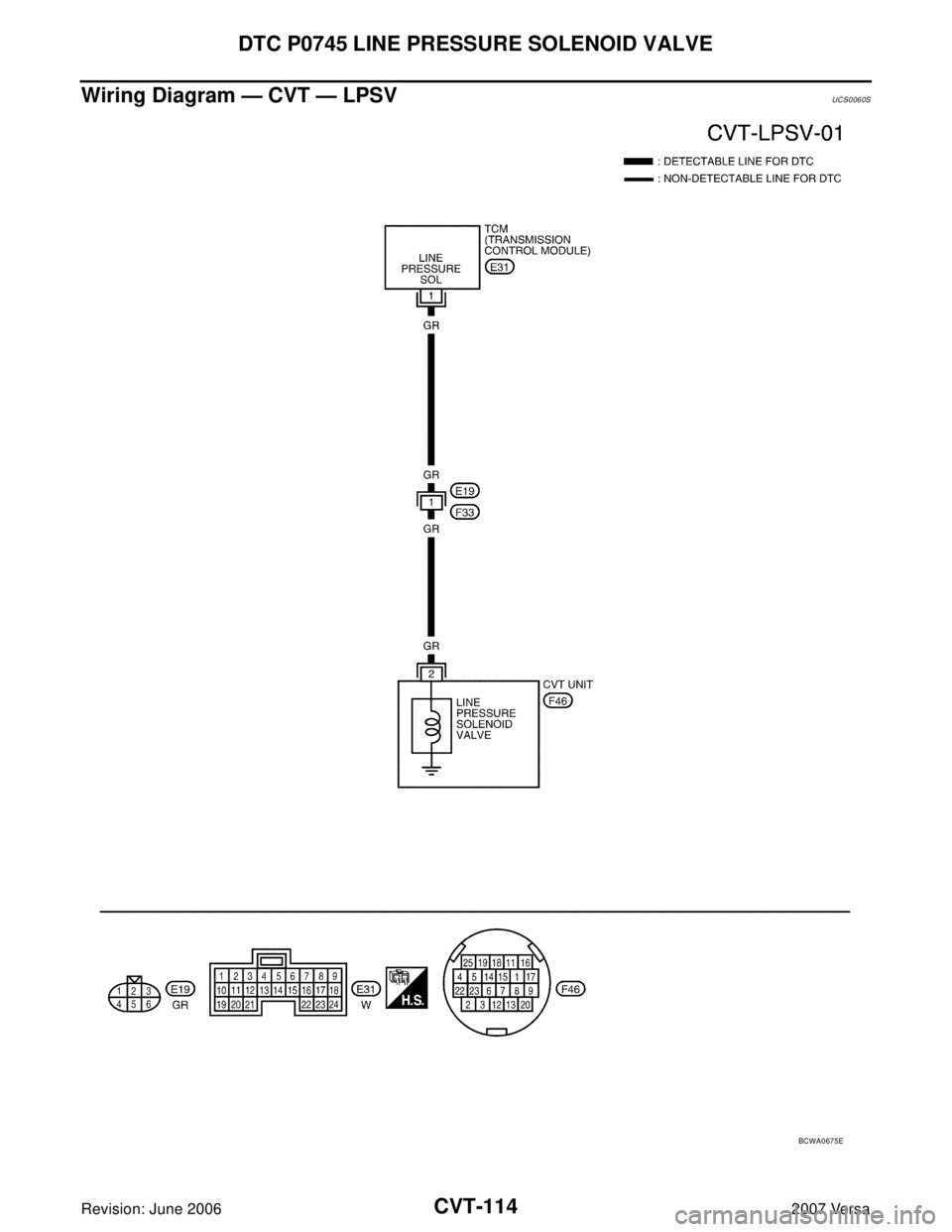

Wiring Diagram — CVT — LPSVUCS0060S
BCWA0675E

DTC P0745 LINE PRESSURE SOLENOID VALVE
CVT-115
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS0060T
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Read out the value of “ISOLT2”.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
3. Turn ignition switch OFF.
4. Disconnect TCM connector.
5. Check if there is continuity between connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item Condition Data (Approx.)
1GRPressure control
solenoid valve A
(Line pressure
solenoid valve)and Release your foot from the accelerator pedal. 5.0 - 7.0 V
Press the accelerator pedal all the way down. 1.0 - 3.0 V
Item name Condition Display value (Approx.)
ISOLT2Release your foot from
the accelerator pedal.0.8 A
Press the accelerator
pedal all the way down.0.0 A
SCIA2349E
Name Connector Terminal ConditionVoltage
(Approx.)
Pressure
control
solenoid
valve A
(Line pres-
sure sole-
noid valve)E31 1 - groundRelease your foot from
the accelerator pedal. 5.0 - 7.0 V
Press the accelerator
pedal all the way down.1.0 - 3.0 V
SCIA2348E

CVT-116
DTC P0745 LINE PRESSURE SOLENOID VALVE
Revision: June 20062007 Versa
2. CHECK PRESSURE CONTROL SOLENOID VALVE A (LINE PRESSURE SOLENOID VALVE) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
3. Check resistance between CVT unit harness connector terminal
and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace the transaxle assembly. Refer to CVT-207,
"Removal and Installation" .
4. CHECK HARNESS BETWEEN TCM AND PRESSURE CONTROL SOLENOID VALVE A (LINE PRES-
SURE SOLENOID VALVE)
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector and TCM connector.
3. Check continuity between TCM connector terminal and CVT unit
harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and CVT assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK DTC
Perform CVT-113, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid valve Connector TerminalResistance
(Approx.)
Pressure control solenoid valve A
(Line pressure solenoid valve) E31 1 - ground 2.5 - 5.0 Ω
SCIA4685E
Solenoid valve Connector TerminalResistance
(Approx.)
Pressure control solenoid valve A
(Line pressure solenoid valve) F46 2 - Ground 2.5 - 5.0 Ω
SCIA4686E
Item Connector Terminal Continuity
TCM E31 1
Ye s
CVT unit harness connector F46 2
SCIA4687E

DTC P0745 LINE PRESSURE SOLENOID VALVE
CVT-117
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
6. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace the transaxle assembly. Refer to CVT-207, "
Removal and Installation" .
Component InspectionUCS0060U
PRESSURE CONTROL SOLENOID VALVE A (LINE PRESSURE SOLENOID VALVE)
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
3. Check resistance between CVT unit harness connector terminal
and ground.
4. If NG, replace the transaxle assembly. Refer to CVT-207,
"Removal and Installation" .
Solenoid valve Connector TerminalResistance
(Approx.)
Pressure control solenoid valve A
(Line pressure solenoid valve) F46 2 - Ground 2.5 - 5.0 Ω
SCIA4686E

CVT-118
DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)
Revision: June 20062007 Versa
DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)
PFP:31941
DescriptionUCS0060V

The pressure control solenoid valve A (line pressure solenoid valve) are included in the control valve
assembly.

The pressure control solenoid valve A (line pressure solenoid valve) regulates the oil pump discharge
pressure to suit the driving condition in response to a signal sent from the TCM.
CONSULT-II Reference ValueUCS0060W
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS0060X

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0746 PRS CNT SOL/A FCTN” with CONSULT-II is detected under the following
conditions.
–Unexpected gear ratio was detected in the LOW side due to excessively low line pressure.
Possible CauseUCS0060Y

Line pressure control system

Output speed sensor (Secondary speed sensor)

Input speed sensor (Primary speed sensor)
DTC Confirmation ProcedureUCS0060Z
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
consecutive seconds. Test start from 0 km/h (0 MPH).
ATF TEMP SEN: 1.0 - 2.0 V
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
VEHICLE SPEED: 10 km/h (6 MPH) More than
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. If DTC is detected, go to CVT-119, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
PRI PRESS “N” position idle 0.4 MPa
BCIA0031E

DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)
CVT-119
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Diagnostic ProcedureUCS00610
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “PRI PRESS”.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-45, "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-46, "
Judgement of Line Pressure Test" .
3. DETECT MALFUNCTIONING ITEM
Check pressure control solenoid valve A (line pressure solenoid valve). Refer to CVT-117, "
Component
Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK OUTPUT SPEED SENSOR (SECONDARY SPEED SENSOR) SYSTEM AND INPUT SPEED
SENSOR (PRIMARY SPEED SENSOR) SYSTEM
Check output speed sensor (secondary speed sensor) system and input speed sensor (primary speed sensor)
system. Refer to CVT-95, "
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)" ,
CVT-90, "
DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
Item name Condition Display value (Approx.)
PRI PRESS “N” position idle 0.4 MPa
SCIA2366E
Name Connector Terminal ConditionVoltage
(Approx.)
Transmission
fluid pressure
sensor B (Pri-
mary pressure
sensor)E32 41 - Ground “N” position idle 0.7 V
SCIA1922E

CVT-120
DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)
Revision: June 20062007 Versa
5. DETECT MALFUNCTIONING ITEM
Check the following:

Power supply and ground circuit for TCM. Refer to CVT-146, "Wiring Diagram — CVT — POWER" .

The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform CVT-118, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Replace the transaxle assembly or TCM. Refer to CVT-207, "
Removal and Installation" .

DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE (SEC PRES-
SURE SOLENOID VALVE)
CVT-121
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE (SEC PRES-
SURE SOLENOID VALVE)
PFP:31941
DescriptionUCS00611

The pressure control solenoid valve B (secondary pressure solenoid valve) is included in the control valve
assembly.

The pressure control solenoid valve B (secondary pressure solenoid valve) regulates the secondary pres-
sure to suit the driving condition in response to a signal sent from the TCM.
CONSULT-II Reference ValueUCS00612
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS00613

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0776 PRS CNT SOL/B FCTN” with CONSULT-II is detected when secondary
pressure is too high or too low compared with the commanded value while driving.
Possible CauseUCS00614

Harness or connectors
(Solenoid circuit is open or shorted.)

Pressure control solenoid valve B (Secondary pressure solenoid valve system)

Transmission fluid pressure sensor A (Secondary pressure sensor)

Line pressure control system
DTC Confirmation ProcedureUCS00615
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 30
consecutive seconds.
ATF TEMP SEN: 1.0 - 2.0 V
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
VEHICLE SPEED: 10 km/h (6 MPH) More than
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. If DTC is detected, go to CVT-122, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
SEC PRESS “N” position idle 0.8 MPa
BCIA0031E

CVT-122
DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE (SEC PRES-
SURE SOLENOID VALVE)
Revision: June 20062007 Versa
Diagnostic ProcedureUCS00616
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “SEC PRESS”.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-45, "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-46, "
Judgement of Line Pressure Test" .
3. DETECT MALFUNCTIONING ITEM
Check the following:

Pressure control solenoid valve B (Secondary pressure solenoid valve). Refer to CVT-128, "Component
Inspection" .

Pressure control solenoid valve A (Line pressure solenoid valve). Refer to CVT-117, "Component Inspec-
tion" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK TRANSMISSION FLUID PRESSURE SENSOR A (SECONDARY PRESSURE SENSOR) SYS-
TEM
Check transmission fluid pressure sensor A (secondary pressure sensor) system. Refer to CVT-129, "
DTC
P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC PRESSURE SENSOR)" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following:

Power supply and ground circuit for TCM. Refer to CVT-146, "Wiring Diagram — CVT — POWER" .

The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Item name Condition Display value (Approx.)
SEC PRESS “N” position idle 0.8 MPa
SCIA2366E

DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE (SEC PRES-
SURE SOLENOID VALVE)
CVT-123
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
6. CHECK DTC
Perform CVT-121, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-207, "
Removal and Installation" .
