DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
Revision: June 20062007 Versa

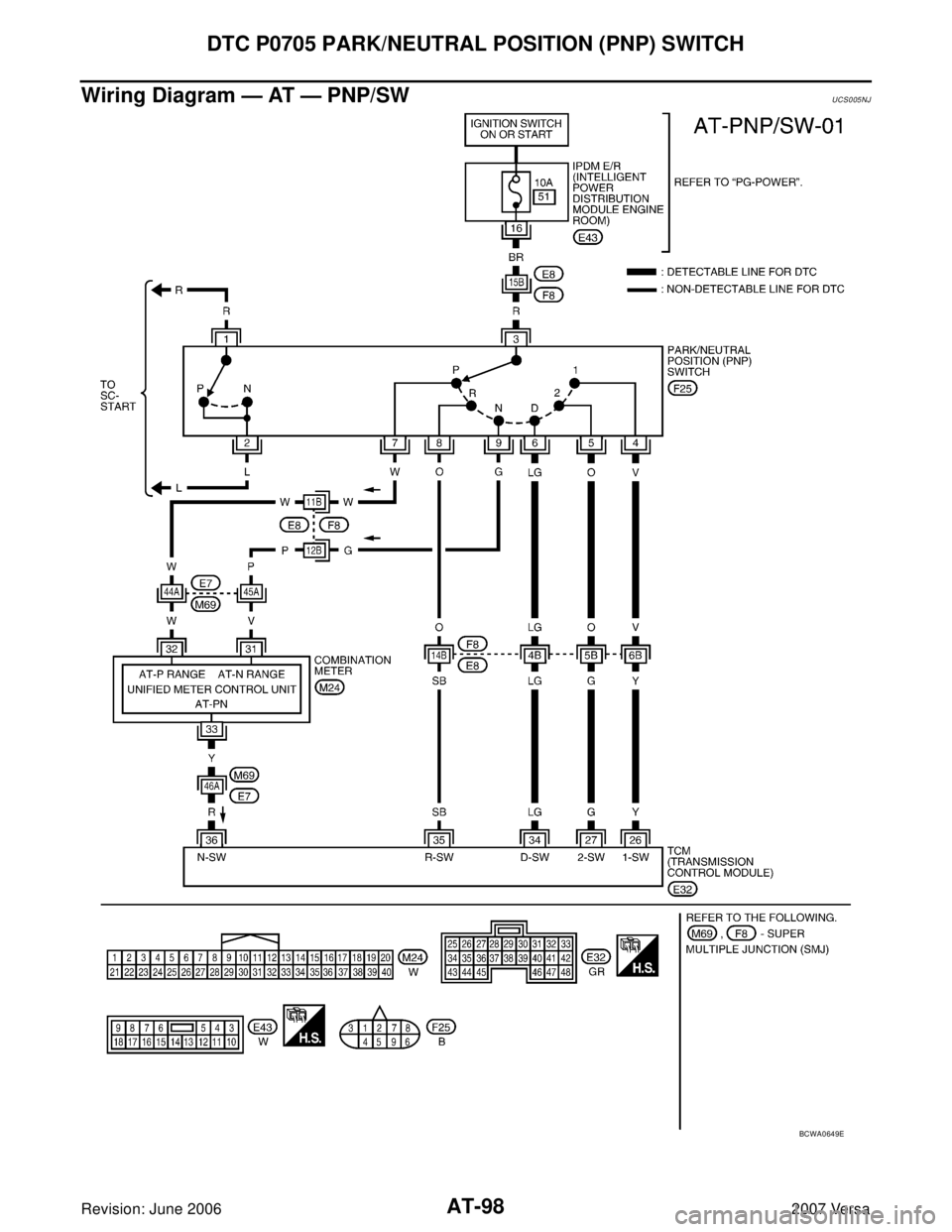

Wiring Diagram — AT — PNP/SWUCS005NJ
BCWA0649E

DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-99
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005NK
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
26 YPNP switch “1” posi-
tion
andWhen setting selector lever to “1” position. Battery voltage
When setting selector lever to other positions. 0 V
27 GPNP switch “2” posi-
tionWhen setting selector lever to “2” position. Battery voltage
When setting selector lever to other positions. 0 V
34 LGPNP switch “D” posi-
tionWhen setting selector lever to “D” position. Battery voltage
When setting selector lever to other positions. 0 V
35 SBPNP switch “R” posi-
tionWhen setting selector lever to “R” position. Battery voltage
When setting selector lever to other positions. 0 V
36 RPNP switch “N” or
“P” positionWhen setting selector lever to “N” or “P” posi-
tion.Battery voltage
When setting selector lever to other positions. 0 V
Item name Condition Display value
PN POSI SWWhen setting selector lever to “N” or “P” posi-
tion.ON
When setting selector lever to other positions. OFF
R POSITION SWWhen setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF
D POSITION SWWhen setting selector lever to “D” positions. ON
When setting selector lever to other positions. OFF
2 POSITION SWWhen setting selector lever to “2” position. ON
When setting selector lever to other positions. OFF
1 POSITION SWWhen setting selector lever to “1” position. ON
When setting selector lever to other positions. OFF
SAT7 0 1J

AT-100
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
Revision: June 20062007 Versa
2. CHECK INPUT SIGNAL
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground
while moving selector lever through each position.
B: Battery voltage
0: 0V
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
3. CHECK PNP SWITCH
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Check continuity between PNP switch harness connector termi-
nals.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. CHECK CONTROL CABLE ADJUSTMENT
Check PNP switch again with control cable disconnected from manual shaft of A/T assembly. Refer to test
group 3.
OK or NG
OK >> Adjust control cable. Refer to AT- 2 3 3 , "Adjustment of A/T Position" .
NG >> Check PNP switch (Refer to test group 1) again after adjusting PNP switch (Refer to AT- 2 4 7
).

If OK, INSPECTION END

If NG, repair or replace PNP switch. Refer to AT-246, "Park/Neutral Position (PNP) Switch" .
Selector lever positionTerminal
36 35 34 27 26
P, N B0000
R 0B000
D00B00
20 00B0
10000B
SCIA7162E
Selector lever position Connector Terminal Continuity
P
F251 - 2, 3 - 7
Ye s
*Continuity
should not
exist in posi-
tions other
than the
specified
positions. R3 - 8
N 1 - 2, 3 - 9
D3 - 6
23 - 5
13 - 4
SCIA3553E

DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-101
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
5. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between ignition switch and PNP switch.

Harness for short or open between PNP switch and TCM.

Harness for short or open between combination meter and PNP switch.

Harness for short or open between combination meter and TCM.

10A fuse (No.51, located in the IPDM E/R)

Combination meter. Refer to DI-5, "COMBINATION METERS" .

Ignition switch. Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform AT- 9 7 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7. CHECK TCM
1. Check TCM input/output signal. Refer to AT-78, "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionUCS005NL
PNP SWITCH
1. Check continuity between PNP switch harness connector termi-
nals.
2. If NG, check again with control cable (2) disconnected from
manual shaft of A/T assembly. Refer to step 1.
(1): Lock nut
(3): Manual shaft
3. If OK on step 2, adjust control cable (2). Refer to AT-233,
"Adjustment of A/T Position" .
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT- 2 4 7 , "
PA R K /
NEUTRAL POSITION (PNP) SWITCH ADJUSTMENT" .
6. If NG on step 4, replace PNP switch. Refer to AT-246, "
Park/
Neutral Position (PNP) Switch" .
Selector lever position Connector Terminal Continuity
“P”
F251 - 2, 3 - 7
Ye s
*Continuity
should not
exist in posi-
tions other
than the
specified
positions. “R” 3 - 8
“N” 1 - 2, 3 - 9
“D” 3 - 6
“2” 3 - 5
“1” 3 - 4
SCIA5588E
SCIA6370J

AT-102
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
Revision: June 20062007 Versa
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUITPFP:31940
DescriptionUCS005NM
The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.
CONSULT-II Reference ValueUCS005NN
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005NO

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0710 ATF TEMP SEN/CIRC” with CONSULT-II is detected when TCM receives
an excessively low or high voltage from the sensor.
Possible CauseUCS005NP

Harness or connector
(The sensor circuit is open or shorted.)

A/T fluid temperature sensor
DTC Confirmation ProcedureUCS005NQ
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Touch “START”.
3. Start engine and maintain the following conditions for at least 10
minutes (Total). (It is not necessary to maintain continuously.)
ENGINE SPEED: 450 rpm or more
VEHICLE SPEED: 10 km/h (6 MPH) or more
THROTTLE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
4. If the check result is NG, go to AT-104, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Item name Condition Display value (Approx.)
FLUID TEMP SEWhen A/T fluid temperature is 20°C (68°F). 1.5 V
When A/T fluid temperature is 80°C (176°F). 0.5 V
BCIA0031E

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-103
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
Wiring Diagram — AT — FTSUCS005N R
BCWA0650E

AT-104
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005NS
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.
Without CONSULT-II
1. Start engine.
2. Check voltage TCM connector terminals while warming up A/T.
OK or NG
OK >> GO TO 7.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEMS
Check the following.

Harness for short or open between TCM, ECM and terminal cord assembly

Ground circuit for ECM, Refer to EC-144, "POWER SUPPLY AND GROUND CIRCUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
Terminal Wire color Item ConditionJudgement stan-
dard (Approx.)
42 B Sensor ground Always 0 V
47 BRA/T fluid temperature
sensor
and When A/T fluid temperature is
20°C (68°F).1.5 V
When A/T fluid temperature is
80°C (176°F).0.5 V
Item name ConditionDisplay value
(Approx.)
FLUID TEMP
SEWhen A/T fluid temperature is 20°C (68°F). 1.5 V
When A/T fluid temperature is 80°C (176°F). 0.5 V
LCIA0090E
ItemConnec-
torTerminal ConditionJudge-
ment stan-
dard
(Approx.)
A/T fluid
temperature
sensorE32 47 - 42When A/T fluid tempera-
ture is 20°C (68°F).1.5 V
When A/T fluid tempera-
ture is 80°C (176°F).0.5 V
SCIA2658E

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-105
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
3. CHECK FLUID TEMPERATURE SENSOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the TCM connector.
3. Check resistance between TCM connector terminals.
OK or NG
OK >> GO TO 7.
NG >> GO TO 4.
4. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector terminals.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Item Connector Terminal Tempera-
ture [°C (°F)]Resistance
(Approx.)
A/T fluid
tempera-
ture sensorE32 47 - 4220 (68) 2.5 kΩ
80 (176) 0.3 kΩ
SCIA2338E
Item Connector Terminal Continuity
TCM E32 42
Ye s
Terminal cord assembly
harness connectorF30 7
TCM E32 47
Ye s
Terminal cord assembly
harness connectorF30 6
SCIA2660E
Item Connector Terminal Temperature
[°C (°F)]Resistance
(Approx.)
A/T fluid tem-
perature sensorF30 6 - 720 (68) 2.5 kΩ
80 (176) 0.3 kΩ
SCIA4948E

AT-106
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
Revision: June 20062007 Versa
6. DETECT MALFUNCTIONING ITEM
1. Remove oil pan. Refer to AT-242, "
Control Valve Assembly and Accumulators" .
2. Check the following.
–A/T fluid temperature sensor
 Check resistance between terminal cord assembly harness con-
nector terminals while changing temperature as shown.
–Harness of terminal cord assembly for short or open
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK DTC
Perform AT-102, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signal. Refer to AT - 7 8 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionUCS005NT
A/T FLUID TEMPERATURE SENSOR

Remove oil pan. Refer to AT-242, "Control Valve Assembly and
Accumulators" .

Check resistance between terminal cord assembly harness con-
nector terminals while changing temperature as shown.
Item Connector Terminal Temperature
[°C (°F)]Resistance
(Approx.)
A/T fluid tem-
perature sensorF30 6 - 720 (68) 2.5 kΩ
80 (176) 0.3 kΩ
SCIA7831E
Item Connector Terminal Temperature
[°C (°F)]Resistance
(Approx.)
A/T fluid tem-
perature sensorF30 6 - 720 (68) 2.5 kΩ
80 (176) 0.3 kΩ
SCIA7831E

DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-107
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)PFP:32702
DescriptionUCS005N U
The revolution sensor detects the revolution of the idler gear parking pawl lock gear and emits a pulse signal.
The pulse signal is sent to the TCM which converts it into vehicle speed.
CONSULT-II Reference ValueUCS005NV
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005NW

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0720 VHCL SPEED SEN-AT” with CONSULT-II or 1st judgement flicker without
CONSULT-II is detected when TCM does not receive the proper voltage signal from the sensor.
Possible CauseUCS005NX

Harness or connector
(The sensor circuit is open or shorted.)

Revolution sensor
DTC Confirmation ProcedureUCS005NY
CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Touch “START”.
3. Drive vehicle and check for an increase of “VHCL/S SE-MTR”
value.
If the check result is NG, go to AT- 11 0 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
4. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
5. Touch “START”.
6. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VEHICLE SPEED: 30 km/h (19 MPH) or more
THROTTLE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to AT- 11 0 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
7. Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
THROTTLE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value
VHCL/S SE-A/T During driving Approximately matches the speedometer reading.
BCIA0031E
