Page 341 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual WINDSHIELD-WASHER FLUID
RESERVOIR
Add a washer solvent to the windshield-washer
fluid reservoir for better cleaning. In the winter
season, add a windshield-washer antifreeze. Fol-
low the manufacturer

Page 342 of 402

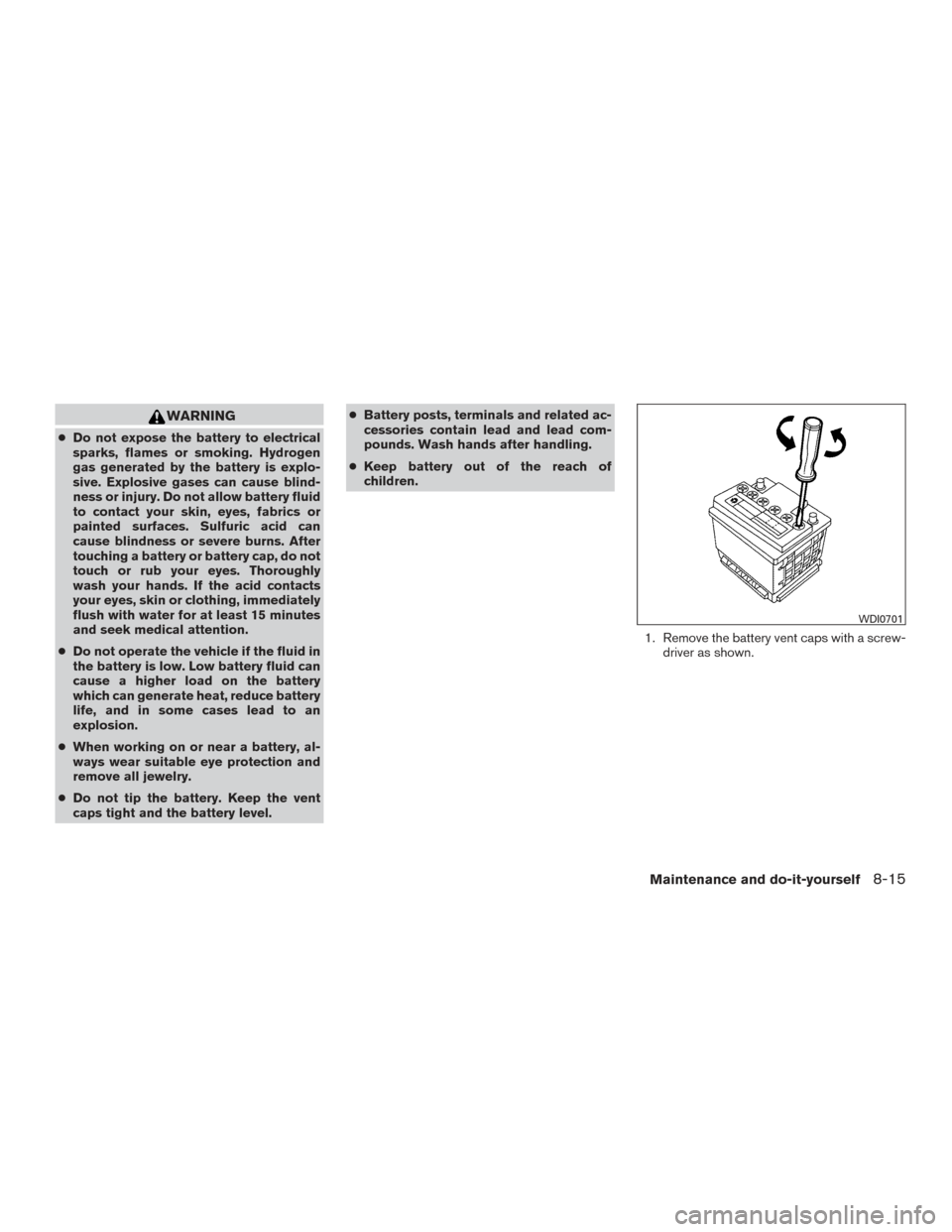

NISSAN VERSA NOTE 2016 2.G Owners Manual WARNING
●Do not expose the battery to electrical
sparks, flames or smoking. Hydrogen
gas generated by the battery is explo-
sive. Explosive gases can cause blind-
ness or injury. Do not allow batter

Page 343 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual 2. Check the fluid level in each cell. If it isnecessary to add fluid, add only distilled
water to bring the level up to the bottom of
the filler opening. Do not overfill.
3. Reinstall the battery ven

Page 344 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual The current sensorAis located near the battery
along the negative battery cable. If you add elec-
trical accessories to your vehicle, be sure to
ground them to a suitable body ground such as
the fram

Page 345 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual REPLACING SPARK PLUGS
Platinum-tipped spark plugs
It is not necessary to replace platinum-tippedA
spark plugs as frequently as conventional type
spark plugs because they last much longer. Fol-
low th

Page 346 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual ●Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
To remove the filter from the air cleaner, release
the r

Page 347 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual CAUTION
●After wiper blade replacement, return
the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.
● Make sure the wiper blades contact the
glass; otherwis

Page 348 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual If the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.
Self-adjusting brakes
Your vehicle is equipped with self-adjusting
brakes.
The front disc-type brakes self-adjust eve

Page 349 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual ENGINE COMPARTMENT
Fusible links
If any electrical equipment does not operate and
the fuses are in good condition, check the fusible
links
Ain the holder. If any of the fusible links are
melted, repl

Page 350 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual 5. If the fuse is openC, replace it with an
equivalent good fuse
D.
6. Push the fuse box cover to install.
If a new fuse also opens, have the electrical
system checked and repaired. It is recommende
