Page 371 of 402

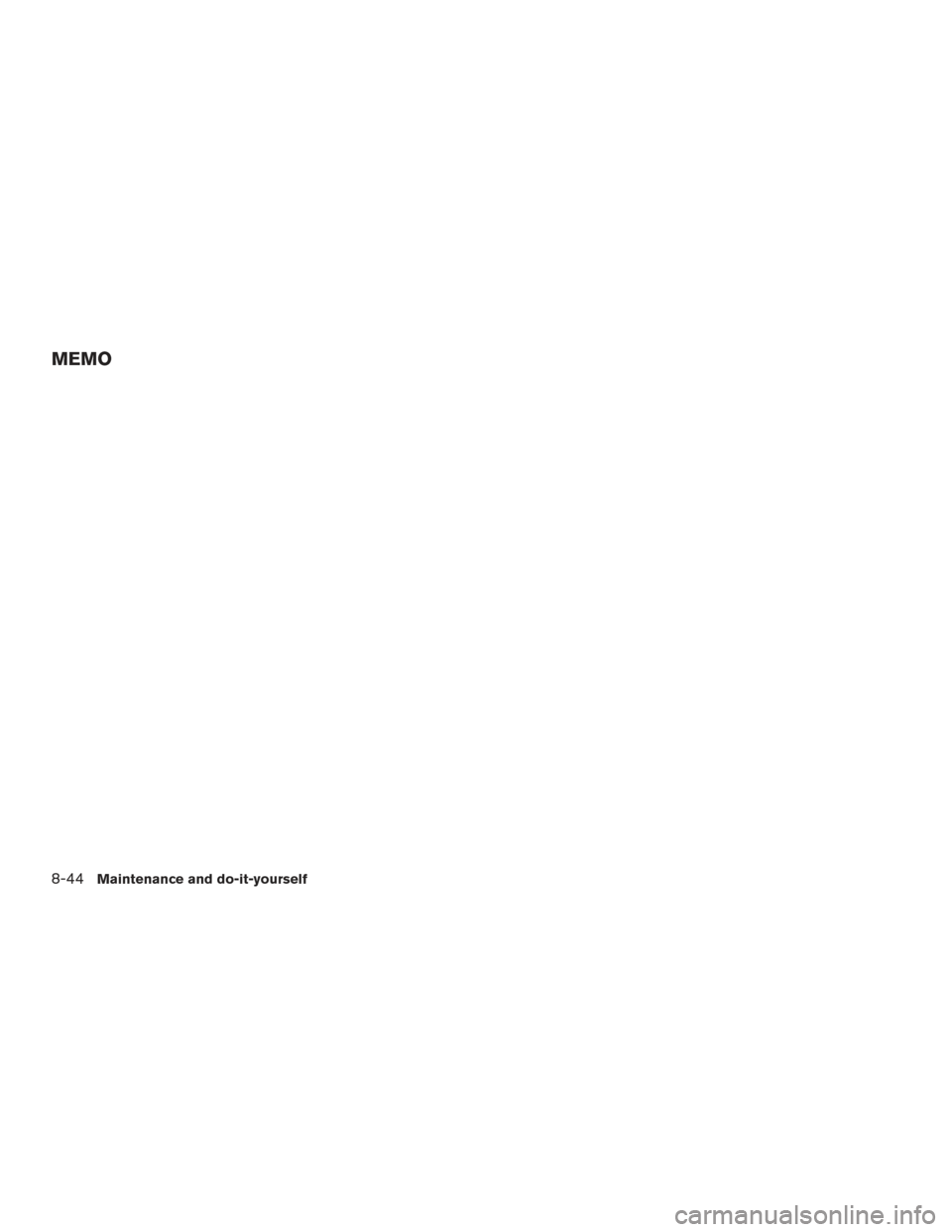

NISSAN VERSA NOTE 2016 2.G Owners Manual MEMO
8-44Maintenance and do-it-yourself

Page 372 of 402

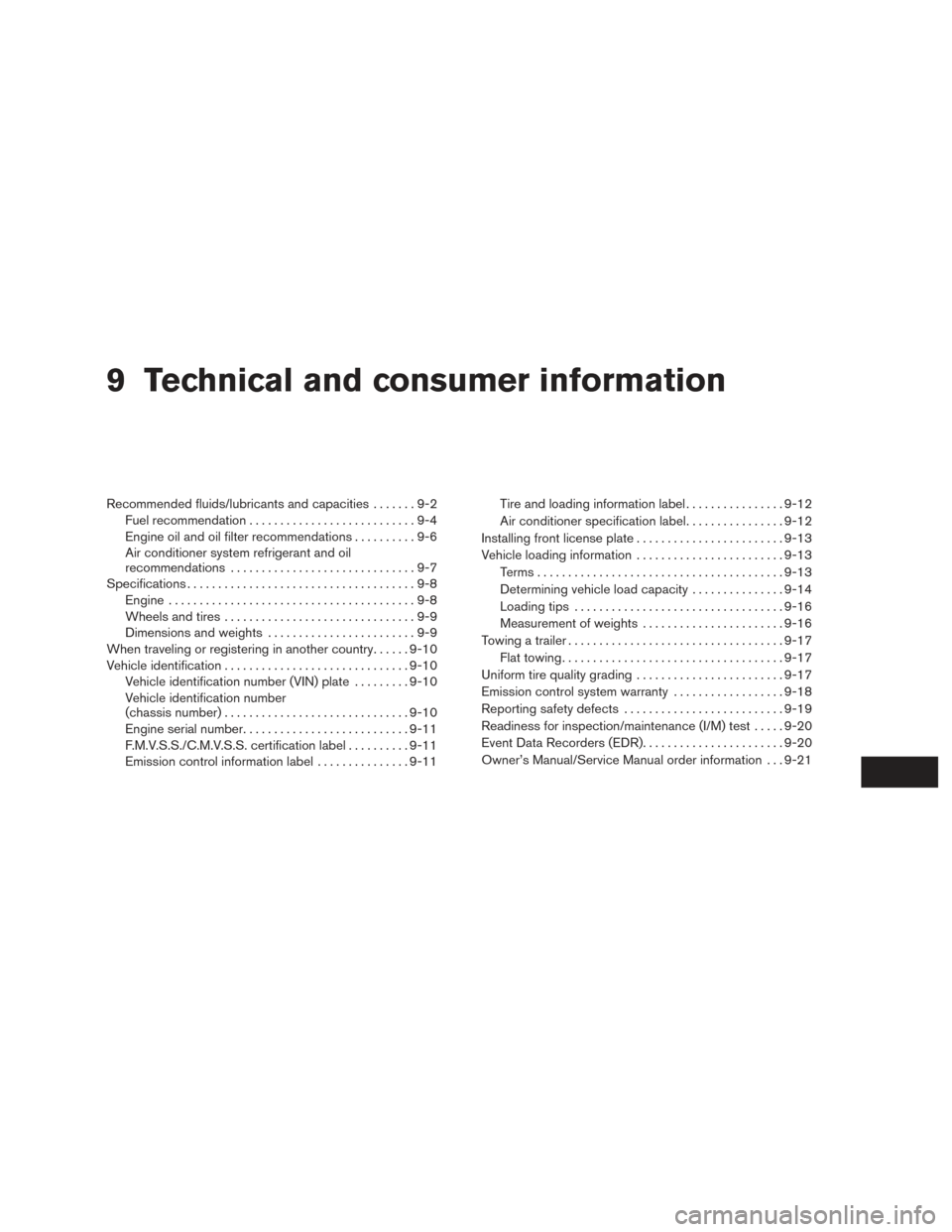

NISSAN VERSA NOTE 2016 2.G Owners Manual 9 Technical and consumer information
Recommended fluids/lubricants and capacities.......9-2
Fuel recommendation ...........................9-4
Engine oil and oil filter recommendations ..........9-6
A

Page 373 of 402

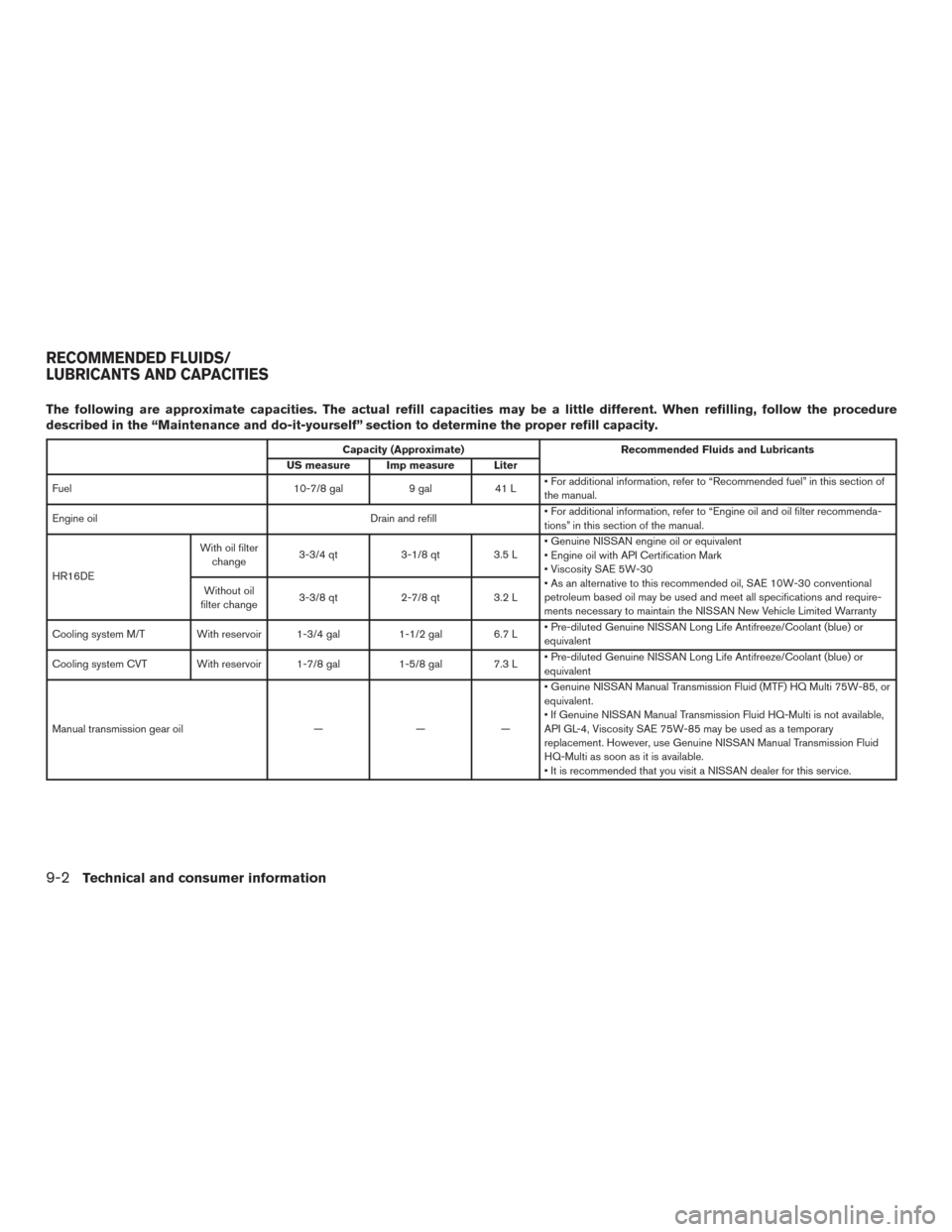

NISSAN VERSA NOTE 2016 2.G Owners Manual The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to

Page 374 of 402

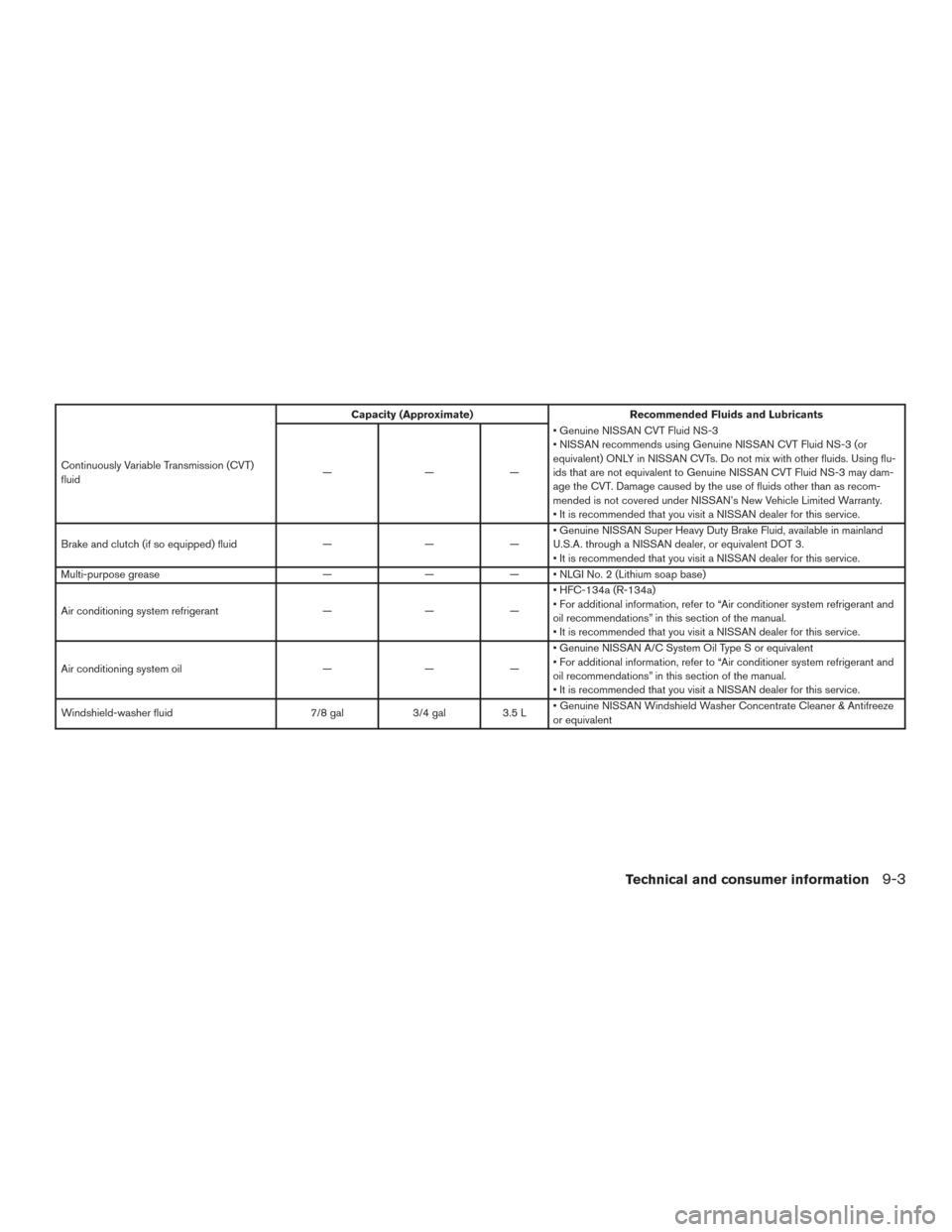

NISSAN VERSA NOTE 2016 2.G Owners Manual Capacity (Approximate)Recommended Fluids and Lubricants
Continuously Variable Transmission (CVT)
fluid ———• Genuine NISSAN CVT Fluid NS-3
• NISSAN recommends using Genuine NISSAN CVT Fluid N

Page 375 of 402

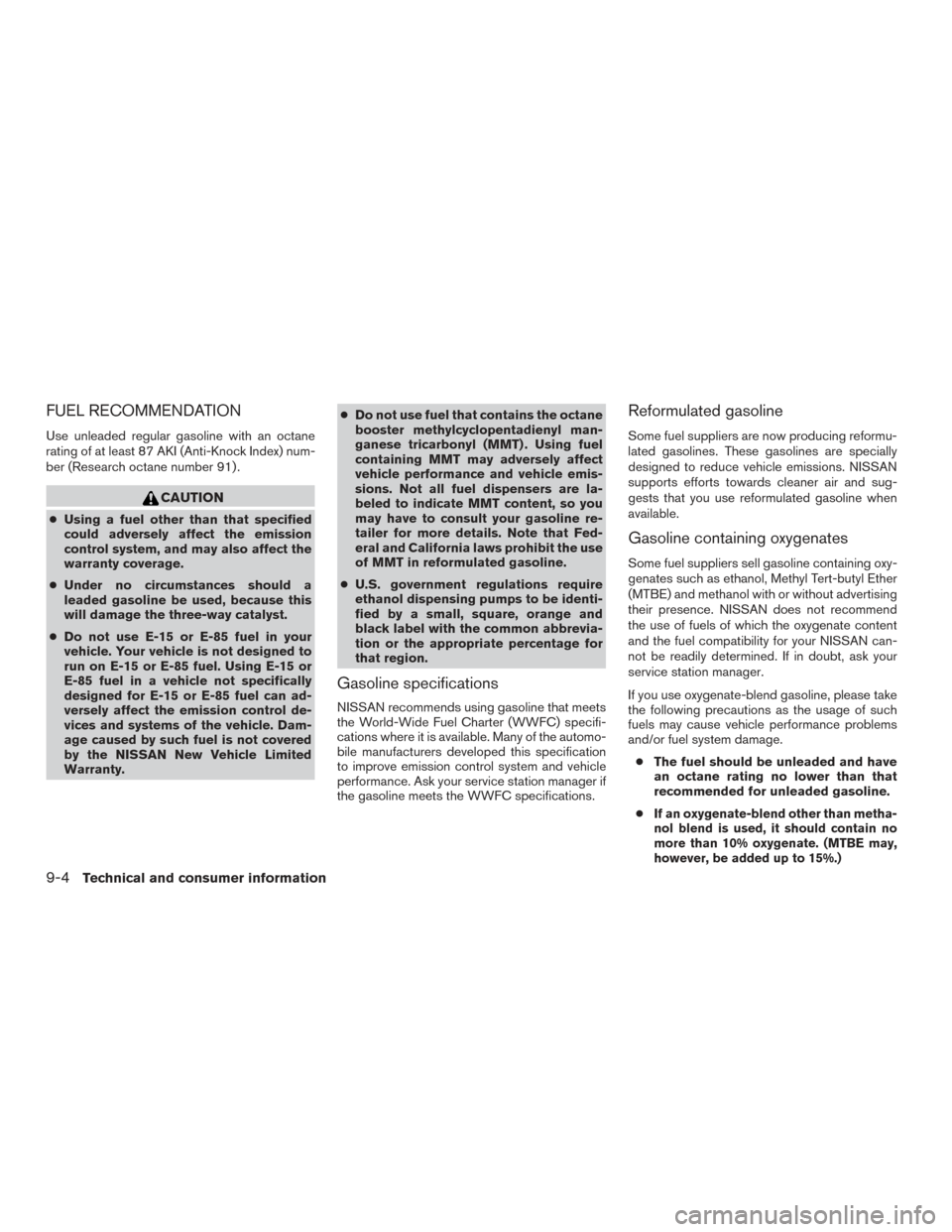

NISSAN VERSA NOTE 2016 2.G Owners Manual FUEL RECOMMENDATION
Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index) num-
ber (Research octane number 91) .
CAUTION
●Using a fuel other than that specified
c

Page 376 of 402

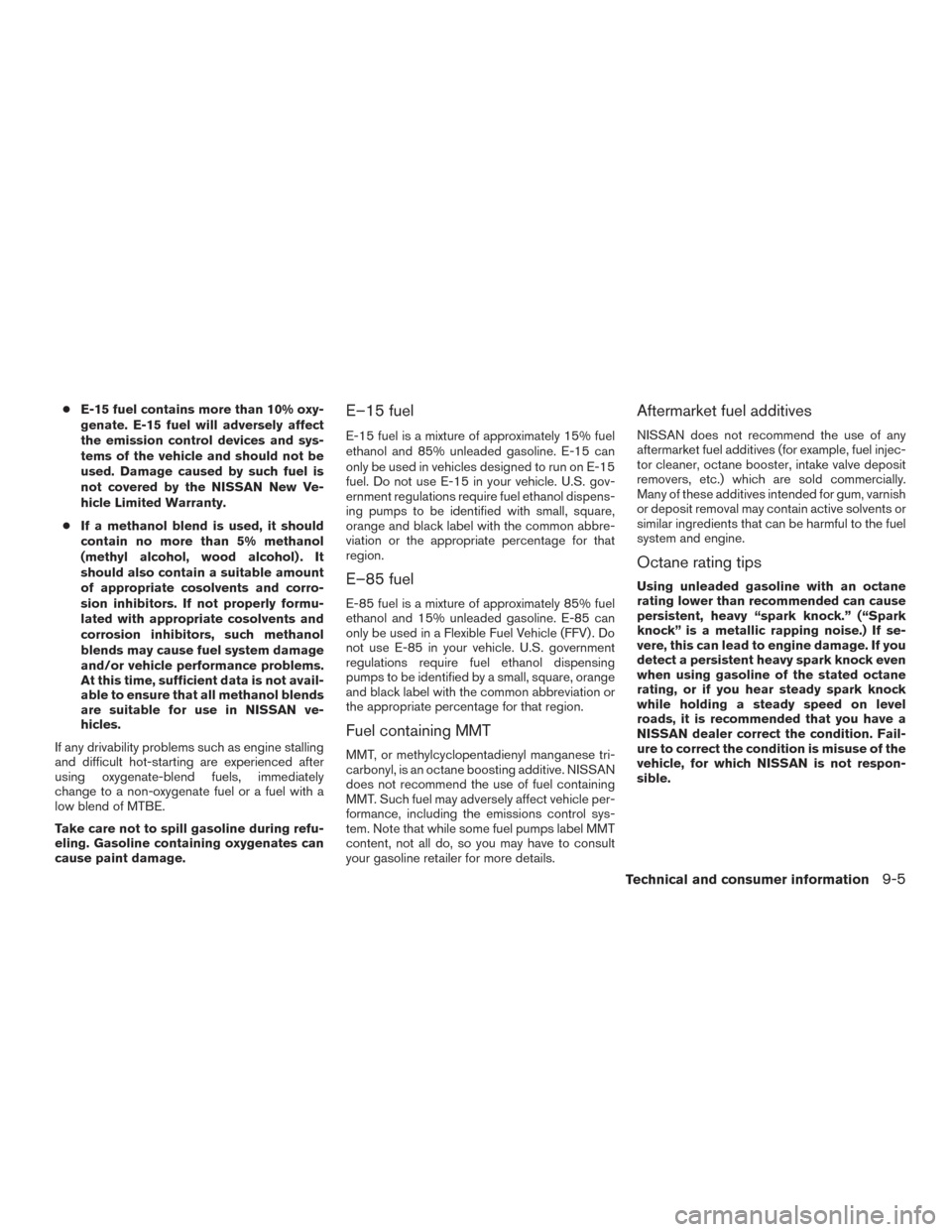

NISSAN VERSA NOTE 2016 2.G Owners Manual ●E-15 fuel contains more than 10% oxy-
genate. E-15 fuel will adversely affect
the emission control devices and sys-
tems of the vehicle and should not be
used. Damage caused by such fuel is
not cov

Page 377 of 402

NISSAN VERSA NOTE 2016 2.G Owners Manual Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are en-
countered, have you

Page 378 of 402

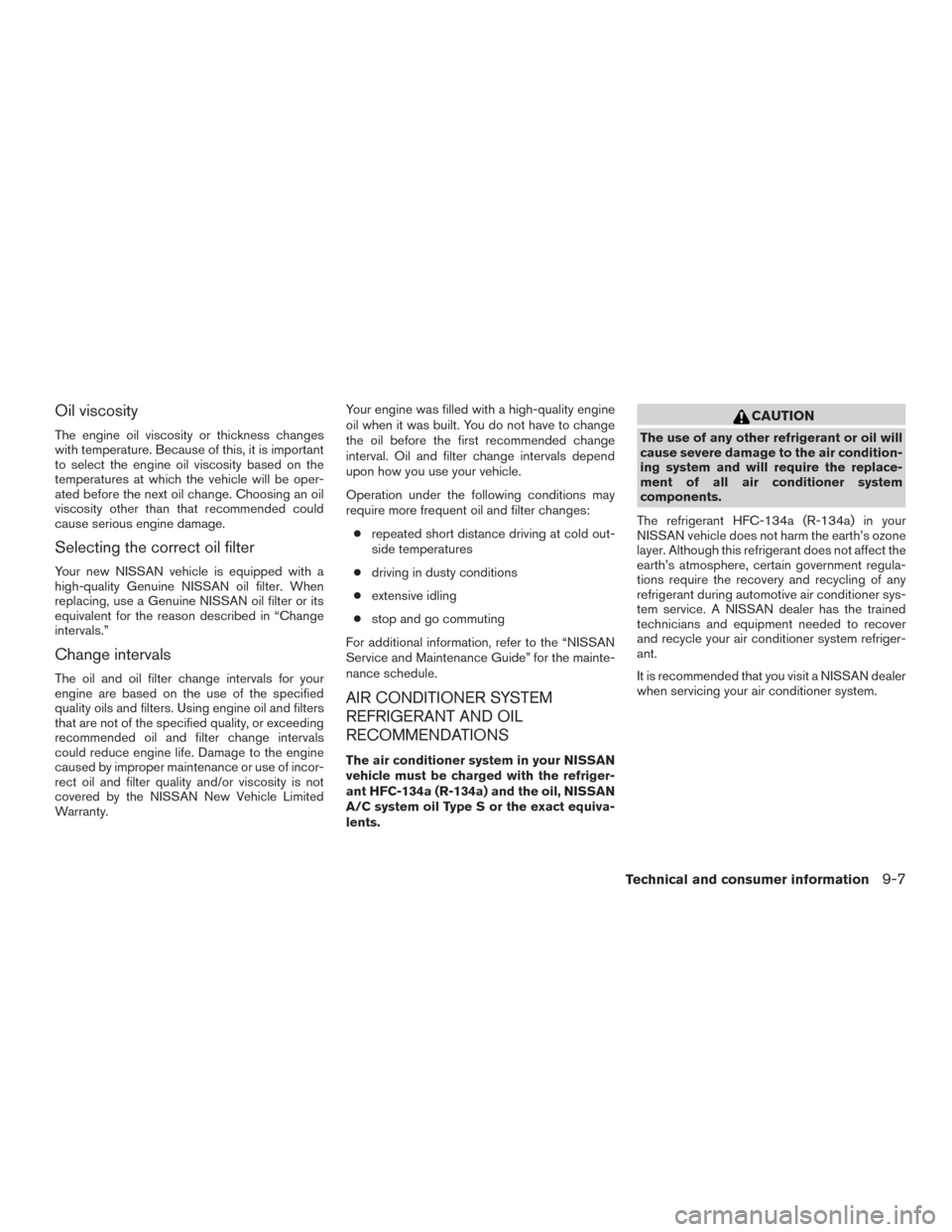

NISSAN VERSA NOTE 2016 2.G Owners Manual Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be

Page 379 of 402

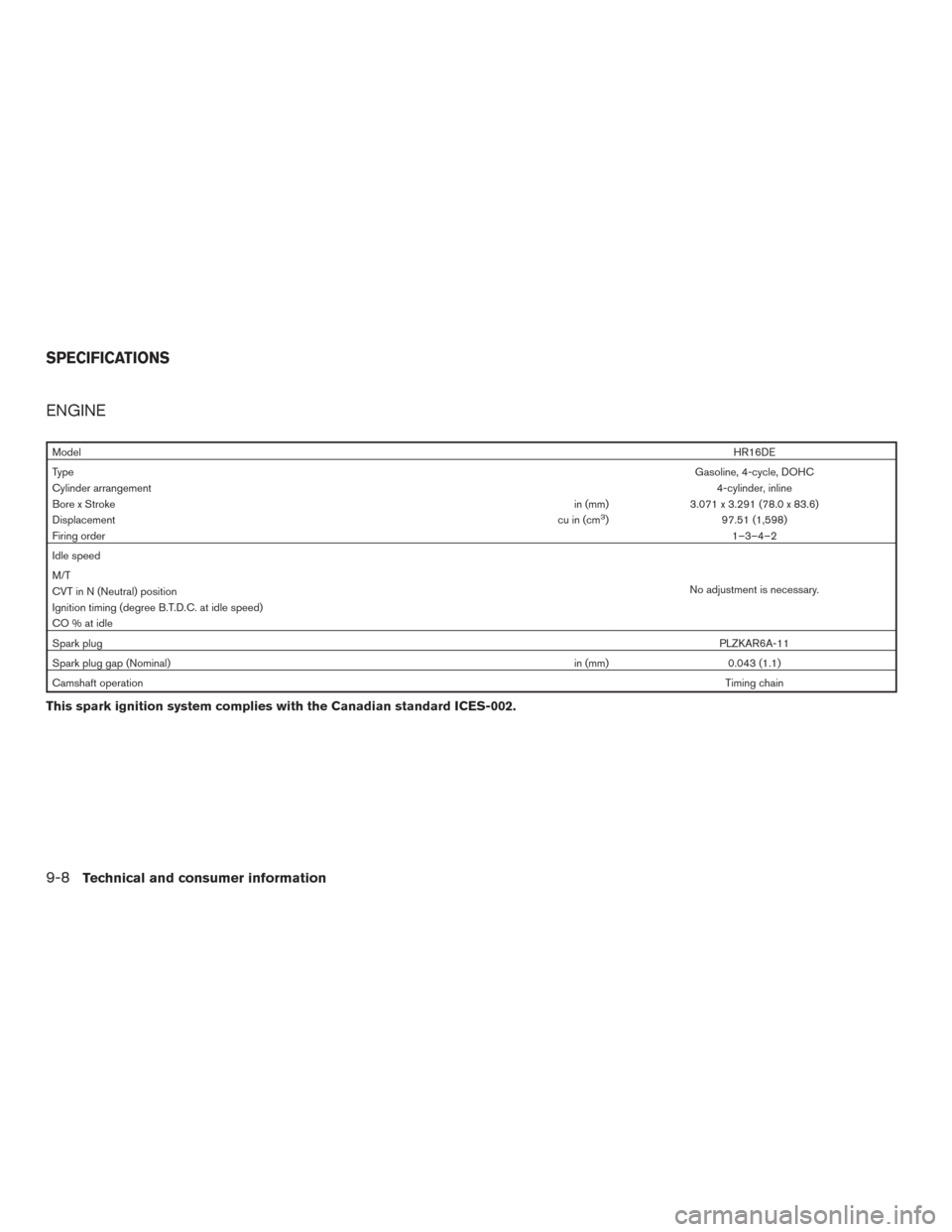

NISSAN VERSA NOTE 2016 2.G Owners Manual ENGINE
ModelHR16DE
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 4-cylinder, inline
Bore x Stroke in (mm)3.071 x 3.291 (78.0 x 83.6)
Displacement cu in (cm
3)97.51 (1,598)
Firing order 1–3–4�

Page 380 of 402

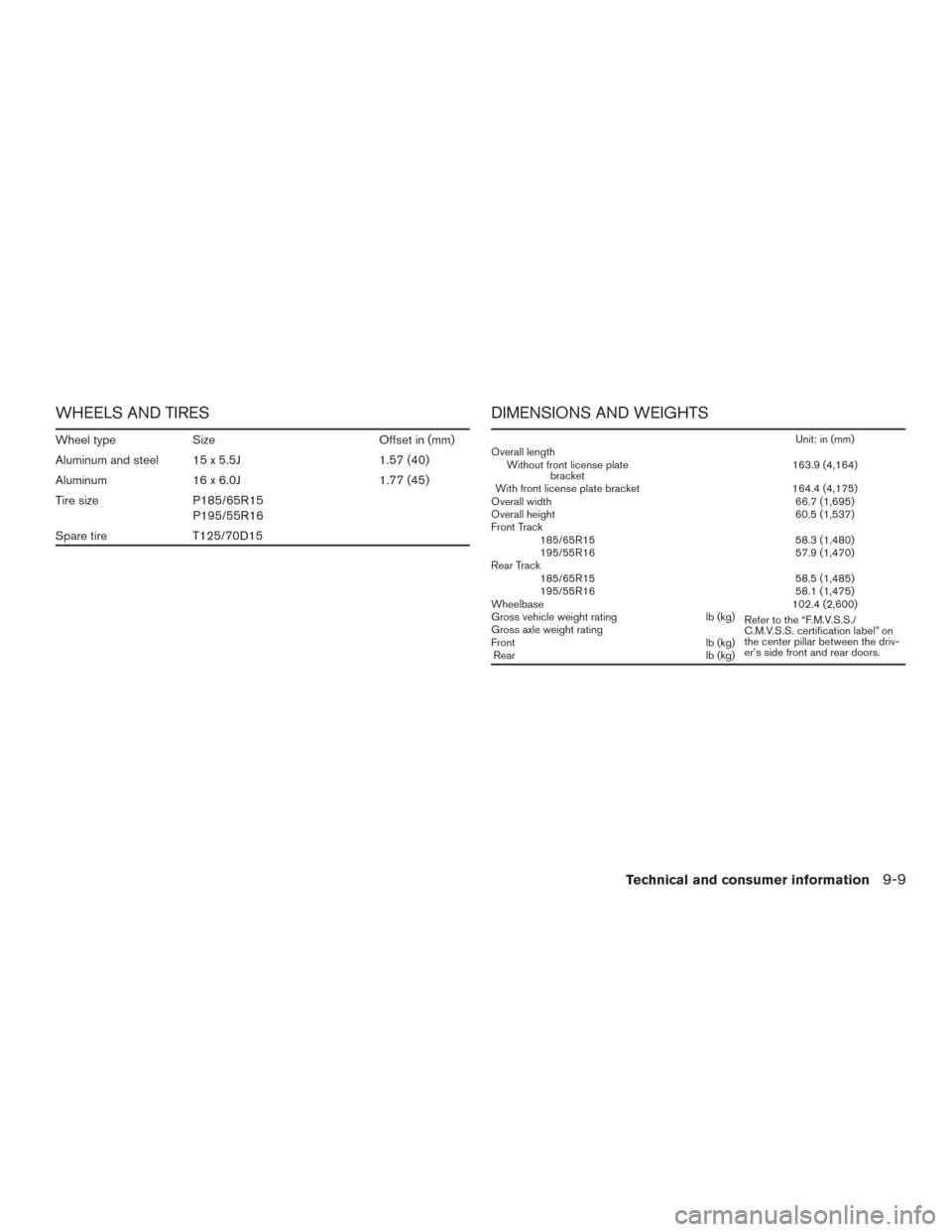

NISSAN VERSA NOTE 2016 2.G Owners Manual WHEELS AND TIRES
Wheel typeSize Offset in (mm)
Aluminum and steel 15 x 5.5J 1.57 (40)
Aluminum 16 x 6.0J 1.77 (45)
Tire size P185/65R15
P195/55R16
Spare tire T125/70D15
DIMENSIONS AND WEIGHTS
Unit: in
