NISSAN VERSA NOTE 2018 Owner´s Manual

19. Cup holders (P. 2-35)
20. Push-button ignition switch(if so equipped) (P. 5-11)
21. Ignition switch (if so equipped)
(P. 5-9)
22. Cruise control switches
(if so equipped) (P. 5-23)
23. Tilt steering (P. 3-31)
24. Bluetooth® Hands-Free Phone
System (P. 4-90, 4-109)
Audio control switches (P. 4-43)
Trip computer control switches
(if so equipped) (P. 2-11)
25. Hood release lever (P. 3-26)
26. Fuel-filler door release lever
(P. 3-28)
27. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-33)
28. Outside mirror control switch
(P. 3-33)
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

HR16DE engine
1. Drive belt location (P. 8-13)
2. Engine oil filler cap (P. 8-6)
3. Air cleaner (P. 8-14)
4. Brake and clutch (if so equipped)fluid reservoir (P. 8-9)
5. Fusible link (P. 8-17)
6. Battery (P. 8-11)
7. Engine coolant reservoir (P. 8-4)
8. Radiator cap (P. 8-4)
9. Engine oil dipstick (P. 8-6)
10. Windshield-washer fluid reservoir
(P. 8-10)
Refer to the page number indicated in
parentheses for operating details.
LDI3231
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-15
or
Brake warning
light
2-15
Charge warning
light2-16
Door open warn-
ing light2-16
Engine oil pres-
sure warning light2-16
High temperature
warning light (red)
(if so equipped)2-16
Warning
light Name Page
Low fuel warning
light 2-17
Low tire pressure
warning light (if so
equipped)2-17
Low windshield-
washer fluid
warning light (if so
equipped)2-19
NISSAN Intelligent
Key® warning light
(if so equipped)
2-19
P position select-
ing warning lights
(if so equipped)2-19
Power steering
warning light
2-19
Seat belt warning
light and chime2-20
Warning
light Name Page
Supplemental air
bag warning light 2-20
Indicator
light Name Page
Continuously
Variable Trans-
mission (CVT) po-
sition indicator
light (if so
equipped) 2-21
Cruise main
switch indicator
light (if so
equipped)
2-21
Cruise set switch
indicator light (if
so equipped)
2-21
Engine start op-
eration indicator
light (if so
equipped)2-21
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

Indicatorlight Name Page
Front fog light in-
dicator light (if so
equipped) 2-21
Front passenger
air bag status
light2-21
High beam indi-
cator light (blue)
2-21
Malfunction Indi-
cator Light (MIL)2-22
Overdrive OFF
indicator light (if
so equipped)2-22
Security indicator
light (if so
equipped) 2-23
Side light and
headlight indica-
tor light (green) (if
so equipped)2-23
Indicator
light Name Page
Slip indicator light 2-23
Turn signal/
hazard indicator
lights 2-23
Vehicle Dynamic
Control (VDC) OFF
indicator light2-23
0-10Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment ................1-3
Folding rear seat ............................. 1-4
Center armrest (if so equipped) ............... 1-5
Armrest (if so equipped for driver’s side
only).......................................... 1-6
Head restraints/headrests ...................... 1-6
Adjustable head restraint/headrest
components ..................................1-7
Non-adjustable head restraint/
headrest components .........................1-7
Remove...................................... 1-8
Install ......................................... 1-8
Adjust ........................................ 1-9
Seatbelts ....................................... 1-10
Precautions on seat belt usage ...............1-10
Seat belt warning light ........................ 1-13
Pregnant women ............................. 1-13
Injured persons ............................... 1-13
Three-point type seat belt with
retractor ..................................... 1-13
Seat belt extenders ........................... 1-19Seat belt maintenance
......................1-20
Child safety ..................................... 1-20
Infants ....................................... 1-21
Small children ................................ 1-21
Larger children .............................. 1-22
Child restraints ................................. 1-23
Precautions on child restraints ..............1-23
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-25
Rear-facing child restraint installation
using LATCH ................................. 1-28
Rear-facing child restraint installation
using the seat belts ......................... 1-30
Forward-facing child restraint
installation using LATCH .....................1-33
Forward-facing child restraint
installation using the seat belts ..............1-36
Booster seats ................................ 1-41
Supplemental Restraint System (SRS) ...........1-45
Precautions on SRS .......................... 1-45
Supplemental air bag warning labels ........1-63
Supplemental air bag warning light ..........1-63

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked. ∙ Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

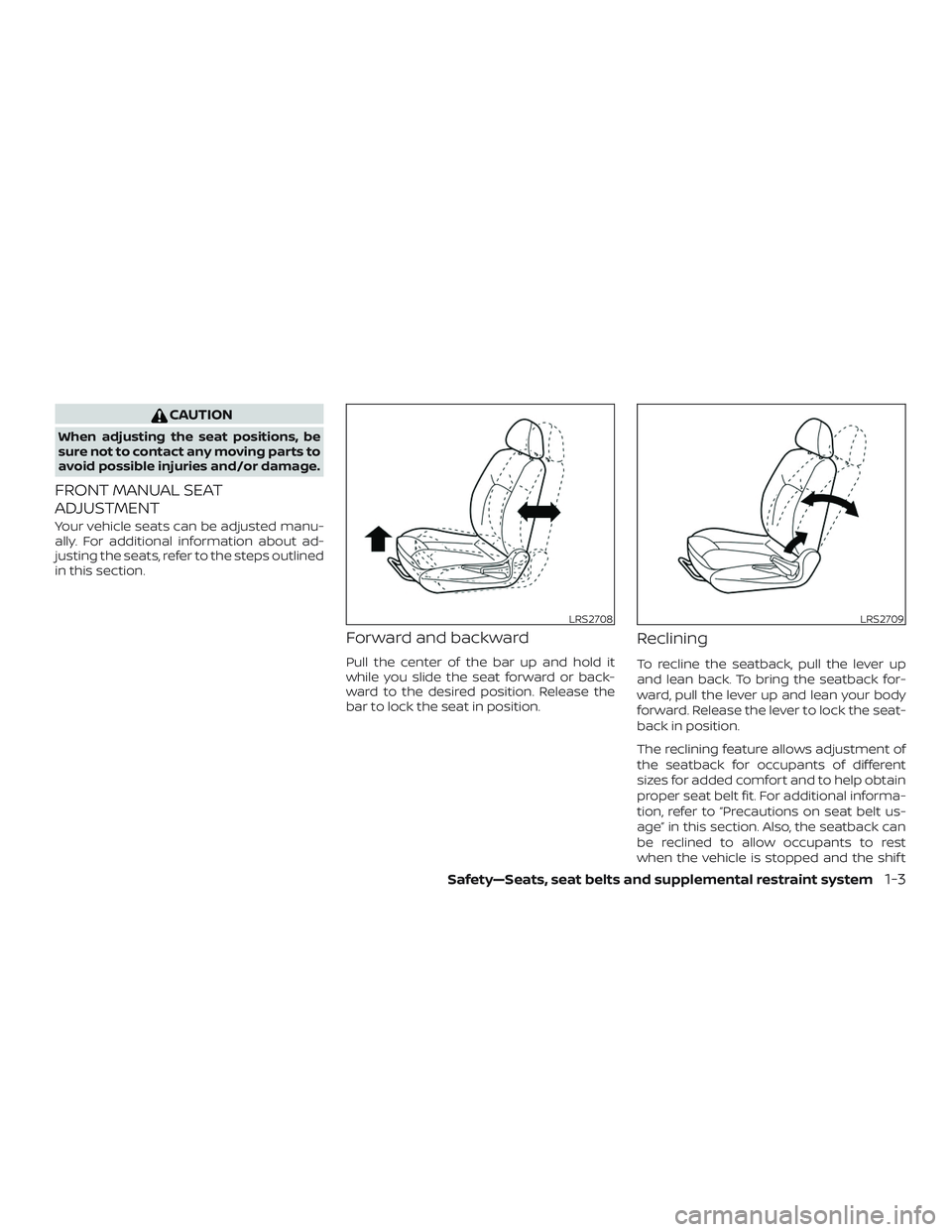

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the center of the bar up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
LRS2708LRS2709
Safety—Seats, seat belts and supplemental restraint system1-3

lever is in P (Park) or N (Neutral) position
with the parking brake fully applied.

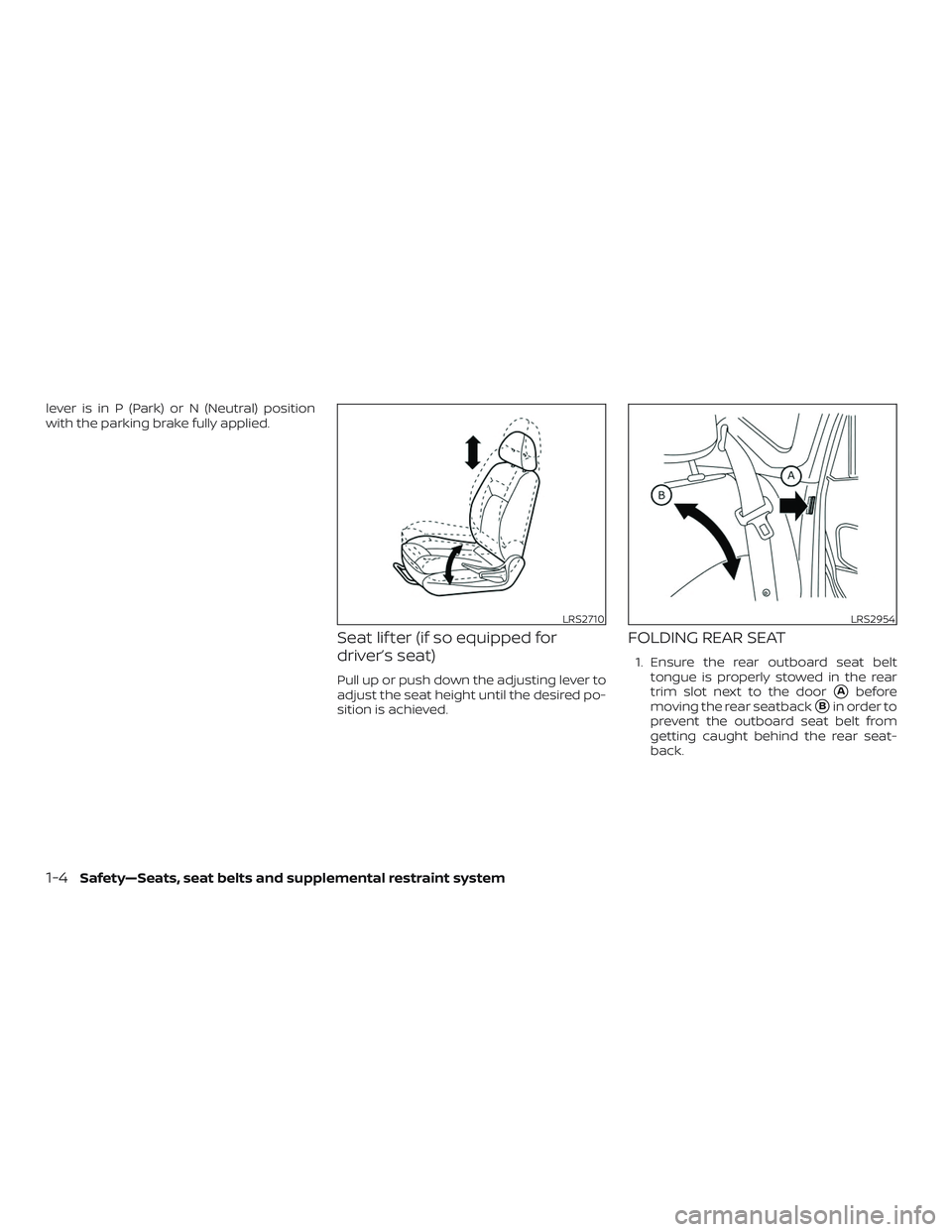

Seat lif ter (if so equipped for
driver’s seat)
Pull up or push down the adjusting lever to
adjust the seat height until the desired po-
sition is achieved.
FOLDING REAR SEAT
1. Ensure the rear outboard seat belttongue is properly stowed in the rear
trim slot next to the door
Abefore
moving the rear seatback
Bin order to
prevent the outboard seat belt from
getting caught behind the rear seat-
back.
LRS2710LRS2954
1-4Safety—Seats, seat belts and supplemental restraint system

2. Pull the knobCand foldDthe rear
seatback down.
WARNING
∙ Never allow anyone to ride in the cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury or death in an accident or
sudden stop. ∙ Properly secure all cargo with ropes or
straps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
∙ When returning the seatbacks to the upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.
CENTER ARMREST (if so equipped)
Pull the armrest down as shown.
LRS2701LRS2733
Safety—Seats, seat belts and supplemental restraint system1-5

ARMREST (if so equipped for
driver’s side only)
To use the armrest, pull it down as shown.
AStowed position
BResting position
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head
restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment af ter someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalks or remove the head
restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests. This may in-
crease the risk of serious injury or death
in a collision.The illustration shows the seating posi-
tions equipped with head
restraints/headrests.

Indicates the seating position is
equipped with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).
∙ Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
LRS2454LRS2000
HEAD RESTRAINTS/HEADRESTS
1-6Safety—Seats, seat belts and supplemental restraint system
