Page 76 of 386
2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-5
Tachometer ....................................2-7
Engine coolant temperature gauge
(if so equipped) ................................2-8
Fuel gauge ....................................2-9
Trip computer ................................. 2-10
Warning lights, indicator lights and audible
reminders ........................................ 2-12
Checking lights ............................... 2-13
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20
Security systems ................................. 2-21
NISSAN vehicle immobilizer system
(if so equipped) ............................... 2-21
Wiper and washer switch ......................... 2-22
Switch operation .............................. 2-22
Rear window defroster switch ......................2-23Headlight and turn signal switch
....................2-24
Headlight control switch ........................ 2-24
Instrument brightness control ...................2-26
Turn signal switch ............................. 2-26
Fog light switch (if so equipped) ................2-27
Horn ............................................ 2-27
Vehicle Dynamic Control (VDC) off switch ...........2-28
Power outlet ..................................... 2-28
Storage ......................................... 2-29
Map pockets .................................. 2-29
Seatback pocket (if so equipped) . . .............2-29
Storage trays ................................. 2-30
Cup holders .................................. 2-30
Glove box .................................... 2-31
Windows ........................................ 2-31
Power windows (if so equipped) ................2-31
Manual windows (if so equipped) ................2-34
Interior lights ..................................... 2-34
Map light(if
so equipped) ...................... 2-35
Trunk light ....................................... 2-36
Page 79 of 386
1. Tachometer
2. Temperature gauge
3. Odometer/twin trip odometer/tripcomputer/outside air thermometer
4. Fuel gauge 5. Speedometer
6. Trip odometer reset switch/trip com-
puter mode
7. Continuously Variable Transmission
(CVT) position indicator 8. Instrument brightness control
CAUTION
●
To clean the meter lens, use a soft cloth,
dampened with water. Never use a
rough cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel with
a chemical cleaning agent. They will
scratch or cause discoloration to the
lens.
● Do not spray any liquid such as water on
the meter lens. Spraying liquid may
cause the systems to malfunction.
Type B (if so equipped)
LIC2146
2-4Instruments and controls
Page 80 of 386
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the trip computer.
Speedometer
The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer
1records the total distance the
vehicle has been driven.
The twin trip odometer
2records the distance
of individual trips.
Type A (if so equipped)
LIC2118
Type B (if so equipped)
LIC2136
Type A (if so equipped)
LIC3305
Instruments and controls2-5
Page 85 of 386
CAUTION
●If the vehicle runs out of fuel, thecheck engine light may come on. Refuel
as soon as possible. After a few driving
trips, the
light should turn off. If
the light remains on after a few driving
trips, have the vehicle inspected. It is
recommended you visit a NISSAN
dealer for this service.
● For additional information, refer to
“Malfunction Indicator Light (MIL)” in
this section.
TRIP COMPUTER
When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the change/reset button
A
on the instrument panel located near the speed-
ometer. The following modes can be selected in
the display
B:
● Odometer
● Trip A
● Trip B
● Instant fuel consumption
● Average fuel consumption ●
Distance to empty
● Outside air temperature (if so equipped)
Type A (is so equipped)
LIC3309
Type B (if so equipped)
LIC2138
2-10Instruments and controls
Page 86 of 386

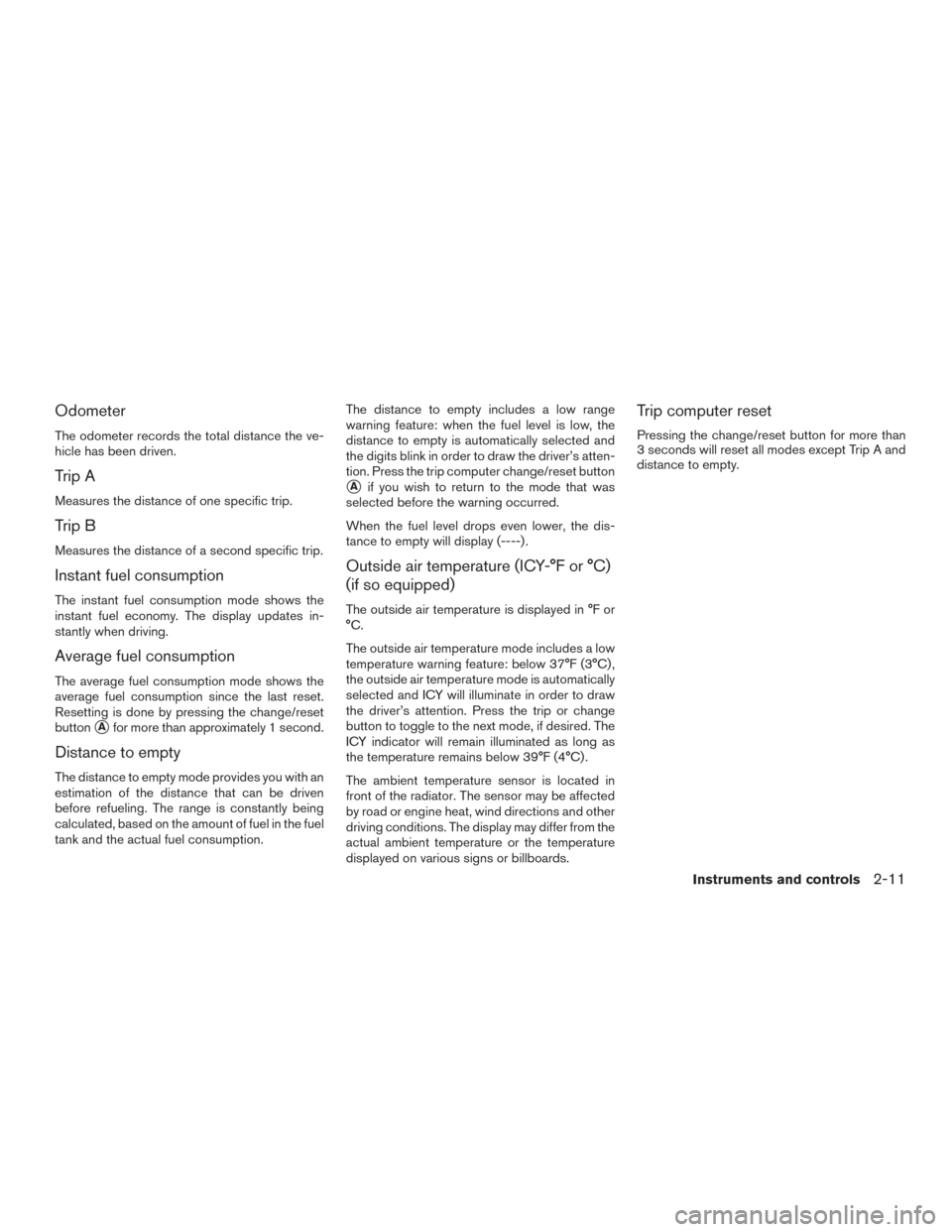

Odometer
The odometer records the total distance the ve-
hicle has been driven.
Trip A
Measures the distance of one specific trip.
Trip B
Measures the distance of a second specific trip.
Instant fuel consumption
The instant fuel consumption mode shows the
instant fuel economy. The display updates in-
stantly when driving.
Average fuel consumption
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pressing the change/reset
button
Afor more than approximately 1 second.
Distance to empty
The distance to empty mode provides you with an
estimation of the distance that can be driven
before refueling. The range is constantly being
calculated, based on the amount of fuel in the fuel
tank and the actual fuel consumption.The distance to empty includes a low range
warning feature: when the fuel level is low, the
distance to empty is automatically selected and
the digits blink in order to draw the driver’s atten-
tion. Press the trip computer change/reset button
Aif you wish to return to the mode that was
selected before the warning occurred.
When the fuel level drops even lower, the dis-
tance to empty will display (----) .
Outside air temperature (ICY-°F or °C)
(if so equipped)
The outside air temperature is displayed in °F or
°C.
The outside air temperature mode includes a low
temperature warning feature: below 37°F (3°C) ,
the outside air temperature mode is automatically
selected and ICY will illuminate in order to draw
the driver’s attention. Press the trip or change
button to toggle to the next mode, if desired. The
ICY indicator will remain illuminated as long as
the temperature remains below 39°F (4°C) .
The ambient temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and other
driving conditions. The display may differ from the
actual ambient temperature or the temperature
displayed on various signs or billboards.
Trip computer reset
Pressing the change/reset button for more than
3 seconds will reset all modes except Trip A and
distance to empty.
Instruments and controls2-11
Page 380 of 386
Engine oil viscosity..............9-7
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-15
Engine coolant temperature gauge .......2-8
Enterbutton....................4-4
Event Data recorders ..............9-20
Exhaust gas (Carbon monoxide) .........5-2
Explanation of maintenance items ........8-2
Extendedstorageswitch ............8-23
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-6
Fluid Automatic transmission fluid (ATF) .....8-13
Brake fluid ..................8-13
Capacities and recommended
fuel/lubricants .................9-2
Clutchfluid..................8-14
Continuously Variable Transmission (CVT)
fluid......................8-12
Engine coolant .................8-8
Engine oil ...................8-10
F.M.V.S.S. certification label ...........9-11
Foglightswitch .................2-27
Front air bag system
(See supplemental restraint system) ......1-48
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-31 Fuel-filler cap
.................3-27
Fuel-filler door lock opener lever ......3-27
Fuel-filler lid .................3-27
Fuel gauge ...................2-9
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Loose fuel cap warning ............2-6
Fuel Cell Vehicle (FCV) System Tirepressure.................8-33
Fuel-filler door ..................3-27
Fuelgauge.....................2-9
Fuses.......................8-21
Fusiblelinks ...................8-22
G
Gascap .....................3-27
Gauge Engine coolant temperature gauge .....2-8
Fuel gauge ...................2-9
Odometer ...................2-5
Speedometer .................2-5
Tachometer ..................2-7
Trip computer ................2-10
Trip odometer .................2-5
General maintenance ...............8-2
Glovebox.....................2-31
H
Hands-free phone system,
Bluetooth®................4-68,4-93
Hazard warning flasher switch ..........6-2
Headlight aiming control ............2-25 Headlightandturnsignalswitch........2-24
Headlightcontrolswitch ............2-24
Headlights....................8-27
Headlights, aiming control
............2-25
Head restraints ..................1-5
Heater Heater and air conditioner controls .....4-16
Heater operation ...............4-18
Hood.......................3-24
Horn .......................2-27
I
Ignition switch................... 5
-8
Ignition Switch Push-Button Ignition Switch ........5-11
Immobilizer system .........2-21,5-11,5-14
Important vehicle information label .......9-11
Increasing fuel economy .............5-31
Indicator NISSAN Intelligent Key® battery discharge
indicator ...................5-13
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).............2-12,2-13,2-18
Instrument brightness control ..........2-26
Instrumentpanel...............0-6,2-2
Instrument panel dimmer switch ........2-26
Intelligent Key system Key operating range .............3-13
Key operation ................3-14
Mechanical key ................3-4
Remote keyless entry operation.......3-18
Troubleshooting guide ............3-23
Warning signals ...............3-23
10-3
Page 384 of 386
Driving with automatic transmission....5-20
Driving with Continuously Variable
Transmission (CVT) .............5-17
Driving with manual transmission ......5-25
Shiftleverlockrelease............5-24
Travel (See registering a vehicle in another
country) ......................9-10
Trip computer ..................2-10
Trip odometer ...................2-5
Troubleshooting guide
(NISSAN voice recognition system) .....4-105
Trunk lid lock opener lever ............3-26
Turn signal switch ................2-26
U
Uniform tire quality grading ...........9-17
USB interface ...............4-53,4-55
Audio file operation ..........4-54,4-56
V
Vanity mirror ...................3-31
Variable voltage control system .........8-17
Vehicledimensionsandweights.........9-9
Vehicle dynamic control (VDC) off switch . . .2-28
Vehicle dynamic control (VDC) system .....5-36
Vehicle Dynamic Control (VDC) system ....5-36
Vehicle identification ...............9-10
Vehicle identification number (VIN) .......9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10
Vehicle identification number (VIN) plate ....9-10
Vehicle immobilizer system ....2-21,5-11,5-14Vehicle loading information
........9-13,9-14
Vehicle recovery .................6-13
Vehicle security system (NISSAN Vehicle Immobi-
lizer System) , engine start .....2-21,5-11,5-14
Ventilators ....................4-15
Visors.......................3-30
Voice Prompt Interrupt .......4-72,4-85,4-95
Voice recognition system ...........4-101
W
Warning Airbagwarninglight.........1-56,2-17
Anti-lock brake warning light ........2-13
Battery charge warning light ........2-14
Brake warning light .............2-13
Door open warning light ...........2-14
Engine oil pressure warning light ......2-14
Hazard warning flasher switch ........6-2
Loose fuel cap warning ............2-6
Lowfuelwarninglight............2-15
Low tire pressure warning light .......2-15
Passenger air bag and status light .....1-48
Seatbeltwarninglight........1-12,2-17
Supplemental air bag warning
light ..................1-56,2-17
Warning/indicator lights and audible
reminders............2-12,2-13,2-18
Warning labels (for SRS) ..........1-55
Warning/indicator lights and audible
reminders..............2-12,2-13,2-18 Audible reminders .......2-12,2-13,2-18
Indicatorlights.........2-12,2-13,2-18
Warninglights.........2-12,2-13,2-18
Warninglights...........2-12,2-13,2-18 Weights (See dimensions and weights)
.....9-9
Wheels and tires ..............8-33,9-9
Wheel/tire size ...................9-9
When traveling or registering in another
country ......................9-10
Windows .....................2-31
Locking passengers’ windows .......2-33
Manual windows ...............2-34
Power rear windows .............2-33
Power windows ...............
2-
31
Rear power windows ............2-33
Windshield-washerfluid.............8-14
Windshieldwiperblades............8-19
Wiper Wiperblades.................8-19
Wiper and washer switch ............2-22
10-7
