1. Engine hood (P. 3-24)
2. Windshield (P. 8-19)
3. Wiper and washer switch (P. 2-22)
4. Power windows (if so equipped)(P. 2-31)
5. Door locks, NISSAN Intelligent Key®
(if so equipped) , key fob (if so
equipped) , keys (P. 3-5, 3-11, 3-7, 3-2)
6. Mirrors (P. 3-31)
7. Tire pressure (P. 8-33)
8. Flat tire (P. 6-3)
9. Tire chains (P. 8-33)
10. Headlight and turn signal switch
(P. 2-24)
11. Replacing bulbs (P. 8-27)
12. Fog light switch (if so equipped)
(P. 2-24)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2304
EXTERIOR FRONT
Illustrated table of contents0-3
Page 13 of 386
1. Headlight/turn signal switch/fog lightswitch (if so equipped) (P. 2-24)
2. Driver’s supplemental air bag/horn
(P. 1-39, 2-27)
3. Meters and gauges (P. 2-3)
4. Wiper and washer switch (P. 2-22) 5. Vents (P. 4-15)
6. Rear window defroster switch (P. 2-23)
7. Front passenger air bag status light
(P. 2-18)
8. Hazard warning flasher switch (P. 6-2)
9. Climate controls (P. 4-16) 10. Audio system (P. 4-24)
11. Passenger’s supplemental air bag
(P. 1-39)
12. Vents (P. 4-15)
13. Electronic outside rearview mirror
control switch (P. 3-32)
14. Fuel-filler lid release lever
(P. 3-27)/Hood release lever (P. 3-24)
15. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-28)
16. Audio control switches (P. 4-65) Bluetooth® Hands-Free Phone System
(P. 4-68)
17. Cruise control (if so equipped)
(P. 5-28)
18. Ignition switch (P. 5-8)/Push button
ignition switch (if so equipped)
(P. 5-11)
19. Cup holders (P. 2-30)
20. Shift lever (P. 5-17)
21. Glove box (P. 2-29)Refer to the page number indicated in pa-
rentheses for operating details.LIC2753
INSTRUMENT PANEL
0-6Illustrated table of contents
Page 16 of 386
Indicatorlight Name Page
Malfunction Indica-
tor Light (MIL) 2-18
Overdrive OFF indi-
cator light (if so
equipped)2-19
Security indicator
light (if so equipped)
2-19
Side and headlight
indicator light
(green)2-19
Slip indicator light 2-19
Turn signal/hazard
indicator lights
2-19
Vehicle Dynamic
Control (VDC) OFF
indicator light2-20
Illustrated table of contents0-9
Page 76 of 386
2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-5
Tachometer ....................................2-7
Engine coolant temperature gauge
(if so equipped) ................................2-8
Fuel gauge ....................................2-9
Trip computer ................................. 2-10
Warning lights, indicator lights and audible
reminders ........................................ 2-12
Checking lights ............................... 2-13
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20
Security systems ................................. 2-21
NISSAN vehicle immobilizer system
(if so equipped) ............................... 2-21
Wiper and washer switch ......................... 2-22
Switch operation .............................. 2-22
Rear window defroster switch ......................2-23Headlight and turn signal switch
....................2-24
Headlight control switch ........................ 2-24
Instrument brightness control ...................2-26
Turn signal switch ............................. 2-26
Fog light switch (if so equipped) ................2-27
Horn ............................................ 2-27
Vehicle Dynamic Control (VDC) off switch ...........2-28
Power outlet ..................................... 2-28
Storage ......................................... 2-29
Map pockets .................................. 2-29
Seatback pocket (if so equipped) . . .............2-29
Storage trays ................................. 2-30
Cup holders .................................. 2-30
Glove box .................................... 2-31
Windows ........................................ 2-31
Power windows (if so equipped) ................2-31
Manual windows (if so equipped) ................2-34
Interior lights ..................................... 2-34
Map light(if
so equipped) ...................... 2-35
Trunk light ....................................... 2-36
Page 77 of 386
1. Headlight/turn signal switch/fog lightswitch (if so equipped) (P. 2-24)
2. Driver’s supplemental air bag/horn
(P. 1-39, 2-27)
3. Meters and gauges (P. 2-3)
4. Wiper and washer switch (P. 2-22) 5. Vents (P. 4-15)
6. Rear window defroster switch (P. 2-23)
7. Front passenger air bag status light
(P. 2-18)
8. Hazard warning flasher switch (P. 6-2)
9. Climate controls (P. 4-16) 10. Audio system (P. 4-24)
11. Passenger’s supplemental air bag
(P. 1-39)
12. Vents (P. 4-15)
13. Electronic outside rearview mirror
control switch (P. 3-32)
14. Fuel-filler lid release lever
(P. 3-27)/Hood release lever (P. 3-24)
15. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-28)
16. Audio control switches (P. 4-65) Bluetooth® Hands-Free Phone System
(P. 4-68)
17. Cruise control (if so equipped)
(P. 5-28)
18. Ignition switch (P. 5-8)/Push button
ignition switch (if so equipped)
(P. 5-11)
19. Cup holders (P. 2-30)
20. Shift lever (P. 5-17)
21. Glove box (P. 2-29)Refer to the page number indicated in pa-
rentheses for operating details.LIC2753
INSTRUMENT PANEL
2-2Instruments and controls
Page 87 of 386

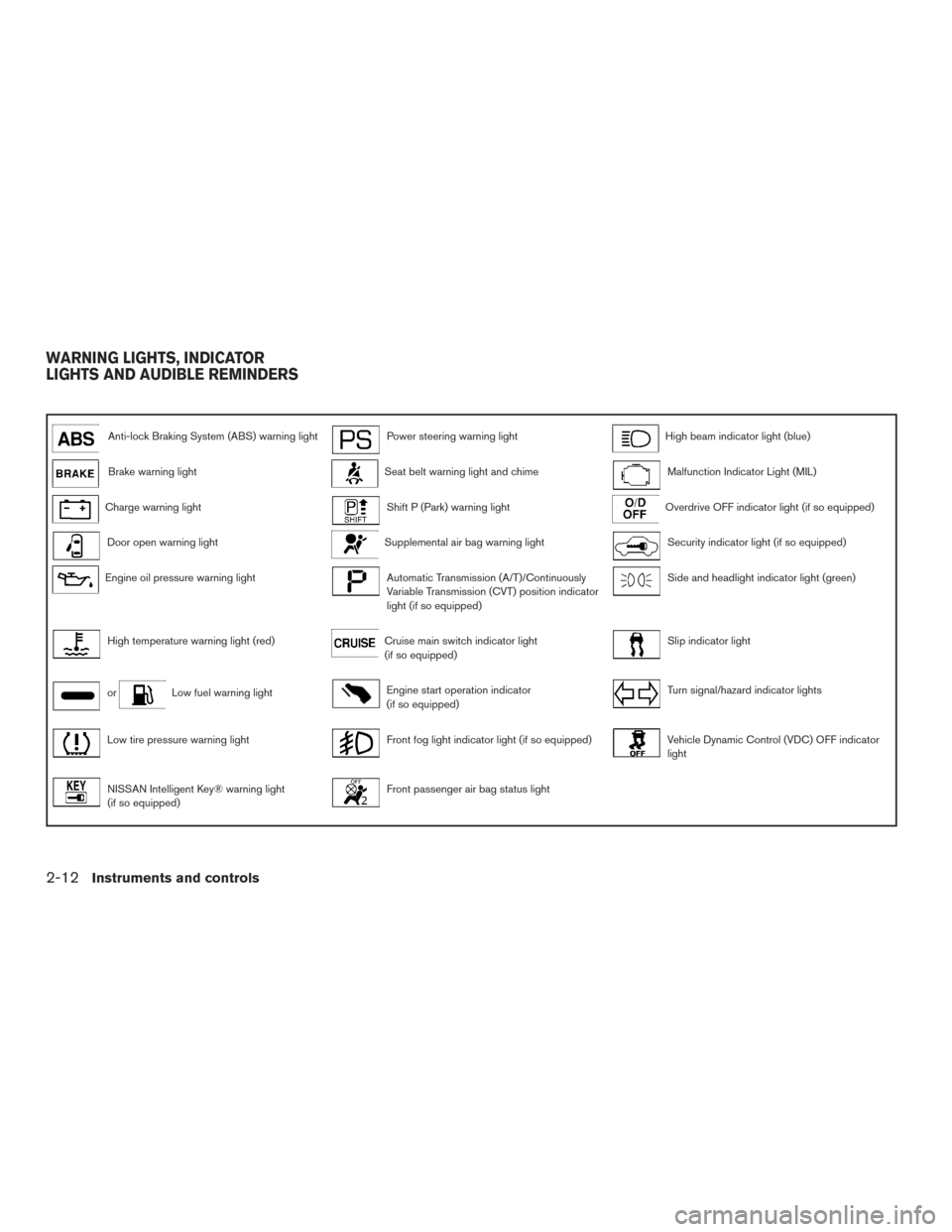

Anti-lock Braking System (ABS) warning lightPower steering warning lightHigh beam indicator light (blue)
Brake warning lightSeat belt warning light and chimeMalfunction Indicator Light (MIL)
Charge warning lightShift P (Park) warning lightOverdrive OFF indicator light (if so equipped)
Door open warning lightSupplemental air bag warning lightSecurity indicator light (if so equipped)
Engine oil pressure warning lightAutomatic Transmission (A/T)/Continuously
Variable Transmission (CVT) position indicator
light (if so equipped)Side and headlight indicator light (green)
High temperature warning light (red)Cruise main switch indicator light
(if so equipped)Slip indicator light
orLow fuel warning lightEngine start operation indicator
(if so equipped)Turn signal/hazard indicator lights
Low tire pressure warning lightFront fog light indicator light (if so equipped)Vehicle Dynamic Control (VDC) OFF indicator
light
NISSAN Intelligent Key® warning light
(if so equipped)Front passenger air bag status light
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
2-12Instruments and controls
Page 93 of 386
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag systems
and/or pretensioner systems will not op-
erate in an accident. To help avoid injury to
yourself or others, have your vehicle
checked as soon as possible. It is recom-
mended you visit a NISSAN dealer for this
service.
INDICATOR LIGHTS
Automatic Transmission(A/T)/Continuously Variable
Transmission (CVT) position
indicator light (if so equipped)
When the ignition switch is placed in the ON
position, this indicator light shows the shift lever
position. For additional information, refer to “Driv-
ing the vehicle” in the “Starting and driving” sec-
tion of this manual.
Cruise main switch indicatorlight (if so equipped)
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise main switch indicator light comes on, the cruise
control system is operational.
Engine start operation
indicator (if so equipped)
For vehicles equipped with push button ignition
this indicator illuminates when the ignition switch
is in the LOCK, OFF, ACC or ON position with
the shift lever in the P (Park) position.
This indicator means that the engine will start by
pushing the push-button ignition switch with the
brake pedal depressed.
Front fog light indicator light (ifso equipped)
The front fog light indicator light illuminates when
the front fog lights are ON. For additional infor-
mation, refer to “Fog light switch” in this section.
Front passenger air bag statuslight
The front passenger air bag status lightwill
be lit and the passenger front air bag will be OFF
depending on how the front passenger seat is
being used.
For additional information, refer to “Front passen-
ger air bag and status light” in the “Safety —
Seats, seat belts and supplemental restraint sys-
tem” section of this manual.
High beam indicator light
(blue)
This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Malfunction Indicator Light (MIL)
If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.
The
may also come on steady if the fuel-
filler cap is loose or missing, or if the vehicle runs
out of fuel. Check to make sure the fuel-filler cap
is installed and closed tightly, and that the vehicle
has at least 3 gal (11.4 L) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on steady for 20 sec-
onds and then blinks for 10 seconds when the
engine is not running, it indicates that the vehicle
is not ready for an emission control system
inspection/maintenance test. For additional infor-
mation, refer to “Readiness for
2-18Instruments and controls
Page 94 of 386
inspection/maintenance (I/M) test” in the “Tech-
nical and consumer information” section of this
manual.
Operation
The MIL will come on in one of two ways:● MIL on steady — An emission control system
malfunction has been detected. Check the
fuel-filler cap. If the LOOSE FUEL CAP
warning message is displayed in the odom-
eter, and the fuel-filler cap is loose or miss-
ing, tighten or install the cap and continue to
drive the vehicle. The
light should turn
off after a few driving trips. If the
light
does not turn off after a few driving trips,
have the vehicle inspected. It is recom-
mended you visit a NISSAN dealer for this
service. You do not need to have your vehicle
towed to the dealer.
● MIL blinking — An engine misfire has been
detected which may damage the emission
control system. To reduce or avoid emission
control system damage:
– do not drive at speeds above 45 mph (72 km/h);
– avoid hard acceleration or deceleration;
– avoid steep uphill grades; – if possible, reduce the amount of cargo
being hauled.
The MIL may stop blinking and come on steady.
Have the vehicle inspected. It is recommended
you visit a NISSAN dealer for this service. You do
not need to have your vehicle towed to the dealer.
CAUTION
Continued vehicle operation without hav-
ing the emission control system checked
and repaired as necessary could lead to
poor driveability, reduced fuel economy,
and possible damage to the emission con-
trol system.
Overdrive OFF indicator light (if so equipped)
This light comes on when the overdrive function
is off.
The automatic transmission overdrive function is
controlled by the overdrive switch.
For additional information, refer to “Driving the
vehicle” in the “Starting and driving” section of
this manual.
Security indicator light (if soequipped)
This light blinks when the ignition switch is in the
OFF, LOCK or ACC position. This function indi-
cates the security systems equipped on the ve-
hicle are operational.
For additional information, refer to “Security sys-
tems” in this section.
Side light and headlightindicator light (green)
The side light and headlight indicator light illumi-
nates when the side light or headlight position is
selected. For additional information, refer to
“Headlight and turn signal switch” in this section.
Slip indicator light
This indicator will blink when the Vehicle Dynamic
Control (VDC) system is operating, thus alerting
that the vehicle is nearing its traction limits. The
road surface may be slippery.
Turn signal/hazard indicatorlights
The appropriate light flashes when the turn signal
switch is activated.
Both lights flash when the hazard switch is turned
on.
Instruments and controls2-19
Page 99 of 386
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition, and
the front parking, tail, license plate, and in-
strument panel lights will come on.
2Rotate the switch to theposition, and
the headlights will come on and all the other
lights remain on.
CAUTION
Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.
Headlight beam select
1To select the high beam function, push the
lever forward. The high beam lights come on
and the
light illuminates.
2Pull the lever back to select the low beam.
3Pulling and releasing the lever flashes the
headlight high beams on and off.
Battery saver system
If the ignition switch is placed in the OFF position
while the headlight switch is in the
orposition, the headlights will turn off after
a period of time.
Type A (if so equipped)
LIC2127
Type B (if so equipped)
WIC1509LIC2128
HEADLIGHT AND TURN SIGNAL
SWITCH
2-24Instruments and controls
Page 101 of 386
INSTRUMENT BRIGHTNESS
CONTROL
The instrument brightness control operates when
the headlight control switch is in the
orposition.
Type A: Turn the control
Ato adjust the bright-
ness of instrument panel lights when driving at
night.
Type B: Press the control
Ato adjust the bright-
ness of instrument panel lights when driving at
night.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signal cancels automatically.
Lane change signal
2Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, to signal a lane change. Hold the lever
until the lane change is completed.
Type A (if so equipped)
LIC2147
Type B (if so equipped)
LIC2137WIC1512
2-26Instruments and controls
