NISSAN VERSA SEDAN 2018 Owner´s Manual
Manufacturer: NISSAN, Model Year: 2018, Model line: VERSA SEDAN, Model: NISSAN VERSA SEDAN 2018Pages: 702, PDF Size: 8.98 MB
Page 11 of 702
1. Head restraints/headrests (P. 1-5)
2. Roof-mounted curtain side-impact
and rollover supplemental air bag
(P. 1-42)
3. Front seat belt with pretensioner(s)
and shoulder height adjuster
(P. 1-10, 1-42)
4. Seats (P. 1-2)
5. Supplemental air bag modules
(P. 1-42)
6. Occupant classification sensor
(weight sensor) (P. 1-42)
7. Front seat-mounted side-impact
supplemental air bag (P. 1-42)
8. LATCH (Lower Anchors and Tethers
for CHildren) system (P. 1-20)
9. Rear seat belts (P. 1-10)
Refer to the page number indicated in
parentheses for operating details.
LIC3852
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents
Page 12 of 702

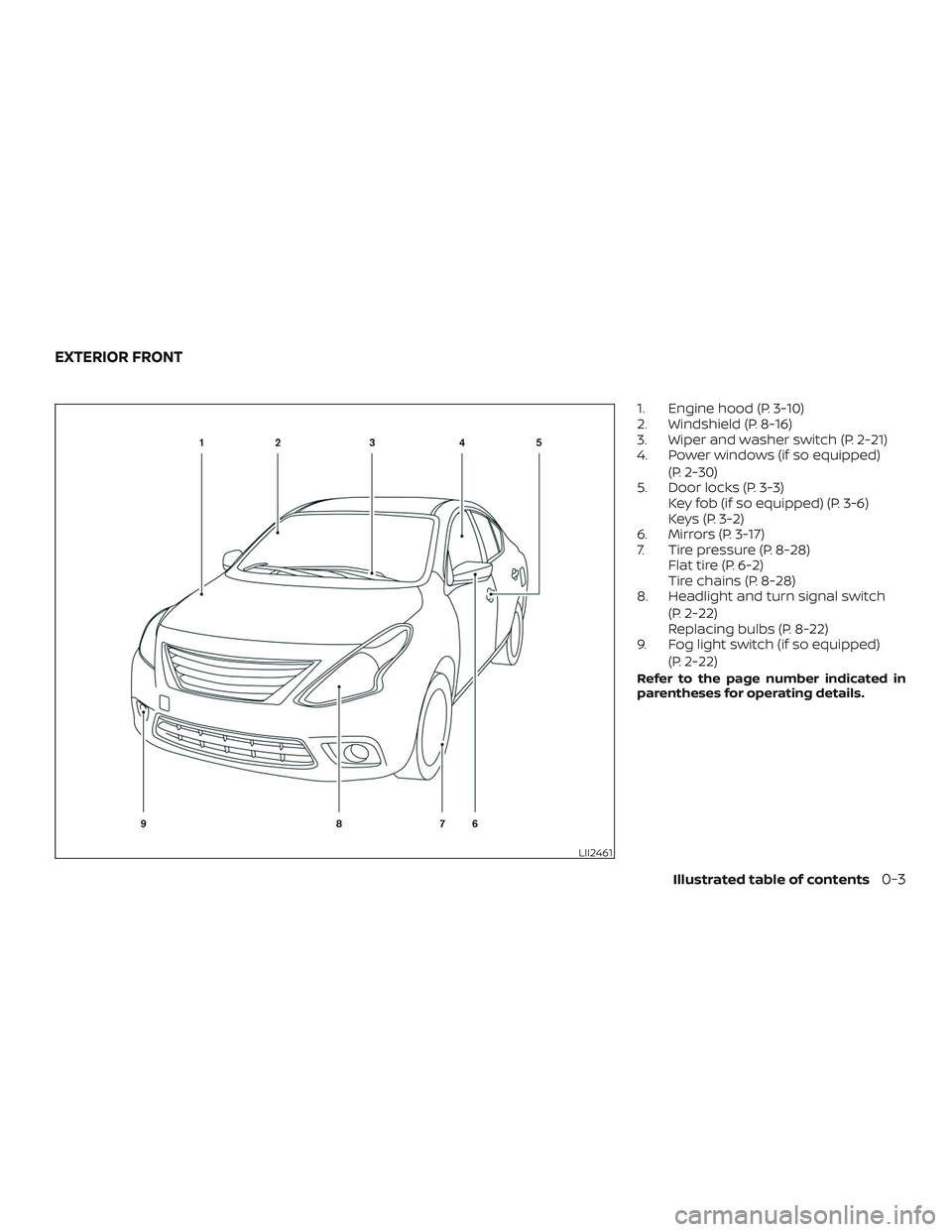

1. Engine hood (P. 3-10)
2. Windshield (P. 8-16)
3. Wiper and washer switch (P. 2-21)
4. Power windows (if so equipped)
(P. 2-30)
5. Door locks (P. 3-3)
Key fob (if so equipped) (P. 3-6)
Keys (P. 3-2)
6. Mirrors (P. 3-17)
7. Tire pressure (P. 8-28)
Flat tire (P. 6-2)
Tire chains (P. 8-28)
8. Headlight and turn signal switch
(P. 2-22)
Replacing bulbs (P. 8-22)
9. Fog light switch (if so equipped)
(P. 2-22)
Refer to the page number indicated in
parentheses for operating details.
LII2461
EXTERIOR FRONT
Illustrated table of contents0-3
Page 13 of 702
1. Antenna (P. 4-48)
2. Rear window defroster switch
(P. 2-22)
3. Trunk lid release (P. 3-11)
4. Rearview camera (if so equipped)
(P. 4-2)
5. Replacing bulbs (P. 8-22)
6. Fuel-filler door (P. 3-13)
Fuel-filler cap (P. 3-13)
Fuel recommendation (P. 10-2)
7. Child safety rear door locks (P. 3-3)
Refer to the page number indicated in
parentheses for operating details.
LII2462
EXTERIOR REAR
0-4Illustrated table of contents
Page 14 of 702

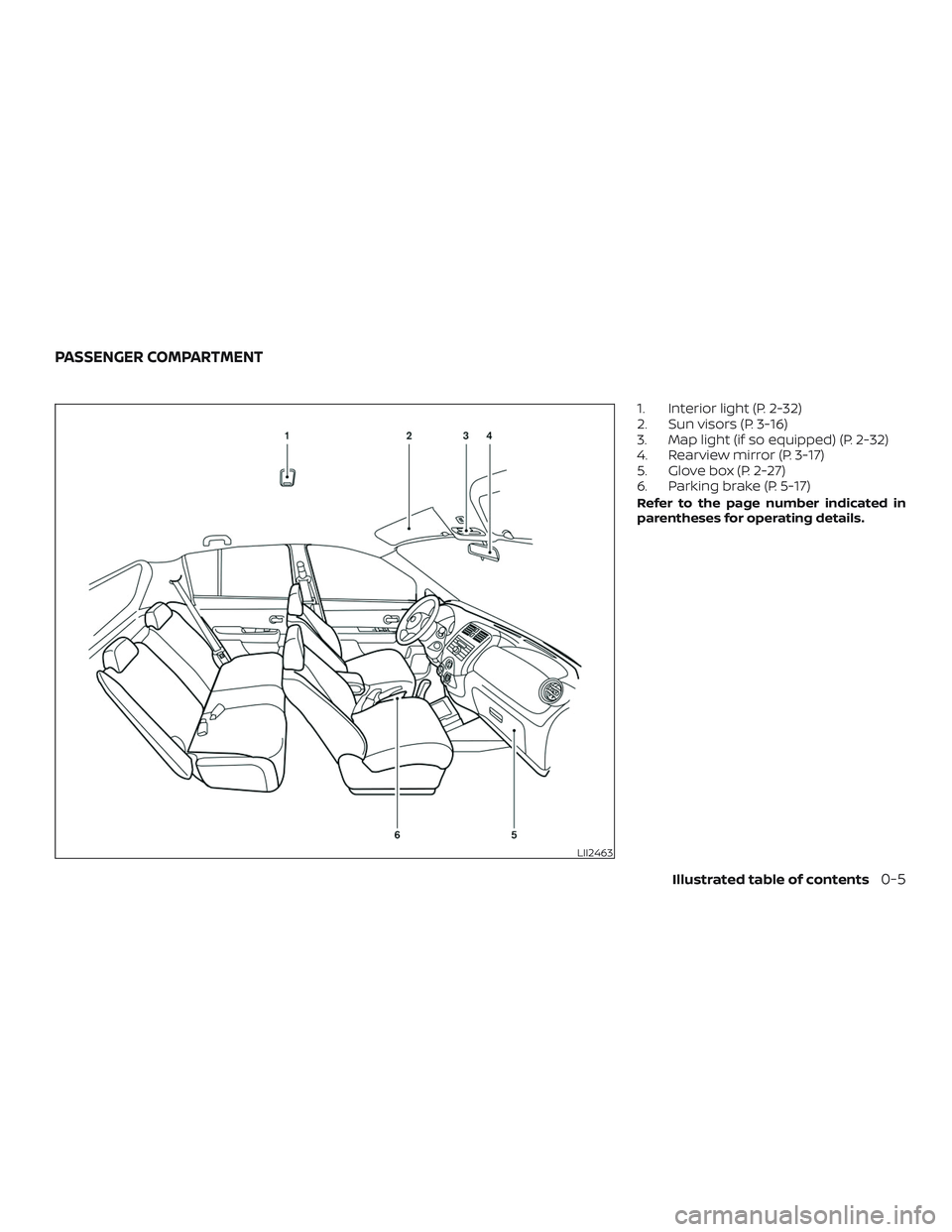

1. Interior light (P. 2-32)
2. Sun visors (P. 3-16)
3. Map light (if so equipped) (P. 2-32)
4. Rearview mirror (P. 3-17)
5. Glove box (P. 2-27)
6. Parking brake (P. 5-17)
Refer to the page number indicated in
parentheses for operating details.
LII2463
PASSENGER COMPARTMENT
Illustrated table of contents0-5
Page 15 of 702
1. Headlight/turn signal switch/fog
light switch (if so equipped)
(P. 2-22)
2. Driver’s supplemental air bag
(P. 1-42)
Horn (P. 2-25)
3. Meters and gauges (P. 2-3)
Warning and indicator lights
(P. 2-12)
4. Wiper and washer switch (P. 2-21)
5. Vents (P. 4-8)
6. Rear window defroster switch
(P. 2-22)
7. Front passenger air bag status
light (P. 1-42)
8. Hazard warning flasher switch
(P. 6-2)
9. Climate controls (P. 4-8)
10. Audio system (P. 4-16)
11. Passenger’s supplemental air bag
(P. 1-42)
12. Glove box (P. 2-27)
13. Power outlet (P. 2-26)
14. USB connection port and AUX IN
jack (P. 4-41)
15. Shif t lever (P. 5-11)
16. Cup holders (P. 2-27)
17. Ignition switch (P. 5-8)
LII2542
INSTRUMENT PANEL
0-6Illustrated table of contents
Page 16 of 702
18. Cruise control switches
(if so equipped) (P. 5-18)
19. Tilt steering (P. 3-16)
20. Audio control switches (P. 4-47)
Bluetooth® Hands-Free Phone
System switches (P. 4-49)
21. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-26)
22. Fuel-filler door release lever (P. 3-13)
Hood release lever (P. 3-10)
23. Electronic outside rearview mirror
control switch (P. 3-18)
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7
Page 17 of 702

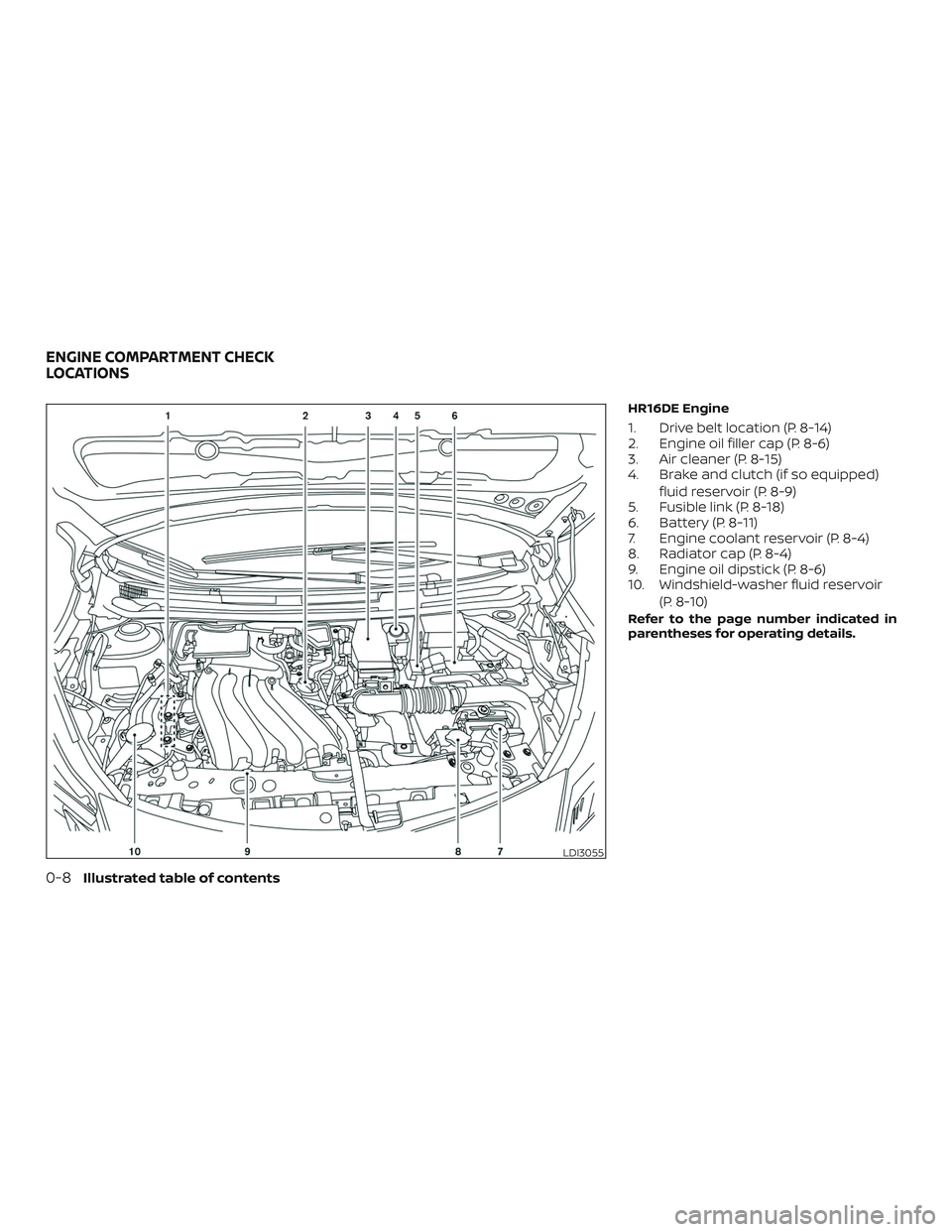

HR16DE Engine
1. Drive belt location (P. 8-14)
2. Engine oil filler cap (P. 8-6)
3. Air cleaner (P. 8-15)
4. Brake and clutch (if so equipped)
fluid reservoir (P. 8-9)
5. Fusible link (P. 8-18)
6. Battery (P. 8-11)
7. Engine coolant reservoir (P. 8-4)
8. Radiator cap (P. 8-4)
9. Engine oil dipstick (P. 8-6)
10. Windshield-washer fluid reservoir
(P. 8-10)
Refer to the page number indicated in
parentheses for operating details.
LDI3055
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents
Page 18 of 702

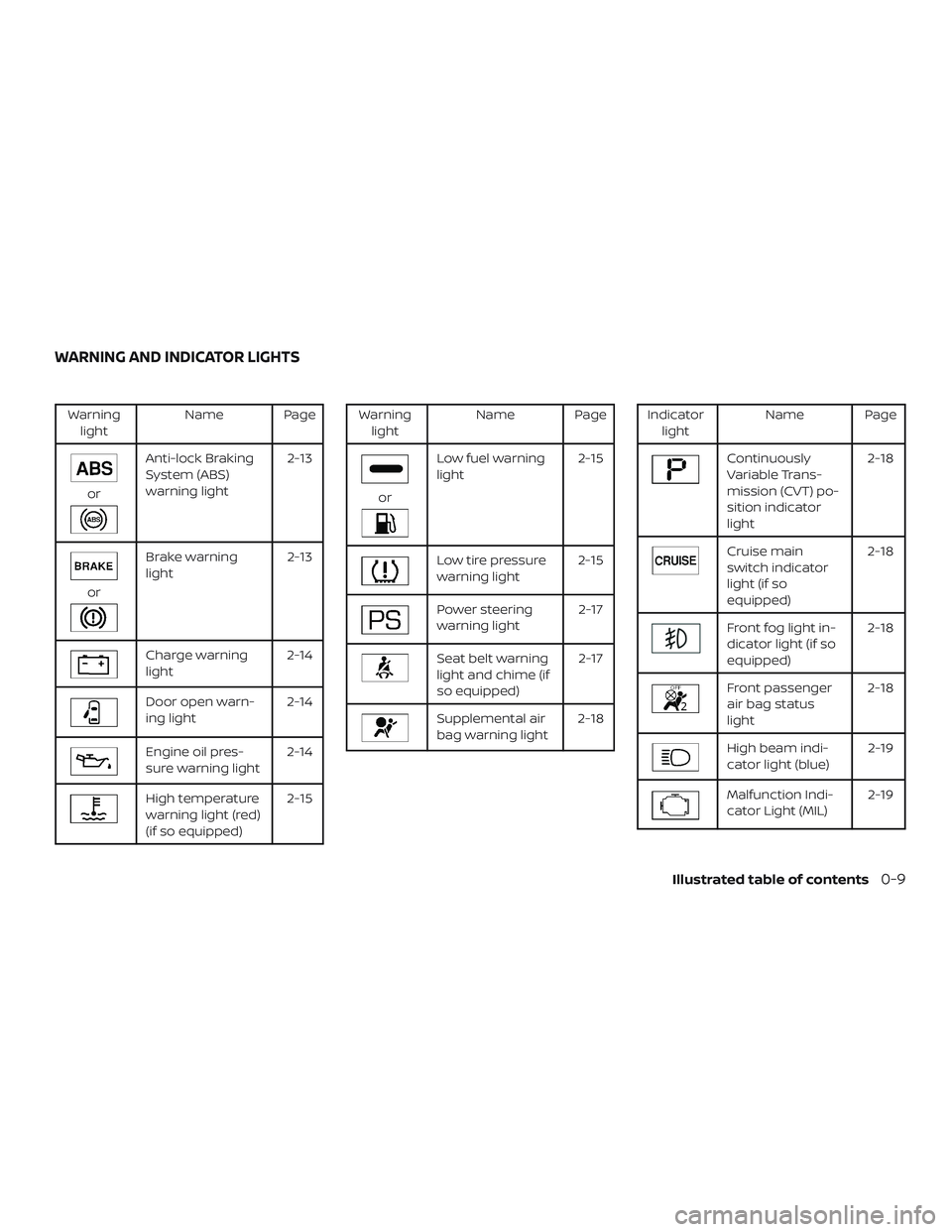

Warning
lightName Page
or
Anti-lock Braking
System (ABS)
warning light2-13
or
Brake warning
light2-13
Charge warning
light2-14
Door open warn-
ing light2-14
Engine oil pres-
sure warning light2-14
High temperature
warning light (red)
(if so equipped)2-15
Warning
lightName Page
or
Low fuel warning
light2-15
Low tire pressure
warning light2-15
Power steering
warning light2-17
Seat belt warning
light and chime (if
so equipped)2-17
Supplemental air
bag warning light2-18
Indicator
lightName Page
Continuously
Variable Trans-
mission (CVT) po-
sition indicator
light2-18
Cruise main
switch indicator
light (if so
equipped)2-18
Front fog light in-
dicator light (if so
equipped)2-18
Front passenger
air bag status
light2-18
High beam indi-
cator light (blue)2-19
Malfunction Indi-
cator Light (MIL)2-19
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9
Page 19 of 702

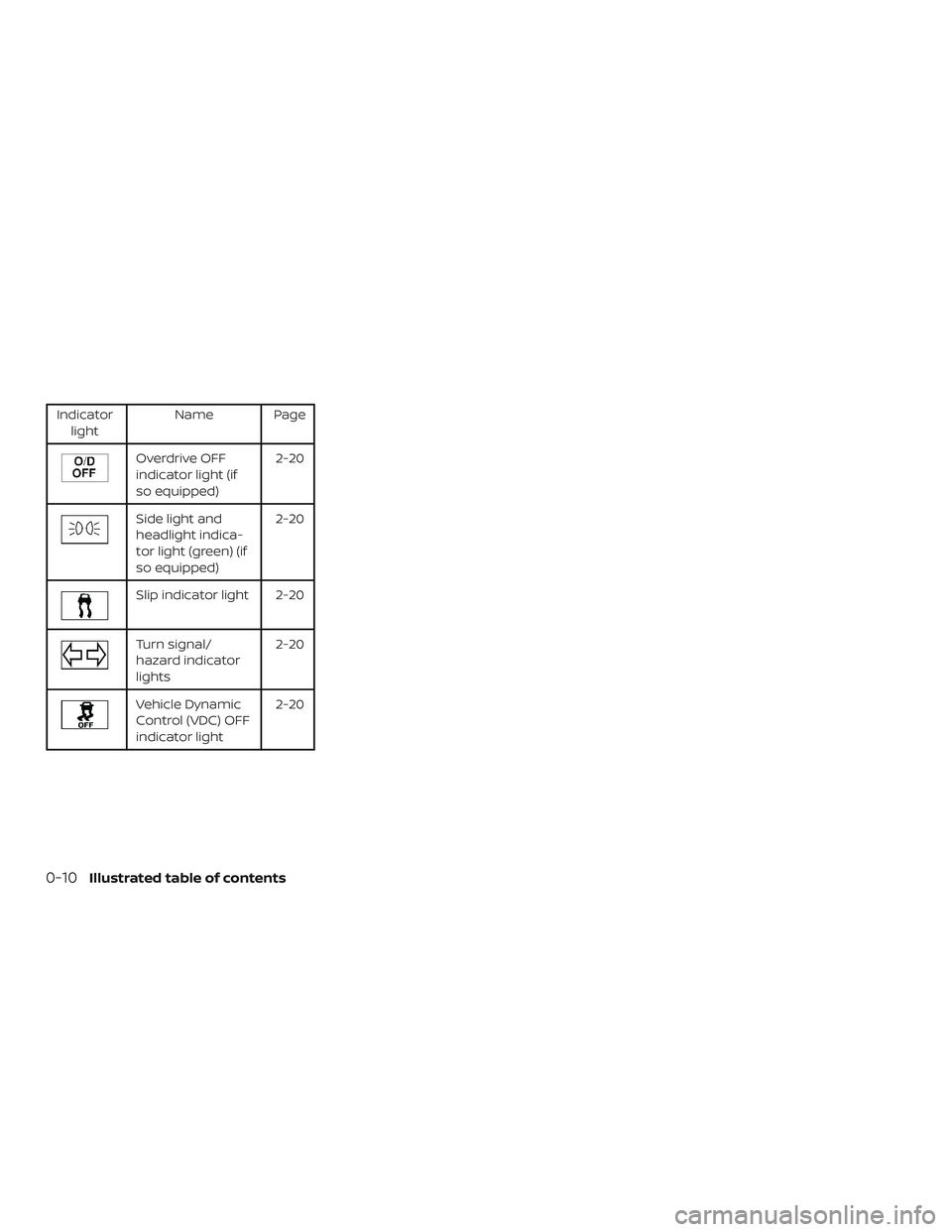

Indicator
lightName Page
Overdrive OFF
indicator light (if
so equipped)2-20
Side light and
headlight indica-
tor light (green) (if
so equipped)2-20
Slip indicator light 2-20
Turn signal/
hazard indicator
lights2-20
Vehicle Dynamic
Control (VDC) OFF
indicator light2-20
0-10Illustrated table of contents
Page 20 of 702

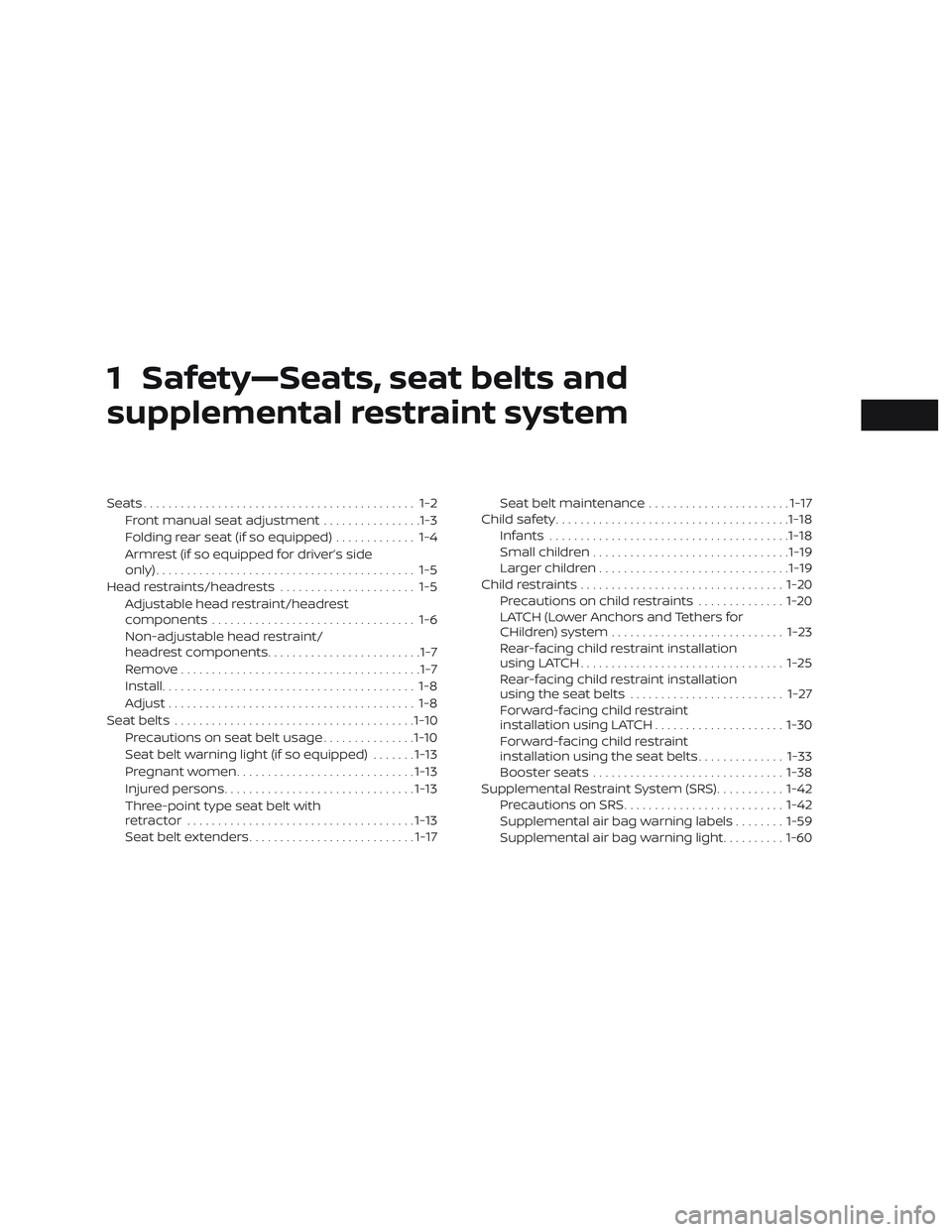

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2
Front manual seat adjustment................1-3
Folding rear seat (if so equipped)............. 1-4
Armrest (if so equipped for driver’s side
only).......................................... 1-5
Head restraints/headrests...................... 1-5
Adjustable head restraint/headrest
components................................. 1-6
Non-adjustable head restraint/
headrest components.........................1-7
Remove.......................................1-7
Install......................................... 1-8
Adjust........................................ 1-8
Seatbelts .......................................1-10
Precautions on seat belt usage...............1-10
Seat belt warning light (if so equipped).......1-13
Pregnant women.............................1-13
Injured persons...............................1-13
Three-point type seat belt with
retractor .....................................1-13
Seat belt extenders...........................1-17Seat belt maintenance.......................1-17
Child safety......................................1-18
Infants.......................................1-18
Small children................................1-19
Larger children...............................1-19
Child restraints.................................1-20
Precautions on child restraints..............1-20
LATCH (Lower Anchors and Tethers for
CHildren) system............................1-23
Rear-facing child restraint installation
using LATCH.................................1-25
Rear-facing child restraint installation
using the seat belts.........................1-27
Forward-facing child restraint
installation using LATCH.....................1-30
Forward-facing child restraint
installation using the seat belts..............1-33
Booster seats...............................1-38
Supplemental Restraint System (SRS)...........1-42
Precautions on SRS..........................1-42
Supplemental air bag warning labels........1-59
Supplemental air bag warning light..........1-60
