NISSAN VERSA SEDAN 2018 Owner´s Manual

∙ It is recommended that you visit aNISSAN dealer for work around and on
the pretensioner system. It is also rec-
ommended that you visit a NISSAN
dealer for installation of electrical
equipment. Unauthorized electrical
test equipment and probing devices
should not be used on the preten-
sioner system.
∙ If you need to dispose of the preten- sioner(s) or scrap the vehicle, it is rec-
ommended that you visit a NISSAN
dealer for this service. Incorrect dis-
posal procedures could cause per-
sonal injury.
The pretensioner system may activate
with the supplemental air bag system in
certain types of collisions. Working with the
seat belt retractor, the pretensioner(s) help
tighten the seat belt when the vehicle be-
comes involved in certain types of colli-
sions, helping to restrain front seat occu-
pants.
The pretensioner(s) are encased with the
seat belt retractor. These seat belts are
used the same way as conventional seat
belts. When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indi-
cate a fire. Care should be taken not to
inhale it, as it may cause irritation and
choking. Those with a history of a breath-
ing condition should get fresh air promptly.
Af ter the pretensioner(s’) activation, load
limiters allow the seat belt to release web-
bing (if necessary) to reduce forces against
the chest.
The supplemental air bag warning
light
is used to indicate malfunctions
in the pretensioner(s) system. For addi-
tional information, refer to “Supplemental
air bag warning light” in this section. If the
operation of the supplemental air bag
warning light indicates there is a malfunc-
tion, have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.
When selling your vehicle, we request that
you inform the buyer about the preten-
sioner system and guide the buyer to the
appropriate sections in this Owner’s
Manual.

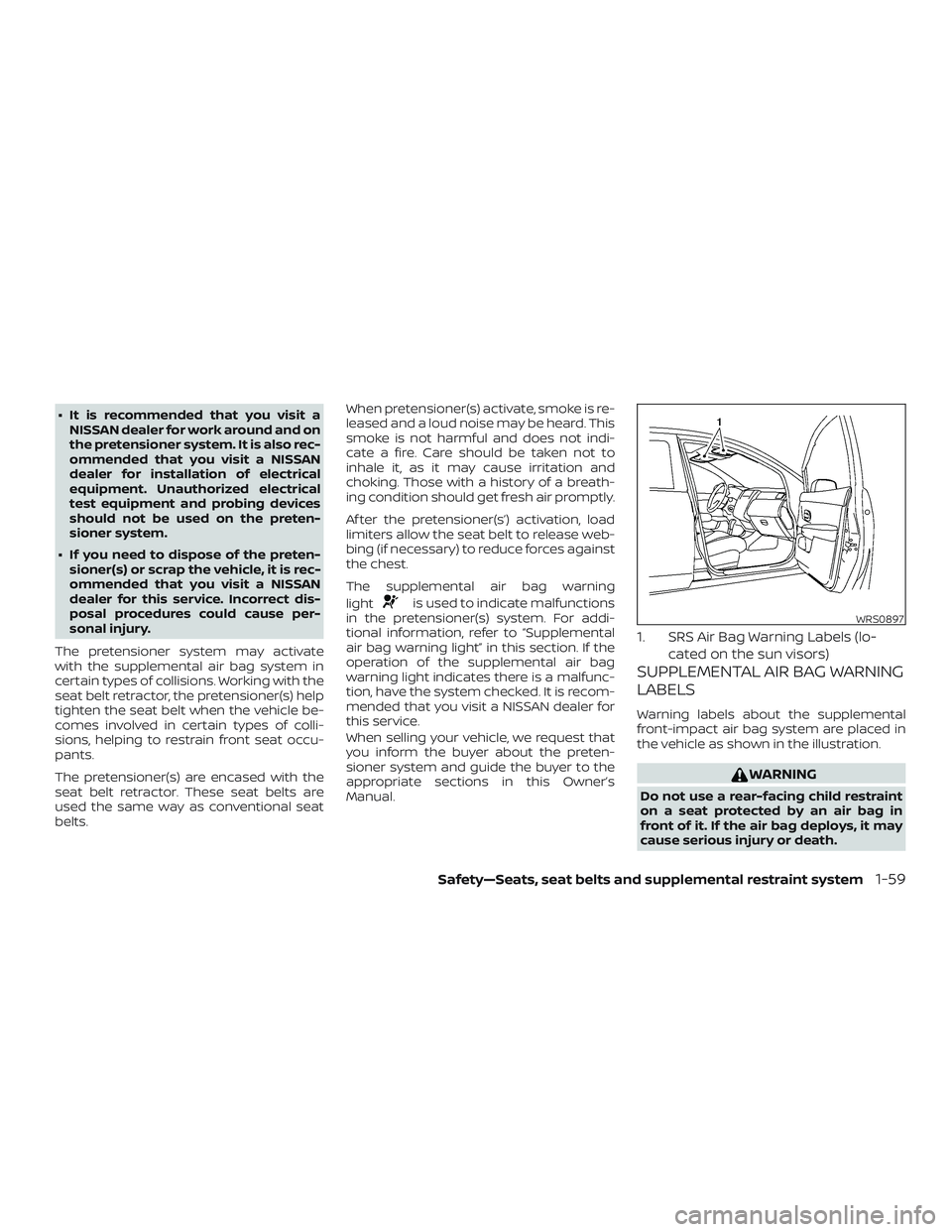

1. SRS Air Bag Warning Labels (lo-
cated on the sun visors)
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental
front-impact air bag system are placed in
the vehicle as shown in the illustration.
WARNING
Do not use a rear-facing child restraint
on a seat protected by an air bag in
front of it. If the air bag deploys, it may
cause serious injury or death.
WRS0897
Safety—Seats, seat belts and supplemental restraint system1-59

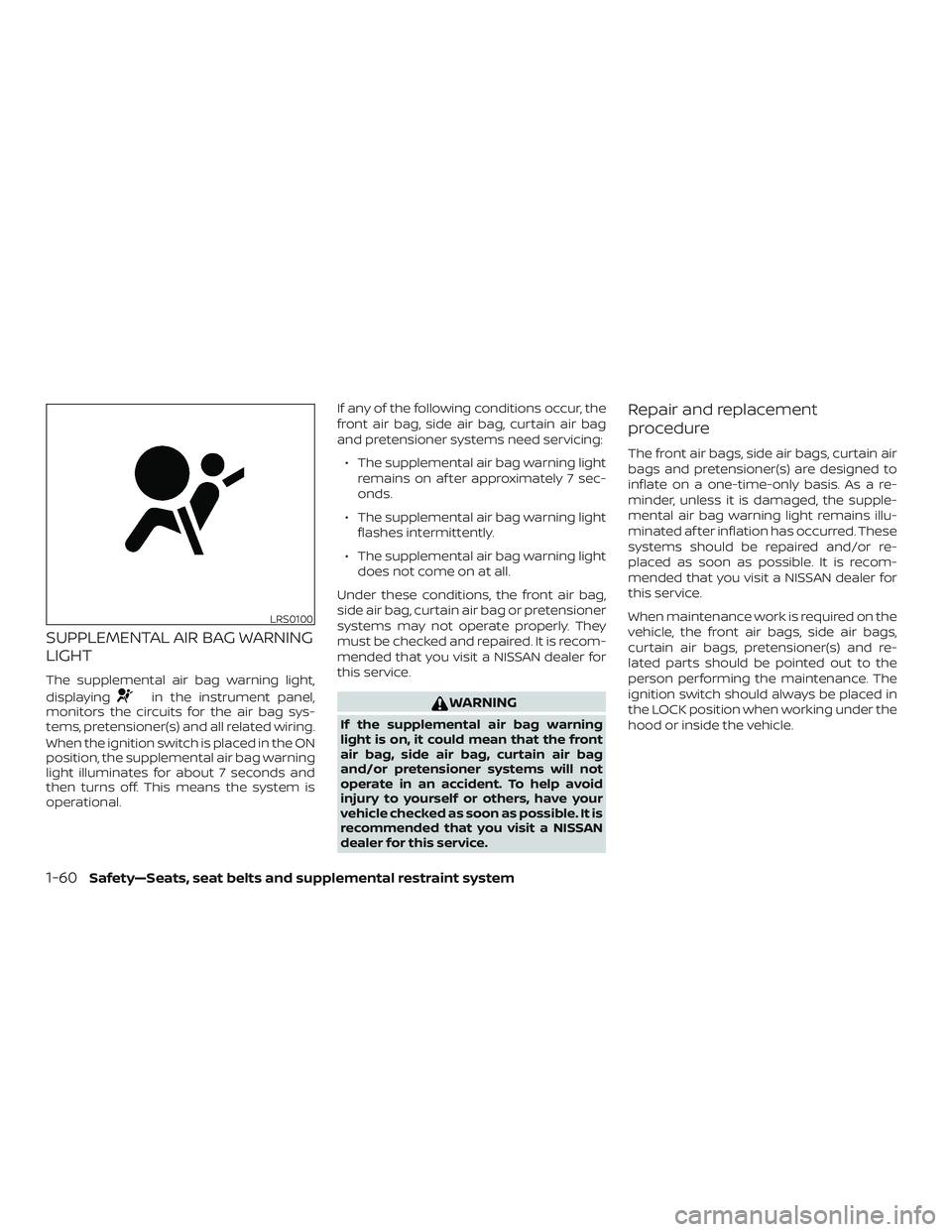

SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel,
monitors the circuits for the air bag sys-
tems, pretensioner(s) and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational. If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing:
∙ The supplemental air bag warning light remains on af ter approximately 7 sec-
onds.
∙ The supplemental air bag warning light flashes intermittently.
∙ The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag,
side air bag, curtain air bag or pretensioner
systems may not operate properly. They
must be checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.
Repair and replacement
procedure
The front air bags, side air bags, curtain air
bags and pretensioner(s) are designed to
inflate on a one-time-only basis. As a re-
minder, unless it is damaged, the supple-
mental air bag warning light remains illu-
minated af ter inflation has occurred. These
systems should be repaired and/or re-
placed as soon as possible. It is recom-
mended that you visit a NISSAN dealer for
this service.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioner(s) and re-
lated parts should be pointed out to the
person performing the maintenance. The
ignition switch should always be placed in
the LOCK position when working under the
hood or inside the vehicle.
LRS0100
1-60Safety—Seats, seat belts and supplemental restraint system

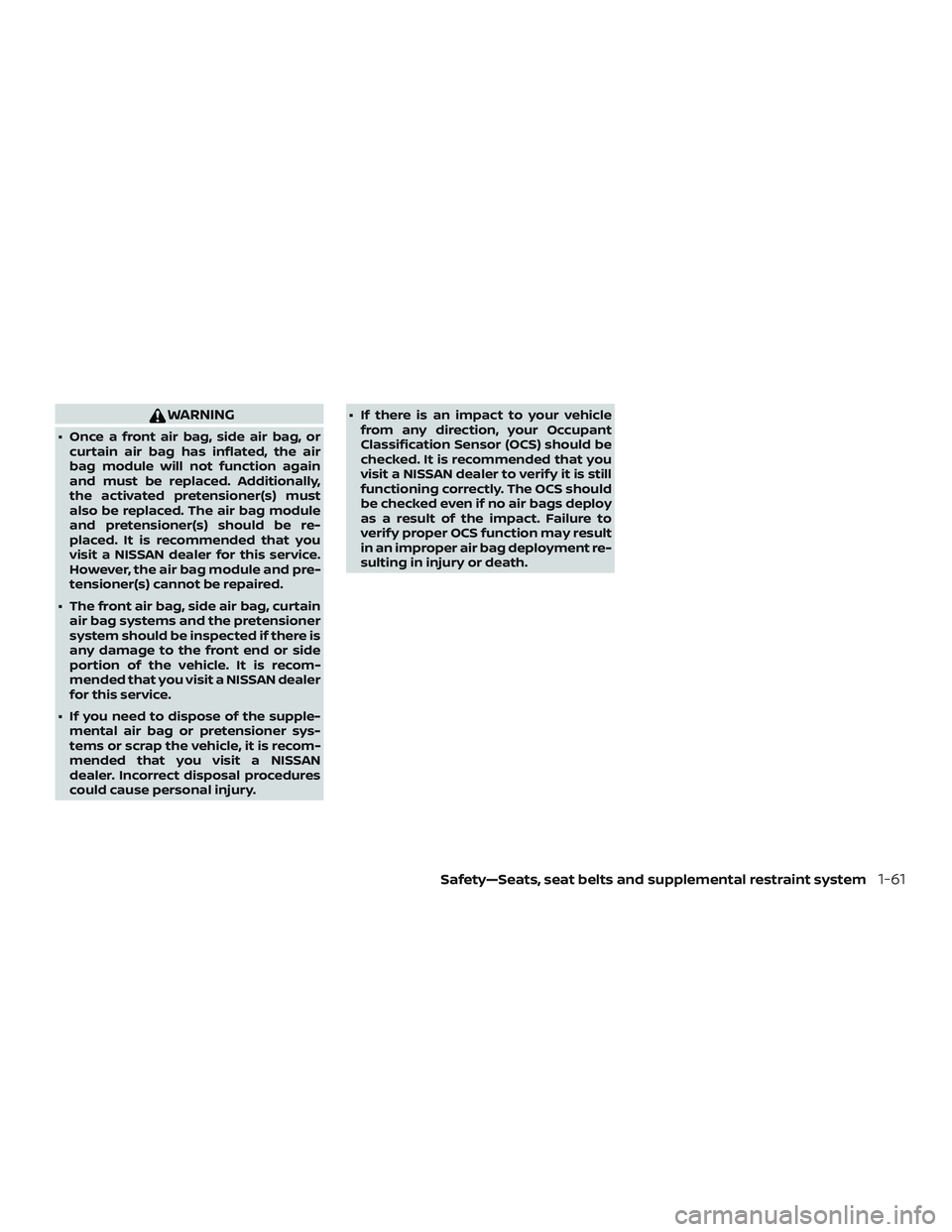

WARNING
∙ Once a front air bag, side air bag, orcurtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner(s) must
also be replaced. The air bag module
and pretensioner(s) should be re-
placed. It is recommended that you
visit a NISSAN dealer for this service.
However, the air bag module and pre-
tensioner(s) cannot be repaired.
∙ The front air bag, side air bag, curtain air bag systems and the pretensioner
system should be inspected if there is
any damage to the front end or side
portion of the vehicle. It is recom-
mended that you visit a NISSAN dealer
for this service.
∙ If you need to dispose of the supple- mental air bag or pretensioner sys-
tems or scrap the vehicle, it is recom-
mended that you visit a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury. ∙ If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked. It is recommended that you
visit a NISSAN dealer to verif y it is still
functioning correctly. The OCS should
be checked even if no air bags deploy
as a result of the impact. Failure to
verif y proper OCS function may result
in an improper air bag deployment re-
sulting in injury or death.
Safety—Seats, seat belts and supplemental restraint system1-61

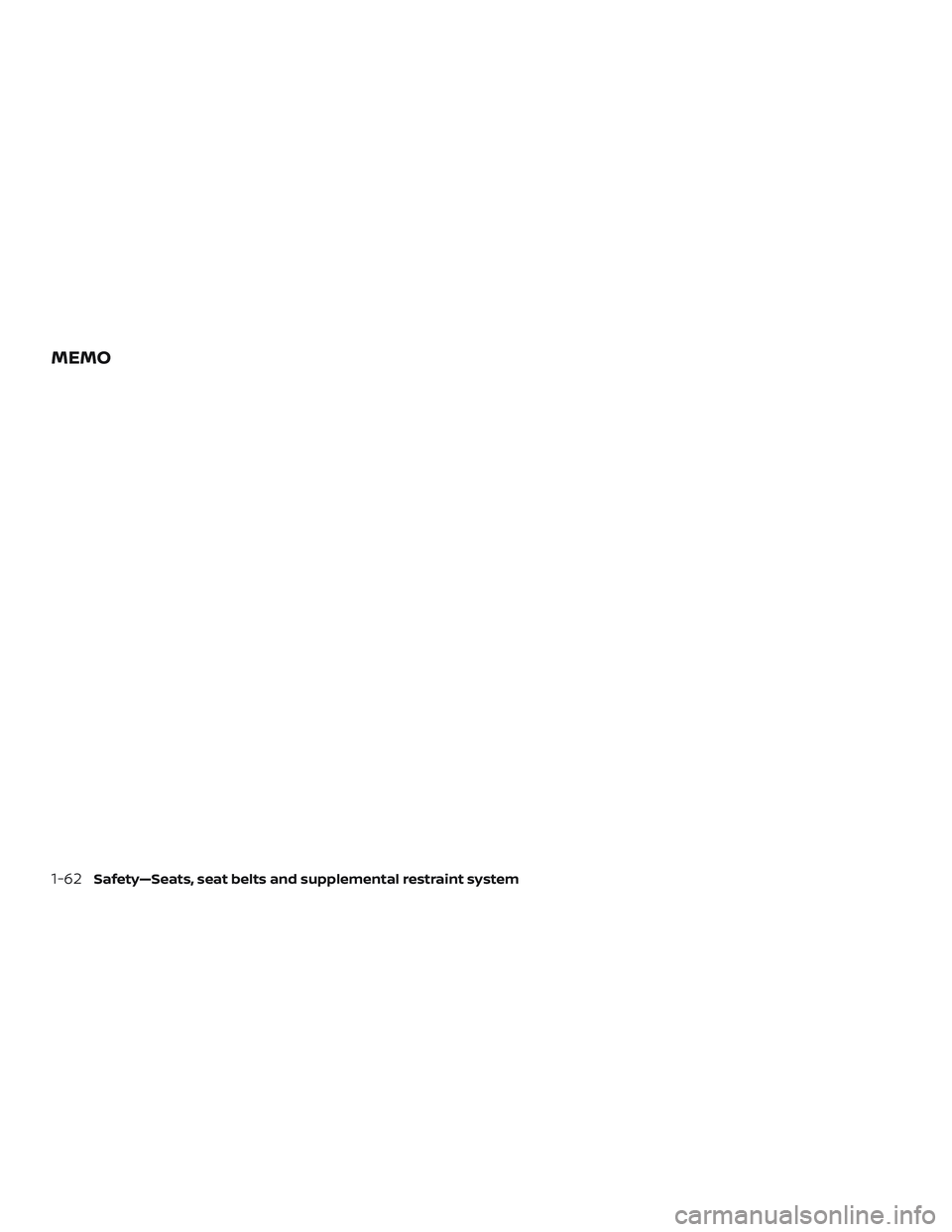

MEMO
1-62Safety—Seats, seat belts and supplemental restraint system

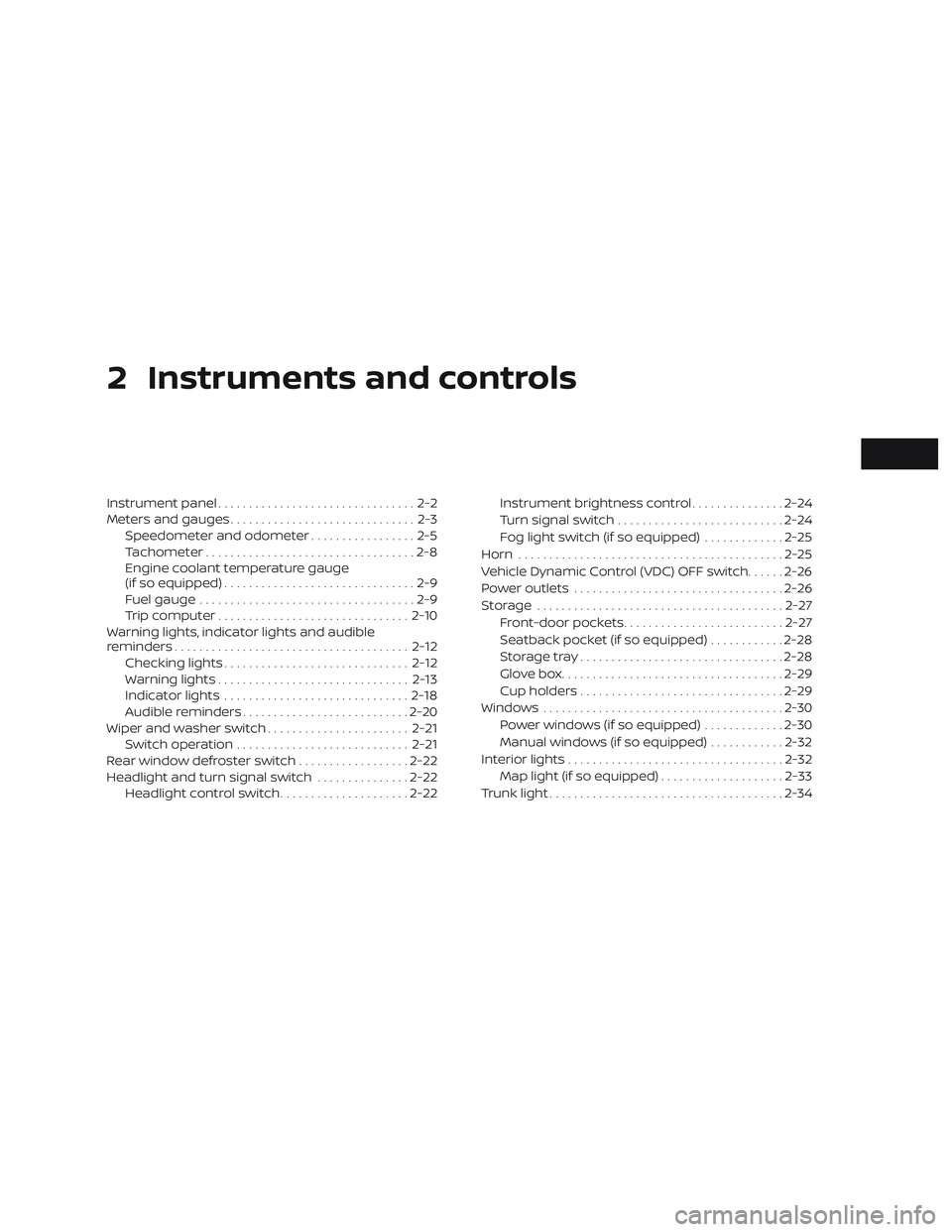

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-3
Speedometer and odometer .................2-5
Tachometer ..................................2-8
Engine coolant temperature gauge
(if so equipped) ...............................2-9
Fuel gauge ...................................2-9
Trip computer ............................... 2-10
Warning lights, indicator lights and audible
reminders ...................................... 2-12
Checking lights .............................. 2-12
Warning lights ............................... 2-13
Indicator lights .............................. 2-18
Audible reminders ........................... 2-20
Wiper and washer switch .......................2-21
Switch operation ............................ 2-21
Rear window defroster switch ..................2-22
Headlight and turn signal switch ...............2-22
Headlight control switch .....................2-22Instrument brightness control
...............2-24
Turn signal switch ........................... 2-24
Fog light switch (if so equipped) .............2-25
Horn ........................................... 2-25
Vehicle Dynamic Control (VDC) OFF switch ......2-26
Power outlets .................................. 2-26
Storage ........................................ 2-27
Front-door pockets .......................... 2-27
Seatback pocket (if so equipped) ............2-28
Storagetray................................. 2-28
Glovebox.................................... 2-29
Cup holders ................................. 2-29
Windows ....................................... 2-30
Power windows (if so equipped) .............2-30
Manual windows (if so equipped) ............2-32
Interior lights ................................... 2-32
Map light (if so equipped) ....................2-33
Trunk light ...................................... 2-34

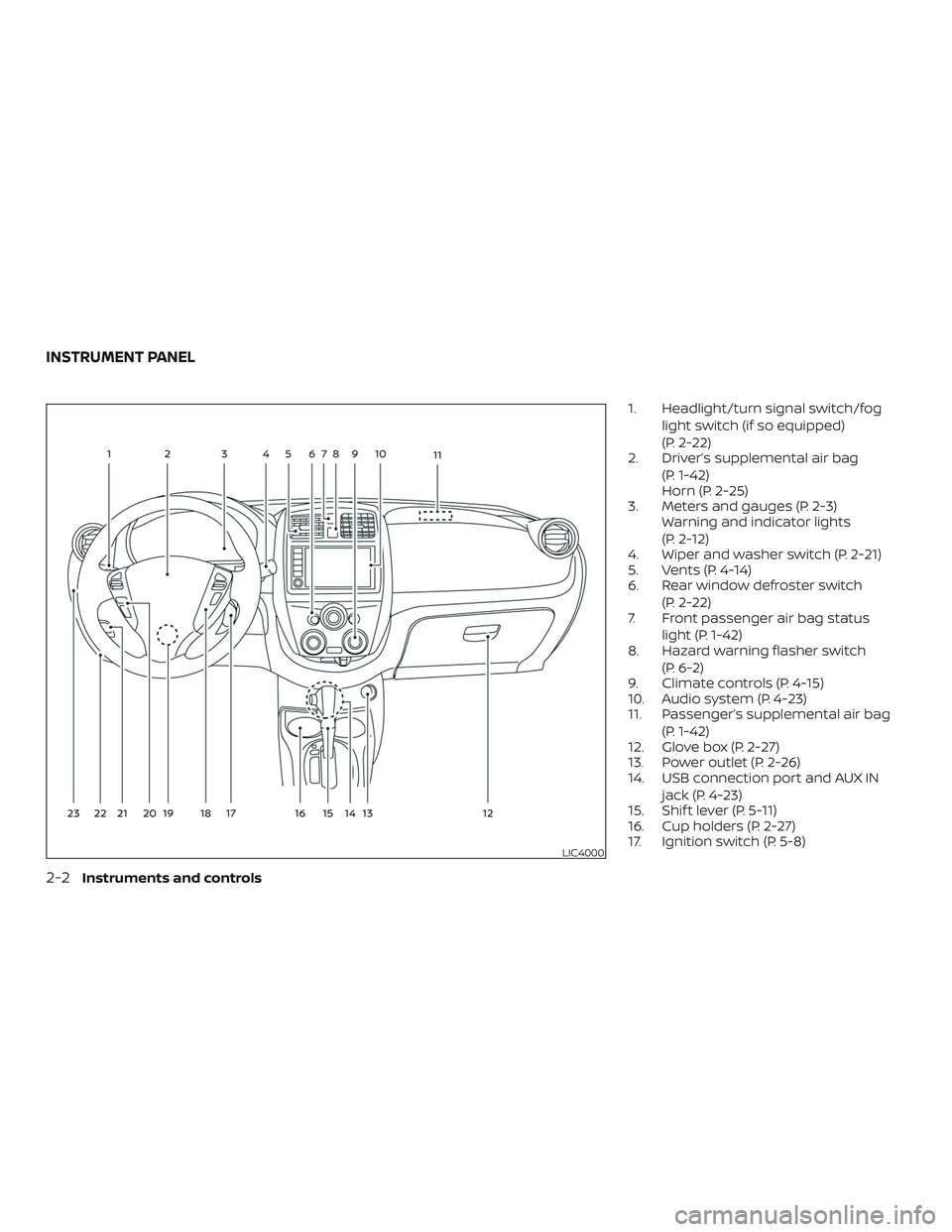

1. Headlight/turn signal switch/foglight switch (if so equipped)
(P. 2-22)
2. Driver’s supplemental air bag
(P. 1-42)
Horn (P. 2-25)
3. Meters and gauges (P. 2-3) Warning and indicator lights
(P. 2-12)
4. Wiper and washer switch (P. 2-21)
5. Vents (P. 4-14)
6. Rear window defroster switch
(P. 2-22)
7. Front passenger air bag status
light (P. 1-42)
8. Hazard warning flasher switch
(P. 6-2)
9. Climate controls (P. 4-15)
10. Audio system (P. 4-23)
11. Passenger’s supplemental air bag
(P. 1-42)
12. Glove box (P. 2-27)
13. Power outlet (P. 2-26)
14. USB connection port and AUX IN
jack (P. 4-23)
15. Shif t lever (P. 5-11)
16. Cup holders (P. 2-27)
17. Ignition switch (P. 5-8)
LIC4000
INSTRUMENT PANEL
2-2Instruments and controls

18. Cruise control switches(if so equipped) (P. 5-19)
19. Tilt steering (P. 3-16)
20. Audio control switches (P. 4-43) Bluetooth® Hands-Free Phone
System switches (P. 4-47)
21. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-26)
22. Fuel-filler door release lever (P. 3-14) Hood release lever (P. 3-11)
23. Electronic outside rearview mirror
control switch (P. 3-18)
Refer to the page number indicated in
parentheses for operating details.

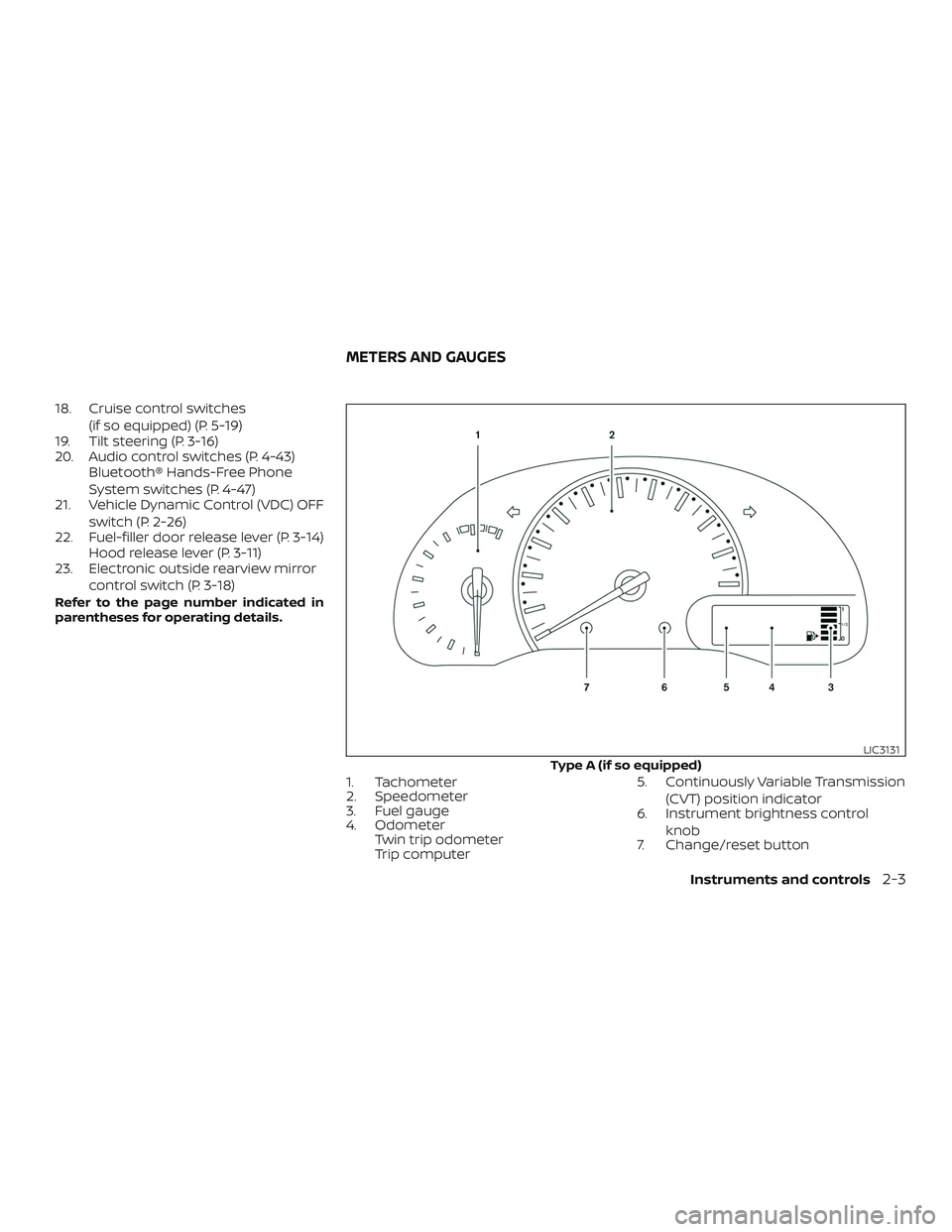

1. Tachometer
2. Speedometer
3. Fuel gauge
4. OdometerTwin trip odometer
Trip computer 5. Continuously Variable Transmission
(CVT) position indicator
6. Instrument brightness control
knob
7. Change/reset button
Type A (if so equipped)
LIC3131
METERS AND GAUGES
Instruments and controls2-3

CAUTION
∙ To clean the meter lens, use a sof tcloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water on the meter lens. Spraying liquid
may cause the systems to
malfunction.

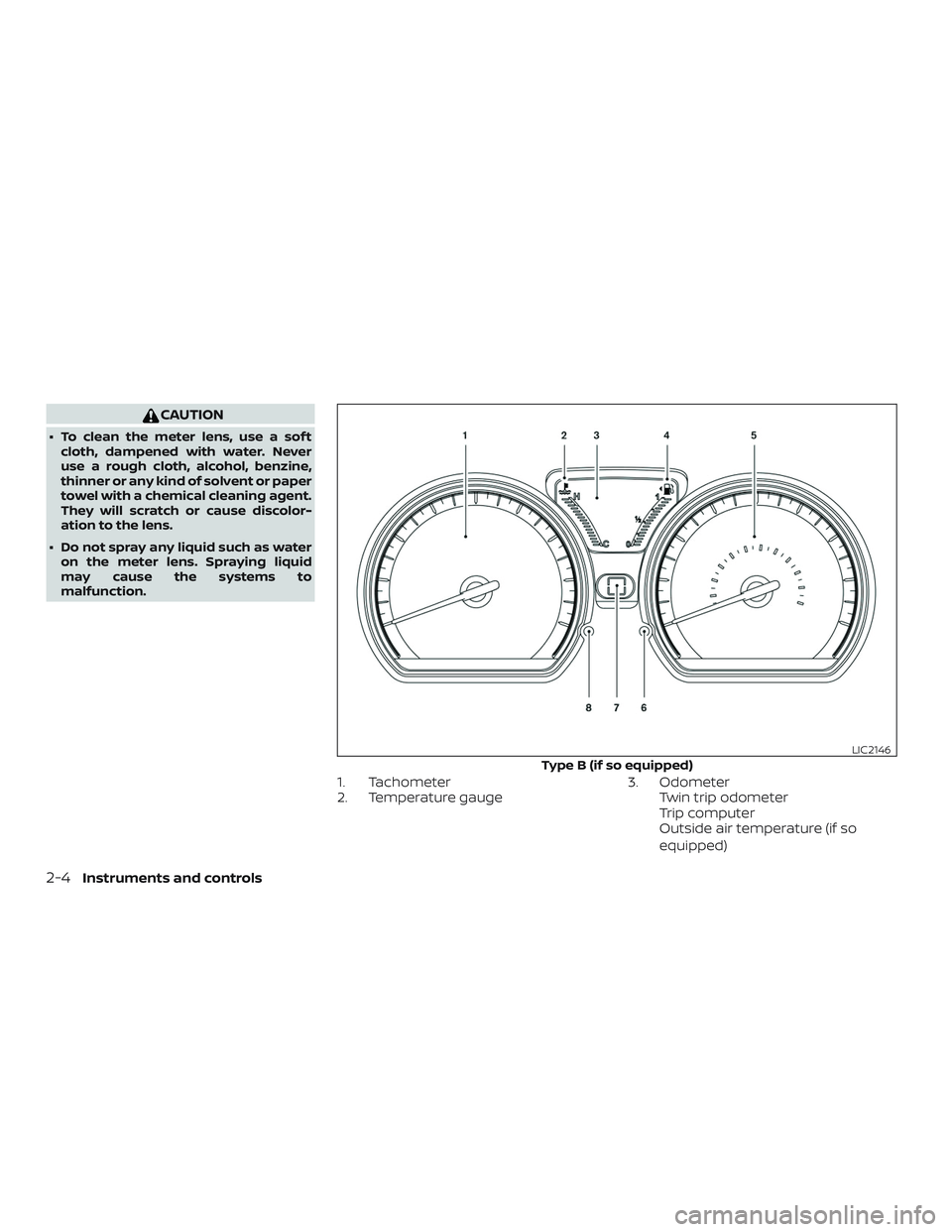

1. Tachometer
2. Temperature gauge 3. Odometer
Twin trip odometer
Trip computer
Outside air temperature (if so
equipped)
Type B (if so equipped)
LIC2146
2-4Instruments and controls

4. Fuel gauge
5. Speedometer
6. Change/reset button
7. Continuously Variable Transmis-sion (CVT) position indicator
8. Instrument brightness control
CAUTION
∙ To clean the meter lens, use a sof t
cloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water on the meter lens. Spraying liquid
may cause the systems to
malfunction.
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side or in the center of
the meter cluster. The odometer is located
within the trip computer.
Speedometer
The speedometer indicates vehicle speed.
Type A (if so equipped)
LIC2118
Type B (if so equipped)
LIC2136
Instruments and controls2-5

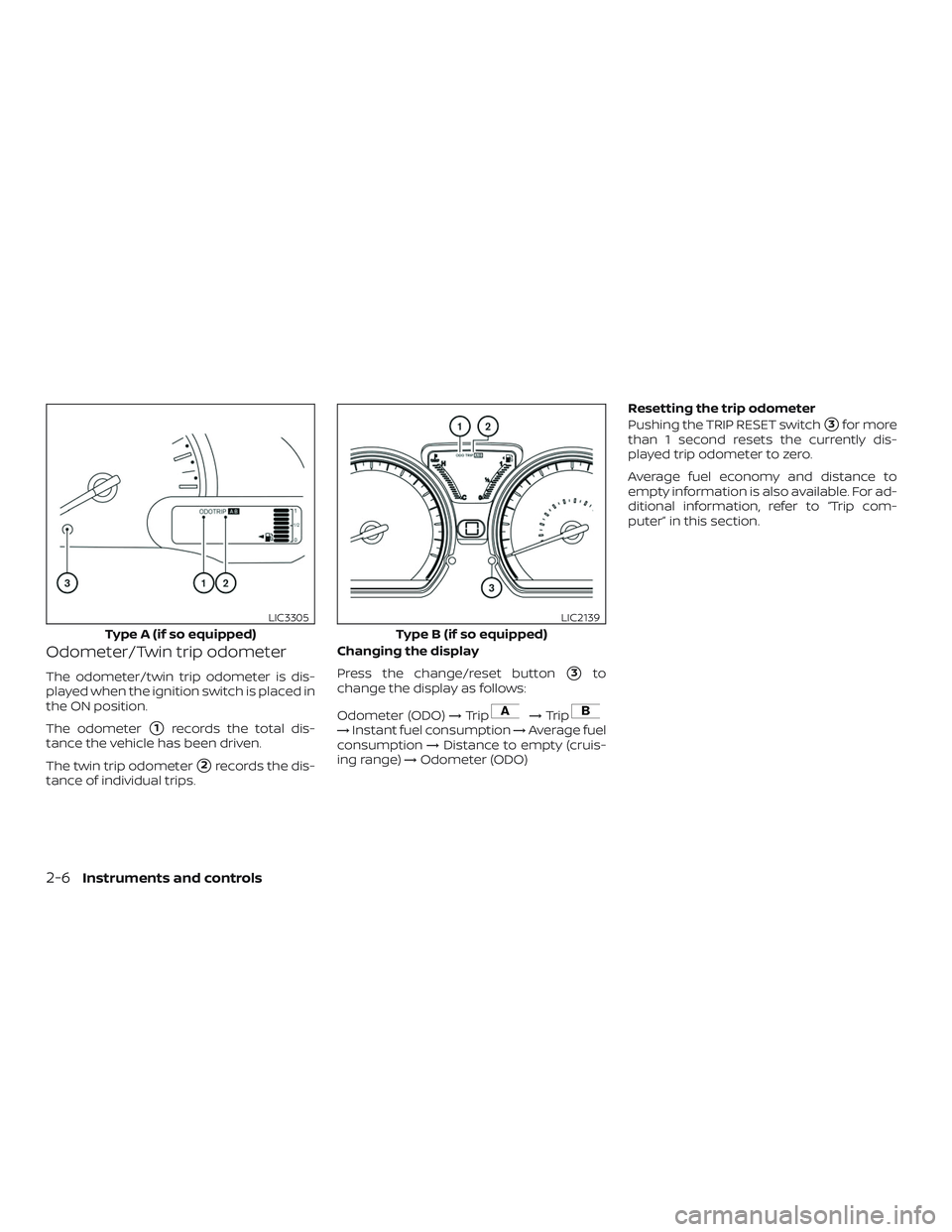

Odometer/Twin trip odometer
The odometer/twin trip odometer is dis-
played when the ignition switch is placed in
the ON position.
The odometer
1records the total dis-
tance the vehicle has been driven.
The twin trip odometer
2records the dis-
tance of individual trips. Changing the display
Press the change/reset button
3to
change the display as follows:
Odometer (ODO) →Trip
→Trip→Instant fuel consumption →Average fuel
consumption →Distance to empty (cruis-
ing range) →Odometer (ODO) Resetting the trip odometer
Pushing the TRIP RESET switch
3for more
than 1 second resets the currently dis-
played trip odometer to zero.
Average fuel economy and distance to
empty information is also available. For ad-
ditional information, refer to “Trip com-
puter” in this section.
Type A (if so equipped)
LIC3305
Type B (if so equipped)
LIC2139
2-6Instruments and controls
