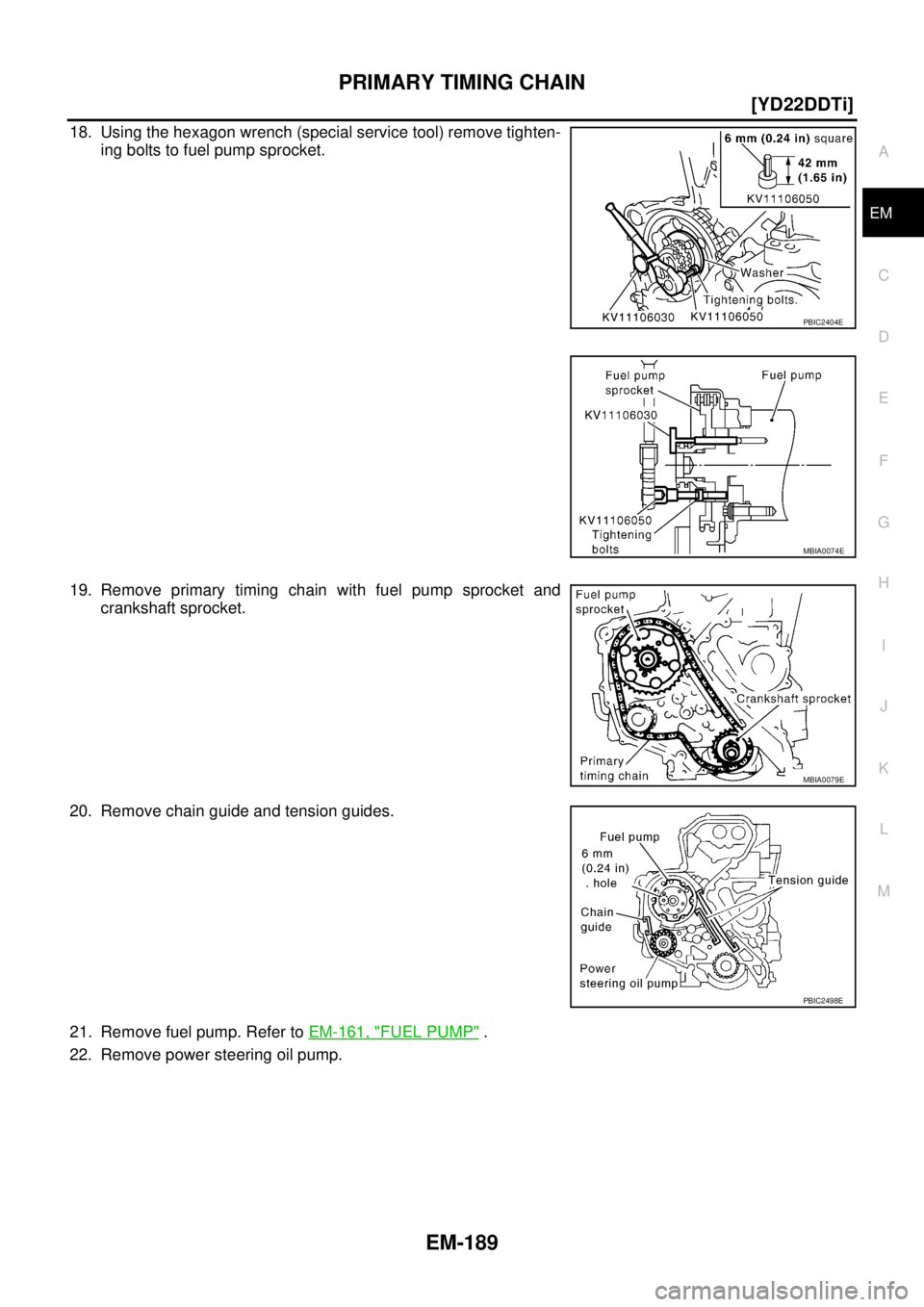

NISSAN X-TRAIL 2003 Service Repair Manual

PRIMARY TIMING CHAIN
EM-189
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

18. Using the hexagon wrench (special service tool) remove tighten-
ing bolts to fuel pump sprocket.
19. Remove primary timing chain with fuel pump sprocket and
crankshaft sprocket.
20. Remove chain guide and tension guides.
21. Remove fuel pump. Refer to EM-161, "
FUEL PUMP" .
22. Remove power steering oil pump.
PBIC2404E
MBIA0074E
MBIA0079E
PBIC2498E

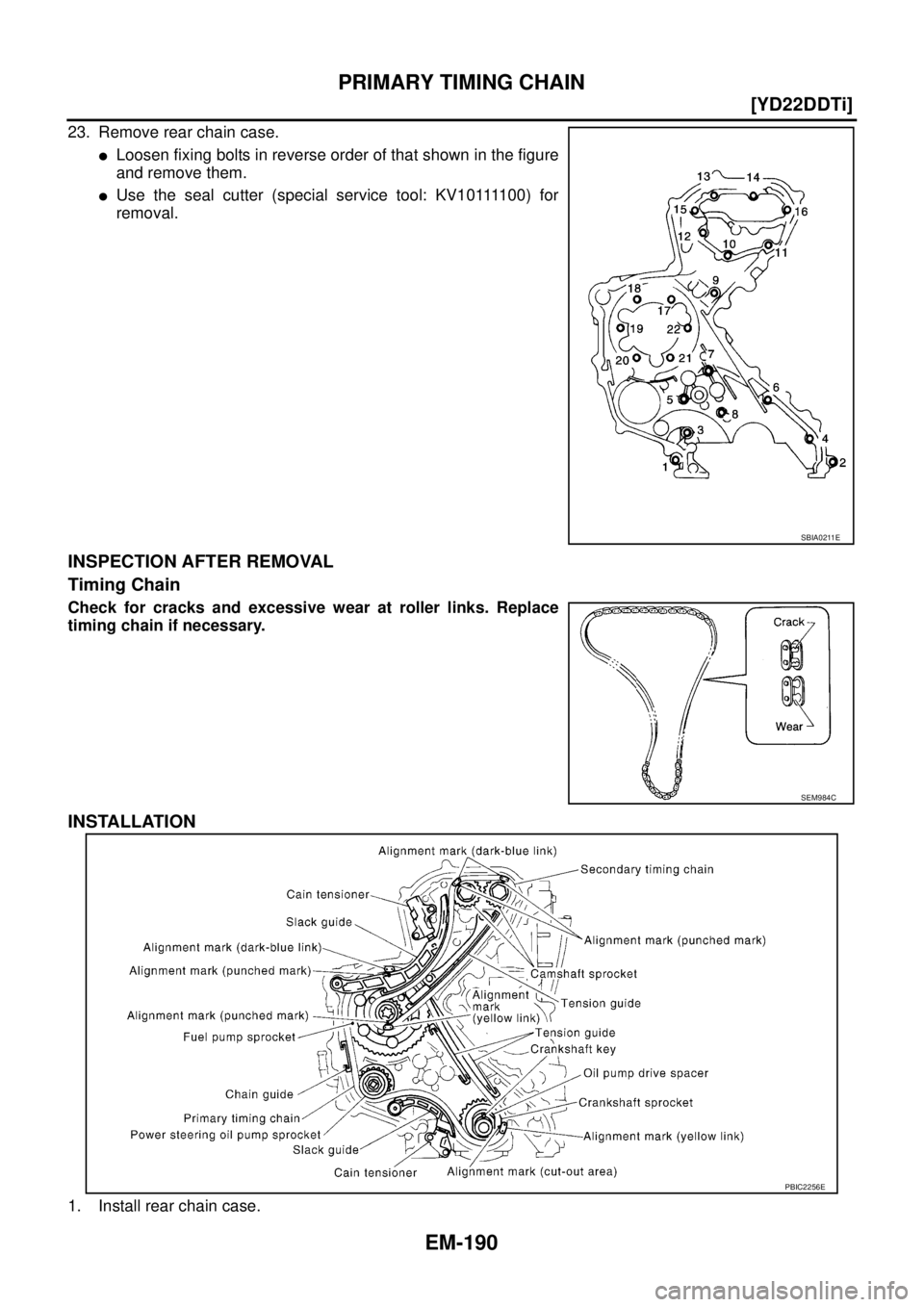

EM-190
[YD22DDTi]
PRIMARY TIMING CHAIN

23. Remove rear chain case.

Loosen fixing bolts in reverse order of that shown in the figure
and remove them.

U s e t h e s e a l c u t t e r ( s p e c i a l s e r v i c e t o o l : K V 1 0 1111 0 0 ) f o r
removal.
INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and excessive wear at roller links. Replace
timing chain if necessary.
INSTALLATION
1. Install rear chain case.
SBIA0211E
SEM984C
PBIC2256E

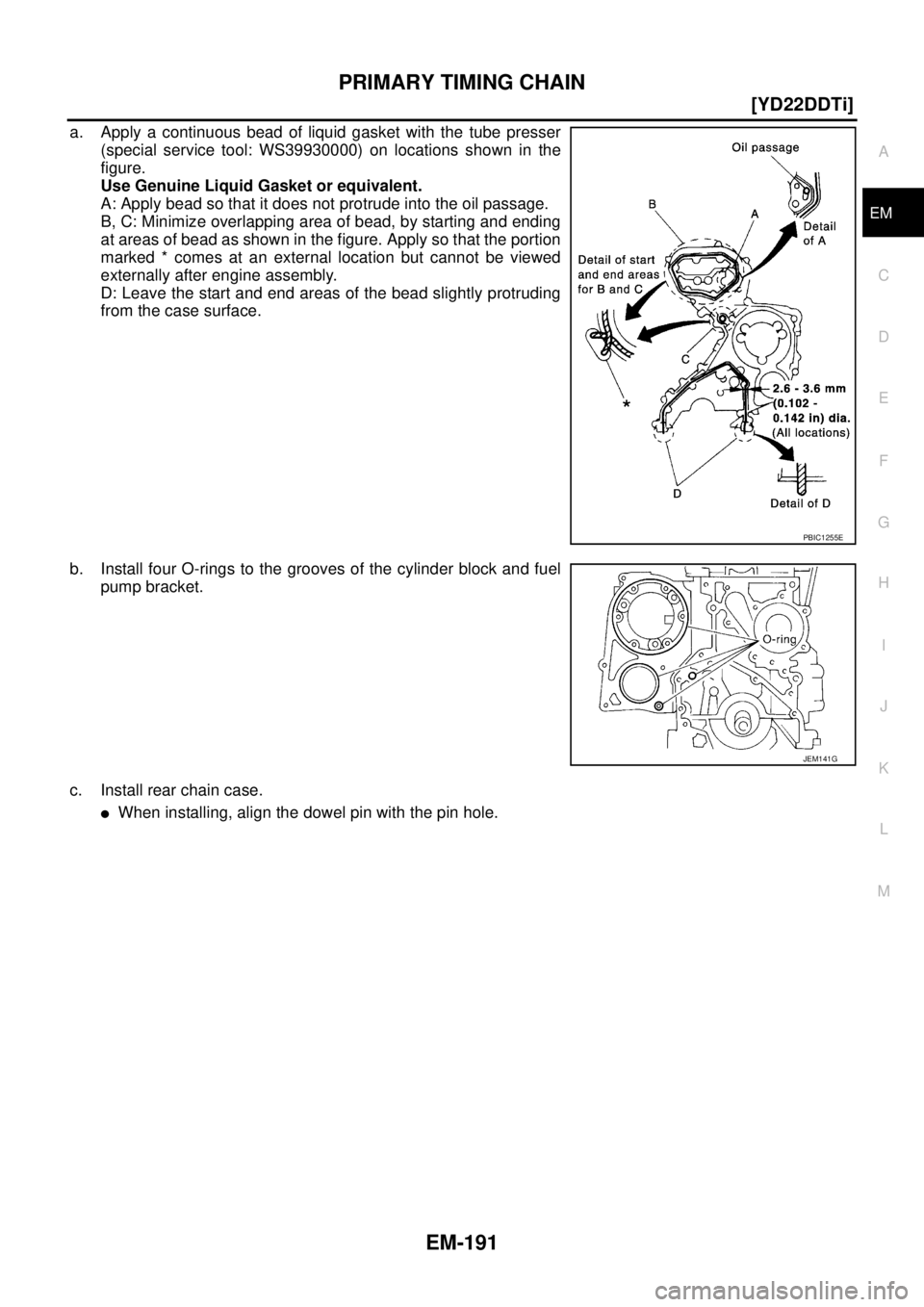

PRIMARY TIMING CHAIN
EM-191
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

a. Apply a continuous bead of liquid gasket with the tube presser
(special service tool: WS39930000) on locations shown in the
figure.
Use Genuine Liquid Gasket or equivalent.
A: Apply bead so that it does not protrude into the oil passage.
B, C: Minimize overlapping area of bead, by starting and ending
at areas of bead as shown in the figure. Apply so that the portion
marked * comes at an external location but cannot be viewed
externally after engine assembly.
D: Leave the start and end areas of the bead slightly protruding
from the case surface.
b. Install four O-rings to the grooves of the cylinder block and fuel
pump bracket.
c. Install rear chain case.

When installing, align the dowel pin with the pin hole.
PBIC1255E
JEM141G

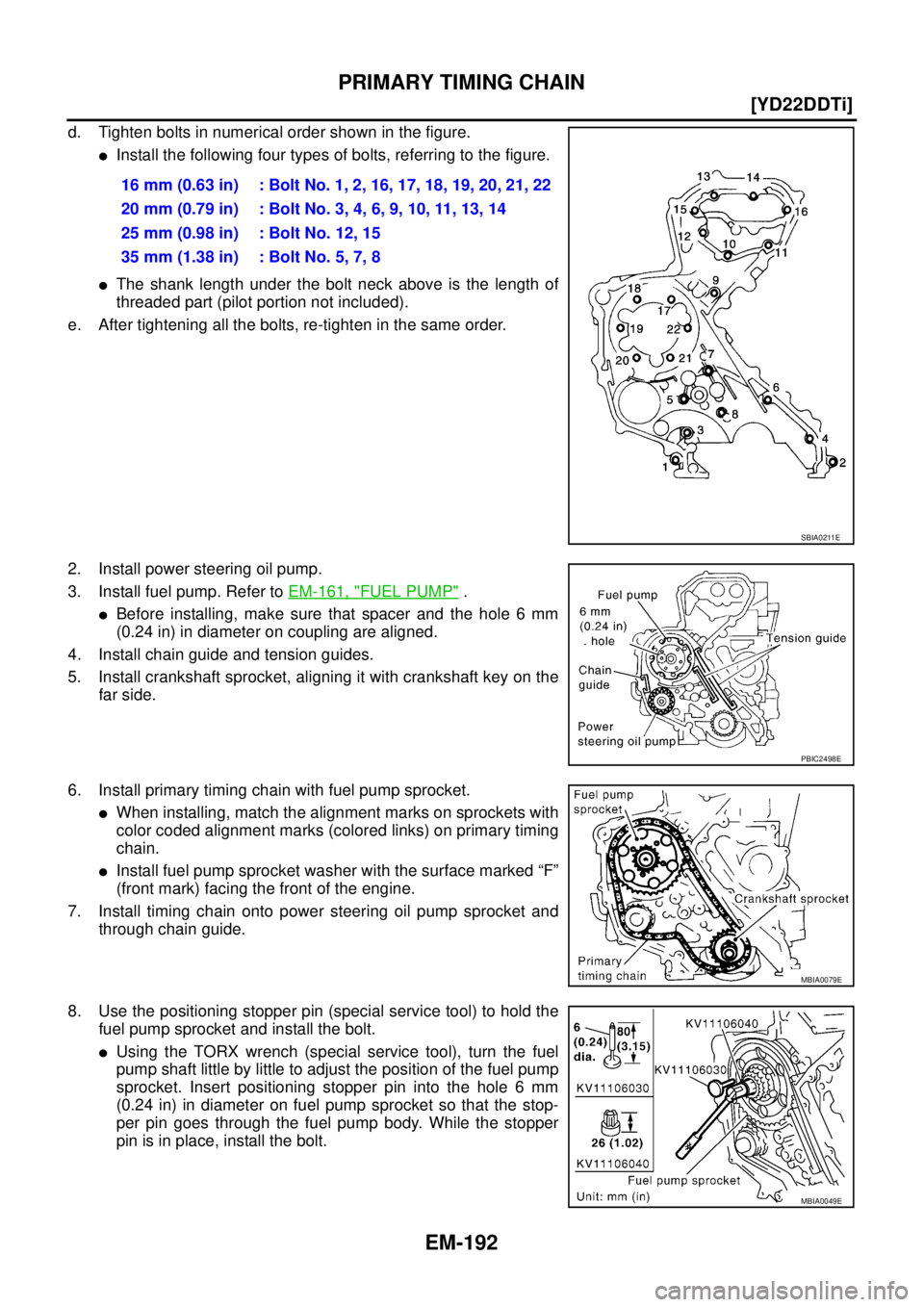

EM-192
[YD22DDTi]
PRIMARY TIMING CHAIN

d. Tighten bolts in numerical order shown in the figure.

Install the following four types of bolts, referring to the figure.

The shank length under the bolt neck above is the length of
threaded part (pilot portion not included).
e. After tightening all the bolts, re-tighten in the same order.
2. Install power steering oil pump.
3. Install fuel pump. Refer to EM-161, "
FUEL PUMP" .

Before installing, make sure that spacer and the hole 6 mm
(0.24 in) in diameter on coupling are aligned.
4. Install chain guide and tension guides.
5. Install crankshaft sprocket, aligning it with crankshaft key on the
far side.
6. Install primary timing chain with fuel pump sprocket.

When installing, match the alignment marks on sprockets with
color coded alignment marks (colored links) on primary timing
chain.

Install fuel pump sprocket washer with the surface marked “F”
(front mark) facing the front of the engine.
7. Install timing chain onto power steering oil pump sprocket and
through chain guide.
8. Use the positioning stopper pin (special service tool) to hold the
fuel pump sprocket and install the bolt.

Using the TORX wrench (special service tool), turn the fuel
pump shaft little by little to adjust the position of the fuel pump
sprocket. Insert positioning stopper pin into the hole 6 mm
(0.24 in) in diameter on fuel pump sprocket so that the stop-
per pin goes through the fuel pump body. While the stopper
pin is in place, install the bolt.16 mm (0.63 in) : Bolt No. 1, 2, 16, 17, 18, 19, 20, 21, 22
20 mm (0.79 in) : Bolt No. 3, 4, 6, 9, 10, 11, 13, 14
25 mm (0.98 in) : Bolt No. 12, 15
35 mm (1.38 in) : Bolt No. 5, 7, 8
SBIA0211E
PBIC2498E
MBIA0079E
MBIA0049E

PRIMARY TIMING CHAIN
EM-193
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

9. Install timing chain slack guide.
10. Install chain tensioner.

Push the plunger of the chain tensioner. While keeping
plunger pressed down with a push pin, etc., install chain ten-
sioner.

After installation, pull out the push pin holding the plunger.
CAUTION:
Check again that the alignment marks on sprockets and the
colored alignment marks on timing chain are aligned.
11. Install front oil seal to oil pump housing.

Using the suitable drift [62 mm (2.44 in) dia.], force fit the seal
until it hits the bottom.
CAUTION:
Do not touch lips of oil seal. Make sure seal surfaces are
free of foreign materials.
12. Install power steering oil pump cover to oil pump housing.

Apply a continuous bead of liquid gasket with the tube presser
(special service tool: WS39930000) as shown in the figure.
Use Genuine Liquid Gasket or equivalent.

Apply liquid gasket on oil pump-side surface.
13. Install oil pump housing.
PBIC2404E
JEM134G
JEM142G
JEM143G

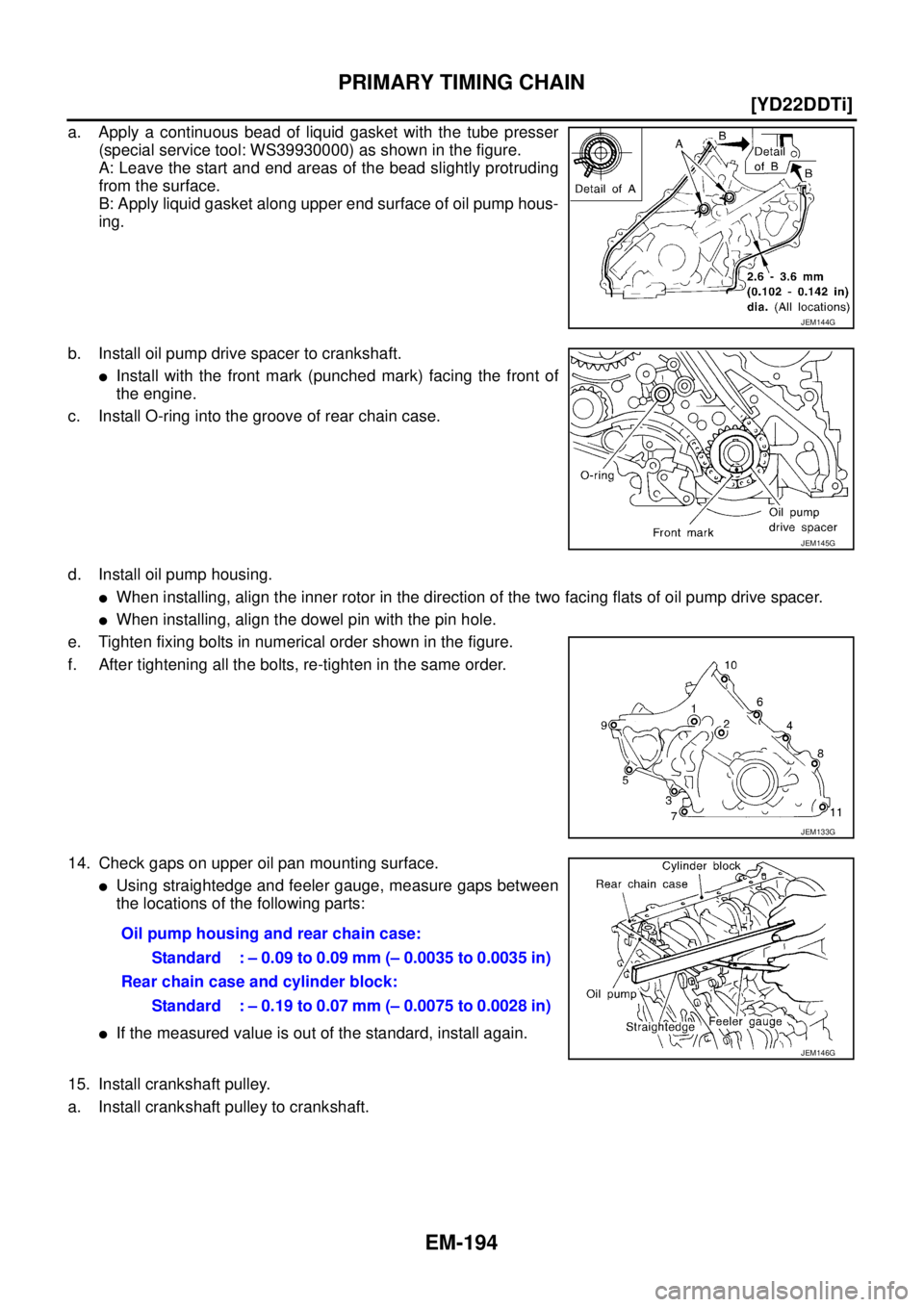

EM-194
[YD22DDTi]
PRIMARY TIMING CHAIN

a. Apply a continuous bead of liquid gasket with the tube presser
(special service tool: WS39930000) as shown in the figure.
A: Leave the start and end areas of the bead slightly protruding
from the surface.
B: Apply liquid gasket along upper end surface of oil pump hous-
ing.
b. Install oil pump drive spacer to crankshaft.

Install with the front mark (punched mark) facing the front of
the engine.
c. Install O-ring into the groove of rear chain case.
d. Install oil pump housing.

When installing, align the inner rotor in the direction of the two facing flats of oil pump drive spacer.

When installing, align the dowel pin with the pin hole.
e. Tighten fixing bolts in numerical order shown in the figure.
f. After tightening all the bolts, re-tighten in the same order.
14. Check gaps on upper oil pan mounting surface.

Using straightedge and feeler gauge, measure gaps between
the locations of the following parts:

If the measured value is out of the standard, install again.
15. Install crankshaft pulley.
a. Install crankshaft pulley to crankshaft.
JEM144G
JEM145G
JEM133G
Oil pump housing and rear chain case:
Standard : – 0.09 to 0.09 mm (– 0.0035 to 0.0035 in)
Rear chain case and cylinder block:
Standard : – 0.19 to 0.07 mm (– 0.0075 to 0.0028 in)
JEM146G

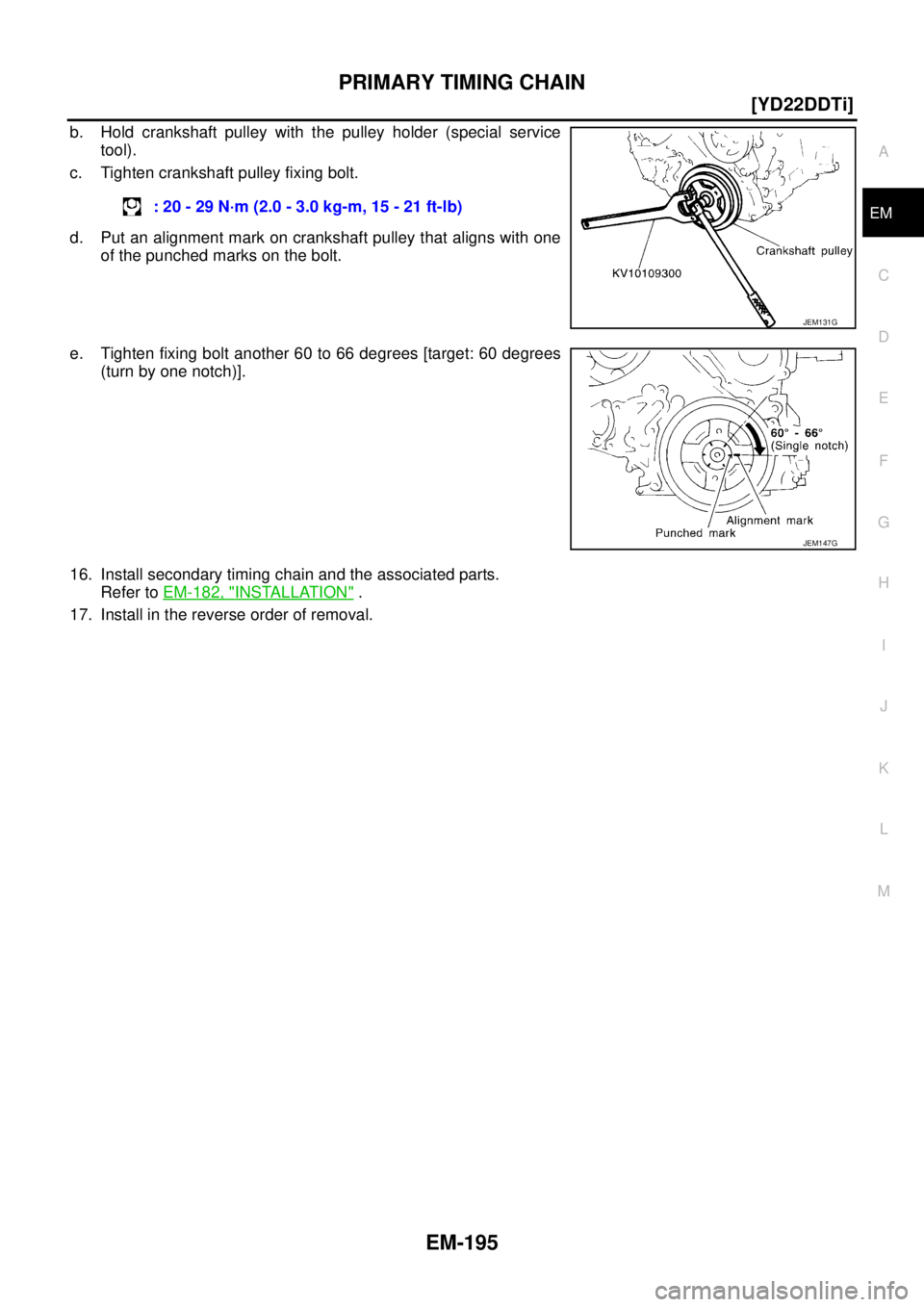

PRIMARY TIMING CHAIN
EM-195
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

b. Hold crankshaft pulley with the pulley holder (special service
tool).
c. Tighten crankshaft pulley fixing bolt.
d. Put an alignment mark on crankshaft pulley that aligns with one
of the punched marks on the bolt.
e. Tighten fixing bolt another 60 to 66 degrees [target: 60 degrees
(turn by one notch)].
16. Install secondary timing chain and the associated parts.
Refer to EM-182, "
INSTALLATION" .
17. Install in the reverse order of removal.: 20 - 29 N·m (2.0 - 3.0 kg-m, 15 - 21 ft-lb)
JEM131G
JEM147G

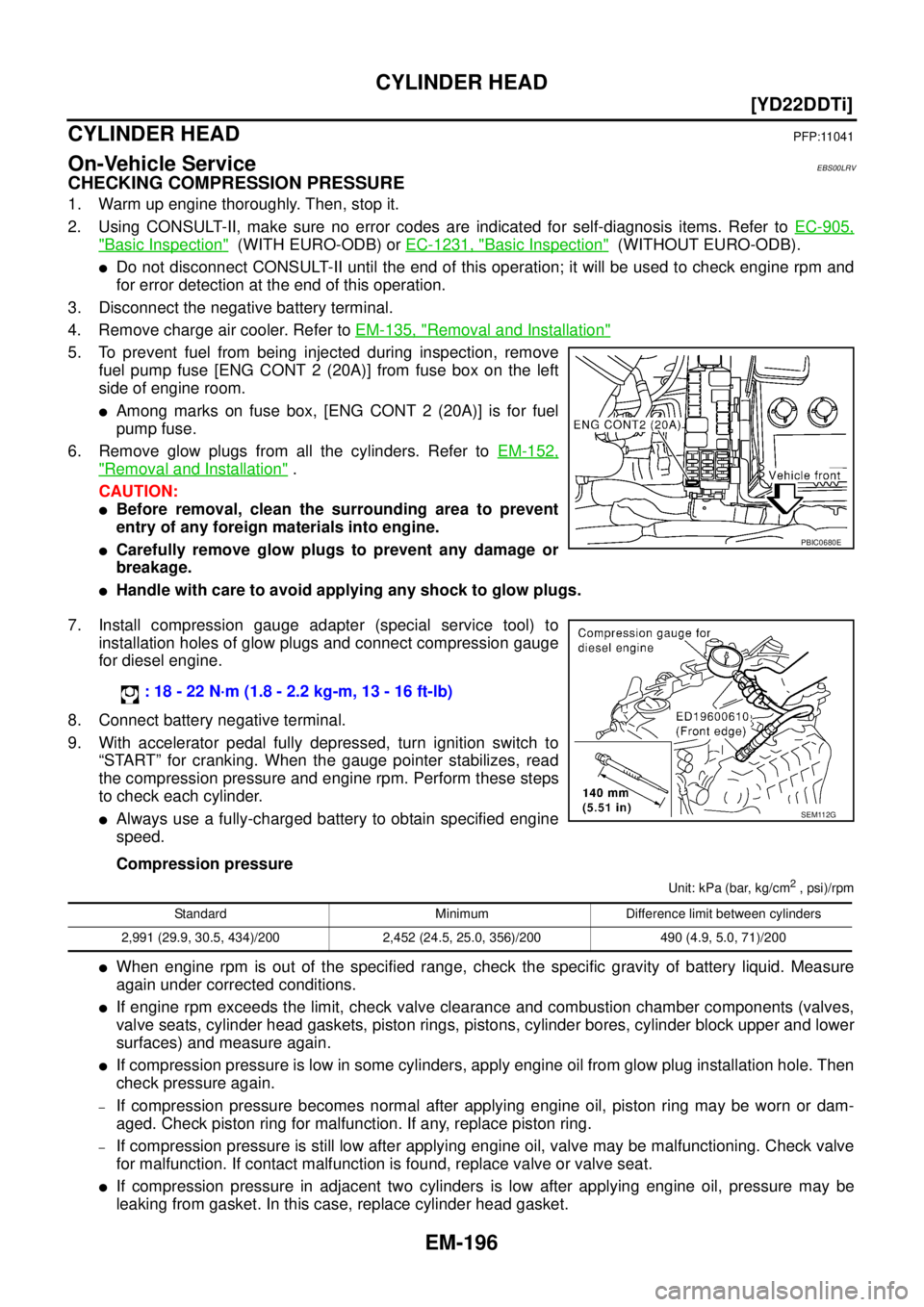

EM-196
[YD22DDTi]
CYLINDER HEAD

CYLINDER HEADPFP:11041
On-Vehicle ServiceEBS00LRV
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then, stop it.
2. Using CONSULT-II, make sure no error codes are indicated for self-diagnosis items. Refer to EC-905,
"Basic Inspection" (WITH EURO-ODB) or EC-1231, "Basic Inspection" (WITHOUT EURO-ODB).

Do not disconnect CONSULT-II until the end of this operation; it will be used to check engine rpm and
for error detection at the end of this operation.
3. Disconnect the negative battery terminal.
4. Remove charge air cooler. Refer to EM-135, "
Removal and Installation"
5. To prevent fuel from being injected during inspection, remove
fuel pump fuse [ENG CONT 2 (20A)] from fuse box on the left
side of engine room.

Among marks on fuse box, [ENG CONT 2 (20A)] is for fuel
pump fuse.
6. Remove glow plugs from all the cylinders. Refer to EM-152,
"Removal and Installation" .
CAUTION:

Before removal, clean the surrounding area to prevent
entry of any foreign materials into engine.

Carefully remove glow plugs to prevent any damage or
breakage.

Handle with care to avoid applying any shock to glow plugs.
7. Install compression gauge adapter (special service tool) to
installation holes of glow plugs and connect compression gauge
for diesel engine.
8. Connect battery negative terminal.
9. With accelerator pedal fully depressed, turn ignition switch to
“START” for cranking. When the gauge pointer stabilizes, read
the compression pressure and engine rpm. Perform these steps
to check each cylinder.

Always use a fully-charged battery to obtain specified engine
speed.
Compression pressure
Unit: kPa (bar, kg/cm2 , psi)/rpm

When engine rpm is out of the specified range, check the specific gravity of battery liquid. Measure
again under corrected conditions.

If engine rpm exceeds the limit, check valve clearance and combustion chamber components (valves,
valve seats, cylinder head gaskets, piston rings, pistons, cylinder bores, cylinder block upper and lower
surfaces) and measure again.

If compression pressure is low in some cylinders, apply engine oil from glow plug installation hole. Then
check pressure again.
–If compression pressure becomes normal after applying engine oil, piston ring may be worn or dam-
aged. Check piston ring for malfunction. If any, replace piston ring.
–If compression pressure is still low after applying engine oil, valve may be malfunctioning. Check valve
for malfunction. If contact malfunction is found, replace valve or valve seat.

If compression pressure in adjacent two cylinders is low after applying engine oil, pressure may be
leaking from gasket. In this case, replace cylinder head gasket.
PBIC0680E
: 18 - 22 N·m (1.8 - 2.2 kg-m, 13 - 16 ft-lb)
SEM112G
Standard Minimum Difference limit between cylinders
2,991 (29.9, 30.5, 434)/200 2,452 (24.5, 25.0, 356)/200 490 (4.9, 5.0, 71)/200

CYLINDER HEAD
EM-197
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

10. Complete this operation as follows:
a. Turn the ignition switch to “OFF”.
b. Disconnect battery negative terminal.
c. Install glow plug and install all the parts removed in step 4.
d. Install fuel pump fuse [ENG CONT (20A)].
e. Connect battery negative terminal.
f. Using CONSULT-II make sure no DTC is indicated for items of self-diagnosis.

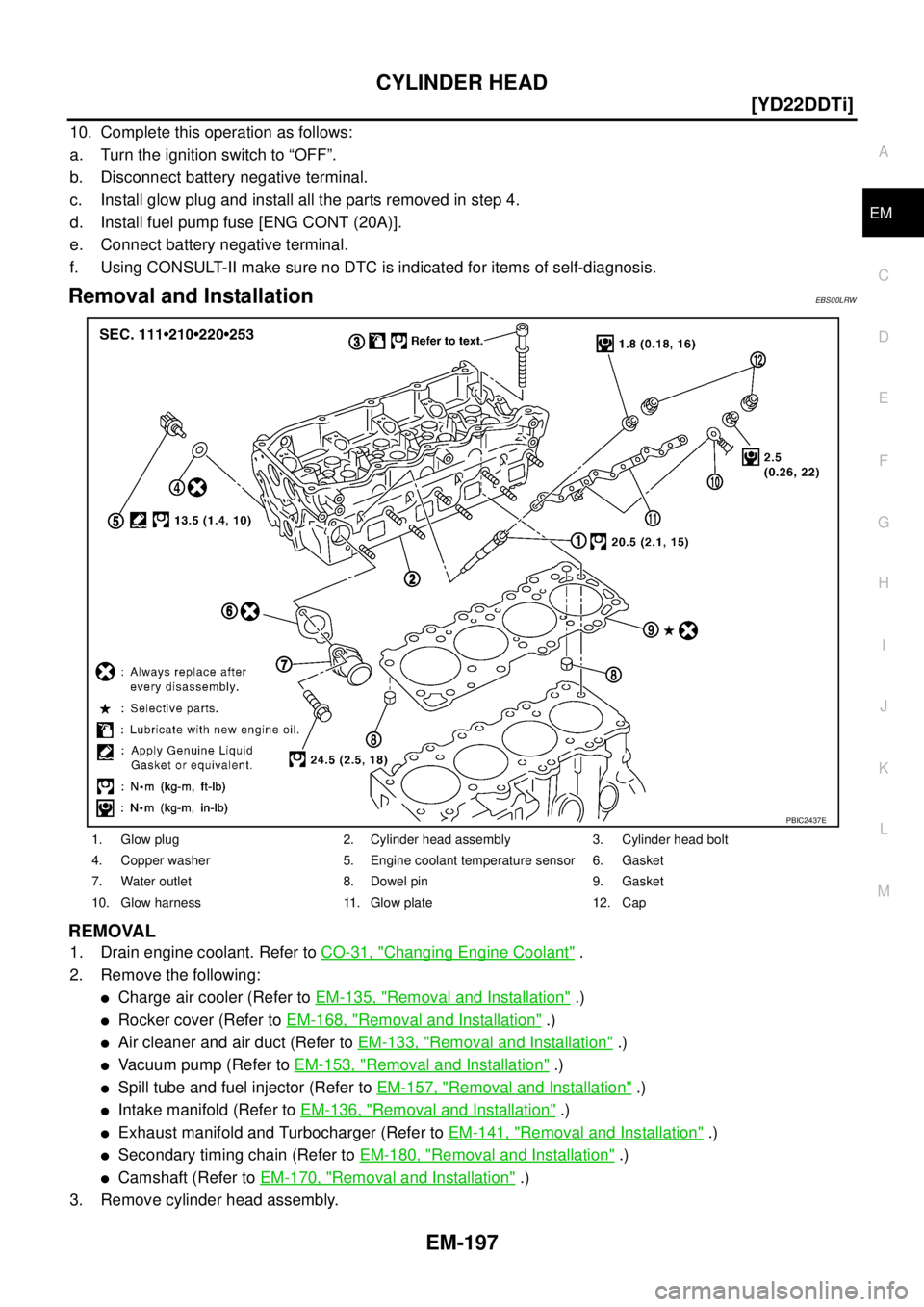

Removal and InstallationEBS00LRW
REMOVAL
1. Drain engine coolant. Refer to CO-31, "Changing Engine Coolant" .
2. Remove the following:

Charge air cooler (Refer to EM-135, "Removal and Installation" .)

Rocker cover (Refer to EM-168, "Removal and Installation" .)

Air cleaner and air duct (Refer to EM-133, "Removal and Installation" .)

Vacuum pump (Refer to EM-153, "Removal and Installation" .)

Spill tube and fuel injector (Refer to EM-157, "Removal and Installation" .)

Intake manifold (Refer to EM-136, "Removal and Installation" .)

Exhaust manifold and Turbocharger (Refer to EM-141, "Removal and Installation" .)

Secondary timing chain (Refer to EM-180, "Removal and Installation" .)

Camshaft (Refer to EM-170, "Removal and Installation" .)
3. Remove cylinder head assembly.
1. Glow plug 2. Cylinder head assembly 3. Cylinder head bolt
4. Copper washer 5. Engine coolant temperature sensor 6. Gasket
7. Water outlet 8. Dowel pin 9. Gasket
10. Glow harness 11. Glow plate 12. Cap
PBIC2437E

EM-198
[YD22DDTi]
CYLINDER HEAD


Remove cylinder head bolts in reverse order as shown in the
figure with the cylinder head bolt wrench (commercial service
tool).

Lift up cylinder head assembly to avoid interference with
dowel pins located between the cylinder block and cylinder
head, and remove cylinder head assembly.
CAUTION:
Remove glow plug in advance to avoid damage as the tip
of the glow plug projects from the bottom of cylinder
head, or, place wood blocks beneath both ends of cylin-
der head to keep the cylinder bottom from any contact.

For glow plug removal, the following shall be noted.
CAUTION:

To avoid breakage, do not remove glow plug unless necessary.

Perform continuity test with glow plug installed.

Keep glow plug from any impact. [Replace if dropped from a height 10 cm (3.94 in) or higher.]

Do not use air impact wrench.
INSPECTION AFTER REMOVAL
Cylinder Head Bolt Deformation

Using micrometer, measure the outer diameters d1 and d2 of
bolt thread as shown in the figure.

If the necking point can be identified, set it as measuring point
d1.

Calculate the difference between d1 and d2.

If it exceeds the limit, replace cylinder head bolt.
Cylinder Head Distortion
1. Wipe off oil and remove water scale (like deposit), gasket, sealer, carbon, etc. with scraper.
CAUTION:
Use utmost care not to allow gasket debris to enter passages for oil or water.
2. At each of several locations on bottom surface of cylinder head,
measure distortion in six directions.

If it exceeds the limit, replace cylinder head.
JEM149G
Limit : 0.15 mm (0.0059 in)
JEM171G
Limit : 0.1mm (0.004 in)
SEM496G
