New adjusting shims have the thickness stamped on the rear
side.

Shims are available in 33 size from 2.10 mm (0.0827 in) to
2.74 mm (0.1079 in), in steps of 0.02 mm (0.0008 in).
10. Fit the selected adjusting shim to valve lifter.
CAUTION:
Place the stamped side of adjusting shim to valve lifter.
11. Compress valve spring using the camshaft pliers (special service tool: KV10115110) and remove the lifter
stopper (special service tool).
12. Rotate crankshaft 2 to 3 turns by hand.
13. Confirm that the valve clearance is within the specification.
Valve clearance:
*: Reference data approximately 80°C (176°F)
14. Install remaining parts in the reverse order of removal.
Stamped mark Shim thickness mm (in)
2.10
2.12
·
·
·
2.74 2.10 (0.0827)
2.12 (0.0835)
·
·
·
2.74 (0.1079)
JEM184G
PBIC2325E
Item Cold Hot* (Reference data)
Intake 0.24 -0.32 (0.0094 - 0.0126) 0.274 - 0.386 (0.0108 - 0.0152)
Exhaust 0.26 - 0.34 (0.0102 - 0.0134) 0.308 - 0.432 (0.0121 - 0.0170)

EM-180
[YD22DDTi]
SECONDARY TIMING CHAIN

SECONDARY TIMING CHAINPFP:13028
Removal and InstallationEBS00LRT
CAUTION:

After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.

When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting
surfaces with new engine oil.
REMOVAL

For preparative work for removing/installing secondary timing chain to remove/install fuel pump, refer to
EM-161, "
FUEL PUMP" .

To prepare for removing/installing secondary timing chain to remove/install camshaft, refer to EM-170,
"Removal and Installation" .
1. Remove engine coolant reservoir tank. Refer to CO-34, "
RADIATOR" .
2. Remove RH engine mounting insulator and bracket. Refer to EM-208, "
Removal and Installation" .
3. Pull power steering reservoir tank out of brackets to move power steering piping. Refer to PS-34,
"HYDRAULIC LINE" .
CAUTION:
To avoid removing power steering reservoir tank out of brackets, move it with power steering pip-
ing aside.
4. Remove front chain case.
1. Chain tensioner 2. Spring 3. Plunger
4. Slack guide 5. Front chain case 6. Rubber washer
7. Tension guide 8. Gasket 9. Secondary timing chain
PBIC2326E

SECONDARY TIMING CHAIN
EM-181
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM


Loosen fixing bolts in reverse order of that shown in the figure
and remove them.

Remove No. 6, 10 and 11 bolts with the rubber washer as
space is limited for pulling them out.
CAUTION:

While front chain case is removed, cover openings to
prevent entry of foreign material into engine.

Do not remove two mass dampers on the back of
cover.
5. Set the No. 1 piston to TDC on its compression stroke.

Turn crankshaft pulley clockwise so that the alignment mark
(punched mark) on each camshaft sprocket is positioned as
shown in the figure.

No position indicator is provided on crankshaft pulley.

When installing, color coded links on secondary timing
chain can be used as alignment marks. Marking may not
be necessary for removal; however, make alignment
marks as required because the alignment mark on fuel
pump sprocket may not be easy to see.
6. Remove chain tensioner.
a. Push the plunger of chain tensioner and keep it pressed with a
push pin.
JEM121G
SBIA0189E
SEM515G
JEM124G

EM-182
[YD22DDTi]
SECONDARY TIMING CHAIN

b. Using the hexagon wrench (special service tool), remove bolts
to remove chain tensioner.
7. Remove slack guide.

Using the hexagon wrench (special service tool), remove bolt
to remove slack guide.
8. Remove tension guide.
9. Remove secondary timing chain.

Timing chain alone can be removed without removing sprock-
ets.
INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and excessive wear at roller links. Replace
timing chain if necessary.
INSTALLATION

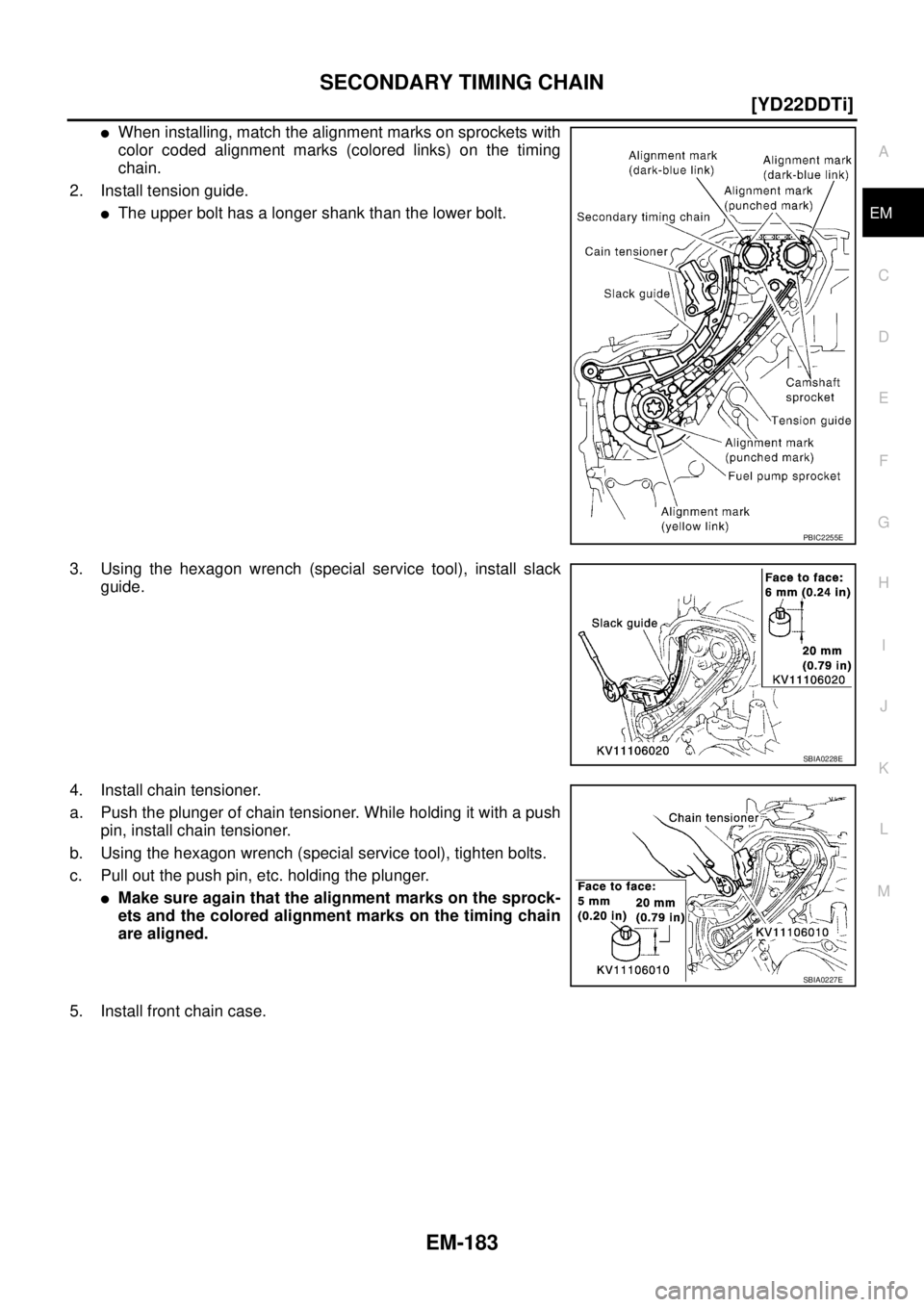

1. Install secondary timing chain.
SBIA0227E
SBIA0228E
JEM127G
SEM984C

SECONDARY TIMING CHAIN
EM-183
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM


When installing, match the alignment marks on sprockets with
color coded alignment marks (colored links) on the timing
chain.
2. Install tension guide.

The upper bolt has a longer shank than the lower bolt.
3. Using the hexagon wrench (special service tool), install slack
guide.
4. Install chain tensioner.
a. Push the plunger of chain tensioner. While holding it with a push
pin, install chain tensioner.
b. Using the hexagon wrench (special service tool), tighten bolts.
c. Pull out the push pin, etc. holding the plunger.

Make sure again that the alignment marks on the sprock-
ets and the colored alignment marks on the timing chain
are aligned.
5. Install front chain case.
PBIC2255E
SBIA0228E
SBIA0227E

EM-184
[YD22DDTi]
SECONDARY TIMING CHAIN

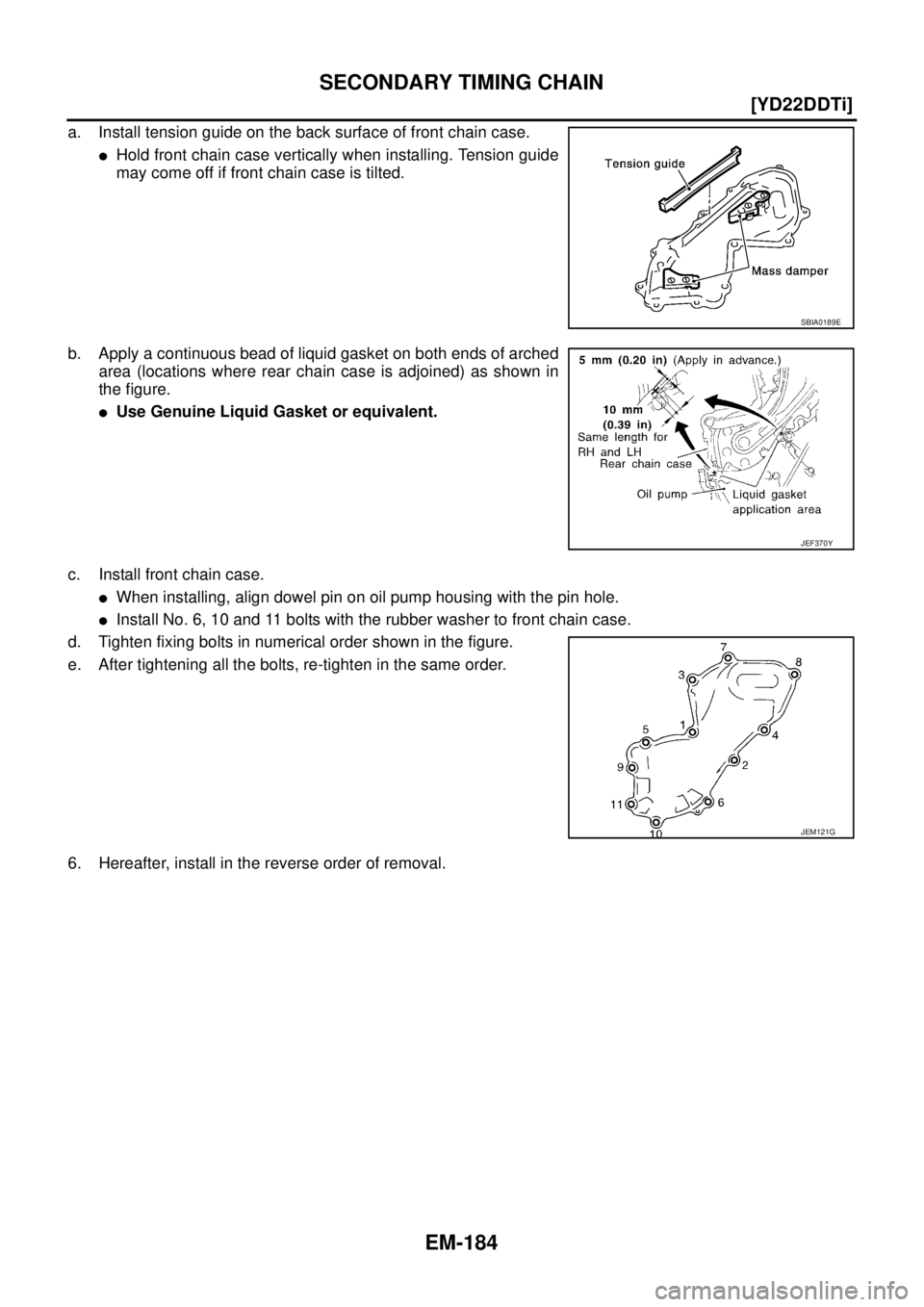

a. Install tension guide on the back surface of front chain case.

Hold front chain case vertically when installing. Tension guide
may come off if front chain case is tilted.
b. Apply a continuous bead of liquid gasket on both ends of arched
area (locations where rear chain case is adjoined) as shown in
the figure.

Use Genuine Liquid Gasket or equivalent.
c. Install front chain case.

When installing, align dowel pin on oil pump housing with the pin hole.

Install No. 6, 10 and 11 bolts with the rubber washer to front chain case.
d. Tighten fixing bolts in numerical order shown in the figure.
e. After tightening all the bolts, re-tighten in the same order.
6. Hereafter, install in the reverse order of removal.
SBIA0189E
JEF370Y
JEM121G

PRIMARY TIMING CHAIN
EM-185
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

PRIMARY TIMING CHAINPFP:13028
Removal and InstallationEBS00LRU
CAUTION:

After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.

When installing camshafts, chain tensioners, oil seals or other sliding parts, lubricate contacting
surfaces with new engine oil.

EM-186
[YD22DDTi]
PRIMARY TIMING CHAIN

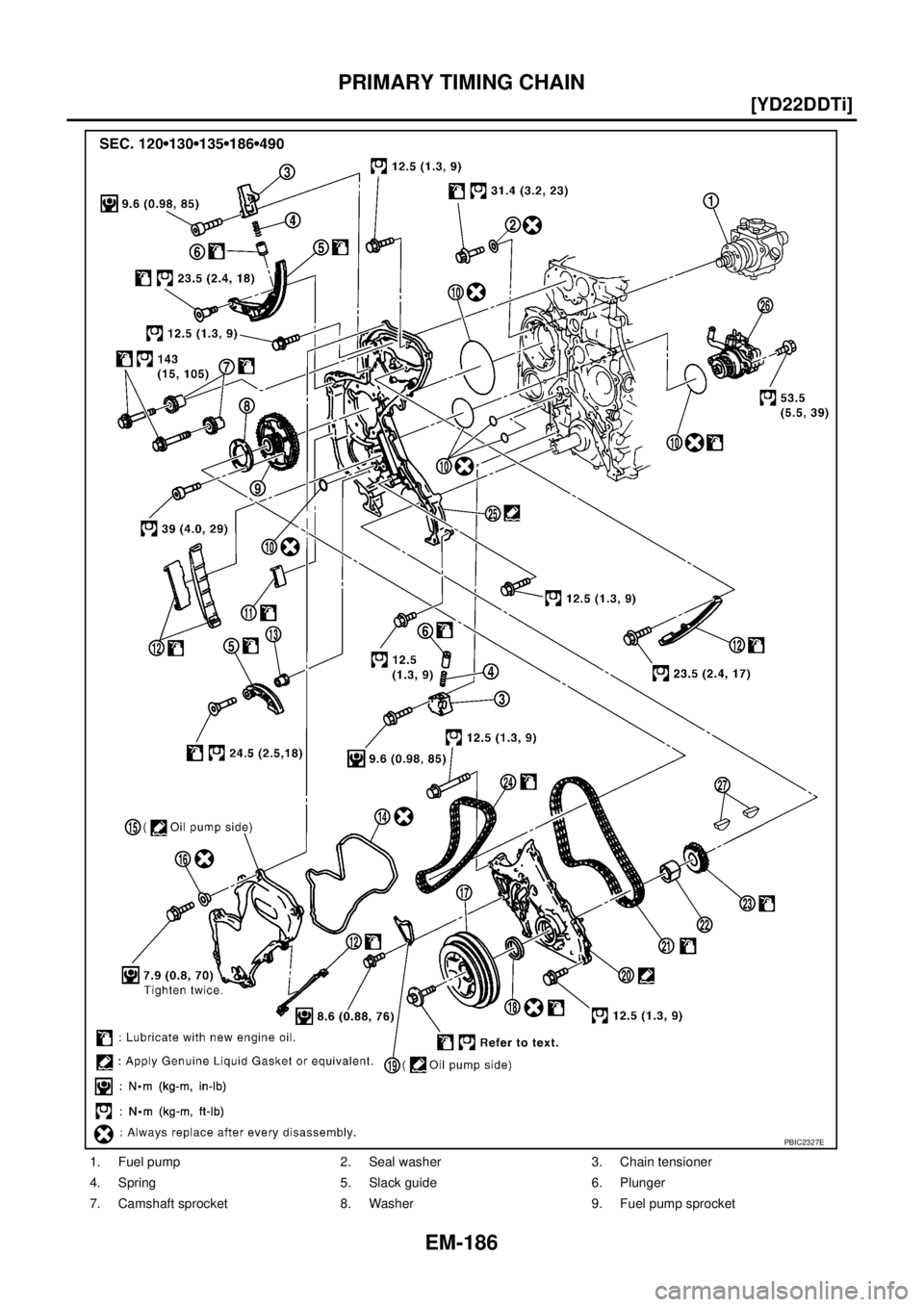

1. Fuel pump 2. Seal washer 3. Chain tensioner
4. Spring 5. Slack guide 6. Plunger
7. Camshaft sprocket 8. Washer 9. Fuel pump sprocket
PBIC2327E

PRIMARY TIMING CHAIN
EM-187
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

REMOVAL
1. Remove engine coolant reservoir tank. Refer to CO-34, "RADIATOR" .
2. Remove charge air cooler. Refer to EM-135, "
Removal and Installation" .
3. Remove air cleaner and air duct. Refer to EM-133, "
Removal and Installation" .
4. Remove rocker cover. Refer to EM-168, "
Removal and Installation" .
5. Remove RH engine mounting insulator and bracket. Refer to EM-208, "
Removal and Installation" .
6. Pull power steering reservoir tank out of brackets to move power steering piping. Refer to PS-34,
"HYDRAULIC LINE" .
CAUTION:
To avoid removing power steering reservoir tank out of brackets move it with power steering pip-
ing aside.
7. Remove oil pan (upper and lower). Refer to EM-147, "
Removal and Installation" .
8. Remove oil filter bracket. Refer to LU-26, "
OIL FILTER BRACKET" .
9. Remove fuel injector. Refer to EM-157, "
Removal and Installation" .
10. Remove secondary timing chain and associated parts. Refer to EM-180, "
Removal and Installation" .
11. When removing rear chain case, remove camshaft sprockets. Refer to EM-170, "
Removal and Installa-
tion" .

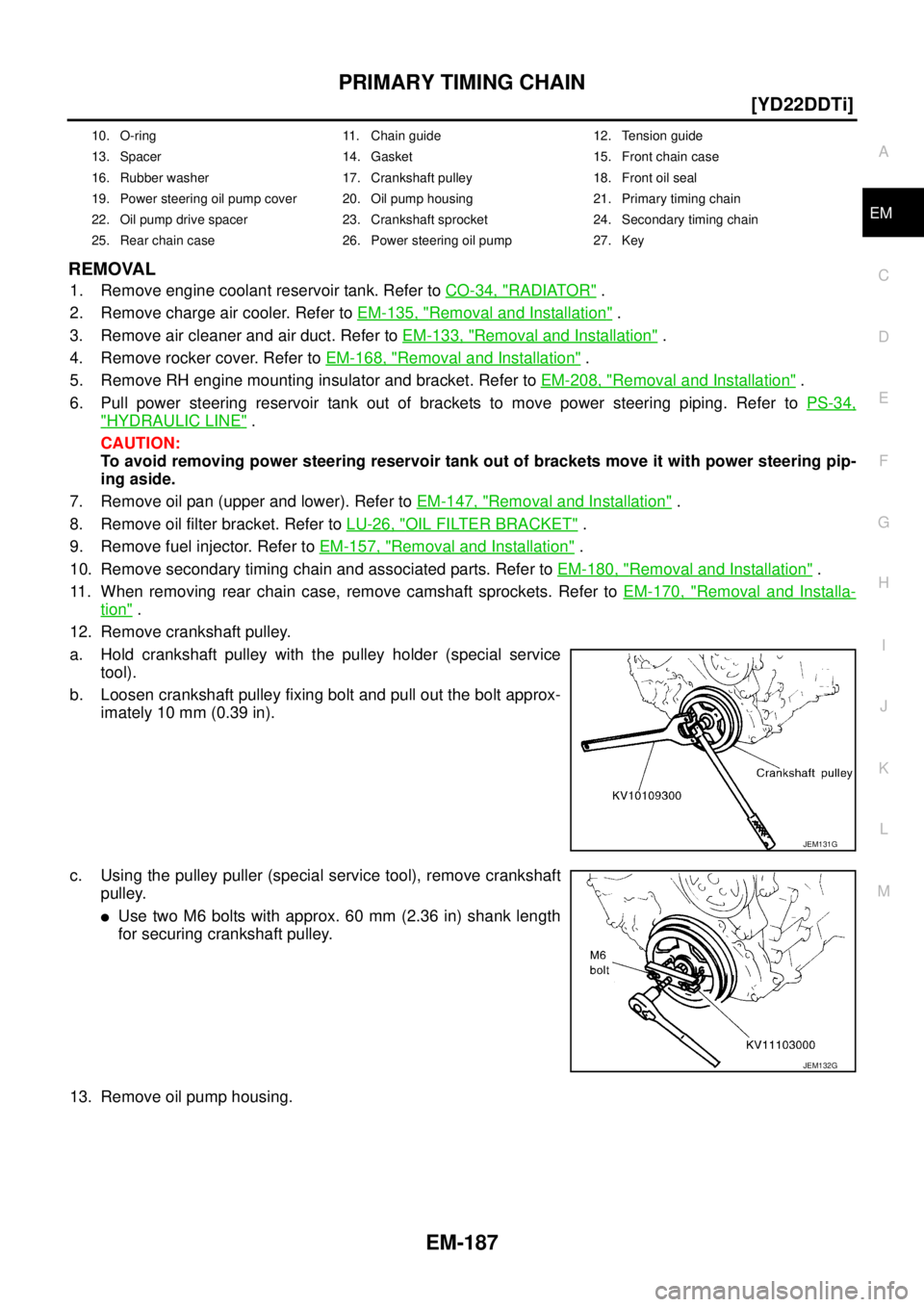

12. Remove crankshaft pulley.
a. Hold crankshaft pulley with the pulley holder (special service
tool).
b. Loosen crankshaft pulley fixing bolt and pull out the bolt approx-
imately 10 mm (0.39 in).
c. Using the pulley puller (special service tool), remove crankshaft
pulley.

Use two M6 bolts with approx. 60 mm (2.36 in) shank length
for securing crankshaft pulley.
13. Remove oil pump housing.
10. O-ring 11. Chain guide 12. Tension guide
13. Spacer 14. Gasket 15. Front chain case
16. Rubber washer 17. Crankshaft pulley 18. Front oil seal
19. Power steering oil pump cover 20. Oil pump housing 21. Primary timing chain
22. Oil pump drive spacer 23. Crankshaft sprocket 24. Secondary timing chain
25. Rear chain case 26. Power steering oil pump 27. Key
JEM131G
JEM132G

EM-188
[YD22DDTi]
PRIMARY TIMING CHAIN


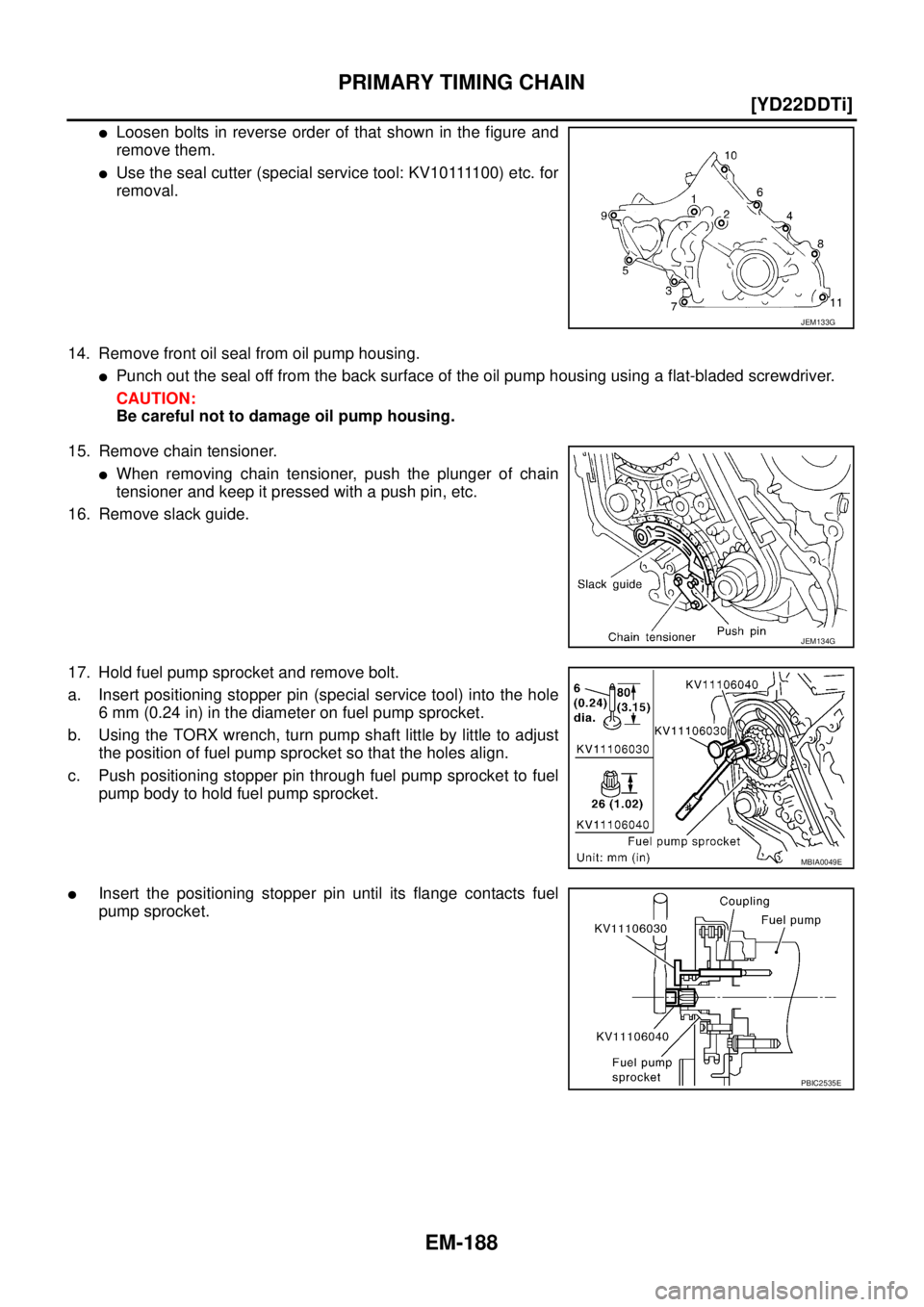

Loosen bolts in reverse order of that shown in the figure and
remove them.

U s e t h e s e a l c u t t e r ( s p e c i a l s e r v i c e t o o l : K V 1 0 1111 0 0 ) e t c . f o r
removal.
14. Remove front oil seal from oil pump housing.

Punch out the seal off from the back surface of the oil pump housing using a flat-bladed screwdriver.
CAUTION:
Be careful not to damage oil pump housing.
15. Remove chain tensioner.

When removing chain tensioner, push the plunger of chain
tensioner and keep it pressed with a push pin, etc.
16. Remove slack guide.
17. Hold fuel pump sprocket and remove bolt.
a. Insert positioning stopper pin (special service tool) into the hole
6 mm (0.24 in) in the diameter on fuel pump sprocket.
b. Using the TORX wrench, turn pump shaft little by little to adjust
the position of fuel pump sprocket so that the holes align.
c. Push positioning stopper pin through fuel pump sprocket to fuel
pump body to hold fuel pump sprocket.

Insert the positioning stopper pin until its flange contacts fuel
pump sprocket.
JEM133G
JEM134G
MBIA0049E
PBIC2535E
