clutch NISSAN X-TRAIL 2003 Service Repair Manual

MODEL T30 SERIES
2004NISSANEUROPES.A.S.
All rights reserved. No part of this Electronic Service Manual may be reproduced or stored in a retrieval system, or transmitted in any
form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan
Europe S.A.S., Paris, France.
A GENERAL INFORMATION
B ENGINE
C TRANSMISSION/TRANSAXLE
D DRIVELINE/AXLE
E SUSPENSION F BRAKES
G STEERING H RESTRAINTS
I BODY
J AIR CONDITIONER
K ELECTRICAL
L MAINTENANCE
M INDEXGI General Information
EM Engine Mechanical
LU Engine Lubrication System
CO Engine Cooling System
EC Engine Control System
FL Fuel System
EX Exhaust System
ACC Accelerator Control System
CL Clutch
MT Manual Transaxle
AT Automatic Transaxle
TF Transfer
PR Propeller Shaft
RFD Rear Final Drive
FAX Front Axle
RAX Rear Axle
FSU Front Suspension
RSU Rear Suspension
WT Road Wheels & Tires
BR Brake System
PB Parking Brake System
BRC Brake Control System
PS Power Steering System
SB Seat Belts
SRS Supplemental Restraint System (SRS)
BL Body, Lock & Security System
GW Glasses, Window System & Mirrors
RF Roof
EI Exterior & Interior
IP Instrument Panel
SE Seat
ATC Automatic Air Conditioner
MTC Manual AIr Conditioner
SC Starting & Charging System
LT Lighting System
DI Driver Information System
WW Wiper, Washer & Horn
BCS Body Control System
LAN LAN System
AV Audio Visual, Navigation & Telephone System
PG Power Supply, Ground & Circuit Elements
MA Maintenance
IDX Alphabetical Index
QUICK REFERENCE INDEX
A
B
C
D
E
F
G
H
I
J
K
L
M

GI-46
TERMINOLOGY

TERMINOLOGYPFP:00011
SAE J1930 Terminology List EAS000GH
All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new
terms, new acronyms/abbreviations and old terms are listed in the following chart.
NEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM
Air cleaner ACL Air cleaner
Barometric pressure BARO ***
Barometric pressure sensor-BCDD BAROS-BCDD BCDD
Camshaft position CMP ***
Camshaft position sensor CMPS Crank angle sensor
Canister *** Canister
Carburetor CARB Carburetor
Charge air cooler CAC Intercooler
Closed loop CL Closed loop
Closed throttle position switch CTP switch Idle switch
Clutch pedal position switch CPP switch Clutch switch
Continuous fuel injection system CFI system ***
Continuous trap oxidizer system CTOX system ***
Crankshaft position CKP ***
Crankshaft position sensor CKPS ***
Data link connector DLC ***
Data link connector for CONSULT-II DLC for CONSULT-II Diagnostic connector for CONSULT-II
Diagnostic test mode DTM Diagnostic mode
Diagnostic test mode selector DTM selector Diagnostic mode selector
Diagnostic test mode I DTM I Mode I
Diagnostic test mode II DTM II Mode II
Diagnostic trouble code DTC Malfunction code
Direct fuel injection system DFI system ***
Distributor ignition system DI system Ignition timing control
Early fuel evaporation-mixture heater EFE-mixture heater Mixture heater
Early fuel evaporation system EFE system Mixture heater control
Electrically erasable programmable read
only memoryEEPROM ***
Electronic ignition system EI system Ignition timing control
Engine control EC ***
Engine control module ECM ECCS control unit
Engine coolant temperature ECT Engine temperature
Engine coolant temperature sensor ECTS Engine temperature sensor
Engine modification EM ***
Engine speed RPM Engine speed
Erasable programmable read only memory EPROM ***
Evaporative emission canister EVAP canister Canister
Evaporative emission system EVAP system Canister control solenoid valve
Exhaust gas recirculation valve EGR valve EGR valve

GI-48
TERMINOLOGY

Nonvolatile random access memory NVRAM ***
On board diagnostic system OBD system Self-diagnosis
Open loop OL Open loop
Oxidation catalyst OC Catalyst
Oxidation catalytic converter system OC system ***
Oxygen sensor O2S Exhaust gas sensor
Park position switch *** Park switch
Park/neutral position switch PNP switchPark/neutral switch
Inhibitor switch
Neutral position switch
Periodic trap oxidizer system PTOX system ***
Positive crankcase ventilation PCV Positive crankcase ventilation
Positive crankcase ventilation valve PCV valve PCV valve
Powertrain control module PCM ***
Programmable read only memory PROM ***
Pulsed secondary air injection control sole-
noid valvePAIRC solenoid valve AIV control solenoid valve
Pulsed secondary air injection system PAIR system Air induction valve (AIV) control
Pulsed secondary air injection valve PAIR valve Air induction valve
Random access memory RAM ***
Read only memory ROM ***
Scan tool ST ***
Secondary air injection pump AIR pump ***
Secondary air injection system AIR system ***
Sequential multiport fuel injection system SFI system Sequential fuel injection
Service reminder indicator SRI ***
Simultaneous multiport fuel injection sys-
tem*** Simultaneous fuel injection
Smoke puff limiter system SPL system ***
Supercharger SC ***
Supercharger bypass SCB ***
System readiness test SRT ***
Thermal vacuum valve TVV Thermal vacuum valve
Three way catalyst TWC Catalyst
Three way catalytic converter system TWC system ***
Three way + oxidation catalyst TWC + OC Catalyst
Three way + oxidation catalytic converter
systemTWC + OC system ***
Throttle body TBThrottle chamber
SPI body
Throttle body fuel injection system TBI system Fuel injection control
Throttle position TP Throttle position
Throttle position sensor TPS Throttle sensor
Throttle position switch TP switch Throttle switch
Torque converter clutch solenoid valve TCC solenoid valveLock-up cancel solenoid
Lock-up solenoid NEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM

ENGINE ASSEMBLY
EM-79
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
2. Release fuel pressure. Refer to EC-48, "
FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-510,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Disconnect both battery terminals. Refer to SC-3, "
BATTERY" .
4. Drain engine coolant from radiator. Refer to CO-9, "
DRAINING ENGINE COOLANT" .
5. Remove the following parts.

LH and RH undercovers

Front road wheels and tyres

Battery; Refer to SC-3, "BATTERY" .

Drive belt; Refer to EM-13, "DRIVE BELTS" .

Air duct and air cleaner case assembly; Refer to EM-15, "AIR CLEANER AND AIR DUCT" .

Alternator; Refer to SC-12, "CHARGING SYSTEM" .

Radiator and radiator cooling fan assembly; Refer to CO-12, "RADIATOR" .
6. Disconnect engine room harness from the engine side and set it aside for easier work.
7. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect fuel feed hose, and plug it to prevent fuel from draining. Refer to EM-32, "FUEL INJECTOR
AND FUEL TUBE"
2. Disconnect heater hose, and install plug it to prevent engine coolant from draining.
3. Disconnect control cable from transaxle (A/T models). Refer to AT- 4 0 4 , "
ON-VEHICLE SERVICE" .
4. Disconnect clutch operating cylinder from transaxle, and move it aside (M/T models). Refer to CL-10,
"OPERATING CYLINDER" .
5. Disconnect shift and select cable from transaxle (M/T models). Refer to MT-14, "
CONTROL LINKAGE" .
Engine Room RH
1. Remove engine coolant reservoir tank. Refer to CO-12, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
Vehicle Underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove propeller shaft. Refer to PR-3, "
REAR PROPELLER SHAFT" .
3. Remove steering lower joint from steering gear. Refer to PS-10, "
STEERING COLUMN" .
4. Disconnect power steering fluid piping at a point between vehicle and engine. Refer to PS-34, "
HYDRAU-
LIC LINE" .
5. Remove rear plate cover from oil pan (upper). Then remove bolts fixing drive plate to torque converter
(A/T models). Refer to EM-25, "
OIL PAN AND OIL STRAINER" and AT- 4 1 3 , "REMOVAL AND INSTALLA-
TION" .
6. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to MT-17, "
TRAN-
SAXLE ASSEMBLY" (M/T models) or AT- 4 1 3 , "REMOVAL AND INSTALLATION" (A/T models).
7. Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to BRC-45, "
WHEEL SEN-
SORS" (ABS) or BRC-116, "WHEEL SENSORS" (ESP/TCS/ABS).
8. Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on
vehicle side with a rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
9. Remove lower ends of left and right strut from steering knuckle. Refer to FSU-5, "
FRONT SUSPENSION
ASSEMBLY" .
Removal
1. Install engine slingers into front left of cylinder head and rear right of cylinder head.

EM-84
[QR]
CYLINDER BLOCK


A widely use engine stand can be used.
NOTE:
This example is an engine stand for holding at transaxle
mounting side with flywheel (M/T models) or drive plate (A/T
models) removed.
3. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
4. Drain engine coolant by removing water drain plug from inside of
engine.
5. Remove cylinder head. Refer to EM-67, "
CYLINDER HEAD" .
6. Remove knock sensor.
CAUTION:
Carefully handle knock sensor avoiding shocks.
7. Remove crankshaft position sensor (POS).
CAUTION:

Avoid impacts such as a dropping.

Do not disassemble.

Keep it away from metal particles.

Do not place sensor in a location where it is exposed to
magnetism.
8. Remove clutch cover and clutch disc (M/T models). Refer to CL-14, "
CLUTCH DISC, CLUTCH COVER
AND FLYWHEEL" .
9. Remove flywheel (M/T models) or drive plate (A/T models).

Secure crankshaft with a stopper plate, and remove mounting
bolts.

Using the following TORX socket, loosen mounting bolts.
CAUTION:
Be careful not to damage contact surface for clutch disc of
flywheel (M/T models).
PBIC0085E
PBIC2443E
PBIC2191E
Flywheel (M/T models)
: size T55 (commercial service tool)
Drive plate (A/T models)
: size E20
PBIC2352E

EM-108
[QR]
CYLINDER BLOCK

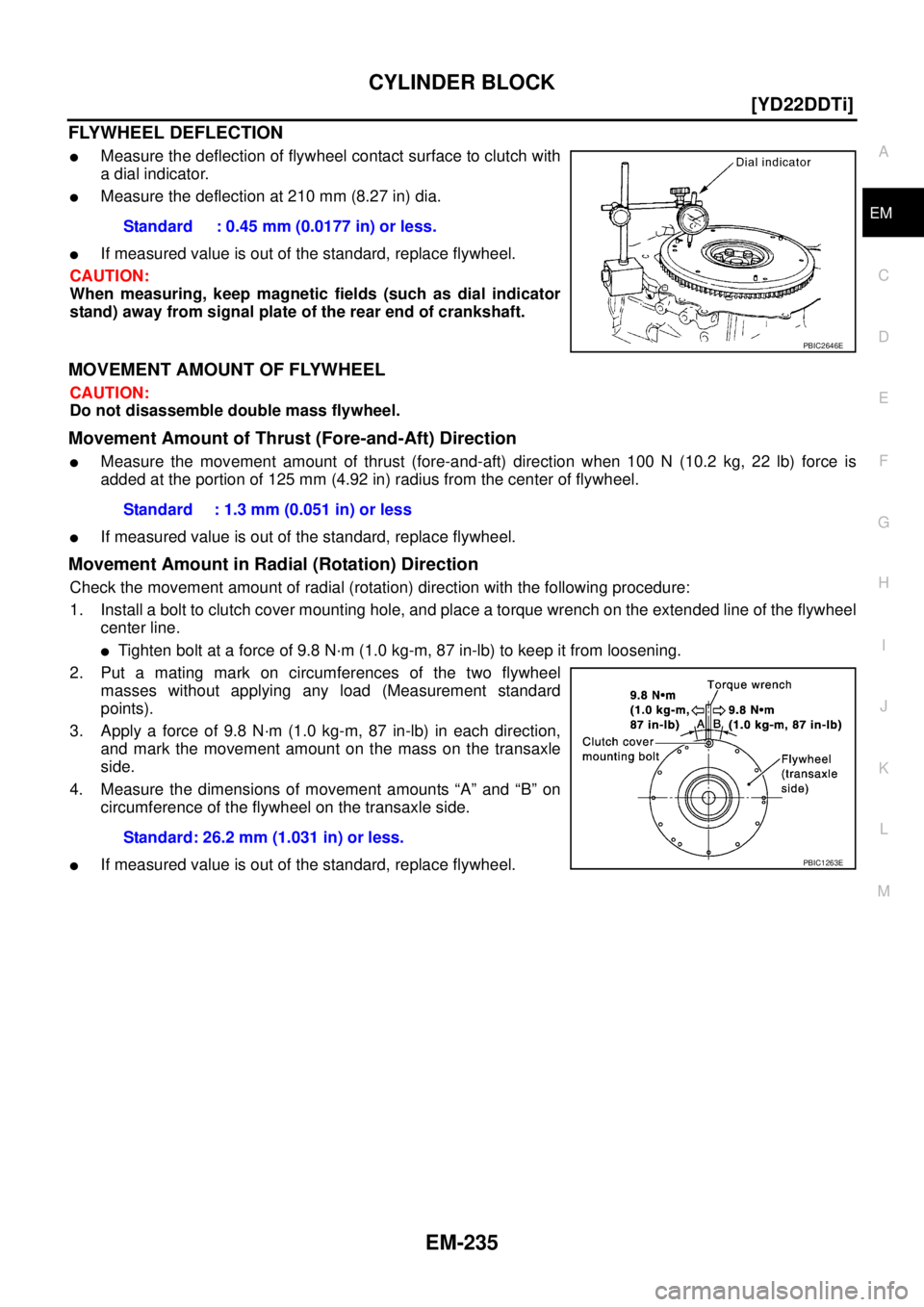

FLYWHEEL DEFLECTION (M/T MODELS)

Measure the deflection of flywheel contact surface to clutch with
a dial gauge.

Measure the deflection at 210 mm (8.27 in) dia.

If measured value is out of the standard, replace flywheel.
CAUTION:
When measuring, keep magnetic fields (such as dial gauge
stand) away from signal plate of the rear end of crankshaft.
MOVEMENT AMOUNT OF FLYWHEEL (M/T MODELS)
CAUTION:
Do not disassemble double mass flywheel.
Movement Amount of Thrust (Fore-and-Aft) Direction

Measure the movement amount of thrust (fore-and-aft) direction when 100 N (10.2 kg, 22 lb) force is
added at the portion of 125 mm (4.92 in) radius from the center of flywheel.

If measured value is out of the standard, replace flywheel.
Movement Amount in Radial (Rotation) Direction
Check the movement amount of radial (rotation) direction with the following procedure:
1. Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel
center line.

Tighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it from loosening.
2. Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3. Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,
and mark the movement amount on the mass on the transaxle
side.
4. Measure the dimensions of movement amounts “A” and “B” on
circumference of the flywheel on the transaxle side.

If measured value is out of the standard, replace flywheel.Standard : 0.45 mm (0.0177 in) or less.
SBIA0287E
Standard : 1.3 mm (0.051 in) or less
Standard: 28.3 mm (1.114 in) or less.
PBIC1263E

ENGINE ASSEMBLY
EM-209
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

REMOVAL
Description of work
Remove engine, transaxle and transfer assembly with front suspension member from vehicle downward. Sep-
arate suspension member, and then separate engine and transaxle.
Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
2. Drain engine coolant from radiator drain plug. Refer to CO-31, "
DRAINING ENGINE COOLANT" .
3. Remove the following parts.

LH/RH engine undercover

LH/RH front wheels

Battery; Refer to SC-3, "BATTERY" .

Drive belts; Refer to EM-132, "Removal and Installation" .

Air duct and air cleaner case assembly; Refer to EM-133, "Removal and Installation" .

Alternator; Refer to SC-16, "Removal and Installation" .

Radiator and cooling fan assembly; Refer to CO-34, "Removal and Installation" and CO-36, "COOL-
ING FAN" .

Charge air cooler; Refer to EM-135, "CHARGE AIR COOLER" .
4. Disconnect engine room harness from the engine side and set it aside for easier work.
5. Disconnect all the body-side vacuum hoses and air hoses at engine side.
Engine room LH
1. Disconnect fuel feed hose and return hose, and plug it to prevent fuel from draining. Refer to EM-136,
"INTAKE MANIFOLD" .
2. Disconnect heater hose, and install plug it to prevent engine coolant from draining. Refer to EM-136,
"INTAKE MANIFOLD" .
3. Remove clutch operating cylinder from transaxle, and move it aside. Refer to MT-17, "
TRANSAXLE
ASSEMBLY" and CL-10, "OPERATING CYLINDER" .
4. Disconnect shift cable from transaxle. Refer to MT-14, "
CONTROL LINKAGE" .
Engine room RH
1. Remove engine coolant reservoir tank. Refer to CO-34, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on body with a rope to
avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
Vehicle underbody
1. Remove exhaust front tube. Refer to EX-2, "Removal and Installation" .
2. Remove propeller shaft. Refer to PR-4, "
Removal and Installation" .
3. Remove steering shaft from steering gear. Refer to PS-10, "
STEERING COLUMN" .
4. Disconnect power steering fluid cooler piping at a point between body and engine. Refer to PS-34,
"HYDRAULIC LINE" .
5. Remove ABS sensor from brake caliper. Refer to BRC-45, "
WHEEL SENSORS" (ABS), BRC-116,
"WHEEL SENSORS" (ESP/TCS/ABS).
6. Remove brake caliper with piping connected from steering knuckle. Temporarily secure it on body with a
rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
7. Remove left and right suspensions from steering knuckle under strut. Refer to FSU-5, "
FRONT SUSPEN-
SION ASSEMBLY" .

CYLINDER BLOCK
EM-213
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

DISASSEMBLY
1. Remove engine, transaxle and transfer assembly from the vehicle, then separate engine and transaxle
and transfer assembly. Refer to EM-208, "
ENGINE ASSEMBLY" .
2. Remove clutch cover and disk. Refer to CL-14, "
CLUTCH DISC,
CLUTCH COVER AND FLYWHEEL" .
3. If they need to be replaced, replace pilot bush.

Using the pilot bushing puller (special service tool), remove
the pilot bush from rear end of crankshaft.
4. Install engine to engine stand as follows.
a. Remove flywheel.
b. Secure ring gear with the ring gear stopper (special service
tool), then loosen mounting bolts with TORX socket (size: T55,
Commercial Service Tools) and remove them. As an alternative
method hold crankshaft pulley with the pulley holder (special
service tool: KV10109300) to remove flywheel.
CAUTION:

Do not disassemble flywheel.

Do not place flywheel with signal plate facing down.

When handling signal plate, take care not to damage or
scratch it.

Handle signal plate in a manner that prevents it from
becoming magnetized.
c. Install the engine sub-attachment (special service tool) to the
rear side of cylinder block.

Align knock pins on cylinder block with pin holes on attach-
ment to install.
NOTE:
Installation bolts are part of engine sub-attachment.
d. Install the engine stand shaft (special service tool).
NOTE:
Use commercially available M12 (0.47 in) mounting bolts and
nuts (4 sets) with strength grade of 9T (minimum).
1. Rear oil seal retainer 2. Cylinder block 3. Oil pressure switch
4. Fuel pump bracket 5. Oil level gauge guide 6. Top ring
7. Second ring 8. Oil ring 9. Oil jet
10. Piston pin 11. Snap ring 12. Piston
13. Main bearing upper 14. Thrust bearing 15. Connecting rod
16. Key 17. Connecting rod bearing 18. Connecting rod cap
19. Connecting rod nut 20. Main bearing lower 21. Crankshaft
22. Main bearing cap bolt 23. Main bearing cap 24. Pilot bush
25. Flywheel 26. Copper washer 27. Oil jet relief valve
28. Drain plug 29. Rear oil seal
SEM500G
PBIC2406E
JEM192G

CYLINDER BLOCK
EM-221
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

19. Install fuel pump bracket.

Align the bracket with the dowel pins on cylinder block to
install.

The two bolts used for dowel pins have a longer shanks than
the other two.
20. Install parts to engine in the reverse order of disassembly.
21. Remove engine from engine stand in the reverse order of assembly.
22. Install flywheel.

When installing flywheel to crankshaft, be sure to correctly
align crankshaft side dowel pin and flywheel side dowel pin-
hole.

There is a mating mark on the clutch cover side, Refer it dur-
ing installation.

Holding ring gear with the ring stopper (special service tool),
tighten securing bolts with TORX bit (size: T55, Commercial
Service Tool).

Tighten bolts uniformly in a crisscross manner.
PBIC2329E
PBIC2538E
PBIC2495E
PBIC2406E

CYLINDER BLOCK
EM-235
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

FLYWHEEL DEFLECTION

Measure the deflection of flywheel contact surface to clutch with
a dial indicator.

Measure the deflection at 210 mm (8.27 in) dia.

If measured value is out of the standard, replace flywheel.
CAUTION:
When measuring, keep magnetic fields (such as dial indicator
stand) away from signal plate of the rear end of crankshaft.
MOVEMENT AMOUNT OF FLYWHEEL
CAUTION:
Do not disassemble double mass flywheel.
Movement Amount of Thrust (Fore-and-Aft) Direction

Measure the movement amount of thrust (fore-and-aft) direction when 100 N (10.2 kg, 22 lb) force is
added at the portion of 125 mm (4.92 in) radius from the center of flywheel.

If measured value is out of the standard, replace flywheel.
Movement Amount in Radial (Rotation) Direction
Check the movement amount of radial (rotation) direction with the following procedure:
1. Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel
center line.

Tighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it from loosening.
2. Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3. Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,
and mark the movement amount on the mass on the transaxle
side.
4. Measure the dimensions of movement amounts “A” and “B” on
circumference of the flywheel on the transaxle side.

If measured value is out of the standard, replace flywheel.Standard : 0.45 mm (0.0177 in) or less.
PBIC2646E
Standard : 1.3 mm (0.051 in) or less
Standard: 26.2 mm (1.031 in) or less.
PBIC1263E
