NISSAN X-TRAIL 2005 Service Repair Manual

DTC P1217 ENGINE OVER TEMPERATURE
EC-757
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

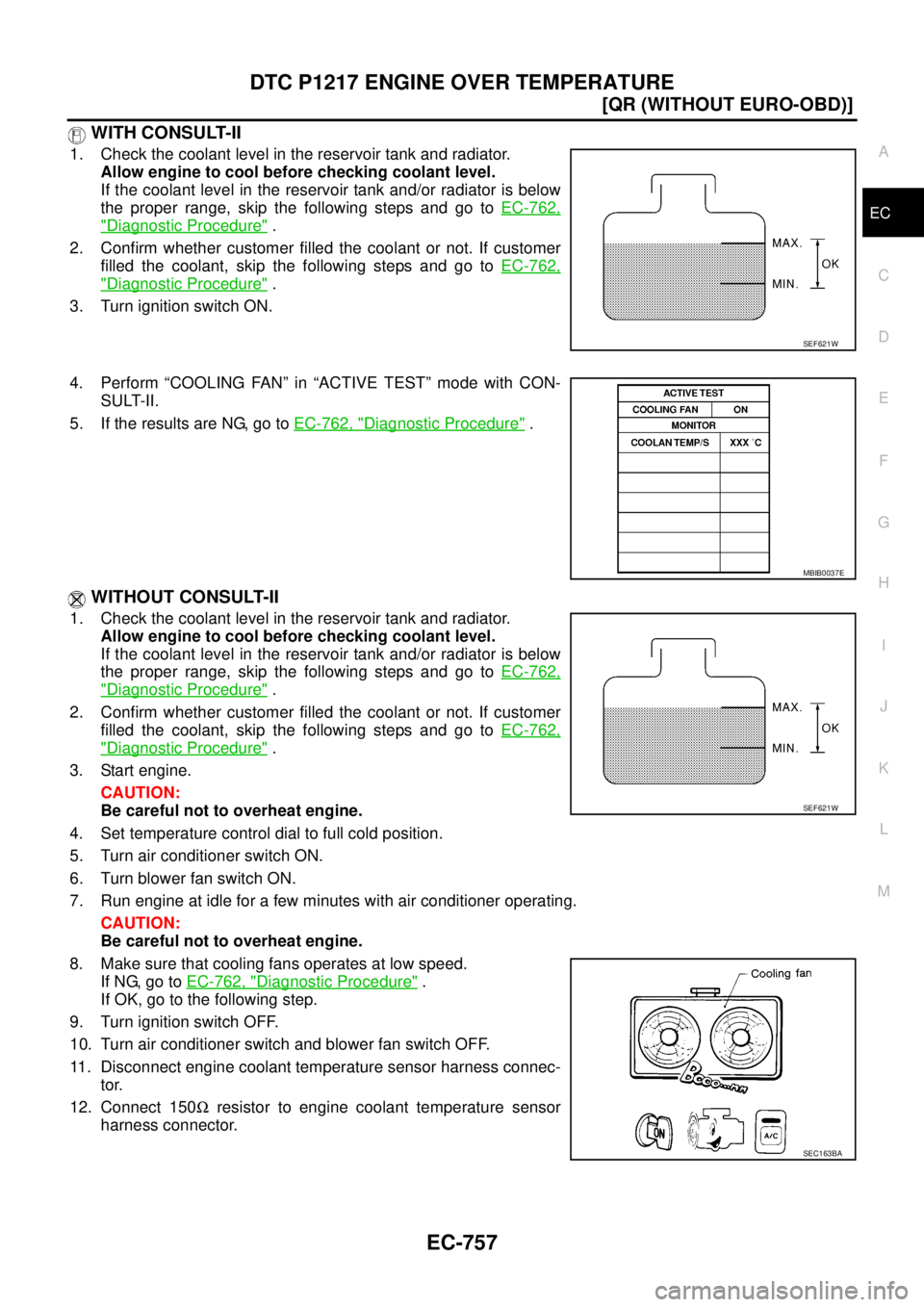

WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-762, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
3. Start engine.
CAUTION:
Be careful not to overheat engine.
4. Set temperature control dial to full cold position.
5. Turn air conditioner switch ON.
6. Turn blower fan switch ON.
7. Run engine at idle for a few minutes with air conditioner operating.
CAUTION:
Be careful not to overheat engine.
8. Make sure that cooling fans operates at low speed.
If NG, go to EC-762, "
Diagnostic Procedure" .
If OK, go to the following step.
9. Turn ignition switch OFF.
10. Turn air conditioner switch and blower fan switch OFF.
11. Disconnect engine coolant temperature sensor harness connec-
tor.
12. Connect 150Ω resistor to engine coolant temperature sensor
harness connector.
SEF621W
MBIB0037E
SEF621W
SEC163BA

EC-758
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

13. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
CAUTION:
Be careful not to overheat engine.
14. If NG, go to EC-762, "
Diagnostic Procedure" .
MEC475B

DTC P1217 ENGINE OVER TEMPERATURE
EC-759
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

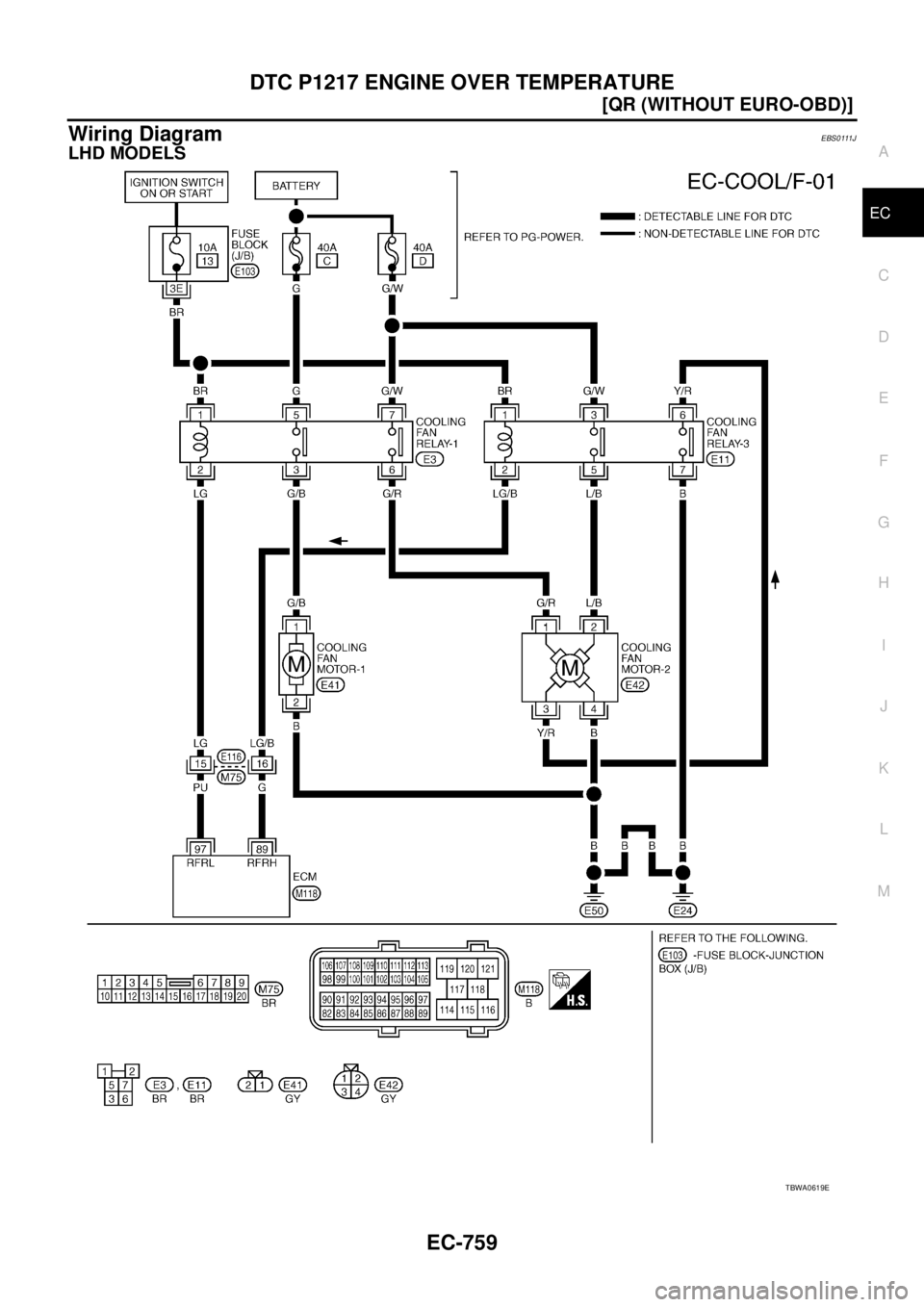

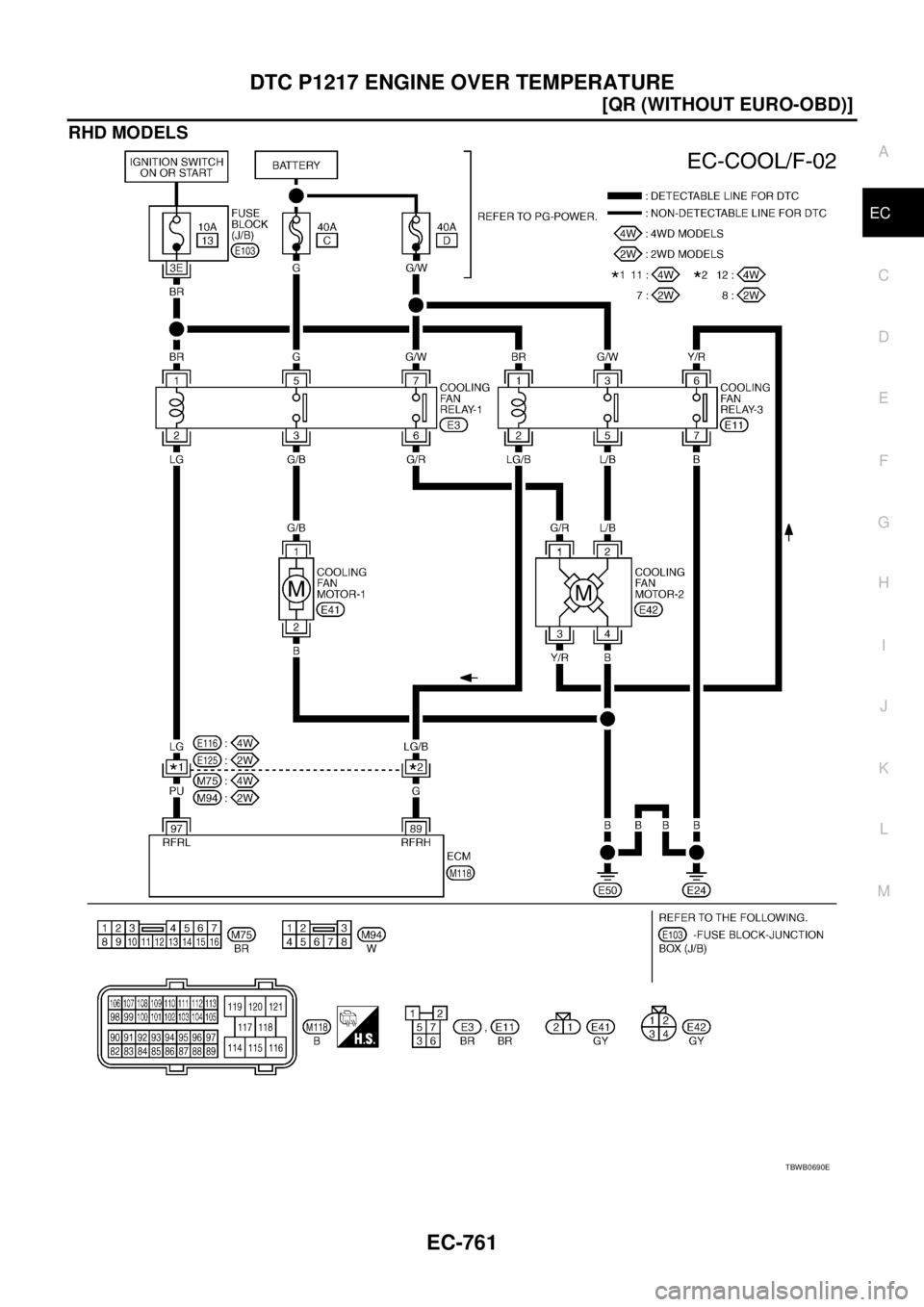

Wiring DiagramEBS0111J
LHD MODELS
TBWA0619E

EC-760
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
89 G Cooling fan relay (High)[Engine is running]

Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Cooling fan is high speed operating0 - 1.0V
97 PU Cooling fan relay (Low)[Ignition switch: ON]

Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]

Cooling fan is operating0 - 1.0V

DTC P1217 ENGINE OVER TEMPERATURE
EC-761
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

RHD MODELS
TBWB0690E

EC-762
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS0111K
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 4.
2. CHECK COOLING FAN LOW SPEED OPERATION
With CONSULT-II
1. Turn ignition switch ON.
2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II and touch “LOW” on the CONSULT-II screen.
3. Make sure that cooling fans-1 and -2 operates at low speed.
OK or NG
OK >> GO TO 3.
NG >> Check cooling fan low speed control circuit. (Go to EC-
766, "PROCEDURE A" .)
3. CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-II
1. Touch “HIGH”on the CONSULT-II screen.
2. Make sure that cooling fan-2 operate at higher speed than low
speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
768, "PROCEDURE B" .)
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
89 G Cooling fan relay (High)[Engine is running]

Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Cooling fan is high speed operating0 - 1.0V
97 PU Cooling fan relay (Low)[Ignition switch: ON]

Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]

Cooling fan is operating0 - 1.0V
SEF784Z
SEF785Z

DTC P1217 ENGINE OVER TEMPERATURE
EC-763
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

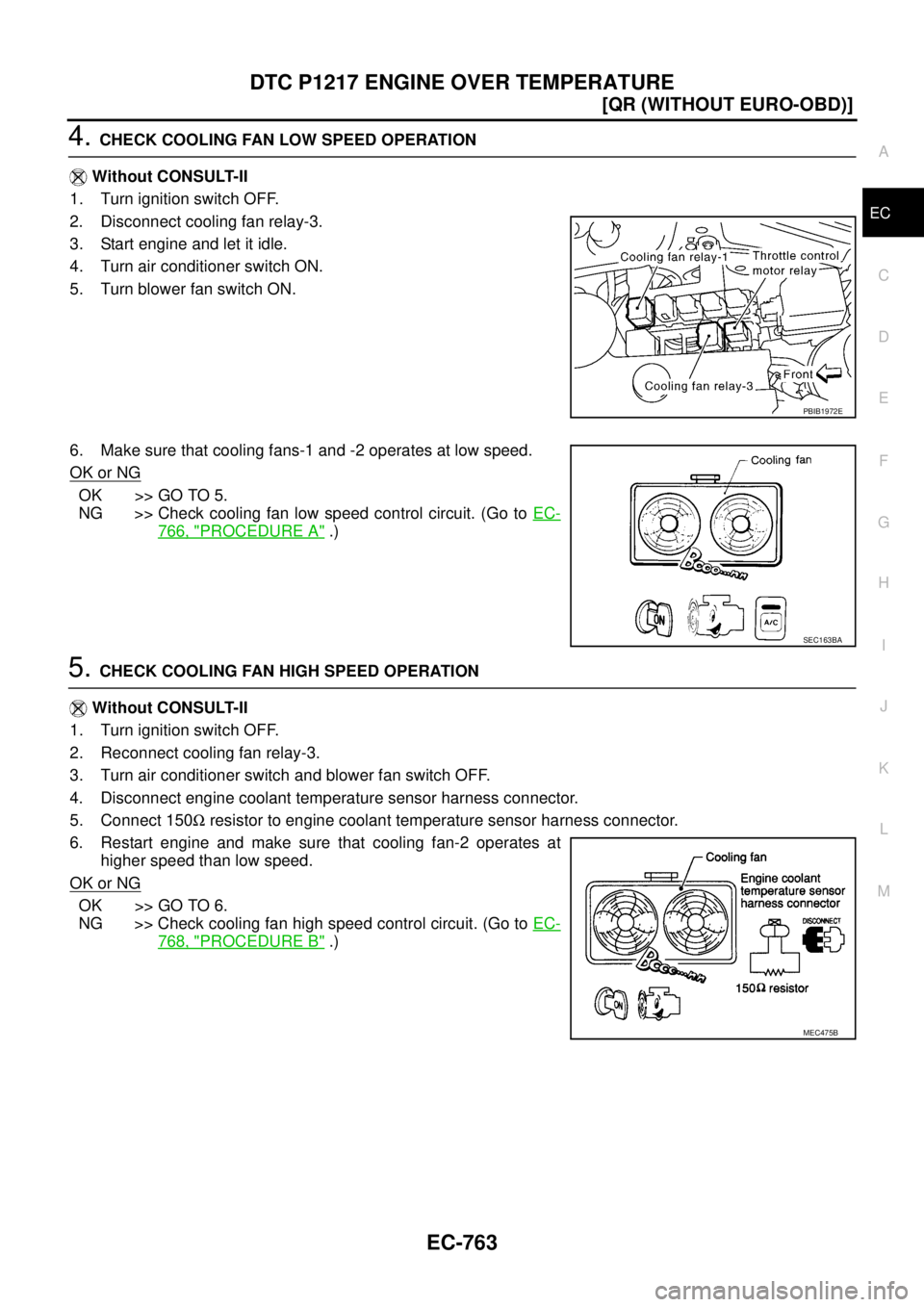

4. CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect cooling fan relay-3.
3. Start engine and let it idle.
4. Turn air conditioner switch ON.
5. Turn blower fan switch ON.
6. Make sure that cooling fans-1 and -2 operates at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan low speed control circuit. (Go to EC-
766, "PROCEDURE A" .)
5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch OFF.
2. Reconnect cooling fan relay-3.
3. Turn air conditioner switch and blower fan switch OFF.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
6. Restart engine and make sure that cooling fan-2 operates at
higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
768, "PROCEDURE B" .)
PBIB1972E
SEC163BA
MEC475B

EC-764
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

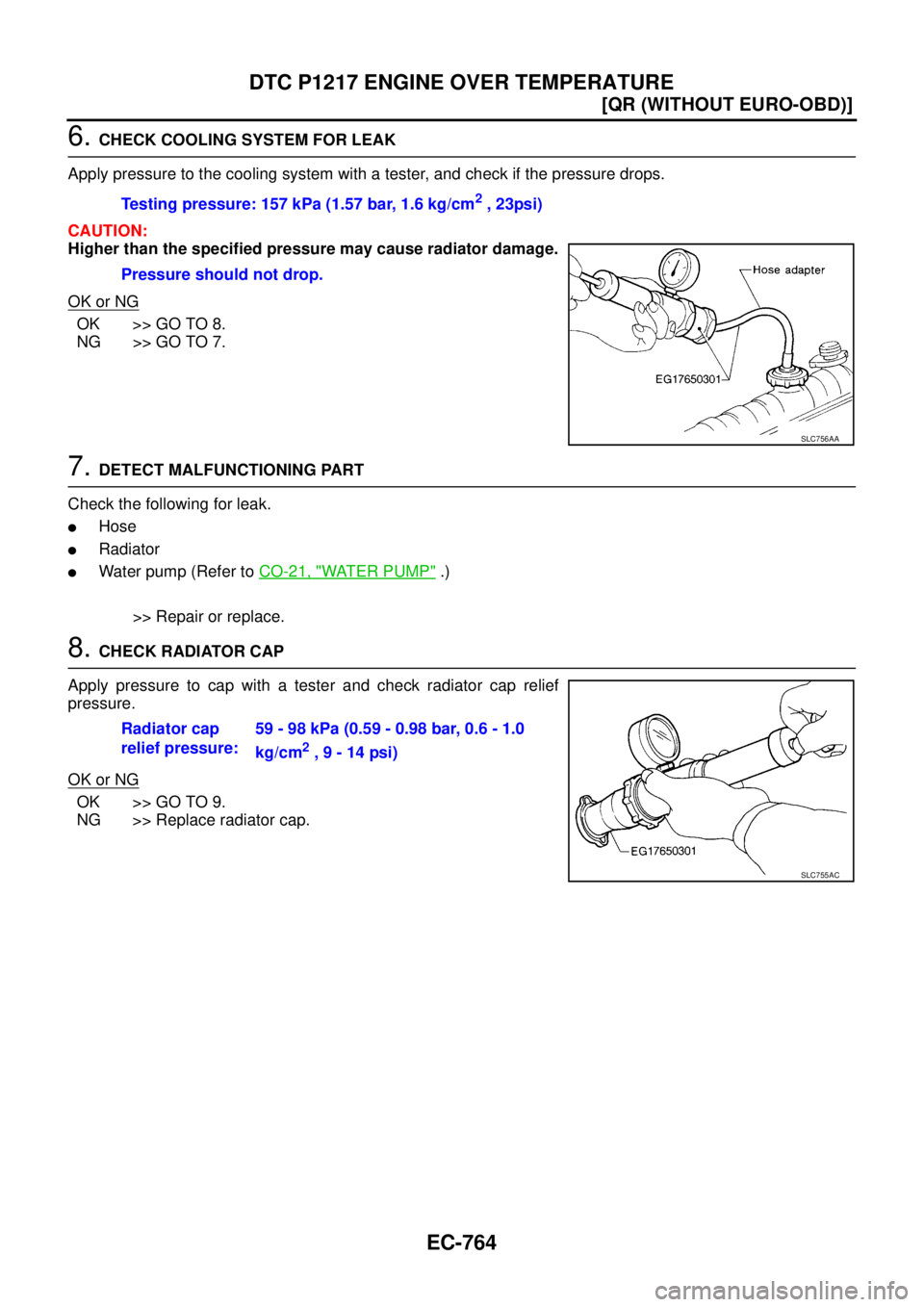

6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following for leak.

Hose

Radiator

Water pump (Refer to CO-21, "WATER PUMP" .)
>> Repair or replace.
8. CHECK RADIATOR CAP
Apply pressure to cap with a tester and check radiator cap relief
pressure.
OK or NG
OK >> GO TO 9.
NG >> Replace radiator cap.Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm
2 , 23psi)
Pressure should not drop.
SLC756AA
Radiator cap
relief pressure:59 - 98 kPa (0.59 - 0.98 bar, 0.6 - 1.0
kg/cm
2 , 9 - 14 psi)
SLC755AC

DTC P1217 ENGINE OVER TEMPERATURE
EC-765
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

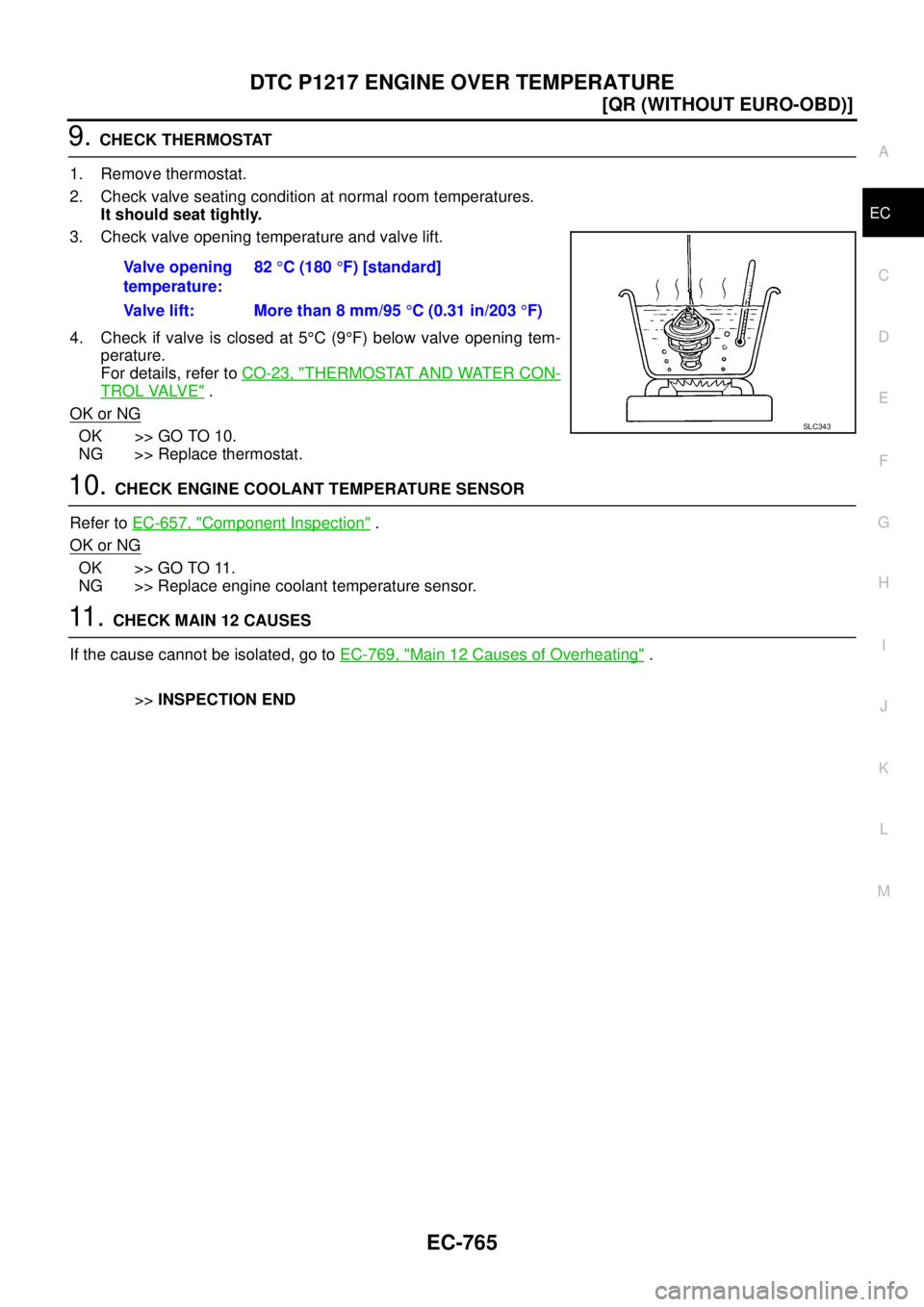

9. CHECK THERMOSTAT
1. Remove thermostat.
2. Check valve seating condition at normal room temperatures.
It should seat tightly.
3. Check valve opening temperature and valve lift.
4. Check if valve is closed at 5°C (9°F) below valve opening tem-
perature.
For details, refer to CO-23, "
THERMOSTAT AND WATER CON-
TROL VALVE" .
OK or NG
OK >> GO TO 10.
NG >> Replace thermostat.
10. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-657, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace engine coolant temperature sensor.
11 . CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-769, "
Main 12 Causes of Overheating" .
>>INSPECTION END Valve opening
temperature:82 °C (180 °F) [standard]
Valve lift: More than 8 mm/95 °C (0.31 in/203 °F)
SLC343

EC-766
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

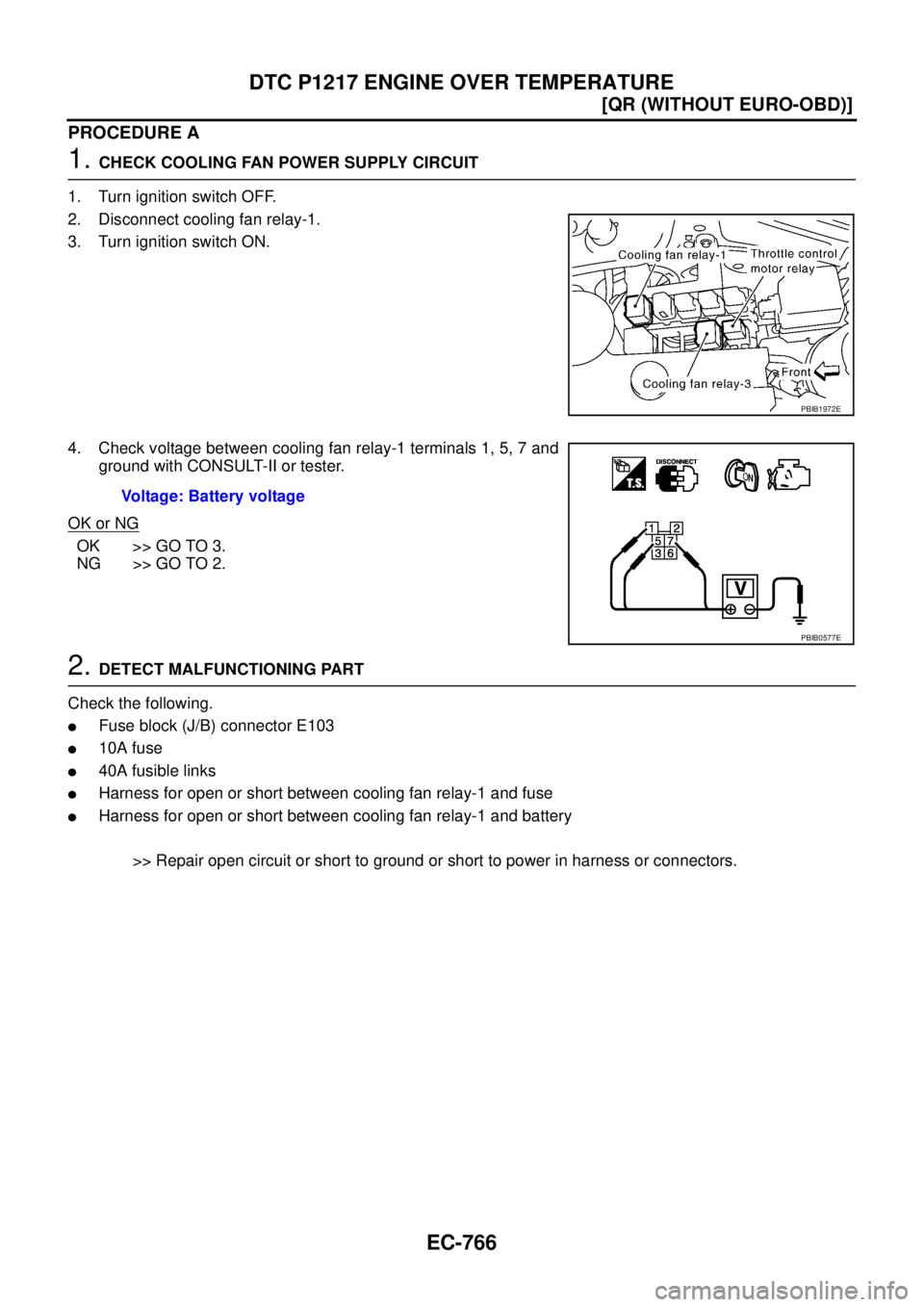

PROCEDURE A
1. CHECK COOLING FAN POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect cooling fan relay-1.
3. Turn ignition switch ON.
4. Check voltage between cooling fan relay-1 terminals 1, 5, 7 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector E103

10A fuse

40A fusible links

Harness for open or short between cooling fan relay-1 and fuse

Harness for open or short between cooling fan relay-1 and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1972E
Voltage: Battery voltage
PBIB0577E
