NISSAN X-TRAIL 2005  Service Repair Manual INJECTION TUBE AND FUEL INJECTOR
EM-167
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

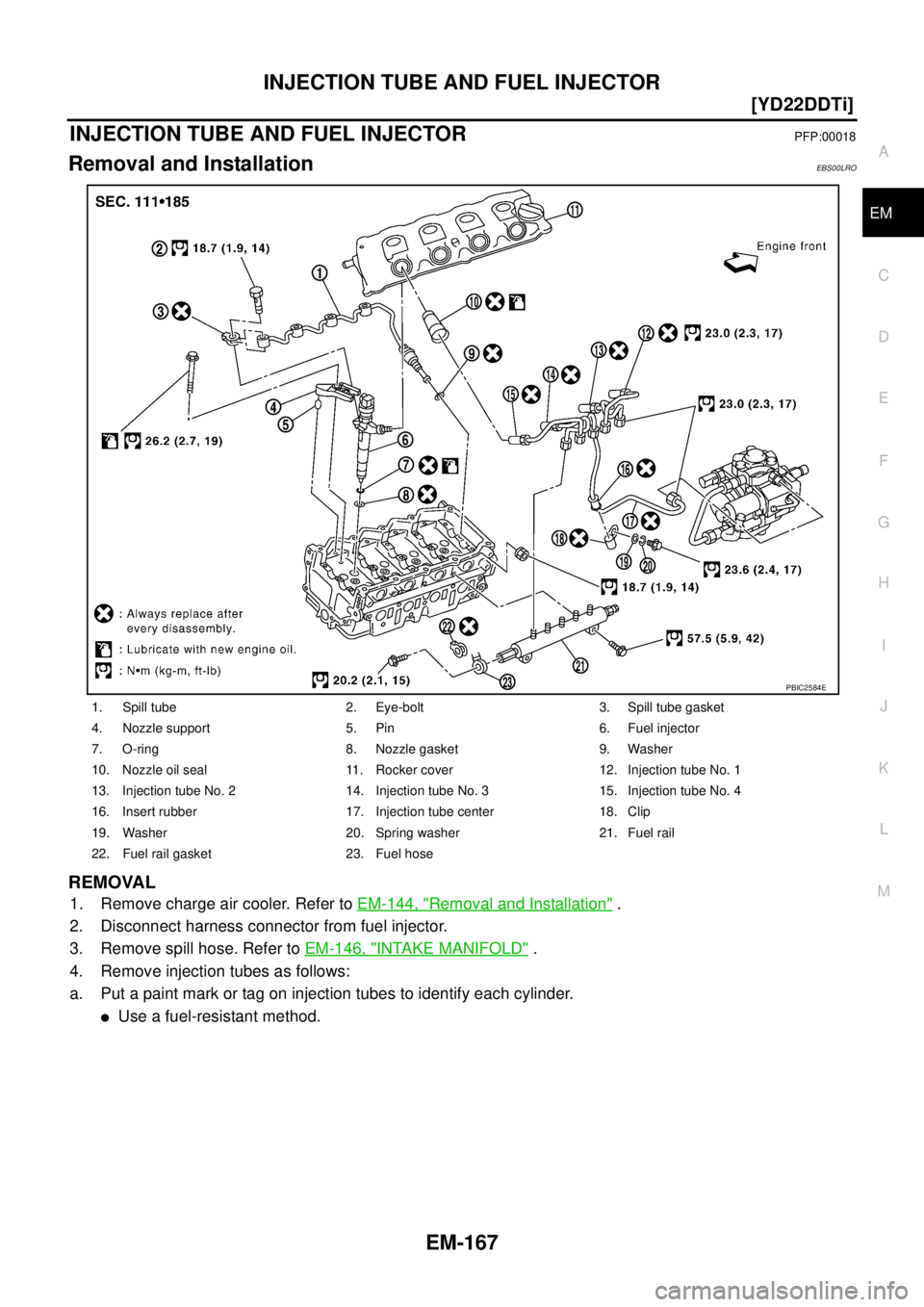

INJECTION TUBE AND FUEL INJECTORPFP:00018
Removal and InstallationEBS00LRO
REMOVAL
1. Remove charge air cooler. Refer to

Page 222 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-168
[YD22DDTi]
INJECTION TUBE AND FUEL INJECTOR

b. Remove injection tubes in order of 2-1-4-3 individually.
CAUTION:
Be careful not to allow leaked fuel to contaminate engine
room. Especially, en

Page 223 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual INJECTION TUBE AND FUEL INJECTOR
EM-169
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

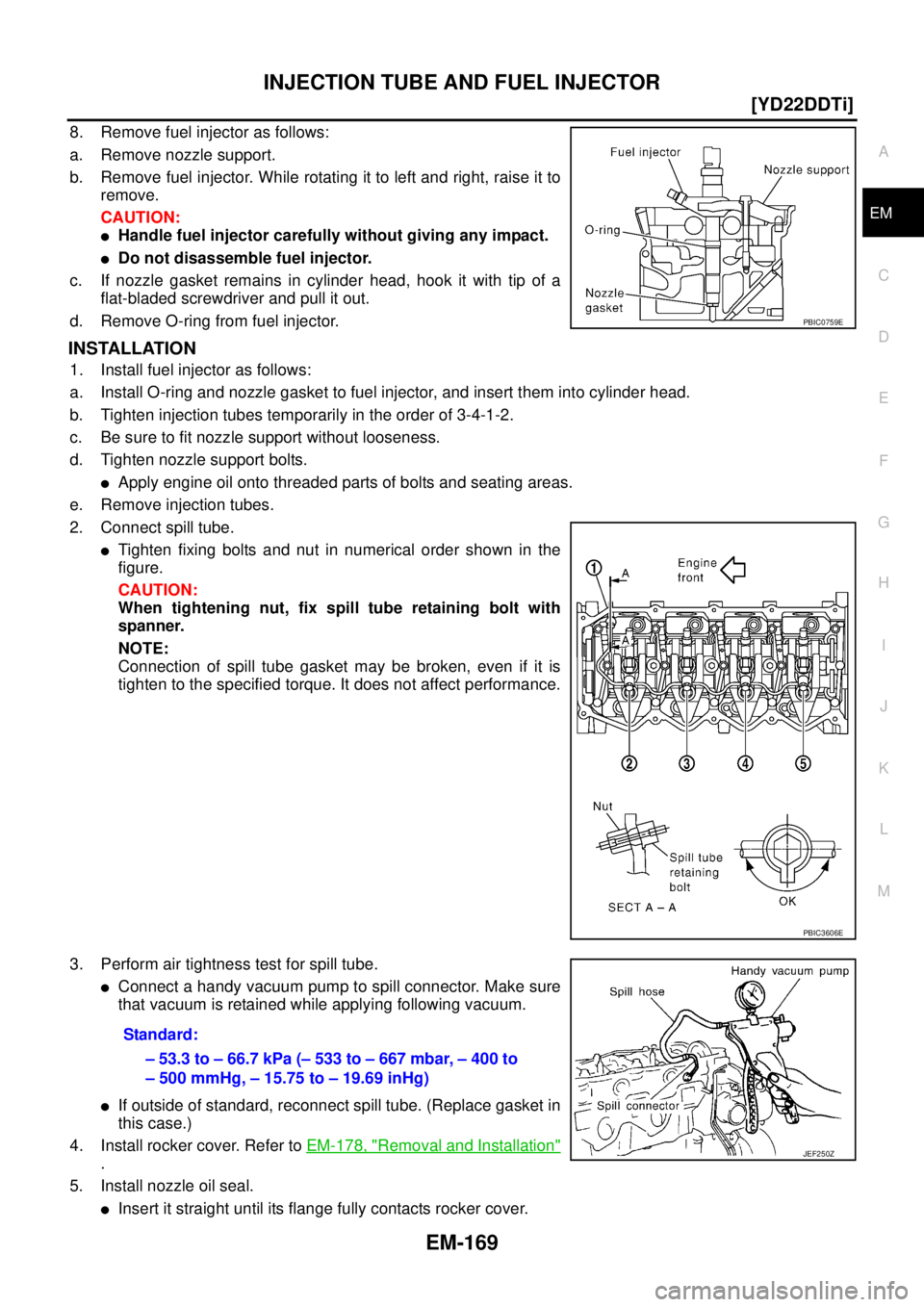

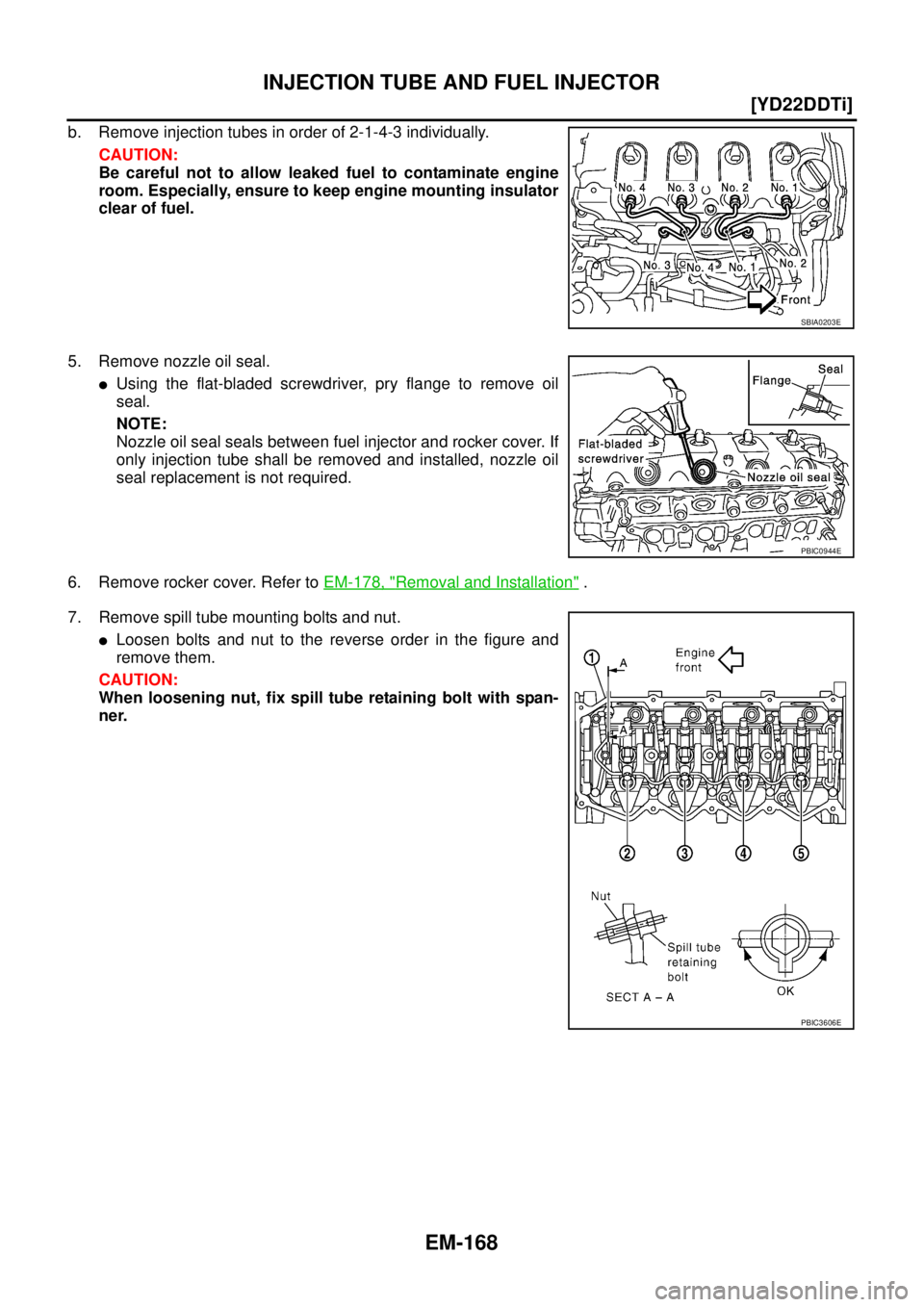

8. Remove fuel injector as follows:
a. Remove nozzle support.
b. Remove fuel injector. While rotating it to left and righ

Page 224 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-170
[YD22DDTi]
INJECTION TUBE AND FUEL INJECTOR

CAUTION:
Check gutter spring in nozzle oil seal on fuel injector for missing.
6. Connect injection tubes individually to each cylinder in order of

Page 225 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual FUEL PUMP
EM-171
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

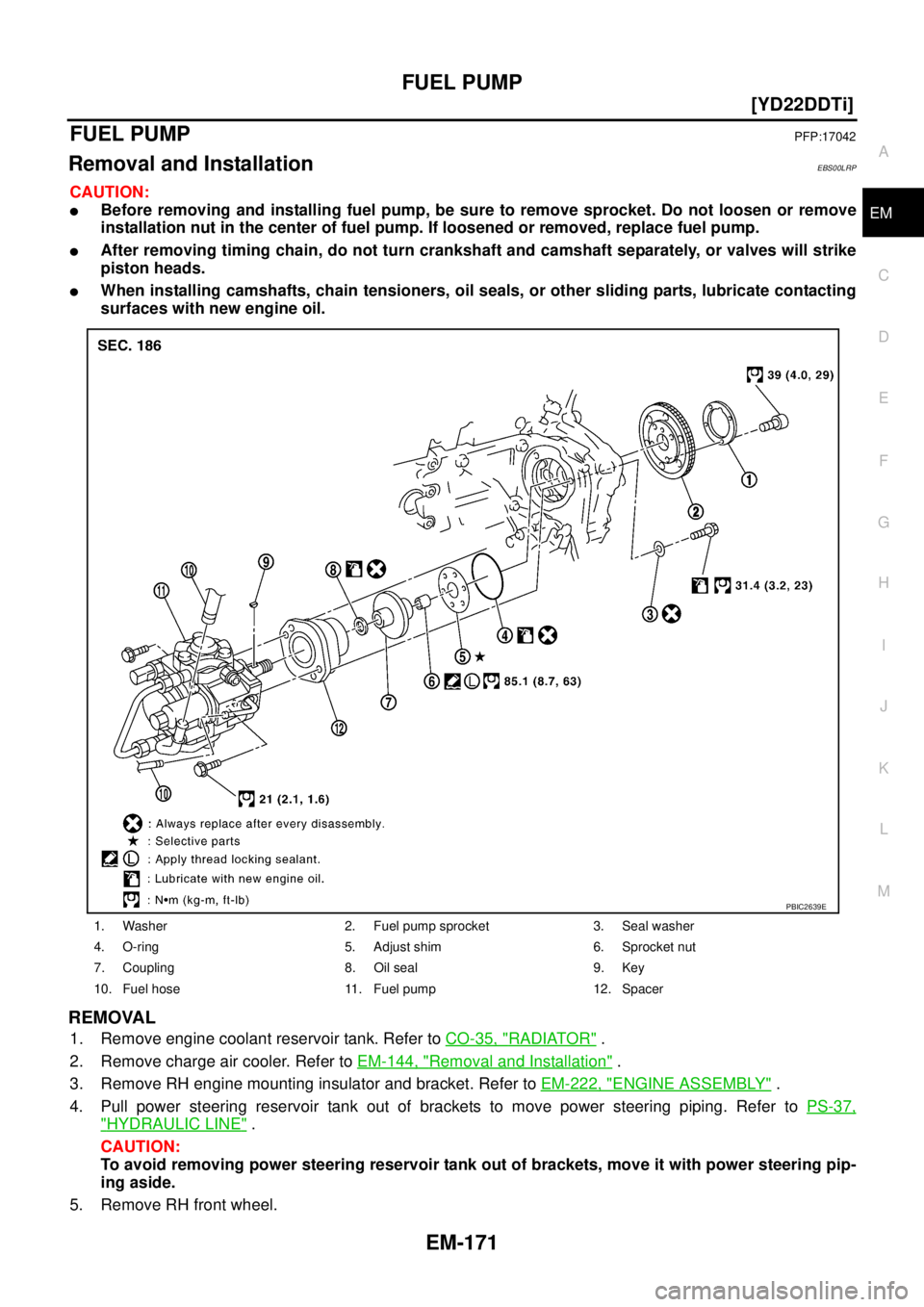

FUEL PUMPPFP:17042
Removal and InstallationEBS00LRP

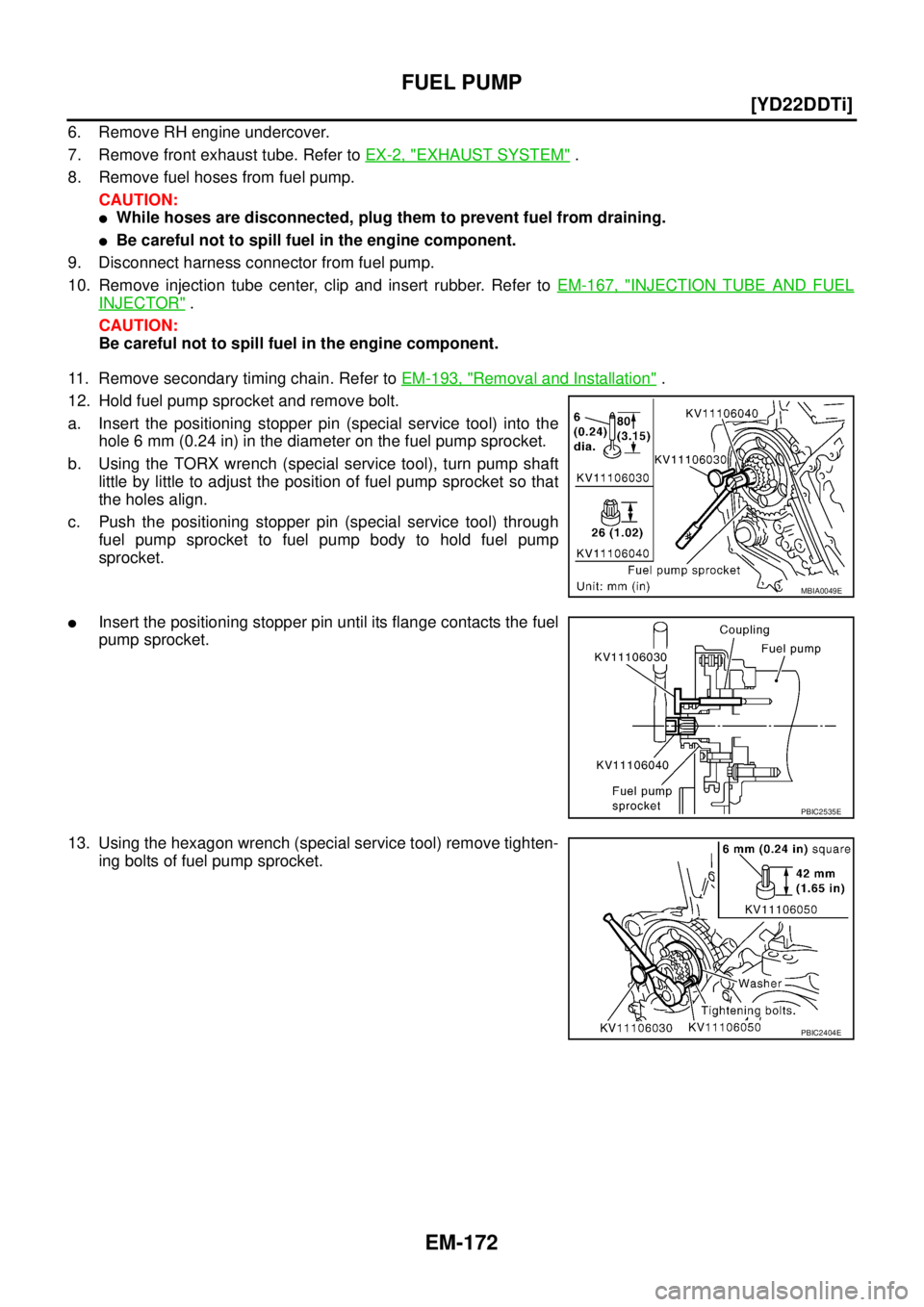

CAUTION:
Before removing and installing fuel pump, be sure to remove sprocket. Do not loose

Page 226 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-172
[YD22DDTi]
FUEL PUMP

6. Remove RH engine undercover.
7. Remove front exhaust tube. Refer to EX-2, "
EXHAUST SYSTEM" .
8. Remove fuel hoses from fuel pump.
CAUTION:
While hoses are disconnect

Page 227 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual FUEL PUMP
EM-173
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

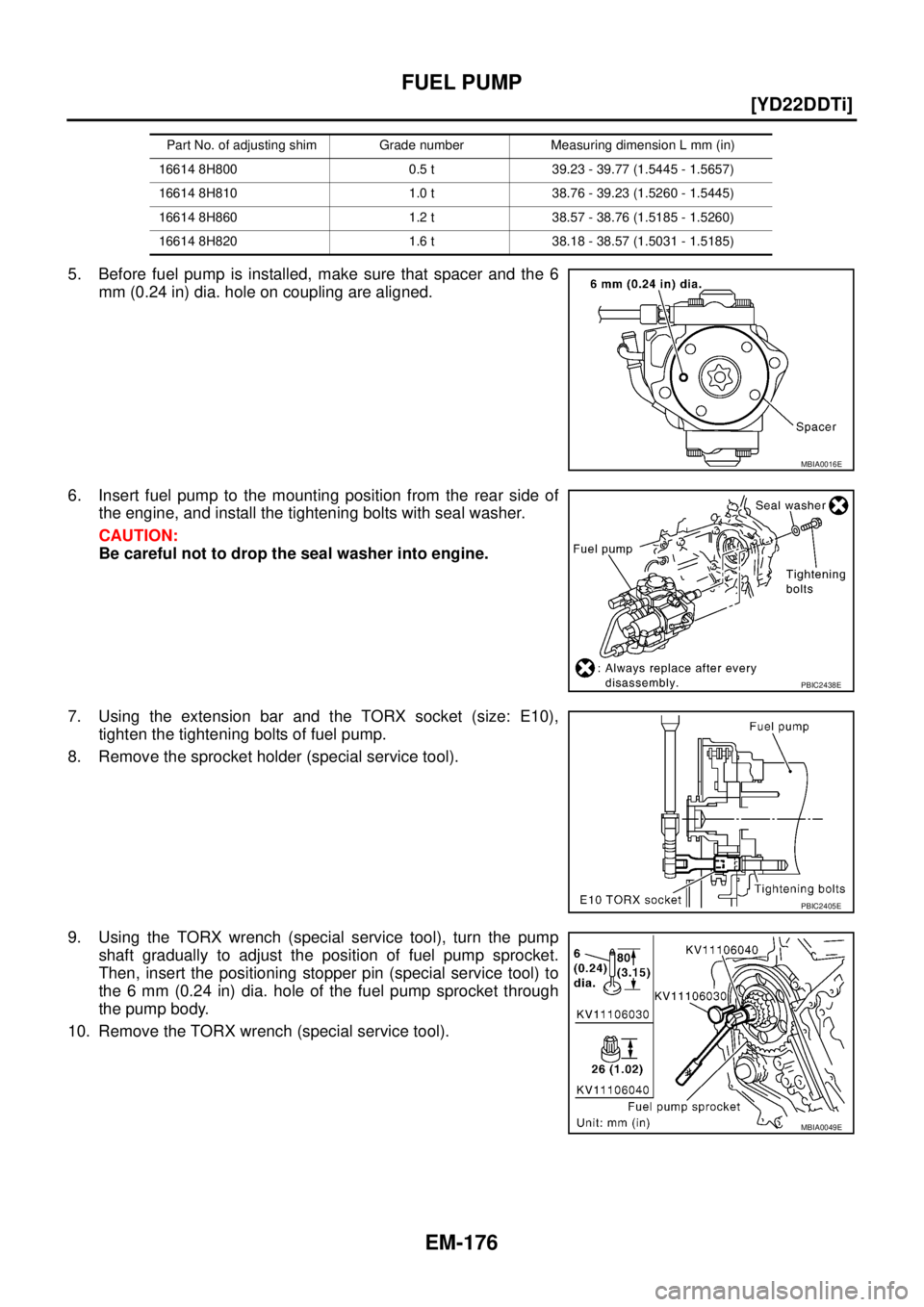

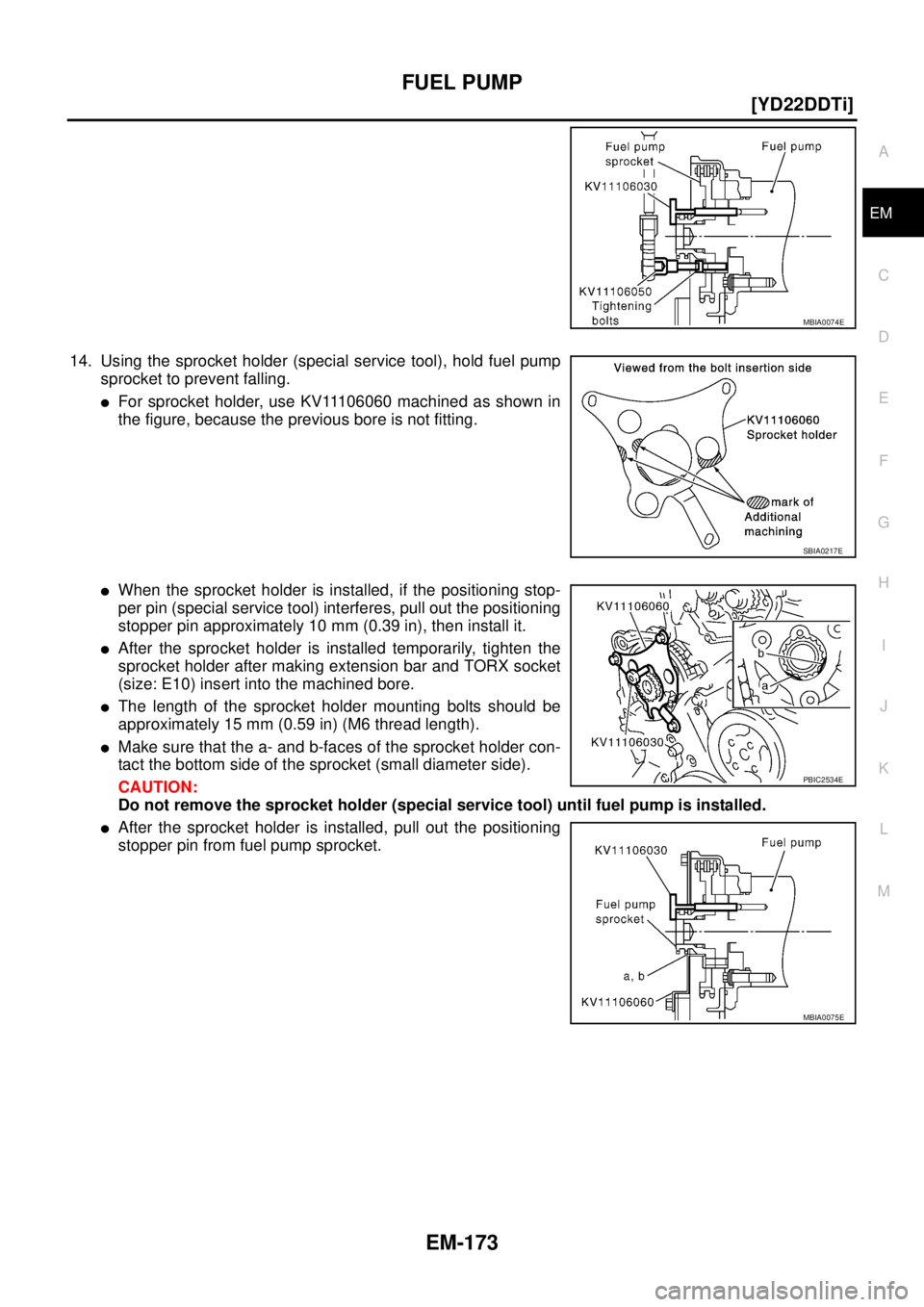

14. Using the sprocket holder (special service tool), hold fuel pump
sprocket to prevent falling.
For sprocket holder, use KV11106060 machined

Page 228 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-174
[YD22DDTi]
FUEL PUMP

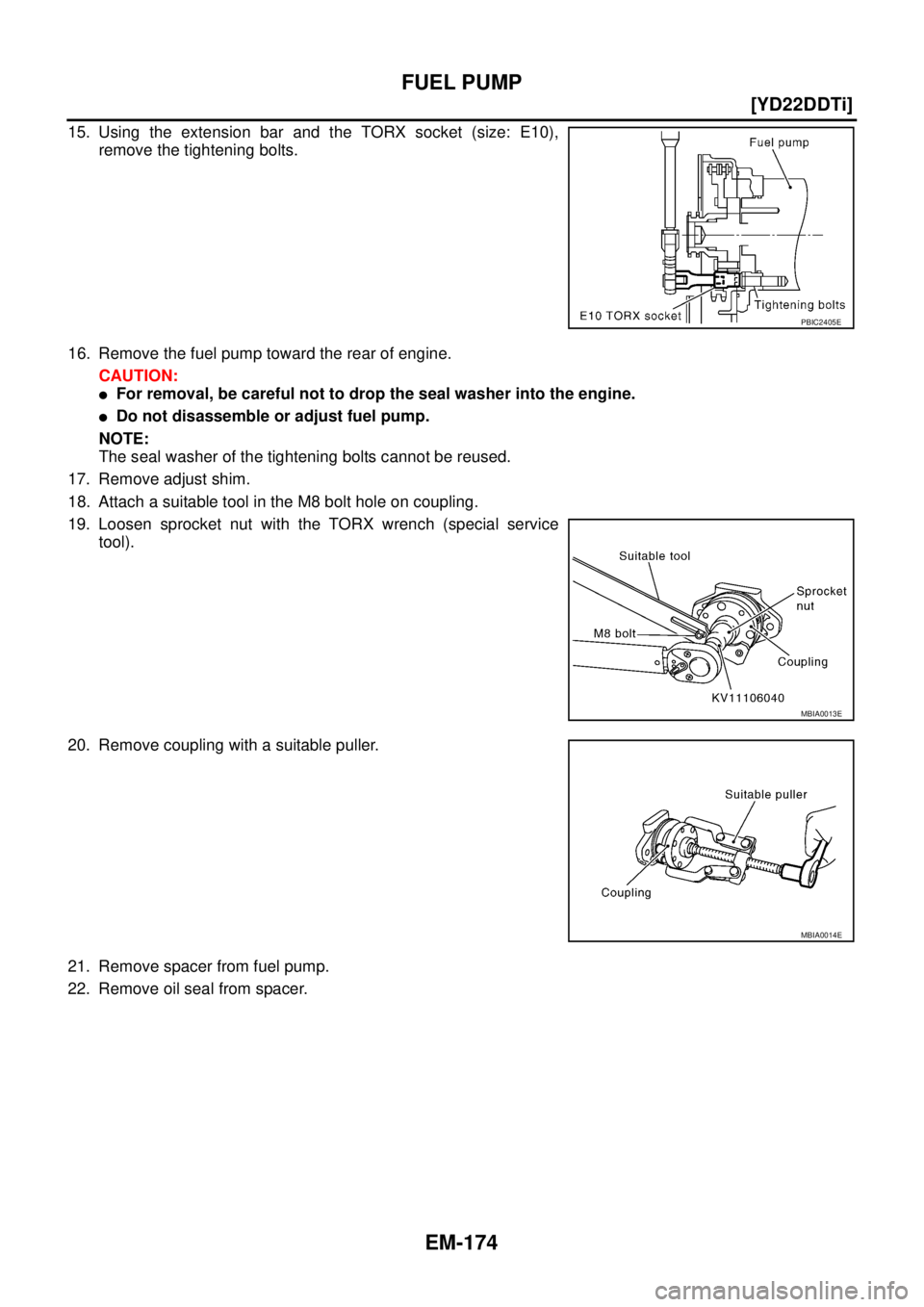

15. Using the extension bar and the TORX socket (size: E10),
remove the tightening bolts.
16. Remove the fuel pump toward the rear of engine.
CAUTION:
For removal, be ca

Page 229 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual FUEL PUMP
EM-175
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

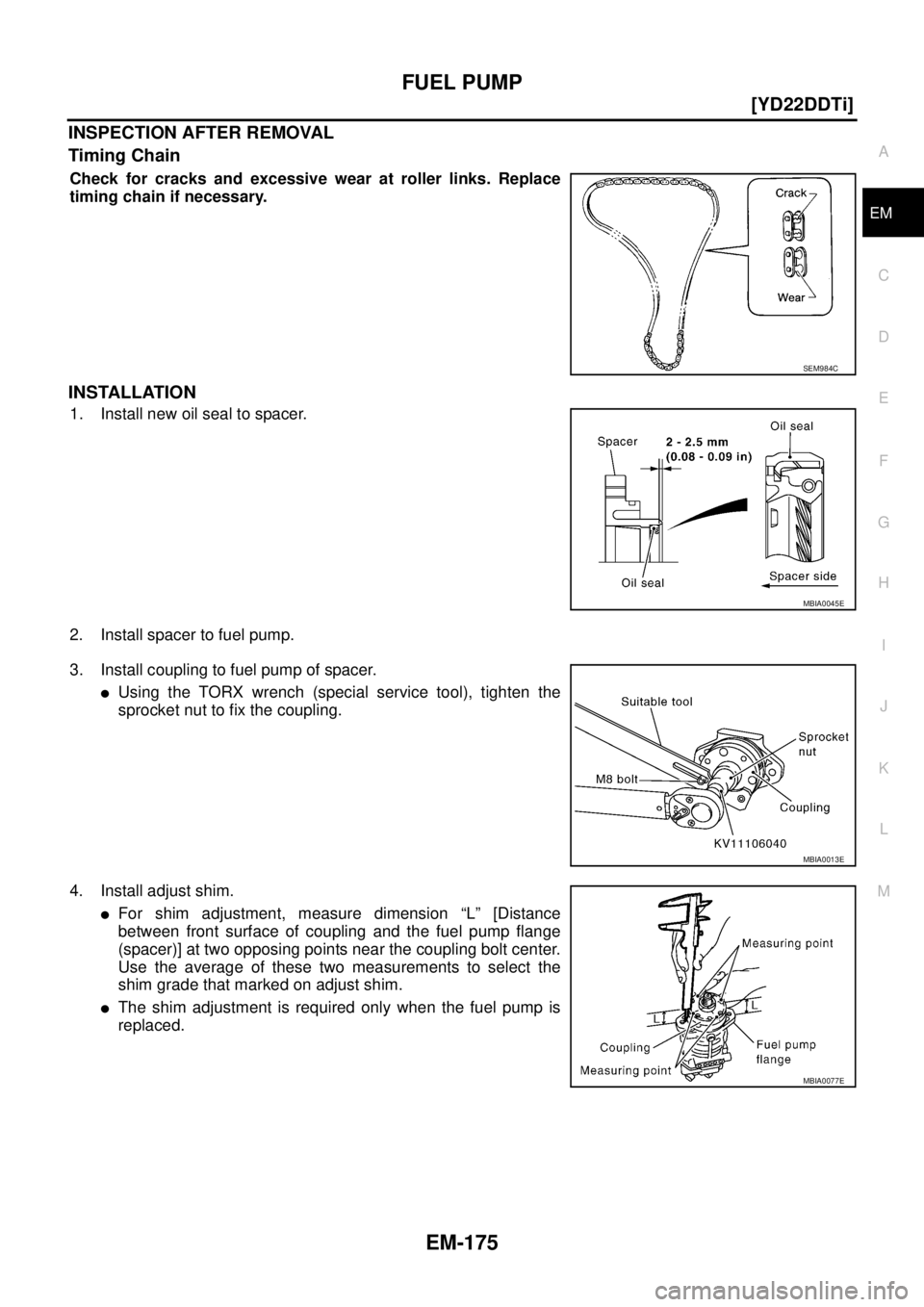

INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and excessive wear at roller links. Replace
timing chain if necessary.
INSTALLATION
1. In

Page 230 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-176
[YD22DDTi]
FUEL PUMP

5. Before fuel pump is installed, make sure that spacer and the 6
mm (0.24 in) dia. hole on coupling are aligned.
6. Insert fuel pump to the mounting position from the re
