Page 291 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual CYLINDER BLOCK
EM-237
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

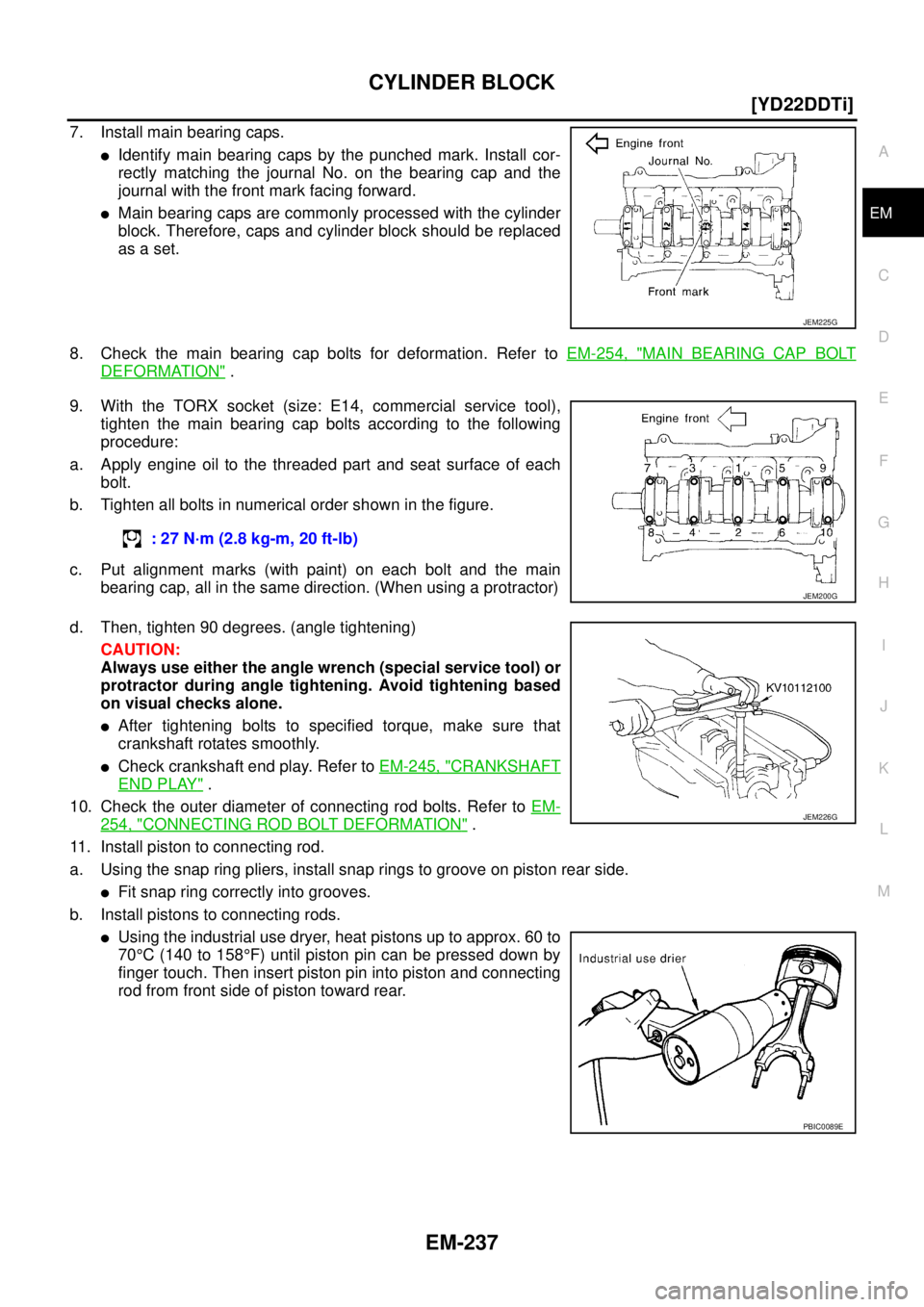

7. Install main bearing caps.
Identify main bearing caps by the punched mark. Install cor-
rectly matching the journal No. on the bearing

Page 292 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-238
[YD22DDTi]
CYLINDER BLOCK

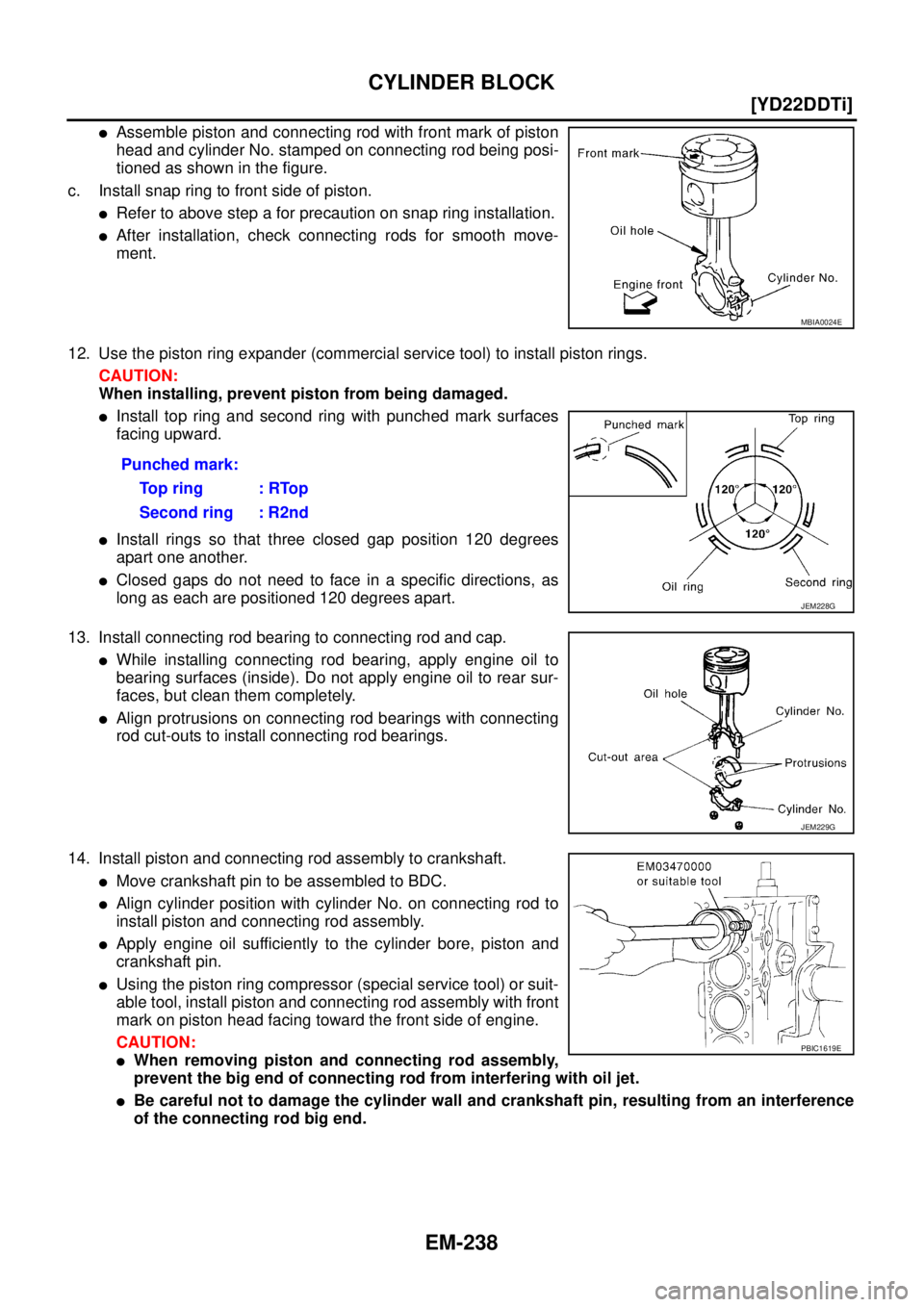

Assemble piston and connecting rod with front mark of piston
head and cylinder No. stamped on connecting rod being posi-
tioned as shown in the figure.
c. Install s

Page 293 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual CYLINDER BLOCK
EM-239
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

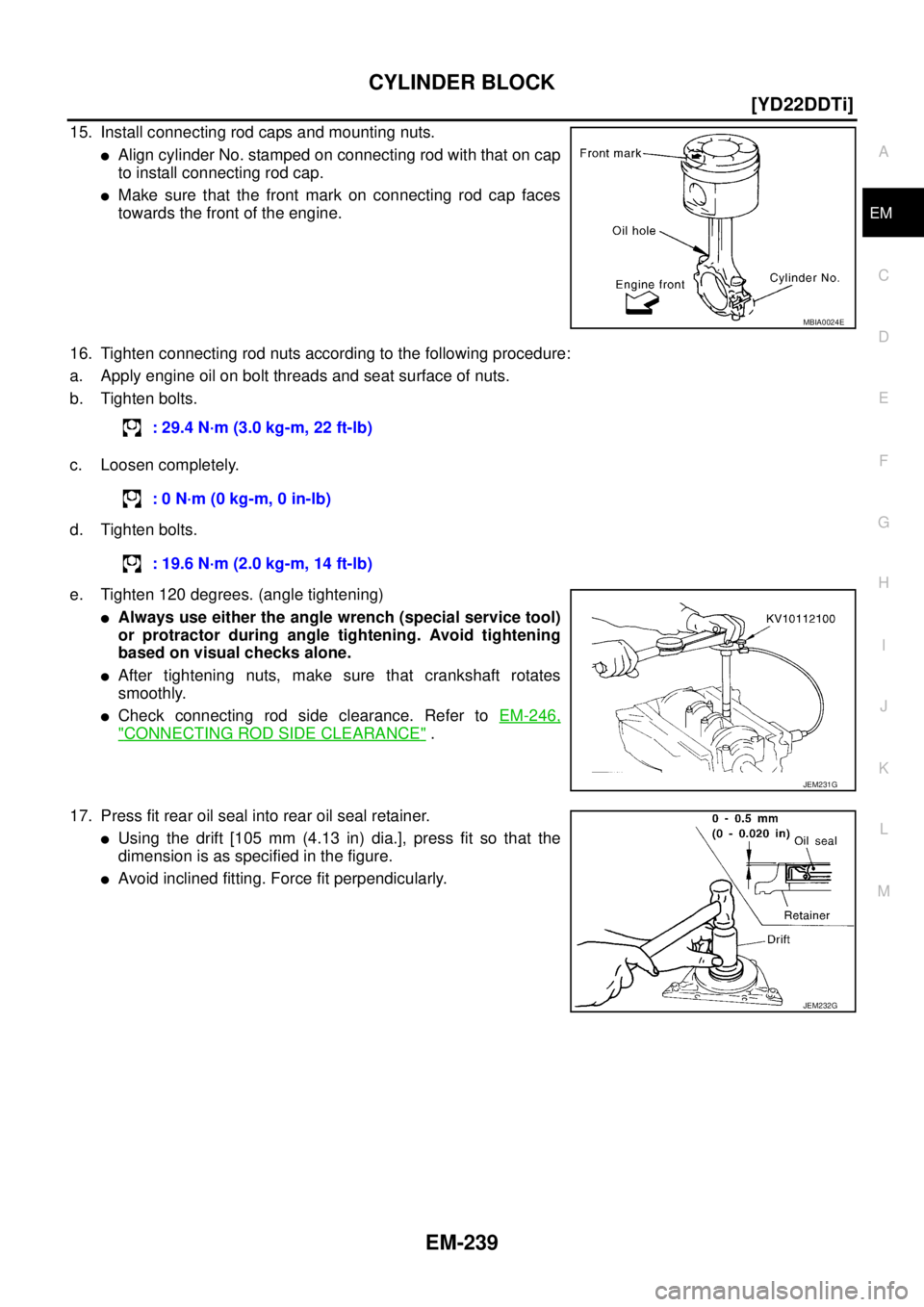

15. Install connecting rod caps and mounting nuts.
Align cylinder No. stamped on connecting rod with that on cap
to install connecting rod

Page 294 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-240
[YD22DDTi]
CYLINDER BLOCK

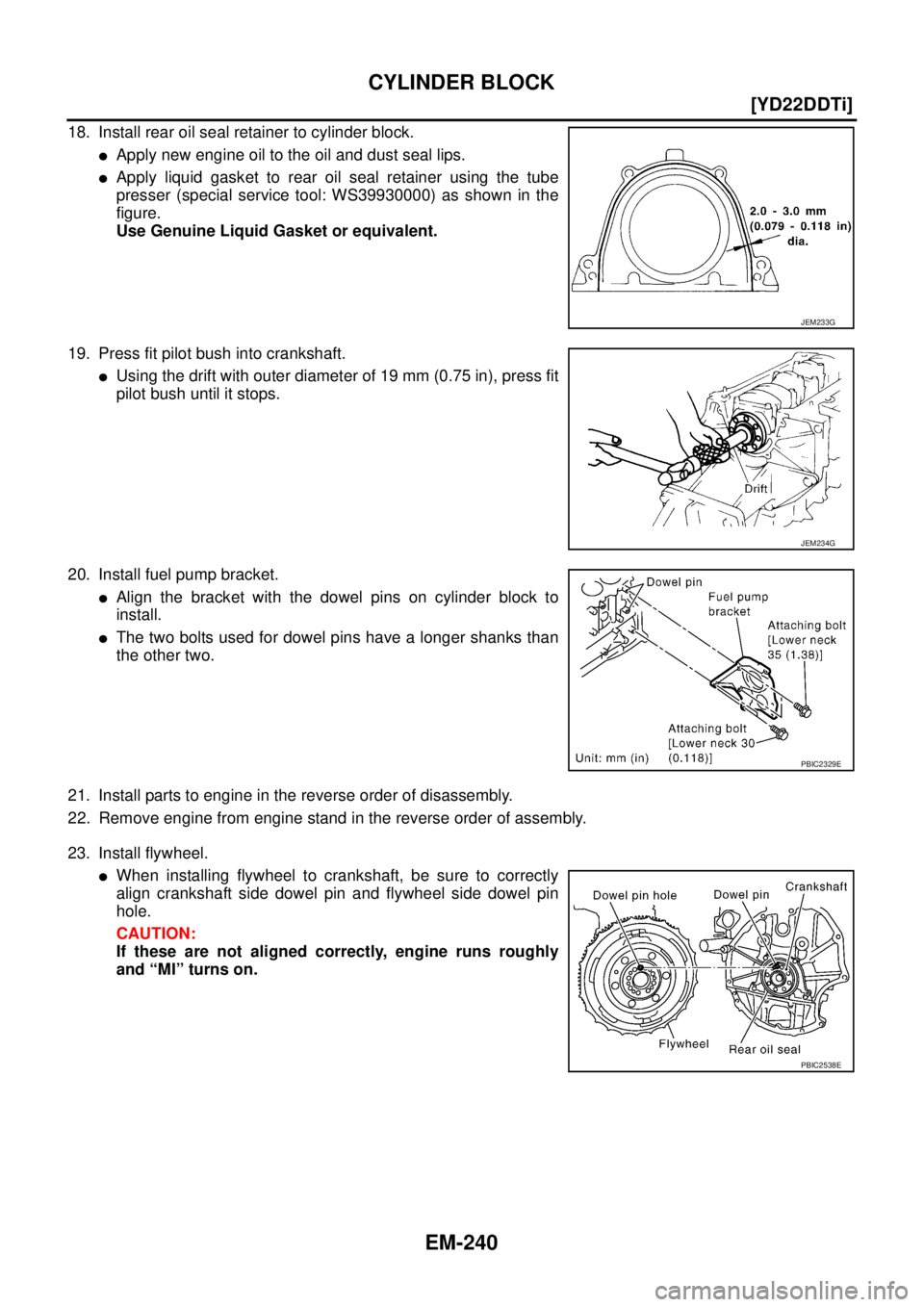

18. Install rear oil seal retainer to cylinder block.
Apply new engine oil to the oil and dust seal lips.
Apply liquid gasket to rear oil seal retainer using the t

Page 295 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual CYLINDER BLOCK
EM-241
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

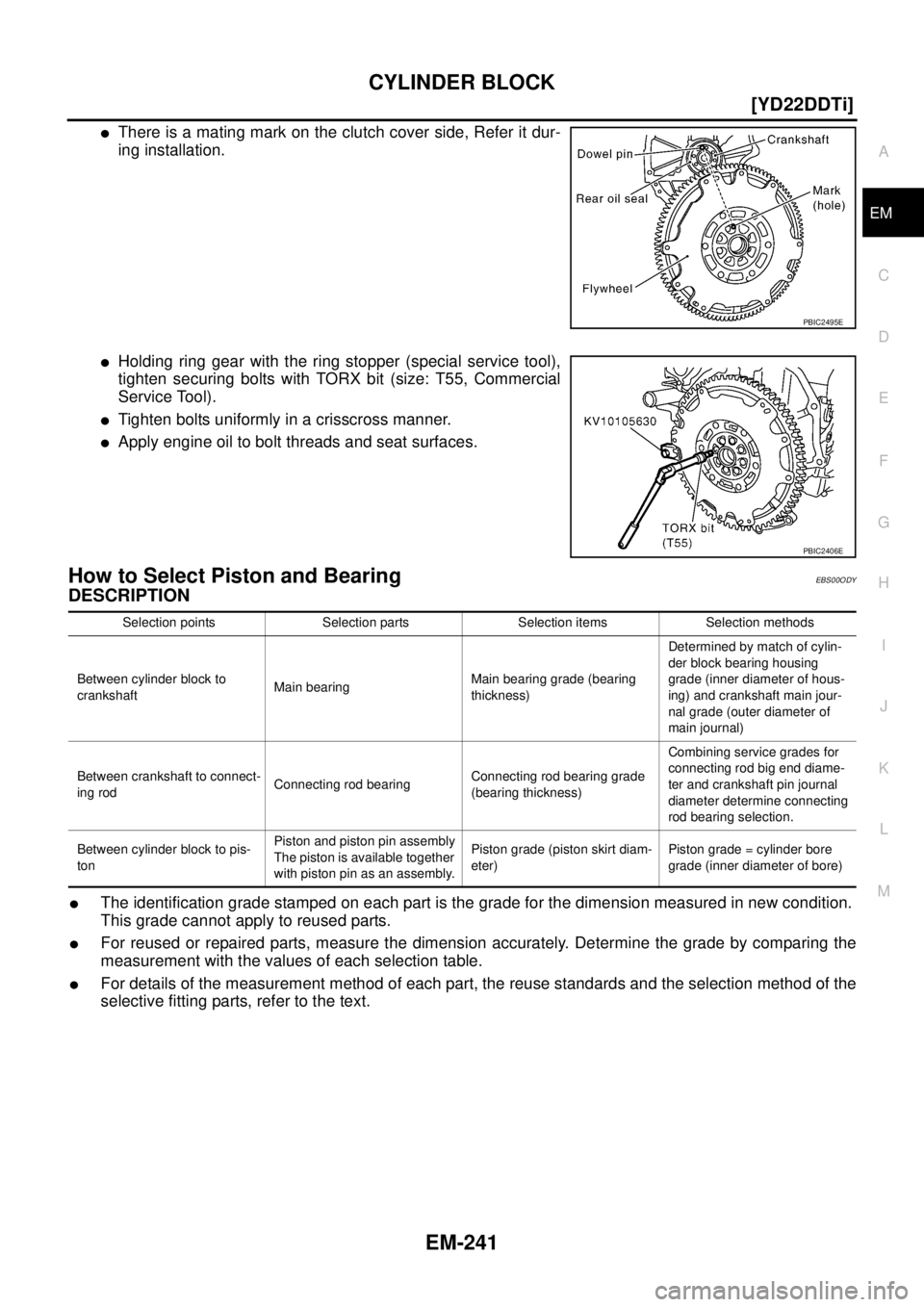

There is a mating mark on the clutch cover side, Refer it dur-
ing installation.
Holding ring gear with the ring stopper (special service

Page 296 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-242
[YD22DDTi]
CYLINDER BLOCK

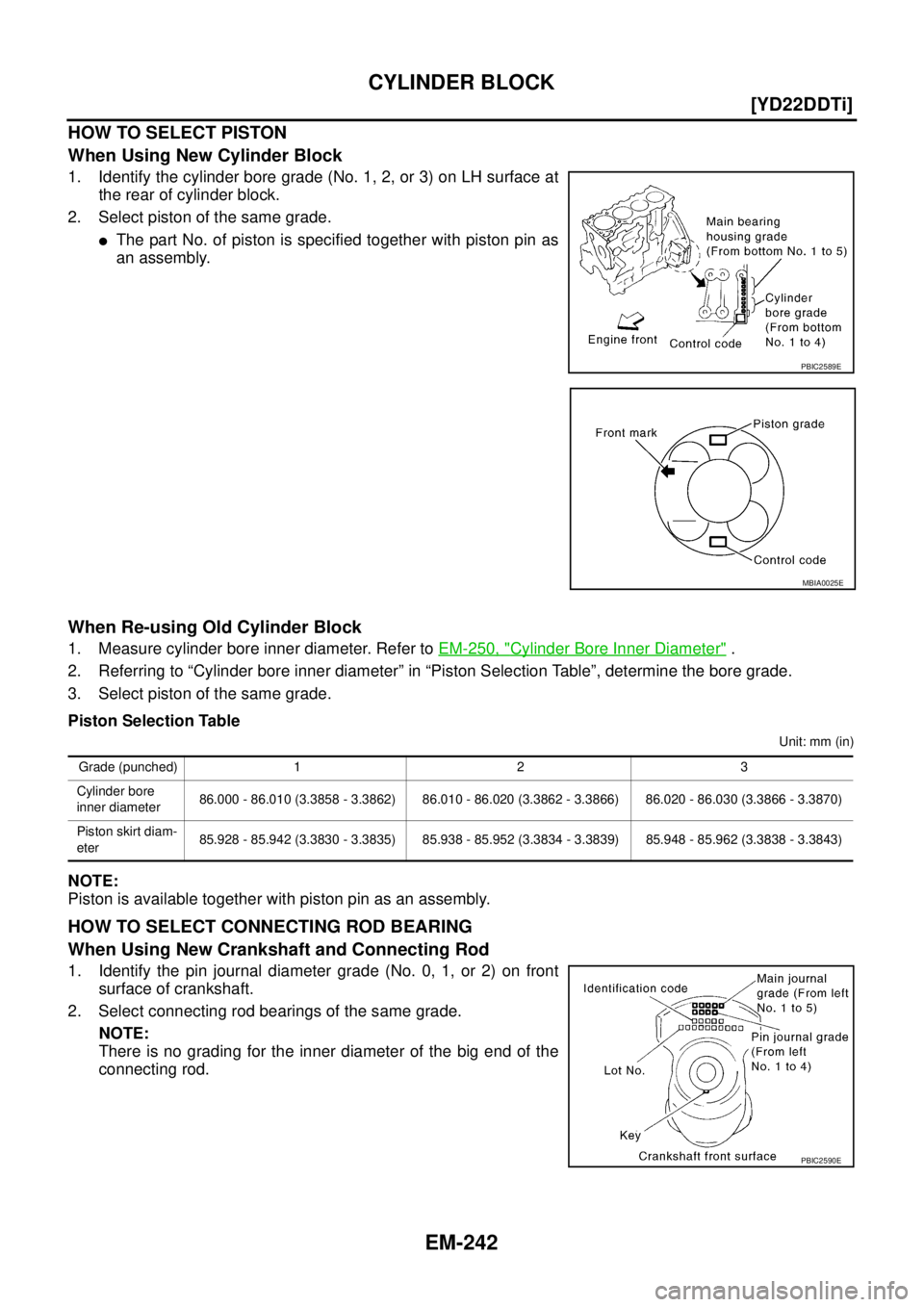

HOW TO SELECT PISTON
When Using New Cylinder Block
1. Identify the cylinder bore grade (No. 1, 2, or 3) on LH surface at
the rear of cylinder block.
2. Select piston

Page 297 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual CYLINDER BLOCK
EM-243
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

When Re-using the Removed Crankshaft and Connecting Rod
1. Measure the inner diameter of the big end of connecting rod and make sure it is

Page 298 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-244
[YD22DDTi]
CYLINDER BLOCK

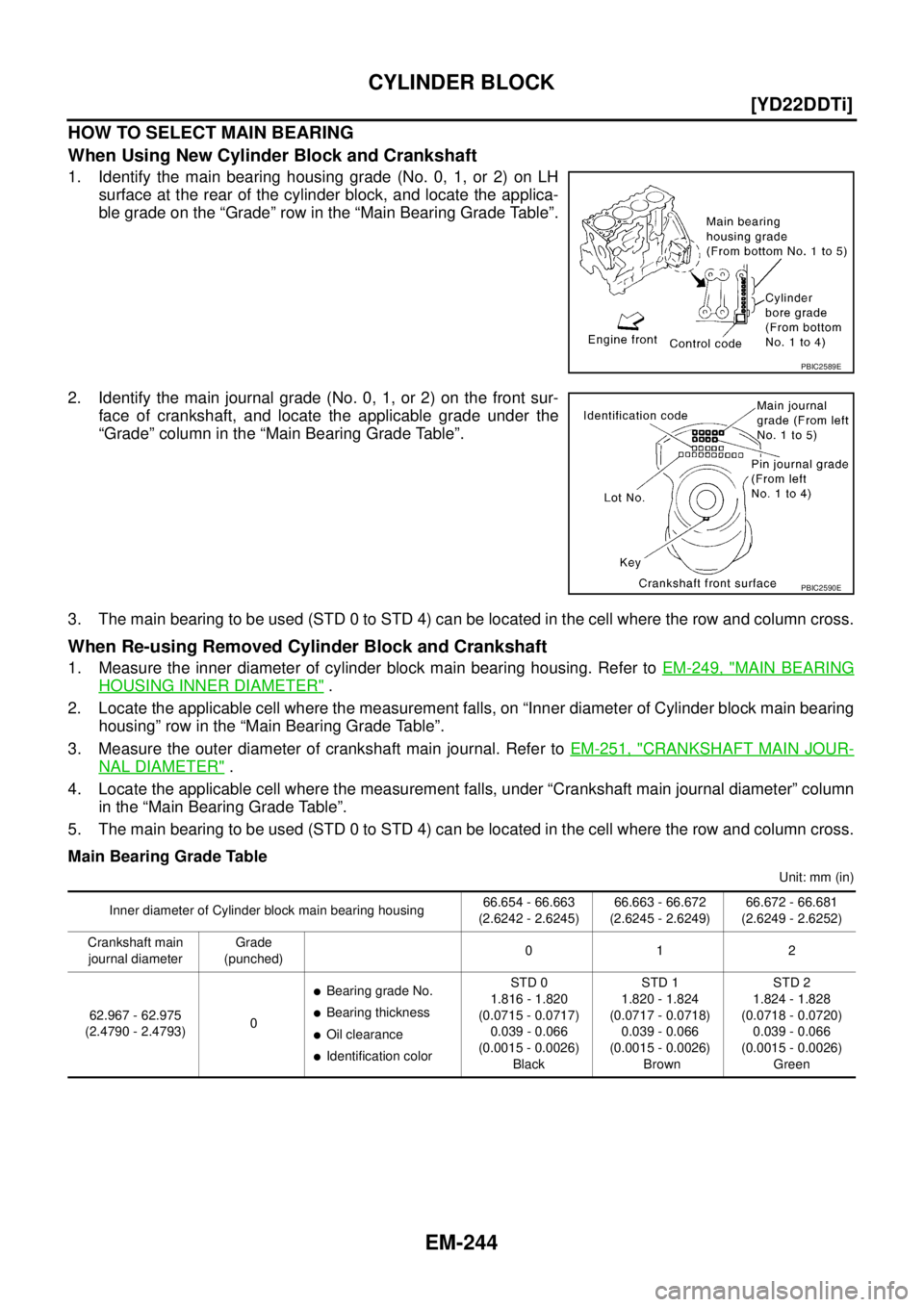

HOW TO SELECT MAIN BEARING
When Using New Cylinder Block and Crankshaft
1. Identify the main bearing housing grade (No. 0, 1, or 2) on LH
surface at the rear of the

Page 299 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual CYLINDER BLOCK
EM-245
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

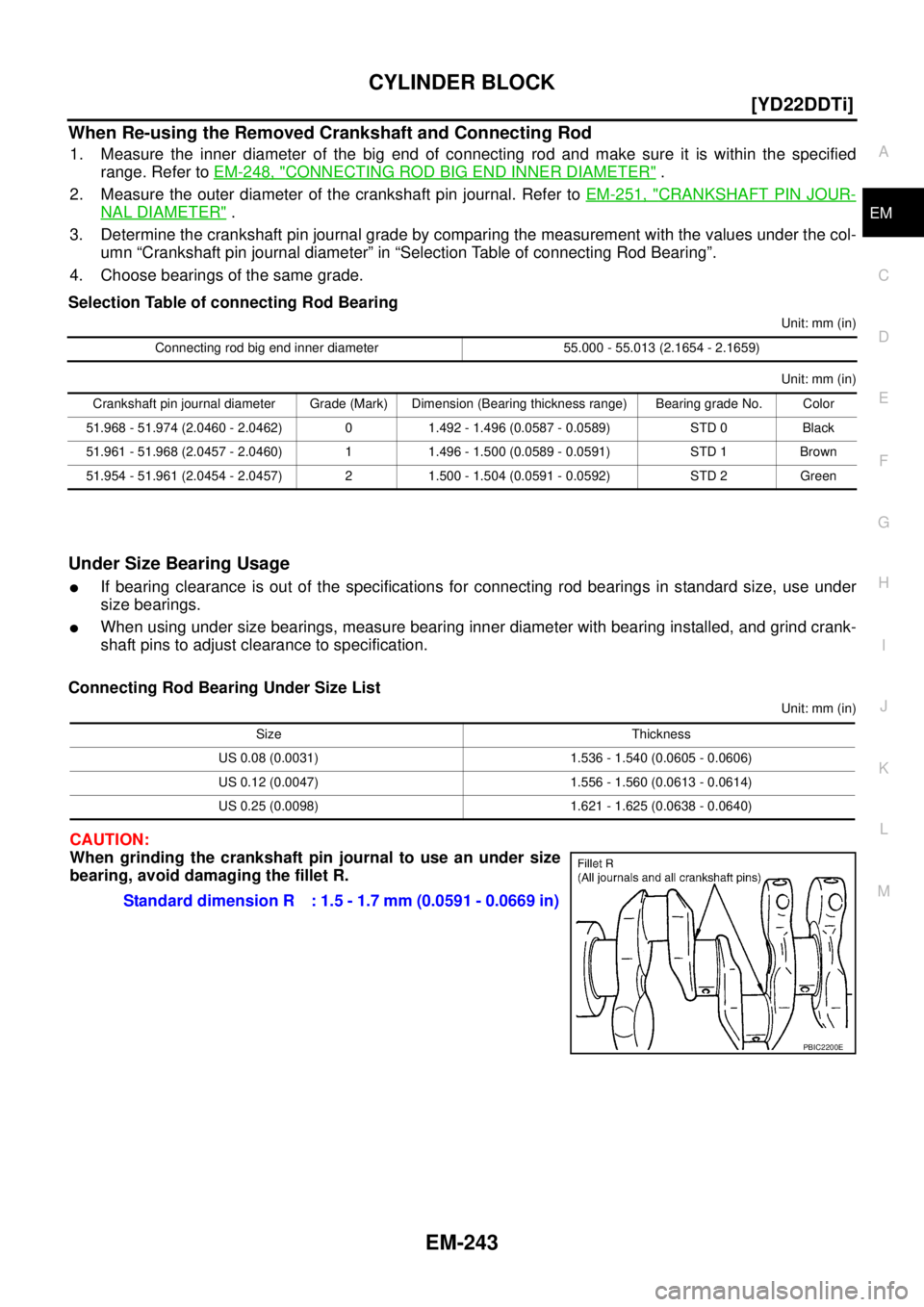

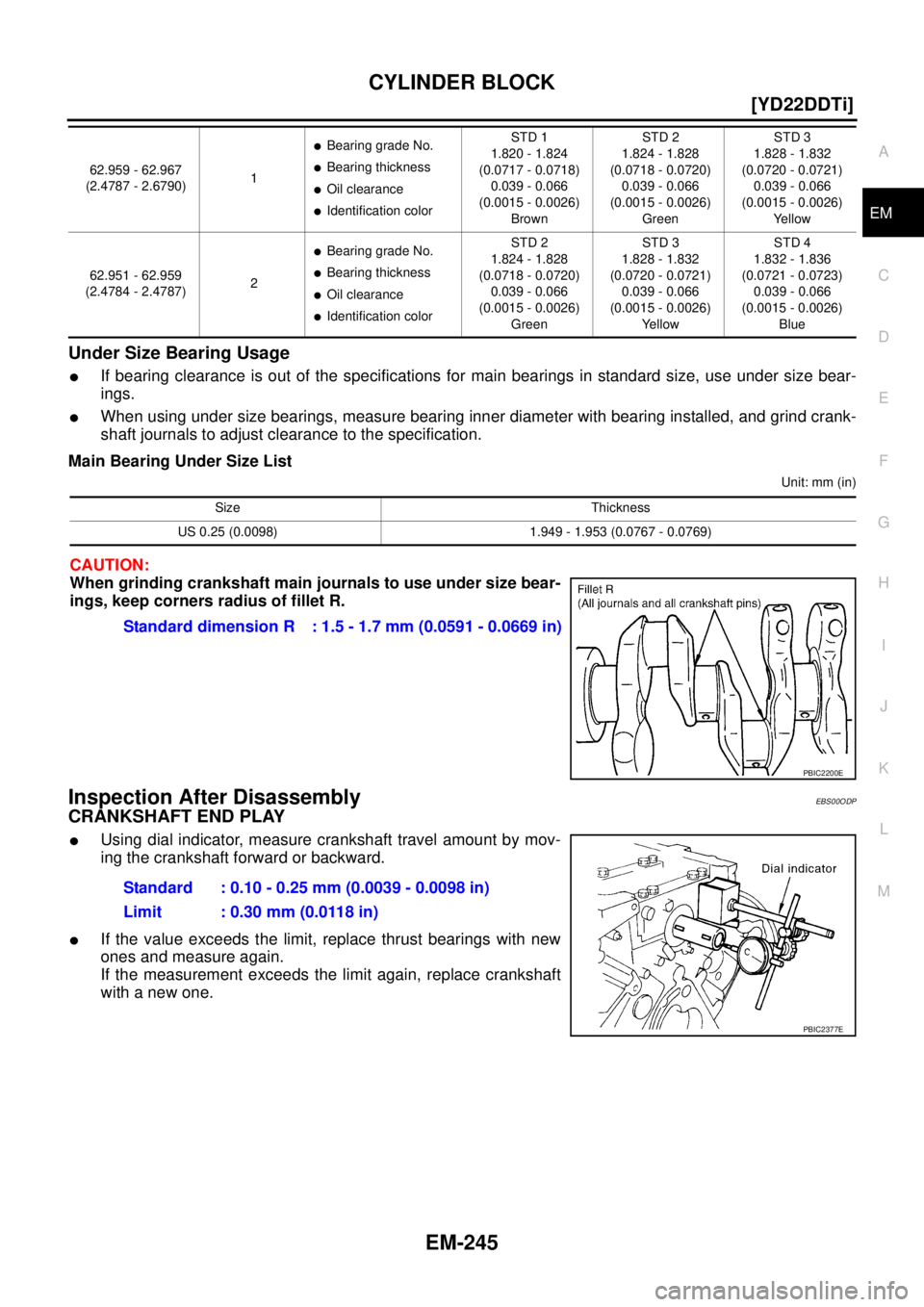

Under Size Bearing Usage
If bearing clearance is out of the specifications for main bearings in standard size, use under size bear-
ings.

Page 300 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual EM-246
[YD22DDTi]
CYLINDER BLOCK

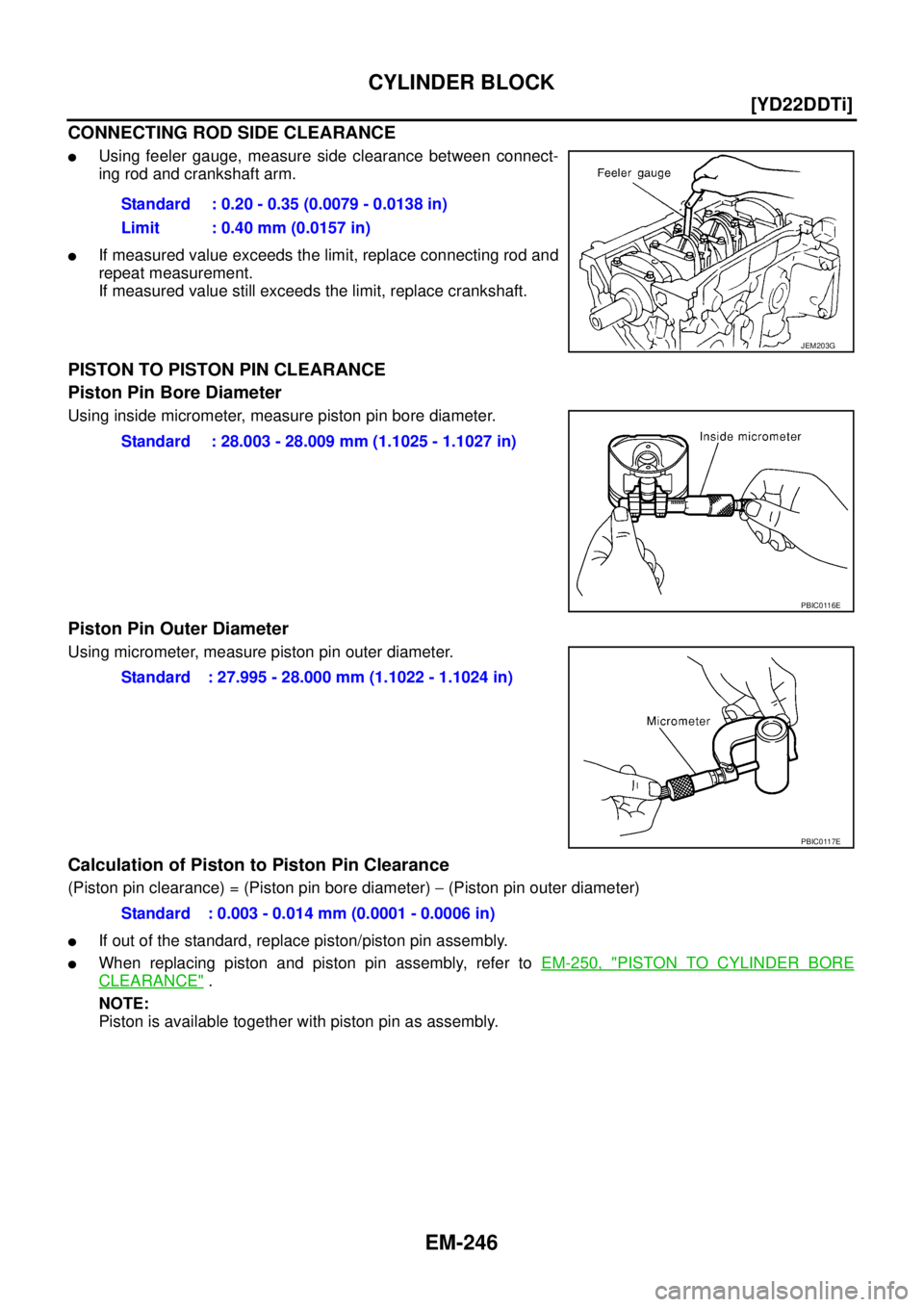

CONNECTING ROD SIDE CLEARANCE
Using feeler gauge, measure side clearance between connect-
ing rod and crankshaft arm.
If measured value exceeds the limit, replace
