ENGINE OIL
LU-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU

3. Loosen oil filler cap and then remove drain plug.
4. Drain engine oil.
5. Install drain plug with new washer. Refer to EM-27, "
OIL PAN
AND OIL STRAINER" .
CAUTION:
Be sure to clean drain plug and install with new washer.
6. Refill with new engine oil.
Engine oil specification and viscosity:
Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Engine oil capacity (Approximate):
Unit: (lmp qt)
CAUTION:

The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.

Always use oil level gauge to determine the proper amount of engine oil in the engine.
7. Warm up engine and check area around drain plug and oil filter for oil leakage.
8. Stop engine and wait for 10 minutes.
9. Check the engine oil level. Refer to LU-7, "
ENGINE OIL LEVEL" . Oil pan drain plug:
: 34.3 N·m (3.5 kg-m, 25 ft-lb)
PBIC2410E
Drain and refill With oil filter change 4.1 (3-5/8)
Without oil filter change 3.7 (3-1/4)
Dry engine (Overhaul)4.7 (4-1/8)

LU-10
[QR]
OIL FILTER

OIL FILTERPFP:15208
Removal and InstallationEBS011TI
REMOVAL
1. Open oil filter installation/removal cover on RH undercover.
2. Using an oil filter wrench (special service tool), remove oil filter.
CAUTION:

Oil filter is provided with relief valve. Use Genuine NIS-
SAN Oil Filter or equivalent.

Be careful not to get burned when engine and engine oil
may be hot.

When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.

Do not allow engine oil to adhere to drive belt.

Completely wipe off any engine oil that adheres to engine
and vehicle.
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply new engine oil to the oil seal contact surface of new oil fil-
ter.
3. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
INSPECTION AFTER INSTALLATION
1. Start engine, and make sure there is no leaks of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and adjust engine oil. Refer to LU-7, "
ENGINE OIL" .
KBIA0303E
SMA010
Oil filter:
: 17.6 N·m (1.8 kg-m, 13 ft-lb)
SMA229B

OIL COOLER
LU-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU

OIL COOLERPFP:21305
Removal and InstallationEBS00KO8
WARNING:
Be careful not to get burned when engine and engine oil may be hot.
CAUTION:

When removing oil cooler and oil cooler bracket, prepare a shop cloth to absorb any engine oil
leakage or spillage.

Completely wipe off any engine oil that adhere to engine and vehicle.
REMOVAL
1. Remove RH front road wheel and tyre and RH undercover.
2. Drain engine coolant by removing water drain plug on cylinder block and radiator drain plug. Refer to EM-
89, "CYLINDER BLOCK" and CO-9, "Changing Engine Coolant" .
3. Disconnect water hoses from oil cooler.
4. Remove oil cooler and oil cooler bracket.
NOTE:
For reference when installing, put a mating mark on oil cooler and oil cooler bracket.
INSPECTION AFTER REMOVAL
Oil Cooler
Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler assembly.
Relief Valve
Inspect relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove
valve by prying it out with a suitable tool. Install a new valve in place by tapping it.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and the engine coolant level, and adjust engine oil and engine coolant. Refer to
LU-7, "
ENGINE OIL" and CO-9, "ENGINE COOLANT" .
PBIC2273E
1. Oil pressure switch 2. Relief valve 3. Oil cooler bracket
4. O-ring 5. Oil cooler 6. O-ring
7. Gasket 8. Clamp 9. Water hose
10. Water hose

LU-12
[QR]
OIL COOLER

2. Start engine, and make sure there is no leaks of engine oil or engine coolant.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level and the engine coolant level again. Refer to LU-7, "
ENGINE OIL" and CO-9,
"ENGINE COOLANT" .

OIL PUMP
LU-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU

OIL PUMPPFP:15010
Removal and InstallationEBS00KO6
REMOVAL
Remove front cover. Refer to EM-46, "TIMING CHAIN" .
NOTE:
Oil pump is built into front cover.
INSTALLATION
Note the following, and install in the reverse order of removal.

When installing, align crankshaft flat faces with inner rotor flat faces.
INSPECTION AFTER INSTALLATION
1. After warming up engine, make sure there is no leaks of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and adjust engine oil. Refer to LU-7, "
ENGINE OIL" .
Disassembly and AssemblyEBS00KO7
DISASSEMBLY
1. Remove oil pump cover.
2. Remove inner rotor and outer rotor from front cover.
3. After removing regulator valve plug, remove regulator spring and regulator valve.
PBIC2430E
1. Front cover (Oil pump body is united) 2. Outer rotor 3. Inner rotor
4. Oil pump cover 5. Regulator valve 6. Regulator valve spring
7. Regulator valve plug

LU-14
[QR]
OIL PUMP

INSPECTION AFTER DISASSEMBLY
Clearance of Oil Pump Parts

Measure the clearance with feeler gauge.
–Clearance between outer rotor and front cover (Position “1”)
–If out of the standard, replace oil pump assembly.
–Tip clearance between inner rotor and outer rotor (Position “2”)
–If out of the standard, replace inner rotor and outer rotor.

Measure the clearance with feeler gauge and straightedge.
–Side clearance between inner rotor and front cover (Position “3”)
–If out of the standard, replace oil pump assembly.
–Side clearance between outer rotor and front cover (Position “4”)
–If out of the standard, replace oil pump assembly.

Calculate the clearance between inner rotor and front cover with
the following procedure:
–Measure the outer diameter of protruded portion of inner rotor
with micrometer. (Position “5”)
–Measure the inner diameter of front cover with inside microme-
ter. (Position “6”)
–(Clearance) = (Inner diameter of front cover) – (Outer diameter of inner rotor)
–If out of the standard, replace oil pump assembly.Standard : 0.114 - 0.179 mm (0.0045 - 0.0070 in)
Standard : Below 0.220 mm (0.0087 in)
PBIC0251E
Standard : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Standard : 0.060 - 0.110 mm (0.0024 - 0.0043 in)
PBIC3465E
PBIC3466E
PBIC3467E
Standard : 0.035 - 0.070 mm (0.0014 - 0.0028 in)

OIL PUMP
LU-15
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU

Regulator Valve Clearance
(Clearance) = (Valve hole diameter “D1”) – (Regulator valve outer
diameter “D2”)

If out of the standard, replace oil pump assembly.
CAUTION:

Coat regulator valve with new engine oil.

Make sure that it falls smoothly into valve hole by its own
weight.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.

Install inner rotor and outer rotor with the punched marks on the
oil pump cover side.Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
KBIA0043E
PBIC0255E

LU-16
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00KO9
OIL PRESSURE
*: Engine oil temperature at 80° (176°F)
ENGINE OIL CAPACITY (APPROXIMATE)
Unit: (Imp qt)
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in)
Tightening TorqueEBS00KOA
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)* Engine speed
rpm Approximate discharge pressure*
kPa (bar, kg/cm
2 , psi)
Idle speed More than 98 (0.98, 1.0, 14)
2,000 More than 294 (2.94, 3.0, 43)
Drain and refillWith oil filter change 4.1 (3-5/8)
Without oil filter change 3.7 (3-1/4)
Dry engine (Overhaul)4.7 (4-1/8)
Front cover to outer rotor radial clearance 0.114 - 0.179 (0.0045 - 0.0070)
Inner rotor to outer rotor tip clearance Below 0.220 (0.0087)
Front cover to inner rotor side clearance 0.030 - 0.070 (0.0012 - 0.0028)
Front cover to outer rotor side clearance 0.060 - 0.110 (0.0024 - 0.0043)
Inner rotor to front cover clearance 0.035 - 0.070 (0.0014 - 0.0028)
Regulator valve to valve hole clearance 0.040 - 0.097 (0.0016 - 0.0038)
Oil pressure switch14.8 (1.5, 11)
Oil pan drain plug34.3 (3.5, 25)
Oil filter17.6 (1.8, 13)
Oil pump cover Bolt 7.0 (0.71, 62)*
Screw 6.9 (0.70, 61)*
Regulator valve plug54.0 (5.5, 40)
Oil cooler39.2 (4.0, 29)
Oil cooler bracket21.6 (2.2, 16)

PRECAUTIONS
LU-17
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU

[YD22DDTi]PRECAUTIONSPFP:00001
Precautions for Liquid GasketEBS011SZ
LIQUID GASKET APPLICATION PROCEDURE
1. Remove the old liquid gasket adhering to the gasket application surface and the mating surface.

Remove the liquid gasket completely from the gasket application surface, mounting bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to the tube presser (special service
tool).
Use Genuine Liquid Gasket or equivalent.

Within five minutes of gasket application, install the mating com-
ponent.

If the liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts and nuts after the installation.

Wait 30 minutes or more after installation before filling the
engine with engine oil and engine coolant.
PBIC2160E

LU-18
[YD22DDTi]
PREPARATION

PREPARATIONPFP:00002
Special Service ToolsEBS00B01
Commercial Service ToolsEBS011WH

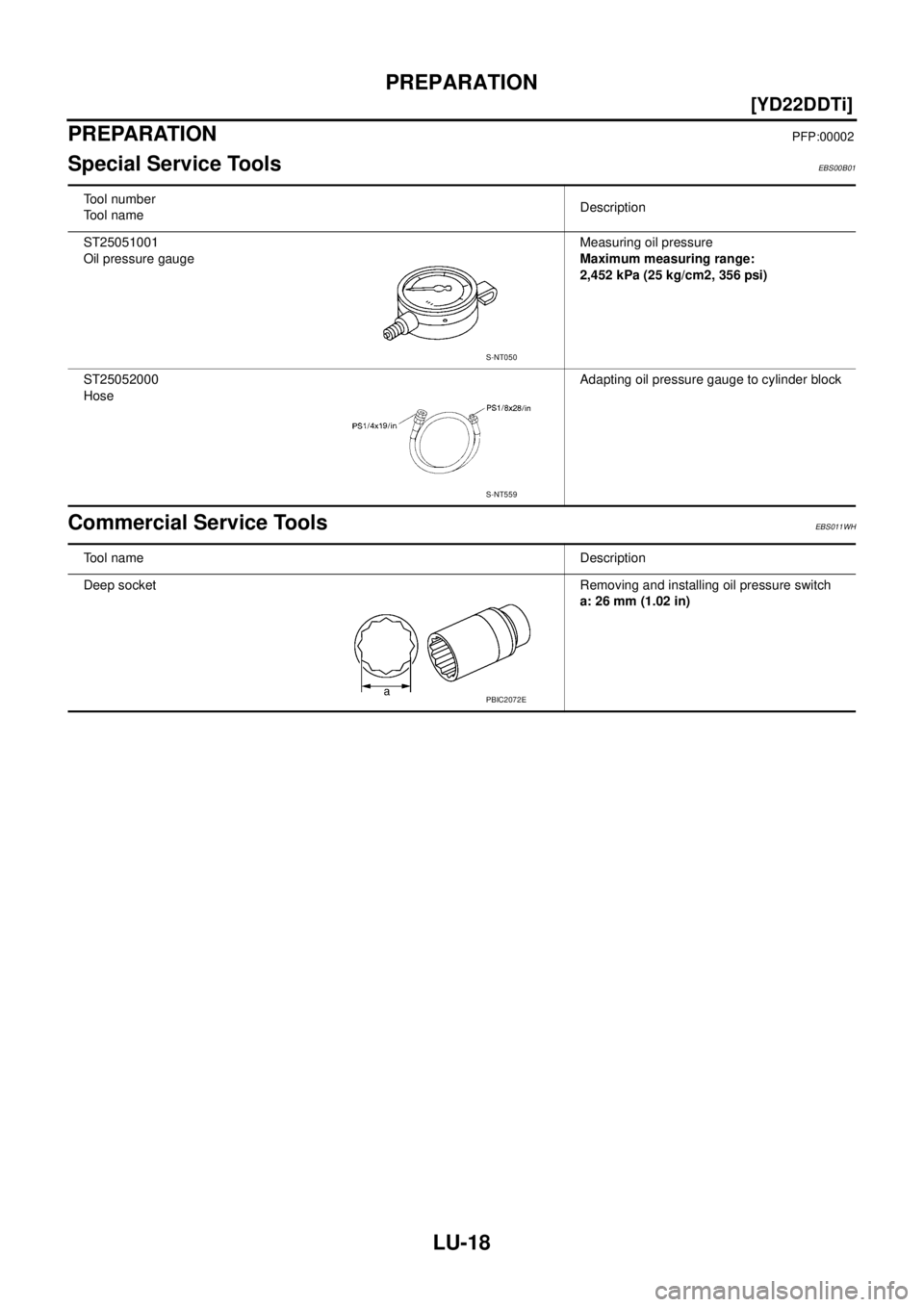

Tool number
Tool nameDescription
ST25051001
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm2, 356 psi)
ST25052000
HoseAdapting oil pressure gauge to cylinder block
S-NT050
S-NT559
Tool nameDescription
Deep socketRemoving and installing oil pressure switch
a: 26 mm (1.02 in)
PBIC2072E
