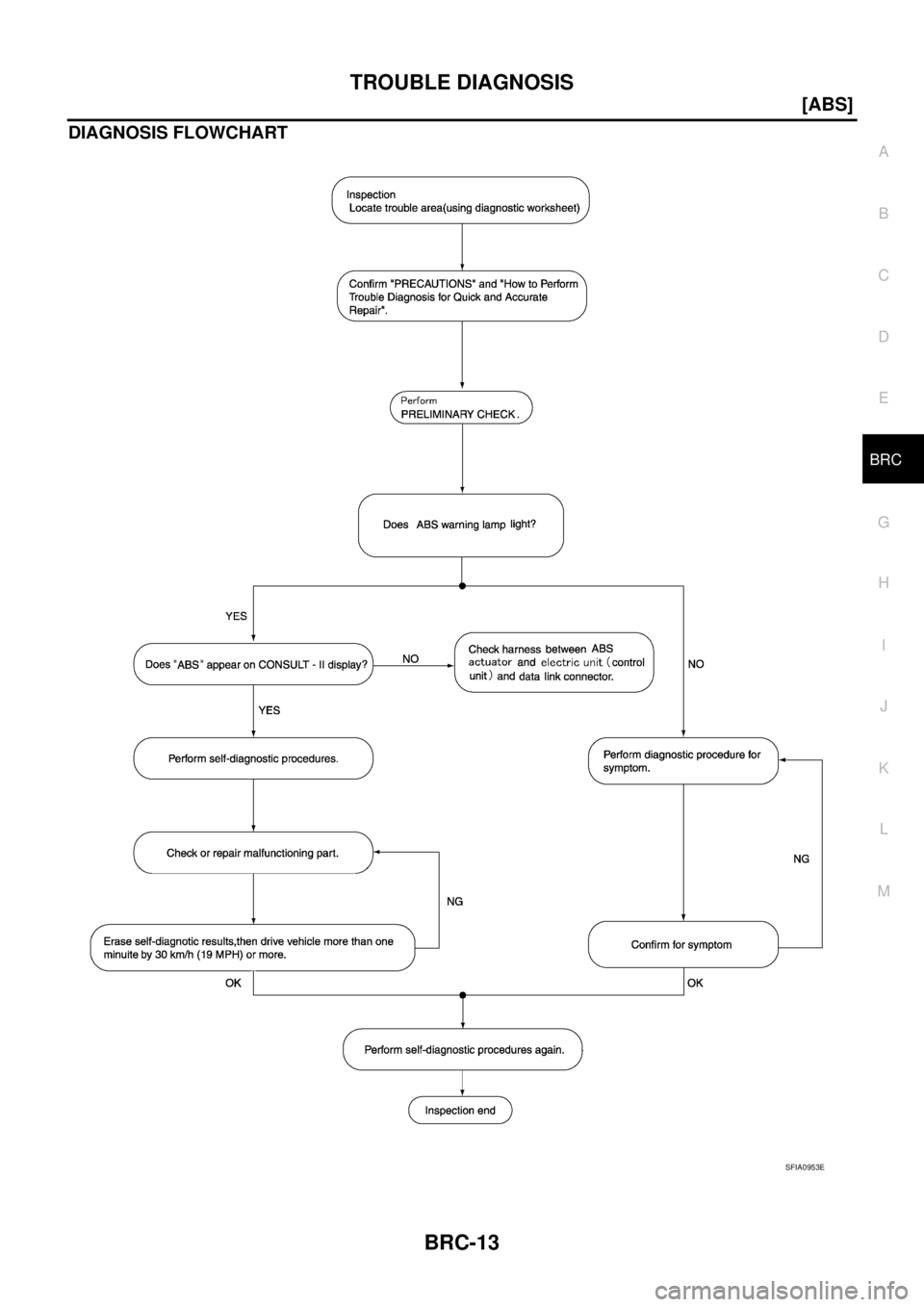

DIAGNOSIS FLOWCHART
SFIA0953E

BRC-14
[ABS]
TROUBLE DIAGNOSIS

ASKING COMPLAINTS

Complaints against malfunction vary depending on each person.
It is important to clarify customer complaints.

Ask customer about what symptoms are present and under
what conditions. Use information to reproduce symptom while
driving.

It is also important to use diagnosis sheet so as not to miss infor-
mation.

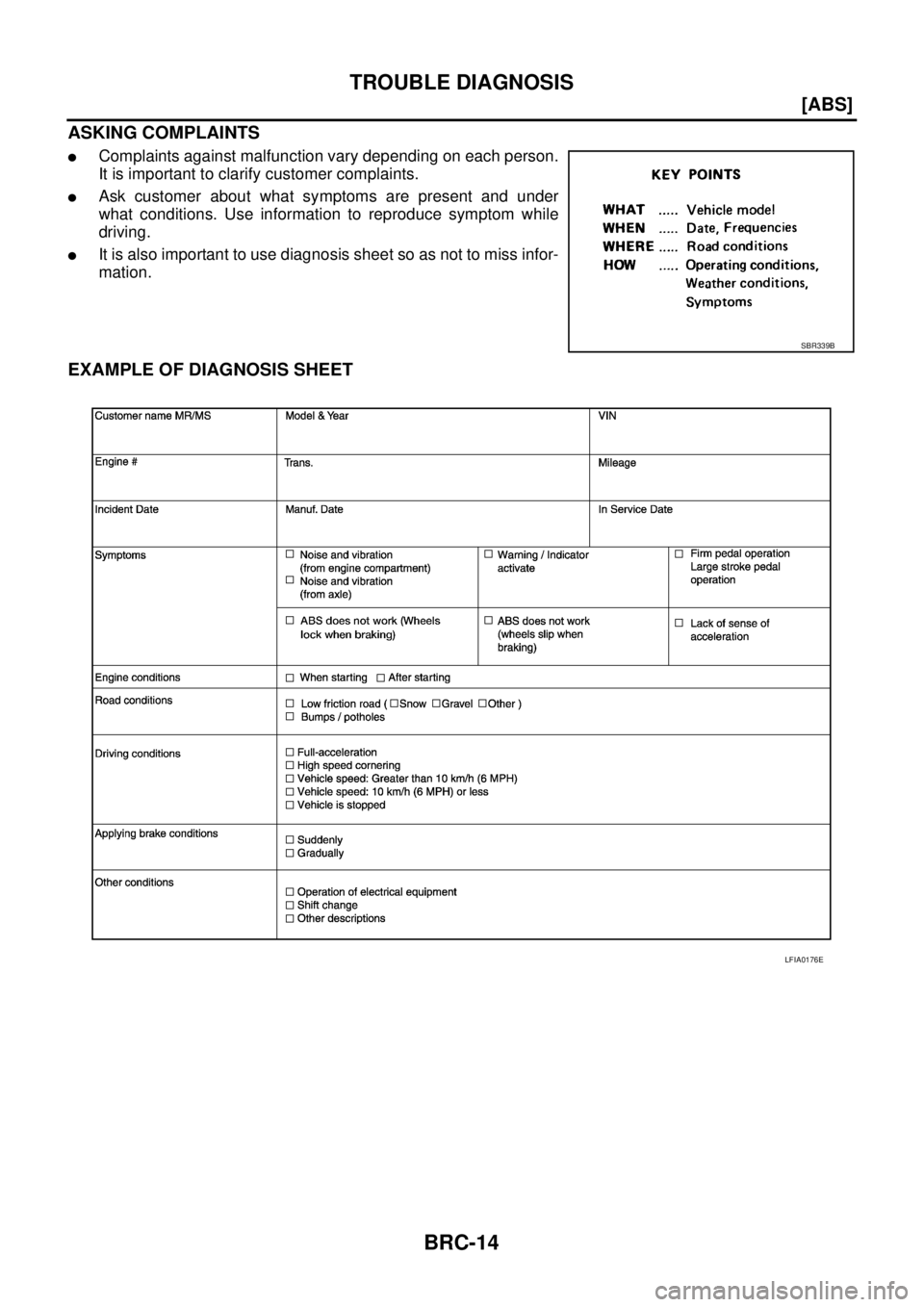

EXAMPLE OF DIAGNOSIS SHEET
SBR339B
LFIA0176E

TROUBLE DIAGNOSIS
BRC-15
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

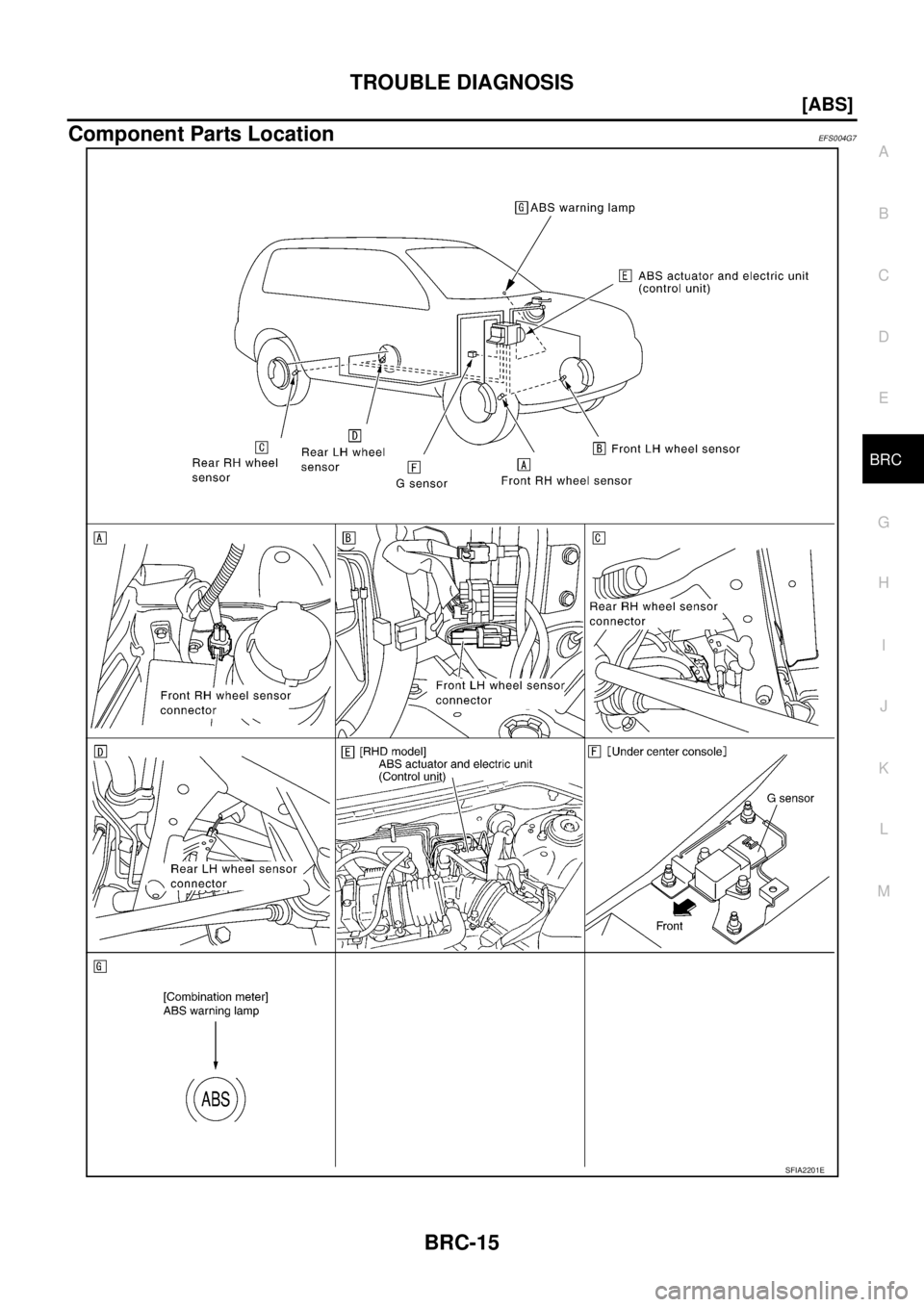

Component Parts LocationEFS004G7
SFIA2201E

BRC-16
[ABS]
TROUBLE DIAGNOSIS

Schematic EFS004G8
TFWA0078E

TROUBLE DIAGNOSIS
BRC-17
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

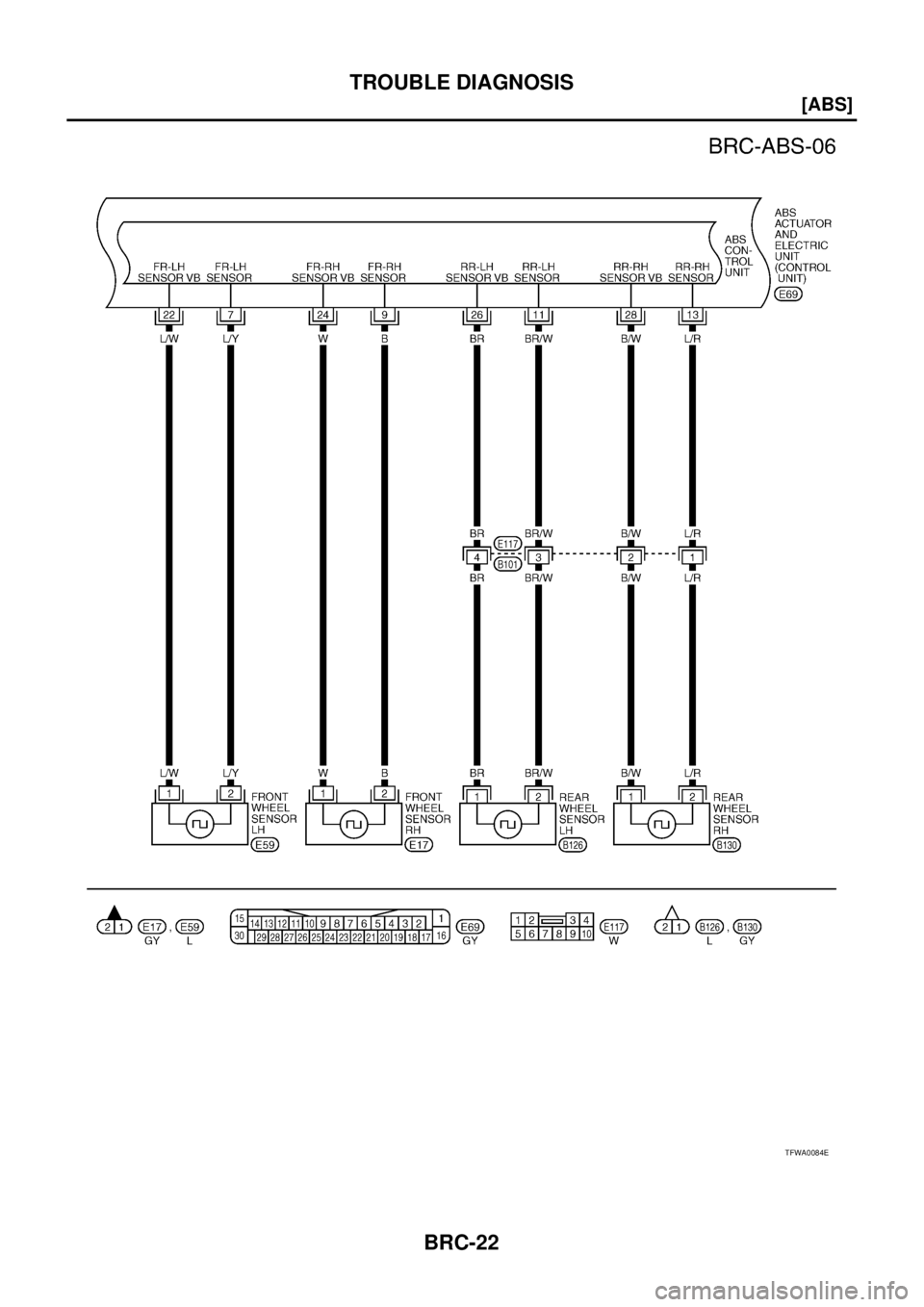

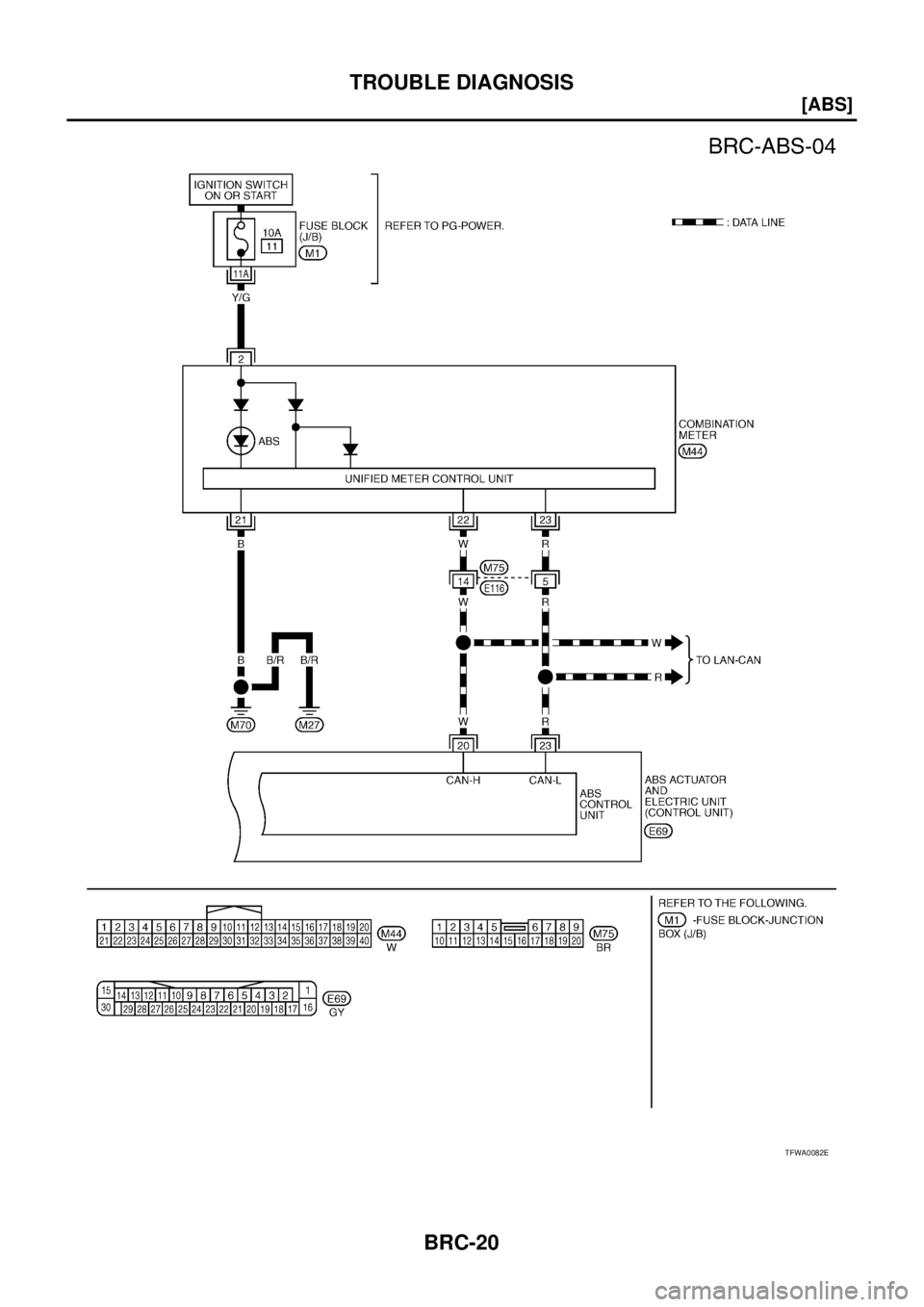

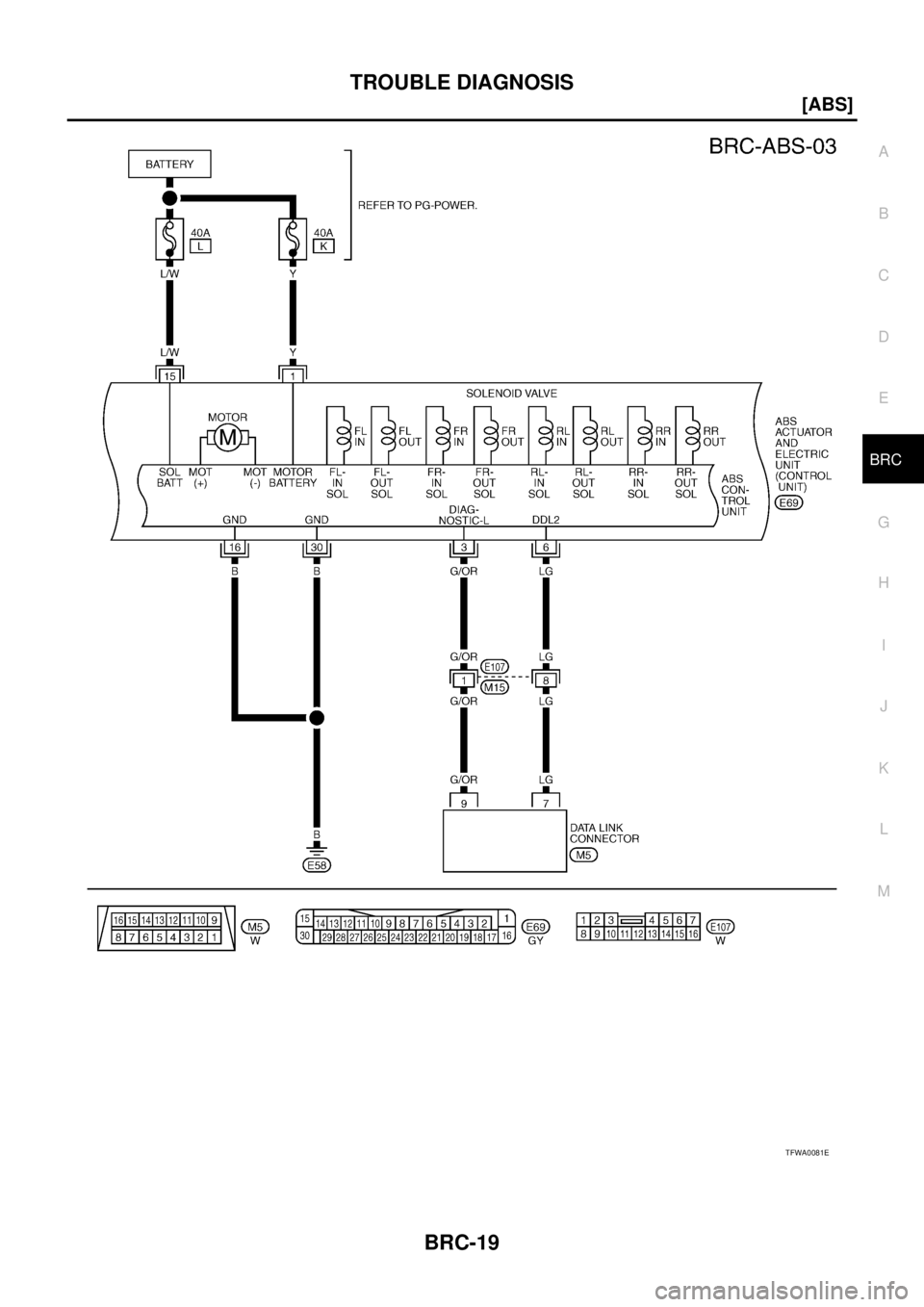

Wiring Diagram — ABS —EFS004G9
LHD MODEL
TFWA0079E

BRC-18
[ABS]
TROUBLE DIAGNOSIS

TFWA0080E

TROUBLE DIAGNOSIS
BRC-19
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

TFWA0081E

BRC-20
[ABS]
TROUBLE DIAGNOSIS

TFWA0082E

TROUBLE DIAGNOSIS
BRC-21
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

RHD MODEL
TFWA0083E

BRC-22
[ABS]
TROUBLE DIAGNOSIS

TFWA0084E
