NISSAN X-TRAIL 2005 Service Repair Manual

TROUBLE DIAGNOSIS
BRC-43
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

OK or NG
OK >> ABS actuator and electric unit (control unit) malfunction. Replace ABS actuator and electric unit
(control unit).
NG >> G sensor malfunction. Replace G sensor.
Inspection 7: CAN Communication SystemEFS004HI
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and check
the terminal for deformation, disconnection, looseness, and so on. If there is a malfunction, repair or
replace the terminal.
2. Reconnect connector to perform self-diagnosis.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Print out the self-diagnostic results, and refer to BRC-8, "CAN COMMUNICATION" .
NO >> Connector terminal connector is loose, damaged, open, or shorted.
Symptom 1: ABS Works FrequentlyEFS004HJ
1. CHECK START
Check longitudinal brake force distribution using a brake tester.
OK or NG
OK >> GO TO 2.
NG >> Check brake system.
2. CHECK FRONT AND REAR AXLE
Check to make sure that there is no excessive play in the front and rear axles. Refer to Front: FAX-7, "
On-
Vehicle Inspection" , Rear: RAX-6, "WHEEL BEARING INSPECTION" (2WD), RAX-10, "REAR WHEEL
BEARING" (4WD).
OK or NG
OK >> GO TO 3.
NG >> Repair.
3. CHECK WHEEL SENSOR AND SENSOR ROTOR
Check wheel sensor and sensor rotor for the following.

Sensor installation for damage

Sensor rotor installation for damage

Sensor connector engagement

Sensor harness
OK or NG
OK >> GO TO 4.
NG >>

Replace wheel sensor or sensor rotor.

Repair harness.
4. CHECK ABS WARNING LAMP DISPLAY
Make sure that the warning lamp turns off approximately 1 second after the key switch is turned on or when
driving.
OK or NG
OK >> Normal
NG >> Perform self-diagnosis. Refer to BRC-28, "
SELF-DIAGNOSIS" .

BRC-44
[ABS]
TROUBLE DIAGNOSIS

Symptom 2: Unexpected Pedal ReactionEFS004HK
1. CHECK BRAKE PEDAL STROKE
Check brake pedal stroke. Refer to BR-6, "
On-Vehicle Inspection and Adjustment" .
Is the stroke too large?
YES >>
Bleed air from the brake piping. Refer to BR-9, "Bleeding Brake System" .

Check brake pedal, brake booster, and master cylinder for mount play, looseness, brake sys-
tem fluid leakage, etc. Repair if necessary. Refer to Brake pedal: BR-7, "
Components" , brake
booster and master cylinder: BR-23, "
Removal and Installation" .
NO >> GO TO 2.
2. PERFORMANCE CHECK
Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS. Check if braking force is
normal in this condition. Connect connector after inspection.
OK or NG
OK >> GO TO 3. Wheel Sensor Inspection in BRC-43, "Symptom 1: ABS Works Frequently" .
NG >> Check brake system.
Symptom 3: Longer Stopping DistanceEFS004HL
CAUTION:
The stopping distance on slippery road surfaces might be longer with the ABS operating than when
the ABS is not operating.
1. PERFORMANCE CHECK
Turn ignition switch OFF. Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS.
In this condition, check stopping distance. After inspection, connect connector.
OK or NG
OK >> GO TO BRC-43, "Symptom 1: ABS Works Frequently" .
NG >>

Bleed air from the brake piping. Refer to BR-9, "Bleeding Brake System" .

Check brake system.

TROUBLE DIAGNOSIS
BRC-45
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

Symptom 4: ABS Does Not WorkEFS004HM
CAUTION:
ABS does not operate when speed is 10 km/h or lower.
1. CHECK ABS WARNING LAMP DISPLAY
Make sure that the warning lamp turns off approximately 1 second after the key switch is turned on or when
driving.
OK or NG
OK >> GO TO 3. Check wheel sensor and sensor rotor in BRC-43, "Symptom 1: ABS Works Frequently"
.
NG >> Perform self-diagnosis. Refer to BRC-28, "
SELF-DIAGNOSIS" .
Symptom 5: Pedal Vibration and ABS Operation NoiseEFS004HN
CAUTION:
Under the following conditions, ABS is activated and vibration is felt when brake pedal is lightly
depressed (just place a foot on it). However, this is normal.

When shifting gears

When driving on slippery road

During cornering at high speed

When passing over bumps or grooves (Approx. 50 mm or more)

When pulling away just after starting engine (Approx. 10 km/h or more)
1. SYMPTOM CHECK 1
Check if pedal vibration or operation sounds occur when the engine is started.
OK or NG
OK >> GO TO 2.
NG >> Perform self-diagnosis. Refer to BRC-28, "
SELF-DIAGNOSIS" .
2. SYMPTOM CHECK 2
Check symptoms when electrical component (headlamps, etc.) Switches are operated.
Do symptoms occur?
YES >> Check if there is a radio, antenna, antenna lead wire, or wiring close to the control unit. If there is,
move it farther away.
NG >> GO TO 3. Check wheel sensor and sensor rotor in BRC-43, "
Symptom 1: ABS Works Frequently"
.

BRC-46
[ABS]
WHEEL SENSORS

WHEEL SENSORSPFP:47910

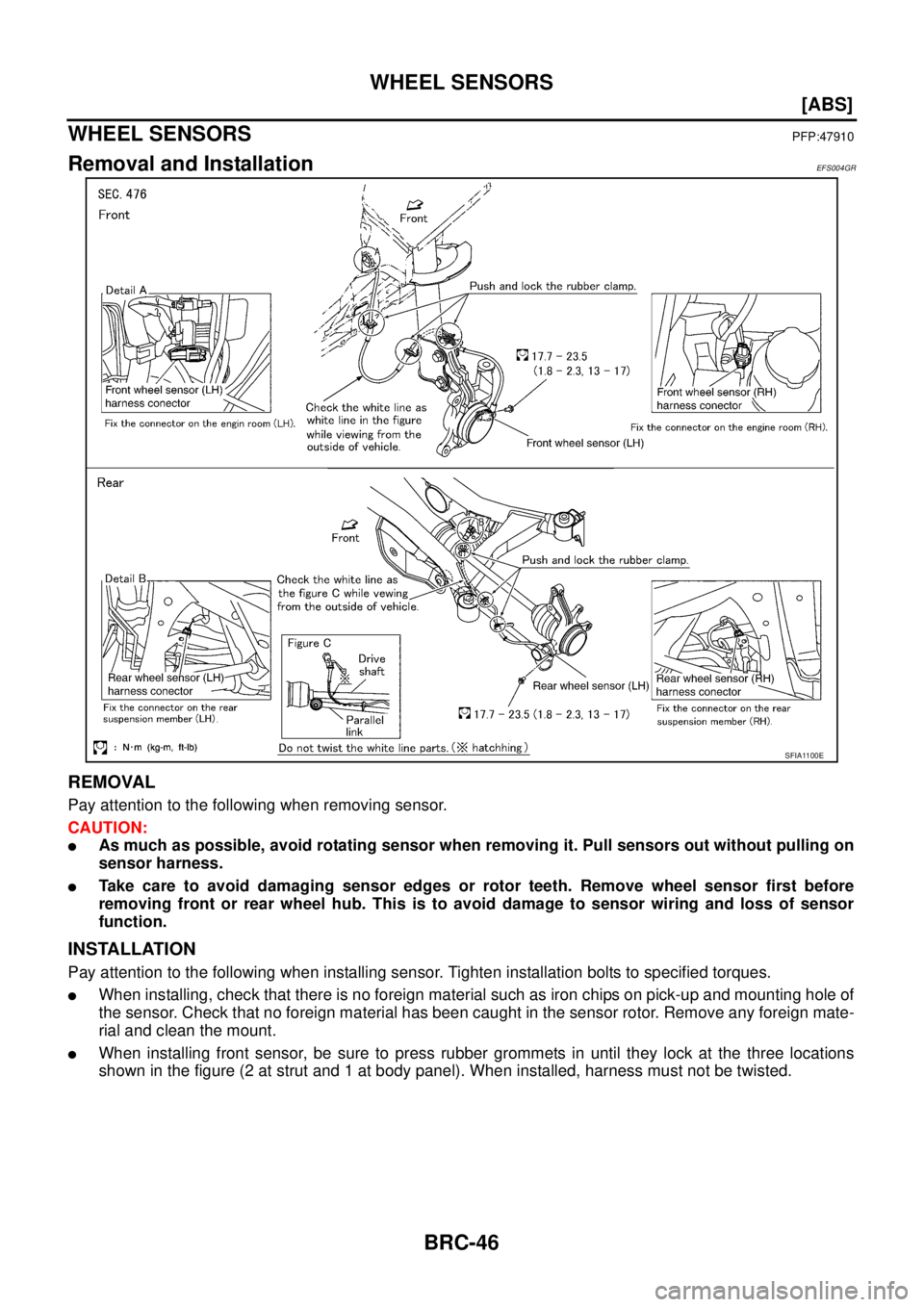

Removal and InstallationEFS004GR
REMOVAL
Pay attention to the following when removing sensor.
CAUTION:

As much as possible, avoid rotating sensor when removing it. Pull sensors out without pulling on
sensor harness.

Take care to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before
removing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor
function.
INSTALLATION
Pay attention to the following when installing sensor. Tighten installation bolts to specified torques.

When installing, check that there is no foreign material such as iron chips on pick-up and mounting hole of
the sensor. Check that no foreign material has been caught in the sensor rotor. Remove any foreign mate-
rial and clean the mount.

When installing front sensor, be sure to press rubber grommets in until they lock at the three locations
shown in the figure (2 at strut and 1 at body panel). When installed, harness must not be twisted.
SFIA1100E

G SENSOR
BRC-47
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

G SENSORPFP:47930

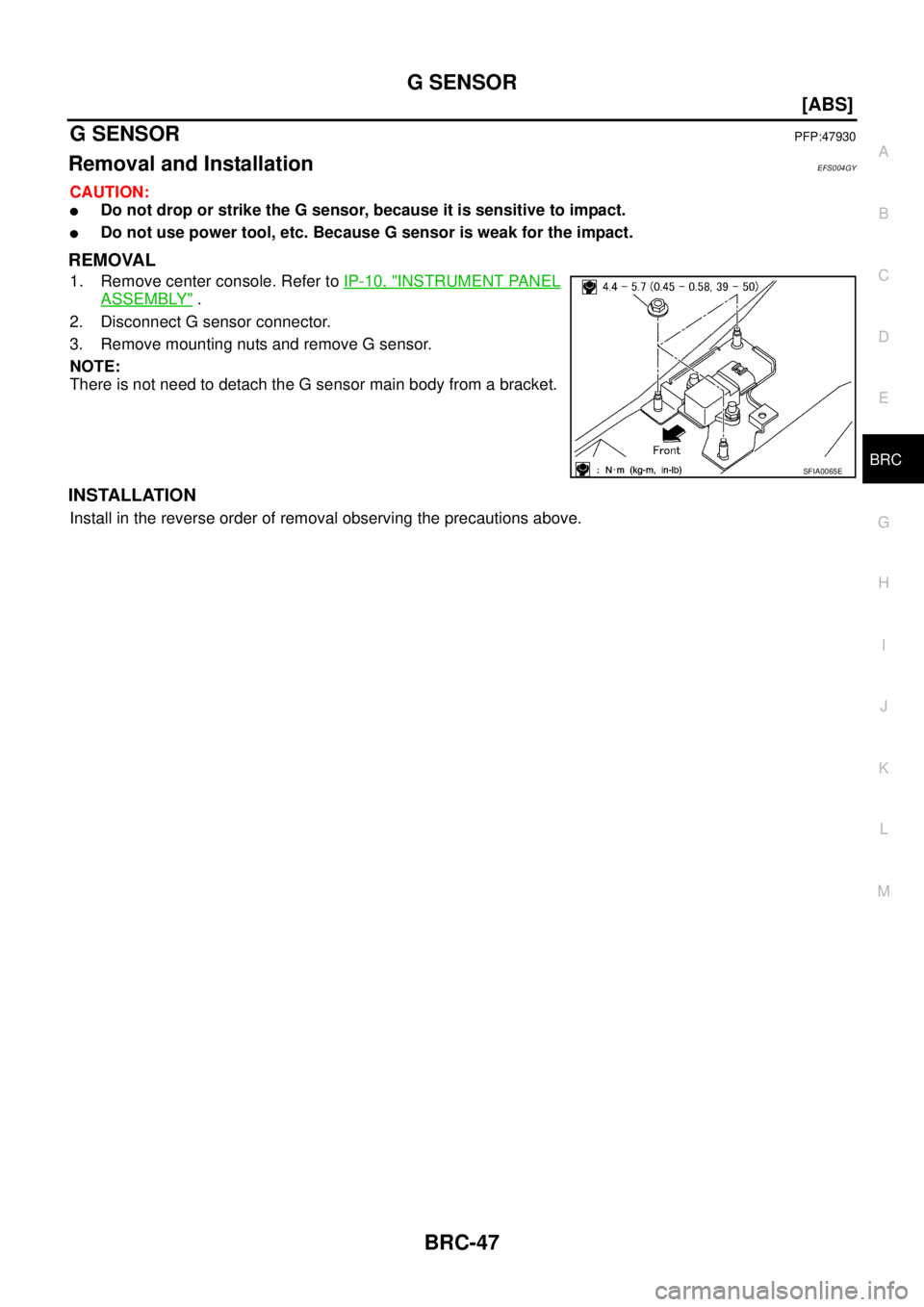

Removal and InstallationEFS004GY
CAUTION:

Do not drop or strike the G sensor, because it is sensitive to impact.

Do not use power tool, etc. Because G sensor is weak for the impact.
REMOVAL
1. Remove center console. Refer to IP-10, "INSTRUMENT PANEL
ASSEMBLY" .
2. Disconnect G sensor connector.
3. Remove mounting nuts and remove G sensor.
NOTE:
There is not need to detach the G sensor main body from a bracket.
INSTALLATION
Install in the reverse order of removal observing the precautions above.
SFIA0065E

BRC-48
[ABS]
SENSOR ROTOR

SENSOR ROTORPFP:47970
Removal and InstallationEFS004GZ
REMOVAL
Front
1. Remove drive shaft. Refer to FAX-11, "Removal and Installation" in “FAX Front axle/Drive shaft”.
2. Remove sensor rotor from drive shaft. Refer to “FAX Front axle/Drive shaft ” FAX-13, "
Disassembly and
Assembly" .
Rear (2WD Model)
1. Remove wheel hub. Refer to RAX-6, "Removal and Installation" .
2. Remove sensor rotor from wheel hub. Refer to RAX-7, "
Disassembly and Assembly" .
Rear (4WD Model)
1. Remove drive shaft. Refer to RAX-14, "Removal and Installation" in “RAX Rear axle/Drive shaft”.
2. Remove sensor rotor from drive shaft. Refer to “RAX Rear axle/Drive shaft” RAX-15, "
Disassembly and
Assembly" .
INSTALLATION
Front
1. Install sensor rotor to drive shaft. Refer to “FAX Front axle/Drive shaft” FA X - 1 3 , "Disassembly and Assem-
bly"
2. Connect drive shaft. Refer toFAX-11, "Removal and Installation" in “FAX Front axle/Drive shaft”.
Rear (2WD Model)
1. Install sensor rotor to wheel hub. Refer to RAX-7, "Disassembly and Assembly" .
2. Install wheel hub. Refer to RAX-6, "
Removal and Installation" .
Rear (4WD Model)
1. Install sensor rotor to drive shaft. Refer to “RAX Rear axle/Drive shaft” RAX-15, "Disassembly and
Assembly"
2. Connect drive shaft. Refer to RAX-14, "Removal and Installation" in “RAX Rear axle/Drive shaft”.

ABS ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
BRC-49
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

ABS ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)PFP:47660

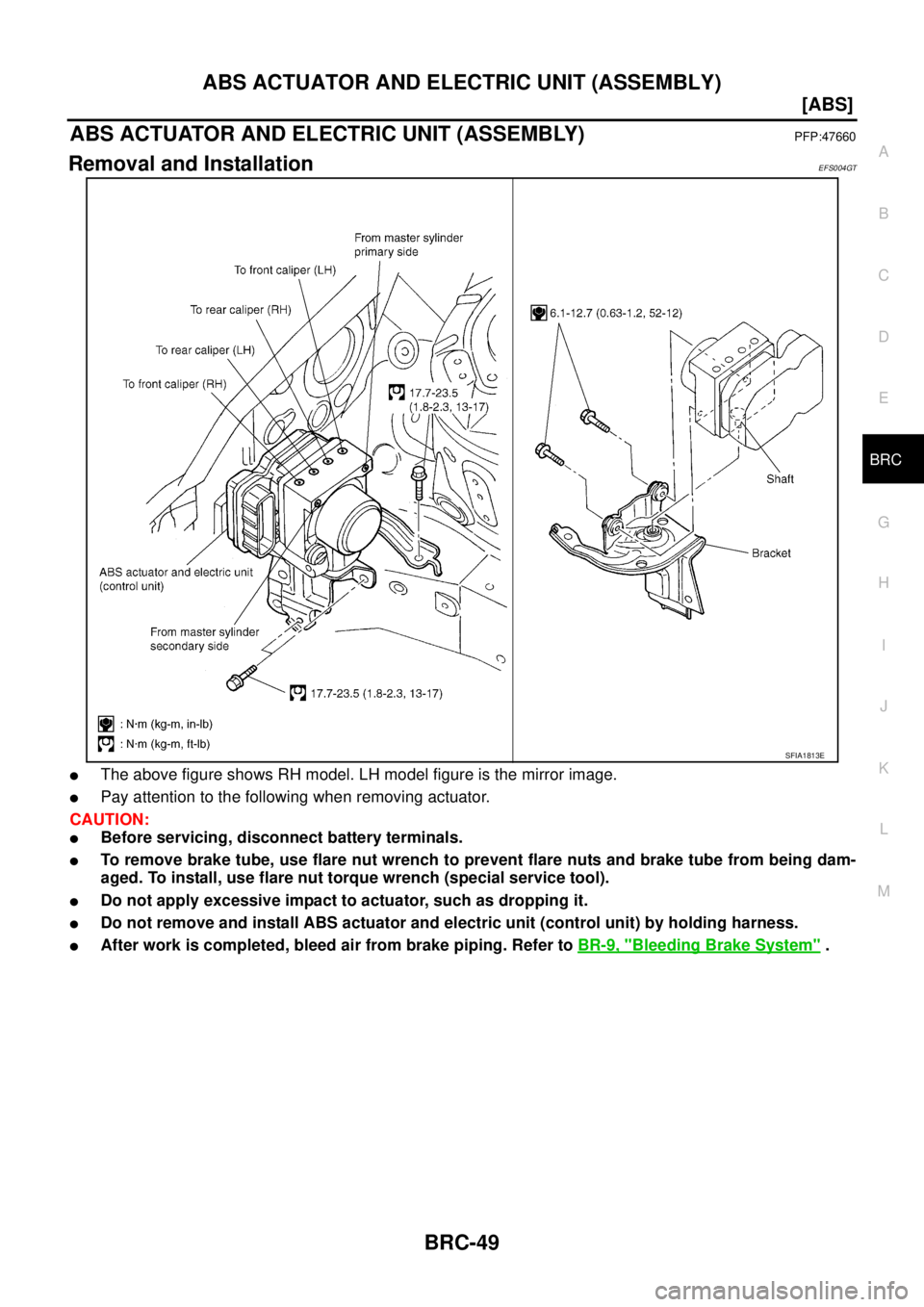

Removal and InstallationEFS004GT

The above figure shows RH model. LH model figure is the mirror image.

Pay attention to the following when removing actuator.
CAUTION:

Before servicing, disconnect battery terminals.

To remove brake tube, use flare nut wrench to prevent flare nuts and brake tube from being dam-
aged. To install, use flare nut torque wrench (special service tool).

Do not apply excessive impact to actuator, such as dropping it.

Do not remove and install ABS actuator and electric unit (control unit) by holding harness.

After work is completed, bleed air from brake piping. Refer to BR-9, "Bleeding Brake System" .
SFIA1813E

BRC-50
[ESP/TCS/ABS]
PRECAUTIONS

[ESP/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EFS004H7
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemEFS0019O

Recommended fluid is brake fluid “DOT 3” or “DOT 4”.

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed
on painted areas, wash it away with water immediately.

Do not use mineral oils such as gasoline or kerosene. They will ruin rubber parts of hydraulic system.

Using a flare nut torque wrench, securely tighten brake tube
flare nuts.

When installing brake piping, be sure to check torque.

Before working, turn the ignition switch OFF and disconnect the
connectors for the ESP/TCS/ABS control unit and control unit or
the battery negative terminal.

Burnish the brake pad contact surfaces after refinishing or
replacing drums or rotors, after replacing pads or linings, or if a
soft pedal occurs at very low mileage. Refer to BR-31, "
BRAKE
BURNISHING PROCEDURE" .
WARNING:
Clean brakes with a vacuum dust collector to minimize risk of health hazard from powder caused
by friction.
Precautions for Brake ControlEFS0019P

During the ESP/TCS/ABS operation, the brake pedal vibrates lightly and its mechanical noise may be
heard. This is a normal condition.

Just after starting the vehicle after ignition switch ON, the brake pedal may vibrate or the motor operating
noise may be heard from the engine compartment. This is a normal status of the operation check.

The stopping distance may be longer than that of vehicles without ABS when the vehicle drives on rough,
gravel, or snowy (fresh deep snow) road.

If a malfunction is indicated by the ABS warning lamp, or other warning lamps, collect the necessary infor-
mation from the customer (what symptoms are present under what conditions) and find out the possible
causes before starting the service. Besides the electrical system inspection, check the booster operation,
brake fluid level, and oil leaks.

If the tyre size and type are used in a improper combination, or the brake pads are not NISSAN genuine
parts, the stopping distance or steering stability may deteriorate.

If there is a radio, antenna, or antenna lead-in wire (including wiring) near the control unit, the ESP/TCS/
ABS function may have a malfunction.

If aftermarket parts (car stereo, CD player, etc.) have been installed, check harnesses for pinches, open,
and improper wiring.
SBR820BA

PREPARATION
BRC-51
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

PREPARATIONPFP:00002
Special Service ToolsEFS00219
Tool number
Tool nameDescription
GG94310000

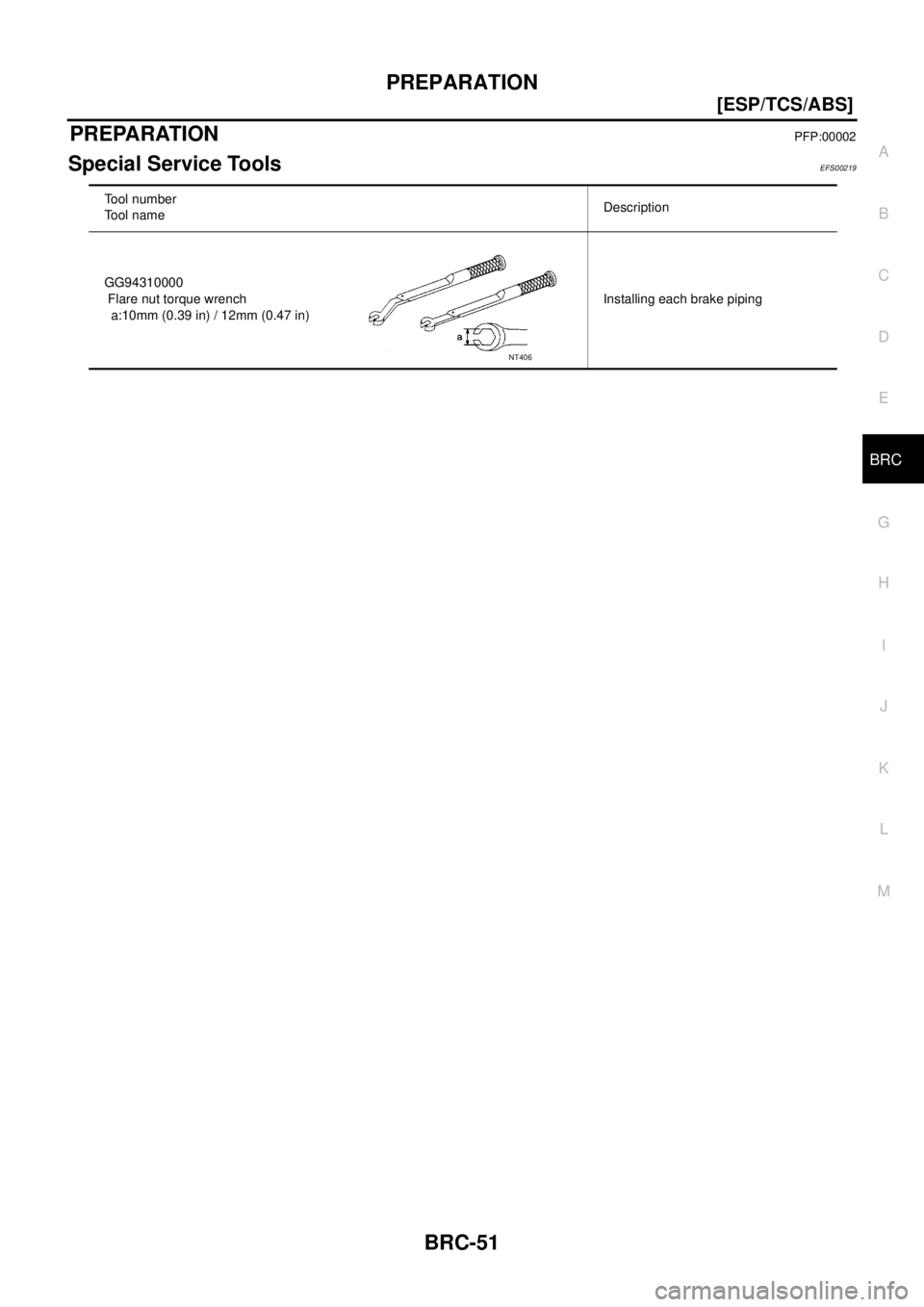

Flare nut torque wrench
a:10mm (0.39 in) / 12mm (0.47 in)Installing each brake piping
NT406

BRC-52
[ESP/TCS/ABS]
ON-VEHICLE SERVICE

ON-VEHICLE SERVICEPFP:00000
Adjustment of Steering Angle Sensor Neutral PositionEFS0019R
In case of doing work that applies to the list below, make sure to adjust neutral position of steering angle sen-
sor before running vehicle.
×: Required
–: Not required
CAUTION:
To adjust neutral position of steering angle sensor, make sure to use CONSULT-II.
(Adjustment cannot be done without CONSULT-II.)
1. Stop vehicle with front wheels in straight-ahead position.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle, and turn ignition
switch ON (do not start engine).
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
3. Touch “ABS”, “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” on CONSULT-II screen in
this order. Refer to BRC-79, "
CONSULT-II BASIC OPERATION PROCEDURE" .
4. Touch “START”.
CAUTION:
Do not touch steering wheel while adjusting steering angle
sensor.
5. After approximately 10 seconds, touch “END”. (After approxi-
mately 60 seconds, it ends automatically.)
6. Turn ignition switch OFF, then turn it ON again.
CAUTION:
Be sure to carry out above operation.
7. Run vehicle with front wheels in straight-ahead position, then
stop.
8. Select “DATA MONITOR”, “SELECTION FROM MENU”, and “STR ANGLE SIG” on CONSULT-II screen.
Then make sure “STR ANGLE SIG” is within 0 ±3.5 deg. If value is more than specification, repeat steps 1
to 7.
9. Erase memory of ESP/TCS/ABS control unit and ECM.
10. Turn ignition switch OFF.
Situation Adjustment of Steering Angle Sensor Neutral Position
Removing/Installing ESP/TCS/ABS control unit−
Replacing ESP/TCS/ABS control unit−
Removing/Installing steering angle sensor×
Removing/Installing steering components×
Removing/Installing suspension components×
Change tyre to new ones–
Tyre rotation–
Adjusting wheel alignment×
SFIA0371E
