NISSAN X-TRAIL 2005 Service Repair Manual

POWER WINDOW SYSTEM
GW-47
C
D
E
F
G
H
J
K
L
MA
B
GW

TIWA0450E

GW-48
POWER WINDOW SYSTEM

TIWA0451E

POWER WINDOW SYSTEM
GW-49
C
D
E
F
G
H
J
K
L
MA
B
GW

TIWA0452E

GW-50
POWER WINDOW SYSTEM

Terminal and Reference Value for Power Window Main Switch / For LHD modelsEIS0045Z
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1LDriver side power window
motor DOWN signalWhen power window motor is
DOWN at operated.Battery voltage
Other than above. 0
2G/BDriver side power window
motor UP signalWhen power window motor is
UP at operated.Battery voltage
Other than above. 0
3L/ORPassenger side power window
motor DOWN signalWhen passenger switch in
power window main switch is
DOWN at operated.Battery voltage
Other than above. 0
4R/WPassenger side power window
motor UP signalWhen passenger switch in
power window main switch is
UP at operated.Battery voltage
Other than above. 0
5 W Power sourse (fubible link) — Battery voltage
6 R Driver side door switch signalON (open) 0
OFF (close) Battery voltage
7 G/R Encoder power supplyIgnition switch position ON and
timer operating 10
8 W/B Limit switch and encoder ground — 0
9 G/OR Limit switch signalDriver side door window is
between fully-open and just
before fully-closed position
(ON). 0
Driver side door window is
between just before fully-closed
position and fully-closed position
(OFF). 5
10 R/YRear RH side power window
motor UP signalWhen rear RH switch in
power window main switch is
UP at operated.Battery voltage
Other than above. 0
11 R / LRear RH side power window
motor DOWN signalWhen rear RH switch in
power window main switch is
DOWN at operated.Battery voltage
Other than above. 0
12 W/R Power window relayIgnition switch position
(ON or START)Battery voltage
14 G/WRear LH side power window
motor UP signalWhen rear LH switch in
power window main switch is
UP at operated.Battery voltage
Other than above. 0
15 GRear LH side power window
motor DOWN signalWhen rear LH switch in
power window main switch is
DOWN at operated.Battery voltage
Other than above. 0

POWER WINDOW SYSTEM
GW-51
C
D
E
F
G
H
J
K
L
MA
B
GW

16 G/Y Encoder pulse signalWhen power window motor
operates.
19 B Ground — 0 TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
OCC3383D

GW-52
POWER WINDOW SYSTEM

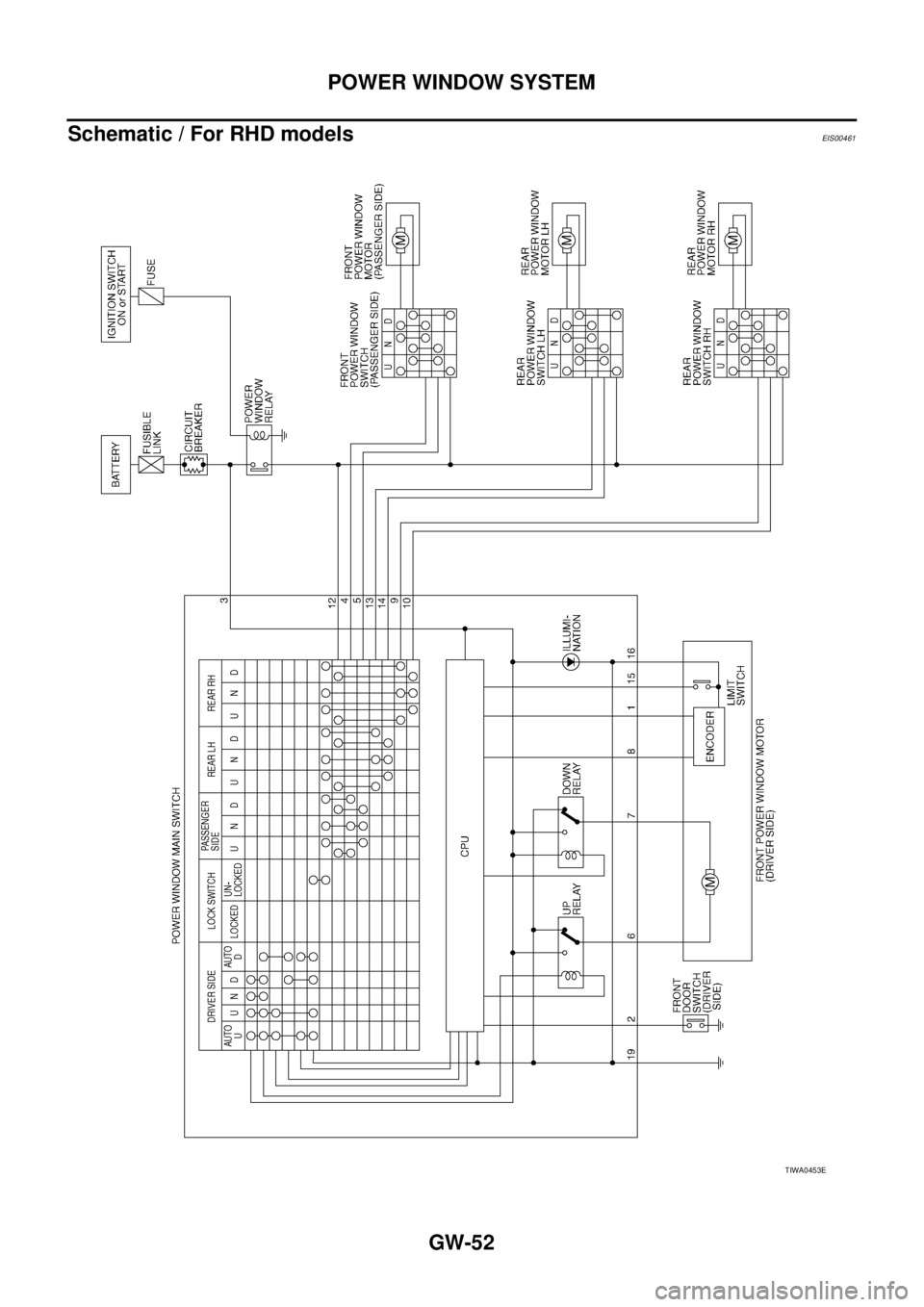

Schematic / For RHD modelsEIS00461
TIWA0453E

POWER WINDOW SYSTEM
GW-53
C
D
E
F
G
H
J
K
L
MA
B
GW

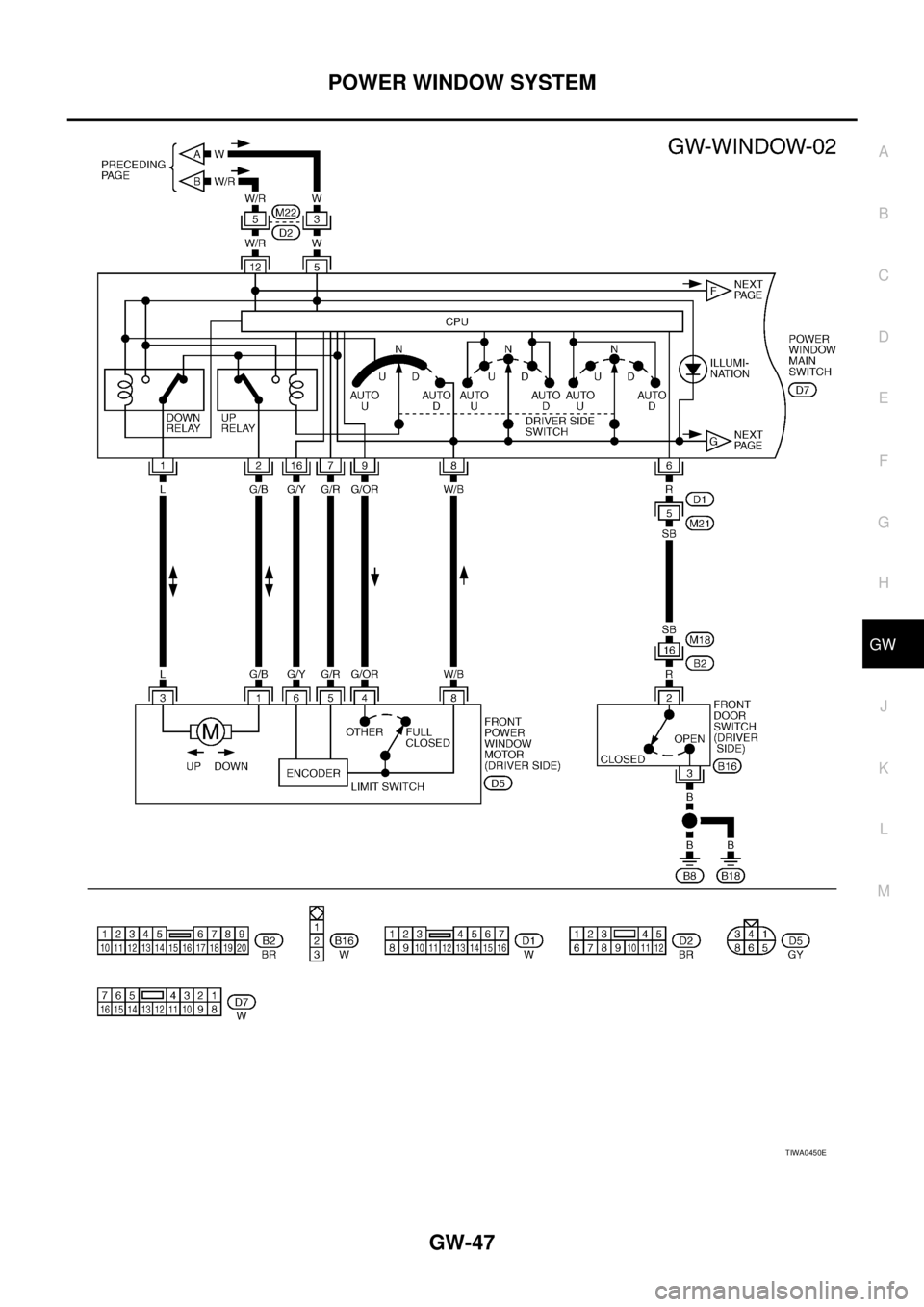

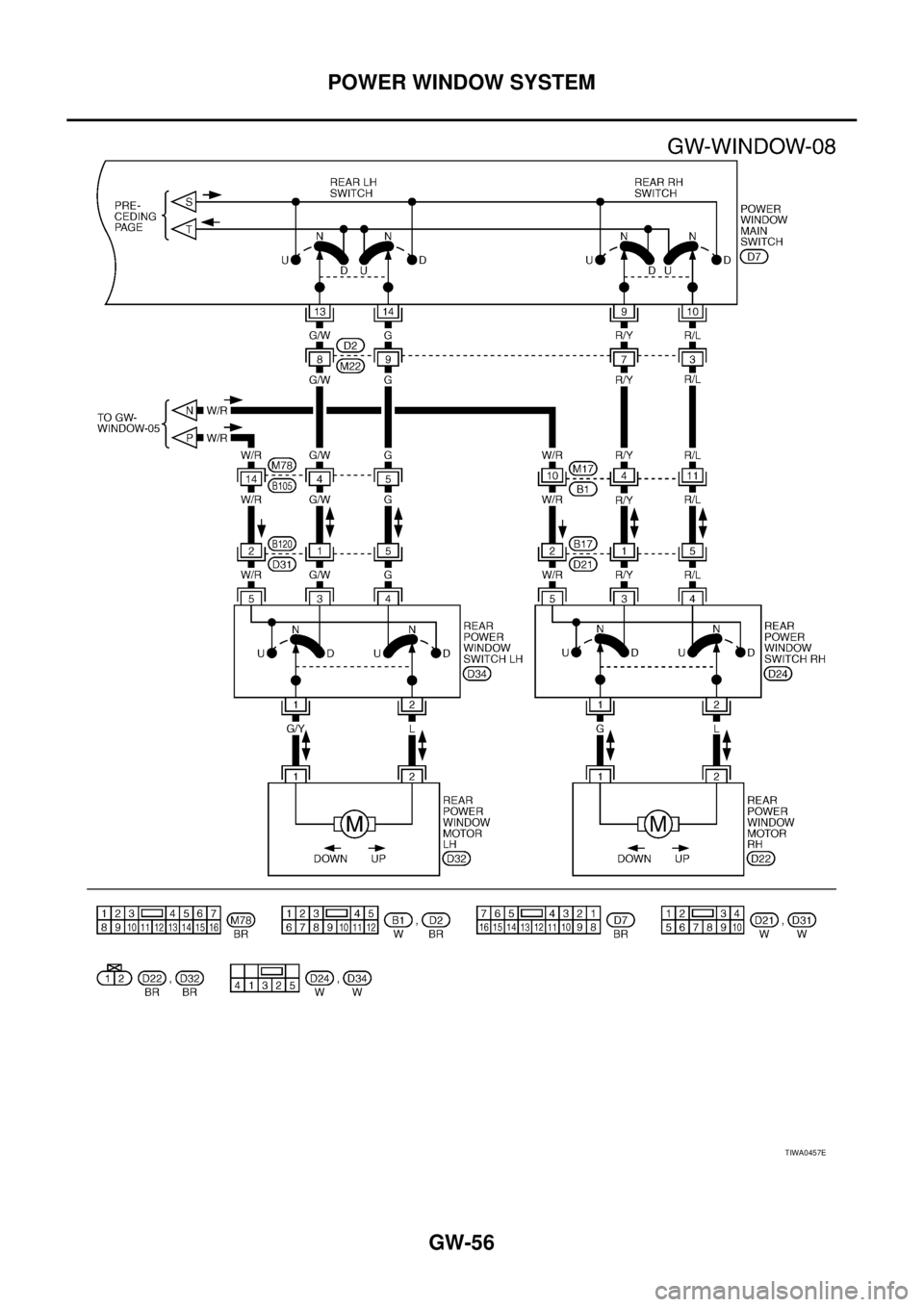

Wiring Diagram – WINDOW – / For RHD modelsEIS00462
TIWA0454E

GW-54
POWER WINDOW SYSTEM

TIWA0455E

POWER WINDOW SYSTEM
GW-55
C
D
E
F
G
H
J
K
L
MA
B
GW

TIWA0456E

GW-56
POWER WINDOW SYSTEM

TIWA0457E
