INSTRUMENT PANEL ASSEMBLY
IP-15
C
D
E
F
G
H
J
K
L
MA
B
IP

3. Remove screw.
4. Disengage center console front pawls, and then remove center
console while avoiding parking lever.

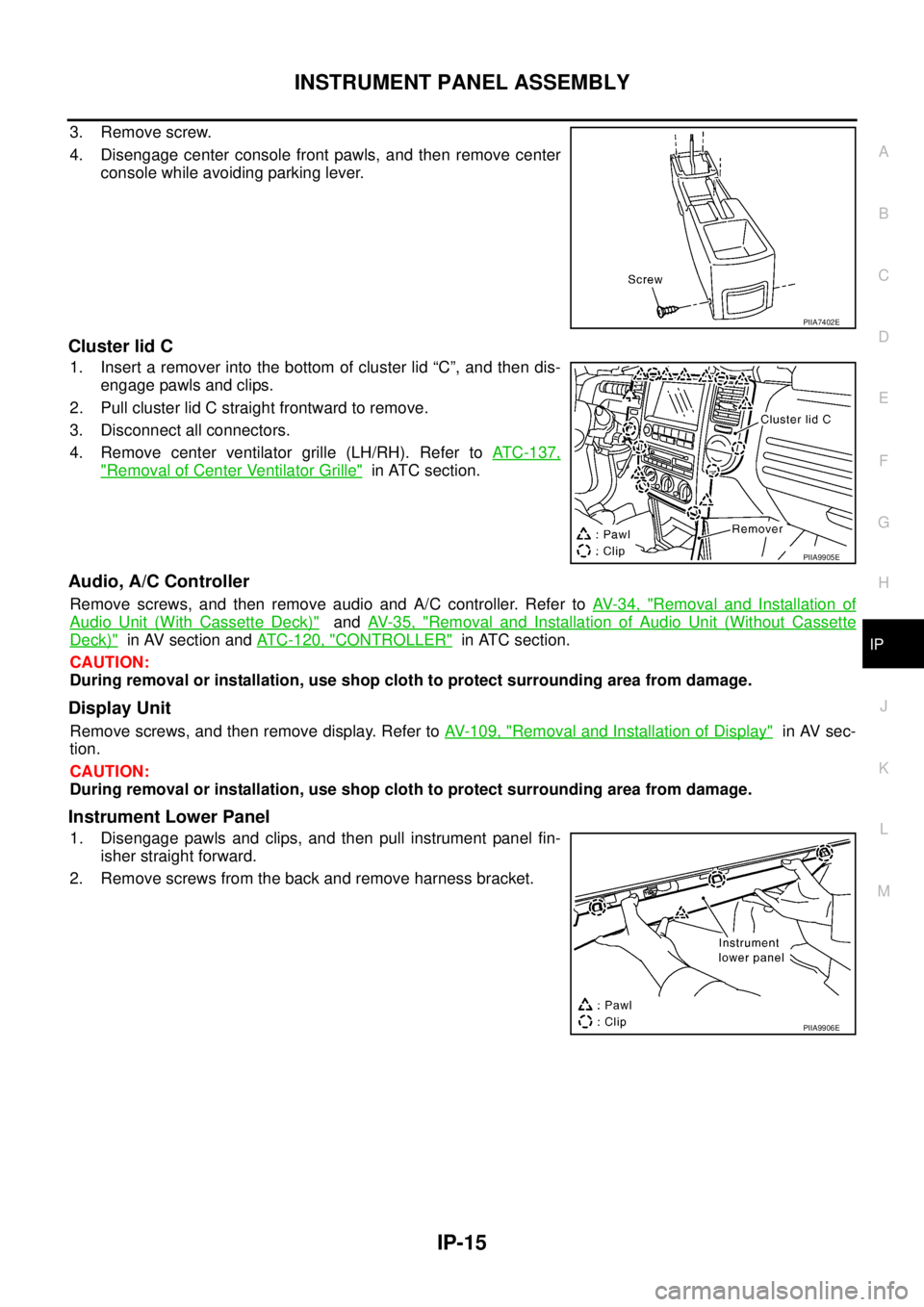

Cluster lid C
1. Insert a remover into the bottom of cluster lid “C”, and then dis-
engage pawls and clips.
2. Pull cluster lid C straight frontward to remove.
3. Disconnect all connectors.
4. Remove center ventilator grille (LH/RH). Refer to ATC-137,
"Removal of Center Ventilator Grille" in ATC section.
Audio, A/C Controller
Remove screws, and then remove audio and A/C controller. Refer to AV- 3 4 , "Removal and Installation of
Audio Unit (With Cassette Deck)" and AV- 3 5 , "Removal and Installation of Audio Unit (Without Cassette
Deck)" in AV section and ATC-120, "CONTROLLER" in ATC section.
CAUTION:
During removal or installation, use shop cloth to protect surrounding area from damage.
Display Unit
Remove screws, and then remove display. Refer to AV- 1 0 9 , "Removal and Installation of Display" in AV sec-
tion.
CAUTION:
During removal or installation, use shop cloth to protect surrounding area from damage.
Instrument Lower Panel
1. Disengage pawls and clips, and then pull instrument panel fin-
isher straight forward.
2. Remove screws from the back and remove harness bracket.
PIIA7402E
PIIA9905E
PIIA9906E

IP-16
INSTRUMENT PANEL ASSEMBLY

Instrument Panel Lower Cover (LH/RH)
Disengage pawls and pull it to rear of vehicle.
Instrument Panel Stay Cover (LH/RH)
1. Remove screws.
2. Disengage pawls and pull it to outside of vehicle.
Cluster Lid Finisher
1. Remove screws.
2. Pull the bottom of cluster lid finisher to the rearward of the vehi-
cle, and remove it so as to avoid interference around upper
screw holes.
Instrument Center Lower Panel
Remove screws, and then pull it forward to remove.
CAUTION:
During removal or installation, use shop cloth to protect sur-
rounding area from damage.
PIIA9907E
PIIA9908E
PIIA7407E
PIIB0334E

INSTRUMENT PANEL ASSEMBLY
IP-17
C
D
E
F
G
H
J
K
L
MA
B
IP

Glove Box
Open glove box, and remove glove box pin from inside.
Glove Box Cover
1. Remove screw.
2. Remove relay clamp installed to back of glove box cover.
3. Pull it forward to remove.
Upper Glove Box
Disengage pawls and clips, and then pull it straight forward.
Passenger Air Bag Module
Remove passenger air bag module after removing bolts. Refer to SRS-35, "FRONT PASSENGER AIR BAG
MODULE" in SRS section.
Instrument Mask
Insert a screwdriver wrapped with a shop cloth into cutout on instrument mask. Disengage tab to remove.
Front Pillar Garnish
Pull straight front pillar garnish toward vehicle inside of right and left. Remove metal clip to remove.
Refer to EI-35, "
Removal and Installation" in EI section.
PIIA9919E
PIIA9909E
PIIA9910E

IP-18
INSTRUMENT PANEL ASSEMBLY

Instrument Panel

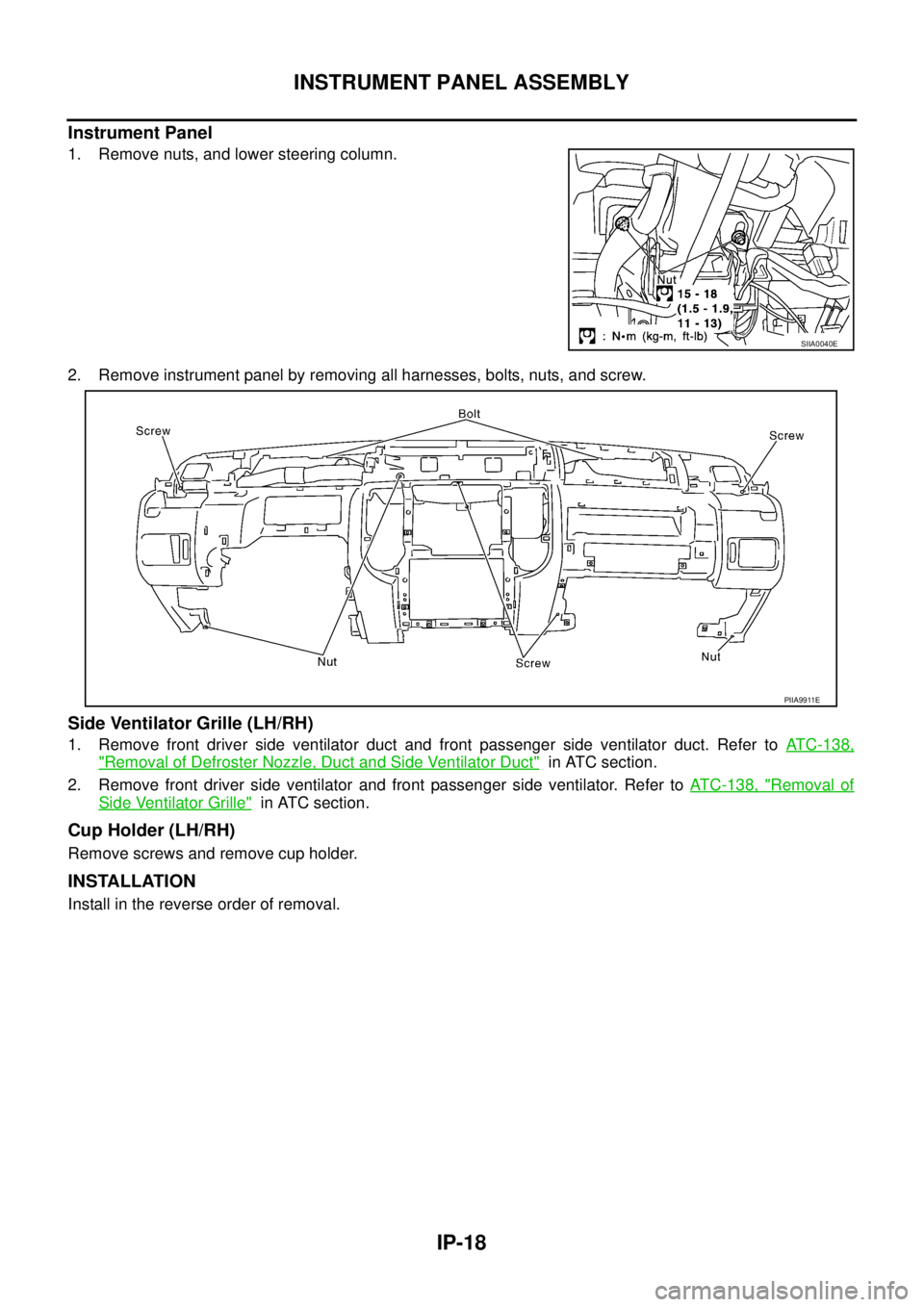

1. Remove nuts, and lower steering column.
2. Remove instrument panel by removing all harnesses, bolts, nuts, and screw.
Side Ventilator Grille (LH/RH)
1. Remove front driver side ventilator duct and front passenger side ventilator duct. Refer to ATC-138,
"Removal of Defroster Nozzle, Duct and Side Ventilator Duct" in ATC section.
2. Remove front driver side ventilator and front passenger side ventilator. Refer to ATC-138, "
Removal of
Side Ventilator Grille" in ATC section.
Cup Holder (LH/RH)
Remove screws and remove cup holder.
INSTALLATION
Install in the reverse order of removal.
SIIA0040E
PIIA9911E

INSTRUMENT PANEL ASSEMBLY
IP-19
C
D
E
F
G
H
J
K
L
MA
B
IP

Disassembly and AssemblyEIS008BU
CENTER CONSOLE
Disassembly

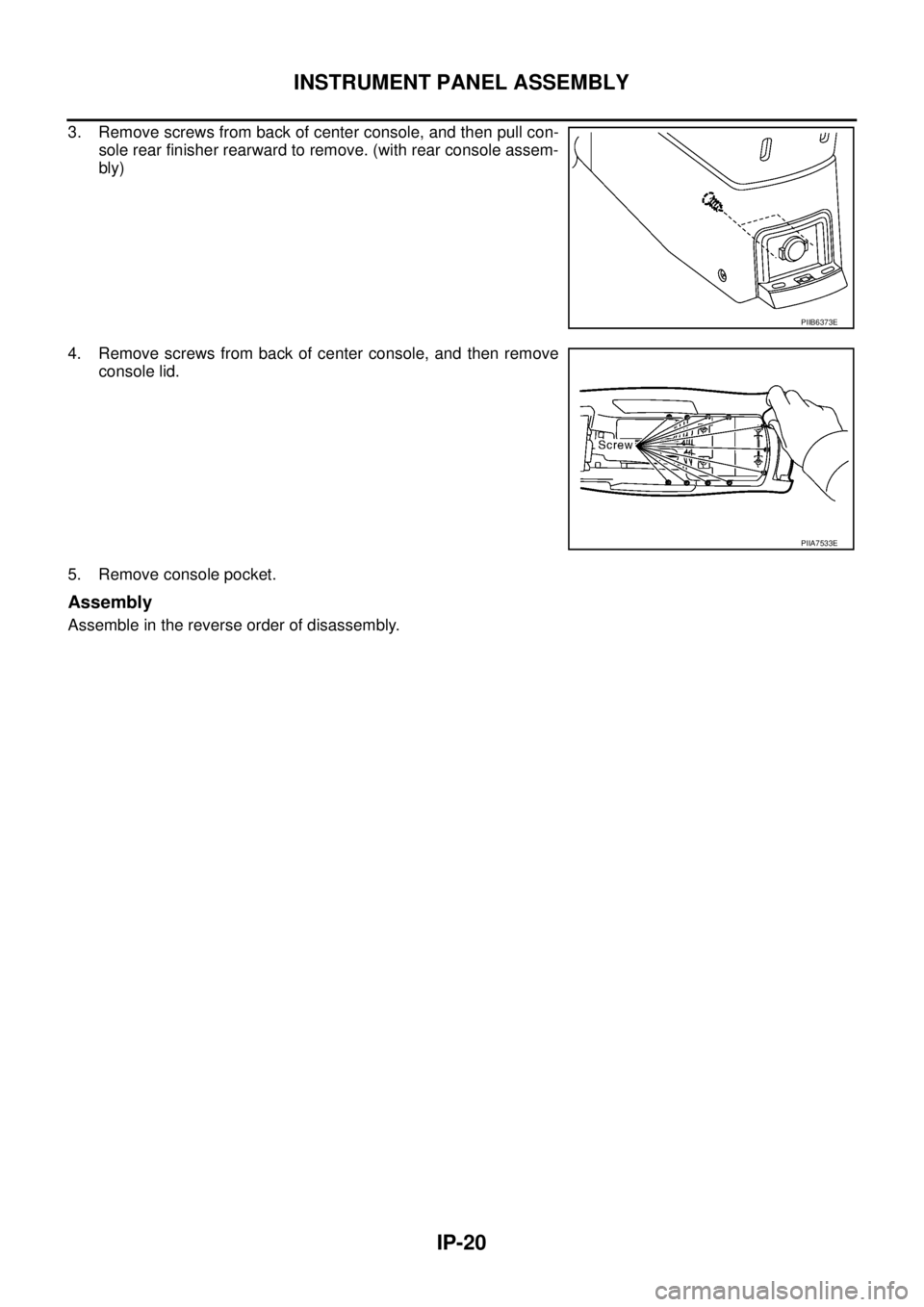

1. Remove console rear finisher by pulling rear cup holder out
approximately 5 mm (0.2 in) rearward.
2. Remove screws from back of center console, and then pull rear
cup holder rearward to remove.

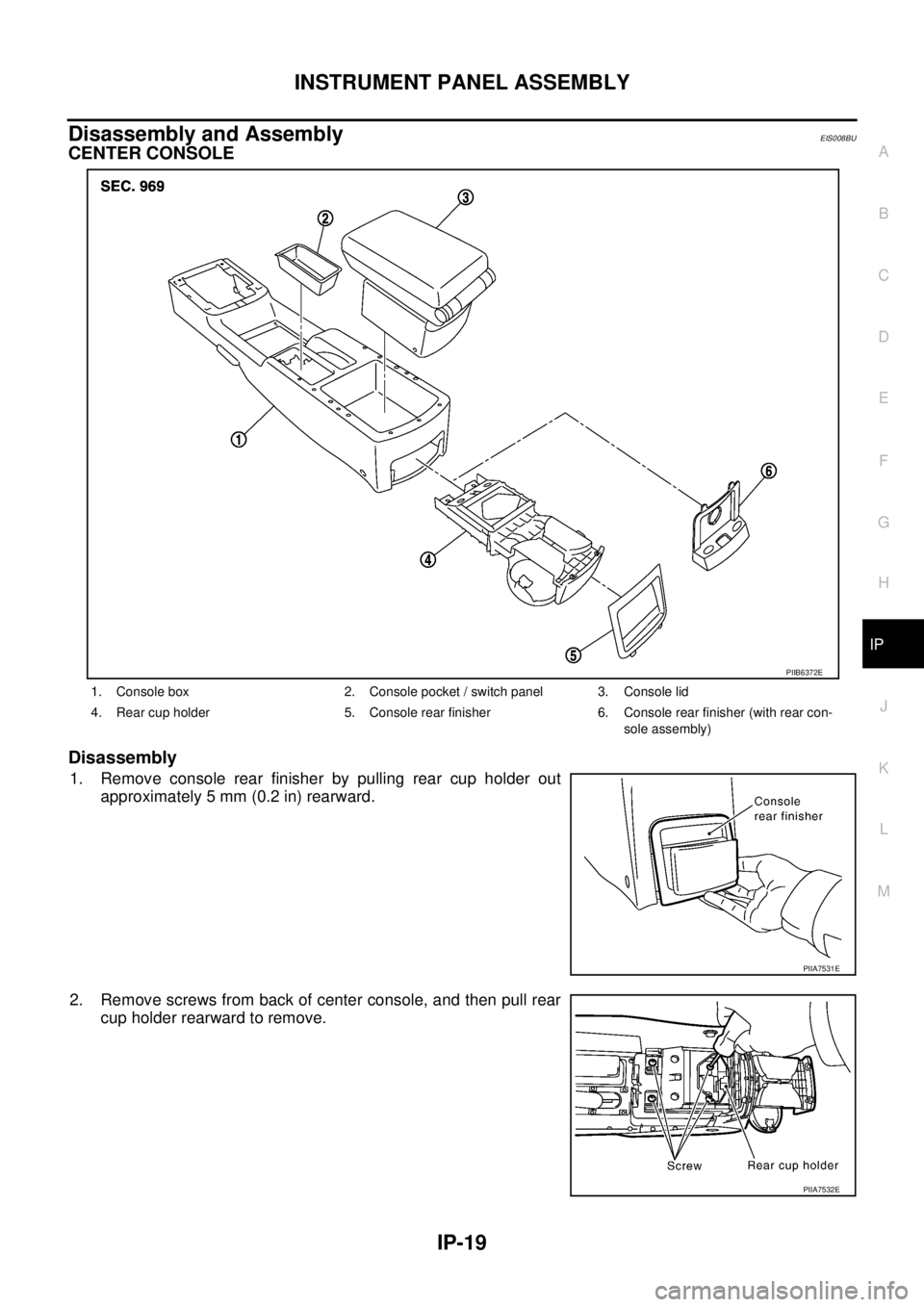

1. Console box 2. Console pocket / switch panel 3. Console lid
4. Rear cup holder 5. Console rear finisher 6. Console rear finisher (with rear con-
sole assembly)
PIIB6372E
PIIA7531E
PIIA7532E

IP-20
INSTRUMENT PANEL ASSEMBLY

3. Remove screws from back of center console, and then pull con-
sole rear finisher rearward to remove. (with rear console assem-
bly)
4. Remove screws from back of center console, and then remove
console lid.
5. Remove console pocket.
Assembly
Assemble in the reverse order of disassembly.
PIIB6373E
PIIA7533E

INSTRUMENT PANEL ASSEMBLY
IP-21
C
D
E
F
G
H
J
K
L
MA
B
IP

INSTRUMENT CENTER LOWER PANEL
Disassembly
1. Remove instrument center lower panel. Refer to IP-16, "Instrument Center Lower Panel" .
2. Remove screws, and then remove ashtray assembly.
3. Disconnect all connectors from instrument center lower panel.
4. Remove screws and plastic positioning pin at both right and left end, and then remove instrument finisher
C.
Assembly
Assemble in the reverse order of disassembly.

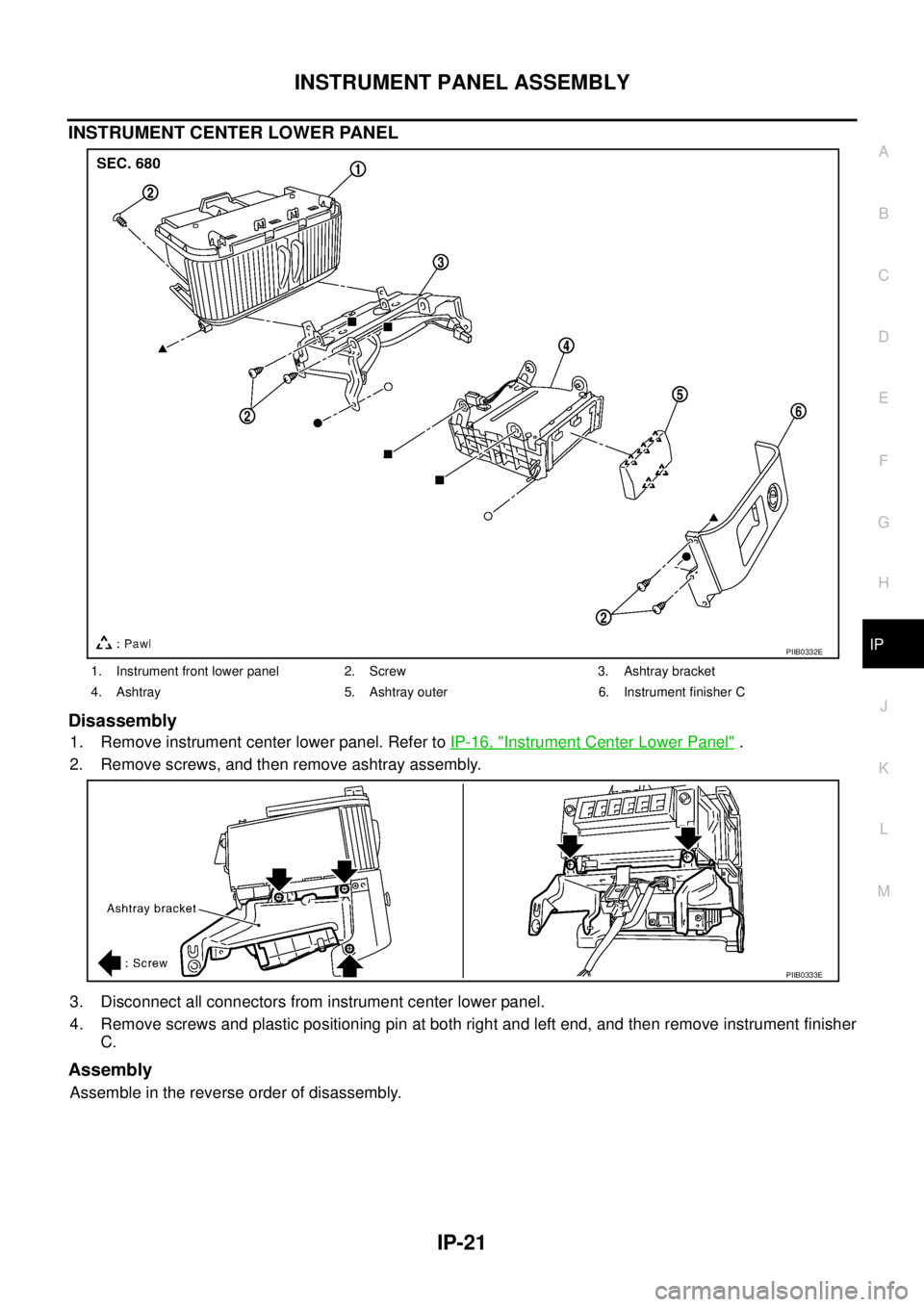

1. Instrument front lower panel 2. Screw 3. Ashtray bracket
4. Ashtray 5. Ashtray outer 6. Instrument finisher C
PIIB0332E
PIIB0333E

IP-22
INSTRUMENT PANEL ASSEMBLY
