NISSAN X-TRAIL 2005 Service Repair Manual

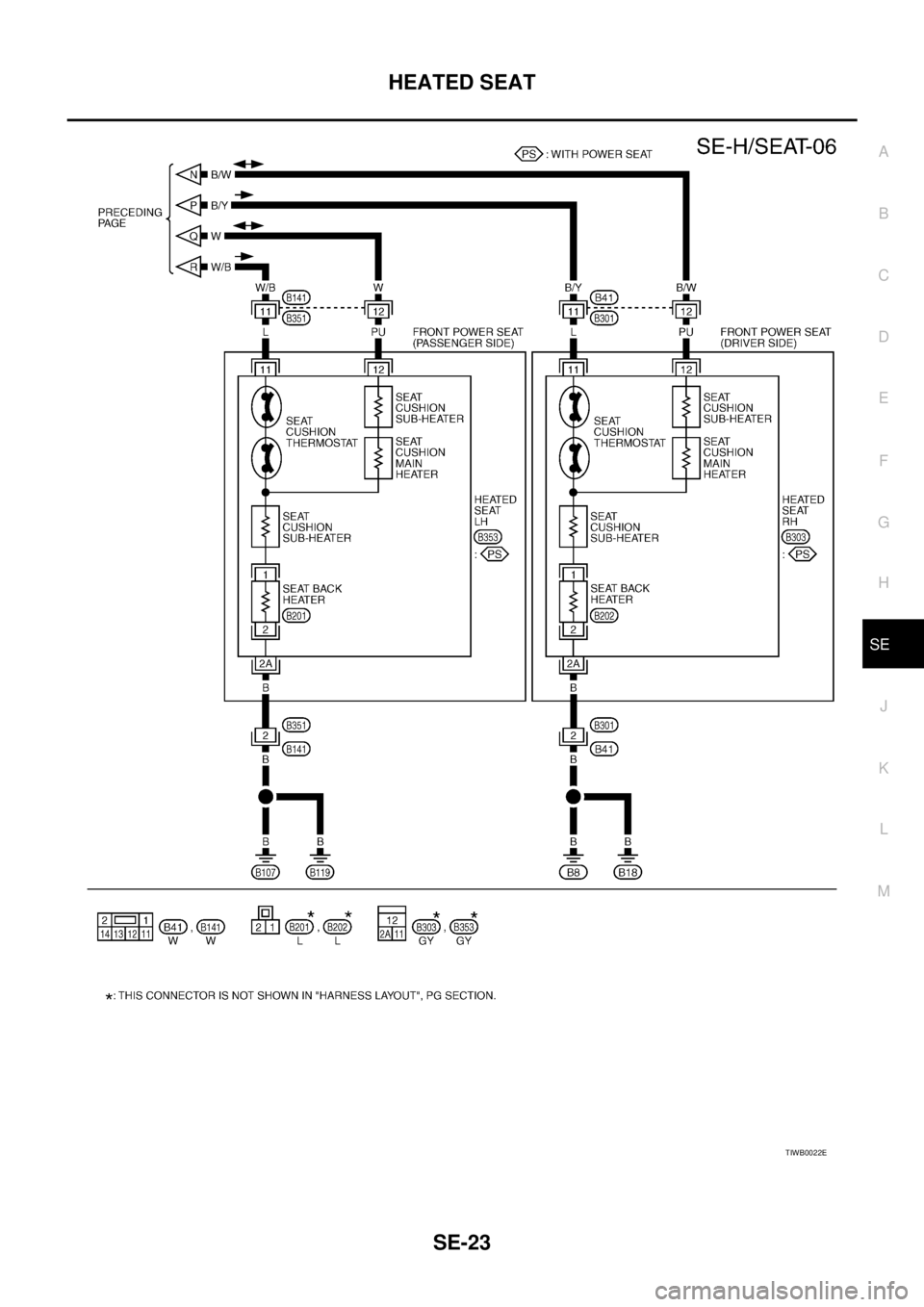

HEATED SEAT
SE-23
C
D
E
F
G
H
J
K
L
MA
B
SE

TIWB0022E

SE-24
FRONT SEAT

FRONT SEATPFP:87000

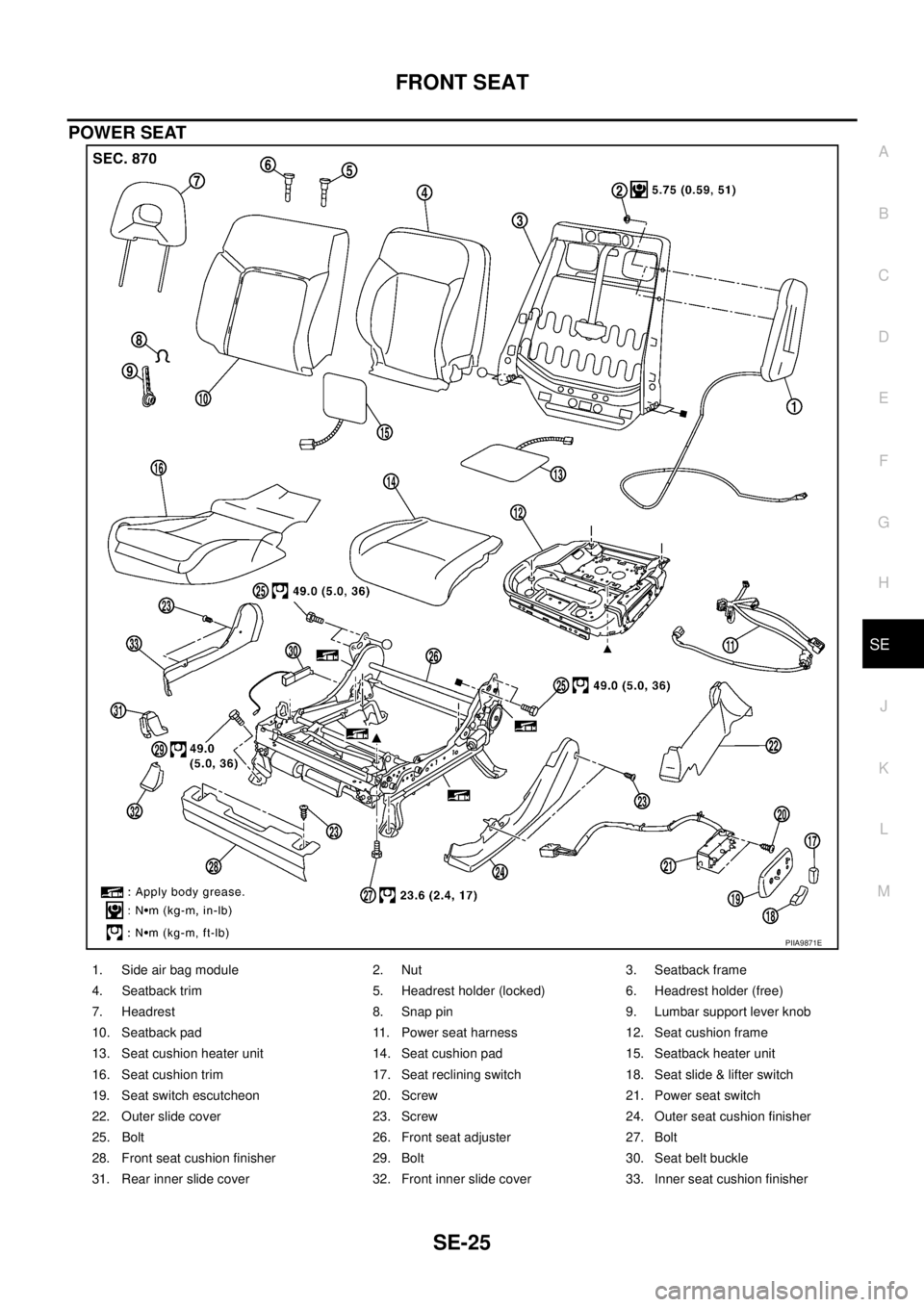

Component Parts DrawingEIS000NN
MANUAL SEAT
PIIB0340E
1. Side air bag module 2. Nut 3. Seatback frame
4. Seatback trim 5. Headrest holder (locked) 6. Headrest holder (free)
7. Headrest 8. Snap pin 9. Lumbar support lever knob
10. Seatback pad 11. Seat cushion frame 12. Seat cushion heater unit
13. Seat cushion pad 14. Seatback heater unit 15. Seat cushion trim
16. Outer slide cover 17. Reclining lever knob 18. Lifter dial
19. Screw 20. Outer seat cushion finisher 21. Bolt
22. Front seat adjuster 23. Bolt 24. Bolt
25. Rear inner slide cover 26. Inner seat cushion finisher 27. Seat belt buckle
28. Front inner slide cover

FRONT SEAT
SE-25
C
D
E
F
G
H
J
K
L
MA
B
SE

POWER SEAT
PIIA9871E
1. Side air bag module 2. Nut 3. Seatback frame
4. Seatback trim 5. Headrest holder (locked) 6. Headrest holder (free)
7. Headrest 8. Snap pin 9. Lumbar support lever knob
10. Seatback pad 11. Power seat harness 12. Seat cushion frame
13. Seat cushion heater unit 14. Seat cushion pad 15. Seatback heater unit
16. Seat cushion trim 17. Seat reclining switch 18. Seat slide & lifter switch
19. Seat switch escutcheon 20. Screw 21. Power seat switch
22. Outer slide cover 23. Screw 24. Outer seat cushion finisher
25. Bolt 26. Front seat adjuster 27. Bolt
28. Front seat cushion finisher 29. Bolt 30. Seat belt buckle
31. Rear inner slide cover 32. Front inner slide cover 33. Inner seat cushion finisher

SE-26
FRONT SEAT

Removal and InstallationEIS000NO
REMOVAL

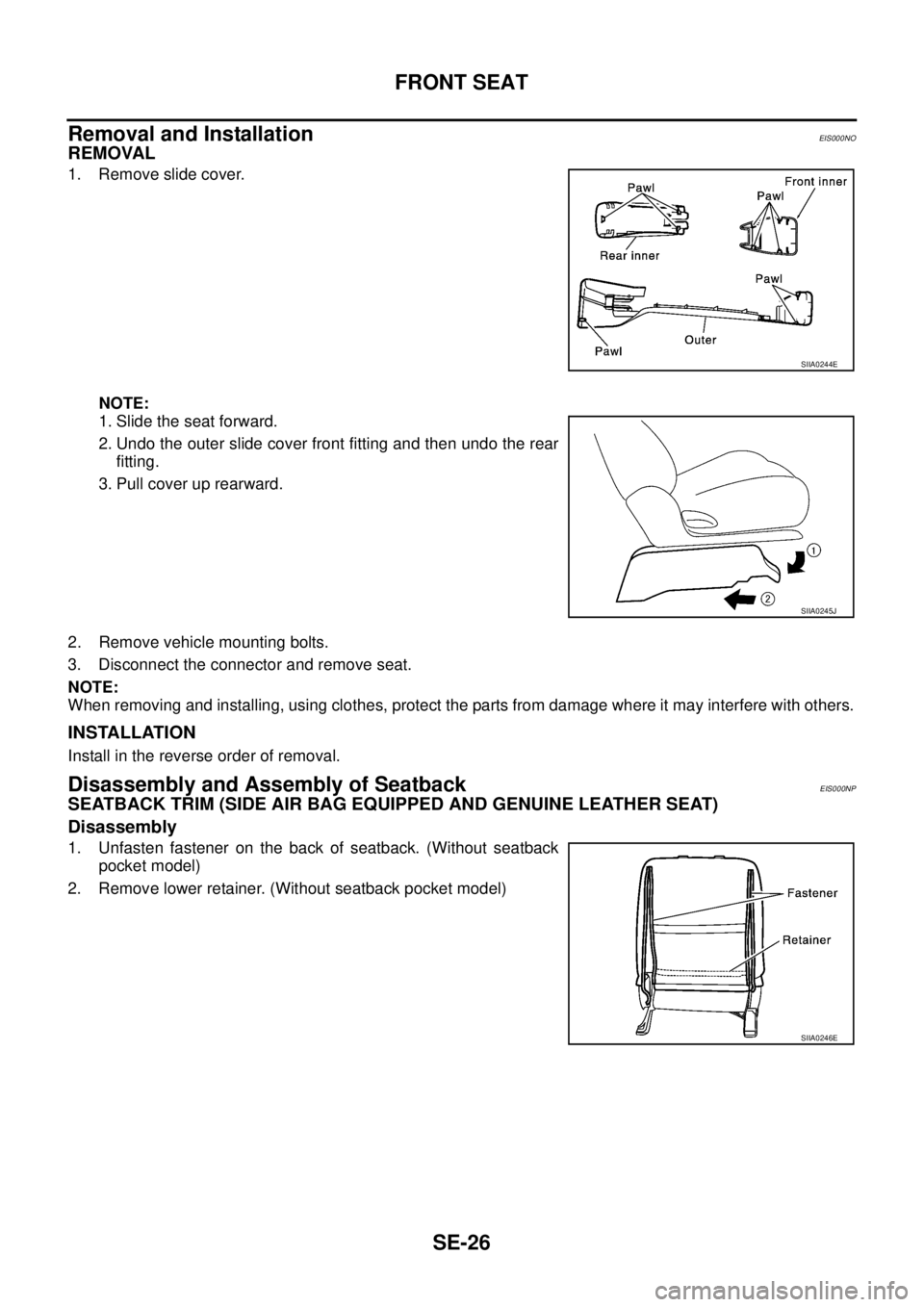

1. Remove slide cover.
NOTE:
1. Slide the seat forward.
2. Undo the outer slide cover front fitting and then undo the rear
fitting.
3. Pull cover up rearward.
2. Remove vehicle mounting bolts.
3. Disconnect the connector and remove seat.
NOTE:
When removing and installing, using clothes, protect the parts from damage where it may interfere with others.
INSTALLATION
Install in the reverse order of removal.
Disassembly and Assembly of SeatbackEIS000NP
SEATBACK TRIM (SIDE AIR BAG EQUIPPED AND GENUINE LEATHER SEAT)
Disassembly
1. Unfasten fastener on the back of seatback. (Without seatback
pocket model)
2. Remove lower retainer. (Without seatback pocket model)
SIIA0244E
SIIA0245J
SIIA0246E

FRONT SEAT
SE-27
C
D
E
F
G
H
J
K
L
MA
B
SE

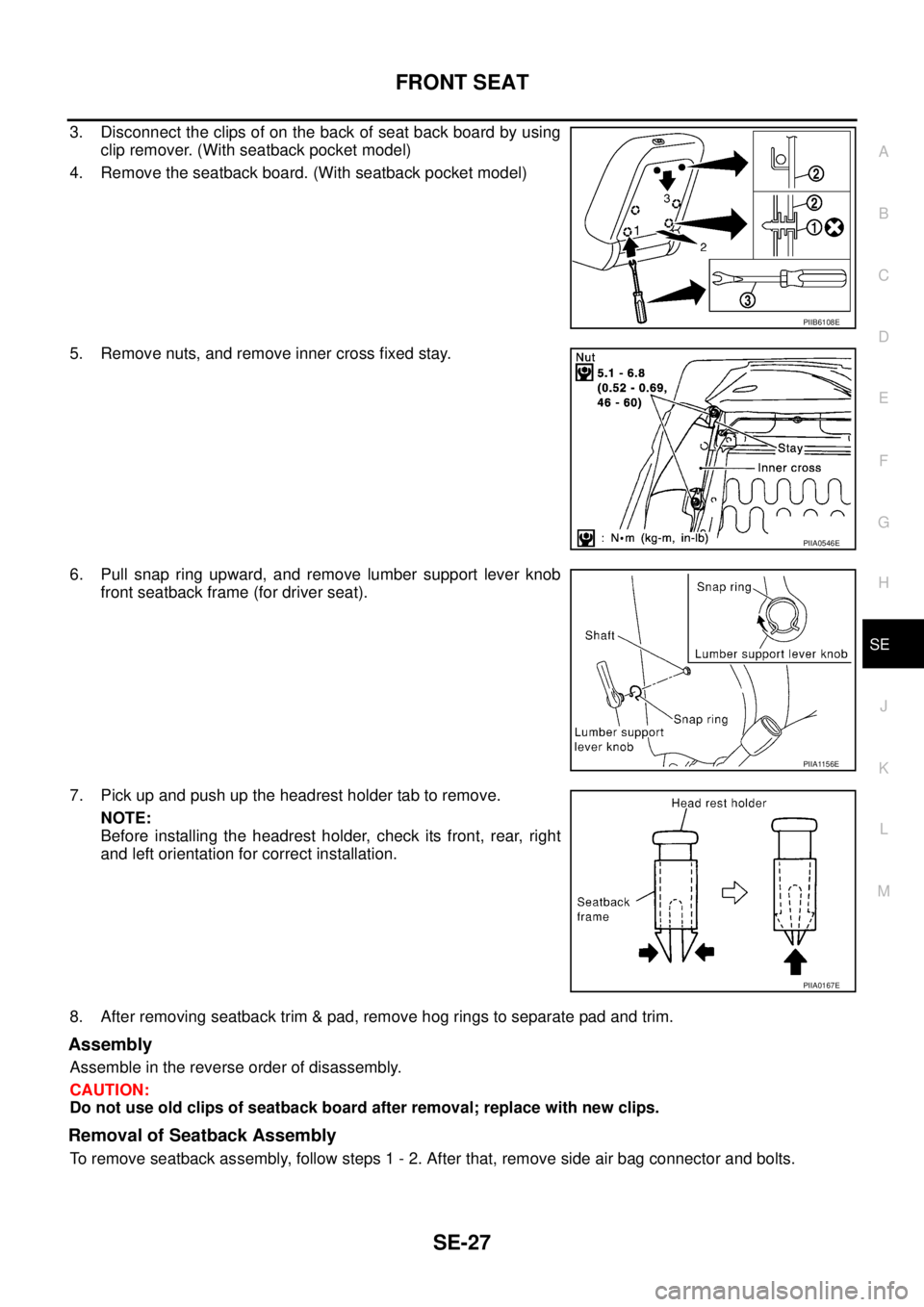

3. Disconnect the clips of on the back of seat back board by using
clip remover. (With seatback pocket model)
4. Remove the seatback board. (With seatback pocket model)
5. Remove nuts, and remove inner cross fixed stay.
6. Pull snap ring upward, and remove lumber support lever knob
front seatback frame (for driver seat).
7. Pick up and push up the headrest holder tab to remove.
NOTE:
Before installing the headrest holder, check its front, rear, right
and left orientation for correct installation.
8. After removing seatback trim & pad, remove hog rings to separate pad and trim.
Assembly
Assemble in the reverse order of disassembly.
CAUTION:
Do not use old clips of seatback board after removal; replace with new clips.
Removal of Seatback Assembly
To remove seatback assembly, follow steps 1 - 2. After that, remove side air bag connector and bolts.
PIIB6108E
PIIA0546E
PIIA1156E
PIIA0167E

SE-28
FRONT SEAT

NOTE:
When assembling the seatback frame, make sure that the reclining device are locked on both sides, and be
sure to temporarily tighten the bolts and make sure that the seatback frame is not warped, then tighten them
finally.
Installation of Seatback Assembly
Install in the reverse order of removal.
SEATBACK TRIM [WITHOUT SIDE AIR BAG (EXCEPT GENUINE LEATHER SEAT)]
Disassembly
1. Disengage retainers in the lower part at the back of seatback.
2. Pull off seatback trim.
3. Pull snap ring upward, and remove lumber support lever knob
front seatback frame (for driver seat).
4. Pick up and push up the headrest holder tab to remove.
NOTE:
Before installing the headrest holder, check its front, rear, right
and left orientation for correct installation.
5. Remove seatback trim.
PIIA0547E
SIIA0248E
PIIA1156E
PIIA0167E

FRONT SEAT
SE-29
C
D
E
F
G
H
J
K
L
MA
B
SE

Assembly
Assemble in the reverse order of disassembly.
Removal of Seatback Assembly
To remove seatback assembly, follow steps 1 - 2. After that, remove bolts.
NOTE:
When assembling the seatback frame, make sure that the reclining device are locked on both sides, and be
sure to temporarily tighten the bolts and make sure that the seatback frame is not warped, then tighten them
finally.
Installation of Seatback Assembly
Install in the reverse order of removal.
Disassembly and Assembly of Seat Cushion TrimEIS000NQ
MANUAL SEAT
Disassembly

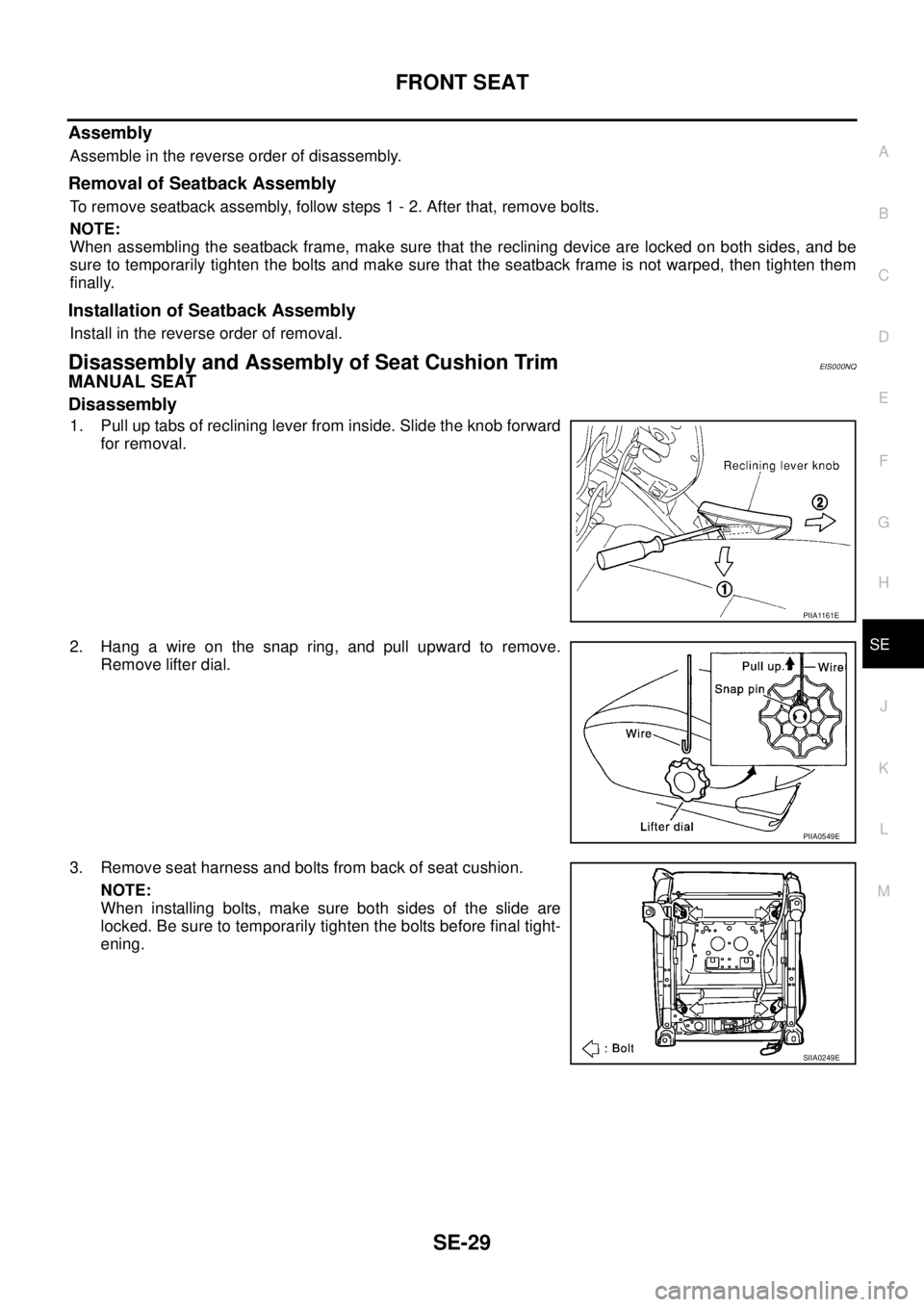

1. Pull up tabs of reclining lever from inside. Slide the knob forward
for removal.
2. Hang a wire on the snap ring, and pull upward to remove.
Remove lifter dial.
3. Remove seat harness and bolts from back of seat cushion.
NOTE:
When installing bolts, make sure both sides of the slide are
locked. Be sure to temporarily tighten the bolts before final tight-
ening.
PIIA1161E
PIIA0549E
SIIA0249E

SE-30
FRONT SEAT

4. Remove retainer from back side of the cushion.
5. Pull off trim and remove hog rings.
Assembly
Assemble in the reverse order of disassembly.
Disassembly and Assembly of Seat Cushion TrimEIS008BR
POWER SEAT
Disassembly
1. Remove seat harness and bolts from back of seat cushion.
2. Remove the seat reclining switch and seat slide & lifter switch.
3. Remove the seat switch escutcheon.
PIIB0589E
SIIA0249E
PIIA9872E
PIIA9873E

FRONT SEAT
SE-31
C
D
E
F
G
H
J
K
L
MA
B
SE

4. Remove retainer from back side of the cushion.
5. Pull off trim and remove hog rings.
Assembly
Assemble in the reverse order of disassembly.
PIIB0589E

SE-32
REAR SEAT

REAR SEATPFP:88300

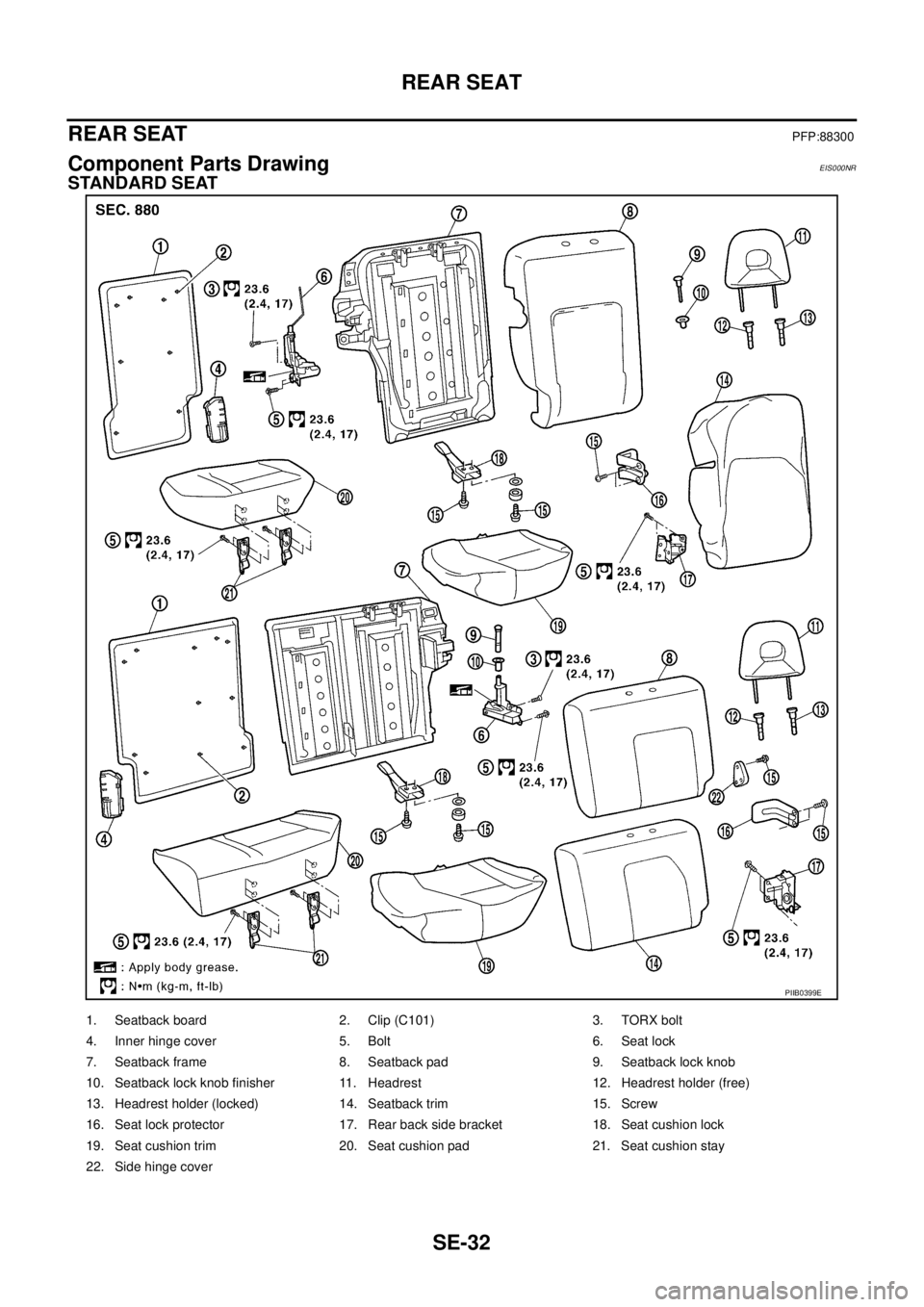

Component Parts DrawingEIS000NR
STANDARD SEAT
PIIB0399E
1. Seatback board 2. Clip (C101) 3. TORX bolt
4. Inner hinge cover 5. Bolt 6. Seat lock
7. Seatback frame 8. Seatback pad 9. Seatback lock knob
10. Seatback lock knob finisher 11. Headrest 12. Headrest holder (free)
13. Headrest holder (locked) 14. Seatback trim 15. Screw
16. Seat lock protector 17. Rear back side bracket 18. Seat cushion lock
19. Seat cushion trim 20. Seat cushion pad 21. Seat cushion stay
22. Side hinge cover
