NISSAN X-TRAIL 2005 Service Repair Manual

STEP LAMP
LT-145
C
D
E
F
G
H
I
J
L
MA
B
LT

STEP LAMPPFP:26420

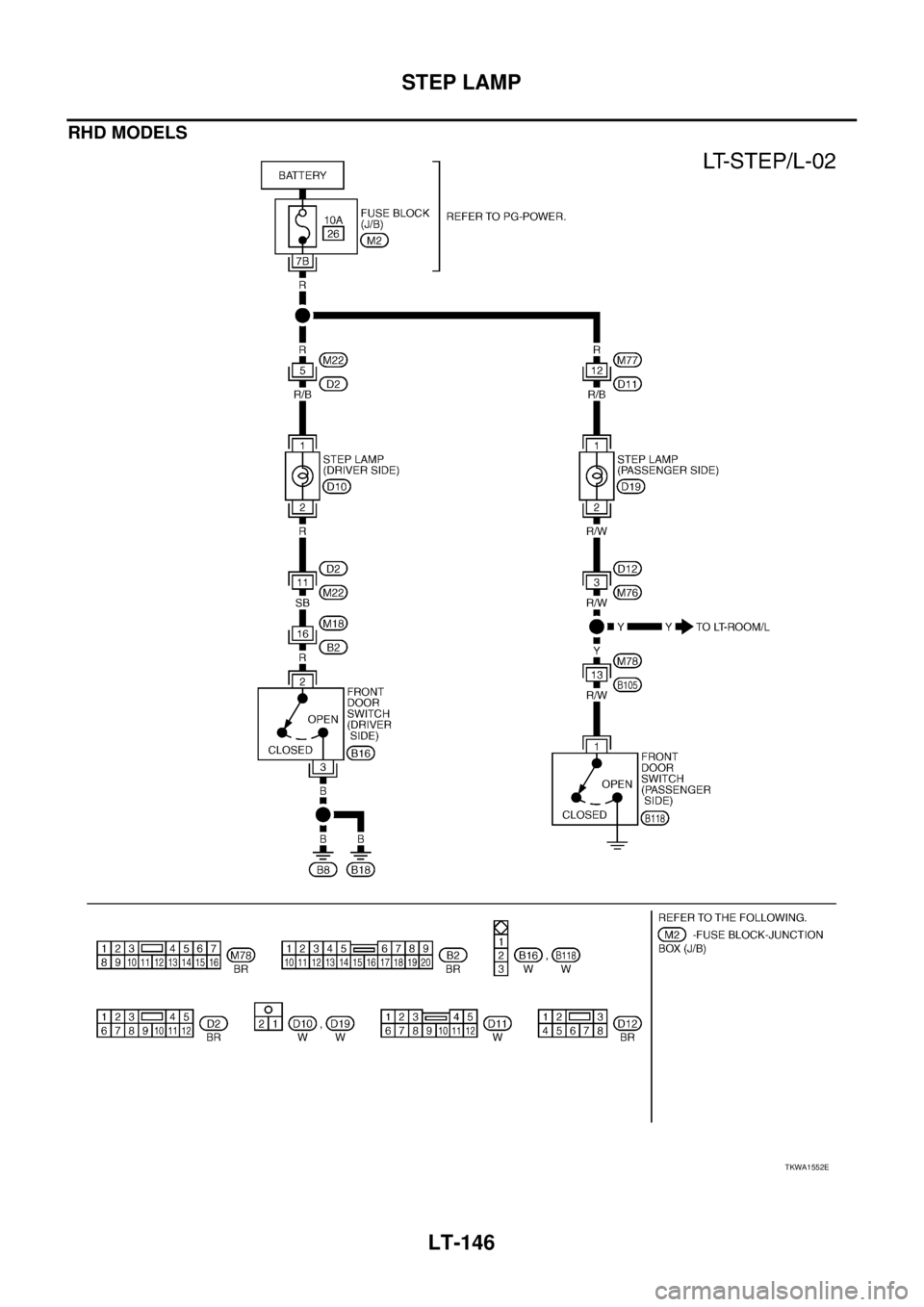

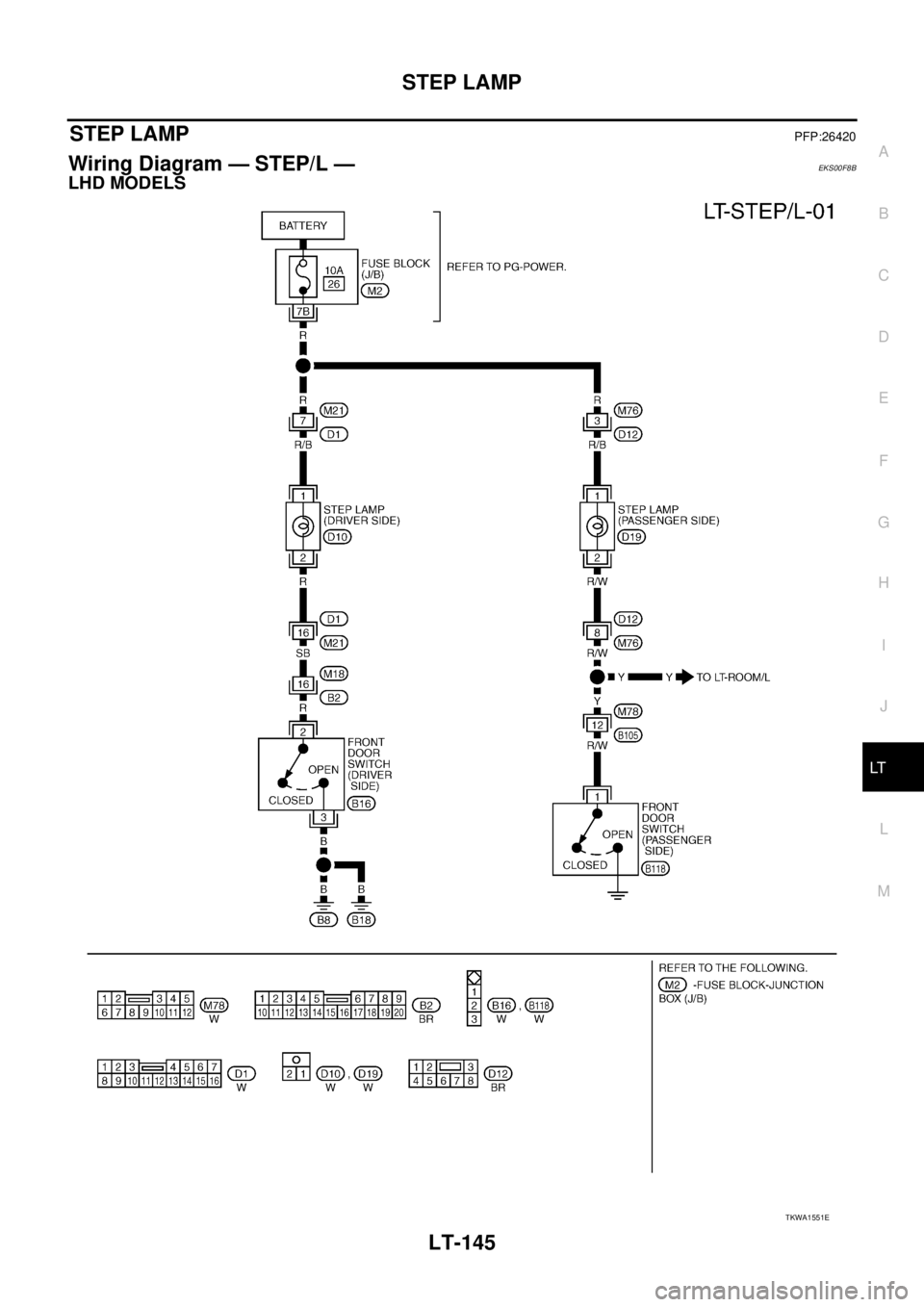

Wiring Diagram — STEP/L — EKS00F8B
LHD MODELS
TKWA1551E

LT-146
STEP LAMP

RHD MODELS
TKWA1552E

STEP LAMP
LT-147
C
D
E
F
G
H
I
J
L
MA
B
LT

Bulb ReplacementEKS00N7Q
1. Remove lens using a clip driver or a suitable tool.
2. Remove bulb.
3. Installation is the reverse order of removal.

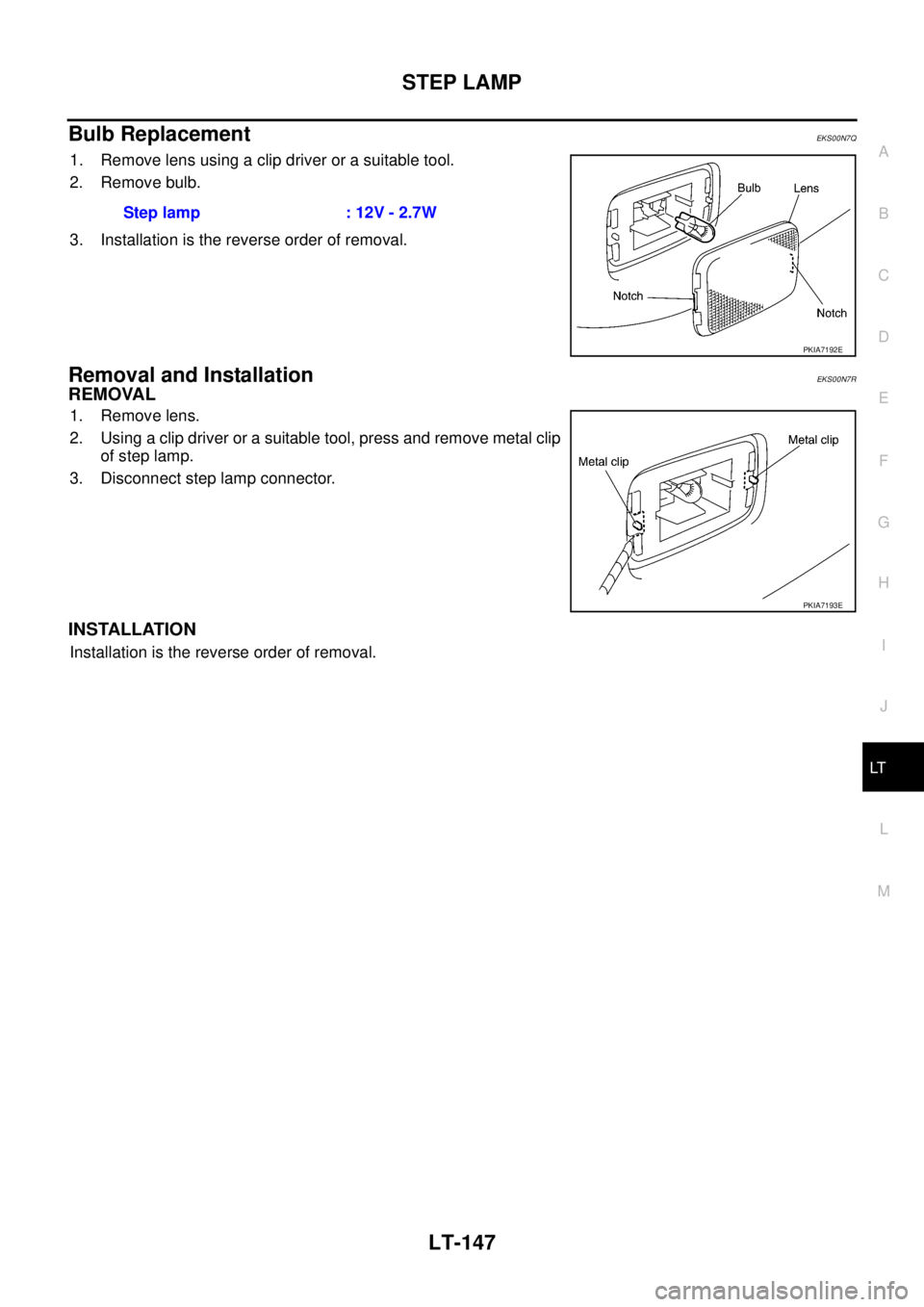

Removal and InstallationEKS00N7R
REMOVAL
1. Remove lens.
2. Using a clip driver or a suitable tool, press and remove metal clip
of step lamp.
3. Disconnect step lamp connector.
INSTALLATION
Installation is the reverse order of removal.Step lamp : 12V - 2.7W
PKIA7192E
PKIA7193E

LT-148
INTERIOR LAMP

INTERIOR LAMPPFP:28491

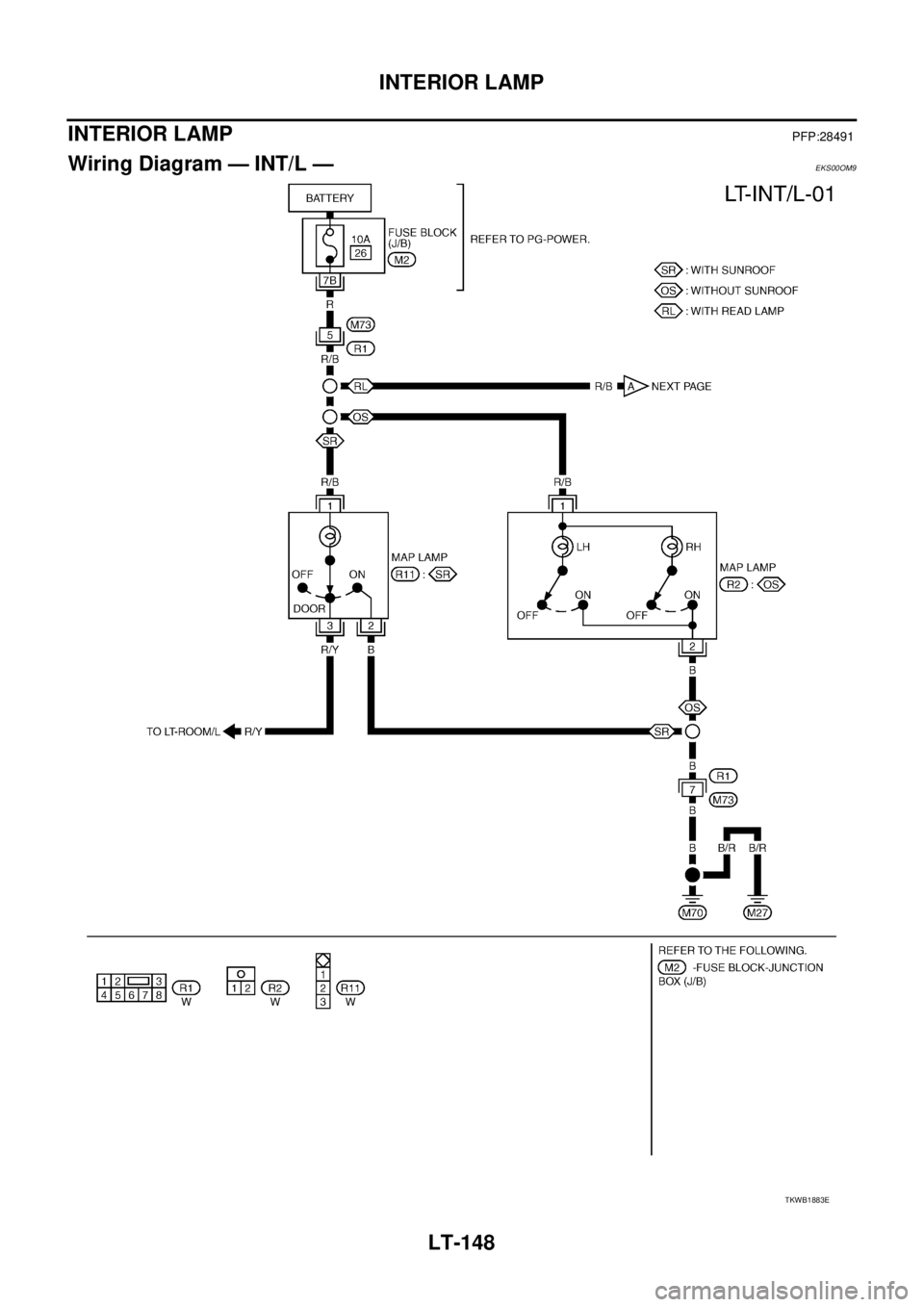

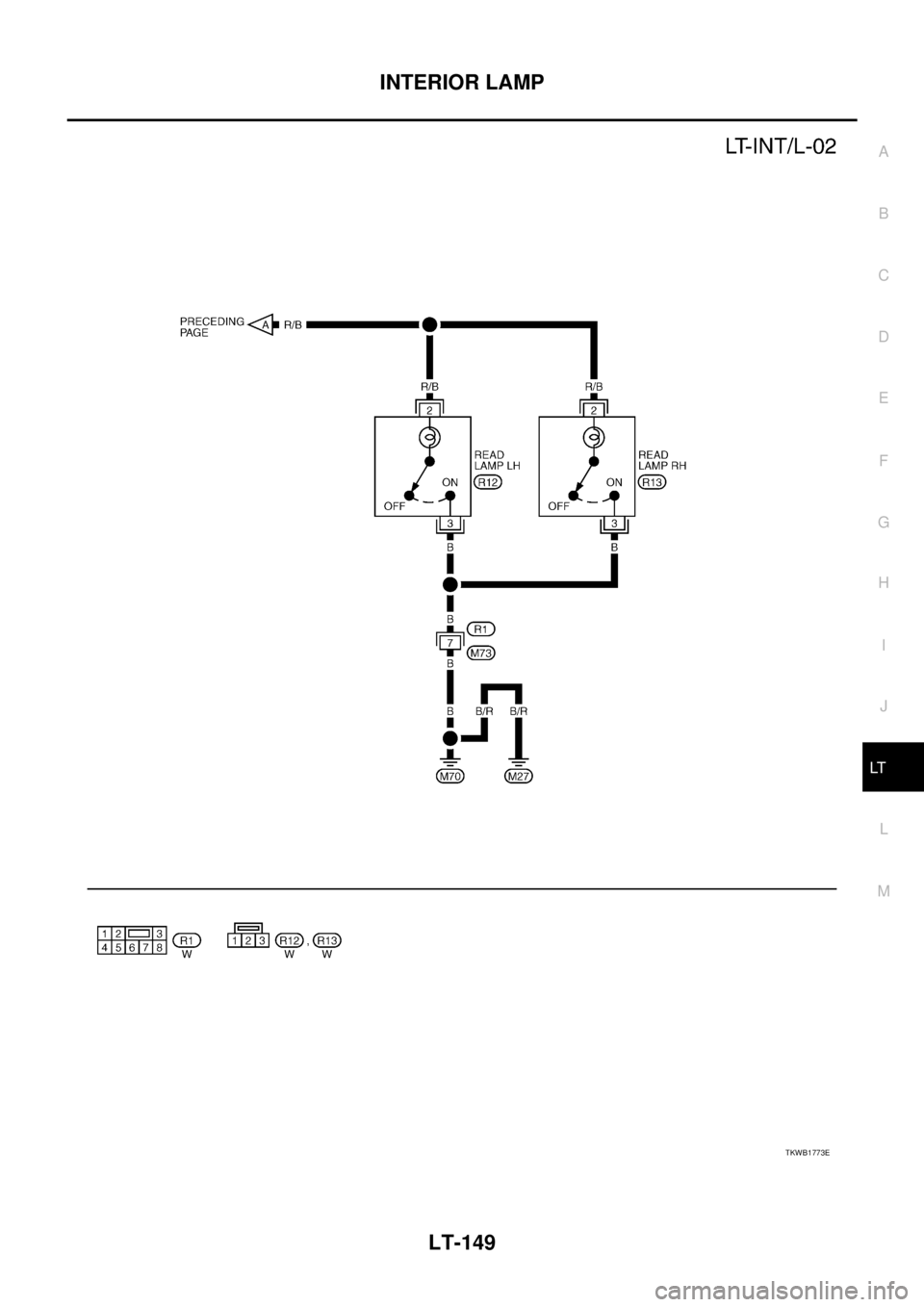

Wiring Diagram — INT/L —EKS00OM9
TKWB1883E

INTERIOR LAMP
LT-149
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWB1773E

LT-150
INTERIOR LAMP

Bulb ReplacementEKS00OMA
MAP LAMP (WITHOUT SUNROOF)
1. Remove the lens using a clip driver or a suitable tool.
2. Remove the shade mounting screw and remove the shade from
the map lamp.
3. Remove the bulb.
4. Installation is the reverse order of removal.
MAP LAMP (WITH SUNROOF)
1. Remove the lens using a clip driver or a suitable tool.
2. Remove the bulb.
3. Installation is the reverse order of removal.
READ LAMP
1. Remove the read lamp. Refer to LT- 1 5 0 , "Removal and Installa-
tion" .
2. Remove the lens mounting screw.
3. Release four clips and remove the lens.
4. Remove the bulb.

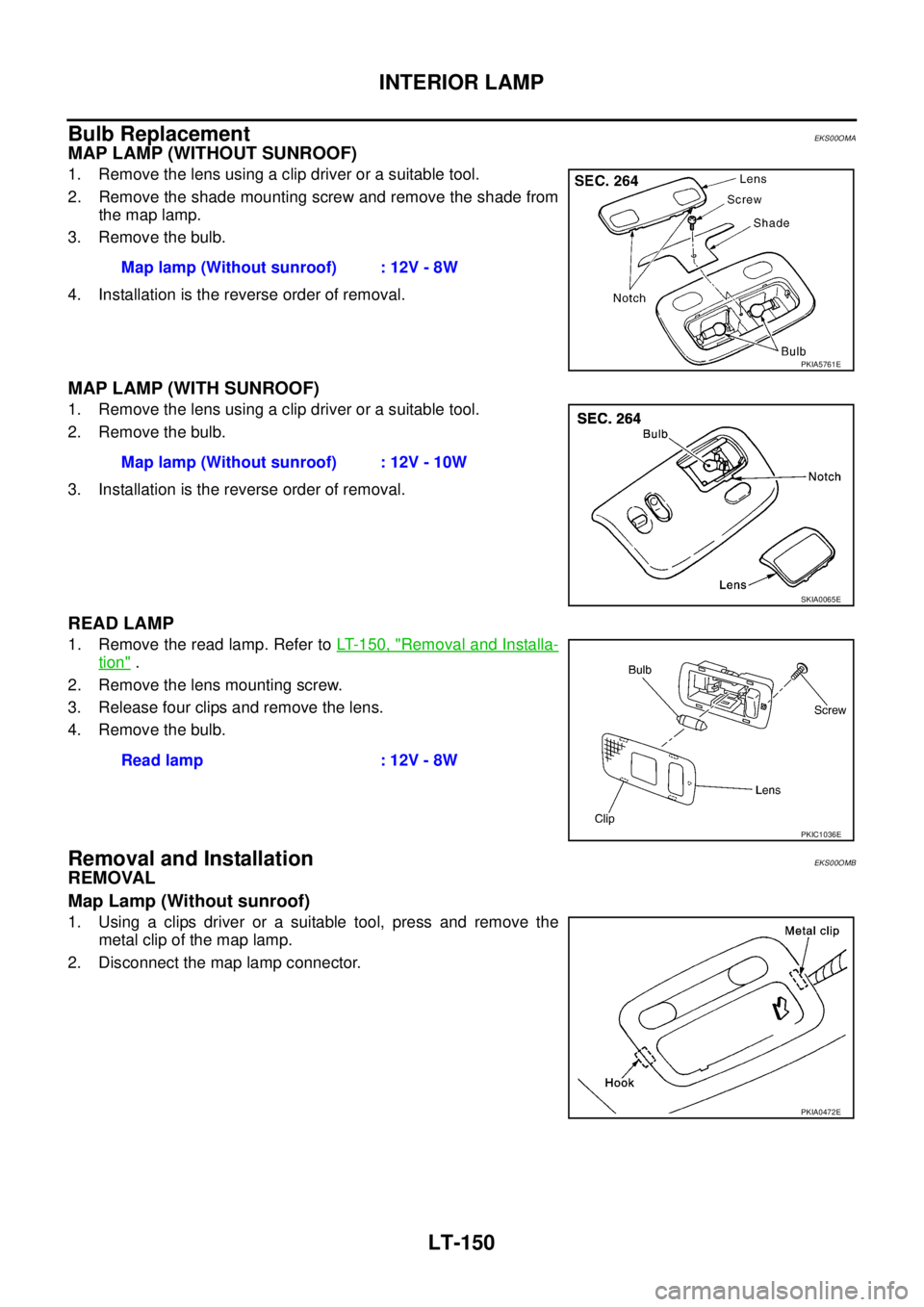

Removal and InstallationEKS00OMB
REMOVAL
Map Lamp (Without sunroof)
1. Using a clips driver or a suitable tool, press and remove the
metal clip of the map lamp.
2. Disconnect the map lamp connector.Map lamp (Without sunroof) : 12V - 8W
PKIA5761E
Map lamp (Without sunroof) : 12V - 10W
SKIA0065E
Read lamp : 12V - 8W
PKIC1036E
PKIA0472E

INTERIOR LAMP
LT-151
C
D
E
F
G
H
I
J
L
MA
B
LT

Map Lamp (With sunroof)
1. Using a clips driver or a suitable tool, press and remove the
metal clip of the map lamp.
2. Disconnect the map lamp connector.

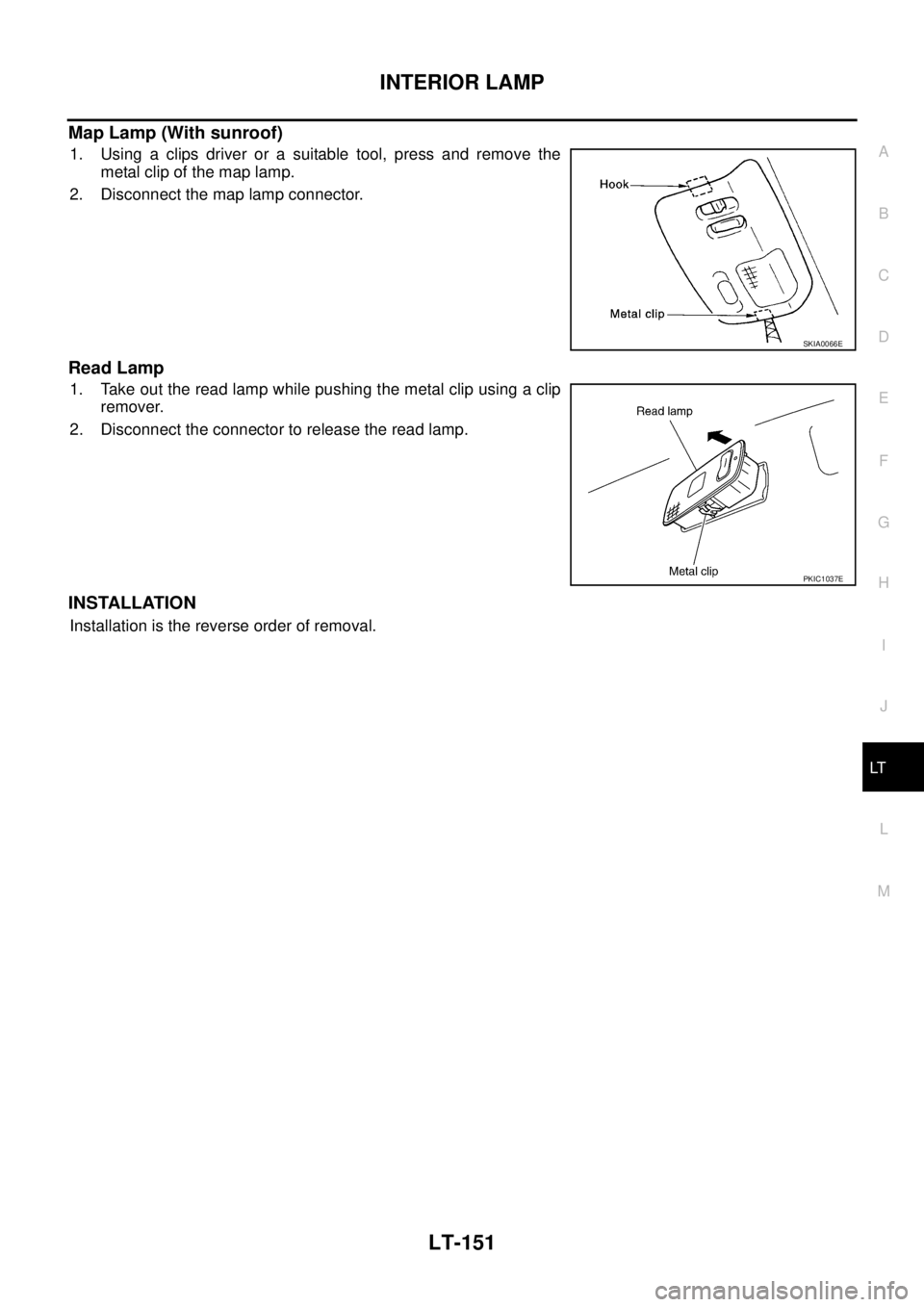

Read Lamp
1. Take out the read lamp while pushing the metal clip using a clip
remover.
2. Disconnect the connector to release the read lamp.
INSTALLATION
Installation is the reverse order of removal.
SKIA0066E
PKIC1037E

LT-152
BULB SPECIFICATIONS

BULB SPECIFICATIONSPFP:26297
HeadlampEKS003GS
Exterior LampEKS003GT
Interior Lamp/IlluminationEKS003GU
Item Wattage (W)
Xenon typeLow 35 (D2R)
High 55 (H1)
Conventional type High/Low 60/55 (H4)
Driving lamp65 (H1R1)
Item Wattage (W)
Front combination lamp Clearance lamp 5
Front turn signal lamp21 (amber)
Side turn signal lamp5
Fog lampFront fog lamp 55 (H11)
Rear fog lamp 21
Rear combination lampStop/Tail lamp 21/5
Rear turn signal lamp 21
Back-up lamp 21
License plate lamp5
High-mounted stop lamp5
Item Wattage (W)
Interior room lamp10
Map lampWithout sunroof 8
With sunroof 10
Luggage room lamp10
Ste p lamp2.7
Ashtray illumination lamp1.4
