REAR FOG LAMP
LT-115
C
D
E
F
G
H
I
J
L
MA
B
LT

Bulb ReplacementEKS0015L

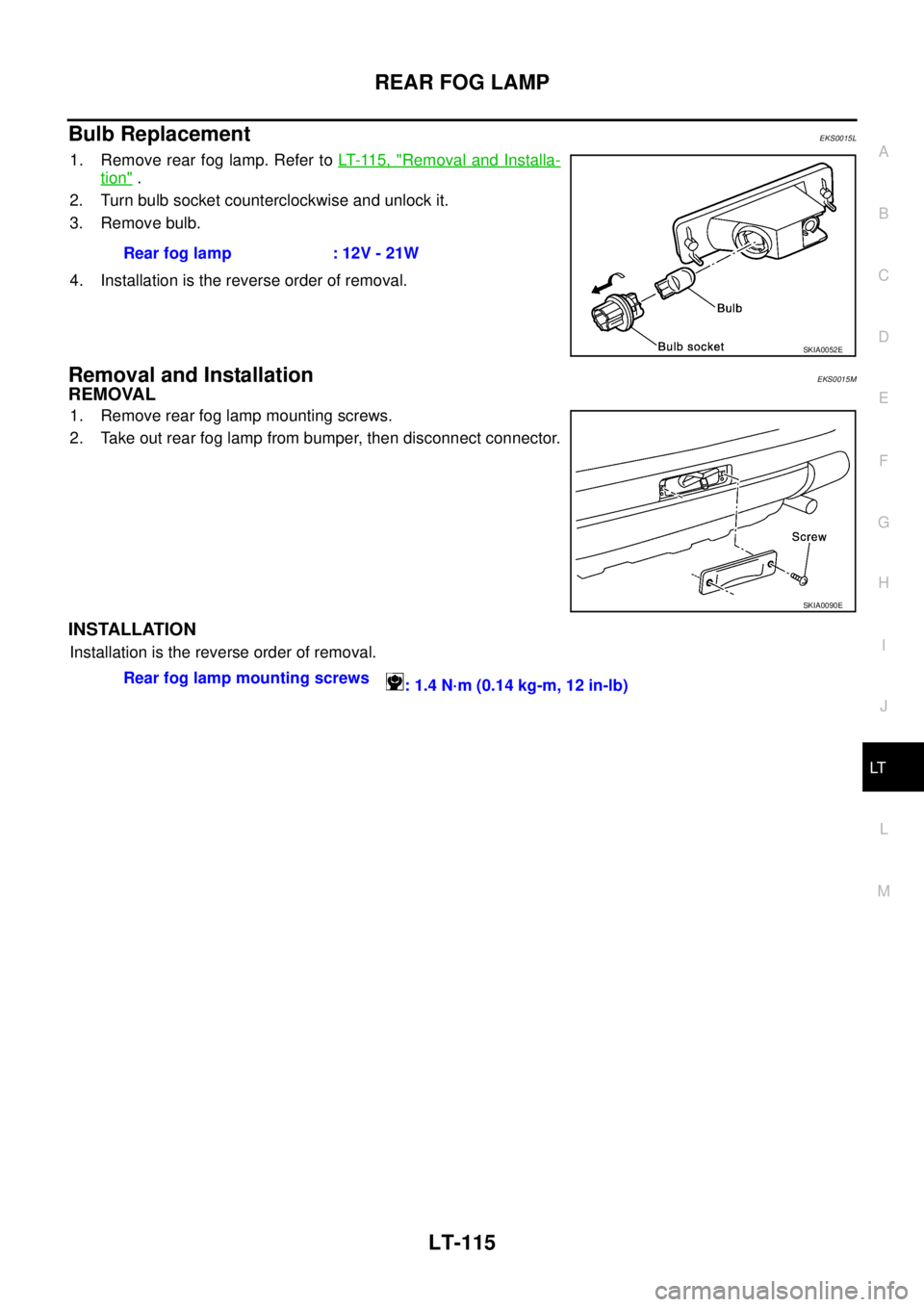

1. Remove rear fog lamp. Refer to LT- 11 5 , "Removal and Installa-
tion" .
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb.
4. Installation is the reverse order of removal.
Removal and InstallationEKS0015M
REMOVAL
1. Remove rear fog lamp mounting screws.
2. Take out rear fog lamp from bumper, then disconnect connector.
INSTALLATION
Installation is the reverse order of removal.Rear fog lamp : 12V - 21W
SKIA0052E
SKIA0090E
Rear fog lamp mounting screws
: 1.4 N·m (0.14 kg-m, 12 in-lb)

LT-116
CLEARANCE LAMP/TAIL LAMP

CLEARANCE LAMP/TAIL LAMPPFP:26010
Bulb Replacement (Clearance Lamp)EKS001UR
Refer to LT- 2 0 , "Bulb Replacement of Headlamp and Clearance Lamp" in “HEADLAMP-XENON TYPE-” or
LT- 3 7 , "
Bulb Replacement of Headlamp and Clearance lamp" in “HEADLAMP-CONVENTIONAL TYPE-”.
Bulb Replacement (Tail lamp)EKS001US
Refer to LT- 11 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
Removal and Installation of Clearance LampEKS001UT
Refer to LT- 2 1 , "Removal and Installation of Headlamp" in “HEADLAMP-XENON TYPE-” or LT- 3 8 , "Removal
and Installation of Headlamp" in “HEADLAMP-CONVENTIONAL TYPE-”.
Removal and Installation of Tail lampEKS001UU
Refer to LT- 11 9 , "Removal and Installation" in “REAR COMBINATION LAMP”.

HIGH-MOUNTED STOP LAMP
LT-117
C
D
E
F
G
H
I
J
L
MA
B
LT

HIGH-MOUNTED STOP LAMPPFP:26590
Bulb ReplacementEKS0034W
Refer to LT- 9 9 , "Bulb Replacement" in “STOP LAMP”.
Removal and InstallationEKS0034X
Refer to LT- 9 9 , "Removal and Installation" in “STOP LAMP”.

LT-118
REAR COMBINATION LAMP

REAR COMBINATION LAMP PFP:26554

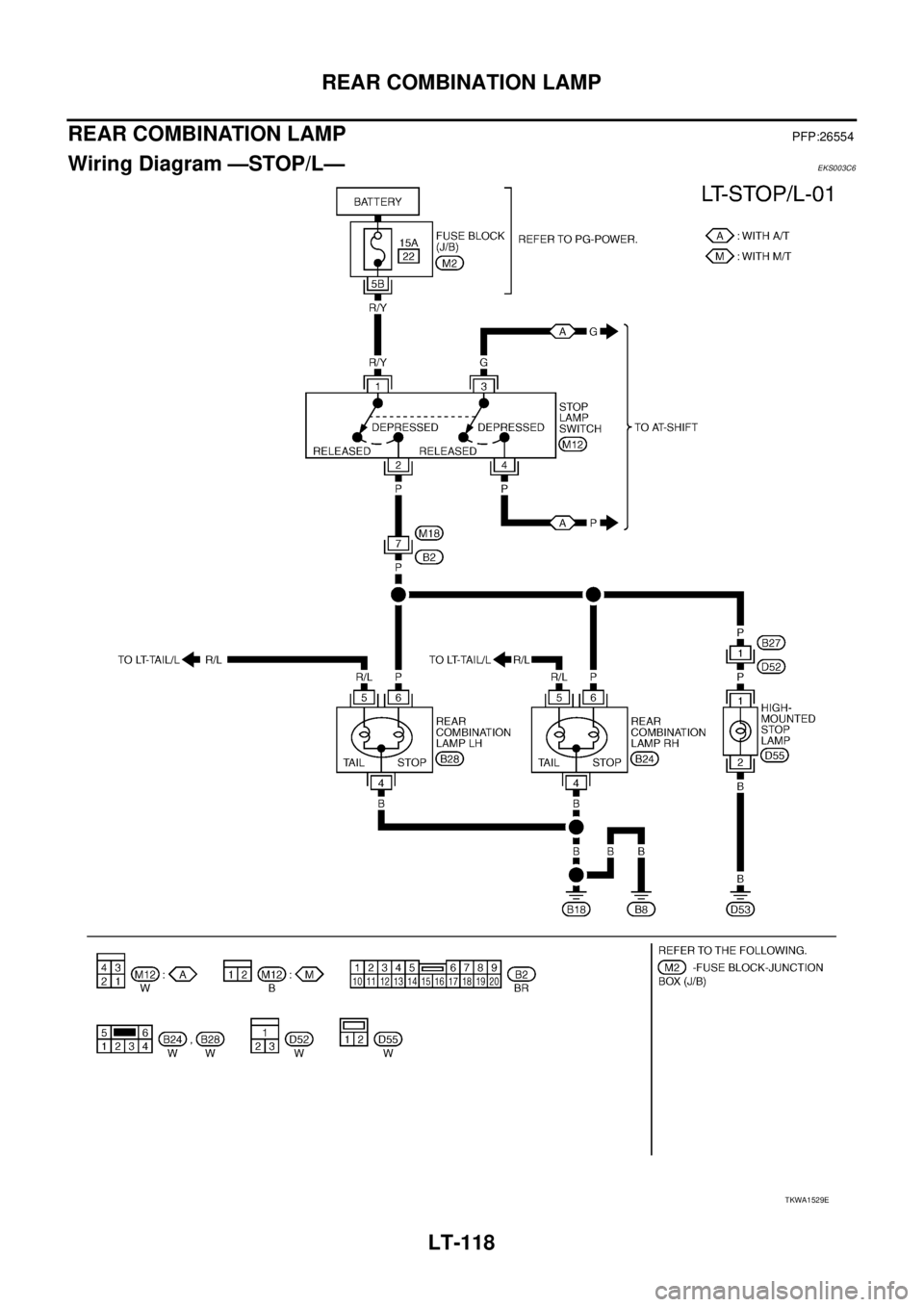

Wiring Diagram —STOP/L— EKS003C6
TKWA1529E

REAR COMBINATION LAMP
LT-119
C
D
E
F
G
H
I
J
L
MA
B
LT

Bulb ReplacementEKS00164

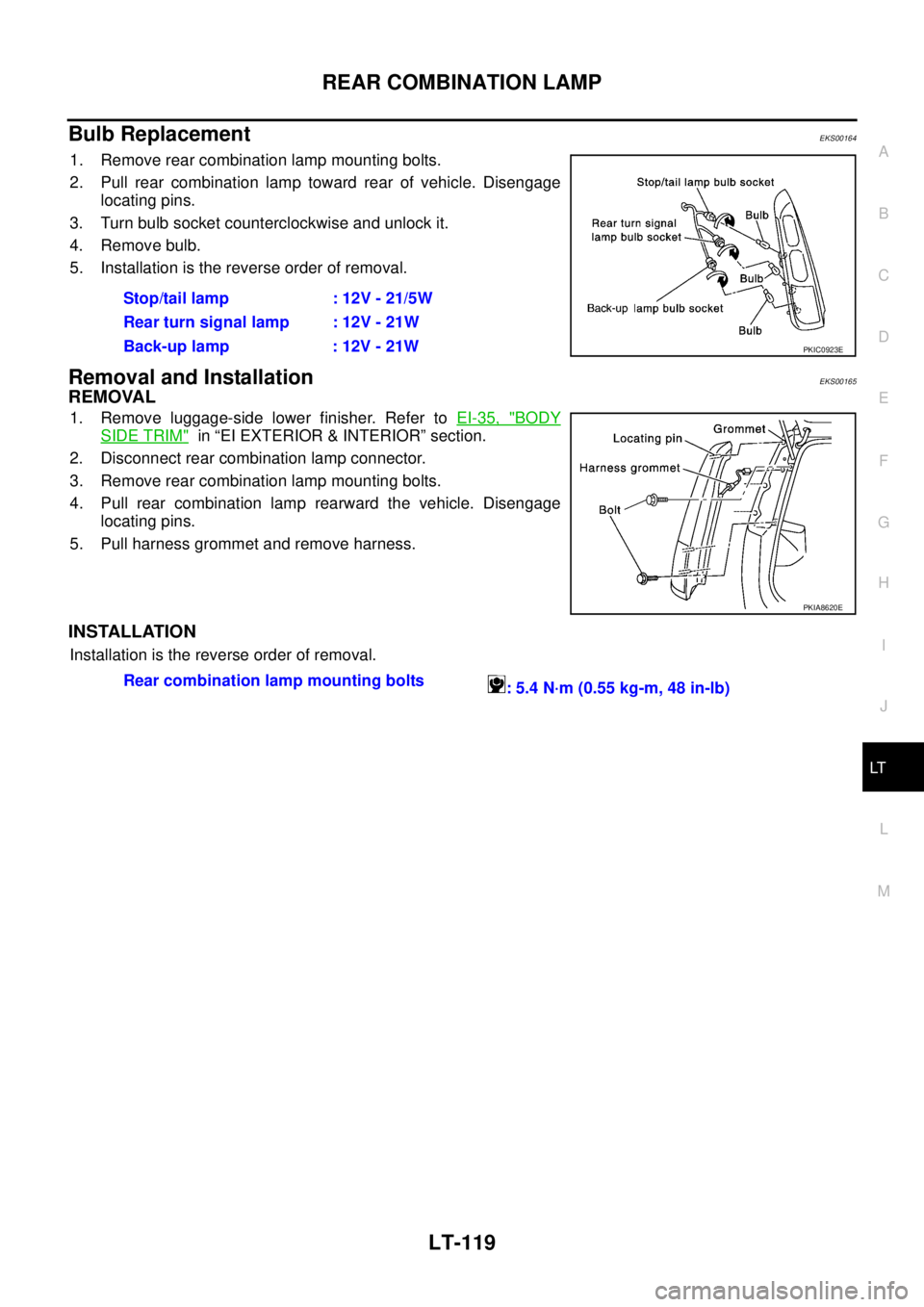

1. Remove rear combination lamp mounting bolts.
2. Pull rear combination lamp toward rear of vehicle. Disengage
locating pins.
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb.
5. Installation is the reverse order of removal.
Removal and InstallationEKS00165
REMOVAL
1. Remove luggage-side lower finisher. Refer to EI-35, "BODY
SIDE TRIM" in “EI EXTERIOR & INTERIOR” section.
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting bolts.
4. Pull rear combination lamp rearward the vehicle. Disengage
locating pins.
5. Pull harness grommet and remove harness.
INSTALLATION
Installation is the reverse order of removal.Stop/tail lamp : 12V - 21/5W
Rear turn signal lamp : 12V - 21W
Back-up lamp : 12V - 21W
PKIC0923E
PKIA8620E
Rear combination lamp mounting bolts
: 5.4 N·m (0.55 kg-m, 48 in-lb)

LT-120
COMBINATION SWITCH

COMBINATION SWITCHPFP:25567
Removal and InstallationEKS001V6
Refer to SRS-33, "SPIRAL CABLE" in “SUPPLEMENTAL RESTRAINT SYSTEM (SRS)” section.
Switch Circuit InspectionEKS001V7
Refer to LT- 9 6 , "Switch Circuit Inspection" in “LIGHTING AND TURN SIGNAL SWITCH”, and WW-8, "Te r m i -
nal and Reference Values for Combination Switch" , WW-16, "Terminal and Reference Values for Combination
Switch" in “Wiper, Washer&Horn (WW)” section.

ASHTRAY ILLUMINATION
LT-121
C
D
E
F
G
H
I
J
L
MA
B
LT

ASHTRAY ILLUMINATIONPFP:25860
Bulb Replacement, Removal and InstallationEKS00F86

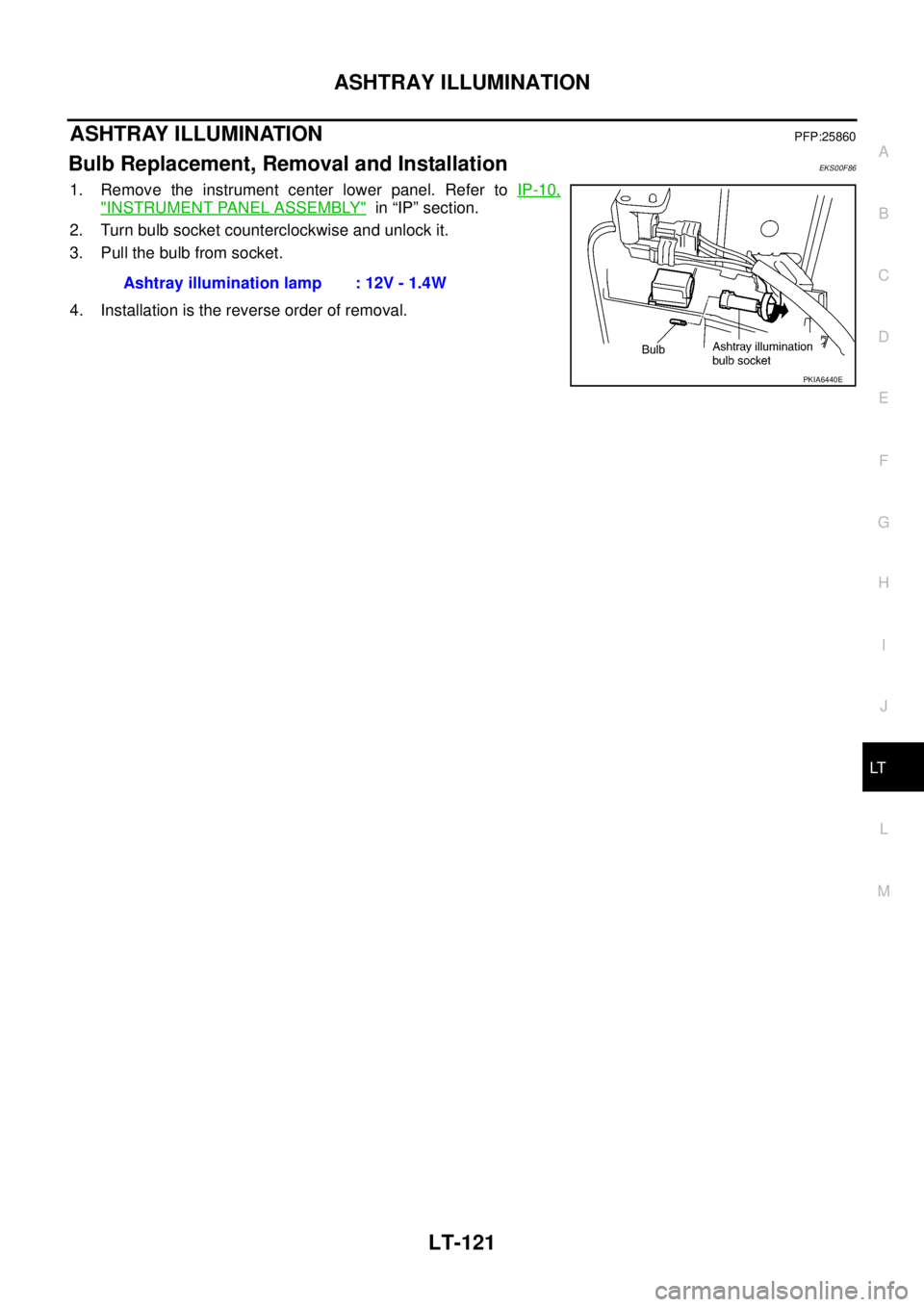

1. Remove the instrument center lower panel. Refer to IP-10,
"INSTRUMENT PANEL ASSEMBLY" in “IP” section.
2. Turn bulb socket counterclockwise and unlock it.
3. Pull the bulb from socket.
4. Installation is the reverse order of removal.Ashtray illumination lamp : 12V - 1.4W
PKIA6440E

LT-122
ILLUMINATION

ILLUMINATIONPFP:27545
System Description EKS003C7
Power is supplied at all times

through 10A fuse (No. 31, located in fuse and fusible link box)

to lighting switch terminal 11.
The lighting switch must be in the 1ST or 2ND position for illumination.
The following chart shows the power and ground connector terminals for the components included in the illu-
mination system.
Component Connector No. Power terminal Ground terminal
Headlamp washier switch M23 4 3
Headlamp aiming switch M24 3 4
ESP off switch M25 3 4
Driving lamp switch M101 1 5
Door mirror remote control switch M26 10 3
Driver pocket lamp M119 1 2
4WD mode switch M39 5 6
Hazard switch M51 7 8
Rear window defogger switch M50 5 6
A/C auto amp. M52 12 11
Combination meter M45 60 63
Heater control panel M55 2 6
Audio unit (with cassette deck) M108 8 case ground
Audio unit (without cassette deck and
with NAVI)M47 1 case ground
Audio unit (without cassette deck and
without NAVI)M207 1 case ground
Cigarette lighter socket M301, M302 3 2
Ashtray illumination M303 5 6
A/T device M58 3 4
NAVI control unit M116, M117 25 1, 4
NAVI switch M113 2 3
Heated seat switch LH (LHD models) B212 5 6
Heated seat switch RH (LHD models) B213 5 6

ILLUMINATION
LT-123
C
D
E
F
G
H
I
J
L
MA
B
LT

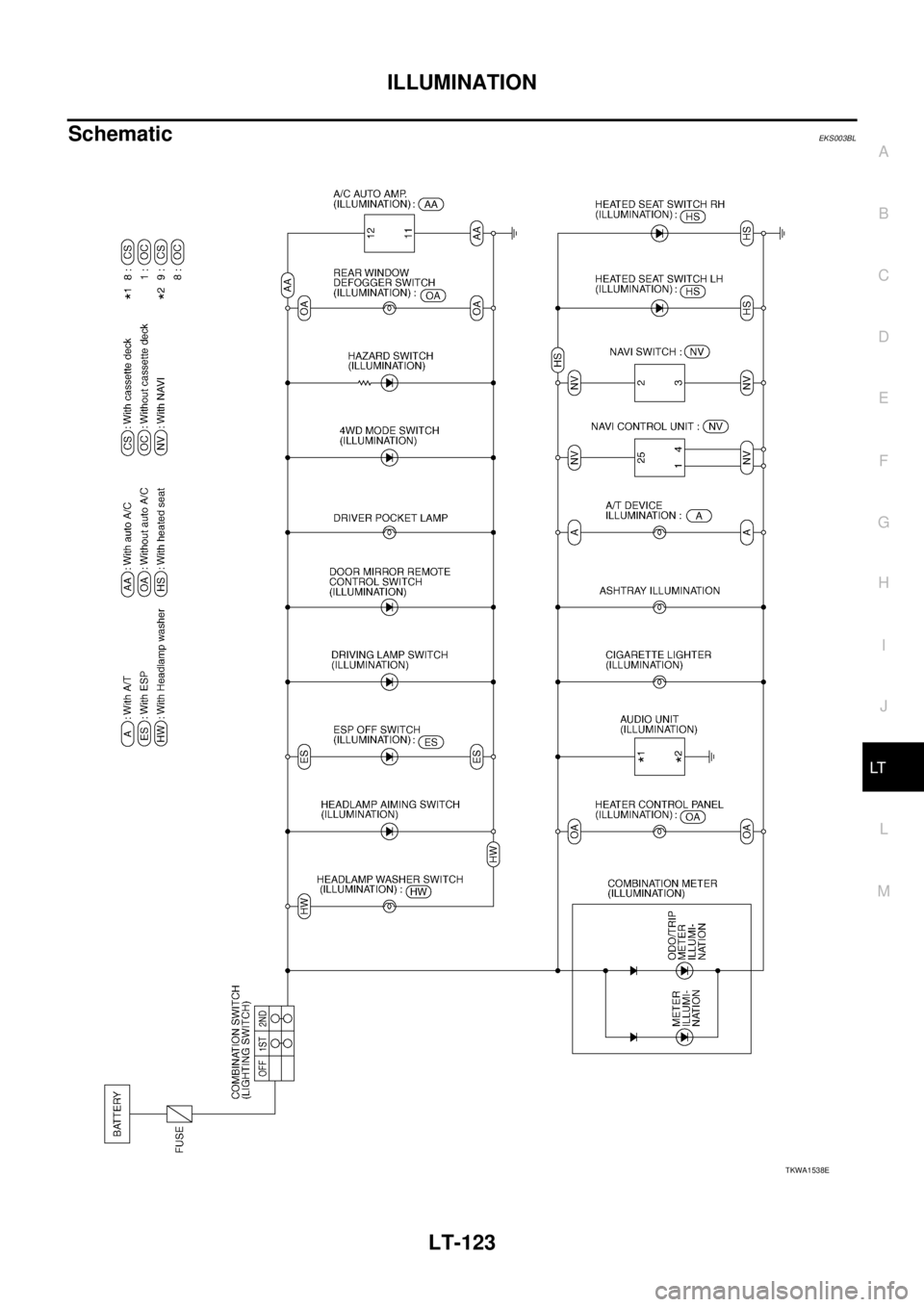

SchematicEKS003BL
TKWA1538E

LT-124
ILLUMINATION

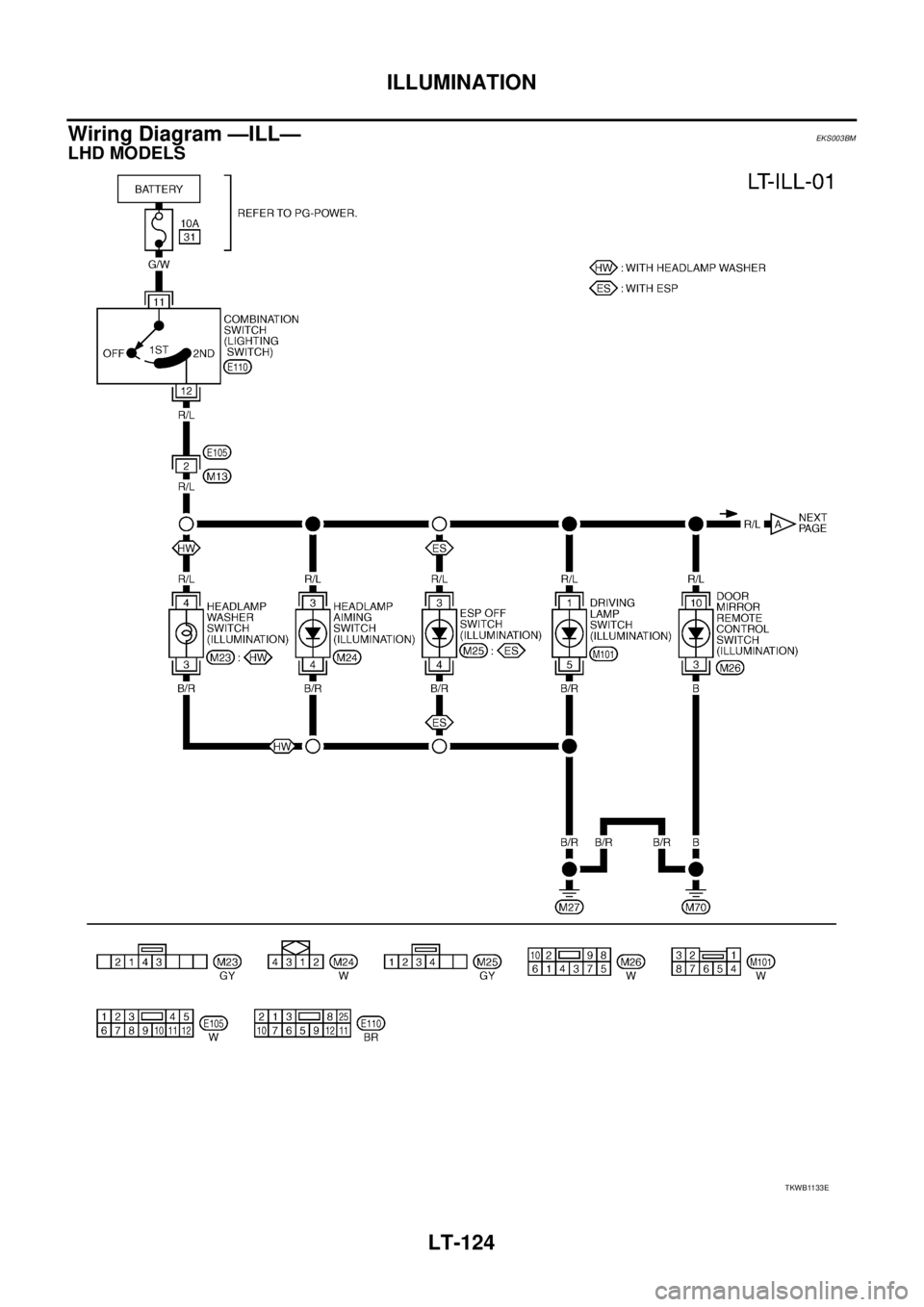

Wiring Diagram —ILL—EKS003BM
LHD MODELS
TKWB1133E
