NISSAN X-TRAIL 2006 User Guide

22. 4WD mode switch* (P.5-19)/SNOW
mode switch* (P.2-23)
23. Rear window/outside mirror defroster
switch (P.2-17)
24. Multi box (P.2-27)
25. Heater/air conditioner control (P.4-8)
26. Glove box (P.2-30)
27. Upper glove box (P.2-30)
* If so equipped
** Refer to the separate Navigation System
Owner’s Manual0-6
Illustrated table of contents


06.4.14/T30-J/V5.0


1. Tachometer (P.2-5)
2. Turn signal indicator (P.2-20)/Hazard indica-
tor (P.2-21)
3. Speedometer (P.2-4)
4. Fuel gauge (P.2-6)
5. Engine coolant temperature gauge (P.2-5)
6. Warning/Indicator lights (P.2-7)
7. Odometer (Total/Twin trip) (P.2-4)/Clock
(P.2-24)
8. Reset button for trip odometer (P.2-4)/Clock
adjustment (P.2-24)
9. Automatic Transmission (AT) shift position
indicator* (P.5-10)
* If so equipped
SIC2394
METERS AND GAUGES
Illustrated table of contents
0-7


06.4.14/T30-J/V5.0


1. Power steering fluid reservoir (P.8-14)
2. Engine oil filler cap (P.8-11)
3. Automatic transmission fluid dipstick
(*1) (P.8-13)
4. Brake and clutch (*2) fluid reservoir
(P.8-14)
5. Air cleaner (P.8-18)
6. Window washer fluid reservoir (P.8-15)
7. Engine coolant reservoir (P.8-8)
8. Engine oil dipstick (P.8-10)
9. Radiator cap (P.8-9)
10. Fuse/Fusible link holder (P.8-22)
11. Battery (P.8-16)
*1: For Automatic Transmission (AT) model
*2: For Manual Transmission (MT) model
SDI1947
ENGINE COMPARTMENT CHECK
LOCATIONS0-8
Illustrated table of contents


06.4.14/T30-J/V5.0

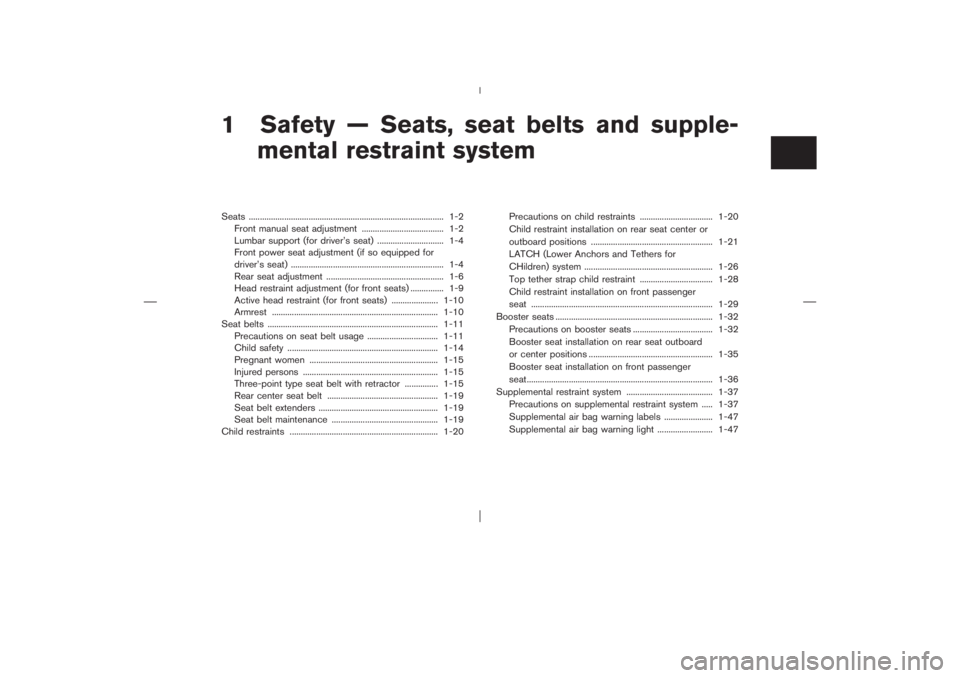

1 Safety — Seats, seat belts and supple-
mental restraint systemSeats ........................................................................................ 1-2
Front manual seat adjustment ..................................... 1-2
Lumbar support (for driver’s seat) .............................. 1-4
Front power seat adjustment (if so equipped for
driver’s seat) ..................................................................... 1-4
Rear seat adjustment ..................................................... 1-6
Head restraint adjustment (for front seats) ............... 1-9
Active head restraint (for front seats) ..................... 1-10
Armrest ........................................................................... 1-10
Seat belts ............................................................................. 1-11
Precautions on seat belt usage ................................ 1-11
Child safety .................................................................... 1-14
Pregnant women .......................................................... 1-15
Injured persons ............................................................. 1-15
Three-point type seat belt with retractor ............... 1-15
Rear center seat belt .................................................. 1-19
Seat belt extenders ...................................................... 1-19
Seat belt maintenance ................................................ 1-19
Child restraints ................................................................... 1-20Precautions on child restraints ................................. 1-20
Child restraint installation on rear seat center or
outboard positions ....................................................... 1-21
LATCH (Lower Anchors and Tethers for
CHildren) system .......................................................... 1-26
Top tether strap child restraint ................................. 1-28
Child restraint installation on front passenger
seat .................................................................................. 1-29
Booster seats ....................................................................... 1-32
Precautions on booster seats .................................... 1-32
Booster seat installation on rear seat outboard
or center positions ........................................................ 1-35
Booster seat installation on front passenger
seat.................................................................................... 1-36
Supplemental restraint system ....................................... 1-37
Precautions on supplemental restraint system ..... 1-37
Supplemental air bag warning labels ...................... 1-47
Supplemental air bag warning light ......................... 1-47


06.4.14/T30-J/V5.0


WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.
For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat and adjust the
seat belt properly. See “Precautions
on seat belt usage” later in this sec-
tion.
FRONT MANUAL SEAT
ADJUSTMENT
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.

After adjustment, gently rock in the
seat to make sure it is securely
locked.
SSS0133B
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


Forward and backwardPull the lever up
1
while you slide the seat
forward or backward to the desired position.
Release the lever to lock the seat in position.
RecliningTo recline the seatback, pull the lever up
2and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback moves forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. See “Precautions on
seat belt usage” later in this section. The seat-
back may also be reclined to allow occupants to
rest when the vehicle is parked.
Seat lifter (for driver’s seat)Turn the dial and adjust the angle and height of
the seat cushion to the desired position.
SPA1727A
SSS0344
Safety — Seats, seat belts and supplemental restraint system
1-3


06.4.14/T30-J/V5.0


LUMBAR SUPPORT (for driver’s
seat)The lumbar support feature provides lower back
support to the driver.
Turn the lever forward or backward to adjust the
seat lumbar area.
FRONT POWER SEAT
ADJUSTMENT (if so equipped for
driver’s seat)
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.Operating tips
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.

Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
SPA1729A
1-4
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


Forward and backwardMoving the switch
1
forward or backward will
slide the seat forward or backward to the de-
sired position.
RecliningMove the recline switch
2
backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. See “Precautions on
seat belt usage” later in this section. The seat-
back may also be reclined to allow occupants to
rest when the vehicle is parked.
Seat lifterPush the front or rear end of the switch
1up or
down to adjust the angle and height of the seat
cushion.
SPA1728A
SSS0166C
Safety — Seats, seat belts and supplemental restraint system
1-5


06.4.14/T30-J/V5.0


REAR SEAT ADJUSTMENT
Folding1. Store the rear cup holder in the center con-
sole.
2. Secure the seat belt on the clip.
3. Remove the head restraints. (The removed
head restraints can be stored on the reclining
lock plate.)
4. Pull the strap forward and bring up the seat
cushion
1.
5. After removing the tonneau cover (if so
equipped) from each rear seatback, pull up
the knoband fold the seatback down
2.6. When resetting the seat, be sure to hold the
seat belt buckles so that they do not fall
between the seatback and the seat cushion
and install the head restraints.
WARNING

Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury in an accident or suddenstop.

It is extremely dangerous to ride in a
cargo area inside of a vehicle. In a
collision, people riding in these areas
are more likely to be seriously in-
jured or killed.

Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat
belts. Be sure everyone in your ve-
hicle is in a seat and using a seat belt
properly.

Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seat.

Head restraints should be adjusted
properly as they may provide signifi-
cant protection against injury in an
accident. Always replace and adjust
them properly if they have been re-
moved for any reason.

If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
SPA1348A
1-6
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


injury to passengers or damage to
the vehicle in case of sudden braking
or an accident.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.
RecliningPull the knob
1
to remove it from the lock plate
and lean back until the desired angle is obtained.
To bring the seatback forward, pull the knob and
move your body forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “Precautions on
seat belt usage” later in this section.) The seat-
back may also be reclined to allow occupants to
rest when the vehicle is parked.
WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal inju-
ries.

For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat and adjust the
seat belt properly. See “PRECAU-
TIONS ON SEAT BELT USAGE” later
in this section.

After adjustment, check to be sure
the seat is securely locked.
SPA1349A
Safety — Seats, seat belts and supplemental restraint system
1-7
