WARNING

The supplemental front air bags ordi-
narily will not inflate in the event of a
side impact, rear impact, roll over, or
lower severity frontal collision. Al-
ways wear your seat belts to help
reduce the risk or severity of injury in
various kinds of accidents.

The seat belts and the supplemental
front air bags are most effectivewhen you are sitting well back and
upright in the seat. Front air bags
inflate with great force. If you are
unrestrained, leaning forward, sitting
sideways or out of position in any
way, you are at greater risk of injury
or death in a crash. You may also
receive serious or fatal injuries from
the supplemental front air bag if you
are up against it when it inflates.
Always sit back against the seatback
and as far away as practical from thesteering wheel or instrument panel.
Always use the seat belts.

Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could increase
the risk that they are injured when
the supplemental front air bag in-
flates.
SSS0131B
1-38
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


SSS0132B
SSS0006SSS0007
Safety — Seats, seat belts and supplemental restraint system
1-39


06.4.14/T30-J/V5.0


WARNING

Never let children ride unrestrained
or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some ex-
amples of dangerous riding positions
are shown in the previous illustra-
tions. Preteens and children should
be properly restrained in the rear
seat if possible.

Children may be severely injured or
killed when the supplemental front
air bags or side-impact air bags in-
flate if they are not properly re-
strained. Preteens and children
should be properly restrained in the
rear seat if possible.

Also never install a rear facing child
restraint in the front seat. An inflating
supplemental front air bag could se-
riously injure or kill your child. For
additional information, see “Child re-
straints” earlier in this section.
SSS0008SSS0009
SSS0099SSS0100
1-40
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


WARNING
Supplemental side air bag:

The supplemental side air bag ordi-
narily will not inflate in the event of a
frontal impact, rear impact, rollover
or lower severity side collision. Al-
ways wear your seat belts to help
reduce the risk or severity of injury in
various kinds of accidents.
The seat belts and the supplemental
side air bag are most effective when
you are sitting well back and upright
in the seat. The side air bag inflates
with great force. Do not allow anyone
to place their hand, leg or face near
the side air bag on the side of the
seatback of the front seat or near the
side roof rails. Do not allow anyone
sitting in the front seat or rear out-
board seats to extend their hand out
of the window or lean against thedoor. Some examples of dangerous
riding positions are shown in the pre-
vious illustrations.

When sitting in the rear seat, do not
hold onto the seatback of the front
seat. If the supplemental side air bag
inflates, you may be seriously in-
jured. Be especially careful with chil-
dren, who should always be properly
restrained.
SSS0059A
SSS0140
SSS0159
Safety — Seats, seat belts and supplemental restraint system
1-41


06.4.14/T30-J/V5.0


Do not use seat covers on the front
seatbacks. They may interfere with
supplemental side air bag inflation.1. Supplemental front air bag modules
2. Supplemental side air bag modules
(if so equipped)
3. Satellite sensors
4. Diagnosis sensor unit
5. Seat belt pre-tensioner retractor
SSS0162
SSS0138D
1-42
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0

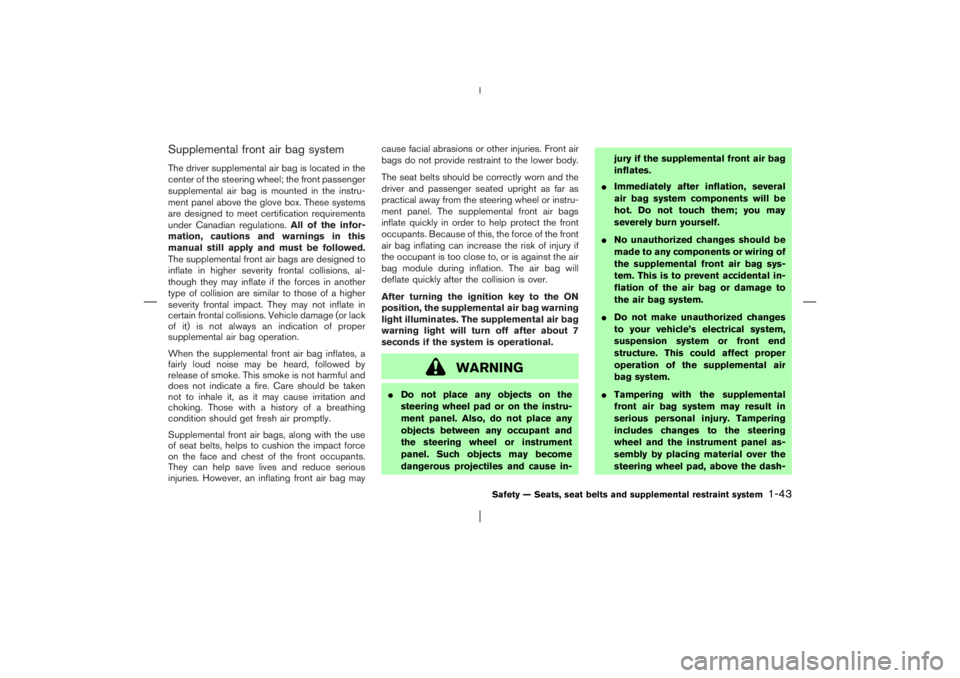

Supplemental front air bag systemThe driver supplemental air bag is located in the
center of the steering wheel; the front passenger
supplemental air bag is mounted in the instru-
ment panel above the glove box. These systems
are designed to meet certification requirements
under Canadian regulations.All of the infor-
mation, cautions and warnings in this
manual still apply and must be followed.
The supplemental front air bags are designed to
inflate in higher severity frontal collisions, al-
though they may inflate if the forces in another
type of collision are similar to those of a higher
severity frontal impact. They may not inflate in
certain frontal collisions. Vehicle damage (or lack
of it) is not always an indication of proper
supplemental air bag operation.
When the supplemental front air bag inflates, a
fairly loud noise may be heard, followed by
release of smoke. This smoke is not harmful and
does not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
Supplemental front air bags, along with the use
of seat belts, helps to cushion the impact force
on the face and chest of the front occupants.
They can help save lives and reduce serious
injuries. However, an inflating front air bag maycause facial abrasions or other injuries. Front air
bags do not provide restraint to the lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the steering wheel or instru-
ment panel. The supplemental front air bags
inflate quickly in order to help protect the front
occupants. Because of this, the force of the front
air bag inflating can increase the risk of injury if
the occupant is too close to, or is against the air
bag module during inflation. The air bag will
deflate quickly after the collision is over.
After turning the ignition key to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.
WARNING

Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause in-jury if the supplemental front air bag
inflates.

Immediately after inflation, several
air bag system components will be
hot. Do not touch them; you may
severely burn yourself.

No unauthorized changes should be
made to any components or wiring of
the supplemental front air bag sys-
tem. This is to prevent accidental in-
flation of the air bag or damage to
the air bag system.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the supplemental air
bag system.

Tampering with the supplemental
front air bag system may result in
serious personal injury. Tampering
includes changes to the steering
wheel and the instrument panel as-
sembly by placing material over the
steering wheel pad, above the dash-
Safety — Seats, seat belts and supplemental restraint system
1-43


06.4.14/T30-J/V5.0

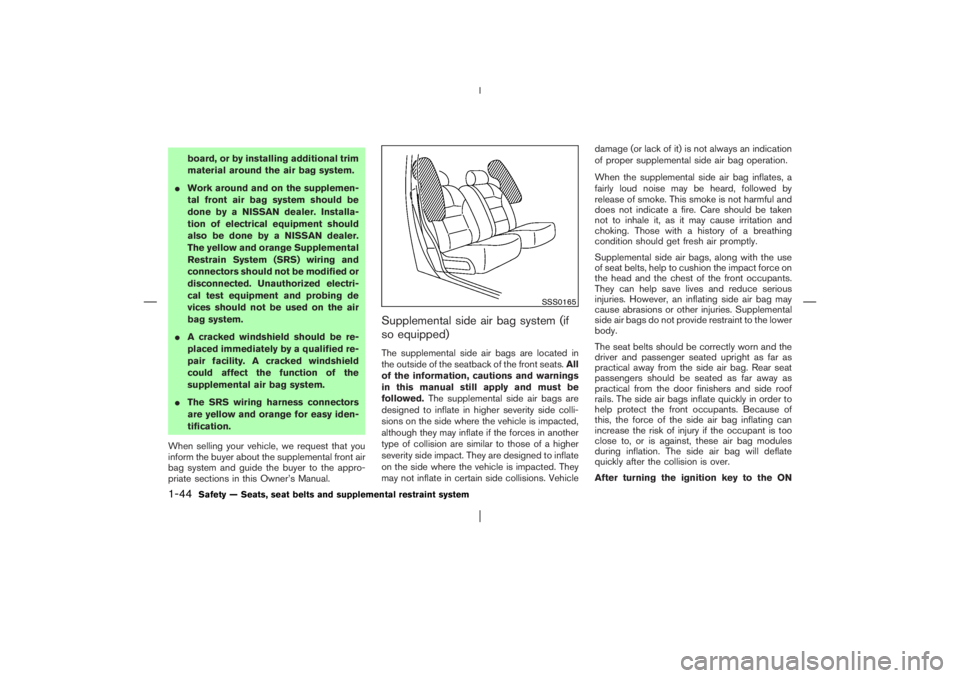

board, or by installing additional trim
material around the air bag system.

Work around and on the supplemen-
tal front air bag system should be
done by a NISSAN dealer. Installa-
tion of electrical equipment should
also be done by a NISSAN dealer.
The yellow and orange Supplemental
Restrain System (SRS) wiring and
connectors should not be modified or
disconnected. Unauthorized electri-
cal test equipment and probing de
vices should not be used on the air
bag system.

A cracked windshield should be re-
placed immediately by a qualified re-
pair facility. A cracked windshield
could affect the function of the
supplemental air bag system.

The SRS wiring harness connectors
are yellow and orange for easy iden-
tification.
When selling your vehicle, we request that you
inform the buyer about the supplemental front air
bag system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
Supplemental side air bag system (if
so equipped)The supplemental side air bags are located in
the outside of the seatback of the front seats.All
of the information, cautions and warnings
in this manual still apply and must be
followed.The supplemental side air bags are
designed to inflate in higher severity side colli-
sions on the side where the vehicle is impacted,
although they may inflate if the forces in another
type of collision are similar to those of a higher
severity side impact. They are designed to inflate
on the side where the vehicle is impacted. They
may not inflate in certain side collisions. Vehicledamage (or lack of it) is not always an indication
of proper supplemental side air bag operation.
When the supplemental side air bag inflates, a
fairly loud noise may be heard, followed by
release of smoke. This smoke is not harmful and
does not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
Supplemental side air bags, along with the use
of seat belts, help to cushion the impact force on
the head and the chest of the front occupants.
They can help save lives and reduce serious
injuries. However, an inflating side air bag may
cause abrasions or other injuries. Supplemental
side air bags do not provide restraint to the lower
body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bag. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags inflate quickly in order to
help protect the front occupants. Because of
this, the force of the side air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, these air bag modules
during inflation. The side air bag will deflate
quickly after the collision is over.
After turning the ignition key to the ON
SSS0165
1-44
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0

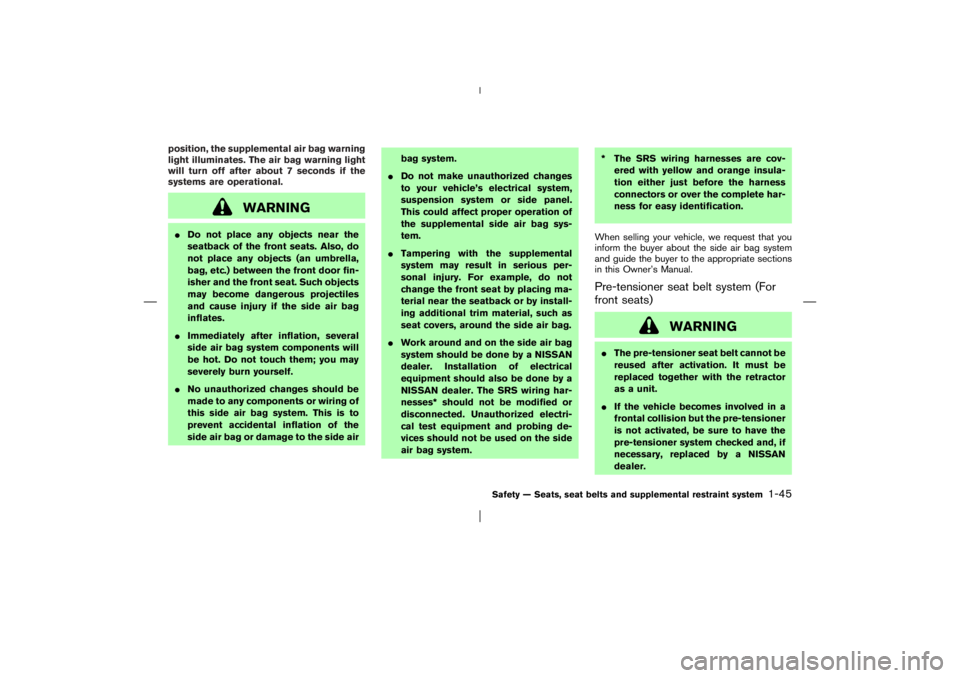

position, the supplemental air bag warning
light illuminates. The air bag warning light
will turn off after about 7 seconds if the
systems are operational.
WARNING

Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door fin-
isher and the front seat. Such objects
may become dangerous projectiles
and cause injury if the side air bag
inflates.

Immediately after inflation, several
side air bag system components will
be hot. Do not touch them; you may
severely burn yourself.

No unauthorized changes should be
made to any components or wiring of
this side air bag system. This is to
prevent accidental inflation of the
side air bag or damage to the side airbag system.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation of
the supplemental side air bag sys-
tem.

Tampering with the supplemental
system may result in serious per-
sonal injury. For example, do not
change the front seat by placing ma-
terial near the seatback or by install-
ing additional trim material, such as
seat covers, around the side air bag.

Work around and on the side air bag
system should be done by a NISSAN
dealer. Installation of electrical
equipment should also be done by a
NISSAN dealer. The SRS wiring har-
nesses* should not be modified or
disconnected. Unauthorized electri-
cal test equipment and probing de-
vices should not be used on the side
air bag system.* The SRS wiring harnesses are cov-
ered with yellow and orange insula-
tion either just before the harness
connectors or over the complete har-
ness for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
Pre-tensioner seat belt system (For
front seats)
WARNING

The pre-tensioner seat belt cannot be
reused after activation. It must be
replaced together with the retractor
as a unit.

If the vehicle becomes involved in a
frontal collision but the pre-tensioner
is not activated, be sure to have the
pre-tensioner system checked and, if
necessary, replaced by a NISSAN
dealer.
Safety — Seats, seat belts and supplemental restraint system
1-45


06.4.14/T30-J/V5.0

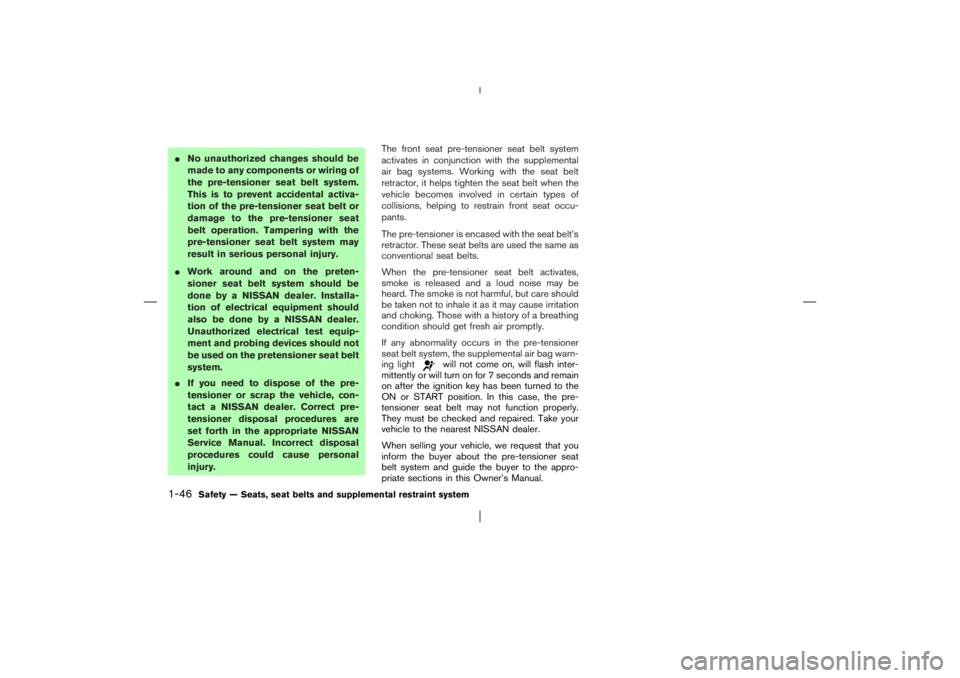

No unauthorized changes should be
made to any components or wiring of
the pre-tensioner seat belt system.
This is to prevent accidental activa-
tion of the pre-tensioner seat belt or
damage to the pre-tensioner seat
belt operation. Tampering with the
pre-tensioner seat belt system may
result in serious personal injury.

Work around and on the preten-
sioner seat belt system should be
done by a NISSAN dealer. Installa-
tion of electrical equipment should
also be done by a NISSAN dealer.
Unauthorized electrical test equip-
ment and probing devices should not
be used on the pretensioner seat belt
system.

If you need to dispose of the pre-
tensioner or scrap the vehicle, con-
tact a NISSAN dealer. Correct pre-
tensioner disposal procedures are
set forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.The front seat pre-tensioner seat belt system
activates in conjunction with the supplemental
air bag systems. Working with the seat belt
retractor, it helps tighten the seat belt when the
vehicle becomes involved in certain types of
collisions, helping to restrain front seat occu-
pants.
The pre-tensioner is encased with the seat belt’s
retractor. These seat belts are used the same as
conventional seat belts.
When the pre-tensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful, but care should
be taken not to inhale it as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
If any abnormality occurs in the pre-tensioner
seat belt system, the supplemental air bag warn-
ing light
will not come on, will flash inter-
mittently or will turn on for 7 seconds and remain
on after the ignition key has been turned to the
ON or START position. In this case, the pre-
tensioner seat belt may not function properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pre-tensioner seat
belt system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
1-46
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


SUPPLEMENTAL AIR BAG
WARNING LABELSWarning labels about the supplemental air bag
system are placed in the vehicle as shown in the
illustration.
SUPPLEMENTAL AIR BAG
WARNING LIGHTThe supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the supplemental front air bag,
supplemental side air bag system, and pre-
tensioner seat belt. The circuits monitored by the
air bag warning light are the diagnosis sensor
unit, satellite sensors, front air bag modules, side
air bag modules, and pre-tensioner seat belt and
all related wiring.
After turning the ignition key to the ON position,
the supplemental air bag warning light illumi-
nates. The supplemental air bag warning light
SPA0945B
SPA1097
Safety — Seats, seat belts and supplemental restraint system
1-47
