the battery is disconnected, the vehicle may be
reset to a not “ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Turn the
ignition switch ON without starting the engine. If
the Malfunction Indicator Lamp (MIL) comes on
steady for 20 seconds and then blinks for 10
seconds, the I/M test condition is “not ready”. If
the MIL does not blink after 20 seconds, the I/M
test condition is “ready”.
If the MIL indicates the vehicle is in a “not ready”
condition, drive the vehicle through the following
pattern to set the vehicle to the ready condition.
If you cannot or do not want to perform the
driving pattern, a NISSAN dealer can conduct it
for you.
WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic
conditions, and obey all traffic laws.
1. Start the engine. Allow the engine to idle until
the engine coolant temperature gauge needle
points between the C and H (normal operat-
ing temperature).
2. Accelerate the vehicle to 88 km/h (55 MPH),then quickly release the accelerator pedal
completely and keep it released for at least
10 seconds.
3. Quickly depress the accelerator pedal for a
moment, then drive the vehicle at a speed of
86 to 96 km/h (53 to 60 MPH) for at least 9
minutes.
4. Stop the vehicle. Leave the engine running.
5. Accelerate the vehicle to 55 km/h (35 MPH)
and maintain the speed for 20 seconds.
6. Repeat steps 4 and 5 at least 10 times.
7. Accelerate the vehicle to 88 km/h (55 MPH)
and maintain the speed for at least 3 minutes.
8. Stop the vehicle. Place the transmission se-
lector lever in the “P” or “N” position.
9. Turn the engine off.
10. Repeat steps 1 through 8 at least one more
time.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is ac-
ceptable between steps. Do not stop the engine
until step 7 is completed.Your vehicle is equipped with a variety of com-
puters that monitor and control a number of
systems to optimize performance and help ser-
vice technicians with diagnosis and repair. De-
pending on the equipment on your vehicle, some
of the computers monitor emission control sys-
tems, braking systems, engine systems, trans-
mission systems, tire pressure systems, and air
bag systems, just to name a few. Some data
about vehicle operation may be stored in the
computers for use during servicing. Other data
may be stored if a crash event occurs. For
example, air bag readiness, air bag performance,
and seat belt use by the driver or passenger may
be recorded, depending on vehicle equipment.
These types of systems are sometimes called
Event Data Recorders.
Special equipment can be used to access the
electronic data that may be stored in the vehi-
cle’s computers (sounds are not recorded).
NISSAN and NISSAN dealers have equipment
to access some of this data; others may also
have this equipment. The data may be retrieved
during routine vehicle servicing or for special
research. It might also be accessed with the
consent of the vehicle owner or lessee, in re-
sponse to a request by law enforcement, or as
otherwise required or permitted by law.
EVENT DATA RECORDERS
9-24
Technical and consumer information
06.4.14/T30-J/V5.0
Page 272 of 281
A genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. Filled with wiring diagrams, illustrations
and step-by-step diagnostic and adjustment
procedures, this manual is the same one used by
the factory trained technicians working at autho-
rized NISSAN dealerships. Also available are
genuine NISSAN Owner’s Manuals, and genu-
ine NISSAN Service and Owner’s Manuals for
older NISSAN models.
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual please con-
tact your nearest NISSAN dealer. For the phone
number and location of a NISSAN Dealer in your
area call the NISSAN Satisfaction Center at
1-800-387-0122 and a bilingual NISSAN rep-
resentative will assist you.IN THE EVENT OF A COLLISIONUnfortunately, accidents do occur. In this unlikely
event, there is some important information you
should know. Many insurance companies rou-
tinely authorize the use of non-genuine collision
parts in order to cut costs, among other reasons.Insist on the use of Genuine NISSAN
Collision Parts!If you want your vehicle to be restored using
parts made to NISSAN’s original exacting speci-
fications — if you want to help it to last and holdits resale value, the solution is simple.Tell your
insurance agent and your repair shop to
only use Genuine NISSAN Collision Parts.
NISSAN does not warrant non-NISSAN parts,
nor does NISSAN’s warranty apply to damage
caused by a non-genuine part.
Using Genuine NISSAN Parts can help protect
your personal safety, preserve your warranty
protection and maintain the resale value of your
vehicle. And if your vehicle was leased, using
Genuine NISSAN Parts may prevent or limit
unnecessary excess wear and tear expenses at
the end of your lease.
NISSAN designs its hoods with crumple zones
to minimize the risk that the hood will penetrate
the windshield of your vehicle in an accident.
Non-genuine (imitation) parts may not provide
such built in safeguards. Also, non-genuine
parts often show premature wear, rust and cor-
rosion.
Why should you take a chance?In over 40 states and certain territories/
provinces, the law says you must be advised if
non-genuine parts are used to repair your ve-
hicle. And some states and provinces have
enacted laws that restrict insurance companies
from authorizing the use of non-genuine collision
parts during the new vehicle warranty. Theselaws help protect you, so you can take action to
protect yourself.
It’s your right!If you should need further information visit us at:
www.nissan.ca.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information
9-25
06.4.14/T30-J/V5.0
Page 273 of 281
MEMO9-26
Technical and consumer information
06.4.14/T30-J/V5.0
Page 274 of 281

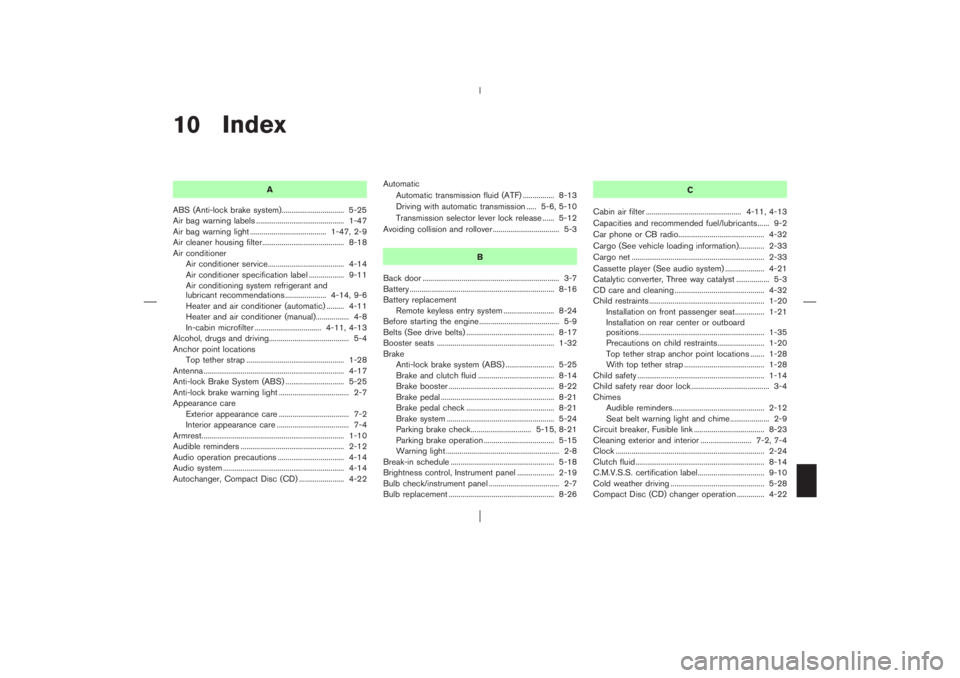

10 Index
A
ABS (Anti-lock brake system)................................ 5-25
Air bag warning labels ............................................. 1-47
Air bag warning light ....................................... 1-47, 2-9
Air cleaner housing filter.......................................... 8-18
Air conditioner
Air conditioner service....................................... 4-14
Air conditioner specification label .................. 9-11
Air conditioning system refrigerant and
lubricant recommendations ..................... 4-14, 9-6
Heater and air conditioner (automatic) ......... 4-11
Heater and air conditioner (manual)................. 4-8
In-cabin microfilter .................................. 4-11, 4-13
Alcohol, drugs and driving......................................... 5-4
Anchor point locations
Top tether strap .................................................. 1-28
Antenna ........................................................................ 4-17
Anti-lock Brake System (ABS) .............................. 5-25
Anti-lock brake warning light .................................... 2-7
Appearance care
Exterior appearance care .................................... 7-2
Interior appearance care ..................................... 7-4
Armrest......................................................................... 1-10
Audible reminders ..................................................... 2-12
Audio operation precautions .................................. 4-14
Audio system .............................................................. 4-14
Autochanger, Compact Disc (CD) ....................... 4-22Automatic
Automatic transmission fluid (ATF) ................ 8-13
Driving with automatic transmission ..... 5-6, 5-10
Transmission selector lever lock release ...... 5-12
Avoiding collision and rollover .................................. 5-3
B
Back door ...................................................................... 3-7
Battery .......................................................................... 8-16
Battery replacement
Remote keyless entry system .......................... 8-24
Before starting the engine ......................................... 5-9
Belts (See drive belts) ............................................. 8-17
Booster seats ............................................................ 1-32
Brake
Anti-lock brake system (ABS) ......................... 5-25
Brake and clutch fluid ....................................... 8-14
Brake booster ...................................................... 8-22
Brake pedal .......................................................... 8-21
Brake pedal check ............................................. 8-21
Brake system ....................................................... 5-24
Parking brake check............................... 5-15, 8-21
Parking brake operation .................................... 5-15
Warning light .......................................................... 2-8
Break-in schedule ..................................................... 5-18
Brightness control, Instrument panel ................... 2-19
Bulbcheck/instrument panel .................................... 2-7
Bulbreplacement ...................................................... 8-26C
Cabin air filter ................................................. 4-11, 4-13
Capacities and recommended fuel/lubricants...... 9-2
Car phone or CB radio............................................ 4-32
Cargo (See vehicle loading information)............. 2-33
Cargo net .................................................................... 2-33
Cassette player (See audio system) .................... 4-21
Catalytic converter, Three way catalyst ................. 5-3
CD care and cleaning .............................................. 4-32
Child restraints ........................................................... 1-20
Installation on front passenger seat............... 1-21
Installation on rear center or outboard
positions ................................................................ 1-35
Precautions on child restraints........................ 1-20
Top tether strap anchor point locations ....... 1-28
With top tether strap ......................................... 1-28
Child safety ................................................................. 1-14
Child safety rear door lock ........................................ 3-4
Chimes
Audible reminders............................................... 2-12
Seat belt warning light and chime .................... 2-9
Circuit breaker, Fusible link .................................... 8-23
Cleaning exterior and interior .......................... 7-2, 7-4
Clock ............................................................................ 2-24
Clutch fluid.................................................................. 8-14
C.M.V.S.S. certification label .................................. 9-10
Cold weather driving ................................................ 5-28
Compact Disc (CD) changer operation .............. 4-22
06.4.14/T30-J/V5.0
Page 275 of 281
Compact Disc (CD) player (See audio
system) ............................................................. 4-27, 4-30
Console box................................................................ 2-31
Control panel buttons (models with navigation
system) ........................................................................... 4-2
Controls
Control panel buttons (display with navigation
system)..................................................................... 4-2
Heater and air conditioner controls
(automatic) .............................................................. 4-8
Coolant
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Checking engine coolant level........................... 8-8
Corrosion protection ................................................... 7-5
Cover, Tonneau cover .............................................. 2-34
Cruise control............................................................. 5-16
Cup holders ................................................................ 2-28
D
Daytime running light system ................................. 2-19
Defroster switch, Rear window and outside
mirror defroster switch ............................................. 2-17
Dimensions and weights ............................................ 9-8
Display controls (See control panel buttons),
With navigation system .............................................. 4-2
Door open warning light ............................................ 2-8
Drive belts ................................................................... 8-17
Driving
Cold weather driving ......................................... 5-28
Driving with automatic transmission .............. 5-10
Driving with manual transmission ................... 5-14On-pavement and offroad driving ..................... 5-4
Precautions when starting and driving ............ 5-2
Safety precautions ................................................ 5-4
E
Economy, Fuel............................................................ 5-18
Emission control information label ........................ 9-10
Emission control system warranty......................... 9-23
Engine
Before starting the engine .................................. 5-9
Break-in schedule............................................... 5-18
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Changing engine oil ........................................... 8-11
Changing engine oil filter ................................. 8-12
Checking engine coolant level........................... 8-8
Checking engine oil level ................................. 8-10
Coolant temperature gauge ............................... 2-5
Engine block heater ........................................... 5-30
Engine compartment check locations.............. 8-7
Engine cooling system ......................................... 8-8
Engine oil .............................................................. 8-10
Engine oil and oil filter recommendation......... 9-5
Engine oil viscosity ............................................... 9-5
Engine serial number ......................................... 9-10
Engine specifications ........................................... 9-7
If your vehicle overheats ...................................... 6-9
Starting the engine ............................................... 5-9
Event data recorders ................................................ 9-24
Exhaust gas (Carbon monoxide).............................. 5-2F
Filter
Air cleaner housing filter ................................... 8-18
Changing engine oil filter ................................. 8-12
Flashers (See hazard warning flasher switch) ... 2-21
Flat tire............................................................................ 6-2
Floor mat cleaning ....................................................... 7-4
Fluid
Automatic transmission fluid (ATF) ................ 8-13
Brake and clutch fluid ....................................... 8-14
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Engine coolant ....................................................... 8-8
Engine oil .............................................................. 8-10
Power steering fluid ........................................... 8-14
Window washer fluid ......................................... 8-15
FM-AM radio with cassette player and
Compact Disc (CD) changer ................................. 4-19
FM-AM radio with Compact Disc (CD)
player ................................................................ 4-25, 4-29
Fog light switch ......................................................... 2-20
Four-wheel drive (4WD).......................................... 5-19
Four-wheel drive (4WD), 4WD mode switch
operations.................................................................... 5-20
Front manual seat adjustment .................................. 1-2
Front power seat adjustment .................................... 1-4
Fuel
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Fuel economy ...................................................... 5-18
Fuel octane rating ................................................. 9-3
Fuel recommendation ........................................... 9-3
Gauge ...................................................................... 2-6
06.4.14/T30-J/V5.0
10-2
Page 276 of 281
Fuses ............................................................................ 8-22
Fusible links ................................................................ 8-23
G
Gas cap ....................................................................... 3-10
Gauge ............................................................................. 2-3
Engine coolant temperature gauge .................. 2-5
Fuel gauge .............................................................. 2-6
Odometer ................................................................ 2-4
Speedometer .......................................................... 2-4
Tachometer ............................................................. 2-5
General maintenance .................................................. 8-2
Glove box .................................................................... 2-30
Glove box lock ........................................................... 2-30
H
Hazard warning flasher switch............................... 2-21
Head restraints ............................................................. 1-9
Headlights
Bulbreplacement ............................................... 8-27
Headlight switch ................................................. 2-18
Heated seats .............................................................. 2-22
Heater, Engine block heater ................................... 5-30
Hood release ................................................................ 3-7
Hook, Luggage hook ................................................ 2-33
Horn .............................................................................. 2-22
How to stop alarm, Vehicle security .................... 2-14
I
Ignition switch ............................................................... 5-6Automatic transmission models ............. 5-6, 5-10
Key positions .......................................................... 5-8
Manual transmission models .................. 5-7, 5-14
Immobilizer system .................................................... 2-14
In-cabin microfilter ......................................... 4-11, 4-13
Indicator lights............................................................ 2-10
Instrument brightness control ................................ 2-19
Instrument panel........................................................... 2-2
Interior light replacement......................................... 8-30
Interior lights ............................................................... 2-39
J
Jump starting................................................................. 6-7
K
Keyless entry (See remote keyless entry
system) ........................................................................... 3-5
Keys................................................................................. 3-2
L
Label, Air conditioner specification label ............ 9-11
Label, C.M.V.S.S. certification label ..................... 9-10
Label, Emission control information label............ 9-10
Labels
Air bag warning labels ...................................... 1-47
Engine serial number ......................................... 9-10
Vehicle identification number (VIN) .................. 9-9
LATCH (Lower Anchors and Tethers for
CHildren) system....................................................... 1-26Light
Air bag warning light ......................................... 1-47
Bulbreplacement ............................................... 8-26
Fog light switch................................................... 2-20
Headlight switch ................................................. 2-18
Headlights Bulbreplacement .......................... 8-27
Interior lights ........................................................ 2-39
Luggage room light ............................................ 2-41
Map light ............................................................... 2-41
Replacement ........................................................ 8-26
Warning/indicator lights and audible
reminders ..................................................... 2-7, 2-10
Lights, Exterior and interior light replacement ... 8-30
Loading information (See vehicle loading
information) ................................................................. 9-11
Lock
Back door lock....................................................... 3-7
Door locks ............................................................... 3-3
Glove box lock..................................................... 2-30
Luggage floor board ................................................. 2-32
Luggage hooks .......................................................... 2-33
Luggage room light................................................... 2-41
M
Maintenance
Battery ................................................................... 8-16
General maintenance ........................................... 8-2
Inside the vehicle................................................... 8-3
Maintenance information (display) .................... 4-3
Maintenance precautions .................................... 8-5
Maintenance requirements.................................. 8-2
Outside the vehicle............................................... 8-2
Seat belt maintenance ...................................... 1-19
06.4.14/T30-J/V5.0
10-3
Page 277 of 281
Under the hood and vehicle ............................... 8-4
Malfunction indicator lamp (MIL) ........................... 2-10
Manual front seat adjustment ................................... 1-2
Map light...................................................................... 2-40
Meters and gauges ..................................................... 2-3
Meters and gauges, Instrument brightness
control .......................................................................... 2-19
Mirror
Inside rearview mirror ........................................ 3-11
Outside rearview mirrors .................................. 3-12
Vanity mirror ......................................................... 3-13
N
Net, Cargo net ........................................................... 2-33
New vehicle break-in ................................................ 5-18
NISSAN Vehicle Immobilizer System ................... 2-14
Engine start............................................................. 5-8
O
Odometer ....................................................................... 2-4
Oil
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine oil ........................................... 8-11
Checking engine oil level ................................. 8-10
Engine oil .............................................................. 8-10
Engine oil viscosity ............................................... 9-5
Outside rearview mirrors ......................................... 3-12
Overdrive switch........................................................ 5-13
Overheat, If your vehicle overheats ......................... 6-9
Owner’s Manual/Service Manual order
information................................................................... 9-25P
Parking
Brake check ......................................................... 8-21
Parking brake check .......................................... 5-15
Parking brake operation .................................... 5-15
Parking on hills .................................................... 5-15
Parking/parking on hills ........................................... 5-23
Phone, Car phone or CB radio ............................. 4-32
Power
Front seat adjustment .......................................... 1-4
Power outlet ......................................................... 2-25
Power steering fluid ........................................... 8-14
Power steering system ...................................... 5-24
Power windows................................................... 2-35
Pre-tensioner seat belt system .............................. 1-45
Precautions
Audio operation ................................................... 4-14
Braking precautions ........................................... 5-24
Child restraints .................................................... 1-20
Cruise control ...................................................... 5-16
Driving safety .......................................................... 5-4
Maintenance ........................................................... 8-5
On-pavement and offroad driving ..................... 5-4
Seat belt usage ................................................... 1-11
Supplemental restraint system ........................ 1-37
When starting and driving .................................. 5-2
Push starting ................................................................. 6-9
R
Radio
Car phone or CB radio ..................................... 4-32FM-AM radio with cassette player and
Compact Disc (CD) changer .......................... 4-19
FM-AM radio with Compact Disc
(CD) player ............................................... 4-25, 4-29
Rear center seat belt................................................ 1-19
Rear door lock, Child safety rear door lock.......... 3-4
Rear power point....................................................... 2-25
Rear seat adjustment .................................................. 1-6
Rear window and outside mirror defroster
switch ........................................................................... 2-17
Rear window wiper and washer switch .............. 2-16
Registering your vehicle in another country.......... 9-9
Remote keyless entry system ................................... 3-5
Rollover........................................................................... 5-3
S
Safety
Child seat belts ................................................... 1-14
Towing safety....................................................... 9-18
Seat belt warning chime ............................................ 2-9
Seat belt warning light ............................................. 1-11
Seat adjustment
Front manual seat adjustment............................ 1-2
Front power seat adjustment ............................. 1-4
Rear seat adjustment ........................................... 1-6
Seat belt(s)
Child safety .......................................................... 1-14
Injured persons.................................................... 1-15
Larger children .................................................... 1-14
Pre-tensioner seat belt system ....................... 1-45
Precautions on seat belt usage ...................... 1-11
Pregnant women ................................................. 1-15
Rear center seat belt ......................................... 1-19
06.4.14/T30-J/V5.0
10-4
Page 278 of 281
Seat belt cleaning ................................................. 7-5
Seat belt extenders ............................................ 1-19
Seat belt maintenance ...................................... 1-19
Seat belts ............................................................. 1-11
Shoulder belt height adjustment..................... 1-18
Three-point type with retractor ....................... 1-15
Seat(s)
Heated seats........................................................ 2-22
Seats ........................................................................ 1-2
Security system, Vehicle security system ........... 2-13
Security systems (Nissan Vehicle Immobilizer
System), Engine start ............................................... 2-14
Security systems (See vehicle security
system) ......................................................................... 2-13
Servicing air conditioner .......................................... 4-14
Shift lock release ....................................................... 5-12
Shifting
Automatic transmission ............................ 5-6, 5-10
Manual transmission ................................. 5-7, 5-14
Shoulder belt height adjustment, For front
seats ............................................................................. 1-18
SNOW mode switch ................................................ 2-23
Spark plugs................................................................. 8-18
Speedometer ................................................................ 2-4
Starting
Before starting the engine .................................. 5-9
Jump starting .......................................................... 6-7
Precautions when starting and driving ............ 5-2
Push starting .......................................................... 6-9
Starting the engine ............................................... 5-9
Steering
Power steering fluid ........................................... 8-14
Power steering system ...................................... 5-24
Tilting steering wheel......................................... 3-10Storage ........................................................................ 2-26
Sun shade ................................................................... 2-38
Sunroof ........................................................................ 2-38
Supplemental air bag warning labels................... 1-47
Supplemental air bag warning light............. 1-47, 2-9
Supplemental restraint system............................... 1-37
Precautions on supplemental restraint
system.................................................................... 1-37
Switch
Fog light switch................................................... 2-20
Hazard warning flasher switch ........................ 2-21
Headlight switch ................................................. 2-18
Ignition switch ........................................................ 5-6
Ignition switch automatic transmission
models .......................................................... 5-6, 5-10
Ignition switch manual transmission
models .......................................................... 5-7, 5-14
Overdrive switch ................................................. 5-13
Power door lock switch....................................... 3-4
Rear window and outside mirror defroster
switch..................................................................... 2-17
Turn signal switch .............................................. 2-20
Vehicle dynamic control (VDC) off switch ... 2-23
T
Tachometer.................................................................... 2-5
Temperature gauge, Engine coolant
temperature gauge ...................................................... 2-5
Theft (Nissan Vehicle Immobilizer System),
Engine start................................................................. 2-14
Three way catalyst ....................................................... 5-3
Tilting steering wheel ............................................... 3-10Tire
Flat tire ..................................................................... 6-2
Uniform tire quality grading .............................. 9-22
Tires
Tire and loading information label ...... 8-35, 9-11
Tire chains ............................................................ 8-40
Tire pressure ........................................................ 8-34
Tire rotation .......................................................... 8-41
Types of tires ....................................................... 8-39
Wheel/tire size ....................................................... 9-8
Wheels and tires ................................................ 8-34
Tonneau cover ........................................................... 2-34
Top tether strap child restraints ............................ 1-28
Towing
Tow truck towing ................................................ 6-10
Towing a trailer.................................................... 9-15
Towing load/specification chart ...................... 9-15
Towing safety....................................................... 9-18
Trailer towing .............................................................. 9-15
Transmission
Automatic transmission fluid (ATF) ................ 8-13
Driving with automatic transmission ..... 5-6, 5-10
Driving with manual transmission .......... 5-7, 5-14
Transmission selector lever lock release ...... 5-12
Transmitter (See remote keyless entry system) ... 3-5
Traveling or registering your vehicle in another
country ............................................................................ 9-9
Turn signal switch ..................................................... 2-20
U
Underbody cleaning .................................................... 7-3
Uniform tire quality grading .................................... 9-22
06.4.14/T30-J/V5.0
10-5
Page 279 of 281
V
Vanity mirror ................................................................ 3-13
Vehicle
Dimensions and weights ..................................... 9-8
Identification number (VIN) ................................. 9-9
Loading information............................................ 9-11
Recovery (freeing a stuck vehicle) ................. 6-13
Security system ................................................... 2-12
Vehicle dynamic control (VDC) off switch ... 2-23
Vehicle dynamic control (VDC) system ........ 5-26
Ventilators ...................................................................... 4-7
W
Warning labels, Air bag warning labels .............. 1-47
Warning light
4WD warning light .................................... 2-9, 5-21
Air bag warning light .............................. 1-47, 2-10
Anti-lock brake warning light ............................. 2-7
Brake warning light ............................................... 2-8
Door open warning light...................................... 2-8
Seat belt warning light and chime .................... 2-9
Warning lights .............................................................. 2-7
Warning, Hazard warning flasher switch ............ 2-21
Warning, Warning/indicator lights and audible
reminders ....................................................................... 2-7
Warranty, Emission control system warranty ..... 9-23
Washer switch
Rear window wiper and washer switch........ 2-16
Windshield wiper and washer switch ........... 2-15
Washing ......................................................................... 7-2
Waxing............................................................................ 7-2Weights (See dimensions and weights) ............... 9-8
Wheel/tire size.............................................................. 9-8
Wheels and tires ....................................................... 8-34
Cleaning aluminum alloy wheels ....................... 7-3
Window washer fluid ............................................... 8-15
Window(s)
Cleaning ......................................................... 7-3, 7-5
Power windows................................................... 2-36
Windshield wiper and washer switch .................. 2-15
Wiper
Rear window wiper and washer switch........ 2-16
Windshield wiper and washer switch ........... 2-15
Wiper blades ....................................................... 8-19
06.4.14/T30-J/V5.0
10-6
Page 280 of 281

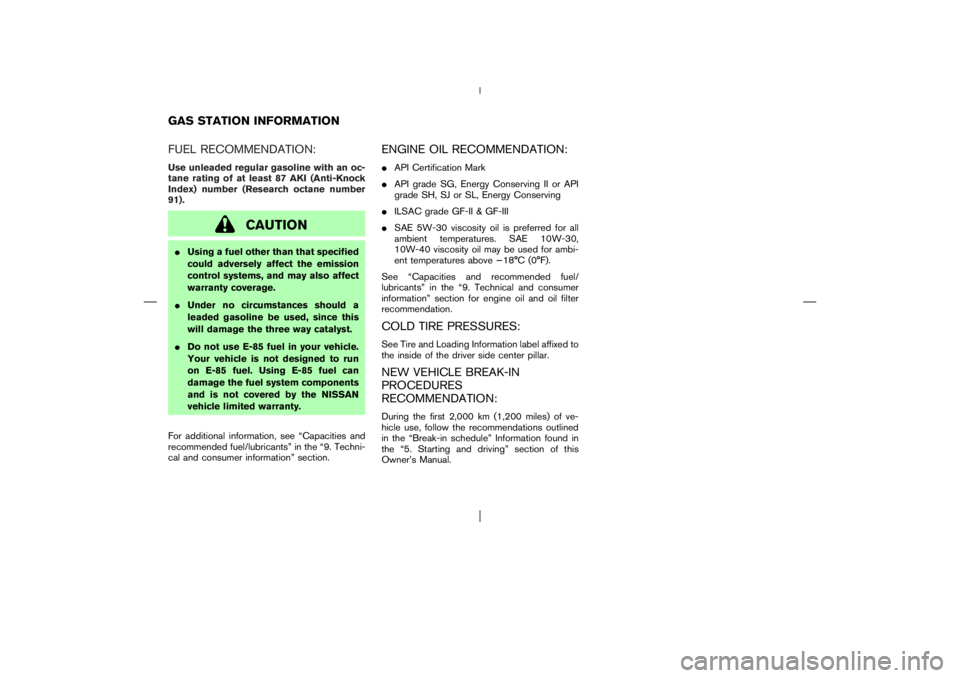

FUEL RECOMMENDATION:Use unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock
Index) number (Research octane number
91).
CAUTION
Using a fuel other than that specified
could adversely affect the emission
control systems, and may also affect
warranty coverage.
Under no circumstances should a
leaded gasoline be used, since this
will damage the three way catalyst.
Do not use E-85 fuel in your vehicle.
Your vehicle is not designed to run
on E-85 fuel. Using E-85 fuel can
damage the fuel system components
and is not covered by the NISSAN
vehicle limited warranty.
For additional information, see “Capacities and
recommended fuel/lubricants” in the “9. Techni-
cal and consumer information” section.
ENGINE OIL RECOMMENDATION:API Certification Mark
API grade SG, Energy Conserving II or API
grade SH, SJ or SL, Energy Conserving
ILSAC grade GF-II & GF-III
SAE 5W-30 viscosity oil is preferred for all
ambient temperatures. SAE 10W-30,
10W-40 viscosity oil may be used for ambi-
ent temperatures above −18°C (0°F).
See “Capacities and recommended fuel/
lubricants” in the “9. Technical and consumer
information” section for engine oil and oil filter
recommendation.COLD TIRE PRESSURES:See Tire and Loading Information label affixed to
the inside of the driver side center pillar.NEW VEHICLE BREAK-IN
PROCEDURES
RECOMMENDATION:During the first 2,000 km (1,200 miles) of ve-
hicle use, follow the recommendations outlined
in the “Break-in schedule” Information found in
the “5. Starting and driving” section of this
Owner’s Manual.
GAS STATIONINFORMATION
06.4.14/T30-J/V5.0
