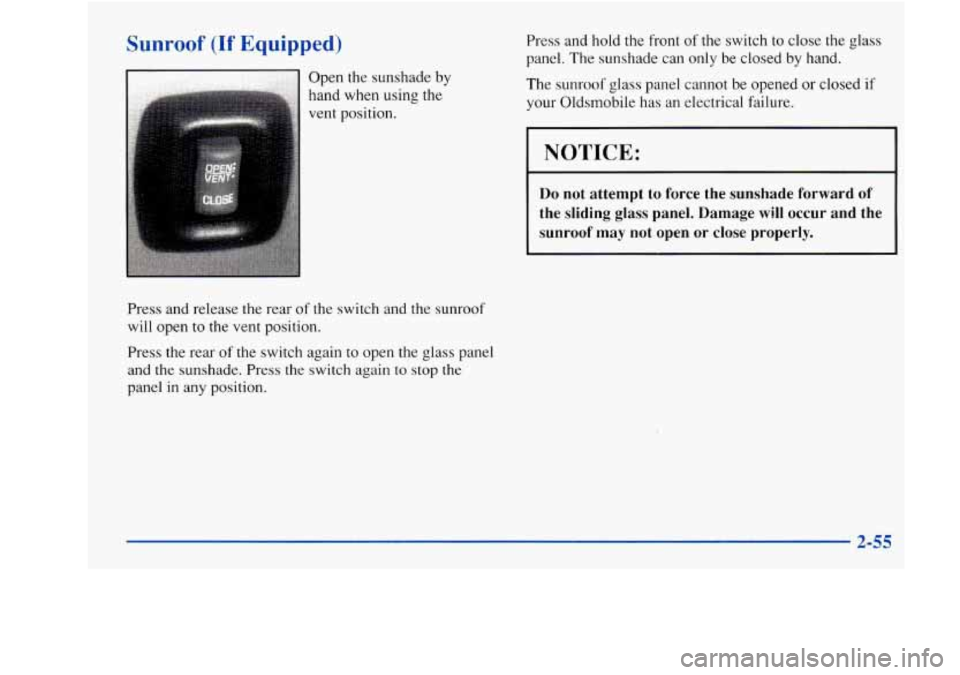

Sunroof (If Equipped)
Open the sunshade by
hand when using the
vent position. Press
and hold the front
of the switch to close the glass
panel. The sunshade can only be closed by hand.
The sunroof glass panel cannot be opened or closed if
your Oldsmobile has an electrical failure.
I NOTICE:
Do not attempt to force the sunshade forward of
the sliding glass panel. Damage
will occur and the
sunroof may not open or close properly.
Press and release the rear of the switch and the sunroof
will open to the vent position.
Press the rear of
the switch again to open the glass panel
and the sunshade. Press the switch again
to stop the
panel in any position.
2-55

Instrument Panel
\/I
2-56

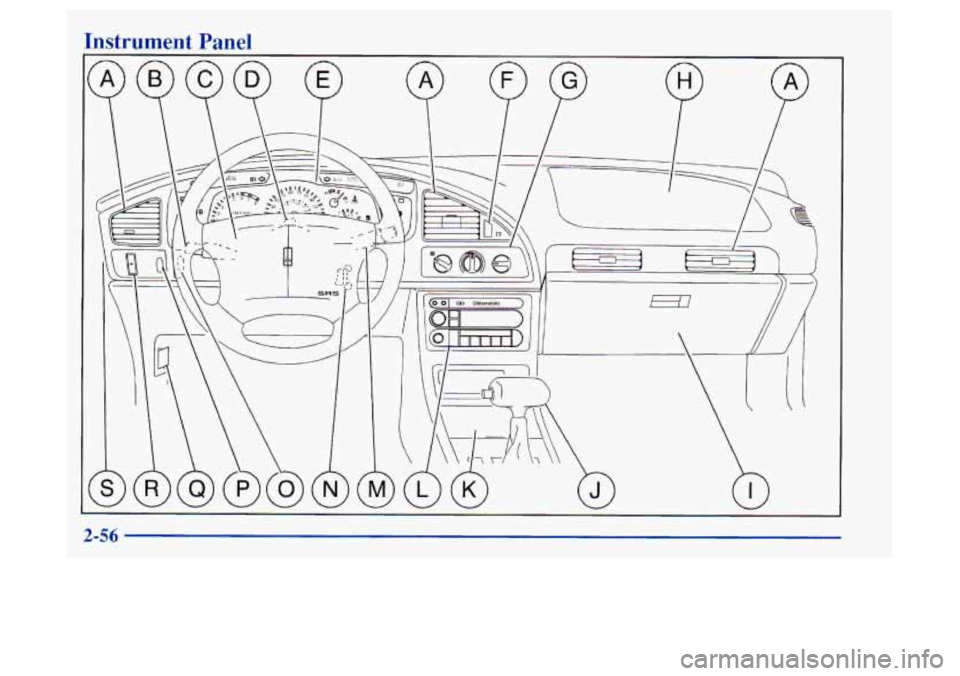

Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, how much fuel you have used and many other things you’ll need to drive safely and economically.
The main components
of your instrument panel are:
A. Vent
B. Turn Signal/Multifunction Lever
C. Supplemental Restraint System (SRS) and Horn
D. Hazard Warning Flashers Switch
E. Instrument Cluster
E Rear Window Defogger
G. Climate Control System
H. Supplemental Restraint System (SRS)
I. Glove Box
J. Gear Shift Lever
K. Ashtray
L. Audio System
M. Windshield Wipermasher Stalk
N. Ignition Switch
0. Enhanced Traction System (ETS) Switch
(If Equipped)
P. Fog Lamps Switch (If Equipped)
Q. Hood Release Lever
R. Instrument Panel Intensity Control/Interior Lamps
S. Fuse Panel
2-57

Instrument Panel Cluster
Your Oldsmobile is equipped with this cluster, which includes indicator warning lights and gages that are explained
on the following pages. Be sure to read them.
2-58

Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has been
driven, in either miles (used in
the United States) or
kilometers (used in Canada).
Your Oldsmobile has a tamper resistant odometer. If you
see silver lines between the numbers, you’ll
know that
someone has probably tried to turn it back,
so the
numbers may not be true.
You may wonder what happens if your vehicle needs a
new odometer installed.
If the new one can be set to the
mileage total
of the old odometer, then it must be. But if
it can’t, then it’s set at zero and
a label must be put on
the driver’s door to show the old mileage reading when
the new odometer was installed.
Trip Odometer
The trip odometer can tell
you how far you have
driven since you last
reset it.
To reset the
trip odometer to zero,
press the knob below it.
2-59
. --

Tachometer
The tachometer shows your
Q‘ 000
d 8
engine speed in revolutions
o 5 6 7% per minute (rpm).
\3
NOTICE:
Do not run your engine at speeds in the red area,
or engine damage may occur.
Warning Lights, Gages and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them. Warning lights and gages can signal that something
is
wrong before
it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you
or
others from injury.
Warning lights come on when there may be or is a
problem with one
of your vehicle’s functions. As you
will see
in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they’re working. If you are
familiar
with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one
of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s
a problem with your vehicle.
When one
of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be
a problem, check the section that tells you
what to do about it. Please follow this manual’s advice.
Waiting
to do repairs can be costly -- and even
dangerous.
So please get to know your warning lights
and gages. They’re
a big help.
2-60

Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts, unless the driver’s safety belt is
already buckled.
The safety belt light will
also come on and stay
on for about
20 seconds,
then it will flash for about
55 seconds. If the driver’s
belt is already buckled,
neither the chime nor the
light will come on.
Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows
AIR BAG. The system checks the
air bag’s electrical system for malfunctions. The light
tells you if there is an electrical problem. The system
check includes the
air. bag sensor, the air bag modules, the wiring and the
crash sensing and diagnostic module.
For more information on the air bag system, see “Air
Bag” in the Index.
This light will come on
when you
start your engine,
and it will flash for a few
seconds. Then the light
should
go out. This means
the system is ready. AIR
BAG
If the air bag readiness light stays on after you start the
engine or comes on when you are driving, your air bag
system may not work properly. Have your vehicle
serviced right away.
The air bag readiness light should flash for a few
seconds when you turn the ignition key to RUN.
If the
light doesn’t come on then, have it fixed
so it will be
ready to warn you
if there is a problem.
2-61

Charging System Indicator Light
The charging system indicator light will come on
when you start the engine,
then it should go out.
+I
If it stays on, or comes on while you are driving, you
may have a problem with the electrical charging system.
It could indicate that you have a loose generator drive
belt or another electrical problem. Have it checked
right away. Driving while this light is on could drain
your battery.
If you must drive a short distance with the light on, be
certain
to turn off all your accessories, such as the radio
and air conditioner.
Brake System Warning Light
Your Oldsmobile’s hydraulic brake system is divided
into two parts.
If one part isn’t working, the other part
can still work and stop
you. For good braking, though,
you need both parts working well.
If
the warning light comes on, there could be a brake
problem or the brake fluid level could be low. Have your
brake system inspected right away.
BRAKE
I II
United States Canada
This light should come on briefly when you turn the
ignition key to
RUN. If it doesn’t come on then, have it
fixed so it
will be ready to warn you if there’s a problem.
2-62

If the light comes on while you are driving, pull off the
road and stop carefully. You
may notice that the pedal is
harder to push. Or, the pedal may go closer to the floor.
It may take longer to stop.
If the light is still on, have the
vehicle towed for service. (See “Towing Your Vehicle”
in the Index.)
-: CAUTION:
Your brake system may not be working properly
if the brake system warning light is
on. Driving
with the brake system warning light
on can lead
to an accident.
If the light is still on after you’ve
pulled off the road and stopped carefully, have
the vehicle towed for service.
When the ignition is on, the brake system warning light
will also come on when you set your parking brake. The
light will stay on if your parking brake doesn’t release
fully. If
it stays on after your parking brake is fully
released,
it means you have a brake problem.
Anti-Lock Brake System Warning Light
With the anti-lock brake
system, this light will come
on when
you start your
engine and it will stay
on for three seconds.
That’s normal.
If the light stays on, turn the ignition to
OFF. Or, if the
light comes
on when you’re driving, stop as soon as
possible and turn the ignition off. Then start the engine
again to reset the system. If the light still stays on, or
comes on again while you’re driving, your Oldsmobile
needs service. If the regular brake system warning light
isn’t
on, you still have brakes, but you don’t have
anti-lock brakes.
If the regular brake system warning
light is also on, you don’t have anti-lock brakes and
there’s a problem with your regular brakes. See “Brake
System Warning Light” earlier in this section.
The anti-lock brake system warning light should come
on briefly when you turn the ignition key to
RUN. If the
light doesn’t come
on then, have it fixed so it will be
ready to warn you if there is
a problem.
2-63

Enhanced Traction System Warning Light
(If Equipped)
ETS
OFF
With the Enhanced Traction System
(ETS), this warning
light should come on briefly
as you start the engine. If
the warning light doesn’t
come on then, have it fixed
so it will be ready to warn
you if there’s a problem.
If
it stays on, or comes on when you’re driving, there
may be a problem with your Enhanced Traction System
and your vehicle may need service. When this warning
light is on, the system will not limit wheel spin. Adjust
your driving accordingly. The Enhanced Traction System warning light
may come
on for the following reasons:
If you turn the system off by pressing the button on
the instrument panel, the warning light will come on
and stay on.
To turn the system back on, press the
button again. The warning light should go
off. (See
“Enhanced Traction System’’ in the Index for more
information.)
0 The warning light will come on when you set your
parking brake with the engine running, and it will
stay on
if your parking brake doesn’t release fully. If
the system is turned on and the warning light stays on after your parking brake
is fully released, it
means there’s a problem with the system.
If the Enhanced Traction System warning light comes
on and stays on for an extended period
of time when the
system
is turned on and the parking brake is fully
released, your vehicle needs service.
