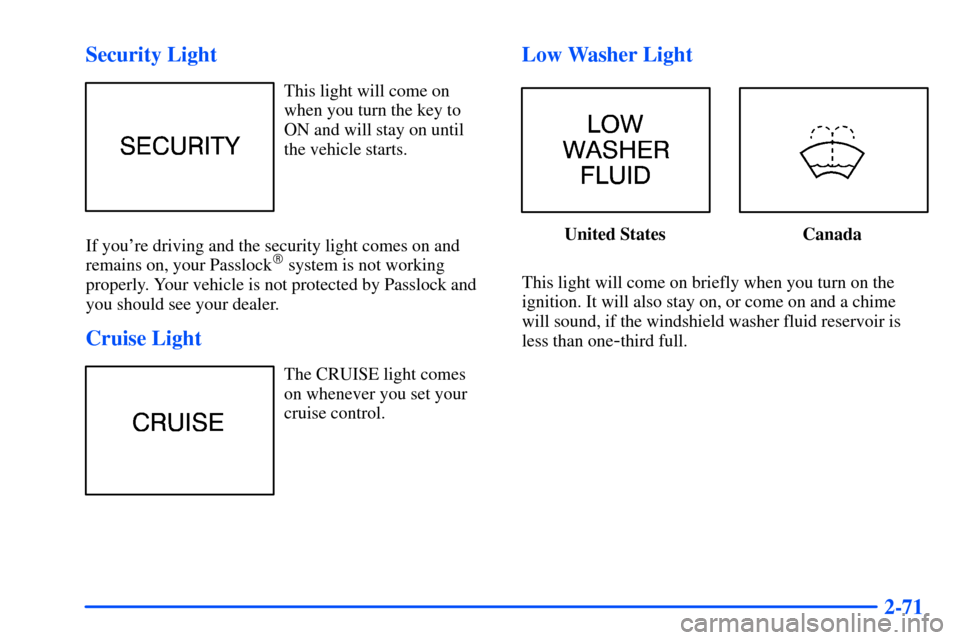

2-71 Security Light
This light will come on
when you turn the key to
ON and will stay on until
the vehicle starts.
If you're driving and the security light comes on and
remains on, your Passlock

system is not working
properly. Your vehicle is not protected by Passlock and
you should see your dealer.
Cruise Light
The CRUISE light comes
on whenever you set your
cruise control.
Low Washer Light
United States Canada
This light will come on briefly when you turn on the
ignition. It will also stay on, or come on and a chime
will sound, if the windshield washer fluid reservoir is
less than one
-third full.

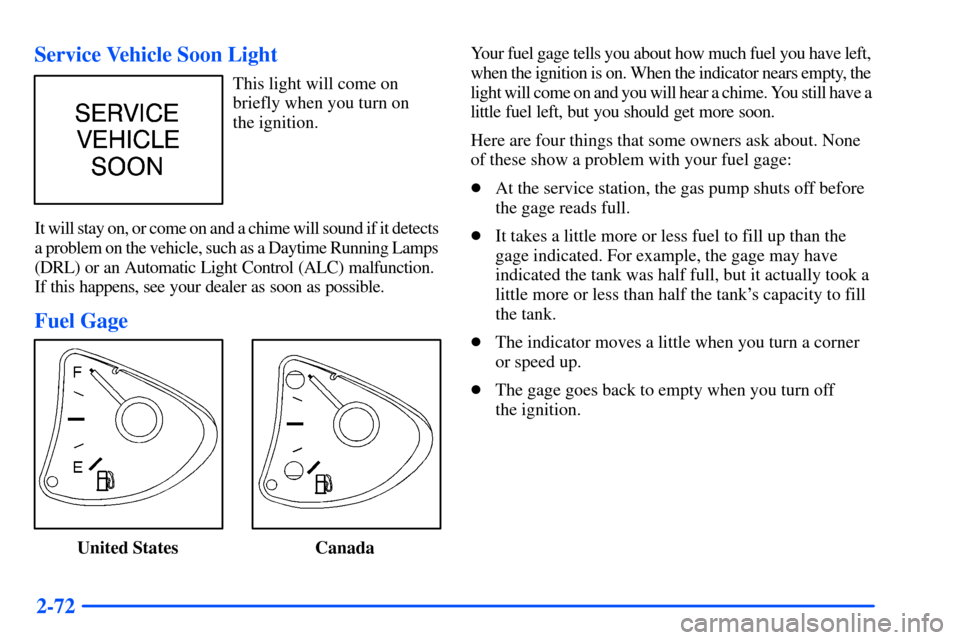

2-72 Service Vehicle Soon Light
This light will come on
briefly when you turn on
the ignition.
It will stay on, or come on and a chime will sound if it detects
a problem on the vehicle, such as a Daytime Running Lamps
(DRL) or an Automatic Light Control (ALC) malfunction.
If this happens, see your dealer as soon as possible.
Fuel Gage
United States CanadaYour fuel gage tells you about how much fuel you have left,
when the ignition is on. When the indicator nears empty, the
light will come on and you will hear a chime. You still have a
little fuel left, but you should get more soon.
Here are four things that some owners ask about. None
of these show a problem with your fuel gage:

At the service station, the gas pump shuts off before
the gage reads full.

It takes a little more or less fuel to fill up than the
gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took a
little more or less than half the tank's capacity to fill
the tank.

The indicator moves a little when you turn a corner
or speed up.

The gage goes back to empty when you turn off
the ignition.

3-
3-1
Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your vehicle.
Be sure to read about the particular systems supplied with your vehicle.
3
-2 Comfort Controls
3
-2 Climate Control System with
Air Conditioning
3
-3 Air Conditioning
3
-4 Heating
3
-4 Defogging and Defrosting Windows
3
-5 Rear Window Defogger
3
-5 Ventilation System
3
-7 Audio Systems
3
-7 Setting the Clock
3
-7AM-FM Stereo with Compact Disc Player
with Programmable Equalization and
Radio Data System (RDS)3
-14 AM-FM Stereo with Cassette Tape and
Compact Disc Player with Programmable
Equalization and Radio Data System (RDS)
(If Equipped)
3
-22 Personal Choice Radio Controls (If Equipped)
3
-22 Theft-Deterrent Feature RDS Radios
3
-22 Understanding Radio Reception
3
-22 Tips About Your Audio System
3
-23 Care of Your Cassette Tape Player
3
-24 Care of Your Compact Discs
3
-24 Care of Your Compact Disc Player
3
-24 Backglass Antenna
3
-25 Chime Level Adjustment

3-2

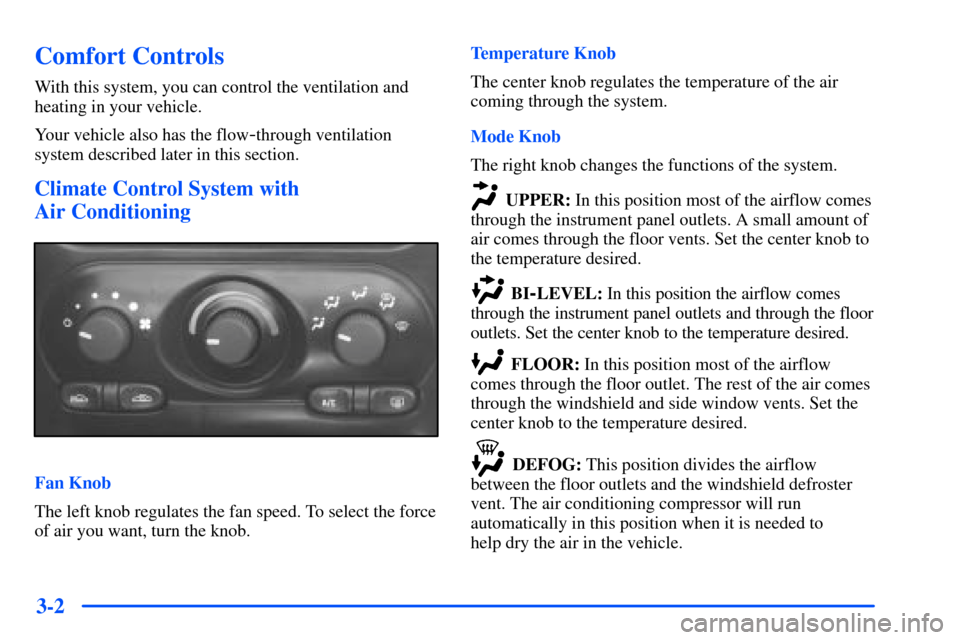

Comfort Controls
With this system, you can control the ventilation and
heating in your vehicle.
Your vehicle also has the flow
-through ventilation
system described later in this section.
Climate Control System with
Air Conditioning
Fan Knob
The left knob regulates the fan speed. To select the force
of air you want, turn the knob.Temperature Knob
The center knob regulates the temperature of the air
coming through the system.
Mode Knob
The right knob changes the functions of the system.
UPPER: In this position most of the airflow comes
through the instrument panel outlets. A small amount of
air comes through the floor vents. Set the center knob to
the temperature desired.
BI-LEVEL: In this position the airflow comes
through the instrument panel outlets and through the floor
outlets. Set the center knob to the temperature desired.
FLOOR: In this position most of the airflow
comes through the floor outlet. The rest of the air comes
through the windshield and side window vents. Set the
center knob to the temperature desired.
DEFOG: This position divides the airflow
between the floor outlets and the windshield defroster
vent. The air conditioning compressor will run
automatically in this position when it is needed to
help dry the air in the vehicle.

3-3

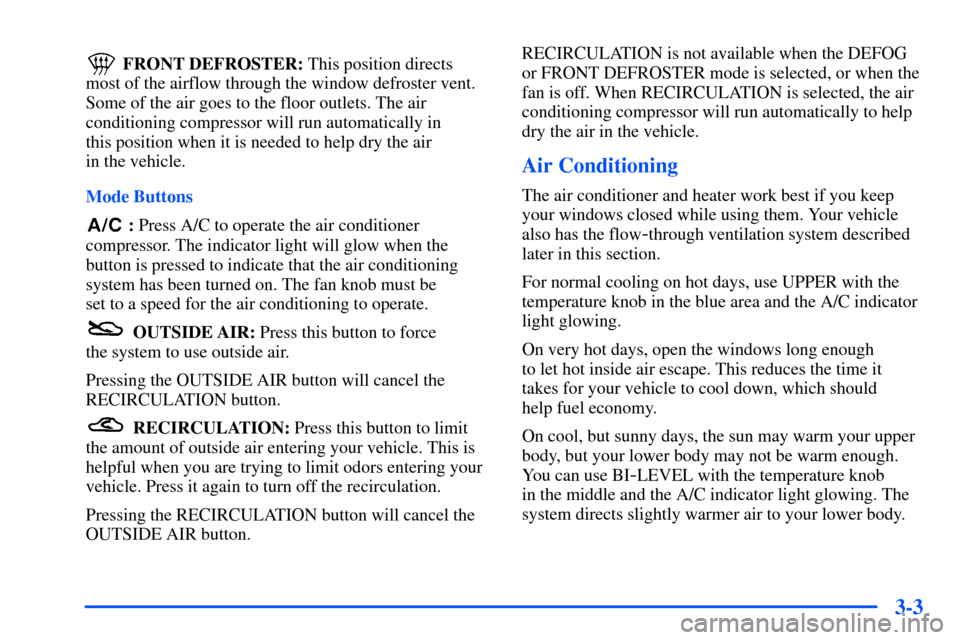

FRONT DEFROSTER: This position directs
most of the airflow through the window defroster vent.
Some of the air goes to the floor outlets. The air
conditioning compressor will run automatically in
this position when it is needed to help dry the air
in the vehicle.
Mode Buttons
: Press A/C to operate the air conditioner
compressor. The indicator light will glow when the
button is pressed to indicate that the air conditioning
system has been turned on. The fan knob must be
set to a speed for the air conditioning to operate.
OUTSIDE AIR: Press this button to force
the system to use outside air.
Pressing the OUTSIDE AIR button will cancel the
RECIRCULATION button.
RECIRCULATION: Press this button to limit
the amount of outside air entering your vehicle. This is
helpful when you are trying to limit odors entering your
vehicle. Press it again to turn off the recirculation.
Pressing the RECIRCULATION button will cancel the
OUTSIDE AIR button.RECIRCULATION is not available when the DEFOG
or FRONT DEFROSTER mode is selected, or when the
fan is off. When RECIRCULATION is selected, the air
conditioning compressor will run automatically to help
dry the air in the vehicle.
Air Conditioning
The air conditioner and heater work best if you keep
your windows closed while using them. Your vehicle
also has the flow
-through ventilation system described
later in this section.
For normal cooling on hot days, use UPPER with the
temperature knob in the blue area and the A/C indicator
light glowing.
On very hot days, open the windows long enough
to let hot inside air escape. This reduces the time it
takes for your vehicle to cool down, which should
help fuel economy.
On cool, but sunny days, the sun may warm your upper
body, but your lower body may not be warm enough.
You can use BI
-LEVEL with the temperature knob
in the middle and the A/C indicator light glowing. The
system directs slightly warmer air to your lower body.

3-4 Heating
On cold days, use FLOOR and the outside air button
with the temperature knob all the way in the red area.
The system will bring in outside air, heat it and send
it to the floor outlets.
Your vehicle has heat ducts that are directed toward the
rear seat. Keep the area under the front seats clear of
obstructions so that the heated air can reach the rear
seat passengers.
If your vehicle has an engine coolant heater, you can use
it to help your system provide warm air faster when it's
cold outside (0
F (
-18
C) or lower). An engine
coolant heater warms the coolant your engine and
heating system use to provide heat. See ªEngine
Coolant Heaterº in the Index.
Defogging and Defrosting Windows
Your system has two settings for clearing the front and
side windows. For each setting, adjust the temperature
knob as desired.
To defrost the front window quickly, turn the temperature
knob all the way in the red area. Use FRONT DEFROSTER
and adjust the fan to the highest speed. To warm passengers
while keeping the front window clean, use DEFOG.
Your vehicle is equipped with side window defogger
vents. The side window defogger vents are located
above the side instrument panel vents. To defrost the
side windows, turn the temperature knob all the way
in the red area. Use FLOOR and adjust the fan to
the highest speed.
To control fogging of the windows, turn the temperature
knob all the way in the red area. Use DEFOG and adjust
the fan to the highest speed.
To defog the side windows while using air conditioning,
use BI
-LEVEL and adjust the fan to the highest speed
and press the A/C button so that the indicator light is
glowing. For added airflow to the side windows aim
the side vents toward the windows and close the
center vents.

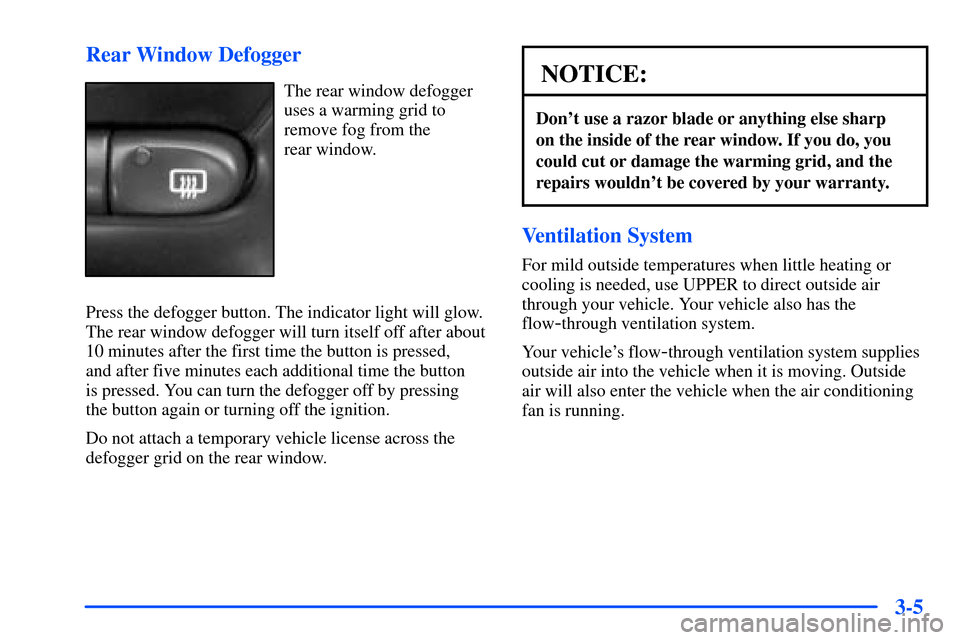

3-5 Rear Window Defogger
The rear window defogger
uses a warming grid to
remove fog from the
rear window.
Press the defogger button. The indicator light will glow.
The rear window defogger will turn itself off after about
10 minutes after the first time the button is pressed,
and after five minutes each additional time the button
is pressed. You can turn the defogger off by pressing
the button again or turning off the ignition.
Do not attach a temporary vehicle license across the
defogger grid on the rear window.NOTICE:
Don't use a razor blade or anything else sharp
on the inside of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn't be covered by your warranty.
Ventilation System
For mild outside temperatures when little heating or
cooling is needed, use UPPER to direct outside air
through your vehicle. Your vehicle also has the
flow
-through ventilation system.
Your vehicle's flow
-through ventilation system supplies
outside air into the vehicle when it is moving. Outside
air will also enter the vehicle when the air conditioning
fan is running.

3-6

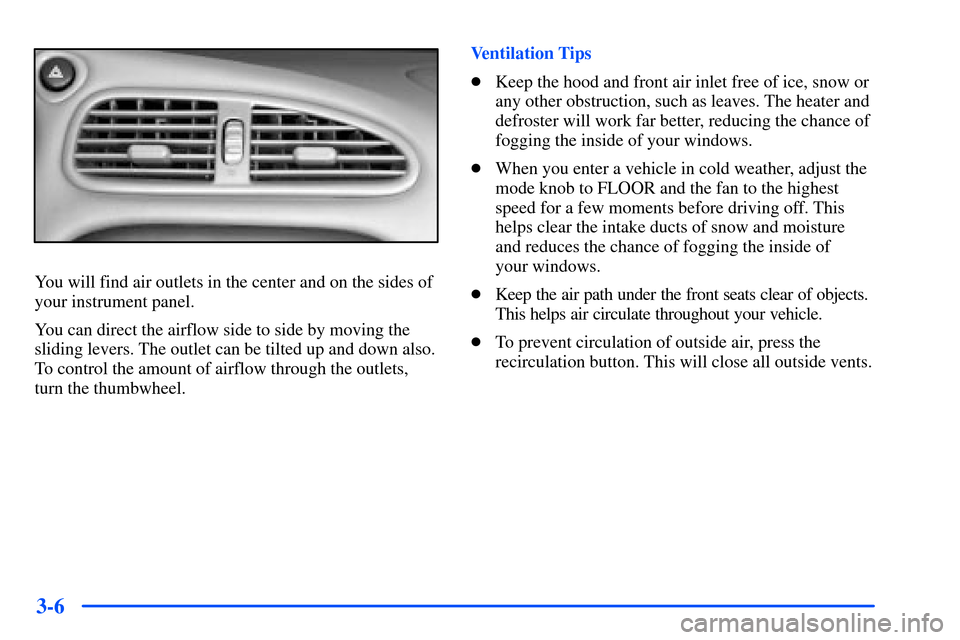

You will find air outlets in the center and on the sides of
your instrument panel.
You can direct the airflow side to side by moving the
sliding levers. The outlet can be tilted up and down also.
To control the amount of airflow through the outlets,
turn the thumbwheel.Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction, such as leaves. The heater and
defroster will work far better, reducing the chance of
fogging the inside of your windows.

When you enter a vehicle in cold weather, adjust the
mode knob to FLOOR and the fan to the highest
speed for a few moments before driving off. This
helps clear the intake ducts of snow and moisture
and reduces the chance of fogging the inside of
your windows.

Keep the air path under the front seats clear of objects.
This helps air circulate throughout your vehicle.

To prevent circulation of outside air, press the
recirculation button. This will close all outside vents.

3-7
Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all its controls, to be sure you're getting the
most out of the advanced engineering that went into it.
Your vehicle has a feature called Retained Accessory
Power (RAP). With RAP, you can play your audio
system even after the ignition is off. See ªRetained
Accessory Powerº in the Index.
Setting the Clock
Press and hold HR until the correct hour appears. The
letters AM or PM may appear on the display for AM or
PM. Then, press and hold MN until the correct minute
appears. The clock may be set with the ignition on or
off. In addition, the clock can also be automatically set,
when tuned to an RDS station that is broadcasting time,
by pressing and holding the HR and the MN button at
the same time. The display will show TIME UPDATED.
If there is no time available, NO UPDATE will
be displayed.
AM-FM Stereo with Compact Disc Player
with Programmable Equalization and
Radio Data System (RDS)
Playing the Radio
VOLUME
-PWR: Press this knob to turn the system
on and off. To increase volume, turn the knob clockwise.
Turn it counterclockwise to decrease volume.

3-8

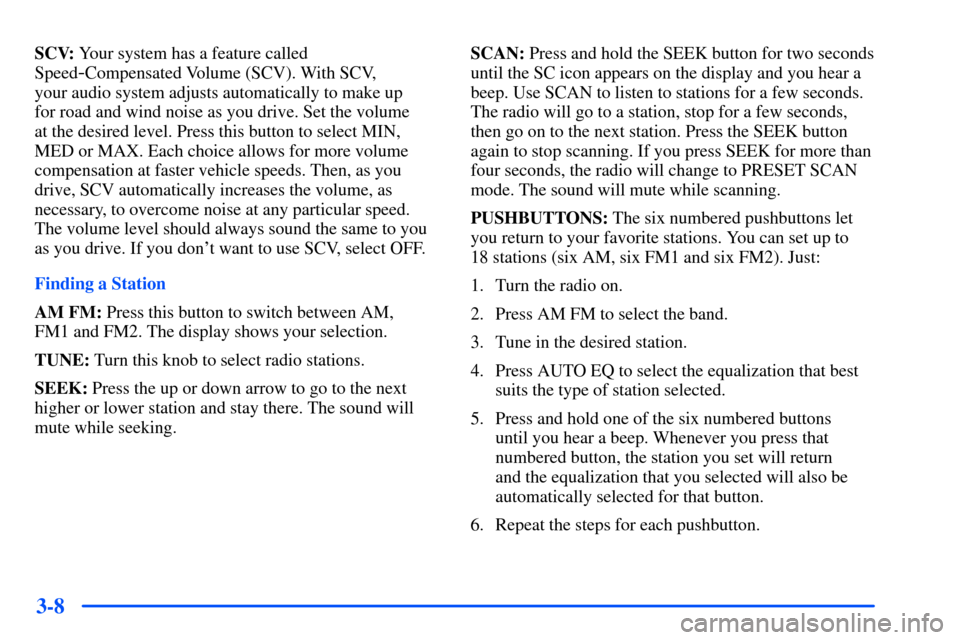

SCV: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV,
your audio system adjusts automatically to make up
for road and wind noise as you drive. Set the volume
at the desired level. Press this button to select MIN,
MED or MAX. Each choice allows for more volume
compensation at faster vehicle speeds. Then, as you
drive, SCV automatically increases the volume, as
necessary, to overcome noise at any particular speed.
The volume level should always sound the same to you
as you drive. If you don't want to use SCV, select OFF.
Finding a Station
AM FM: Press this button to switch between AM,
FM1 and FM2. The display shows your selection.
TUNE: Turn this knob to select radio stations.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.SCAN: Press and hold the SEEK button for two seconds
until the SC icon appears on the display and you hear a
beep. Use SCAN to listen to stations for a few seconds.
The radio will go to a station, stop for a few seconds,
then go on to the next station. Press the SEEK button
again to stop scanning. If you press SEEK for more than
four seconds, the radio will change to PRESET SCAN
mode. The sound will mute while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO EQ to select the equalization that best
suits the type of station selected.
5. Press and hold one of the six numbered buttons
until you hear a beep. Whenever you press that
numbered button, the station you set will return
and the equalization that you selected will also be
automatically selected for that button.
6. Repeat the steps for each pushbutton.
