Run your engine only as long as YOLI must. This saves
fuel. When you
run the engine, make it go a little faster
than just idle. That is, push the accelerator
slightly. This
o
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well-charged battery t
restart the vehicle. and possibly for signaling later on
with your headlamps. Let the heater run for awhile.
--
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortabl e
from the cold.
But do it as little as possible. Preserve the
fuel
as long as you can. To help keep warm? you can get
out of the vehicle and
do some fairly vigorous exercises
every half hour or
so until help comes.
4-27
ProCarManuals.com

Loading Your Vehicle
TIRE-LOADING INFORMATION
OCCUPANTS VEHICLE CAP. WT
FRT. CTR. RR. TOTAL
LBS. KG
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY
WEIGHT XXX COLD TIRE
TIRE SIZE SPEED PRESSURE
RTG PSI;KPa
FRT.
RR.
SPA.
IF TIRES ARE HOT, ADD 4PSI.'28KPa
SEE OWNER'S MANUAL FOR ADDITIONAL
[ INFORMATION
Two labels on your vehicle show how much weight it
may properly carry. The Tire-Loading Information label
found on the rear edge of the driver's door tells
you the
proper size, speed rating and recommended inflation
pressure for the tires on your vehicle.
It also gives YOLI
important information about the number of people that
can be
in your vehicle and the total weight that you can
carry. This weight is called the Vehicle Capacity Weight
and includes the weight of
all occupants, cargo, and all
nonfactory-installed options.
MFD BY GENERAL MOTORS CORP
DATE GVWR GAWR
FRT GAWR RR
THIS VEHICLE CONFORMS TO ALL APPLI-
CABLE U.S. FEDERAL MOTOR VEHICLE
SAFETY, BUMPER, AND THEFT PREVENTION
STANDARDS IN EFFECT
ON THE DATE OF
MANUFACTURE SHOWN ABOVE.
The other label is the Certification label, found on the
rear edge of the driver's door.
It tells you the gross
weight capacity
of your vehicle, called the GVWR
(Gross Vehicle Weight Rating). The GVWR includes
the weight of the vehicle, all occupants, f~~el and cargo.
Never exceed the GVWR for your vehicle, or the Gross
Axle Weight Rating (GAWR) for either the
front of rear
axle.
And,
if you do have a heavy load, you should spread
it out. Don't carry more than I76 lbs. (80 kg) in your
trunk.
ProCarManuals.com

The electronic level control automatically keeps the rear
of the vehicle level as you load or unload your vehicle.
I NOTICE:
Your warranty does not cover parts or
components that fail because
of overloading.
If you put things inside your vehicle - like suitcases,
tools, packages, or anything else - they will go as fast
as the vehicle goes. If you have to stop or turn quickly,
or
if there is a crash, they'll keep going.
4-29
ProCarManuals.com

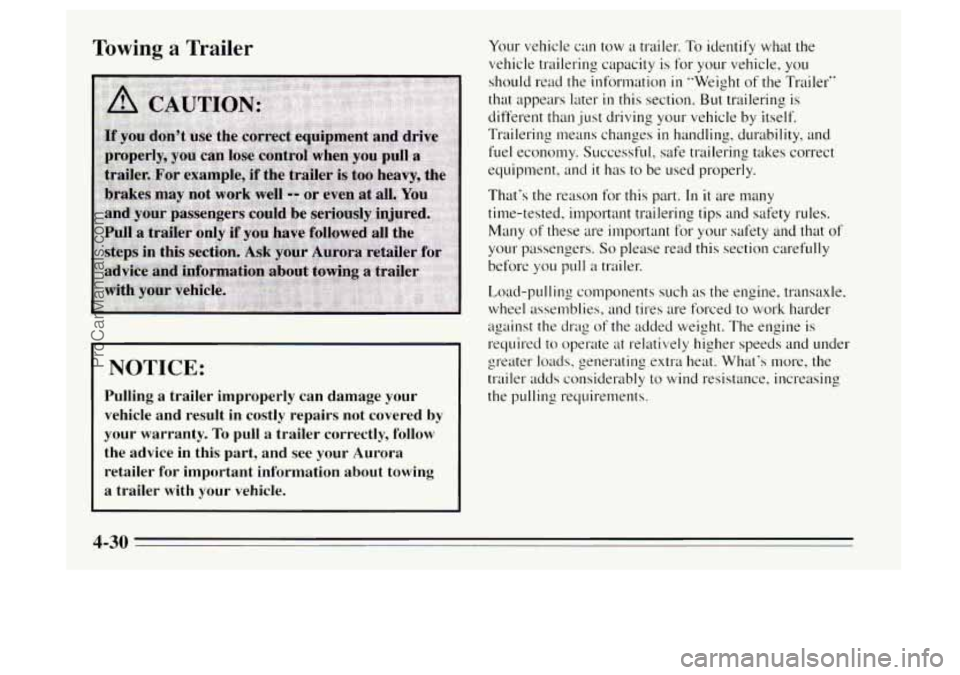

Towing a Trailer
NOTICE:
Pulling a trailer improperly can damage your
vehicle and result in costly repairs not covered by
your warranty.
To pull a trailer correctly, follow
the advice in this part, and see your Aurora
retailer for important information about towing
a trailer with your vehicle.
Your vehicle can tow a trailer. To identify what the
vehicle trailering capacity is for your vehicle,
you
should read the information in "Weight of the Trailer"
that appears later
in this section. But trailering is
different
than just driving your vehicle by itself.
Trailering means changes
in handling, durability, and
fuel economy. Successful, safe trailering takes correct
equipment, and
it has to be used properly.
That's the reason for this part.
In it are many
time-tested, important trailering tips and safety rules.
Many
of these are important for your safety and that of
your passengers. So please read this section carefully
before
you pull a trailer.
Load-pulling components such as the engine, transaxle,
wheel assemblies, and tires are forced to work harder
against the drag
of the added weight. The engine is
required to operate at relatively higher speeds and under
greater loads, generating extra heat. What's more, the
trailer adds considerably
to wind resistance, increasing
the pulling requirements.
4-30
ProCarManuals.com

If You Do Decide To Pull A Trailer
If you do, here are some important points.
0
0
0
0
0
There are many different laws, including speed limit
restrictions, having to do with trailering. M, cl k e sure
your rig
will be legal, not only where you live but
also where you’ll be driving.
A good source for this
information can be state or provincial police.
Consider using
a sway control. You can ask a hitch
retailer about sway controls.
Don’t tow a trailer at all during the first
1,000 miles
( I 600 km) your new vehicle is driven. Your engine,
axle or other parts could be damaged.
Then, during the first
500 miles (800 km) that you
tow a trailer, don’t drive over
50 mph (80 kdh) and
don’t make starts
at full throttle. This helps your
engine and other parts of your vehicle wear
in at the
heavier loads.
Obey speed
limit restrictions when towing a trailer.
Don’t drive fdster than the maximum posted speed
for trailers (or no more than
55 mph (90 km/h)) to
save wear on your vehicle‘s parts. Three
important considerations have to
do with weight:
Weight of the Trailer
How heavy can a trailer’ safely be?
It should never weigh more than 1,000 pounds (450 kg).
But even that can be too heavy.
It depends on how you plan to use your rig. For
example, speed, altitude. road grades, outside
temperature and how much your vehicle is used
to pull a
trailer are
all important. And, it can also depend on any
special equipment that you have
on your vehicle.
You can ask your retailer for
OLI~ trailering information
or advice, or you can write
LIS at:
Customer Assistance Representative
Oldsnlobile Central Office
920 Townsend Street
P.O.
Box 30095
Lansing, MI 48909
In Canada, write to:
General Motors of Canada Limited
Customer Assistance Center
I908 Colonel Sam Drive
Oshawa, Ontario
LIH 8P7.
4-31
ProCarManuals.com

Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because
it affects the total capacity
weight of your vehicle. The capacity weight includes the
curb weight of the vehicle, any cargo you may carry
in
it, and the people who will be riding in the vehicle. And
if you will tow a trailer, you must subtract the tongue
load from your vehicle’s capacity weight because your
vehicle will be carrying that weight, too. See “Loading
Your Vehicle”
in the Index for more information about
your vehicle’s maximum load capacity.
B A
If you’re using a “dead-weight” hitch, the trailer tongue
(A) should weigh 10% of the total loaded trailer weight
(B). If you have a “weight-distributing” hitch, the trailer
tongue
(A) should weigh 12% of the total loaded trailer
weight (B).
After you’ve loaded your trailer, weigh the trailer and
then the tongue, separately, to see
if the weights are
proper.
If they aren’t, YOLI may be able to get them right
simply by moving some items around
in the trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inflated to the
recommended pressure for cold tires. You’ll find these
numbers on the Certification label at the rear edge of the
driver’s door or see “Loading Your Vehicle”
in the
Index. Then be sure you don’t go over the
GVW limit
for your vehicle, including the weight of the trailer
tongue.
4-32
ProCarManuals.com

Hitches Safety Chains
You should
always attach chains between your vehicle
and your trailer. Cross the safety chains under
the tongue
ol'the trailer
so that the tongue will not drop to the road
if it becomes separated from the hitch. Instructions
about safety chains may be provided by
the hitch
manufacturer or by the trailer manufacturer. Follow the
manufacturer's recommendation for attaching safety
chains and
do not attach them to the bumper. Always
leave just enough slack
so you can turn with your rig.
And. never allow safety chains
to drag on the ground.
It's
important
to have the correct hitch equipment.
Crosswinds, large trucks going by, and rough roads are
a
few reasons why you'll need the right hitch. Here are
some rules to follow:
0 Will you have to make any holes in the body of your
vehicle when you install
a trailer hitch'? If you do,
then be sure to seal the holes later when
you remove
the hitch.
If you don't seal them, deadly carbon
monoxide
(CO) from your exhaust can get into your
vehicle (see "Carbon Monoxide"
in the Index). Dirt
and water can. too.
0 The bumpers on your vehicle are not intended for
hitclxs. Do not attach rental hitches or other
bumper-type hitches
to them. Use only a
frame-mounted hitch that does not attach to the
bumper.
Trailer Brakes
Because you have anti-lock brakes, do not try to tap into
your vehicle's brake system.
If you do, both brake
systems won't work well,
or at all.
4-33
ProCarManuals.com

Driving with a Trailer
Towing a trailer requires a certain amount of experience.
Before setting out for the open road,
you'll want to get
to know your rig. Acquaint yourself with the feel of
handling and braking with the added weight
of the
trailer. And always keep
in mind that the vehicle you are
driving is now a good deal longer and not nearly as
responsive as your vehicle is by itself.
Before
you start, check the trailer hitch and platform
(and attachments), safety chains, electrical connector,
lights, tires and mirror adjustment.
If the trailer has
electric brakes, start your vehicle and trailer moving and
then apply the trailer brake controller by Imnd to be sure
the brakes are working. This lets you check your
electrical connection at the same time.
During your
trip, check occasionally to be sure that the
load is secure, and that the lights and any trailer brakes
are still working.
Following Distance
Stay at least twice as far behind the vehicle ahead as you
would when driving your vehicle without a trailer. This
can help you avoid situations that require heavy braking
and sudden turns.
Passing
You'll need more passing distance up ahead when
you're towing a trailer. And, because you're a good deal
longer, you'll need to go much farther beyond the
passed vehicle before
you can return to your lane.
Backing Up
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move yo~~r
hand to the right. Always back
up slowly and, if
possible. have someone guide you.
4-34
ProCarManuals.com

Making Turns
I NOTICE:
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you‘re turning with a trailer, make wider turns
than normal.
Do this so your trailer won’t strike soft
shoulders, curbs, road signs, trees, or other objects.
Avoid jerky or sudden maneuvers. Signal well
in
advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have a
different turn signal flasher and extra wiring. The green
arrows on your instrument panel will flash whenever
you signal a turn or lane change. Properly hooked
up,
the trailer lamps will also flash, telling other drivers
you‘re about to turn, change lanes or stop.
When towing
a trailer, the green arrows on your
instrument panel will flash for turns even
if the bulbs on
the trailer are burned out. Thus. you may think drivers
behind you are seeing your signal when they are not. It’s
important to check occasionally to be sure
the trailer
bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gear h4for-c you start
down a long or steep downgrade.
If you don’t shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.
ProCarManuals.com

Parking on Hills
You really should not park your vehicle, with a trailer
attached,
on a hill. If something goes wrong, your rig
could start
to move. People can be injured, and both
your vehicle and
the trailer can be damaged.
But if you ever have to park your rig on a hill, here‘s
how to do it:
1.
2.
3.
4.
5.
Apply your regular brakes, but don’t shift into
PARK (P) yet.
Have someone place chocks under the trailer wheels.
When the wheel chocks are in place, release the
regular brakes
until the chocks absorb the load.
Reapply the regular brakes. Then apply your parking
brake, and
then shift to PARK (P).
Release the regular brakes.
When You Are Ready to Leave After
Parking on a Hill
I. Apply your regular brakes and hold the pedal down
while you:
Start your engine:
Shift into a gear; and
Release the parking brake.
2. Let LIP on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling
a trailer. See the Maintenance Schedule for more
on this. Things that are especially important
in trailer
operation are automatic transaxle fluid (don’t overfill),
engine oil, belt, cooling system, and brake adjustment.
Each of these
is covered in this manual, and ;he Index will
help you find them quickly. If you’re trailering, it‘s a good
idea to review these sections before you stat your trip.
Check periodically
to see that all hitch nuts and bolts
are tight.
4-36
ProCarManuals.com
