OLDSMOBILE AURORA 1995 Owners Manual

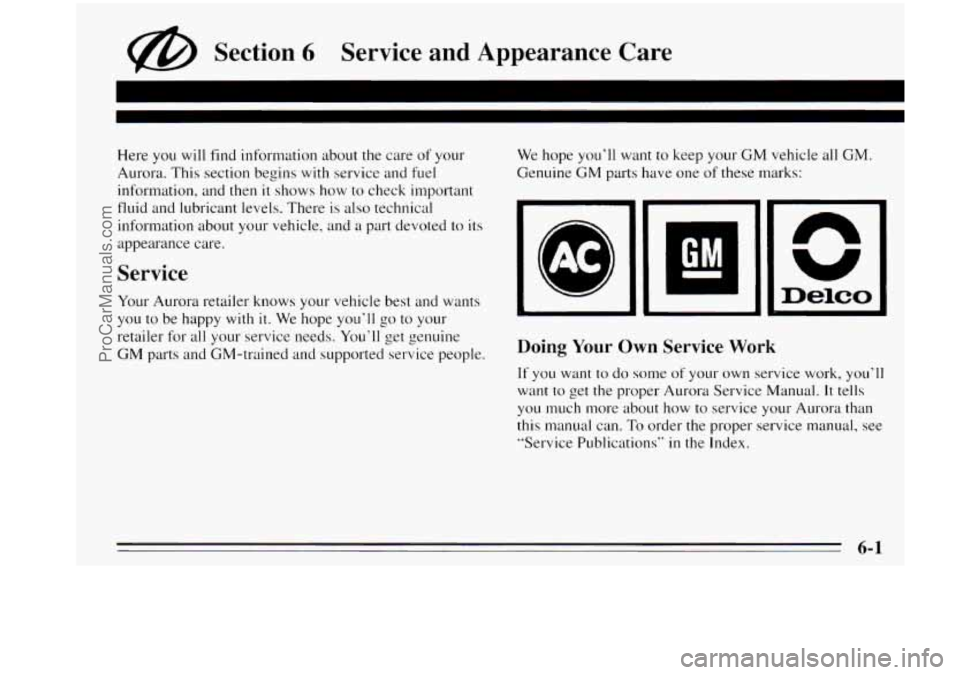

@ Section 6 Service and Appearance Care
Here you will find information about the care of your
Aurora. This section begins with service and fuel
information, and then it shows how to check important
fluid and lubricant levels. There is
also technical
information about your vehicle, and a part devoted to its
appearance care.
Service
Your Aurora retailer knows your vehicle best and wants
you
to be happy with it. We hope you’ll go to your
retailer for
all your service needs. You‘ll get genuine
GM parts and GM-trained and supported service people. We
hope you’ll want
to keep your GM vehicle all GM.
Genuine
GM parts have one of these marks:
Doing Your Own Service Work
If you want to do some of your own service work, you’ll
want to get the proper Aurora Service Manual. It tells
you much more about how to service your Aurora than
this manual can.
To order the proper service manual, see
“Service Publications’‘
in the Index.
6-1
ProCarManuals.com

Your vehicle has an air bag system. Before attempting to
do your own service work, see “Servicing Your Air
Bag-Equipped Aurora” in the Index.
You should keep a record with all parts receipts and list
the mileage and the date of any service work you
perform. See “Maintenance Record” in the Index.
I NOTICE: 1
If you try to do your own service work without
knowing enough about it, your vehicle could be
damaged.
Fuel
Use premium unleaded gasoline rated at 91 octane or
higher. It should meet specifications ASTM D48 14 in
the United States and CGSB 3.5-92 in Canada. These
fuels should have the proper additives,
so you should not
have to add anything to the fuel.
In the United States and Canada, it’s easy
to be sure you
get the right kind of gasoline (unleaded). You’ll see
UNLEADED right on the pump. And only unleaded
nozzles will fit into your vehicle’s filler neck.
Be sure the posted octane is at least 91. If the octane is
less than
91, you may get a heavy knocking noise when
you drive. (In an emergency, you may be able to use
lower octane
-- as low as 87 -- if heavy knocking does
not occur.) If you’re using 91 or higher octane unleaded
gas and
you still get heavy knocking, your engine needs
service.
6-2
ProCarManuals.com

What about gasoline with blending materials that
contain oxygen (oxygenates), such
as MTBE or alcohol‘?
MTRE is “methyl tertiary-butyl ether.” Fuel that is no
more than
15% MTBE is fine for your vehicle.
Ethcrnol is ethyl or grain alcohol. Properly-blended fuel
that
is no more than 10% erhd is fine for your
vehicle.
Metlmzol is methyl or wood alcohol.
NOTICE:
Fuel that is more than 5% methanol is bad for
your vehicle. Don’t use it. It can corrode metal
parts in your fuel system and also damage plastic
and rubber parts. That damage wouldn’t be
covered under your warranty. And even at
5% or
less, there must be “cosolvents” and corrosion
preventers in this fuel to help avoid these
problems.
Gasolines for Cleaner Air
Your use of gasoline with deposit control additives will
help prevent deposits from forming in your engine and
fuel system. That helps keep your engine
in tune and
your emission control system working properly. It’s
good for your vehicle, and you’ll be doing your part for
cleaner air.
Many gasolines are now blended
with oxygenates.
General Motors recommends that you use gasolines with
these blending materials, such as MTBE and ethanol. By
doing
so, you can help clean the air, especially in those
parts of the country that have high carbon monoxide
levels.
In addition, some gasoline suppliers are now producing
reformulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. General Motors
recommends that you use reformulated gasoline.
By
doing so, you can help clean the air, especially in those
parts
of the country that have high ozone levels.
You should ask your service station operators
if their
L. zasolines contain deposit control additives and
oxygenates, and
if they have been reformulated to
reduce vehicle emissions.
6-3
ProCarManuals.com

Fuels in Foreign Countries
If you plan on driving in another country outside the
U.S. or Canada, unleaded fuel may be hard to find. Do
not use leaded gasoline. If you use even one tankful,
your emission controls won't work well or at
all. With
continuous use, spark
plugs can get fouled, the exhaust
system can corrode, and your engine oil can deteriorate
quickly. Your vehicle's oxygen sensor
will be damaged.
All of that means costly repairs that wouldn't be covered
by your warranty.
To check on fuel availability, ask an auto club, or
contact
a major oil company that does business in the
country where you'll be driving.
You can also write us at the following address for
advice. Just tell
LIS where you're going and give your
Vehicle Identification Number
(VIN).
General Motors Overseas Distribution Corporation
North American Export Sales (NAES)
1908 Colonel Sam Drive
Oshawa, Ontario
LlH 8P7
Remote Fuel Door Release
The remote fuel door release can help keep your fuel
tank from being siphoned. Always be sure the fuel door
is closed and latched after refueling.
To open the fuel door
(on the left of the
vehicle), press the
button next to the
trunk release button,
to
the right of the
steering column. The
ignition need
not be
on. The remote fuel
door release
will work
in all transaxle
positions.
6-4
ProCarManuals.com

Remote Fuel Door Manual Release
The fuel door can be
opened lnanually
in
case of an electrical
power failure.
To do
so, first open the trunk.
The release nlechanisln
is on the driver’s side
of the vehicle, at the
top of the
trunk
compartment. Pull the
tab toward you to
release the
fuel door.
NOTICE:
Prying on a locked fuel filler door could damage
it. Use the remote fuel door manual release
located in the trunk.
Filling Your Tank
The cap is behind a hinged door on the left side of your
vehicle.
6-5
ProCarManuals.com

To take off the cap, turn it slowly to the left
(counterclockwise).
While refueling, hang the cap inside the fuel door. Twist
it clockwise to secure it,
if necessary. Be
careful not to spill gasoline. Clean gasoline from
painted surfaces as soon
as possible. See “Cleaning the
Outside
of Your Aurora” in the Index.
When you put the cap back on, turn it to the right until
you hear at least three clicks.
I I
I NOTICE: I
If you need a new cap, be sure to get the right
type. Your retailer can get one for you. If you get
the wrong type, it may not fit or have proper
venting, and your fuel tank and emissions system
might be damaged.
6-6
ProCarManuals.com

Checking Things Under the Hood
The following sections tell you how to check fluids,
lubricants and important parts underhood.
Hood Release
v-
To open the hood. first
pull the hood release
handle inside the vehicle, located
to the
left of the steering
wheel under
the
instrument panel. Then
go to the front
of the vehicle and pull up on the
underhood release.
Lift the
hood.
6-7
ProCarManuals.com

Before closing the hood, be sure all the filler caps are on
properly. Then pull the hood down and close it firmly.
6-8
ProCarManuals.com

4.0L V8 Engine (Code C)
P P P
\
When you open the hood, you’ll see:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Windshield Wdsher Fluid Reservoir
Power Steering Fluid Reservoir
Brake Fluid Reservoir
Engine Coolant Surge Tank
Air Cleaner
Automatic Transaxle Fluid Dipstick
(behind air cleaner)
Engine Oil Dipstick
Engine Oil Fill Cap
Remote Positive Battery Terminal
6-9
ProCarManuals.com

Engine Accessory Belt
The 4.0L Aurora engine uses an engine accessory belt.
This diagram shows the features connected by the belt
routing. See”Maintenance Schedu1e”in the Index for
when to check the belt.
1. Tensioner Arm Pulley
2. Power Steering Pump Pulley
3. Idler Pulley 4.
Alternator Pulley
5. Air Conditioner Compressor Pulley
6. Harmonic Balancer
Engine Oil
If the CHECK 01L LEVEL message or the oil warning
light on the instrument panel comes
on, it means you
need to check your engine oil level right away.
For more
information, see “Check Oil Level Message” or
“Oil
Warning Light” in the Index. You should check your
engine
oil level regularly; this is an added reminder.
It’s a
good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
Turn off the engine and give the
oil a few minutes to
drain back into the oil pan.
If you don’t, the oil dipstick
might not show the actual level.
6-10
